Presentation Transcript

  1. ellipse

  2. Ellipse • The set of all co-planar points whose sum of the distances from two fixed points (foci) are constant.

  3. Ellipse • Definition of major and minor axis minor axis major axis

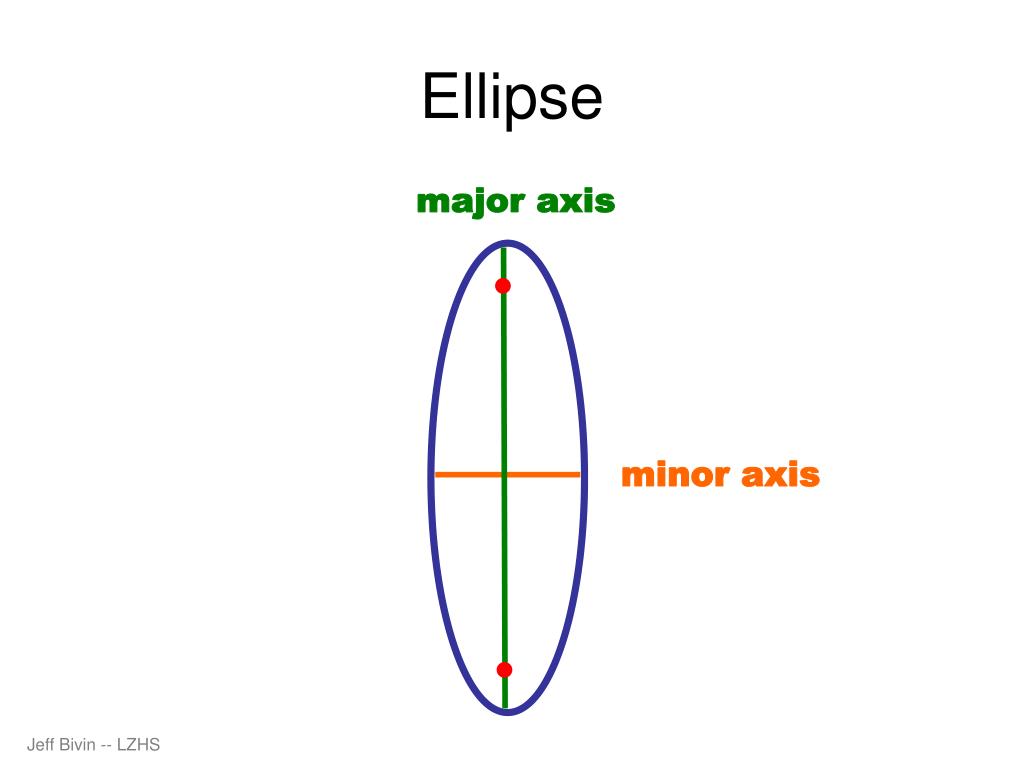

  4. Ellipse major axis minor axis

  5. Ellipse • Definition of vertices • and co-vertices co-verticies verticies verticies endpoint ofmajor axis co-verticies endpoint ofminor axis

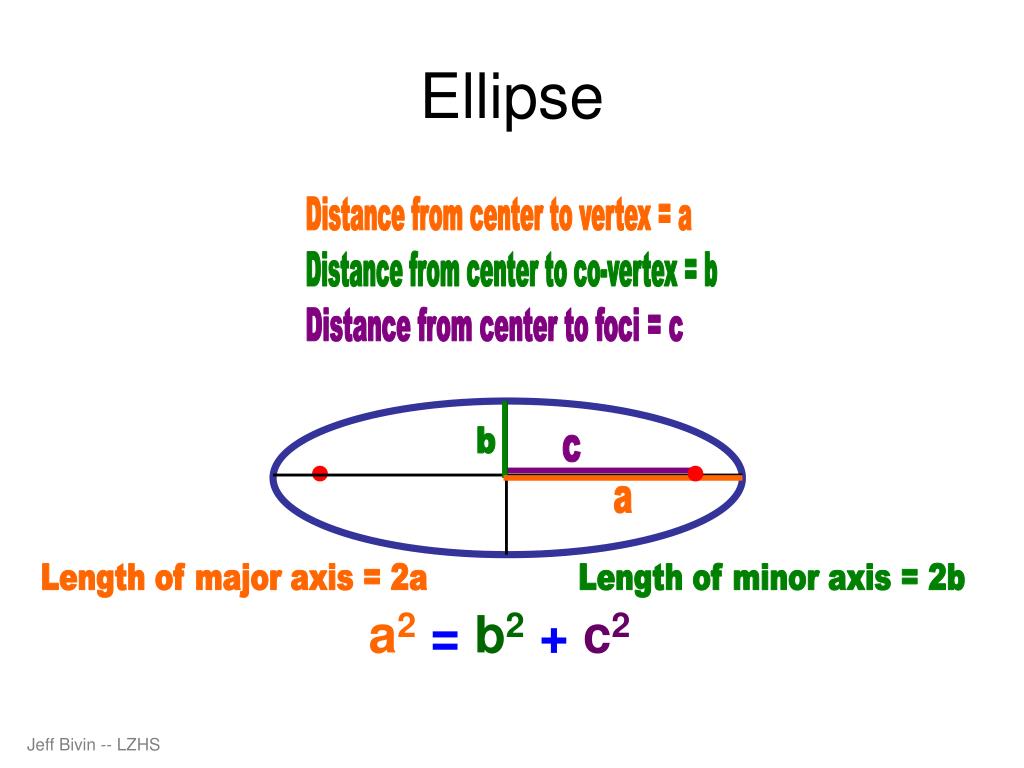

  6. Ellipse Distance from center to vertex = a Distance from center to co-vertex = b Distance from center to foci = c b c a Length of major axis = 2a Length of minor axis = 2b a2 = b2 + c2

  7. Ellipse - horizontal b c a Distance from center to vertex = a a2 = b2 + c2 Distance from center to co-vertex = b Distance from center to foci = c

  8. Ellipse - vertical a c a2 = b2 + c2 b Distance from center to vertex = a Distance from center to co-vertex = b Distance from center to foci = c

  9. Graph the following Ellipse Center: (2, -3) a = 5 in x direction b = 3 in y direction (2, 0) 3 (2, -3) (-3, -3) (7, -3) 5 5 3 (2, -6)

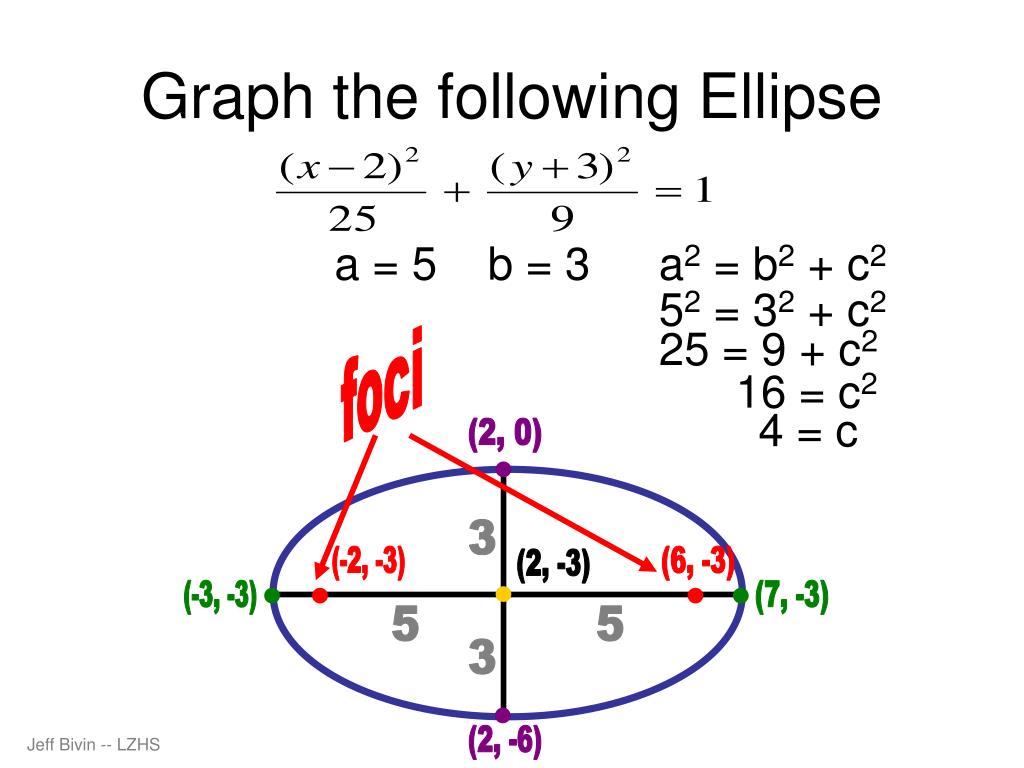

  10. Graph the following Ellipse a = 5 b = 3 a2 = b2 + c2 52 = 32 + c2 25 = 9 + c2 foci 16 = c2 4 = c (2, 0) 3 (-2, -3) (6, -3) (2, -3) (-3, -3) (7, -3) 5 5 3 (2, -6)

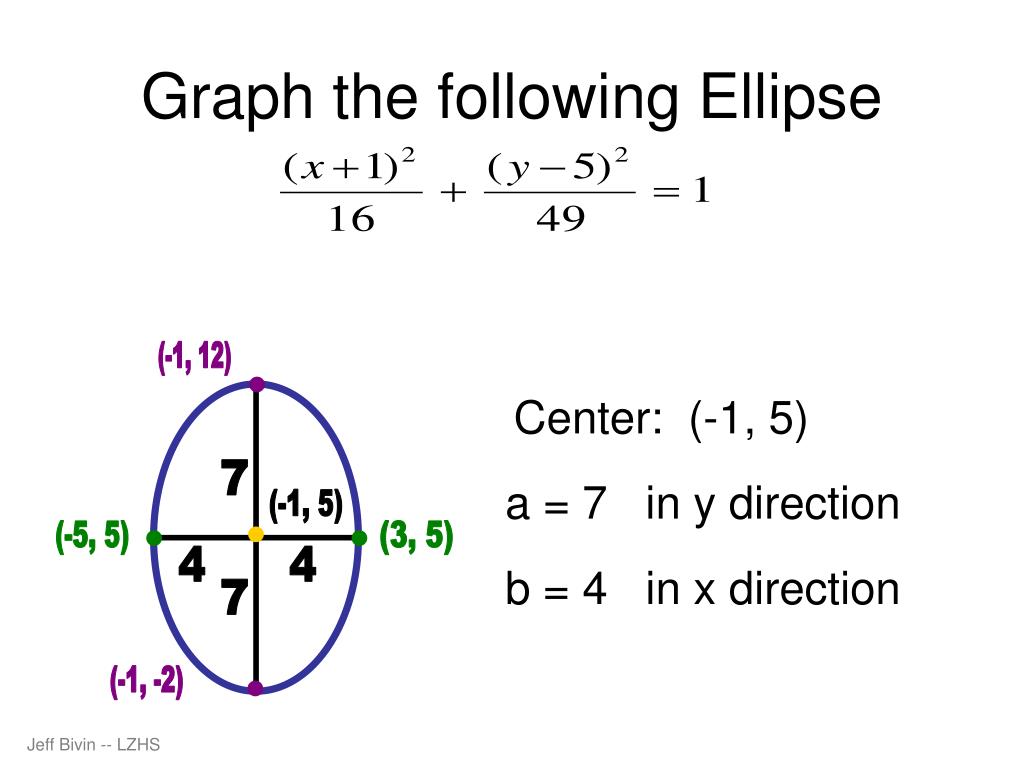

  11. Graph the following Ellipse (-1, 12) Center: (-1, 5) 7 a = 7 in y direction (-1, 5) (-5, 5) (3, 5) 4 4 b = 4 in x direction 7 (-1, -2)

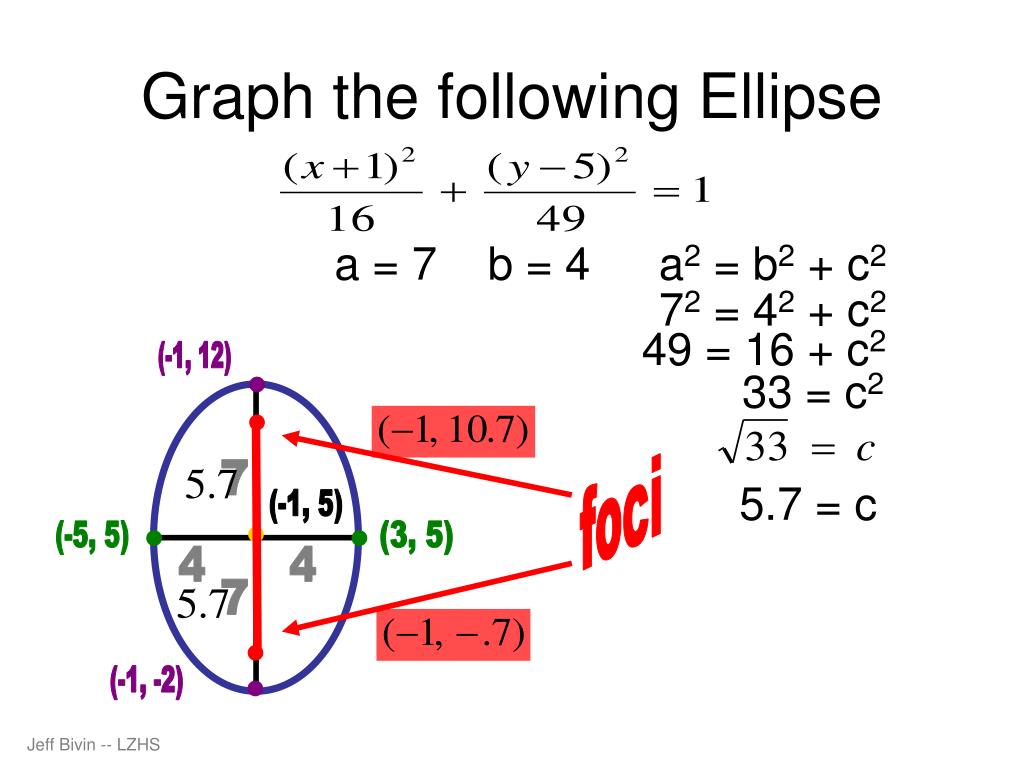

  12. Graph the following Ellipse a = 7 b = 4 a2 = b2 + c2 72 = 42 + c2 49 = 16 + c2 (-1, 12) 33 = c2 foci 7 5.7 = c (-1, 5) (-5, 5) (3, 5) 4 4 7 (-1, -2)

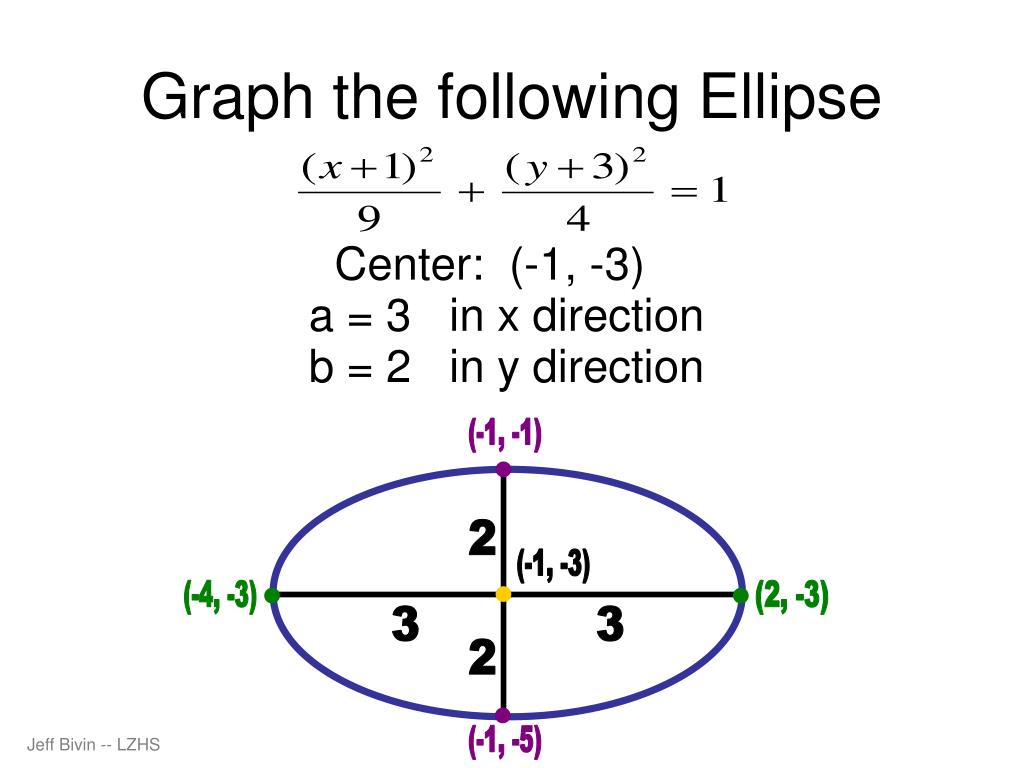

  13. Graph the following Ellipse Center: (-1, -3) a = 3 in x direction b = 2 in y direction (-1, -1) 2 (-1, -3) (-4, -3) (2, -3) 3 3 2 (-1, -5)

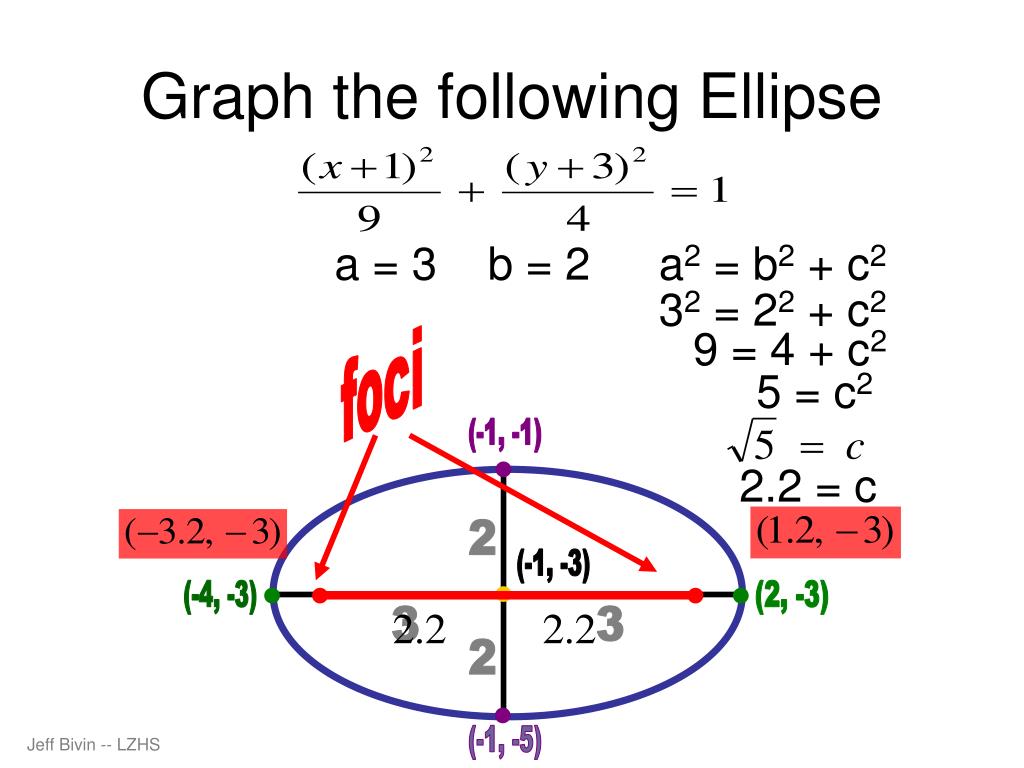

  14. Graph the following Ellipse a = 3 b = 2 a2 = b2 + c2 32 = 22 + c2 9 = 4 + c2 foci 5 = c2 (-1, -1) 2.2 = c 2 (-1, -3) (-4, -3) (2, -3) 3 3 2 (-1, -5)

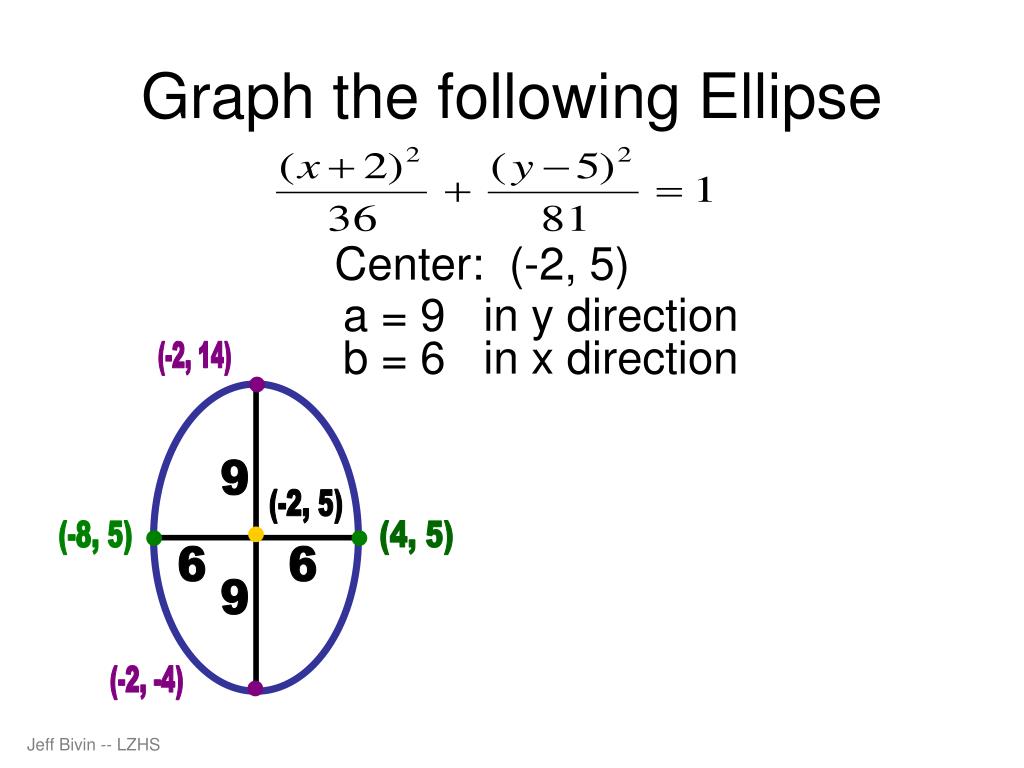

  15. Graph the following Ellipse Center: (-2, 5) a = 9 in y direction b = 6 in x direction (-2, 14) 9 (-2, 5) (-8, 5) (4, 5) 6 6 9 (-2, -4)

  16. Graph the following Ellipse a = 9 b = 6 a2 = b2 + c2 92 = 62 + c2 81 = 36 + c2 (-2, 14) 45 = c2 foci 9 6.7 = c (-2, 5) (-8, 5) (4, 5) 6 6 9 (-2, -4)

  17. Graph the following Ellipse Center: (4, 3) a = 5 in x direction b = 2 in y direction (4, 5) 2 (4, 3) (-1, 3) (9, 3) 5 5 2 (4, 1)

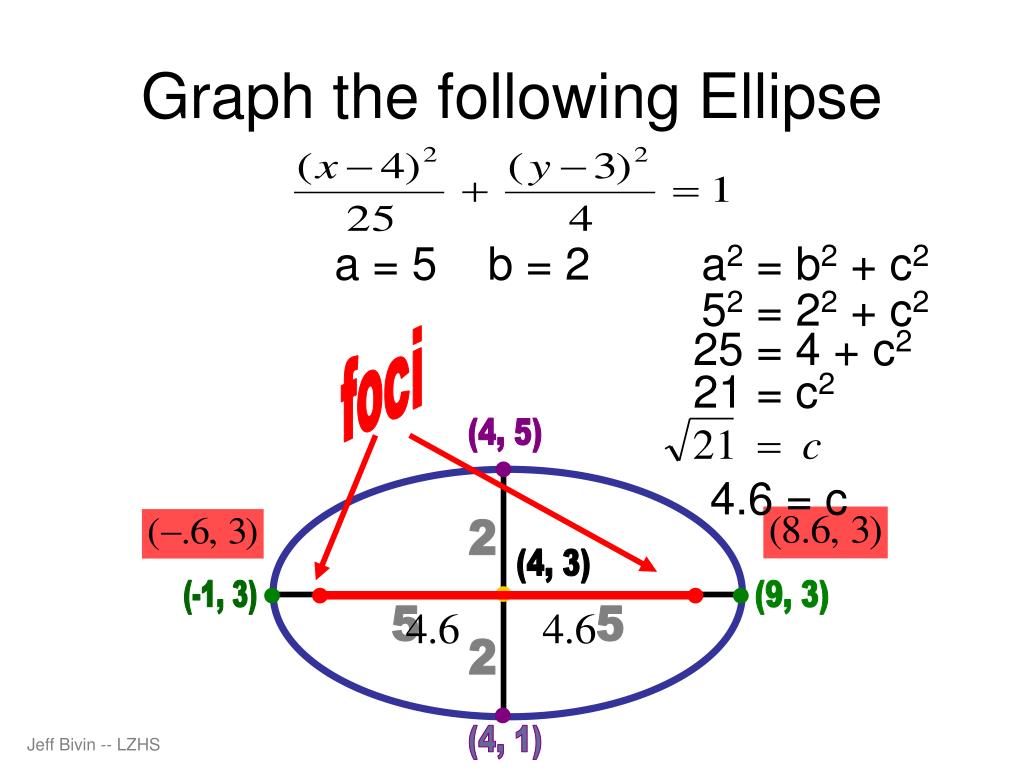

  18. Graph the following Ellipse a = 5 b = 2 a2 = b2 + c2 52 = 22 + c2 25 = 4 + c2 foci 21 = c2 (4, 5) 4.6 = c 2 (4, 3) (-1, 3) (9, 3) 5 5 2 (4, 1)
