  1. SABER Data Quality

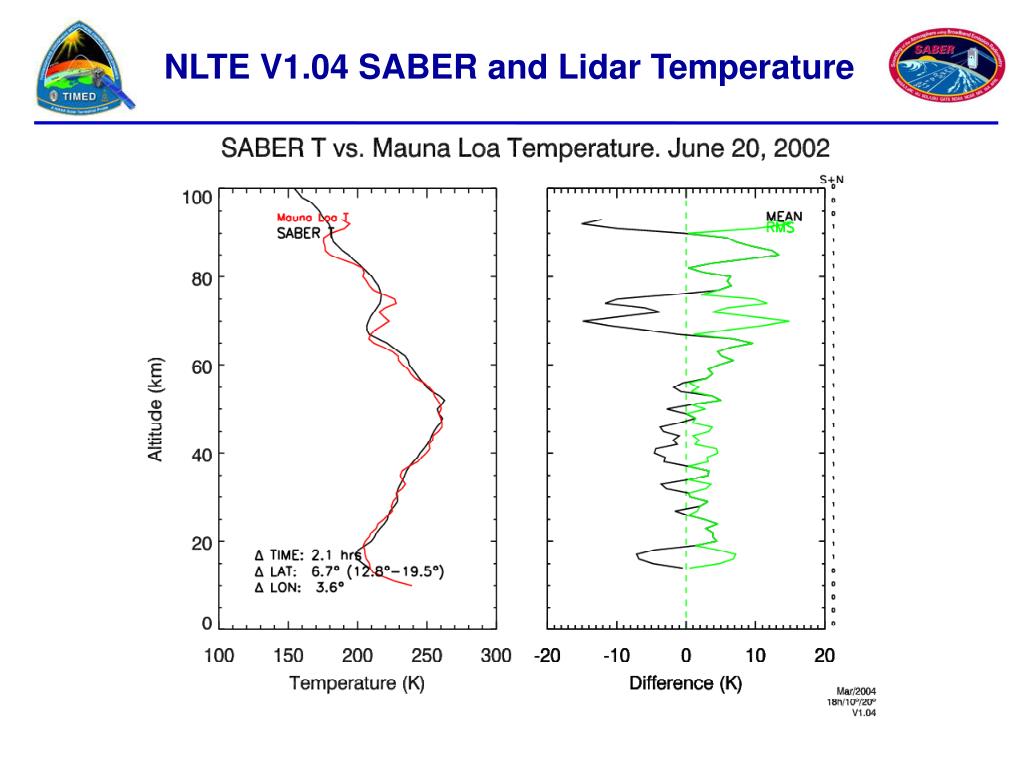

  2. NLTE V1.04 SABER and Lidar Temperature

  3. NLTE V1.04 SABER and Na Lidar Temperature measured during Macwave

  4. NLTE SABER V1.04 Temperature cross section on July 9, 2002

  5. NLTE SABER V1.04 Temperature global plot on July 9, 2002

  6. NLTE SABER and HALOE O3

  7. SABER 9.6m and 1.27m daytime O3 cross section on July 4, 2002

  8. SABER9.6m and 1.27m O3 difference cross sections on July 4, 2002 and March 21, 2003 March 21, 2003 July 4, 2002

  9. NLTE SABER 9.6m and 1.27 m O3 For January 17, 2003 at 45oN

  10. NLTE SABER and HALOE O3

  11. SABER V1.04 Ozone global plot on July 9, 2002

  12. LTE SABER and HALOE H2O

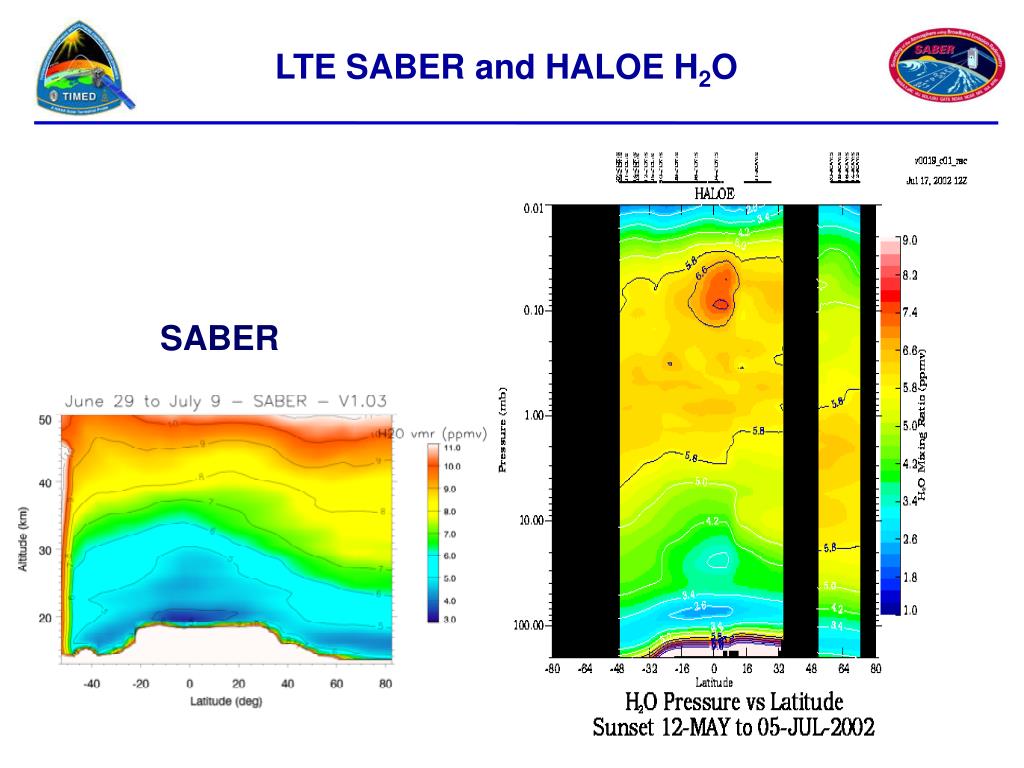

  13. LTE SABER and HALOE H2O SABER

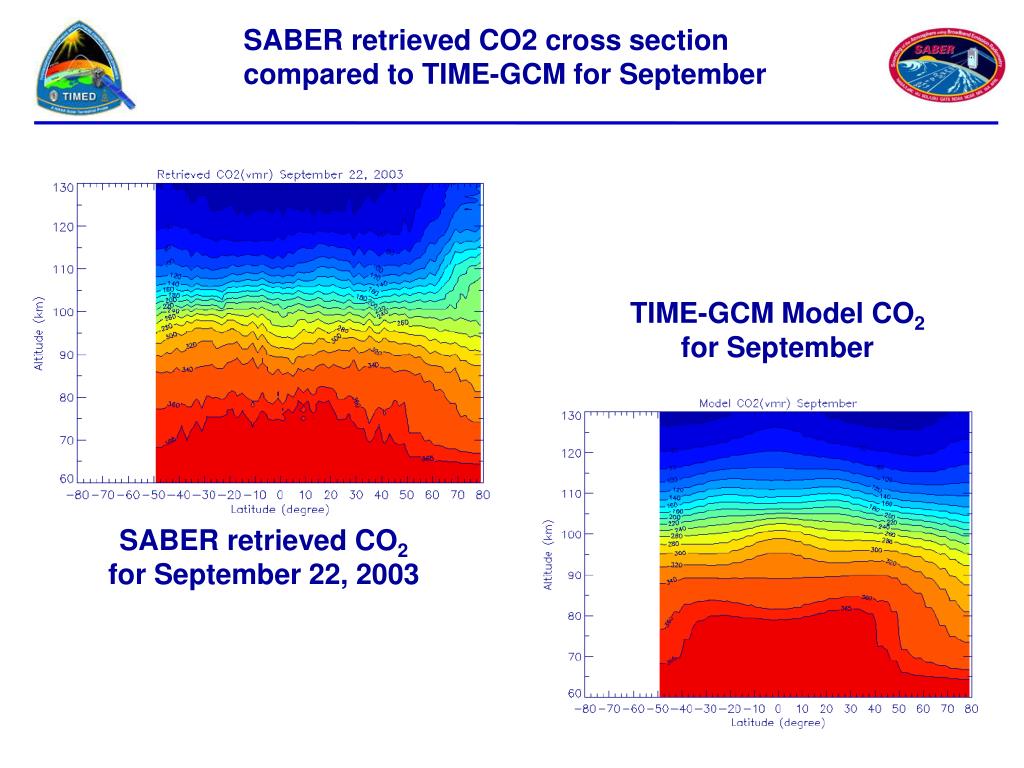

  14. SABER retrieved CO2 cross section compared to TIME-GCM for September TIME-GCM Model CO2 for September SABER retrieved CO2 for September 22, 2003

  15. Improvements from inclusion of CO2 line mixing and adjustment of pressure registration window O3 T Significant T, O3 and H2O changes in right direction H2O

  16. SABER Data Quality Status • Good confidence in retrieved temperatures up to ~95 km - NLTE data especially important outside the tropics • NLTE O3 agrees with HALOE to within ~ 20% for ~ 20 km to 60 km. High bias in the mesosphere with respect to HALOE. • Very good agreement between SABER 1.27m and 9.6m O3 • LTE H2O in the stratosphere biased high with respect to HALOE • Broad scale O3 and H2O morphology appears to be reasonable • Radiance and volume emission rate quality is excellent • Retrievals using line mixing and optimized pressure registration window provides significant improvements
