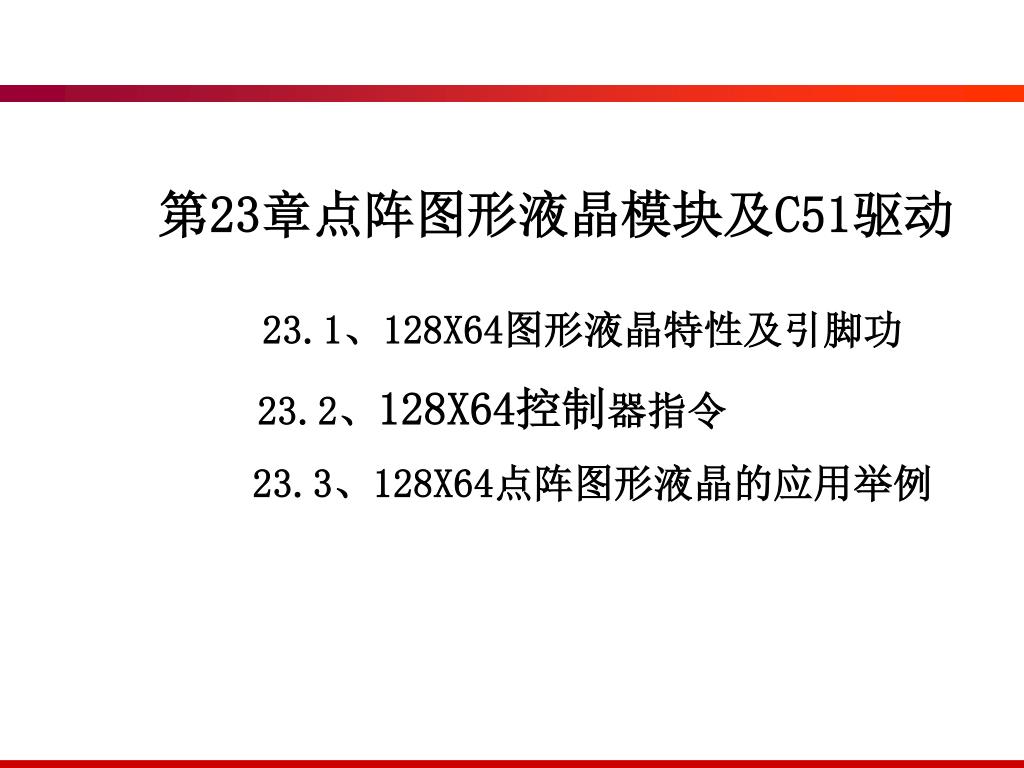

第 23 章点阵图形液晶模块及 C51 驱动

第 23 章点阵图形液晶模块及 C51 驱动. 23.1 、 128X64 图形液晶特性及引脚功 23.2 、 128X64 控制 器指令 23.3 、 128X64 点阵图形液晶的应用举例. 128X64 点阵图形液晶模块的特性. 128X64 点阵图形液晶模块的特性 （ 1 ） +5V 电压，明暗对比度可调整 （ 2 ）背光分为两种：冷光背光和 LED 背光 （ 3 ）行驱动： COM1~COM64 为行地址，由芯片 HD61203 做行驱动 （ 4 ）列驱动： Y1~Y128 为为列地址，由 2 颗芯片 HD61202 做列驱动

vina
Download Presentation

第 23 章点阵图形液晶模块及 C51 驱动

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 第23章点阵图形液晶模块及C51驱动 23.1、128X64图形液晶特性及引脚功 23.2、128X64控制器指令 23.3、128X64点阵图形液晶的应用举例

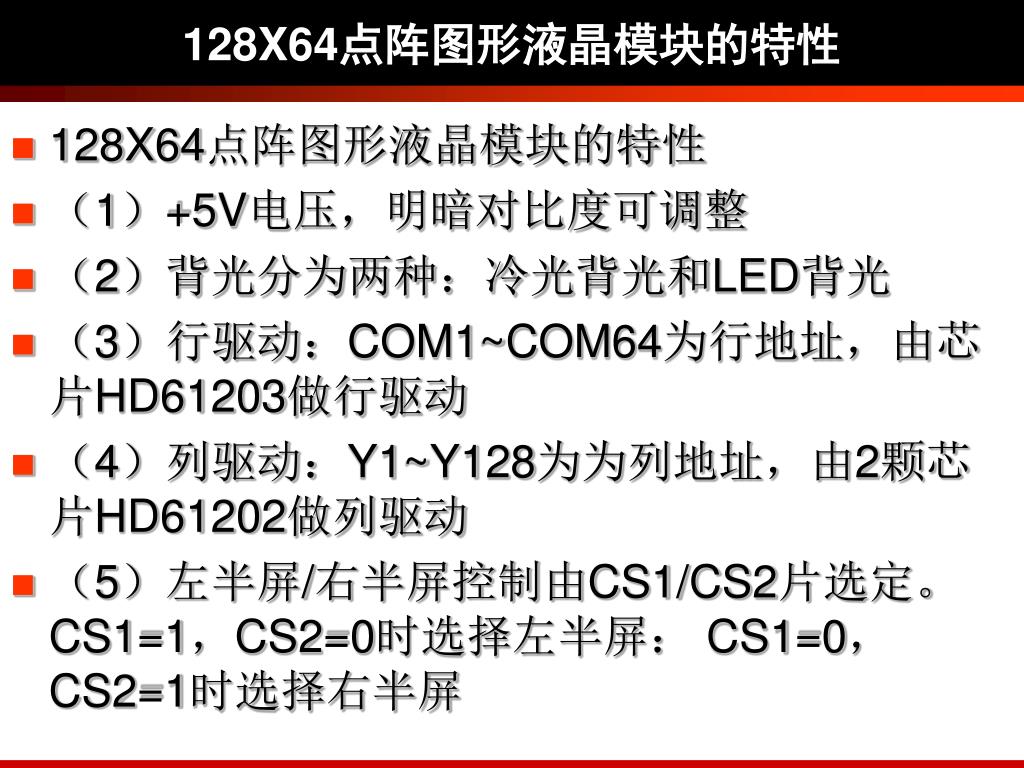

  2. 128X64点阵图形液晶模块的特性 • 128X64点阵图形液晶模块的特性 • （1）+5V电压，明暗对比度可调整 • （2）背光分为两种：冷光背光和LED背光 • （3）行驱动：COM1~COM64为行地址，由芯片HD61203做行驱动 • （4）列驱动：Y1~Y128为为列地址，由2颗芯片HD61202做列驱动 • （5）左半屏/右半屏控制由CS1/CS2片选定。CS1=1，CS2=0时选择左半屏： CS1=0，CS2=1时选择右半屏

  3. 128X64点阵图形液晶模块的引脚及其功能

  4. 128X64点阵图形液晶模块的控制器指令

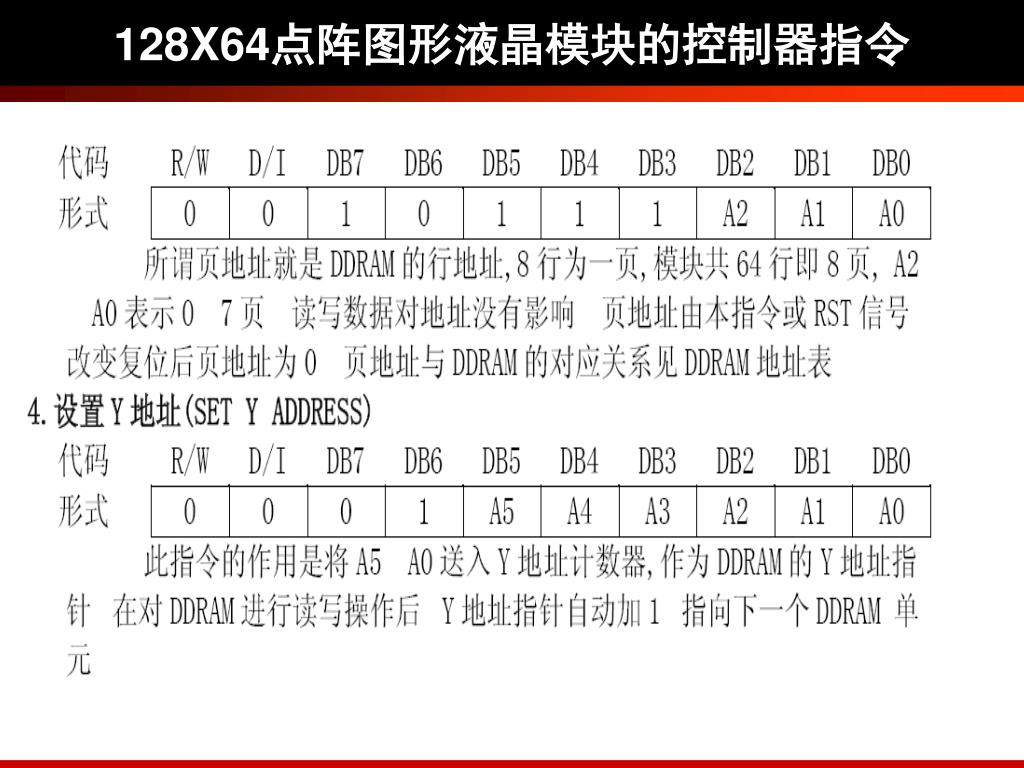

  5. 128X64点阵图形液晶模块的控制器指令

  6. 128X64点阵图形液晶模块的控制器指令

  7. 128X64点阵图形液晶模块的控制器指令

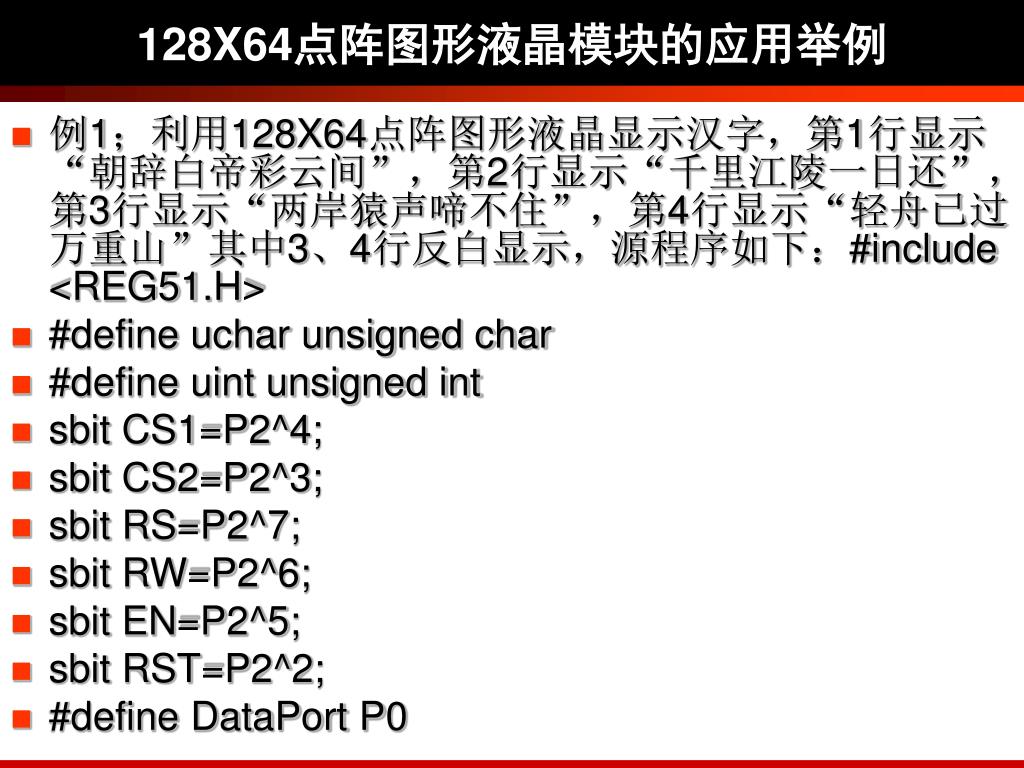

  8. 128X64点阵图形液晶模块的应用举例 • 例1；利用128X64点阵图形液晶显示汉字，第1行显示“朝辞白帝彩云间”，第2行显示“千里江陵一日还”，第3行显示“两岸猿声啼不住”，第4行显示“轻舟已过万重山”其中3、4行反白显示，源程序如下：#include <REG51.H> • #define uchar unsigned char • #define uint unsigned int • sbit CS1=P2^4; • sbit CS2=P2^3; • sbit RS=P2^7; • sbit RW=P2^6; • sbit EN=P2^5; • sbit RST=P2^2; • #define DataPort P0

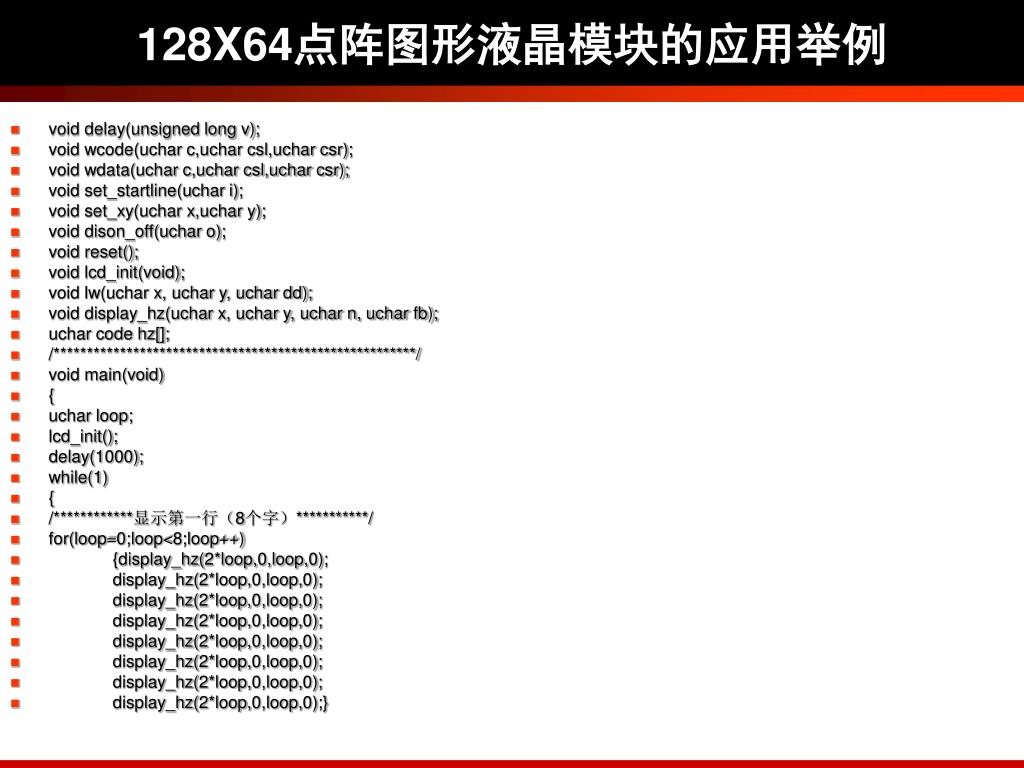

  9. 128X64点阵图形液晶模块的应用举例 • void delay(unsigned long v); • void wcode(uchar c,uchar csl,uchar csr); • void wdata(uchar c,uchar csl,uchar csr); • void set_startline(uchar i); • void set_xy(uchar x,uchar y); • void dison_off(uchar o); • void reset(); • void lcd_init(void); • void lw(uchar x, uchar y, uchar dd); • void display_hz(uchar x, uchar y, uchar n, uchar fb); • uchar code hz[]; • /*******************************************************/ • void main(void) • { • uchar loop; • lcd_init(); • delay(1000); • while(1) • { • /************显示第一行（8个字）***********/ • for(loop=0;loop<8;loop++) • {display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0); • display_hz(2*loop,0,loop,0);}

  10. 128X64点阵图形液晶模块的应用举例 • /*************显示第二行（8个字）**********/ • for(loop=0;loop<8;loop++) • {display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0); • display_hz(2*loop,2,loop+8,0);} • /**************显示第三行（8个字）*************/ • for(loop=0;loop<8;loop++) • {display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1); • display_hz(2*loop,4,loop+16,1);}

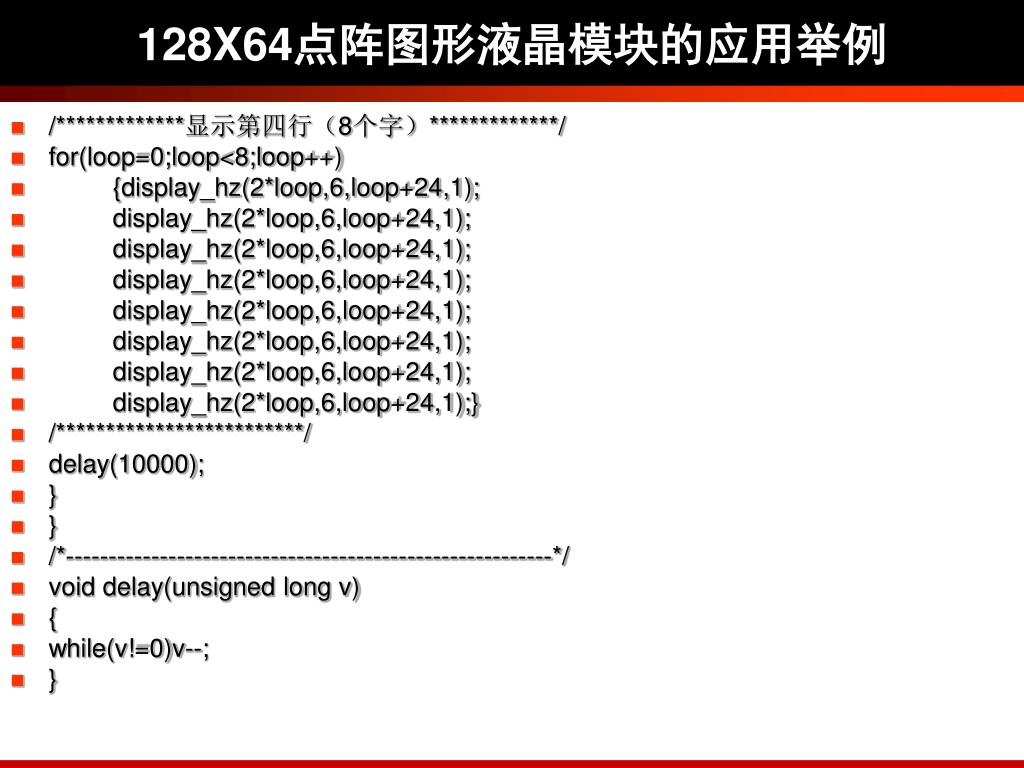

  11. 128X64点阵图形液晶模块的应用举例 • /*************显示第四行（8个字）*************/ • for(loop=0;loop<8;loop++) • {display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1); • display_hz(2*loop,6,loop+24,1);} • /*************************/ • delay(10000); • } • } • /*---------------------------------------------------------*/ • void delay(unsigned long v) • { • while(v!=0)v--; • }

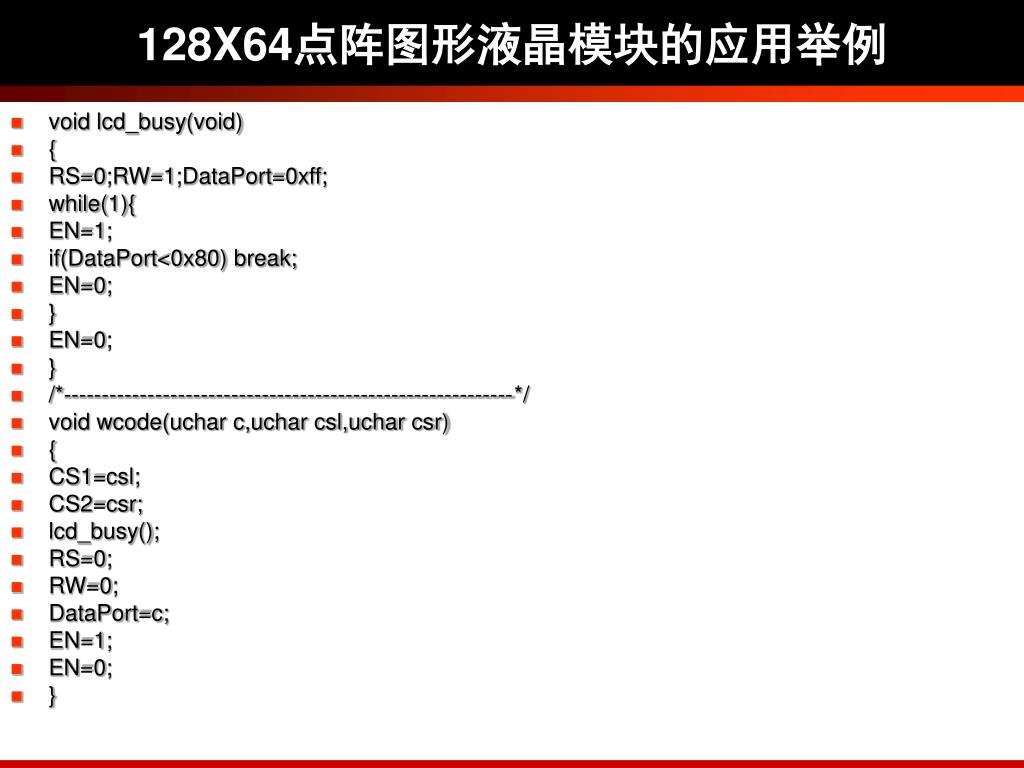

  12. 128X64点阵图形液晶模块的应用举例 • void lcd_busy(void) • { • RS=0;RW=1;DataPort=0xff; • while(1){ • EN=1; • if(DataPort<0x80) break; • EN=0; • } • EN=0; • } • /*-----------------------------------------------------------*/ • void wcode(uchar c,uchar csl,uchar csr) • { • CS1=csl; • CS2=csr; • lcd_busy(); • RS=0; • RW=0; • DataPort=c; • EN=1; • EN=0; • }

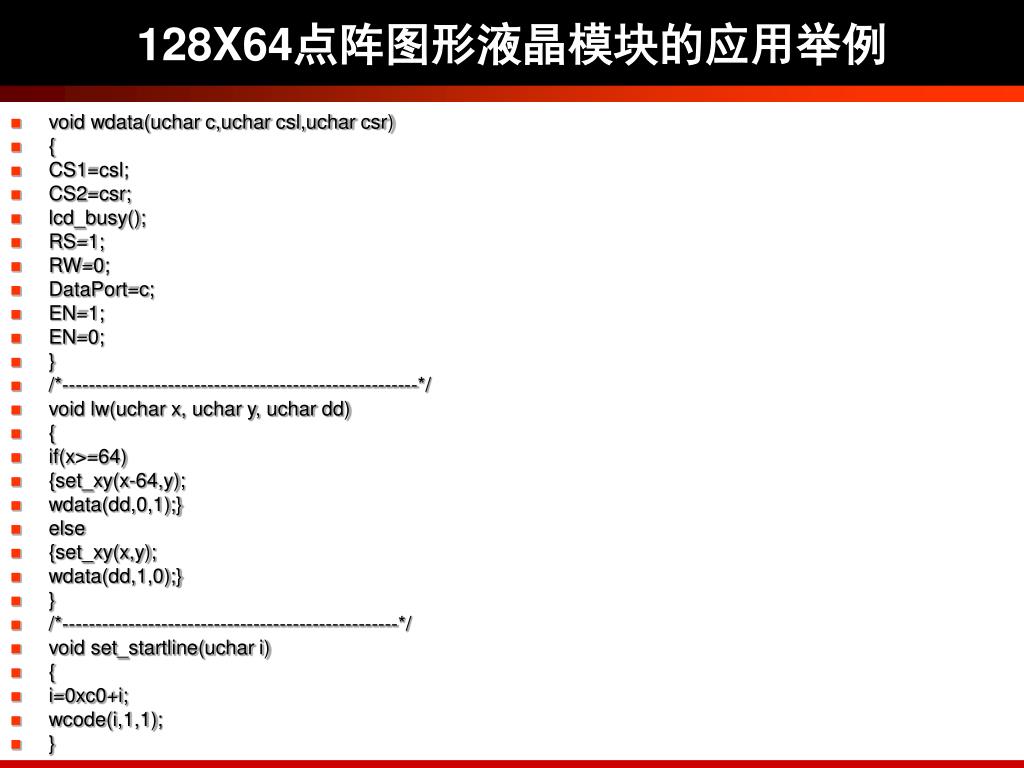

  13. 128X64点阵图形液晶模块的应用举例 • void wdata(uchar c,uchar csl,uchar csr) • { • CS1=csl; • CS2=csr; • lcd_busy(); • RS=1; • RW=0; • DataPort=c; • EN=1; • EN=0; • } • /*------------------------------------------------------*/ • void lw(uchar x, uchar y, uchar dd) • { • if(x>=64) • {set_xy(x-64,y); • wdata(dd,0,1);} • else • {set_xy(x,y); • wdata(dd,1,0);} • } • /*---------------------------------------------------*/ • void set_startline(uchar i) • { • i=0xc0+i; • wcode(i,1,1); • }

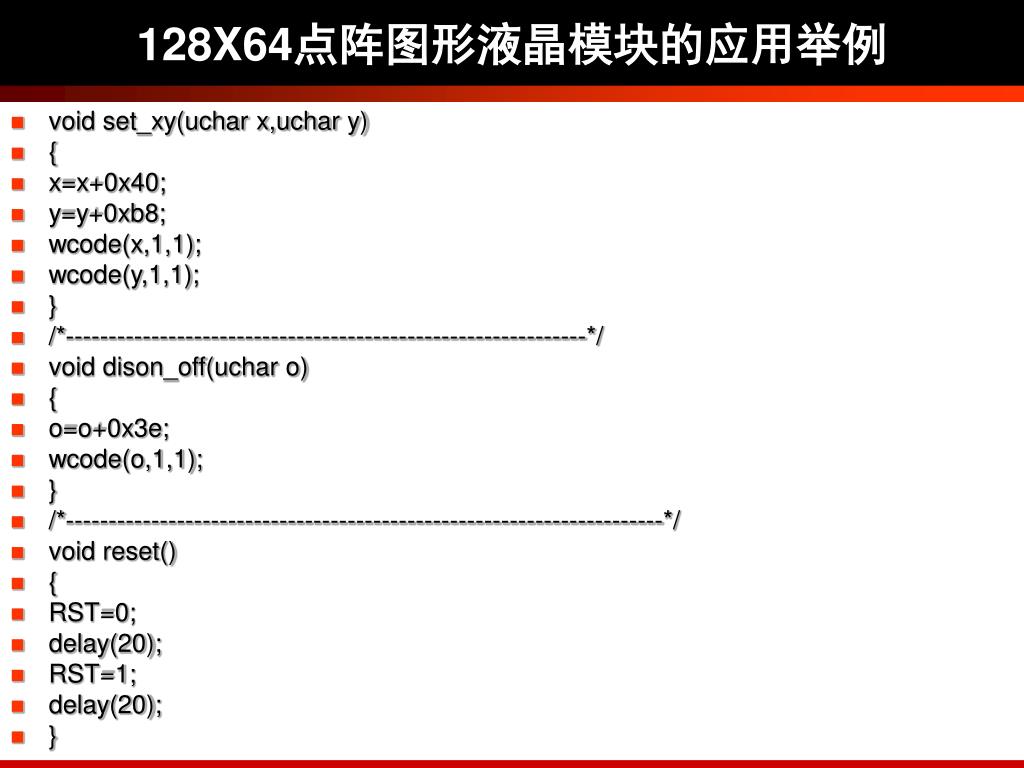

  14. 128X64点阵图形液晶模块的应用举例 • void set_xy(uchar x,uchar y) • { • x=x+0x40; • y=y+0xb8; • wcode(x,1,1); • wcode(y,1,1); • } • /*-------------------------------------------------------------*/ • void dison_off(uchar o) • { • o=o+0x3e; • wcode(o,1,1); • } • /*----------------------------------------------------------------------*/ • void reset() • { • RST=0; • delay(20); • RST=1; • delay(20); • }

  15. 128X64点阵图形液晶模块的应用举例 • void lcd_init(void) • {uchar x,y; • reset(); • set_startline(0); • dison_off(0); • for(y=0;y<8;y++) • { • for(x=0;x<128;x++)lw(x,y,0); • } • dison_off(1); • } • /*----------------------------------------------------------------------------*/ • void display_hz(uchar xx, uchar yy, uchar n, uchar fb) • { • uchar i,dx; • for(i=0;i<16;i++) • {dx=hz[2*i+n*32]; • if(fb)dx=255-dx; • lw(xx*8+i,yy,dx); • dx=hz[(2*i+1)+n*32]; • if(fb)dx=255-dx; • lw(xx*8+i,yy+1,dx); • } • }

  16. 128X64点阵图形液晶模块的应用举例 • uchar code hz[]= • {0x00,0x04,0x00,0x04,0x00,0x04,0xFE,0x04,0x92,0x04,0x92,0x04,0x92,0x04,0x92,0xFF, • 0x92,0x04,0x92,0x04,0x92,0x04,0x92,0x04,0xFE,0x04,0x00,0x04,0x00,0x04,0x00,0x00,/*"早",0*/ • 0x24,0x00,0x24,0x7E,0x24,0x22,0xFC,0x23,0x22,0x22,0x22,0x7E,0xA0,0x00,0x84,0x04, • 0x94,0x04,0xA5,0x04,0x86,0xFF,0x84,0x04,0xA4,0x04,0x94,0x04,0x84,0x04,0x00,0x00,/*"辞",1*/ • 0x00,0x00,0x00,0x00,0xF8,0x7F,0x08,0x21,0x08,0x21,0x0C,0x21,0x0B,0x21,0x08,0x21, • 0x08,0x21,0x08,0x21,0x08,0x21,0x08,0x21,0xF8,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,/*"白",2*/ • 0x80,0x00,0x64,0x00,0x24,0x00,0x24,0x3F,0x2C,0x01,0x34,0x01,0x25,0x01,0xE6,0xFF, • 0x24,0x01,0x24,0x11,0x34,0x21,0x2C,0x1F,0xA4,0x00,0x64,0x00,0x24,0x00,0x00,0x00,/*"帝",3*/ • 0x82,0x20,0x8A,0x10,0xB2,0x08,0x86,0x06,0xDB,0xFF,0xA1,0x02,0x91,0x04,0x8D,0x58, • 0x88,0x48,0x20,0x20,0x10,0x22,0x08,0x11,0x86,0x08,0x64,0x07,0x40,0x02,0x00,0x00,/*"彩",4*/ • 0x40,0x00,0x40,0x20,0x44,0x70,0x44,0x38,0x44,0x2C,0x44,0x27,0xC4,0x23,0xC4,0x31, • 0x44,0x10,0x44,0x12,0x46,0x14,0x46,0x18,0x64,0x70,0x60,0x20,0x40,0x00,0x00,0x00,/*"云",5*/ • 0x00,0x00,0xF8,0xFF,0x01,0x00,0x06,0x00,0x00,0x00,0xF0,0x07,0x92,0x04,0x92,0x04, • 0x92,0x04,0x92,0x04,0xF2,0x07,0x02,0x40,0x02,0x80,0xFE,0x7F,0x00,0x00,0x00,0x00,/*"间",6*/ • 0x00,0x00,0x00,0x00,0x00,0x58,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, • 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"，",7*/ • 0x40,0x00,0x40,0x00,0x44,0x00,0x44,0x00,0x44,0x00,0x44,0x00,0x44,0x00,0xFC,0x7F, • 0x42,0x00,0x42,0x00,0x42,0x00,0x43,0x00,0x42,0x00,0x60,0x00,0x40,0x00,0x00,0x00,/*"千",8*/

  17. 128X64点阵图形液晶模块的应用举例 • 0x00,0x40,0x00,0x40,0xFF,0x44,0x91,0x44,0x91,0x44,0x91,0x44,0x91,0x44,0xFF,0x7F, • 0x91,0x44,0x91,0x44,0x91,0x44,0x91,0x44,0xFF,0x44,0x00,0x40,0x00,0x40,0x00,0x00,/*"里",9*/ • 0x10,0x04,0x60,0x04,0x01,0x7E,0xC6,0x01,0x30,0x20,0x00,0x20,0x04,0x20,0x04,0x20, • 0x04,0x20,0xFC,0x3F,0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x20,0x00,0x20,0x00,0x00,/*"江",10*/ • 0x00,0x00,0xFE,0xFF,0x22,0x02,0x5A,0x04,0x86,0x43,0x10,0x48,0x94,0x24,0x74,0x22, • 0x94,0x15,0x1F,0x09,0x34,0x15,0x54,0x23,0x94,0x60,0x94,0xC0,0x10,0x40,0x00,0x00,/*"陵",11*/ • 0x00,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00, • 0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xC0,0x00,0x80,0x00,0x00,0x00,/*"一",12*/ • 0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x3F,0x42,0x10,0x42,0x10,0x42,0x10,0x42,0x10, • 0x42,0x10,0x42,0x10,0x42,0x10,0xFE,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"日",13*/ • 0x40,0x40,0x41,0x20,0xCE,0x1F,0x04,0x20,0x00,0x42,0x02,0x41,0x82,0x40,0x42,0x40, • 0xF2,0x5F,0x0E,0x40,0x42,0x40,0x82,0x40,0x02,0x47,0x02,0x42,0x00,0x40,0x00,0x00,/*"还",14*/ • 0x00,0x00,0x00,0x00,0x00,0x58,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, • 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"，",15*/ • 0x02,0x00,0xF2,0x7F,0x12,0x08,0x12,0x04,0x12,0x03,0xFE,0x00,0x92,0x10,0x12,0x09, • 0x12,0x06,0xFE,0x01,0x12,0x01,0x12,0x26,0x12,0x40,0xFB,0x3F,0x12,0x00,0x00,0x00,/*"两",16*/

  18. 128X64点阵图形液晶模块的应用举例 • 0x00,0x40,0x00,0x20,0xE0,0x1F,0x2E,0x04,0xA8,0x04,0xA8,0x04,0xA8,0x04,0xA8,0x04, • 0xAF,0xFF,0xA8,0x04,0xA8,0x04,0xA8,0x04,0xA8,0x04,0xAE,0x04,0x20,0x04,0x00,0x00,/*"岸",17*/ • 0x20,0x04,0x12,0x42,0x0C,0x81,0x9C,0x40,0xE3,0x3F,0x10,0x10,0x14,0x08,0xD4,0xFD, • 0x54,0x43,0x5F,0x27,0x54,0x09,0x54,0x11,0xD4,0x69,0x14,0xC4,0x10,0x44,0x00,0x00,/*"猿",18*/ • 0x02,0x40,0x12,0x30,0xD2,0x0F,0x52,0x02,0x52,0x02,0x52,0x02,0x52,0x02,0xDF,0x03, • 0x52,0x02,0x52,0x02,0x52,0x02,0x52,0x02,0xD2,0x07,0x12,0x00,0x02,0x00,0x00,0x00,/*"声",19*/ • 0xFC,0x0F,0x04,0x02,0x04,0x02,0xFC,0x07,0x80,0x00,0x64,0x00,0x24,0x3F,0x2C,0x01, • 0x35,0x01,0xE6,0xFF,0x24,0x11,0x34,0x21,0xAC,0x1F,0x66,0x00,0x24,0x00,0x00,0x00,/*"啼",20*/ • 0x00,0x00,0x02,0x08,0x02,0x04,0x02,0x02,0x02,0x01,0x82,0x00,0x42,0x00,0xFE,0x7F, • 0x06,0x00,0x42,0x00,0xC2,0x00,0x82,0x01,0x02,0x07,0x03,0x02,0x02,0x00,0x00,0x00,/*"不",21*/ • 0x40,0x00,0x20,0x00,0xF0,0x7F,0x0C,0x00,0x03,0x20,0x08,0x21,0x08,0x21,0x09,0x21, • 0x0A,0x21,0xFC,0x3F,0x08,0x21,0x08,0x21,0x8C,0x21,0x08,0x31,0x00,0x20,0x00,0x00,/*"住",22*/ • 0x00,0x00,0x00,0x00,0x00,0x58,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, • 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"，",23*/ • 0xC4,0x08,0xB4,0x08,0x8F,0x08,0xF4,0xFF,0x84,0x04,0x84,0x44,0x04,0x41,0x82,0x41, • 0x42,0x41,0x22,0x41,0x12,0x7F,0x2A,0x41,0x46,0x41,0xC2,0x41,0x00,0x41,0x00,0x00,/*"轻",24*/ • 0x80,0x00,0x80,0x80,0x80,0x40,0x80,0x30,0xFC,0x0F,0x84,0x00,0x86,0x02,0x95,0x04, • 0xA4,0x0C,0x84,0x40,0x84,0x80,0xFC,0x7F,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x00,/*"舟",25*/ • 0x00,0x00,0x00,0x00,0xE2,0x3F,0x42,0x20,0x42,0x20,0x42,0x20,0x42,0x20,0x42,0x20, • 0x42,0x20,0x42,0x20,0x42,0x20,0x7E,0x20,0x00,0x20,0x00,0x3C,0x00,0x10,0x00,0x00,/*"已",26*/

  19. 128X64点阵图形液晶模块的应用举例 • 0x80,0x40,0x81,0x20,0x8E,0x1F,0x04,0x20,0x00,0x20,0x10,0x40,0x50,0x40,0x90,0x43, • 0x10,0x41,0x10,0x48,0x10,0x50,0xFF,0x4F,0x10,0x40,0x10,0x40,0x10,0x40,0x00,0x00,/*"过",27*/ • 0x00,0x00,0x02,0x40,0x02,0x20,0x02,0x10,0x02,0x0C,0x82,0x03,0x7E,0x00,0x22,0x00, • 0x22,0x20,0x22,0x60,0x22,0x20,0xF2,0x1F,0x22,0x00,0x02,0x00,0x02,0x00,0x00,0x00,/*"万",28*/ • 0x08,0x40,0x08,0x40,0x0A,0x48,0xEA,0x4B,0xAA,0x4A,0xAA,0x4A,0xAA,0x4A,0xFF,0x7F, • 0xA9,0x4A,0xA9,0x4A,0xA9,0x4A,0xE9,0x4B,0x08,0x48,0x08,0x40,0x08,0x40,0x00,0x00,/*"重",29*/ • 0x00,0x00,0x00,0x20,0xE0,0x7F,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0xFF,0x3F, • 0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0xE0,0x7F,0x00,0x00,0x00,0x00,/*"山",30*/ • 0x00,0x00,0x00,0x18,0x00,0x24,0x00,0x24,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00, • 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};/*"。",31*/

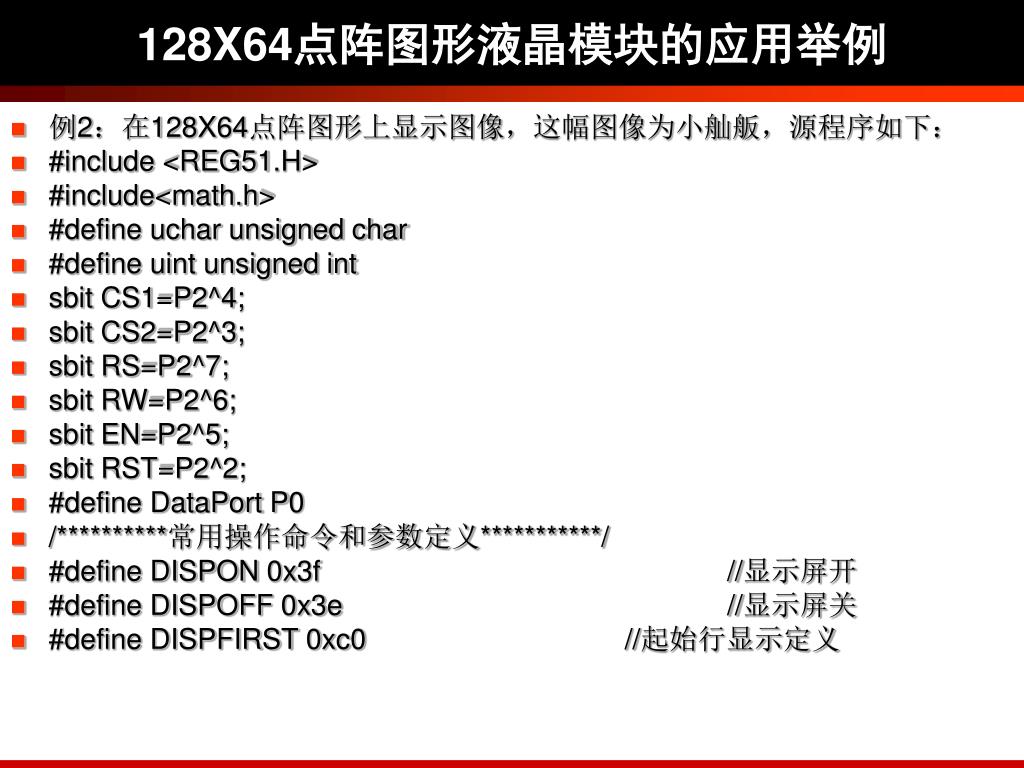

  20. 128X64点阵图形液晶模块的应用举例 • 例2：在128X64点阵图形上显示图像，这幅图像为小舢舨，源程序如下： • #include <REG51.H> • #include<math.h> • #define uchar unsigned char • #define uint unsigned int • sbit CS1=P2^4; • sbit CS2=P2^3; • sbit RS=P2^7; • sbit RW=P2^6; • sbit EN=P2^5; • sbit RST=P2^2; • #define DataPort P0 • /**********常用操作命令和参数定义***********/ • #define DISPON 0x3f //显示屏开 • #define DISPOFF 0x3e //显示屏关 • #define DISPFIRST 0xc0 //起始行显示定义

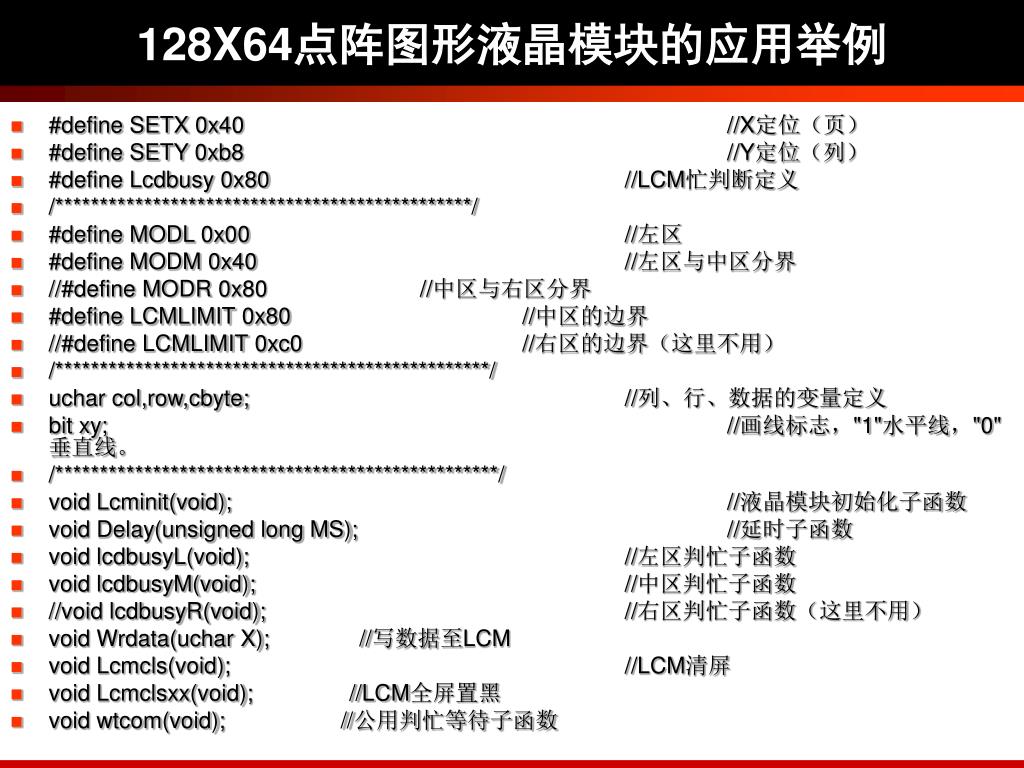

  21. 128X64点阵图形液晶模块的应用举例 • #define SETX 0x40 //X定位（页） • #define SETY 0xb8 //Y定位（列） • #define Lcdbusy 0x80 //LCM忙判断定义 • /***********************************************/ • #define MODL 0x00 //左区 • #define MODM 0x40 //左区与中区分界 • //#define MODR 0x80 //中区与右区分界 • #define LCMLIMIT 0x80 //中区的边界 • //#define LCMLIMIT 0xc0 //右区的边界（这里不用） • /*************************************************/ • uchar col,row,cbyte; //列、行、数据的变量定义 • bit xy; //画线标志，"1"水平线，"0"垂直线。 • /**************************************************/ • void Lcminit(void); //液晶模块初始化子函数 • void Delay(unsigned long MS); //延时子函数 • void lcdbusyL(void); //左区判忙子函数 • void lcdbusyM(void); //中区判忙子函数 • //void lcdbusyR(void); //右区判忙子函数（这里不用） • void Wrdata(uchar X); //写数据至LCM • void Lcmcls(void); //LCM清屏 • void Lcmclsxx(void); //LCM全屏置黑 • void wtcom(void); //公用判忙等待子函数

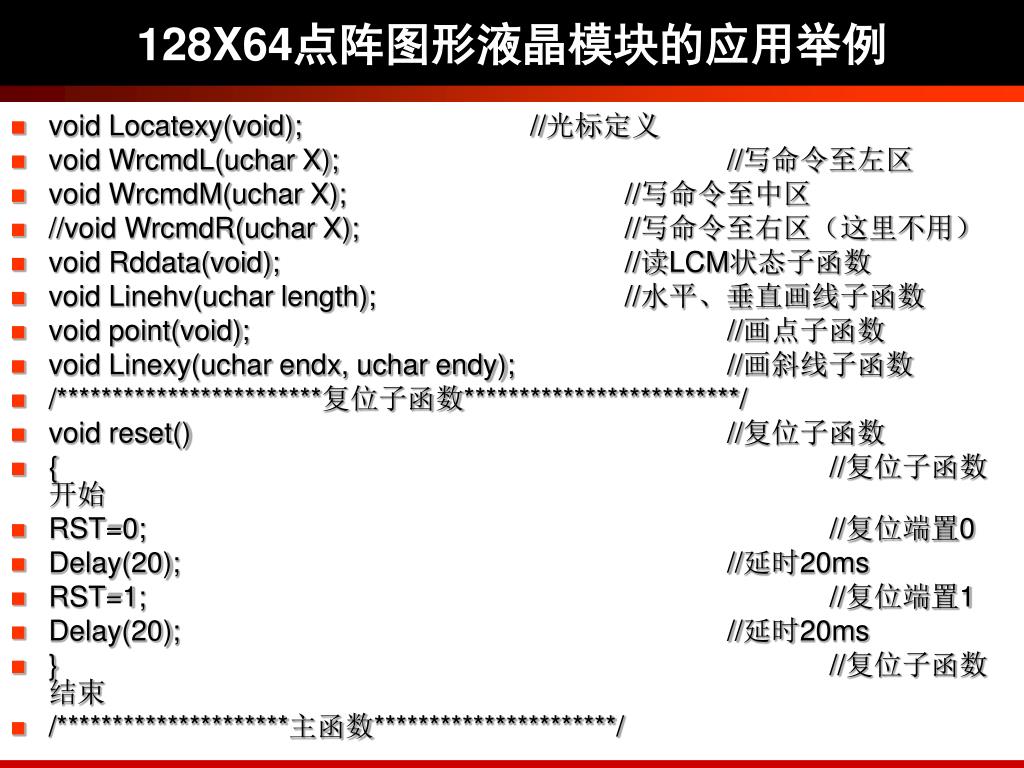

  22. 128X64点阵图形液晶模块的应用举例 • void Locatexy(void); //光标定义 • void WrcmdL(uchar X); //写命令至左区 • void WrcmdM(uchar X); //写命令至中区 • //void WrcmdR(uchar X); //写命令至右区（这里不用） • void Rddata(void); //读LCM状态子函数 • void Linehv(uchar length); //水平、垂直画线子函数 • void point(void); //画点子函数 • void Linexy(uchar endx, uchar endy); //画斜线子函数 • /************************复位子函数*************************/ • void reset() //复位子函数 • { //复位子函数开始 • RST=0; //复位端置0 • Delay(20); //延时20ms • RST=1; //复位端置1 • Delay(20); //延时20ms • } //复位子函数结束 • /*********************主函数**********************/

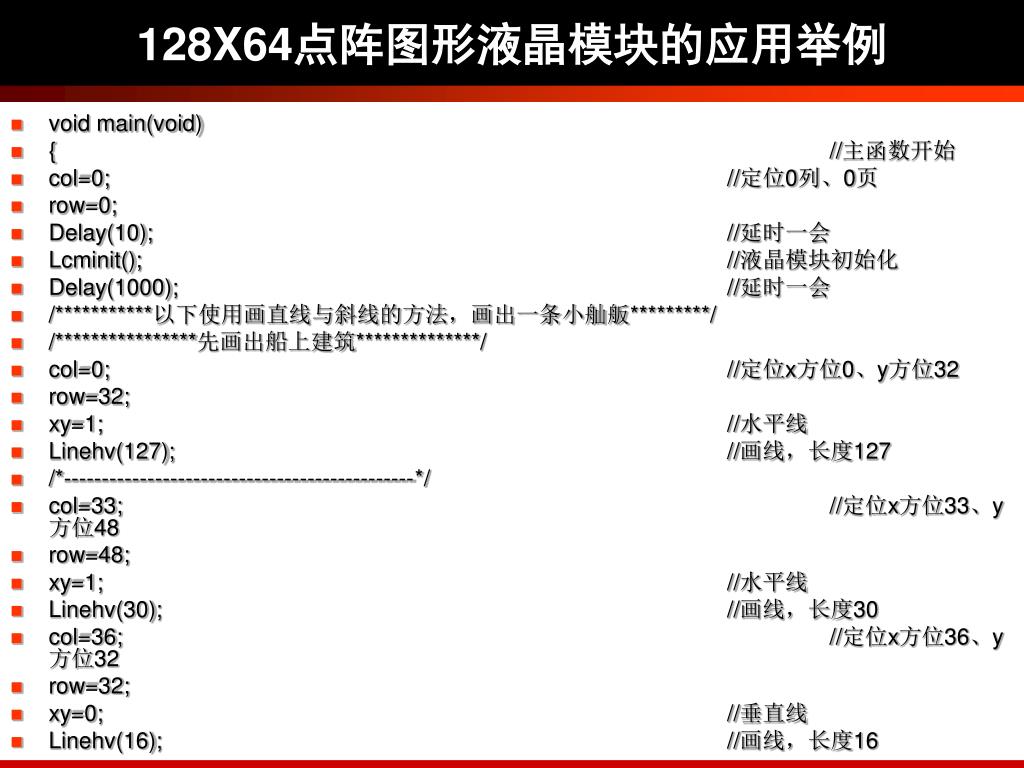

  23. 128X64点阵图形液晶模块的应用举例 • void main(void) • { //主函数开始 • col=0; //定位0列、0页 • row=0; • Delay(10); //延时一会 • Lcminit(); //液晶模块初始化 • Delay(1000); //延时一会 • /***********以下使用画直线与斜线的方法，画出一条小舢舨*********/ • /****************先画出船上建筑**************/ • col=0; //定位x方位0、y方位32 • row=32; • xy=1; //水平线 • Linehv(127); //画线，长度127 • /*----------------------------------------------*/ • col=33; //定位x方位33、y方位48 • row=48; • xy=1; //水平线 • Linehv(30); //画线，长度30 • col=36; //定位x方位36、y方位32 • row=32; • xy=0; //垂直线 • Linehv(16); //画线，长度16

  24. 128X64点阵图形液晶模块的应用举例 • col=10; //定位x方位10、y方位32 • row=32; • xy=0; //垂直线 • Linehv(27); //画线，长度27 • /************以下画出船底的弧形***********/ • col=0; //定位x方位0、y方位32 • row=32; • Linexy(10,16); //画斜线，终点为x方位10、y方位16 • col=10; //定位x方位10、y方位16 • row=16; • Linexy(30,8); //画斜线，终点为x方位30、y方位8 • col=30; //定位x方位30、y方位8 • row=8; • Linexy(64,5); //画斜线，终点为x方位64、y方位5 • /*-----------------------------------------------------------------*/ • col=65; //定位x方位65、y方位5 • row=5; • Linexy(97,8); //画斜线，终点为x方位97、y方位8 • col=97; //定位x方位97、y方位8 • row=8; • Linexy(117,16); //画斜线，终点为x方位117、y方位16 • col=117; //定位x方位117、y方位16 • row=16; • Linexy(127,32); //画斜线，终点为x方位127、y方位32 • /*----------------------------------画舢舨结束------------------------------------*/

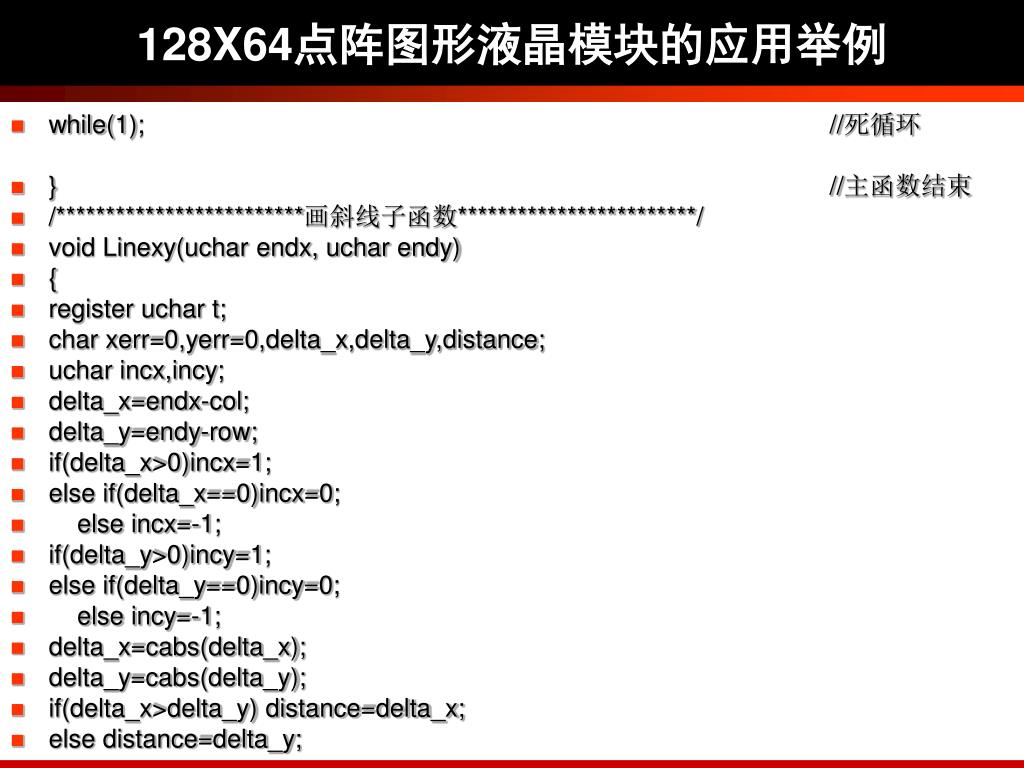

  25. 128X64点阵图形液晶模块的应用举例 • while(1); //死循环 • } //主函数结束 • /*************************画斜线子函数************************/ • void Linexy(uchar endx, uchar endy) • { • register uchar t; • char xerr=0,yerr=0,delta_x,delta_y,distance; • uchar incx,incy; • delta_x=endx-col; • delta_y=endy-row; • if(delta_x>0)incx=1; • else if(delta_x==0)incx=0; • else incx=-1; • if(delta_y>0)incy=1; • else if(delta_y==0)incy=0; • else incy=-1; • delta_x=cabs(delta_x); • delta_y=cabs(delta_y); • if(delta_x>delta_y) distance=delta_x; • else distance=delta_y;

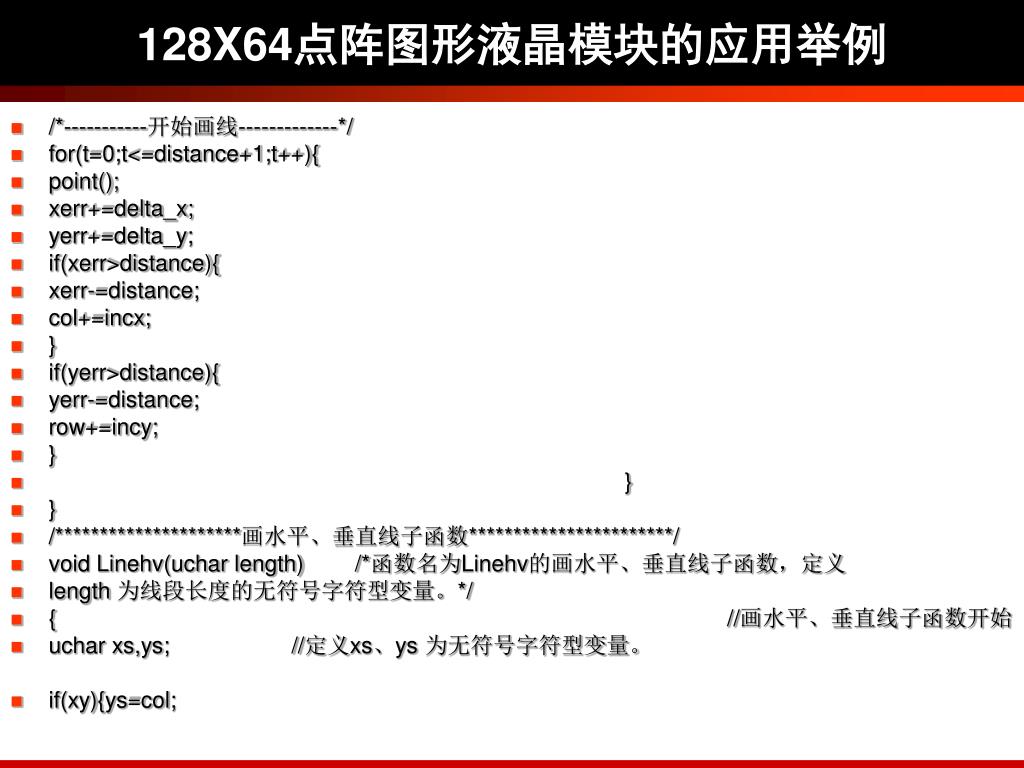

  26. 128X64点阵图形液晶模块的应用举例 • /*-----------开始画线-------------*/ • for(t=0;t<=distance+1;t++){ • point(); • xerr+=delta_x; • yerr+=delta_y; • if(xerr>distance){ • xerr-=distance; • col+=incx; • } • if(yerr>distance){ • yerr-=distance; • row+=incy; • } • } • } • /*********************画水平、垂直线子函数***********************/ • void Linehv(uchar length) /*函数名为Linehv的画水平、垂直线子函数，定义 • length 为线段长度的无符号字符型变量。*/ • { //画水平、垂直线子函数开始 • uchar xs,ys; //定义xs、ys 为无符号字符型变量。 • if(xy){ys=col;

  27. 128X64点阵图形液晶模块的应用举例 • //若xy为1，则为水平划线 • for(xs=0;xs<length;xs++){ • col=ys+xs; • point();} • } • else {xs=row; //否则为垂直划线 • for(ys=0;ys<length;ys++) • { • row=xs+ys; • point();} • } • } //画水平、垂直线子函数结束 • /**********************画点子函数***************************/ • void point(void) //画点子函数 • { //画点子函数开始 • uchar x1,y1,x,y; //定义x1、y1、x、y 为无符号字符型变量 • x1=col; //x方向座标col赋予x1（暂存） • y1=row; //y方向座标row赋予y1（暂存） • row=y1>>3; //y1右移3位后赋予row，获得y方向的页地址 • Rddata(); //读取列（x）地址、页（y）地址处的数据 • y=y1&0x07; //计算出该页（1字节）内的y轴点位置地址 • x=0x01; • x=x<<y; //移入所画点 • Wrdata(cbyte|x);

  28. 128X64点阵图形液晶模块的应用举例 • //画上屏幕 • col=x1; //恢复x、y座标 • row=y1; • } //画点子函数结束 • /***************全屏幕清屏子函数**********************/ • void Lcmcls(void) //函数名为Lcmcls的全屏幕清屏子函数 • { //函数开始 • for(row=0;row<8;row++) • {for(col=0;col<LCMLIMIT;col++) • Wrdata(0);} //将数据0写到屏幕 • } //函数结束 • /**********************全屏幕置黑子函数**********************/ • void Lcmclsxx(void) //函数名为Lcmclsxx的全屏幕置黑子函数 • { //函数开始 • for(row=0;row<8;row++) • for(col=0;col<LCMLIMIT;col++) • Wrdata(255); //将8位数据全1（255）写到屏幕 • } //函数结束 • /*************读取液晶x列、y页座标处的数据至全局变量cbyte中************/ • void Rddata(void) //函数名为Rddata的子函数 • { //函数开始 • Locatexy(); //座标定位 • DataPort=0xff; //LCM口置全1 • RS=1; //选择数据寄存器 • RW=1;

  29. 128X64点阵图形液晶模块的应用举例 • EN=1; //使能 • cbyte=DataPort; //虚读一次 • EN=0; //禁能 • Locatexy(); //座标定位 • DataPort=0xff; //LCM口置全1 • RS=1; //选择数据寄存器 • RW=1; //选择读 • EN=1; //使能 • cbyte=DataPort; //读取数据（真读） • EN=0; //禁能 • } • //函数结束 • /**************将数据X写入液晶x列、y页座标处***********/ • void Wrdata(uchar X) //函数名为Wrdata 的子函数，定义X为无符号字符型变量 • { //函数开始 • Locatexy(); //座标定位 • RS=1; //选择数据寄存器 • RW=0; //选择写 • DataPort=X; //将数据X写入LCM口 • EN=1; //使能 • EN=0; //禁能 • } //函数结束

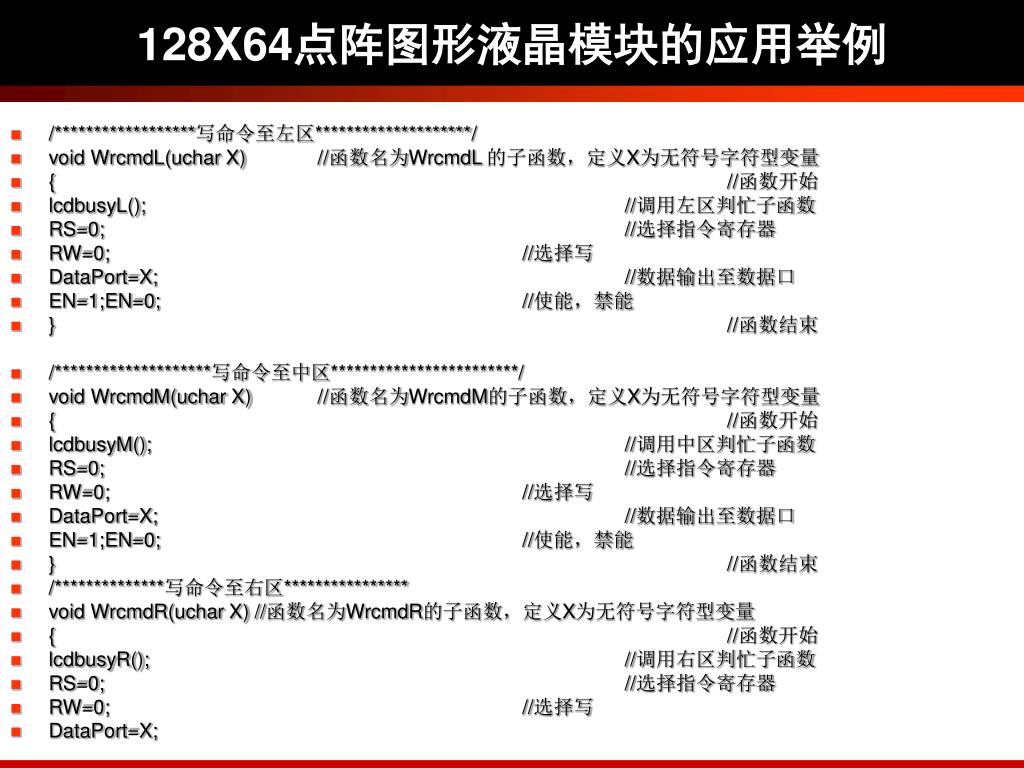

  30. 128X64点阵图形液晶模块的应用举例 • /******************写命令至左区********************/ • void WrcmdL(uchar X) //函数名为WrcmdL 的子函数，定义X为无符号字符型变量 • { //函数开始 • lcdbusyL(); //调用左区判忙子函数 • RS=0; //选择指令寄存器 • RW=0; //选择写 • DataPort=X; //数据输出至数据口 • EN=1;EN=0; //使能，禁能 • } //函数结束 • /********************写命令至中区************************/ • void WrcmdM(uchar X) //函数名为WrcmdM的子函数，定义X为无符号字符型变量 • { //函数开始 • lcdbusyM(); //调用中区判忙子函数 • RS=0; //选择指令寄存器 • RW=0; //选择写 • DataPort=X; //数据输出至数据口 • EN=1;EN=0; //使能，禁能 • } //函数结束 • /**************写命令至右区**************** • void WrcmdR(uchar X) //函数名为WrcmdR的子函数，定义X为无符号字符型变量 • { //函数开始 • lcdbusyR(); //调用右区判忙子函数 • RS=0; //选择指令寄存器 • RW=0; //选择写 • DataPort=X;

  31. 128X64点阵图形液晶模块的应用举例 • //数据输出至数据口 • EN=1;EN=0; //使能，禁能 • } //函数结束 • ***********************左区判忙子函数***********************/ • void lcdbusyL(void) //函数名为lcdbusyL 的左区判忙子函数 • { //函数开始 • CS1=1;CS2=0; //选中左区 • wtcom(); //调用判忙等待子函数 • } //函数结束 • void lcdbusyM(void) //函数名为lcdbusyM的中区判忙子函数 • { //函数开始 • CS1=0;CS2=1; //选中中区 • wtcom(); //调用判忙等待子函数 • } //函数结束 • /*void lcdbusyR(void) //函数名为lcdbusyR的右区判忙子函数（这里不用） • { //函数开始 • CS1=?;CS2=?; //根据所用LCM器件决定取值 • wtcom(); //调用判忙等待子函数 • }*/

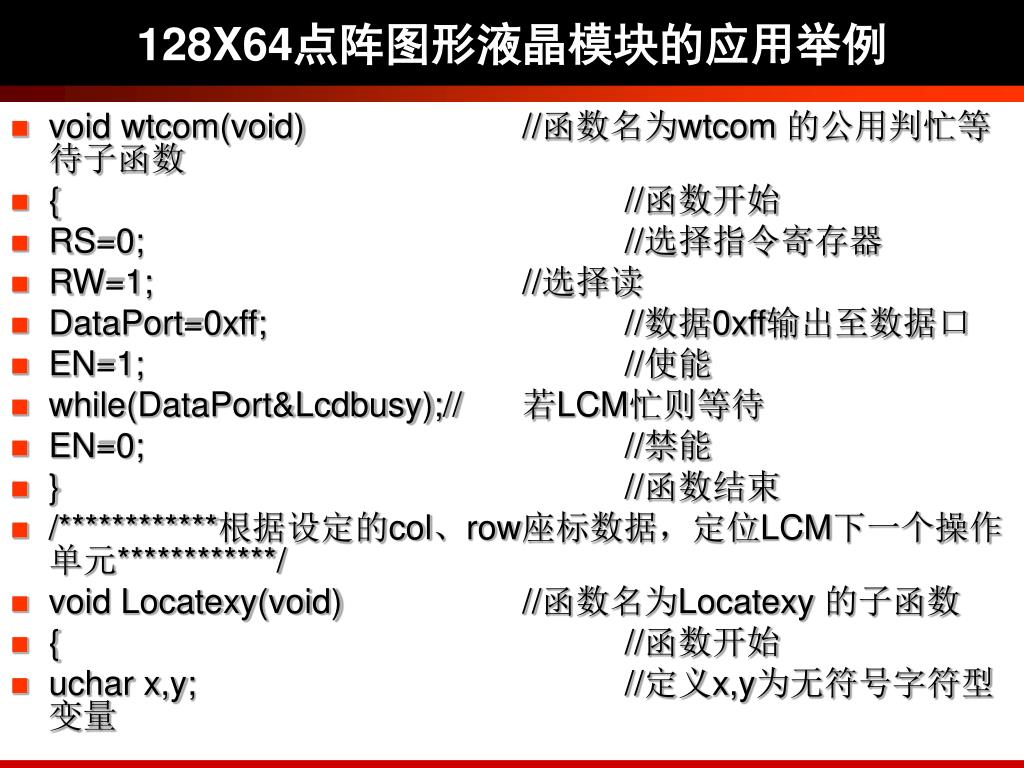

  32. 128X64点阵图形液晶模块的应用举例 • void wtcom(void) //函数名为wtcom 的公用判忙等待子函数 • { //函数开始 • RS=0; //选择指令寄存器 • RW=1; //选择读 • DataPort=0xff; //数据0xff输出至数据口 • EN=1; //使能 • while(DataPort&Lcdbusy);// 若LCM忙则等待 • EN=0; //禁能 • } //函数结束 • /************根据设定的col、row座标数据，定位LCM下一个操作单元************/ • void Locatexy(void) //函数名为Locatexy 的子函数 • { //函数开始 • uchar x,y; //定义x,y为无符号字符型变量

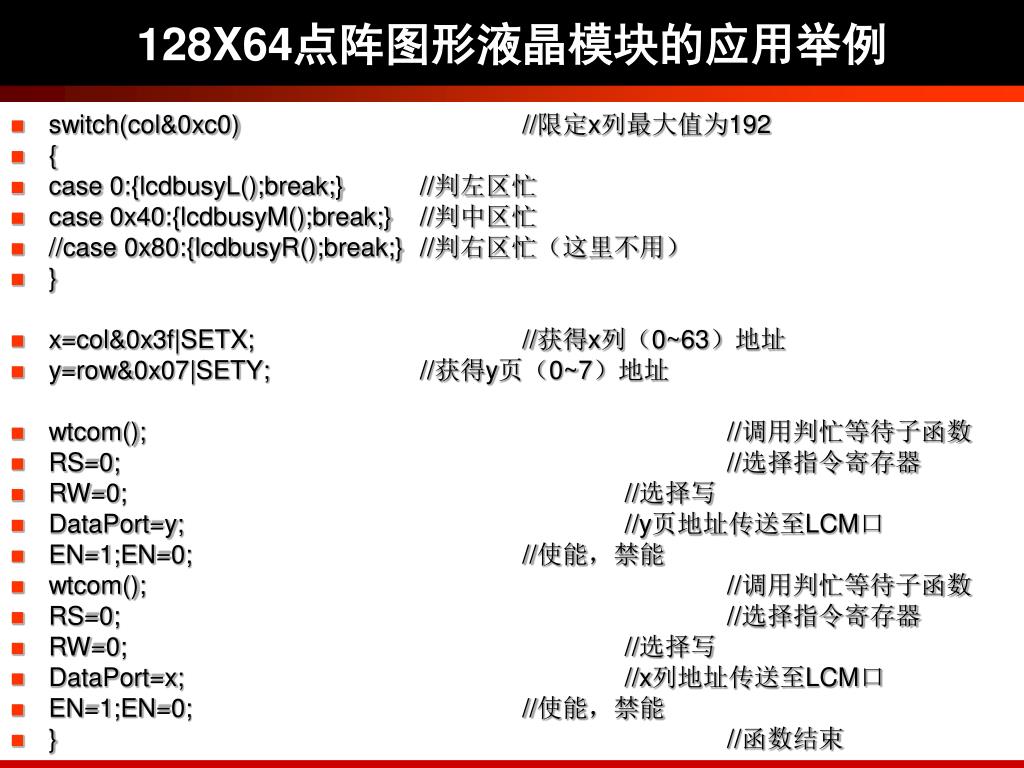

  33. 128X64点阵图形液晶模块的应用举例 • switch(col&0xc0) //限定x列最大值为192 • { • case 0:{lcdbusyL();break;} //判左区忙 • case 0x40:{lcdbusyM();break;} //判中区忙 • //case 0x80:{lcdbusyR();break;} //判右区忙（这里不用） • } • x=col&0x3f|SETX; //获得x列（0~63）地址 • y=row&0x07|SETY; //获得y页（0~7）地址 • wtcom(); //调用判忙等待子函数 • RS=0; //选择指令寄存器 • RW=0; //选择写 • DataPort=y; //y页地址传送至LCM口 • EN=1;EN=0; //使能，禁能 • wtcom(); //调用判忙等待子函数 • RS=0; //选择指令寄存器 • RW=0; //选择写 • DataPort=x; //x列地址传送至LCM口 • EN=1;EN=0; //使能，禁能 • } //函数结束

  34. 128X64点阵图形液晶模块的应用举例 • void Lcminit(void) //函数名为Lcminit的液晶屏初始化子函数 • { //函数开始 • reset(); //调用复位子函数 • cbyte=DISPFIRST; //定义起始行为0行 • WrcmdL(cbyte); //写命令至左区 • WrcmdM(cbyte); //写命令至中区 • //WrcmdR(cbyte); //写命令至右区（这里不用） • cbyte=DISPOFF; //关闭显示屏 • WrcmdL(cbyte); //写命令至左区 • WrcmdM(cbyte); //写命令至中区 • //WrcmdR(cbyte); //写命令至右区（这里不用） • cbyte=DISPON; //打开显示屏 • WrcmdL(cbyte); //写命令至左区 • WrcmdM(cbyte); //写命令至中区 • //WrcmdR(cbyte); //写命令至右区（这里不用） • Lcmcls(); //清屏 • Delay(10000); //延时一会 • Lcmclsxx(); //全屏置黑 • Delay(10000); //延时一会 • Lcmcls(); //清屏 • Delay(30000); //延时一会 • col=0; //定位x方向为0列 • row=0; //定位y方向为0页 • Locatexy(); //定位0列、0页为LCM下一个操作单元 • }

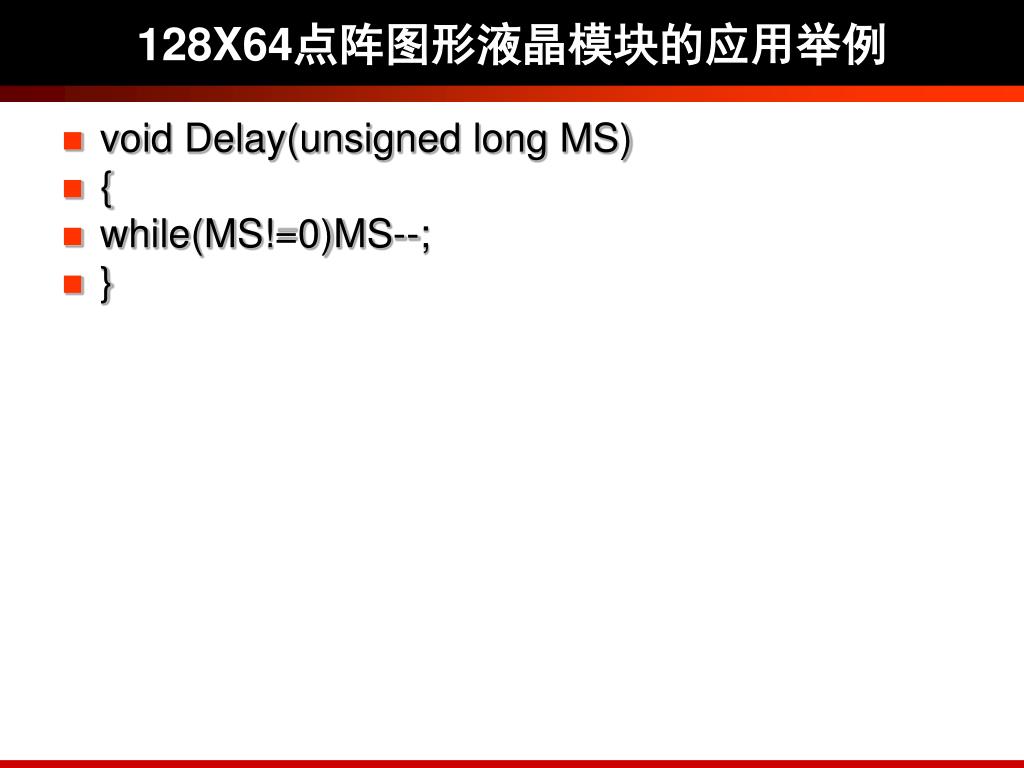

  35. 128X64点阵图形液晶模块的应用举例 • void Delay(unsigned long MS) • { • while(MS!=0)MS--; • }
