Cupid Integrated Development Environment: Strategies for Training and Outreach

1. Cupid Integrated Development Environment: Strategies for Training and Outreach Rocky Dunlap NOAA ESRL/University of Colorado ESMF Executive Board/Interagency Meeting June 12, 2014 NCWCP, College Park, MD

2. Outline • Common Modeling Infrastructure • Cupid Integrated Development Environment • Cupid Demo • New Opportunities for Training and Outreach

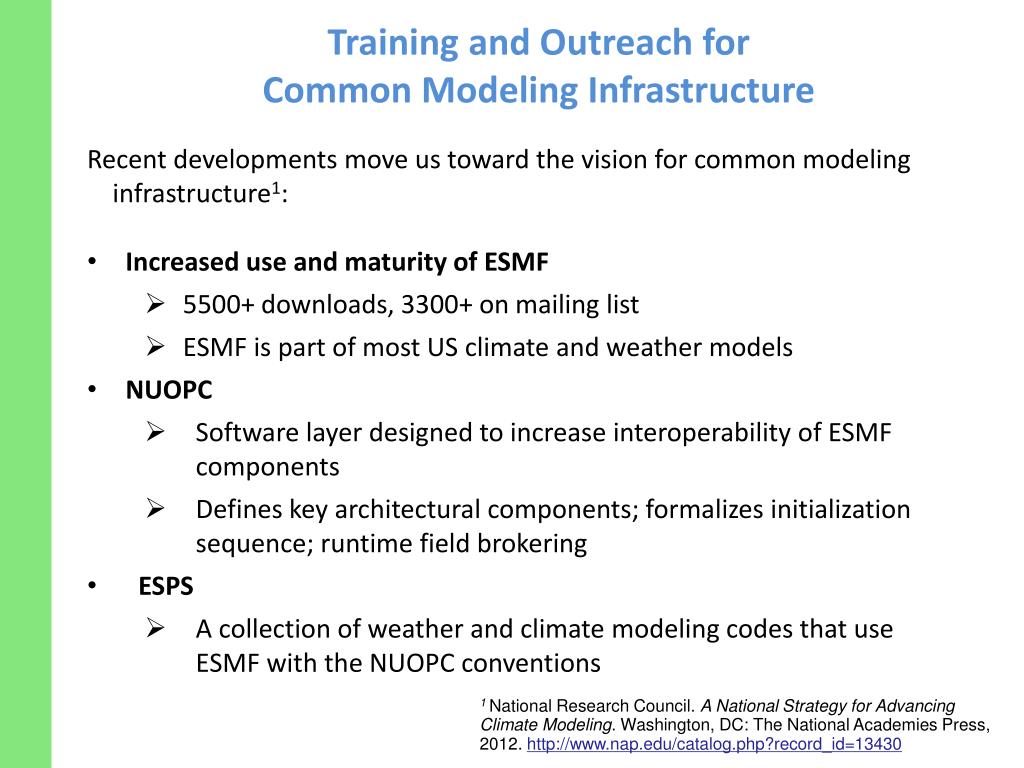

3. Training and Outreach for Common Modeling Infrastructure Recent developments move us toward the vision for common modeling infrastructure1: • Increased use and maturity of ESMF • 5500+ downloads, 3300+ on mailing list • ESMF is part of most US climate and weather models • NUOPC • Software layer designed to increase interoperability of ESMF components • Defines key architectural components; formalizes initialization sequence; runtime field brokering • ESPS • A collection of weather and climate modeling codes that use ESMF with the NUOPC conventions 1 National Research Council. A National Strategy for Advancing Climate Modeling. Washington, DC: The National Academies Press, 2012. http://www.nap.edu/catalog.php?record_id=13430

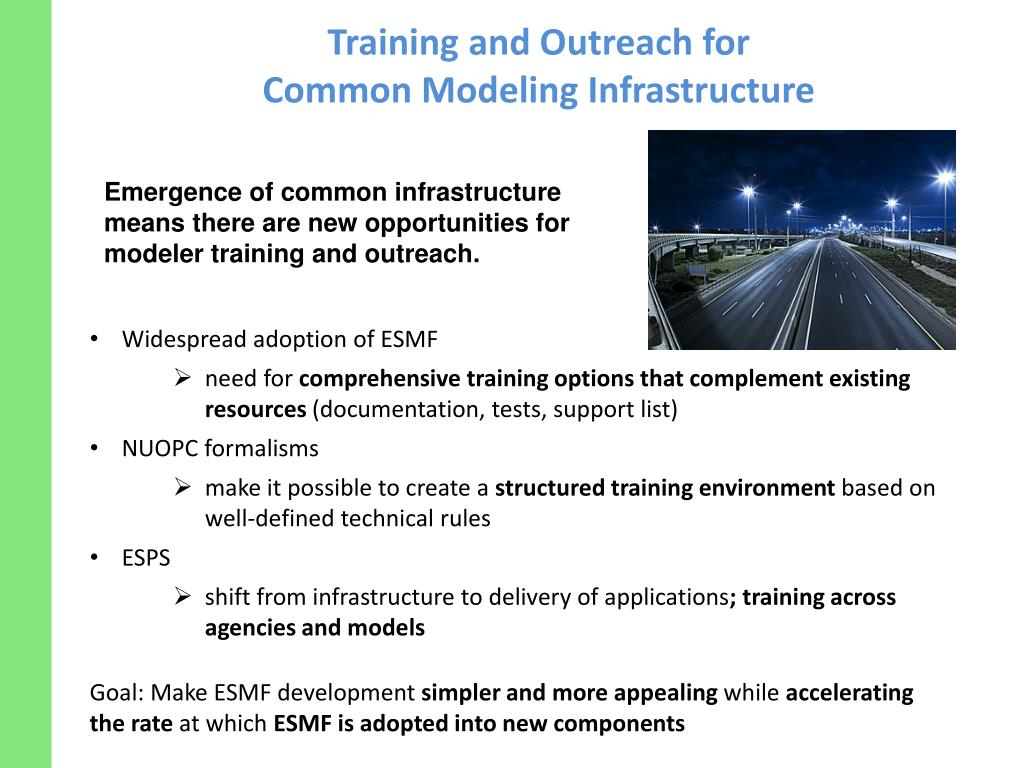

4. Training and Outreach for Common Modeling Infrastructure Emergence of common infrastructure means there are new opportunities for modeler training and outreach. • Widespread adoption of ESMF • need for comprehensive training options that complement existing resources (documentation, tests, support list) • NUOPC formalisms • make it possible to create a structured training environment based on well-defined technical rules • ESPS • shift from infrastructure to delivery of applications; training across agencies and models • Goal: Make ESMF development simpler and more appealing while accelerating the rate at which ESMF is adopted into new components

5. Cupid Development andTraining Environment Cupid is a tool designed to make ESMF training and development simpler, faster, and more appealing • NOAA CIRES, GA Tech, and NASA GISS/GSFC collaboration • NASA Computational Modeling Algorithms and Cyberinfrastructure (CMAC) program • Plugin for Eclipse-based “Integrated Development Environment” or IDE • Customized for ESMF applications with NUOPC conventions Cupid is a working prototype expected to be ready for first public release in FY14. • https://earthsystemcog.org/projects/cupid/ • Cupid Feature Overview and Tutorial

6. Cupid Development andTraining Environment Run locally or on a cloud Select sample code or model • Pick a training problem (or coupled model) • Generate a framework-aware outline of the source code • Navigate around the source code using the outline • Use an editor to modify the source code • Automatically generate code needed for NUOPC compliance • Compile and run locally or on a cloud (currently Amazon Web Services) Source code editor NUOPC outline Project explorer Console for viewing output

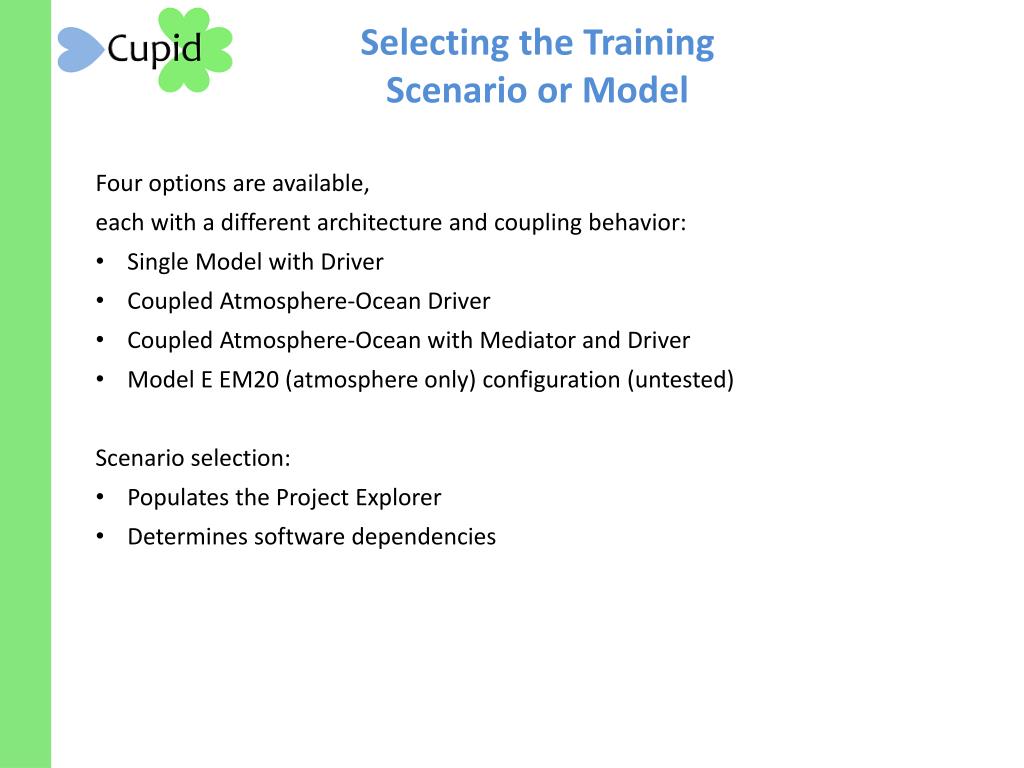

7. Selecting the TrainingScenario or Model • Four options are available, • each with a different architecture and coupling behavior: • Single Model with Driver • Coupled Atmosphere-Ocean Driver • Coupled Atmosphere-Ocean with Mediator and Driver • Model E EM20 (atmosphere only) configuration (untested) • Scenario selection: • Populates the Project Explorer • Determines software dependencies

8. Smart, Framework-aware Code Editing Environment Central idea: A framework-aware editor provides contextual guidance as code is being writtenby checking for compliance to framework rules and automatically generating and inserting code fragments into existing code Reverse engineer Generate code

9. Smart, Framework-aware Code Editing Environment • NUOPC View • compact outline of NUOPC component source code • linked with source code editor • contextual reference documentation • compliance issues shown in red • new elements can be added to outline, simultaneously generating code in the editor

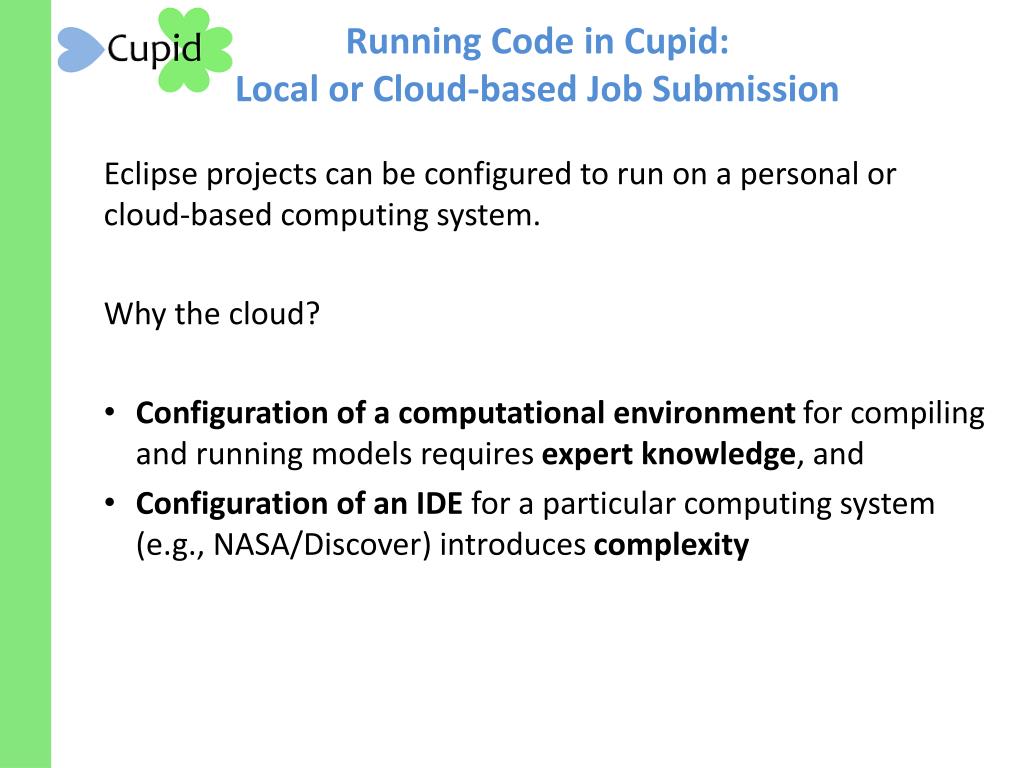

10. Running Code in Cupid: Local or Cloud-based Job Submission • Eclipse projects can be configured to run on a personal or cloud-based computing system. • Why the cloud? • Configuration of a computational environment for compiling and running models requires expert knowledge, and • Configuration of an IDE for a particular computing system (e.g., NASA/Discover) introduces complexity

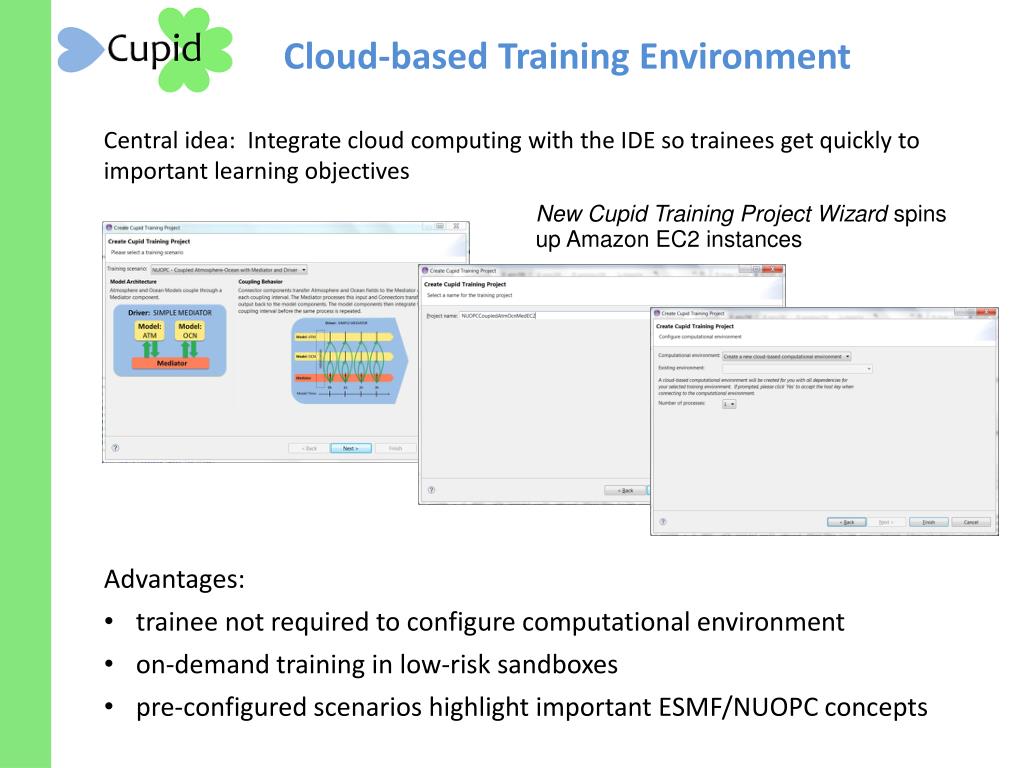

11. Cloud-based Training Environment Central idea: Integrate cloud computing with the IDE so trainees get quickly to important learning objectives New Cupid Training Project Wizard spins up Amazon EC2 instances • Advantages: • trainee not required to configure computational environment • on-demand training in low-risk sandboxes • pre-configured scenarios highlight important ESMF/NUOPC concepts

12. Cupid Demo

13. New Opportunities • Online course development • Partnership with Georgia Tech Professional Education • Integration into Graduate Curriculum • Participate in proposed interdisciplinary NSF Research Traineeship Program (NRT) at UC Boulder (PIs: James Syvitski, Greg Tucker) • ESMF team asked to develop graduate student workshop • Research  Operations • Advance Cupid • NASA Advanced Information Systems Technology program(AIST) and other solicitations • Raise Technology Readiness Level, greater NUOPC API support, improved testing • Bring ESPS models into Cupid • Operations  Research

14. Georgia Tech Global Learning Center Slide courtesy Leo Mark, Georgia Tech Professional Education

15. Who we serve: • Students • Alumni • Professionals, Industry and Government How we do it: • Online • Face-to-face • Blended • Open enrollment & customized programs Impact: • Serving ~3,500 companies • Enrollments ~25,000/year • Adding MOOCs: 466,203 enrollments!! • Students age: 13-91 years • represented 111 countries, and nearly all ethnic, cultural, and socio-economic backgrounds Slide courtesy Leo Mark, Georgia Tech Professional Education

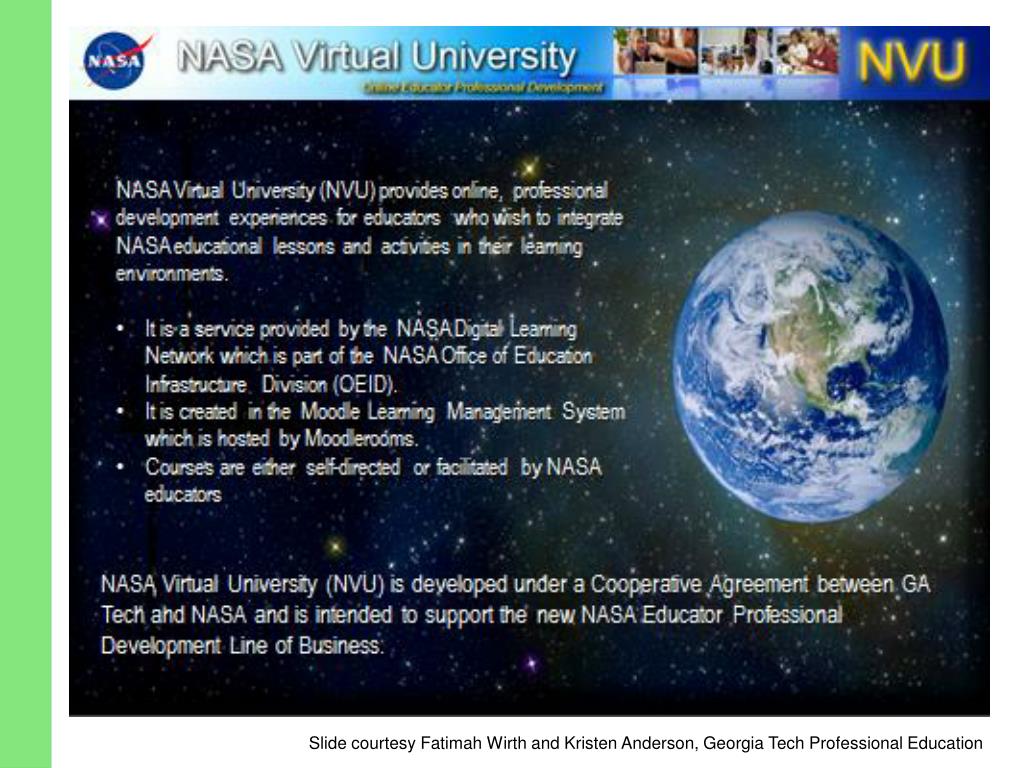

16. Slide courtesy Fatimah Wirth and Kristen Anderson, Georgia Tech Professional Education

17. New Opportunities • Online course development • Partnership with Georgia Tech Professional Education • Integration into Graduate Curriculum • Participate in proposed interdisciplinary NSF Research Traineeship Program (NRT) at UC Boulder (PIs: James Syvitski, Greg Tucker) • ESMF team asked to develop graduate student workshop • Research  Operations • Advance Cupid • NASA Advanced Information Systems Technology program(AIST) and other solicitations • Raise Technology Readiness Level, greater NUOPC API support, improved testing • Bring ESPS models into Cupid • Operations  Research

18. New Opportunities • Online course development • Partnership with Georgia Tech Professional Education • Integration into Graduate Curriculum • Participate in proposed interdisciplinary NSF Research Traineeship Program (NRT) at UC Boulder (PIs: James Syvitski, Greg Tucker) • ESMF team asked to develop graduate student workshop • Research  Operations • Advance Cupid • NASA Advanced Information Systems Technology program(AIST) and other solicitations • Raise Technology Readiness Level, greater NUOPC API support, improved testing • Bring ESPS models into Cupid • Operations  Research

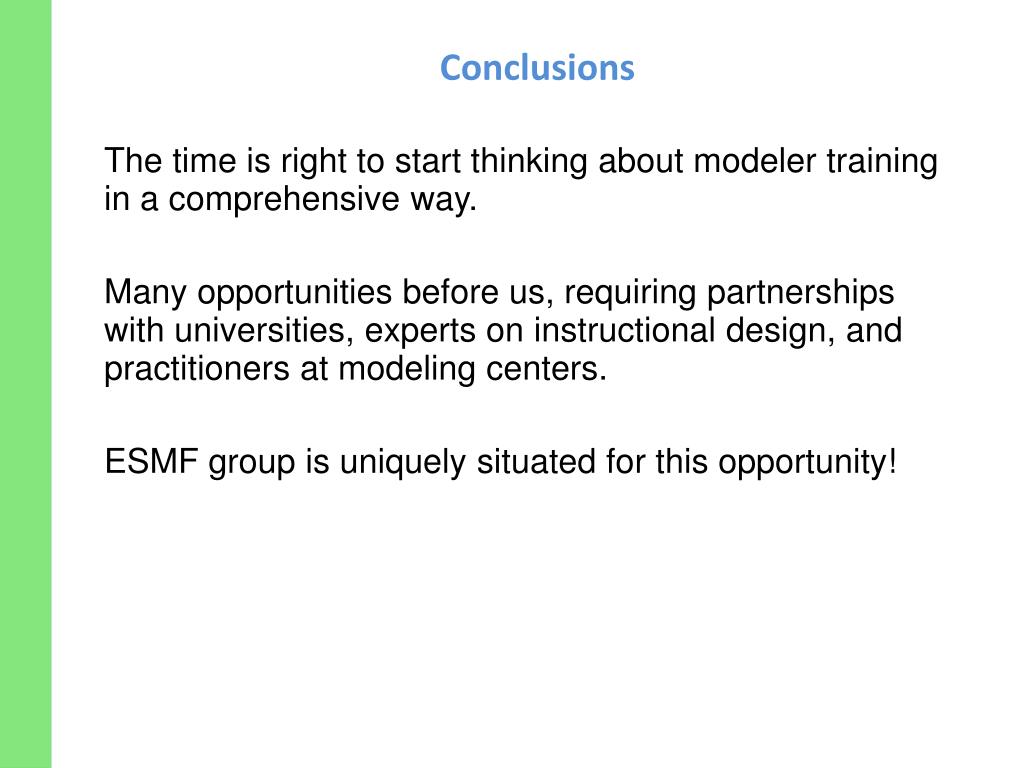

19. Conclusions The time is right to start thinking about modeler training in a comprehensive way. Many opportunities before us, requiring partnerships with universities, experts on instructional design, and practitioners at modeling centers. ESMF group is uniquely situated for this opportunity!

20. Thanks! https://earthsystemcog.org/projects/cupid/

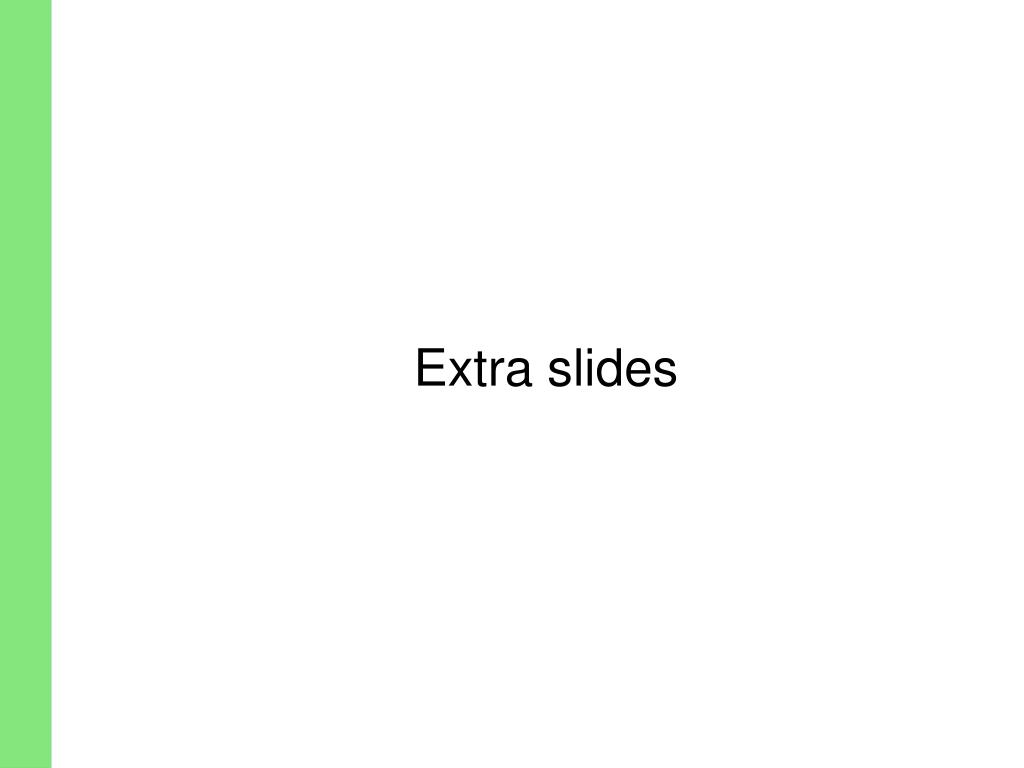

21. Extra slides

22. NSF Research Traineeship Program (NRT) • We have been asked to participate in a UC Boulder NRT proposal and have provided a letter of support • PIs: • James Syvitski, Dept. Geol. Sci., INSTAAR • Greg Tucker, Dept. Geol. Sci., CIRES • Research Traineeship Program: • interdisciplinary training of next generation earth scientists: computational science + applied mathematics + physical science • interaction with professional community in surface dynamics • ESMF team asked to develop graduate student workshop

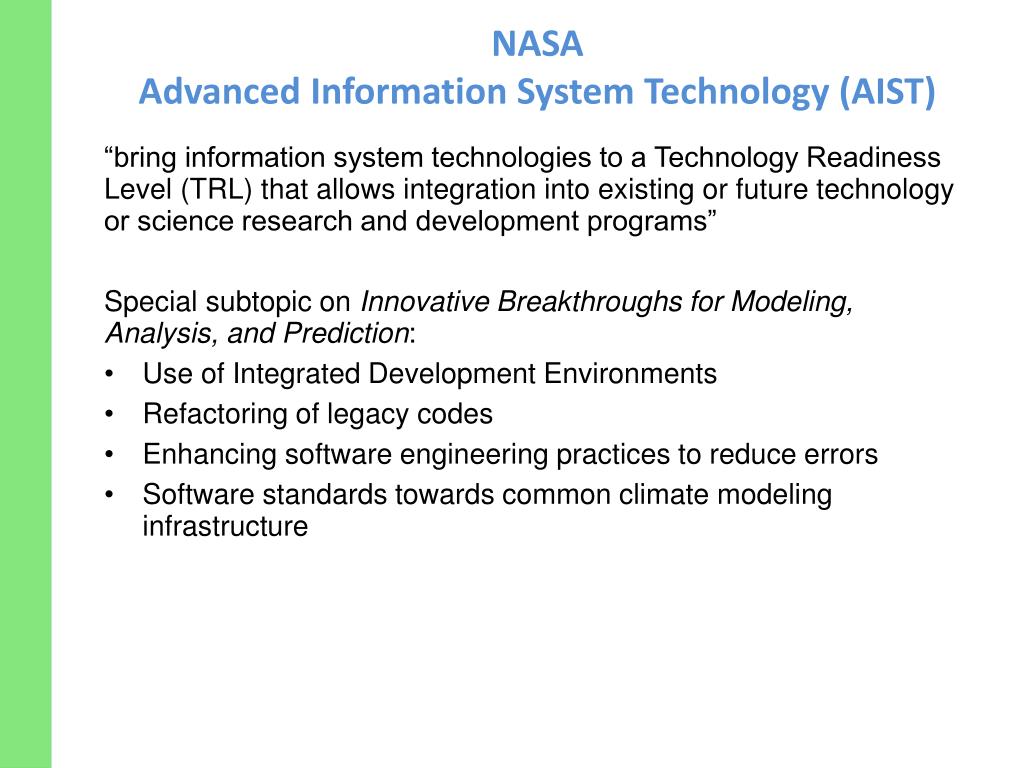

23. NASA Advanced Information System Technology (AIST) • “bring information system technologies to a Technology Readiness Level (TRL) that allows integration into existing or future technology or science research and development programs” • Special subtopic on Innovative Breakthroughs for Modeling, Analysis, and Prediction: • Use of Integrated Development Environments • Refactoring of legacy codes • Enhancing software engineering practices to reduce errors • Software standards towards common climate modeling infrastructure

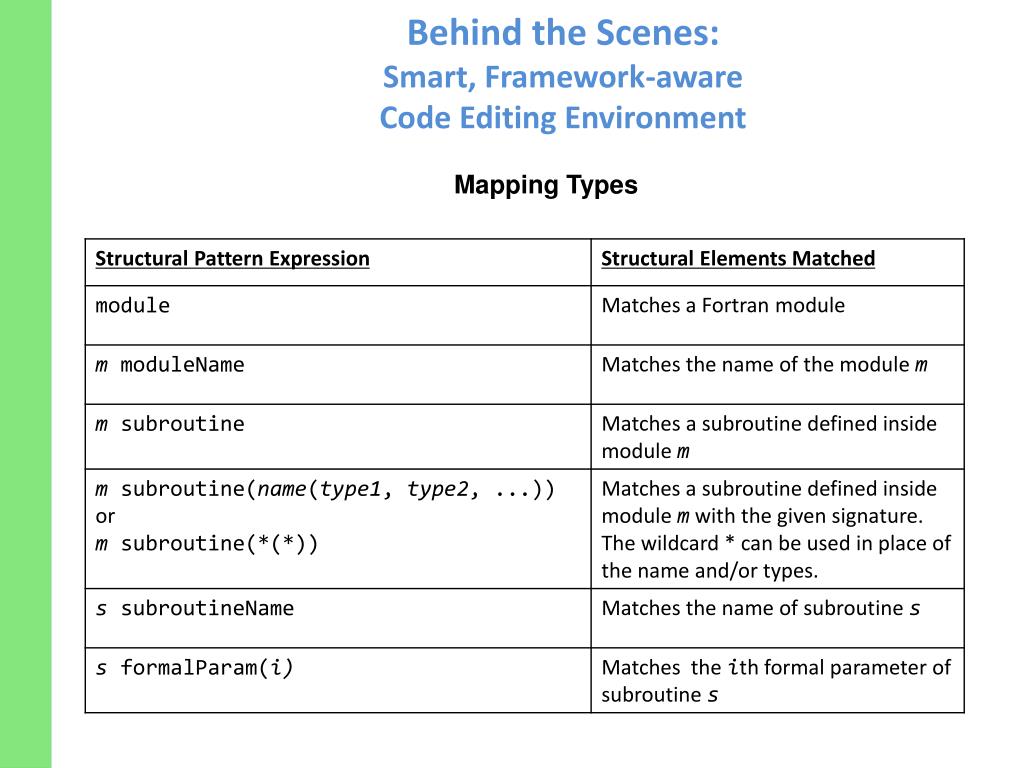

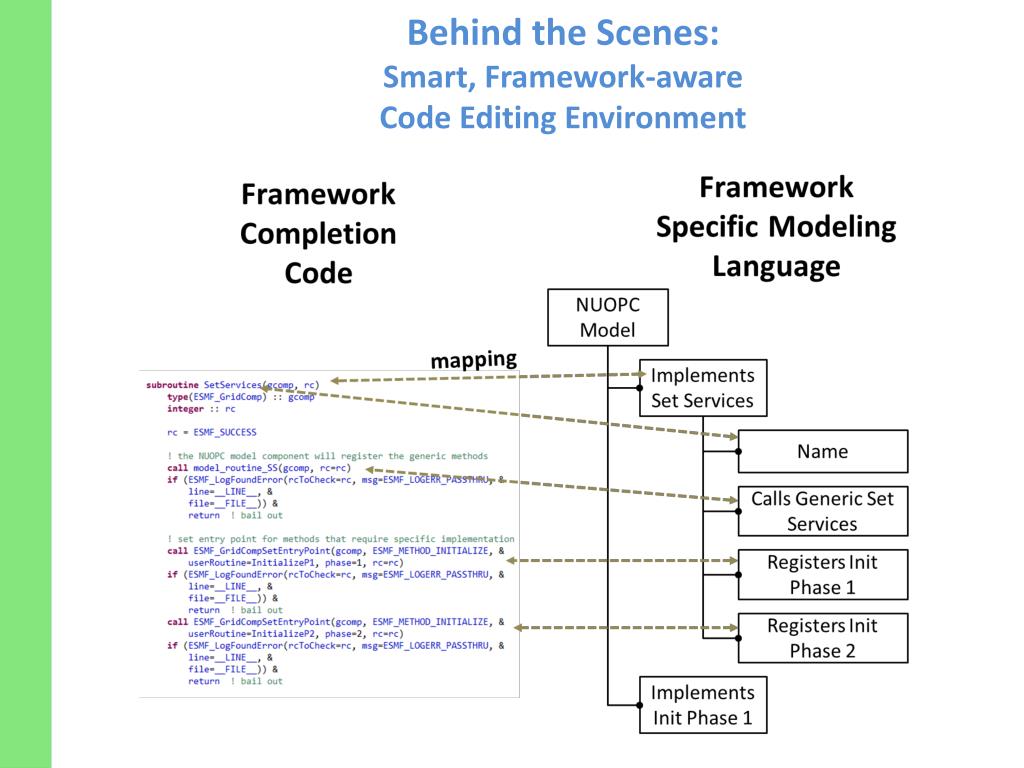

24. Behind the Scenes: Smart, Framework-aware Code Editing Environment Mapping Types

25. Behind the Scenes: Smart, Framework-aware Code Editing Environment Mapping Types (cont.)

26. Behind the Scenes: Smart, Framework-aware Code Editing Environment NUOPC Driver module(#driverName) driverName usesModule(ESMF) standardESMFImport usesModule(NUOPC) standardNUOPCImport usesModule(NUOPC_Driver) genericImports importsGenericSS usesEntity(routine_SetServices) subroutine(*(inout type(ESMF_GridComp) #p_gcomp, out integer #p_rc) ) implementsSetServices ... callsGenericSetServices call(#^genericImports/importsGenericSS (#^p_gcomp, #^p_rc))

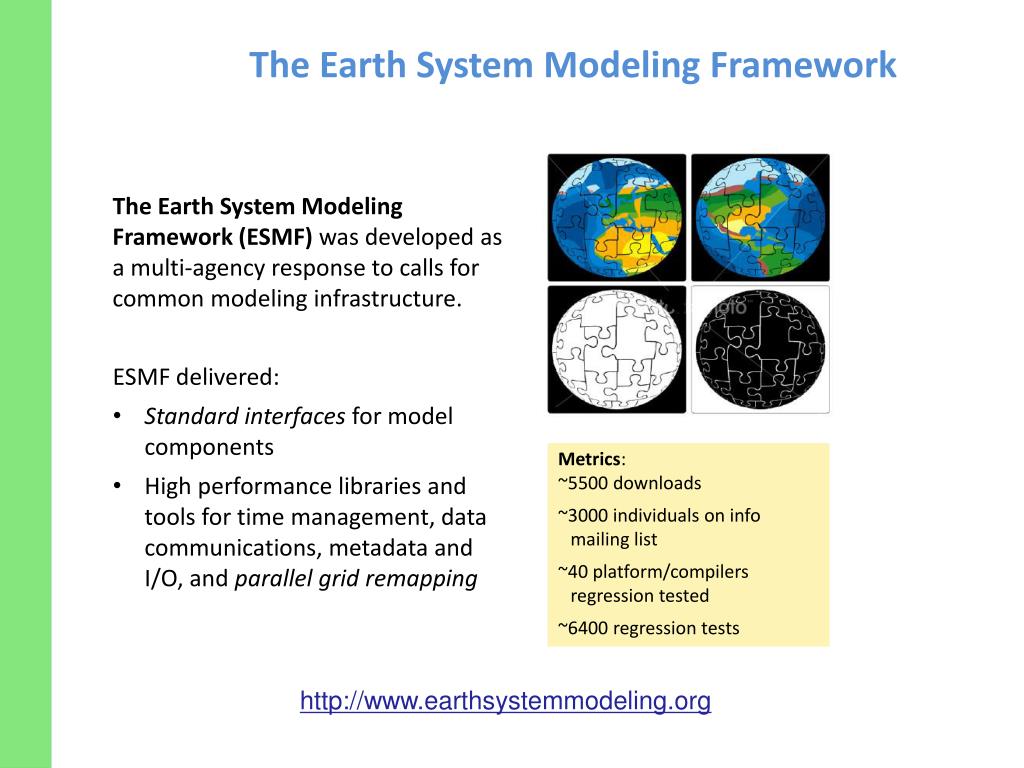

27. The Earth System Modeling Framework The Earth System Modeling Framework (ESMF) was developed as a multi-agency response to calls for common modeling infrastructure. ESMF delivered: • Standard interfaces for model components • High performance libraries and tools for time management, data communications, metadata and I/O, and parallel grid remapping Metrics: ~5500 downloads ~3000 individuals on info mailing list ~40 platform/compilers regression tested ~6400 regression tests http://www.earthsystemmodeling.org

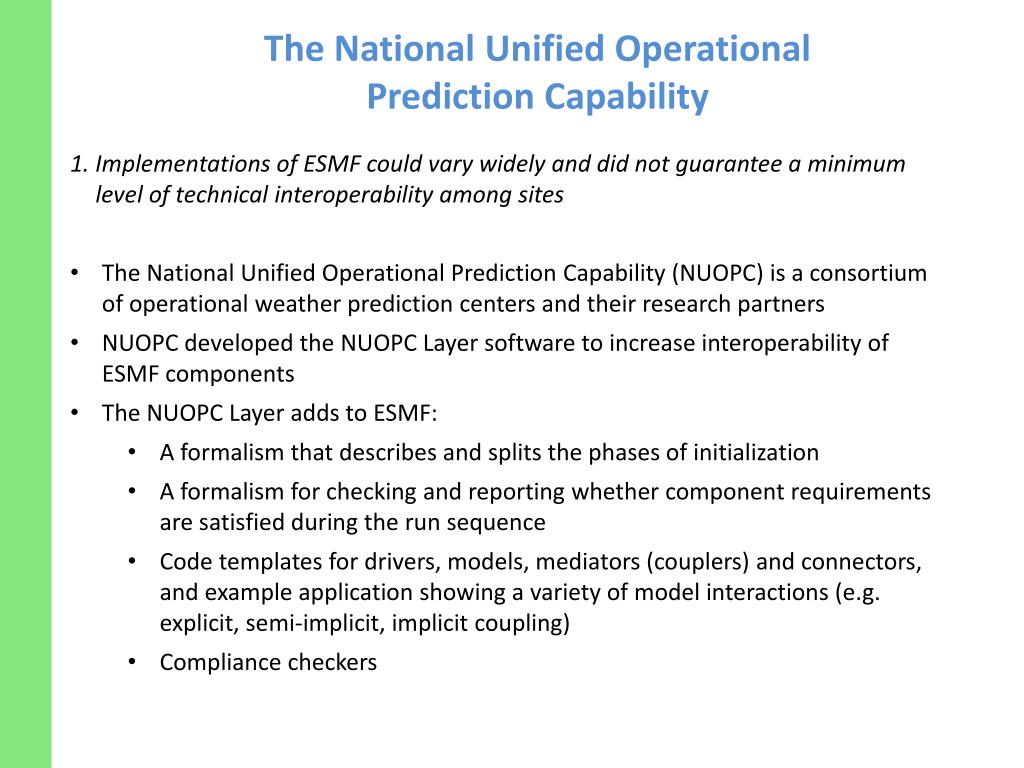

28. The National Unified OperationalPrediction Capability • 1. Implementations of ESMF could vary widely and did not guarantee a minimum level of technical interoperability among sites • The National Unified Operational Prediction Capability (NUOPC) is a consortium of operational weather prediction centers and their research partners • NUOPC developed the NUOPC Layer software to increase interoperability of ESMF components • The NUOPC Layer adds to ESMF: • A formalism that describes and splits the phases of initialization • A formalism for checking and reporting whether component requirements are satisfied during the run sequence • Code templates for drivers, models, mediators (couplers) and connectors, and example application showing a variety of model interactions (e.g. explicit, semi-implicit, implicit coupling) • Compliance checkers

29. The Earth System Prediction Suite • 2. It was difficult to track who was using ESMF and how they were using it • The Earth System Prediction Suite (ESPS) is a collection of weather and climate modeling codes that use ESMF with the NUOPC conventions. • The ESPS makes clear which codes are available as ESMF components and modeling systems. ESPS on CoG: https://www.earthsystemcog.org/projects/esps

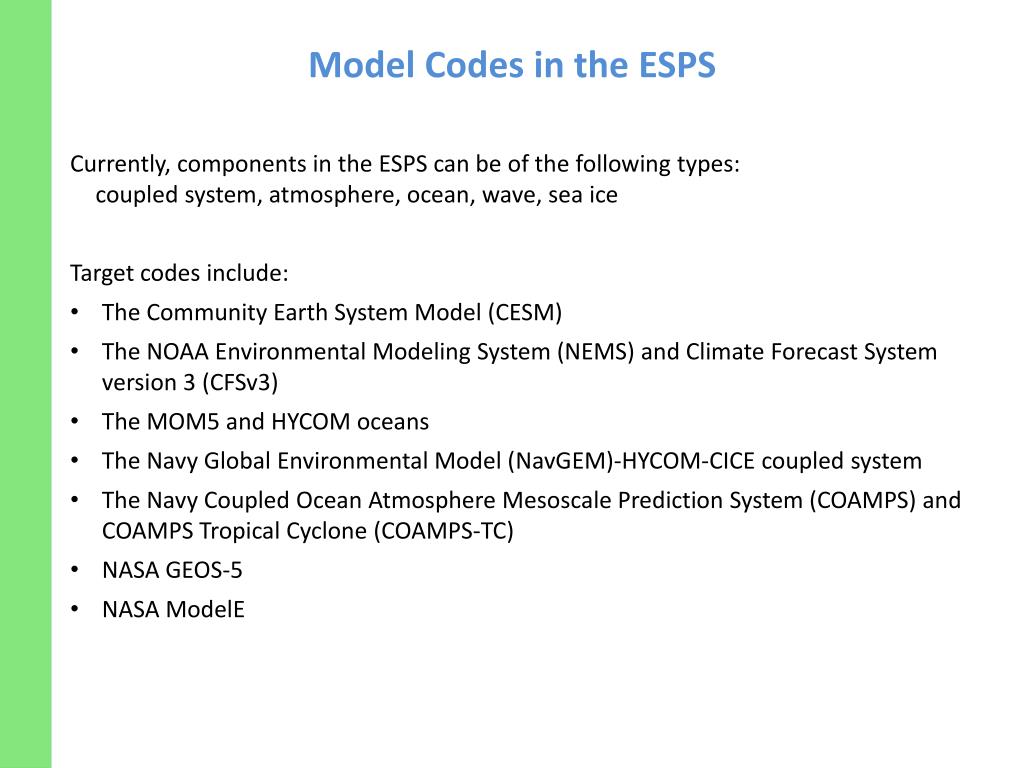

30. Model Codes in the ESPS Currently, components in the ESPS can be of the following types:coupled system, atmosphere, ocean, wave, sea ice Target codes include: • The Community Earth System Model (CESM) • The NOAA Environmental Modeling System (NEMS) and Climate Forecast System version 3 (CFSv3) • The MOM5 and HYCOM oceans • The Navy Global Environmental Model (NavGEM)-HYCOM-CICE coupled system • The Navy Coupled Ocean Atmosphere Mesoscale Prediction System (COAMPS) and COAMPS Tropical Cyclone (COAMPS-TC) • NASA GEOS-5 • NASA ModelE

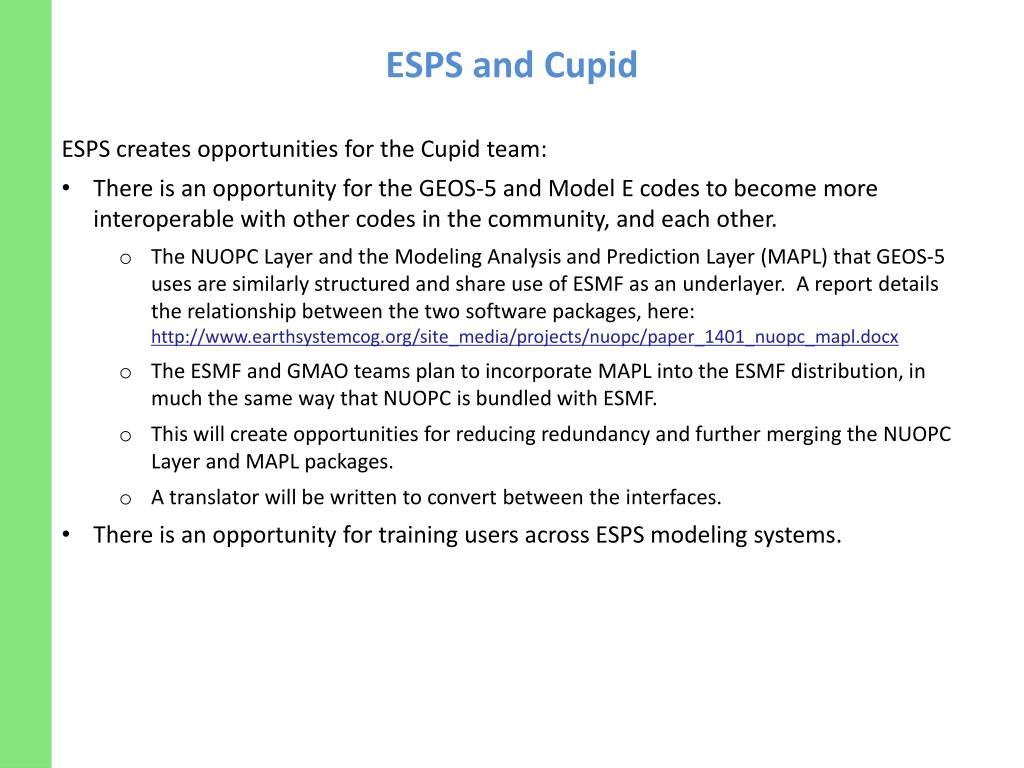

31. ESPS and Cupid ESPS creates opportunities for the Cupid team: • There is an opportunity for the GEOS-5 and Model E codes to become more interoperable with other codes in the community, and each other. • The NUOPC Layer and the Modeling Analysis and Prediction Layer (MAPL) that GEOS-5 uses are similarly structured and share use of ESMF as an underlayer. A report details the relationship between the two software packages, here: http://www.earthsystemcog.org/site_media/projects/nuopc/paper_1401_nuopc_mapl.docx • The ESMF and GMAO teams plan to incorporate MAPL into the ESMF distribution, in much the same way that NUOPC is bundled with ESMF. • This will create opportunities for reducing redundancy and further merging the NUOPC Layer and MAPL packages. • A translator will be written to convert between the interfaces. • There is an opportunity for training users across ESPS modeling systems.

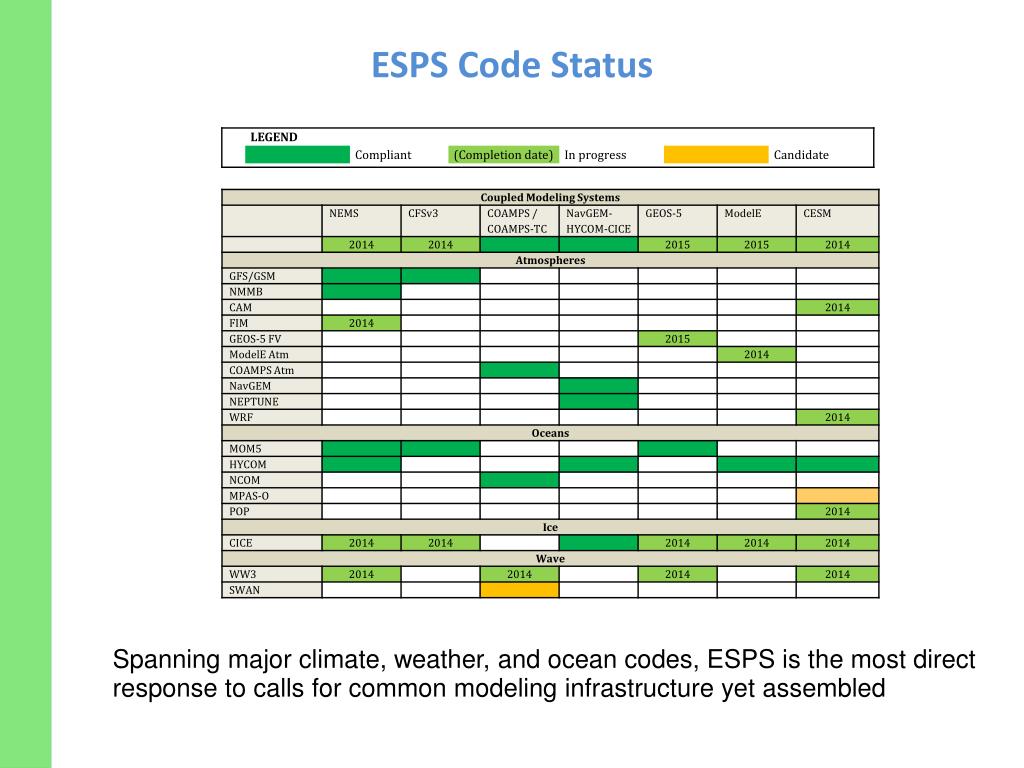

32. ESPS Code Status Spanning major climate, weather, and ocean codes, ESPS is the most directresponse to calls for common modeling infrastructure yet assembled

33. Behind the Scenes: Smart, Framework-aware Code Editing Environment

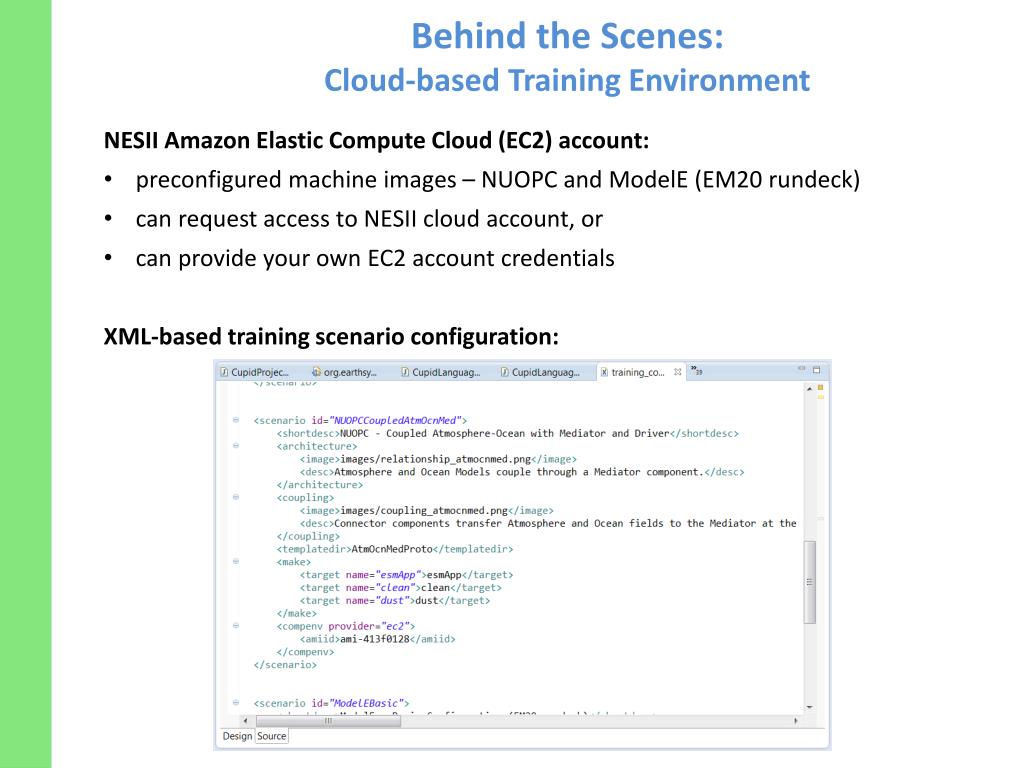

34. Behind the Scenes: Cloud-based Training Environment • NESII Amazon Elastic Compute Cloud (EC2) account: • preconfigured machine images – NUOPC and ModelE (EM20 rundeck) • can request access to NESII cloud account, or • can provide your own EC2 account credentials • XML-based training scenario configuration:

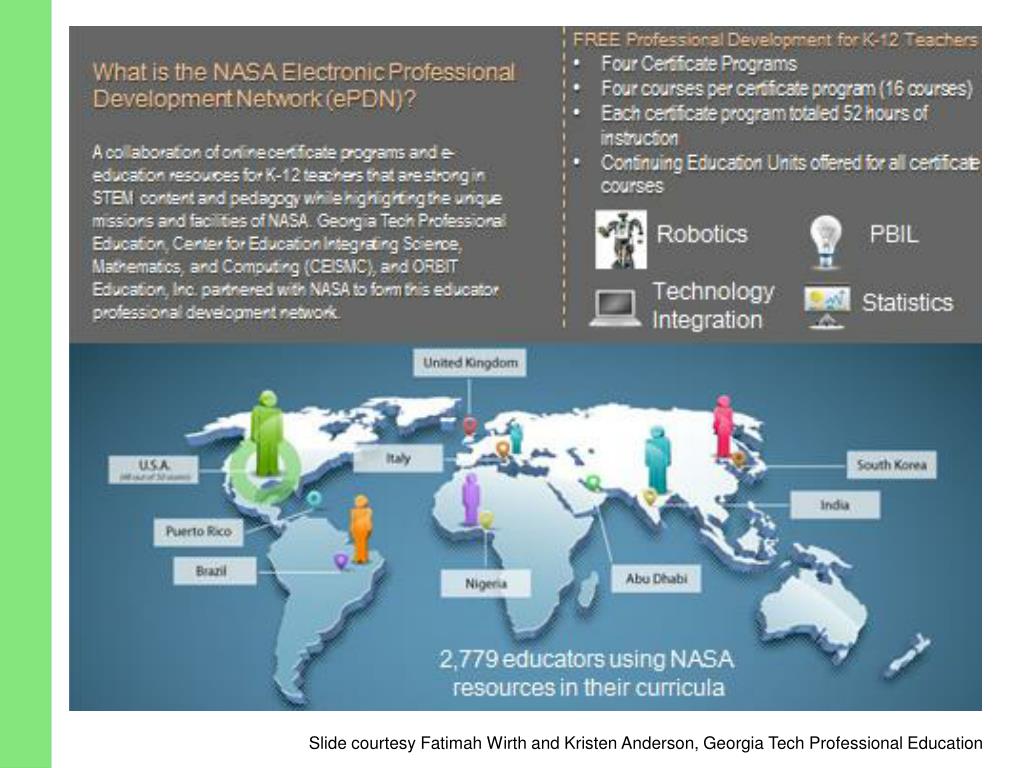

35. Slide courtesy Fatimah Wirth and Kristen Anderson, Georgia Tech Professional Education

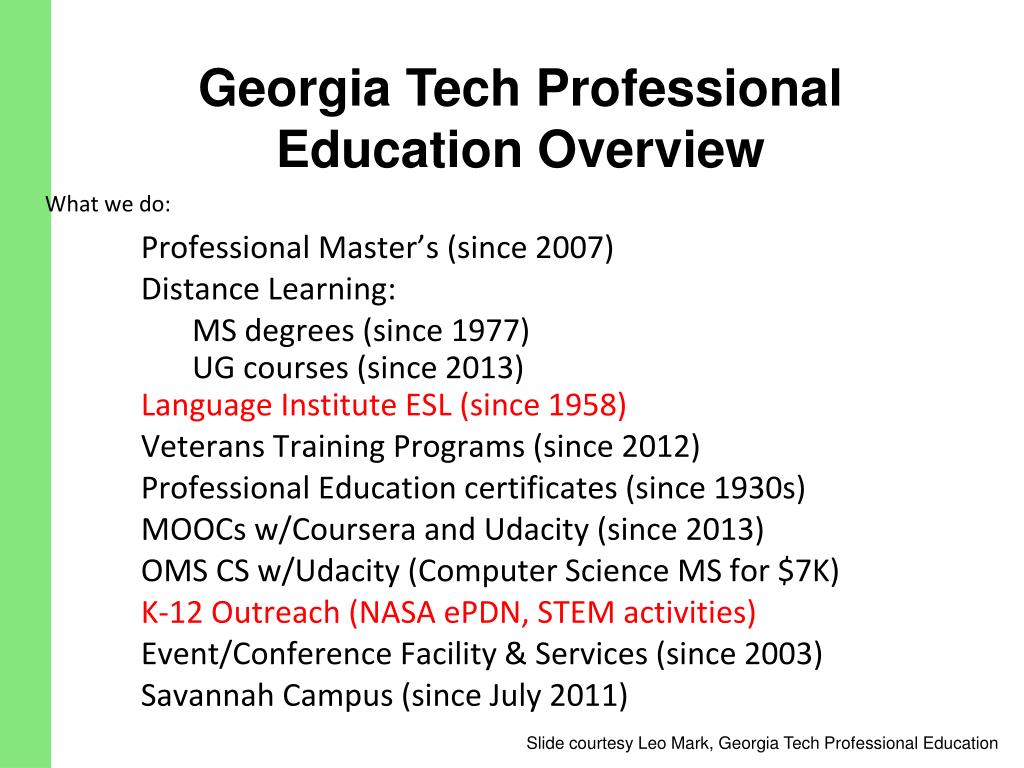

36. Georgia Tech Professional Education Overview • What we do: • Professional Master’s (since 2007) • Distance Learning: • MS degrees (since 1977) • UG courses (since 2013) • Language Institute ESL (since 1958) • Veterans Training Programs (since 2012) • Professional Education certificates (since 1930s) • MOOCs w/Coursera and Udacity (since 2013) • OMS CS w/Udacity (Computer Science MS for $7K) • K-12 Outreach (NASA ePDN, STEM activities) • Event/Conference Facility & Services (since 2003) • Savannah Campus (since July 2011) Slide courtesy Leo Mark, Georgia Tech Professional Education
