  1. 中国科学技术大学研究生课程 (PI05302) 数字图像处理 何清波 博士 副教授 中国科学技术大学 精密机械与精密仪器系 安徽合肥 Email：qbhe@ustc.edu.cn 电话:3607985

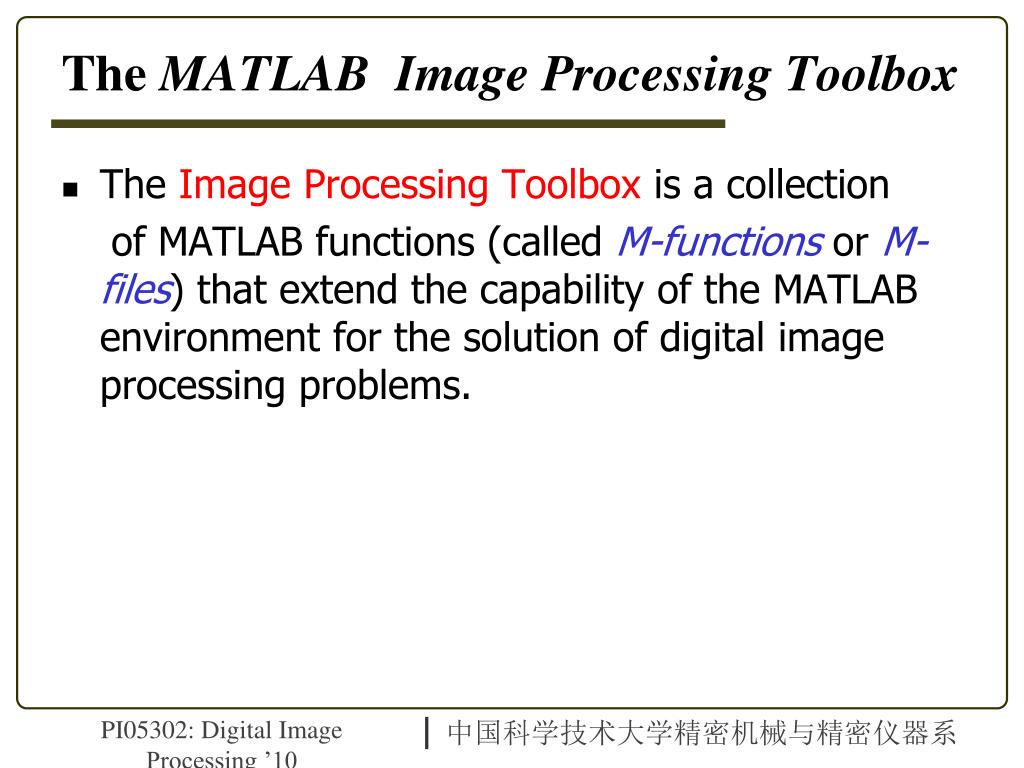

  2. The Image Processing Toolbox is a collection of MATLAB functions (called M-functionsor M-files) that extend the capability of the MATLAB environment for the solution of digital image processing problems. The MATLAB Image Processing Toolbox

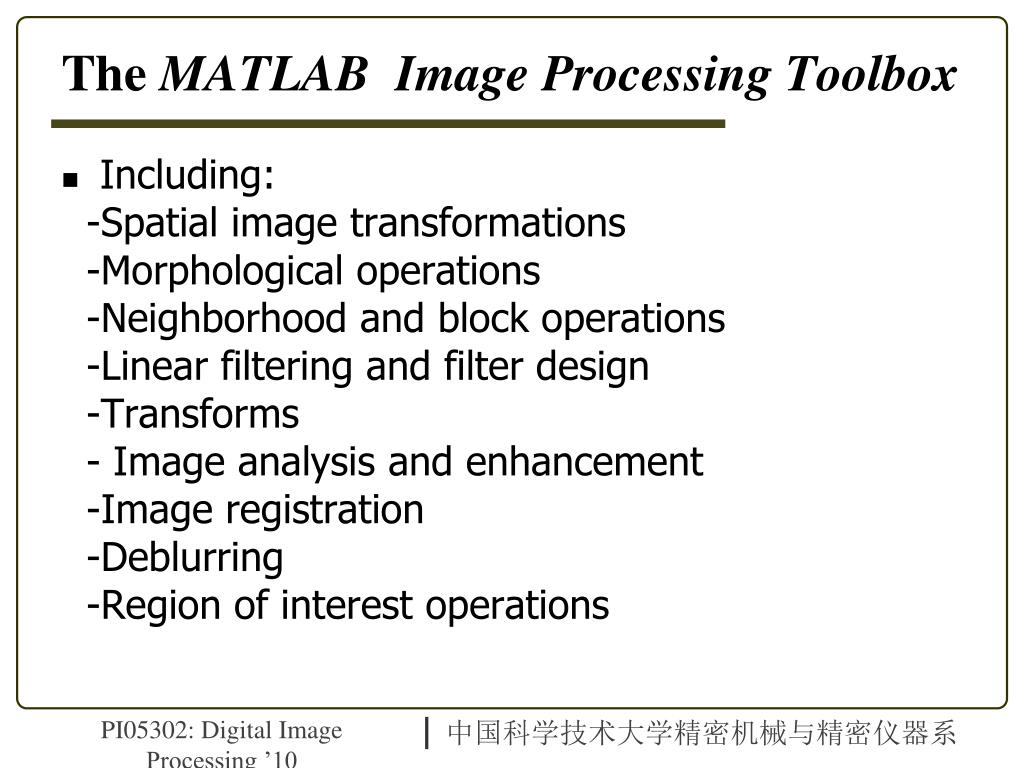

  3. Including: -Spatial image transformations -Morphological operations -Neighborhood and block operations -Linear filtering and filter design -Transforms - Image analysis and enhancement -Image registration -Deblurring -Region of interest operations The MATLAB Image Processing Toolbox

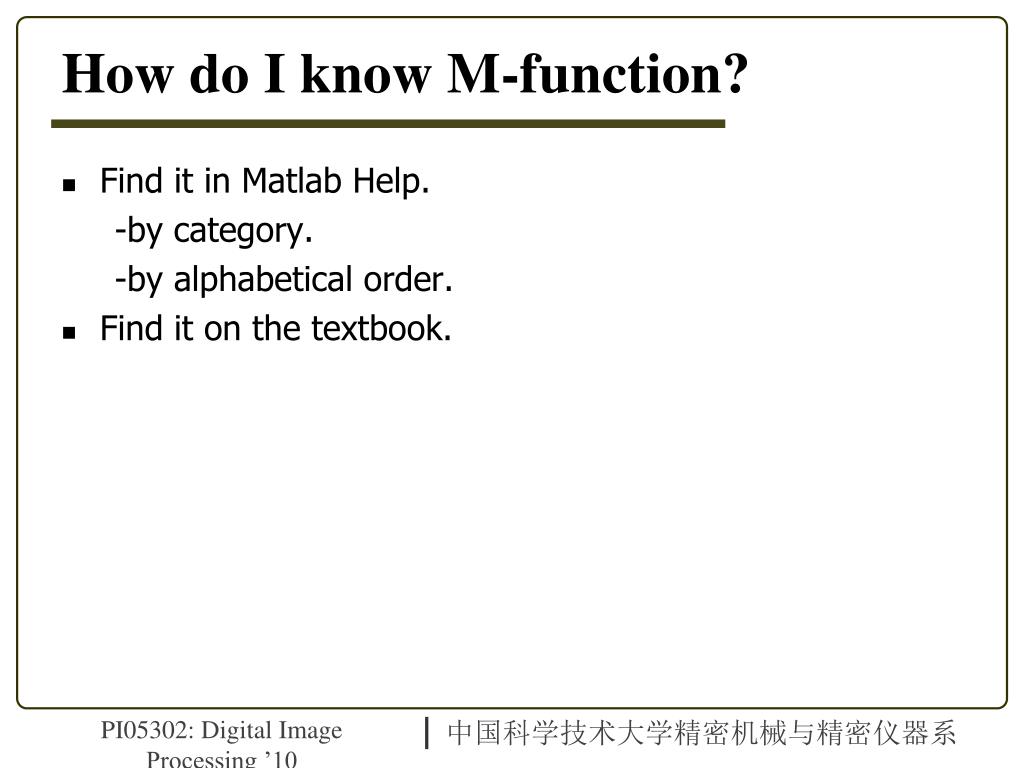

  4. Find it in Matlab Help. -by category. -by alphabetical order. Find it on the textbook. How do I know M-function?

  5. C:\MATLAB7\toolbox\images\imdemos 皆为Matlab Help中范例的原始图像。 使用时只需直接在指令中输入文件名，即可使用。 适用于观察影像处理结果 Matlab 内建图像

  6. imread() 功用:将图像加载并存成array格式备用 用法:[I,map] = imread(filename); I = imread(filename); ex: I = imread ('pout.tif'); I为指向影像的变量 不指定变数，则为ans Reading an image

  7. imshow() 功用:开启一个窗口显示影像 用法: imshow(I) imshow(I,map) Figure, imshow() 功用:开启一个新窗口显示影像 用法: figure,imshow(I) Displaying an image

  8. imshow(I, [low, high]) imshow(I, [ ]) 功用:displays I as a grayscale intensity image, specifying the data range for I. The minimum value in I is displayed as black, and the maximum value is displayed as white. Displaying an image(cont.) • Low=100 • High=200

  9. Spatial domain Displaying an image(cont.)

  10. pixval : 功能:cursor on image to show pixel values 用法: imshow(I),pixval (impixelinfo in V7.8 or R2009a) Displaying an image(cont.)

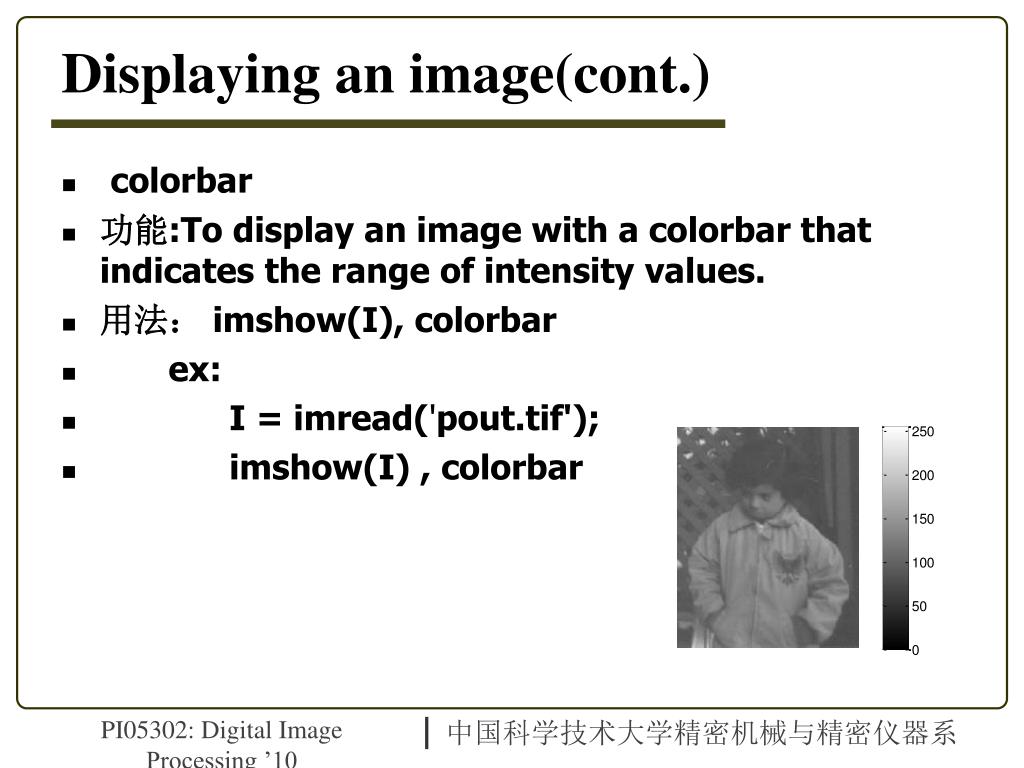

  11. colorbar 功能:To display an image with a colorbar that indicates the range of intensity values. 用法： imshow(I), colorbar ex: I = imread('pout.tif'); imshow(I) , colorbar Displaying an image(cont.)

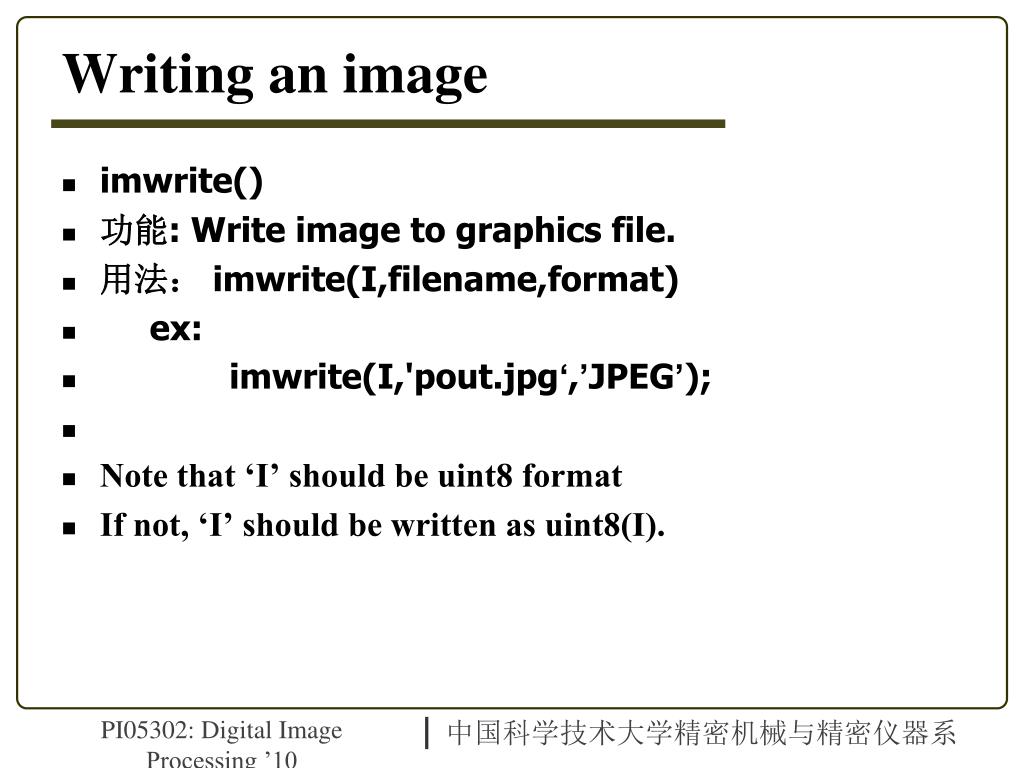

  12. imwrite() 功能: Write image to graphics file. 用法： imwrite(I,filename,format) ex: imwrite(I,'pout.jpg‘,’JPEG’); Note that ‘I’ should be uint8 format If not, ‘I’ should be written as uint8(I). Writing an image

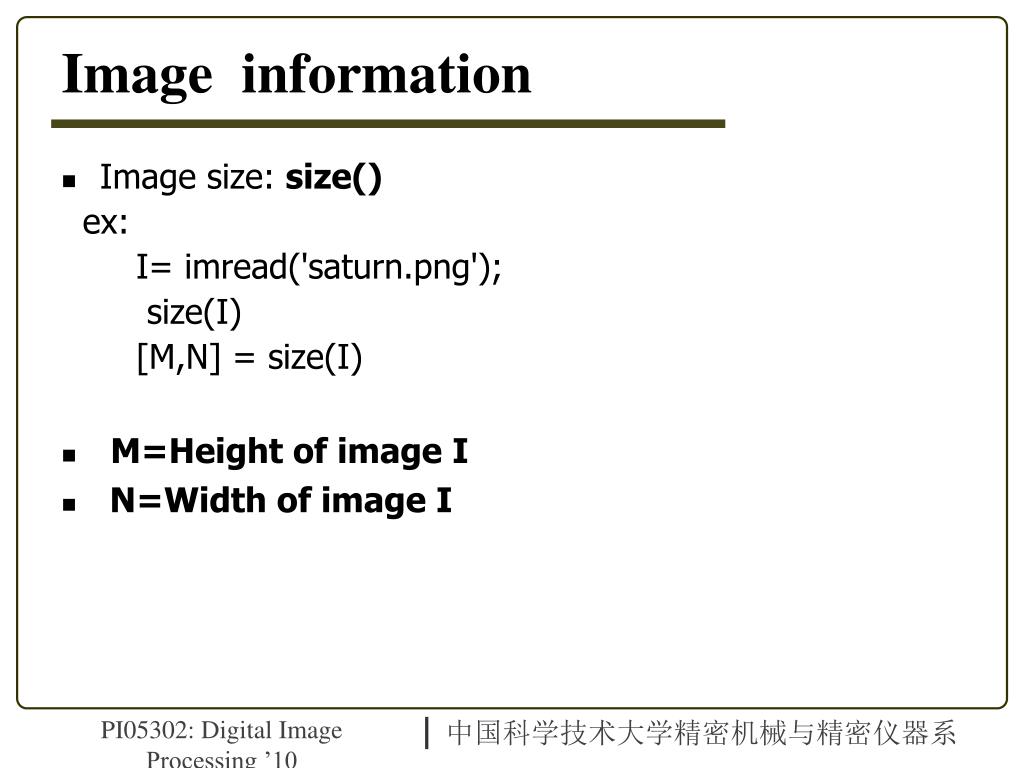

  13. Image size: size() ex: I= imread('saturn.png'); size(I) [M,N] = size(I) M=Height of image I N=Width of image I Image information

  14. whos 功用:display information about an image . ex: whos I Imfinfo( filename ) 功用: display information about image file . ex: info = imfinfo('saturn.png') Image information Name Size Bytes Class Attributes I 291x240 69840 uint8

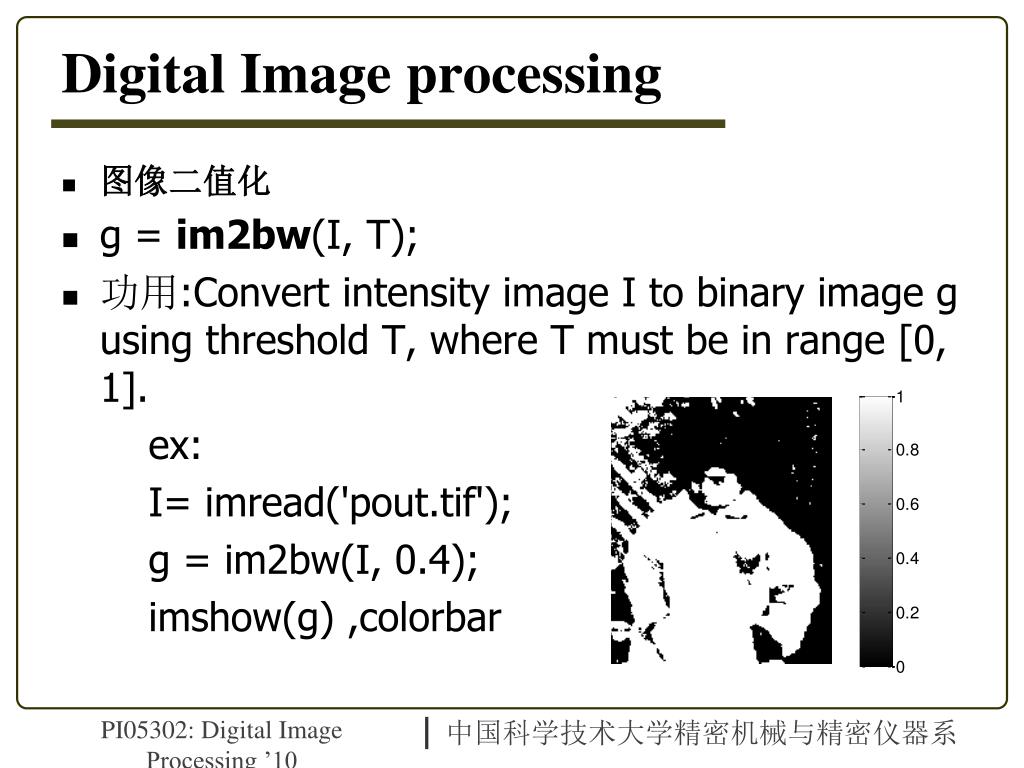

  15. 图像二值化 g = im2bw(I, T); 功用:Convert intensity image I to binary image g using threshold T, where T must be in range [0, 1]. ex: I= imread('pout.tif'); g = im2bw(I, 0.4); imshow(g) ,colorbar Digital Image processing

  16. 彩色转灰阶 rgb2gray() 功用:将RBG彩色影像转换成gray-level影像。 ex: I= imread ('saturn.png'); g = rgb2gray(I); imshow(g), colorbar Digital Image processing(cont.)

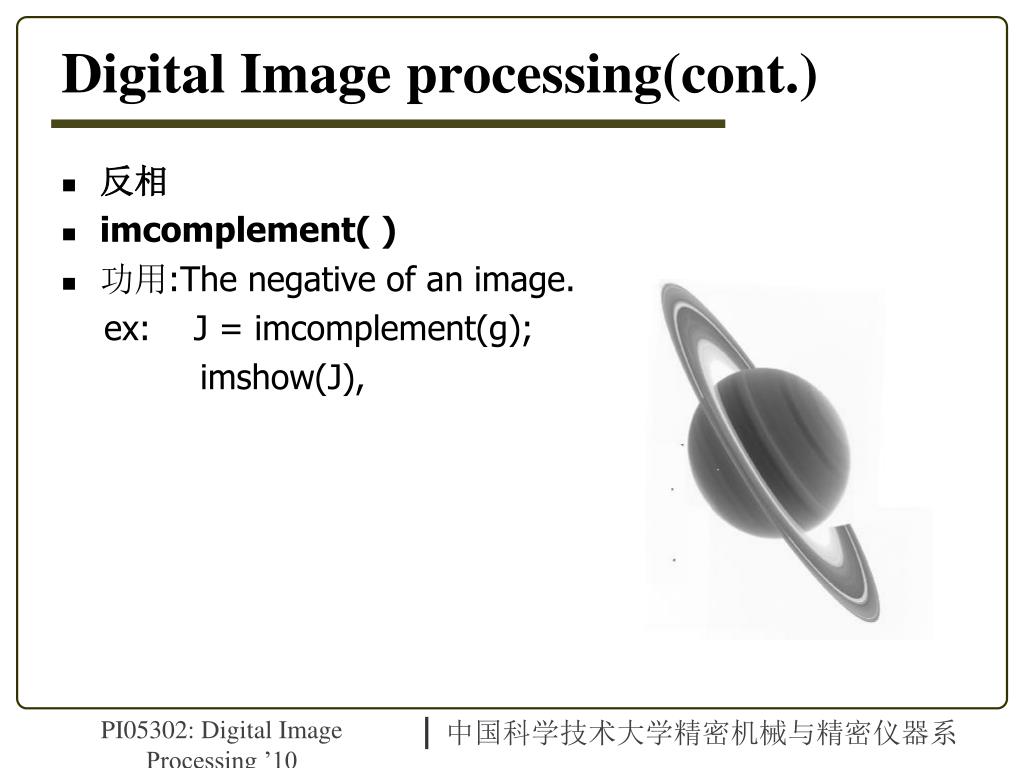

  17. 反相 imcomplement( ) 功用:The negative of an image. ex: J = imcomplement(g); imshow(J), Digital Image processing(cont.)

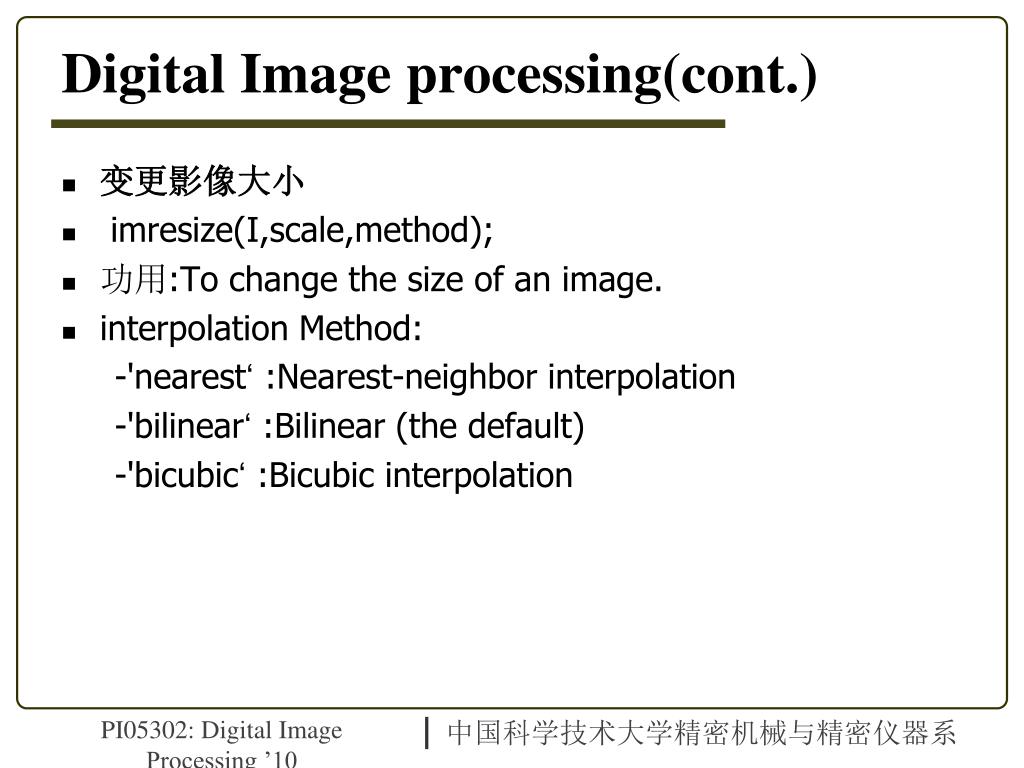

  18. 变更影像大小 imresize(I,scale,method); 功用:To change the size of an image. interpolation Method: -'nearest‘ :Nearest-neighbor interpolation -'bilinear‘ :Bilinear (the default) -'bicubic‘ :Bicubic interpolation Digital Image processing(cont.)

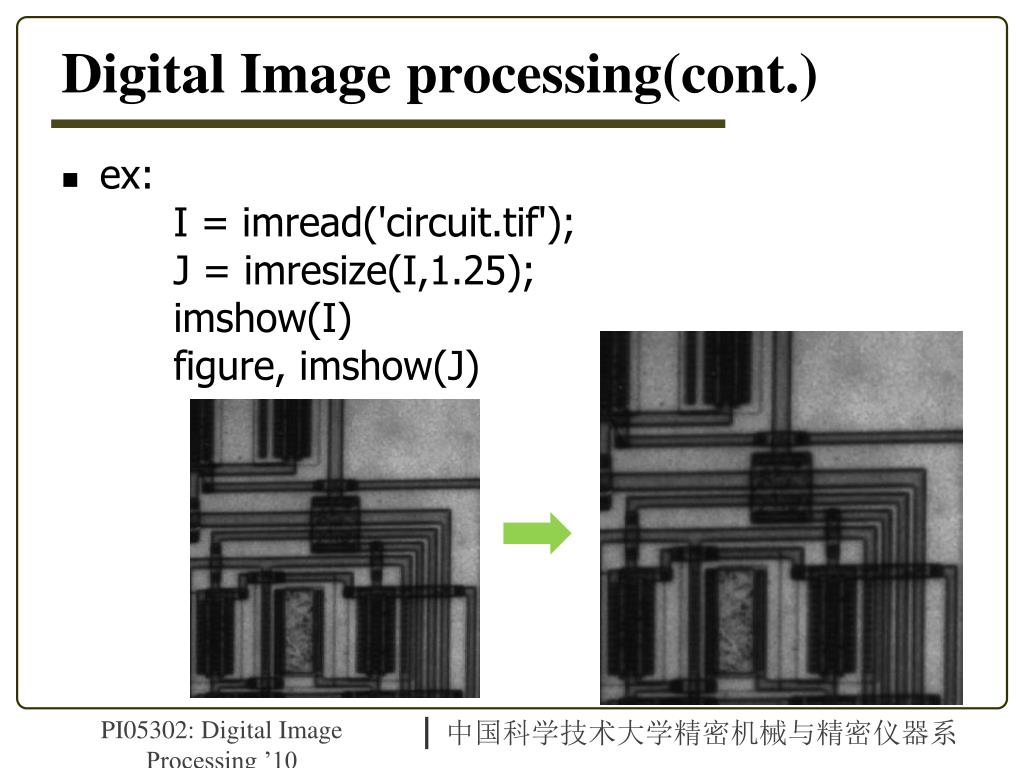

  19. ex: I = imread('circuit.tif'); J = imresize(I,1.25); imshow(I) figure, imshow(J) Digital Image processing(cont.)

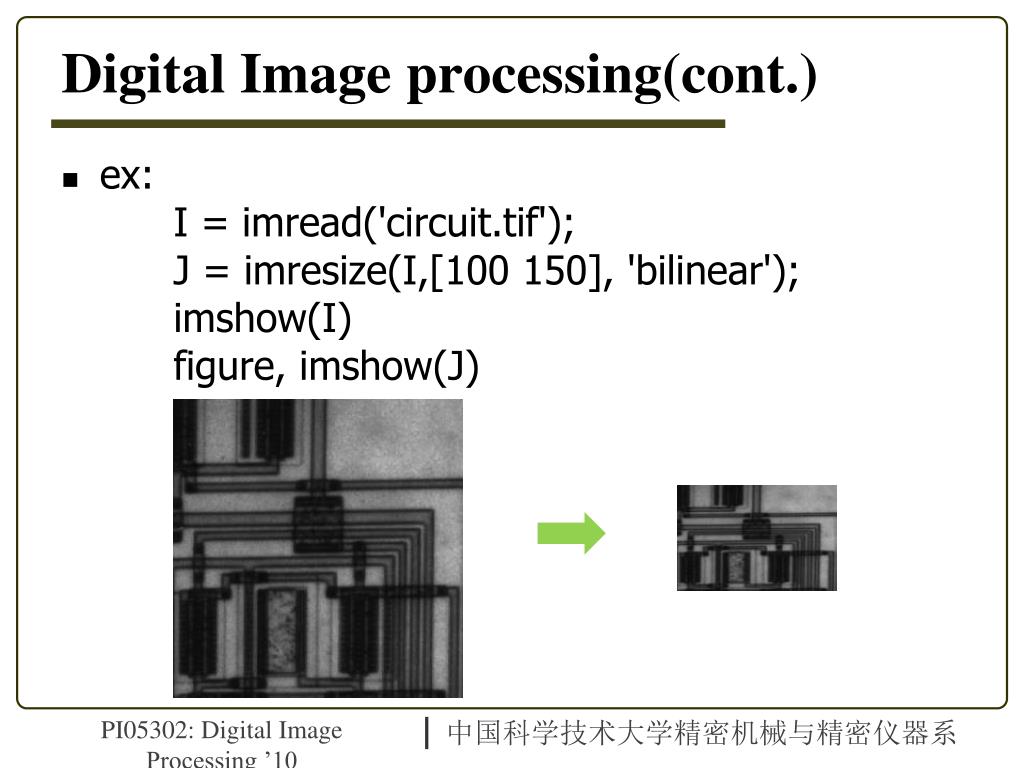

  20. ex: I = imread('circuit.tif'); J = imresize(I,[100 150], 'bilinear'); imshow(I) figure, imshow(J) Digital Image processing(cont.)

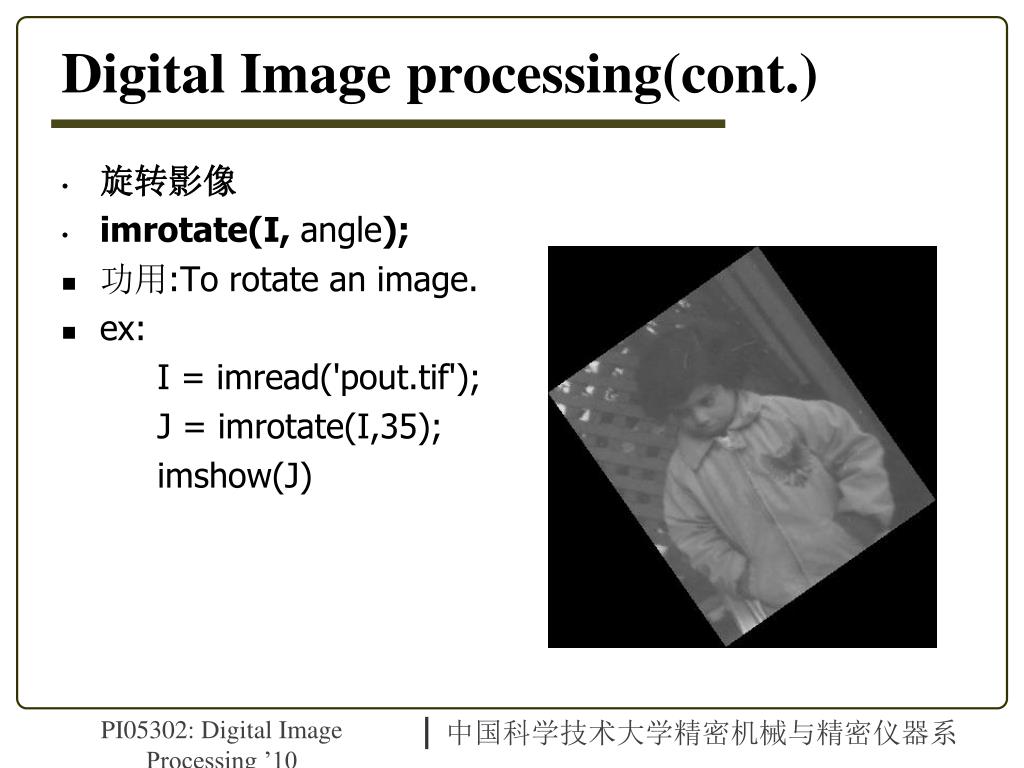

  21. 旋转影像 imrotate(I, angle); 功用:To rotate an image. ex: I = imread('pout.tif'); J = imrotate(I,35); imshow(J) Digital Image processing(cont.)

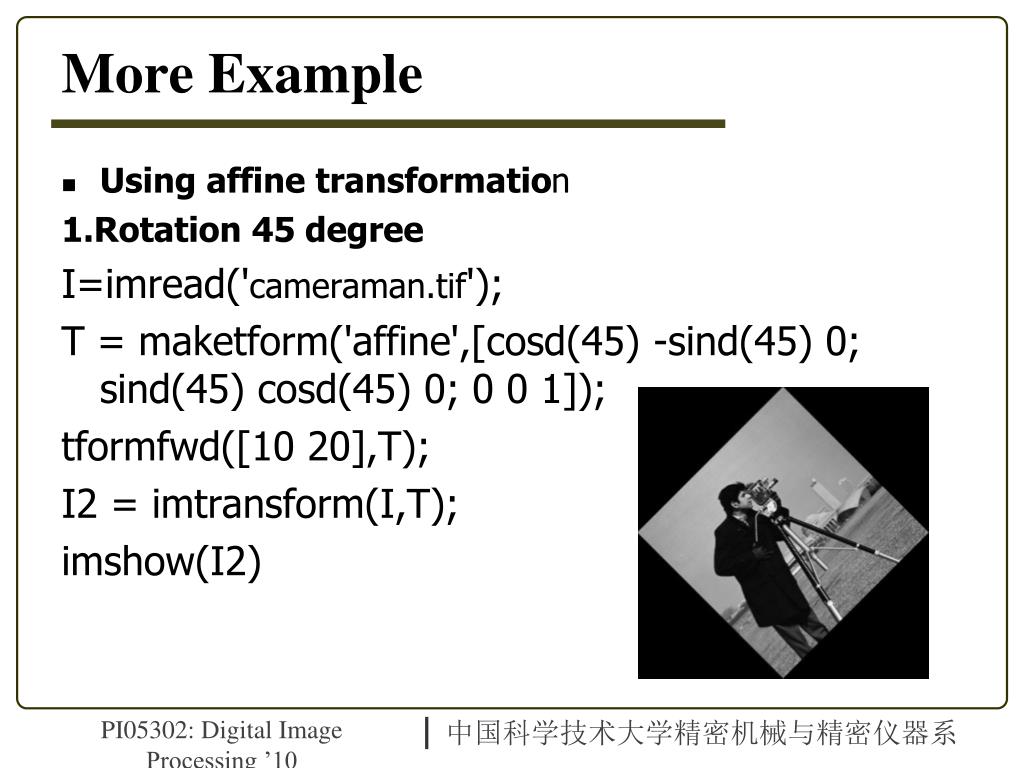

  22. Using affine transformation 1.Rotation 45 degree I=imread('cameraman.tif'); T = maketform('affine',[cosd(45) -sind(45) 0; sind(45) cosd(45) 0; 0 0 1]); tformfwd([10 20],T); I2 = imtransform(I,T); imshow(I2) More Example

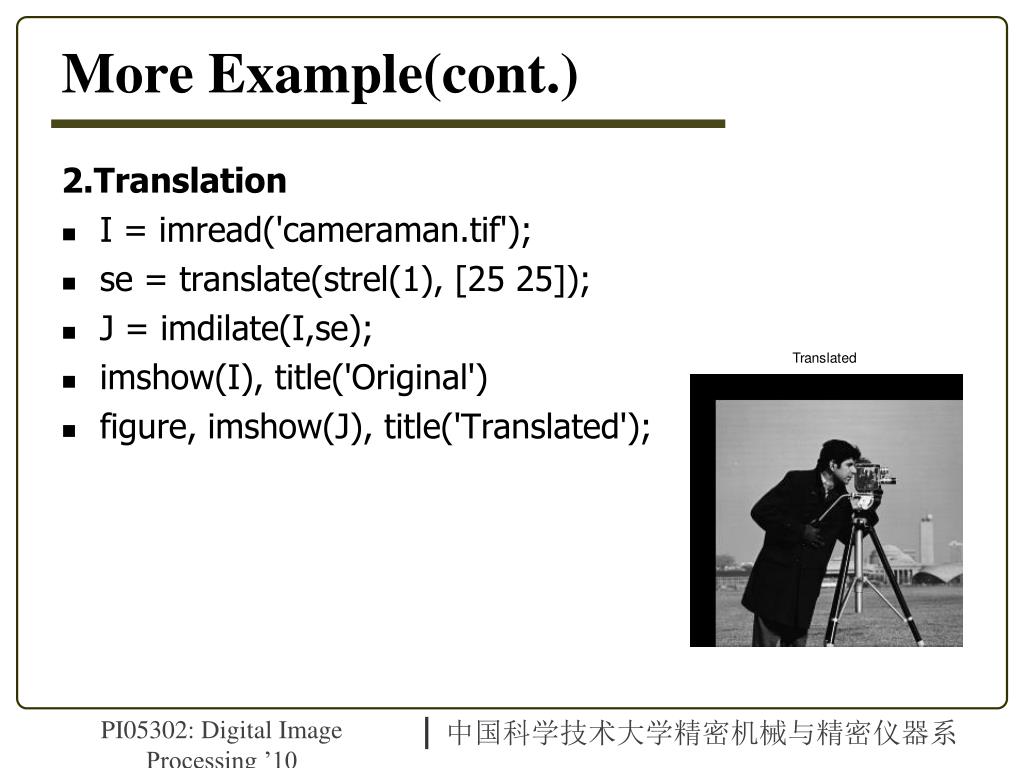

  23. 2.Translation I = imread('cameraman.tif'); se = translate(strel(1), [25 25]); J = imdilate(I,se); imshow(I), title('Original') figure, imshow(J), title('Translated'); More Example(cont.)

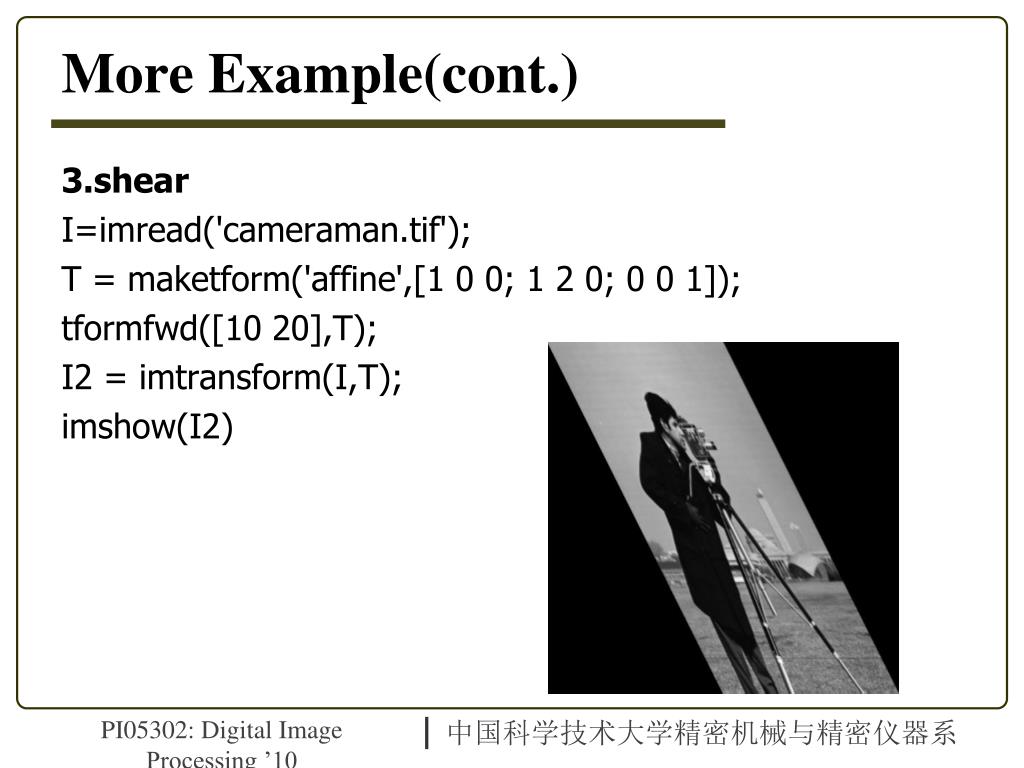

  24. 3.shear I=imread('cameraman.tif'); T = maketform('affine',[1 0 0; 1 2 0; 0 0 1]); tformfwd([10 20],T); I2 = imtransform(I,T); imshow(I2) More Example(cont.)

  25. 结束！ • Note • 一定要学会使用help命令 • 一定要适应采用M文件编程 • 一定要熟练掌握矩阵的操作
