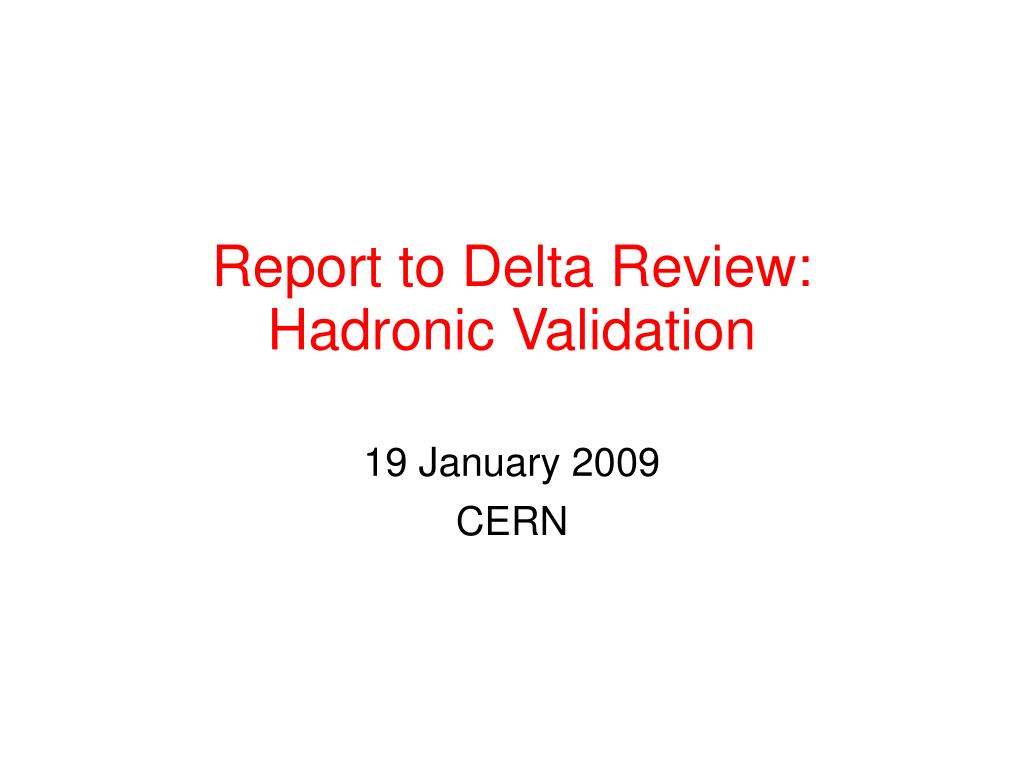

  1. 19 January 2009 CERN Report to Delta Review:Hadronic Validation

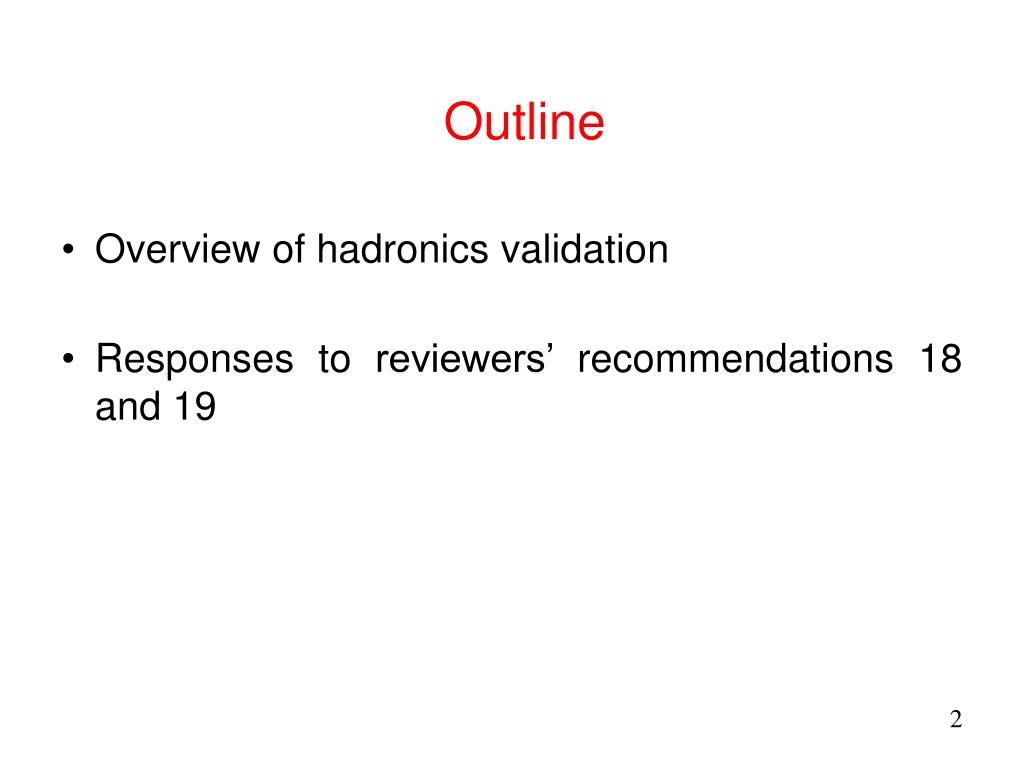

  2. Outline • Overview of hadronics validation • Responses to reviewers’ recommendations 18 and 19 2

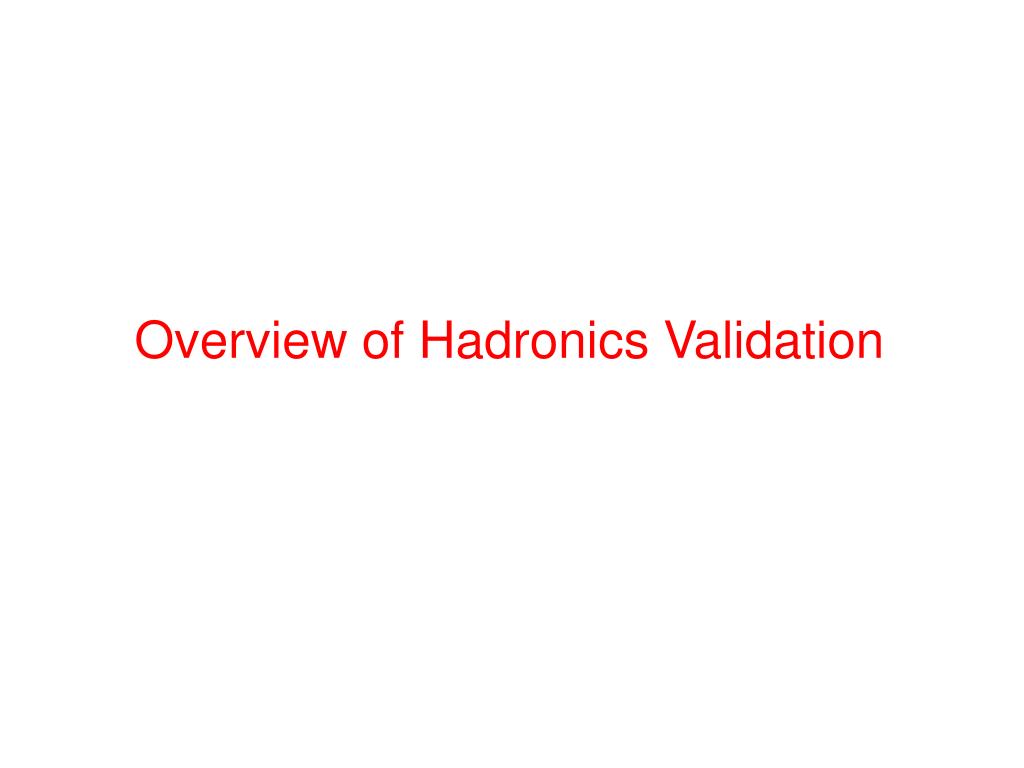

  3. Overview of Hadronics Validation

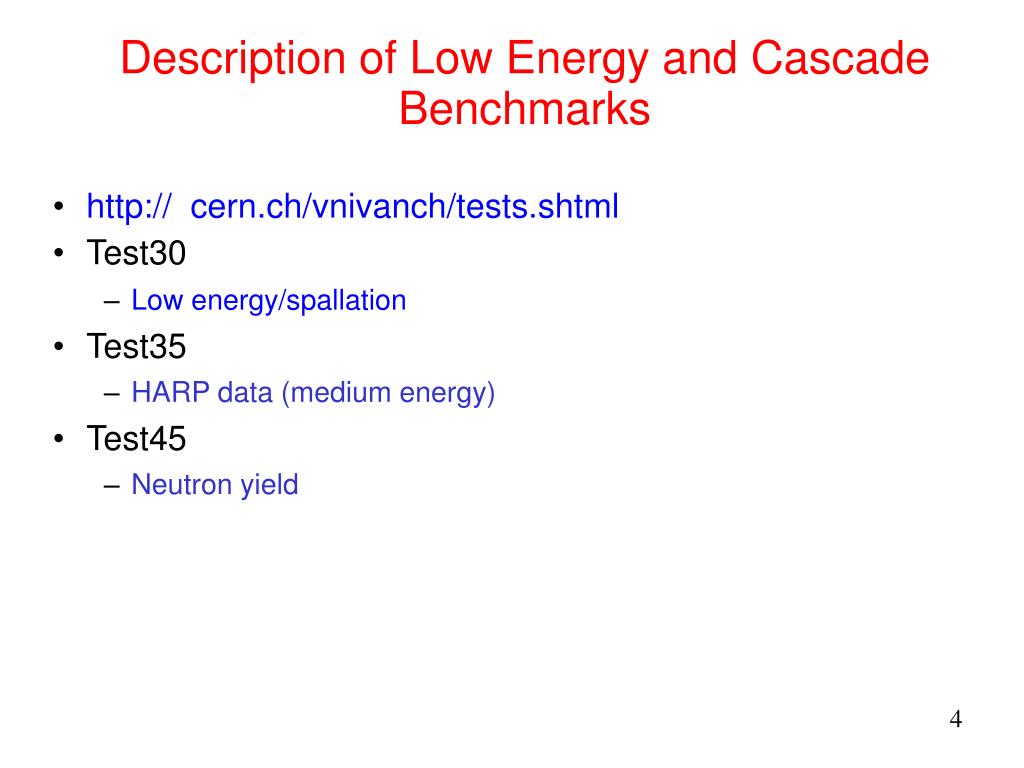

  4. Description of Low Energy and Cascade Benchmarks • http:// cern.ch/vnivanch/tests.shtml • Test30 • Low energy/spallation • Test35 • HARP data (medium energy) • Test45 • Neutron yield 4

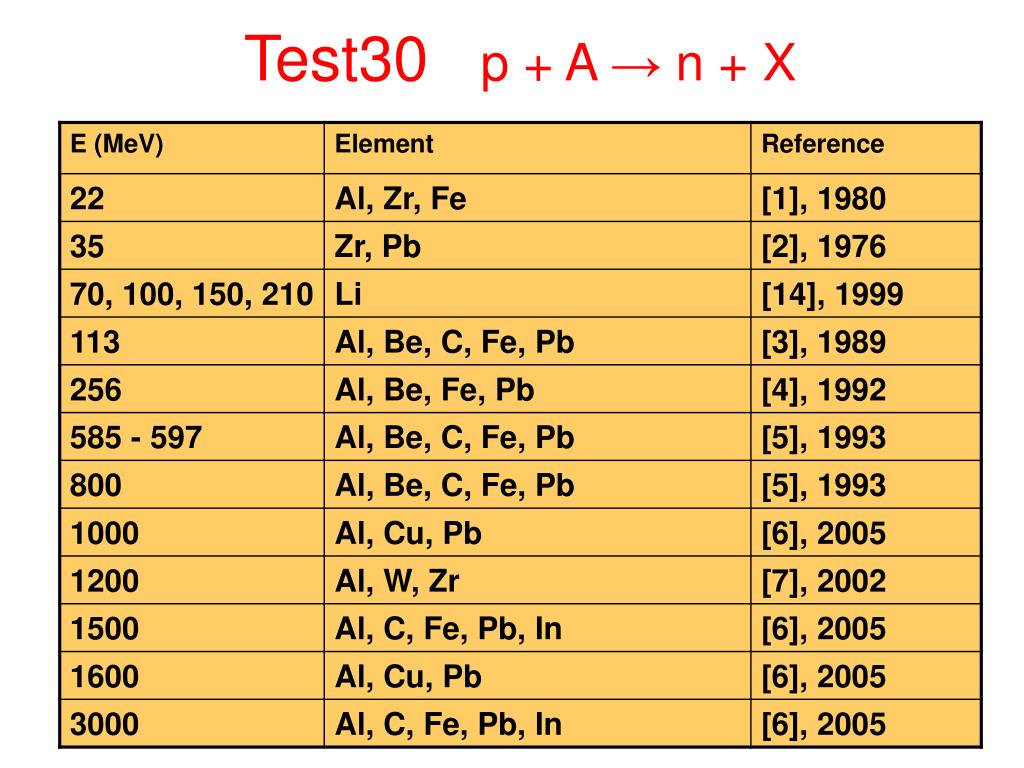

  5. Test30 p + A → n + X

  6. Test 30 n + A → p + X Test 30 p + A → p + X Test 30 n + A → n + X

  7. Low Energy Benchmarks (Test 30) 7

  8. Test 35 p + A → π±+ X • Data from large angle HARP experiment: • 0.35 – 2.15 radians • Proton beam energies: 3, 5, 8, 8.9, 12 GeV/c • Targets: Be, Al, C, Cu, Sn, Ta, Pb • Pion momentum: 0.1 – 0.7 GeV/c • Data from forward angle HARP experiment • 0.03 – 0.21 radians • Proton and π± beam energies: 3, 5, 8, 8.9, 12, 12.9 GeV/c • Targets: Be, C, N, O, Al, Cu, Sn, Ta, Pb • Pion momentum: 0.5 – 8.0 GeV/c • Accuracy of the data about • 10% for proton beam • 10-50% for pion data due to limited statistic 8

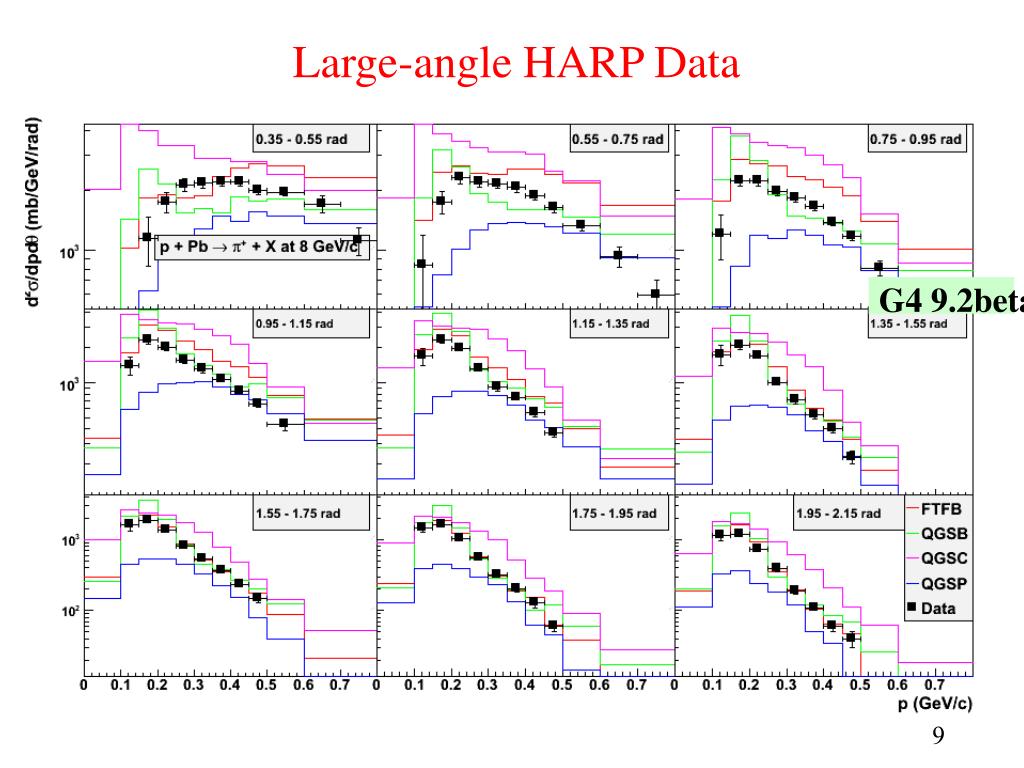

  9. Large-angle HARP Data G4 9.2beta 9

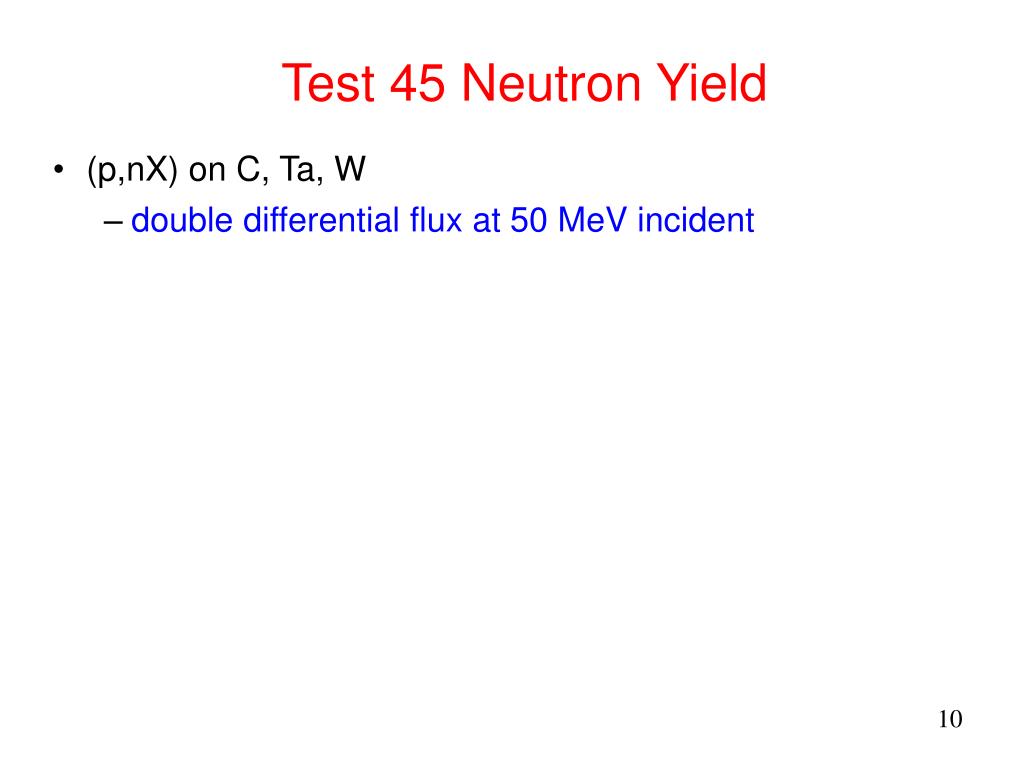

  10. Test 45 Neutron Yield • (p,nX) on C, Ta, W • double differential flux at 50 MeV incident 10

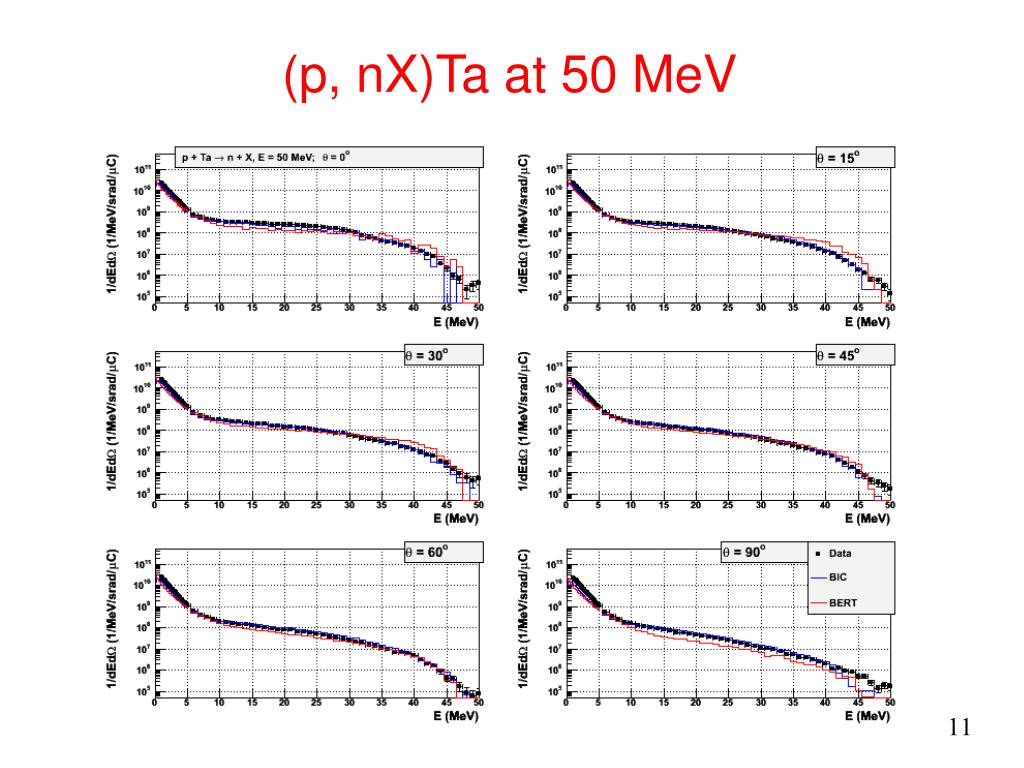

  11. (p, nX)Ta at 50 MeV 11

  12. Description of Medium Energy Benchmarks • http:// geant4.fnal.gov/hadronic_validation/validation_plots.htm • 1.4 – 9.0 GeV (p,pX) on Be, C, Cu, Pb, U • Bayukov, 1985 • Invariant cross section vs kinetic energy • 1.4 – 5.0 GeV (p+,p), (p+,n) on Be, C, Cu, Pb, U • Bayukov, 1985 • Invariant cross section vs kinetic energy • 14.6 GeV/c (p,p+X), (p,p-X) on Be, Al, Cu, Au • Abbot, 1992 • Invariant cross section vs transverse mass • 14.6 GeV/c (p,pX) on Cu • Abbot, 1992 • Invariant cross section vs transverse mass 12

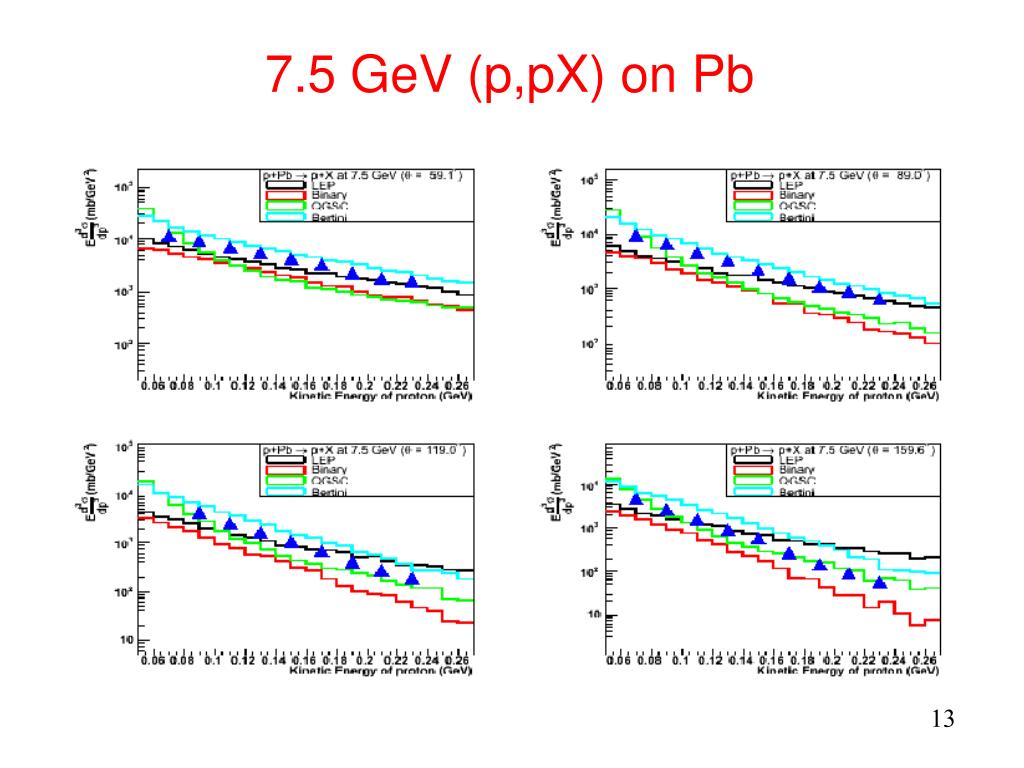

  13. 7.5 GeV (p,pX) on Pb 13

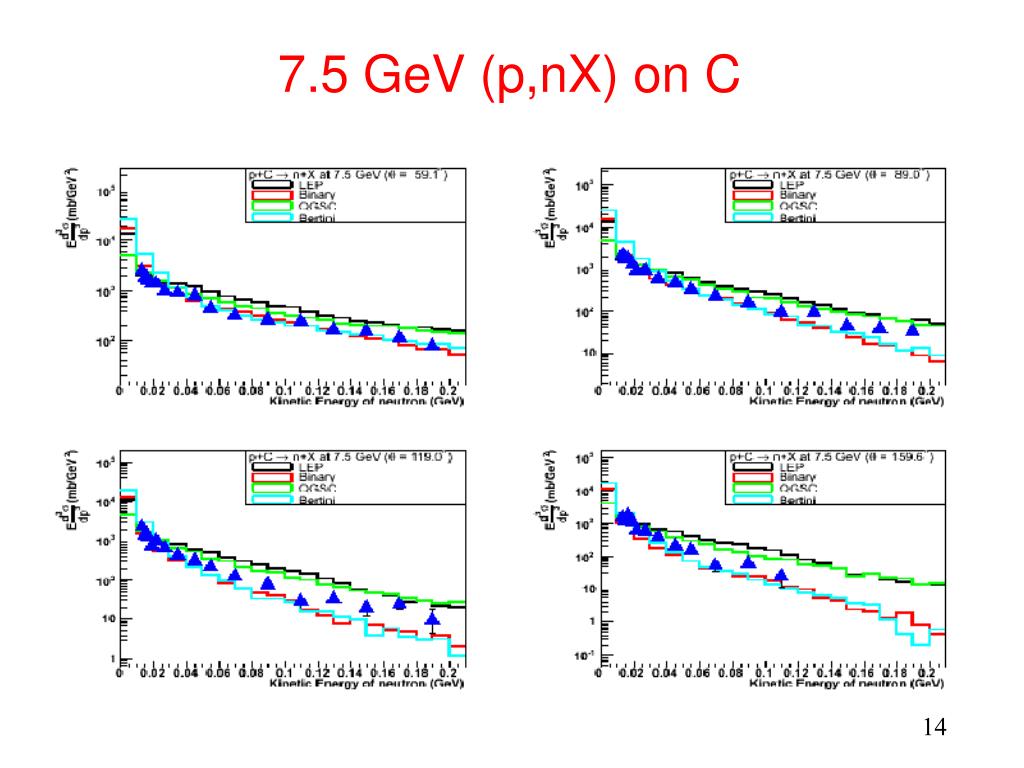

  14. 7.5 GeV (p,nX) on C 14

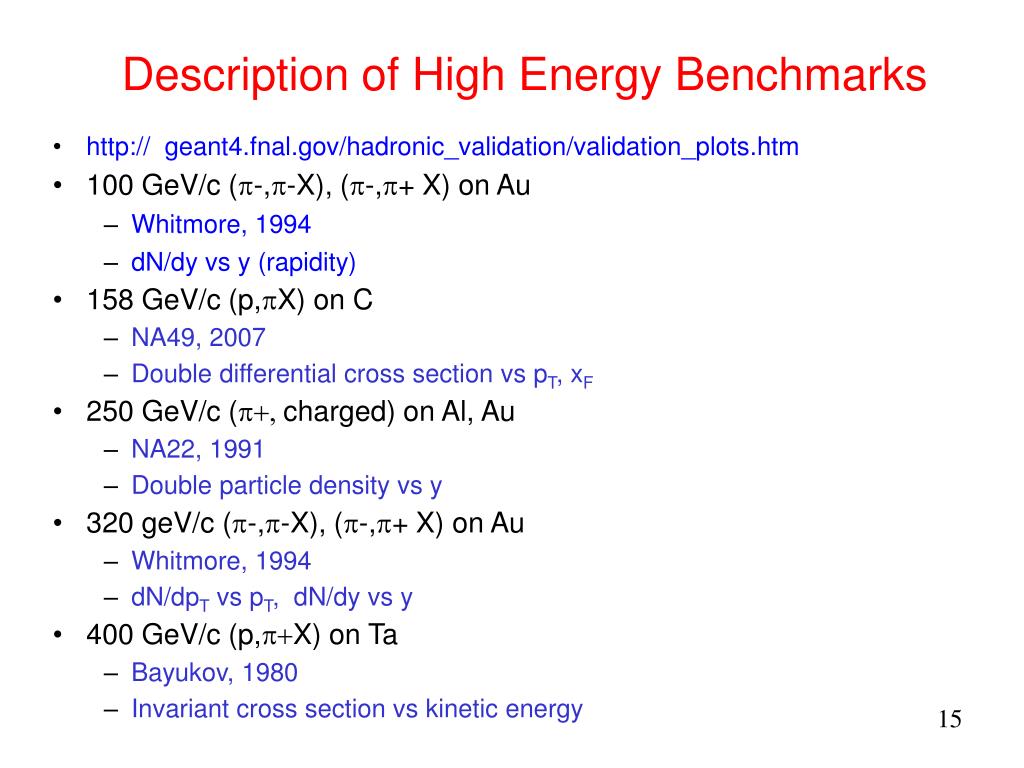

  15. Description of High Energy Benchmarks • http:// geant4.fnal.gov/hadronic_validation/validation_plots.htm • 100 GeV/c (p-,p-X), (p-,p+ X) on Au • Whitmore, 1994 • dN/dy vs y (rapidity) • 158 GeV/c (p,pX) on C • NA49, 2007 • Double differential cross section vs pT, xF • 250 GeV/c (p+, charged) on Al, Au • NA22, 1991 • Double particle density vs y • 320 geV/c (p-,p-X), (p-,p+ X) on Au • Whitmore, 1994 • dN/dpT vs pT, dN/dy vs y • 400 GeV/c (p,p+X) on Ta • Bayukov, 1980 • Invariant cross section vs kinetic energy 15

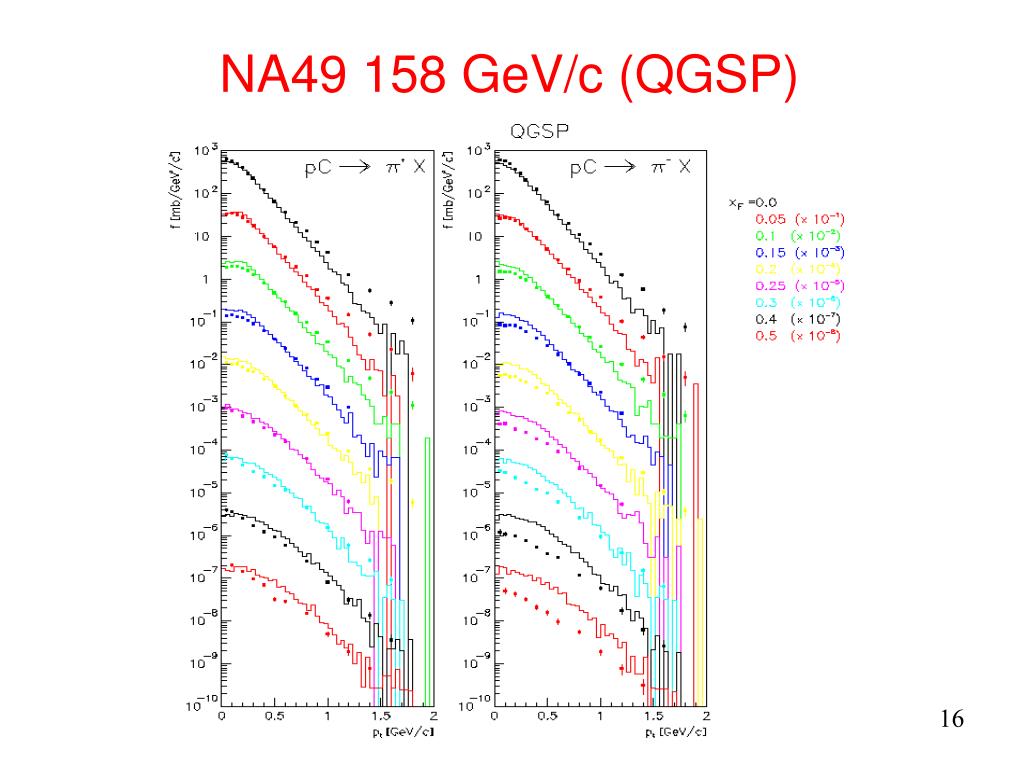

  16. NA49 158 GeV/c (QGSP) 16

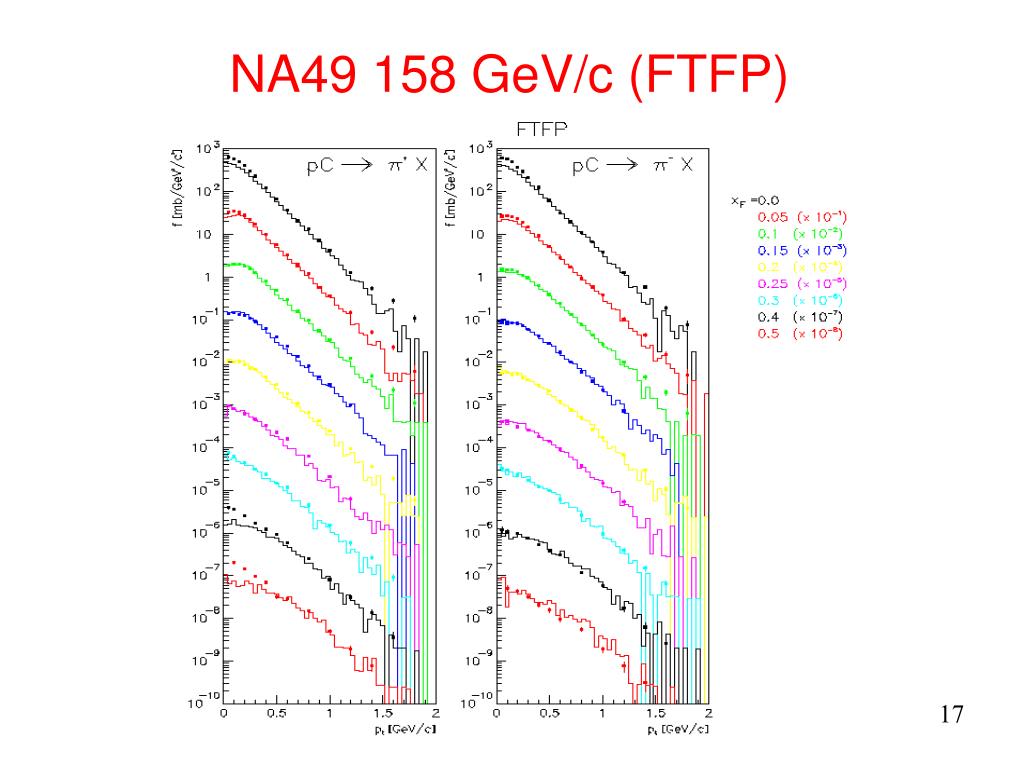

  17. NA49 158 GeV/c (FTFP) 17

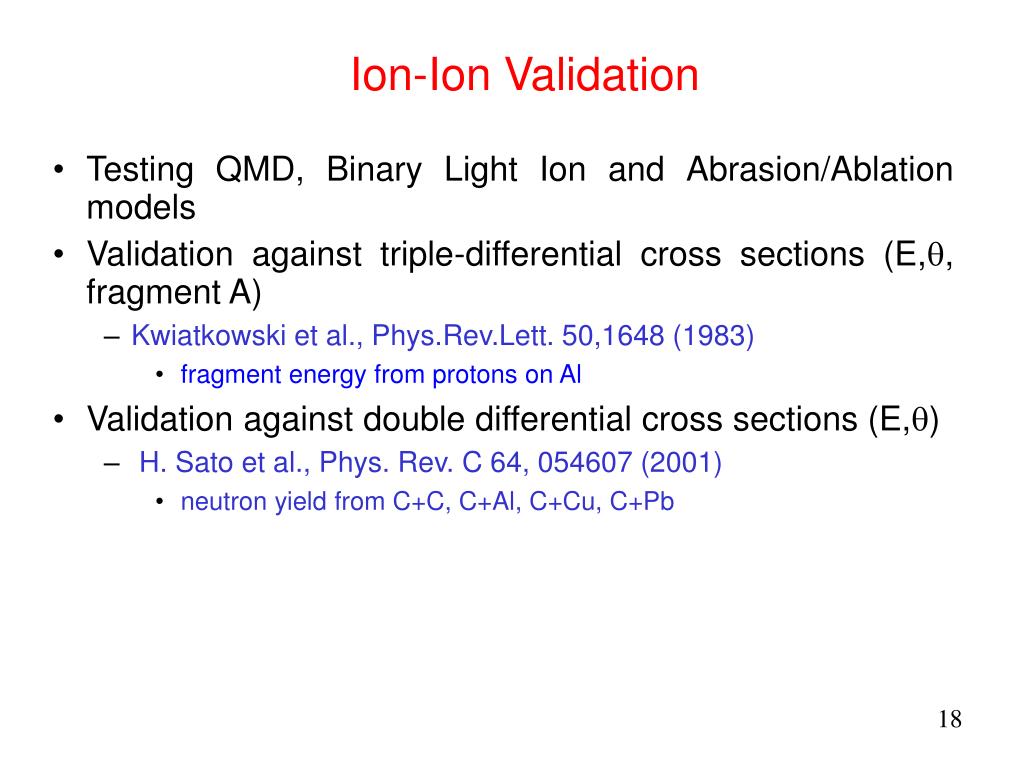

  18. Ion-Ion Validation • Testing QMD, Binary Light Ion and Abrasion/Ablation models • Validation against triple-differential cross sections (E,q, fragment A) • Kwiatkowski et al., Phys.Rev.Lett. 50,1648 (1983) • fragment energy from protons on Al • Validation against double differential cross sections (E,q) • H. Sato et al., Phys. Rev. C 64, 054607 (2001) • neutron yield from C+C, C+Al, C+Cu, C+Pb 18

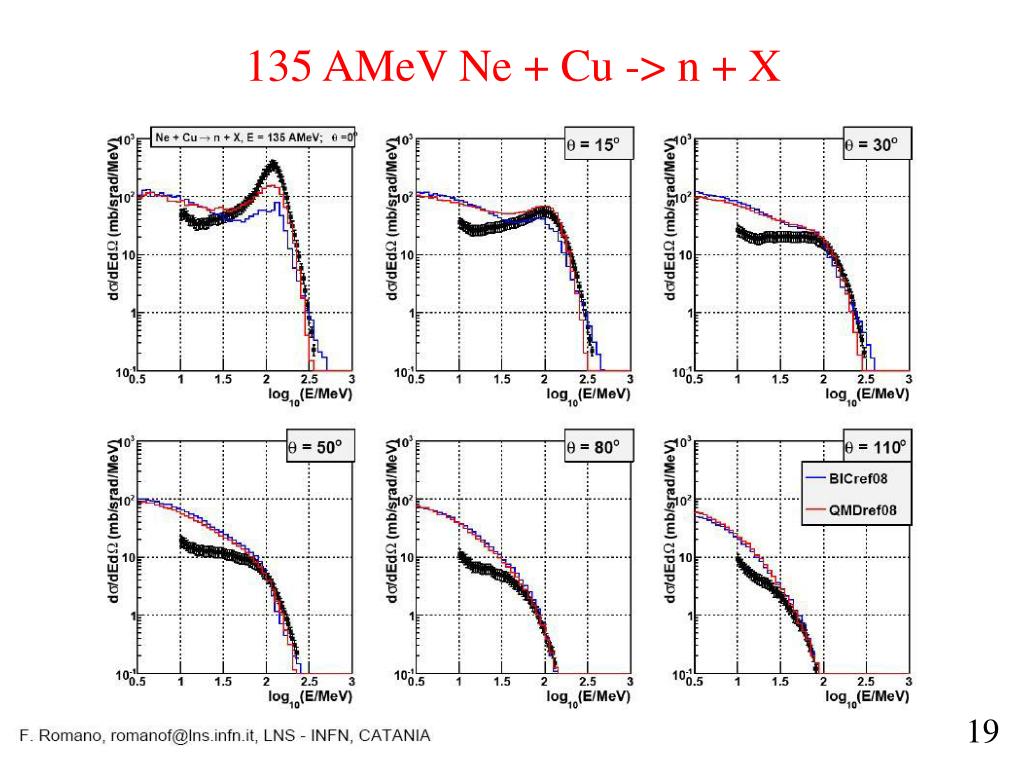

  19. 19 135 AMeV Ne + Cu -> n + X

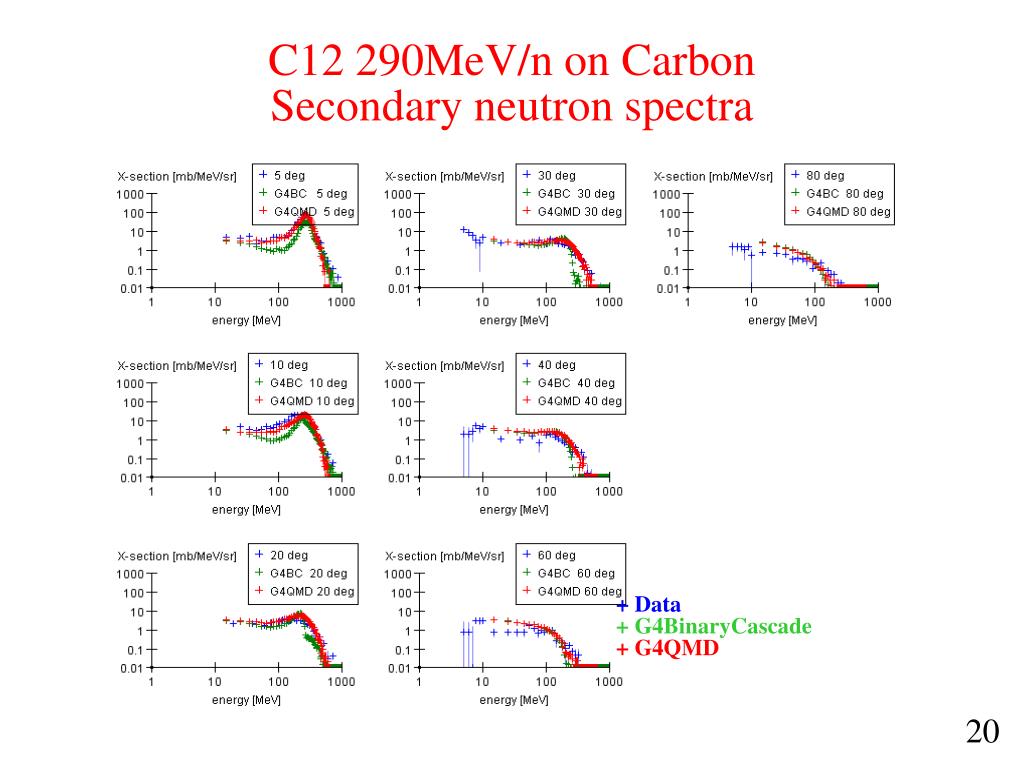

  20. + Data + G4BinaryCascade + G4QMD 20 C12 290MeV/n on CarbonSecondary neutron spectra

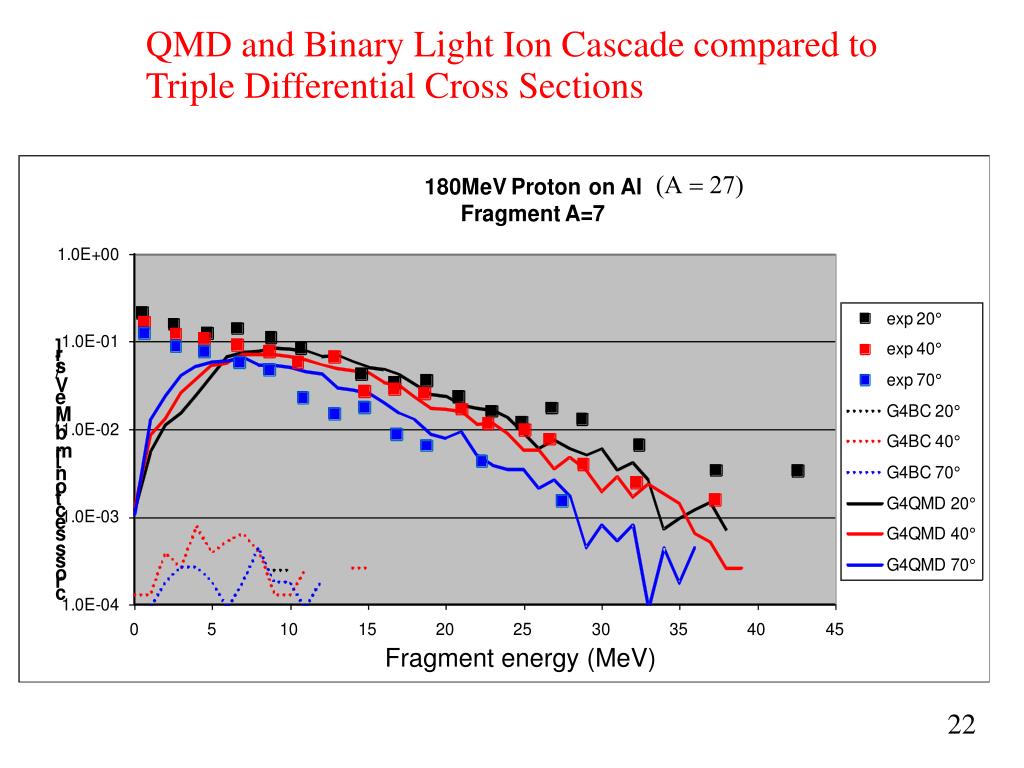

  21. QMD and Binary Light Ion Cascade compared to triple differential cross sections (A = 27) Fragment energy (MeV) 21

  22. QMD and Binary Light Ion Cascade compared to Triple Differential Cross Sections 22 (A = 27) Fragment energy (MeV)

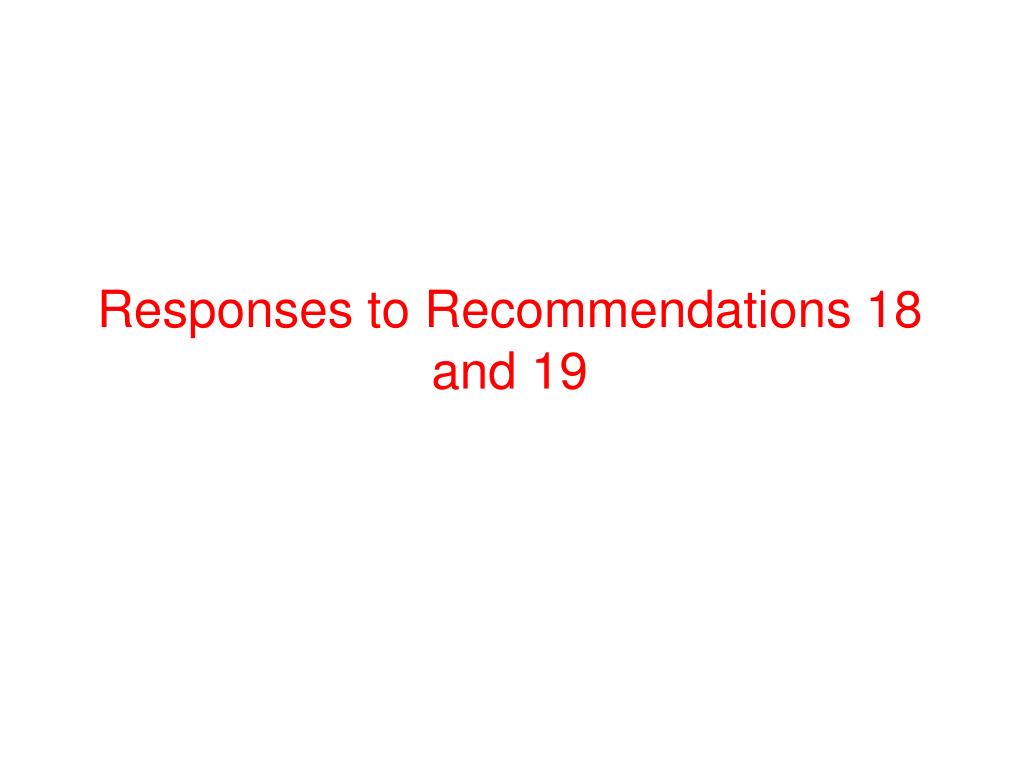

  23. Responses to Recommendations 18 and 19

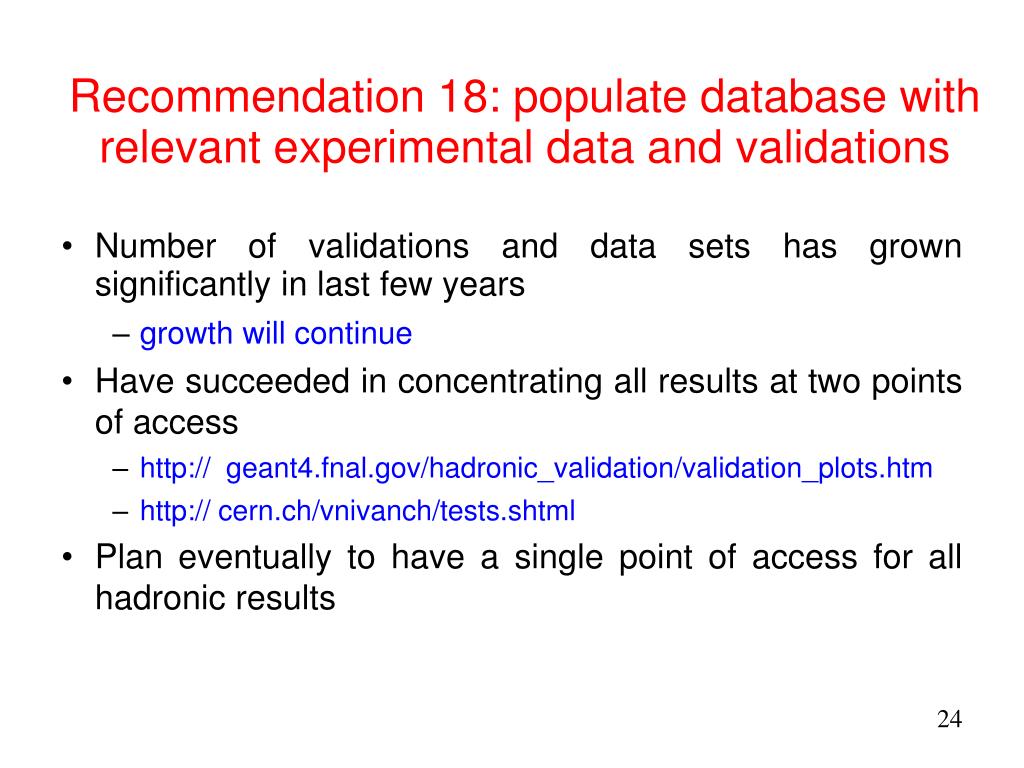

  24. Recommendation 18: populate database with relevant experimental data and validations • Number of validations and data sets has grown significantly in last few years • growth will continue • Have succeeded in concentrating all results at two points of access • http:// geant4.fnal.gov/hadronic_validation/validation_plots.htm • http:// cern.ch/vnivanch/tests.shtml • Plan eventually to have a single point of access for all hadronic results 24

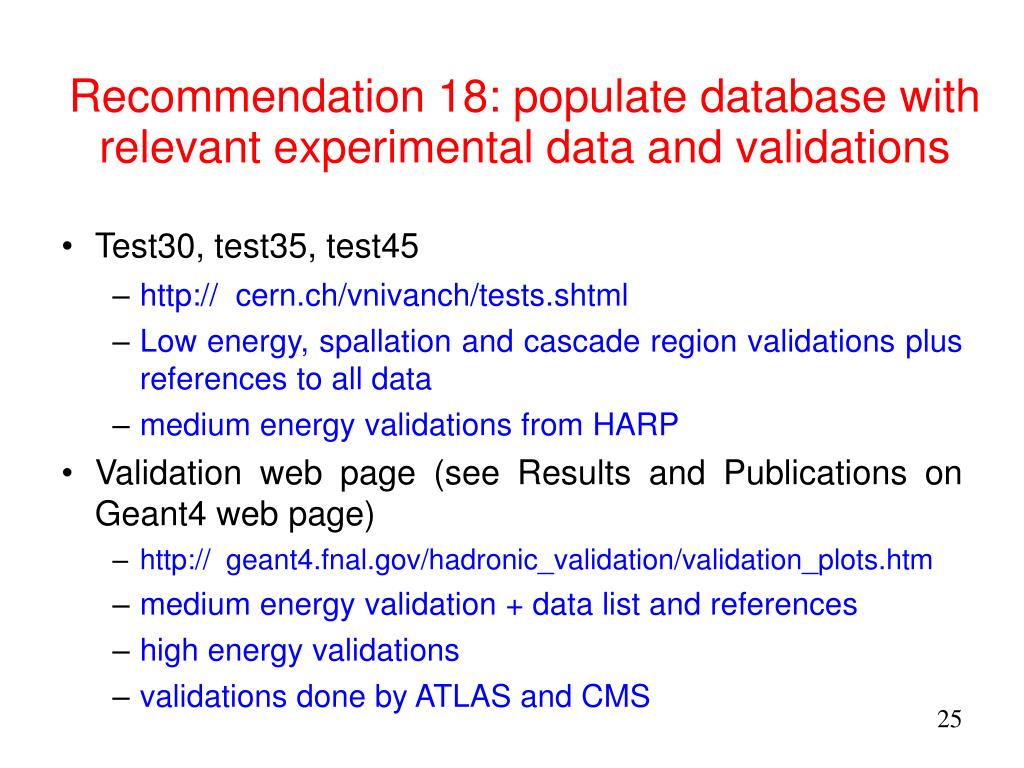

  25. Recommendation 18: populate database with relevant experimental data and validations • Test30, test35, test45 • http:// cern.ch/vnivanch/tests.shtml • Low energy, spallation and cascade region validations plus references to all data • medium energy validations from HARP • Validation web page (see Results and Publications on Geant4 web page) • http:// geant4.fnal.gov/hadronic_validation/validation_plots.htm • medium energy validation + data list and references • high energy validations • validations done by ATLAS and CMS 25

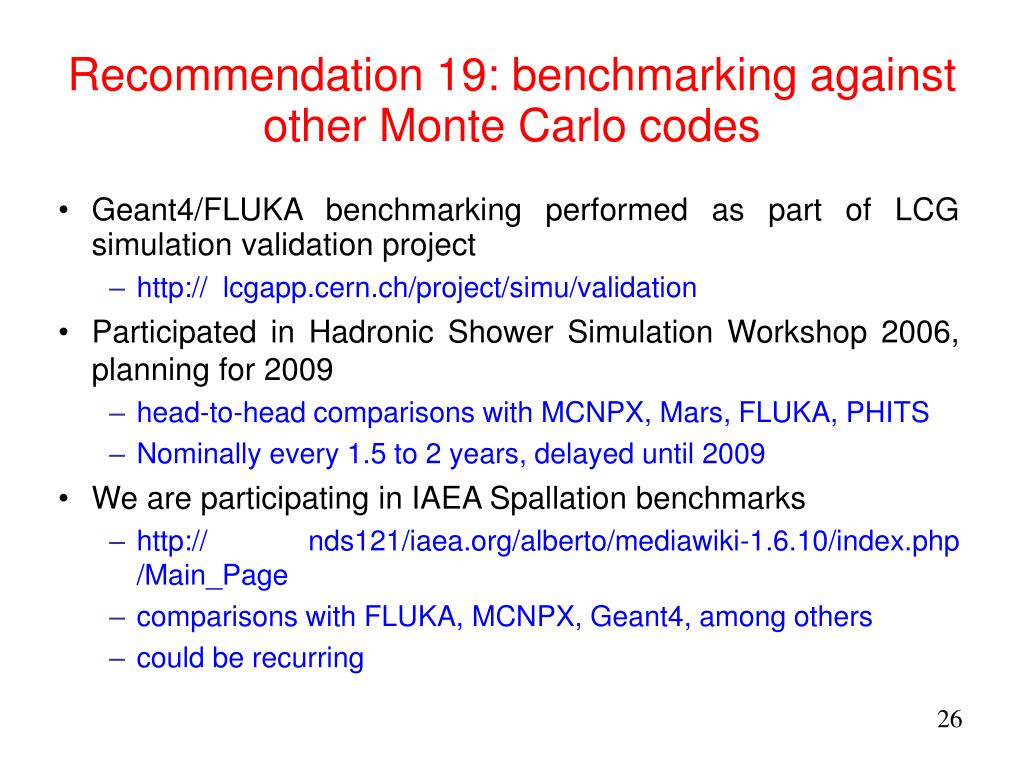

  26. Recommendation 19: benchmarking against other Monte Carlo codes • Geant4/FLUKA benchmarking performed as part of LCG simulation validation project • http:// lcgapp.cern.ch/project/simu/validation • Participated in Hadronic Shower Simulation Workshop 2006, planning for 2009 • head-to-head comparisons with MCNPX, Mars, FLUKA, PHITS • Nominally every 1.5 to 2 years, delayed until 2009 • We are participating in IAEA Spallation benchmarks • http:// nds121/iaea.org/alberto/mediawiki-1.6.10/index.php /Main_Page • comparisons with FLUKA, MCNPX, Geant4, among others • could be recurring 26

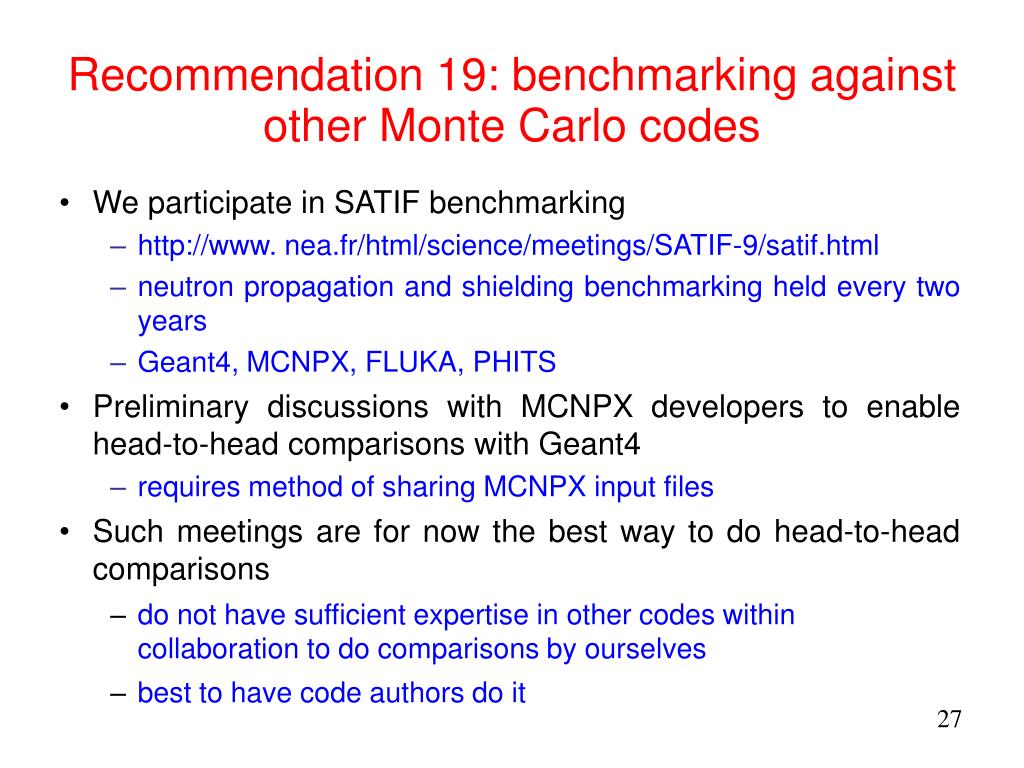

  27. Recommendation 19: benchmarking against other Monte Carlo codes • We participate in SATIF benchmarking • http://www. nea.fr/html/science/meetings/SATIF-9/satif.html • neutron propagation and shielding benchmarking held every two years • Geant4, MCNPX, FLUKA, PHITS • Preliminary discussions with MCNPX developers to enable head-to-head comparisons with Geant4 • requires method of sharing MCNPX input files • Such meetings are for now the best way to do head-to-head comparisons • do not have sufficient expertise in other codes within collaboration to do comparisons by ourselves • best to have code authors do it 27
