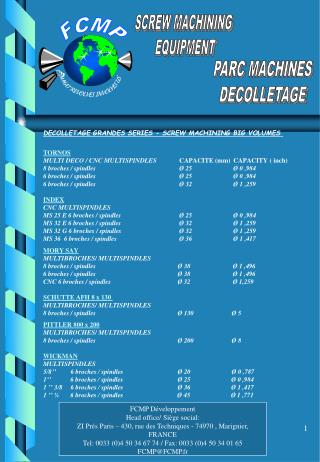

slide1

FCMP

WHAT REVOLVES INVOLVES US

SCREW MACHINING

EQUIPMENT

PARC MACHINES

DECOLLETAGE

DECOLLETAGE GRANDES SERIES - SCREW MACHINING BIG VOLUMES

TORNOS

MULTI DECO / CNC MULTISPINDLES CAPACITE (mm) CAPACITY ( inch)

8 broches / spindles Ø 25 Ø 0 ,984

6 broches / spindles Ø 25 Ø 0 ,984

6 broches / spindles Ø 32 Ø 1 ,259

INDEX

CNC MULTISPINDLES

MS 25 E 6 broches / spindles Ø 25 Ø 0 ,984

MS 32 E 6 broches / spindles Ø 32 Ø 1 ,259

MS 32 G 6 broches / spindles Ø 32 Ø 1 ,259

MS 36 6 broches / spindles Ø 36 Ø 1 ,417

MORY SAY

MULTIBROCHES/ MULTISPINDLES

8 broches / spindles Ø 38 Ø 1 ,496

6 broches / spindles Ø 38 Ø 1 ,496

CNC 6 broches / spindles Ø 32 Ø 1,259

SCHUTTE AFH 8 x 130

MULTIBROCHES/ MULTISPINDLES

8 broches / spindles Ø 130 Ø 5

PITTLER 800 x 200

MULTIBROCHES/ MULTISPINDLES

8 broches / spindles Ø 200 Ø 8

WICKMAN

MULTISPINDLES

5/8’’ 6 broches / spindles Ø 20 Ø 0 ,787

1’’ 6 broches / spindles Ø 25 Ø 0 ,984

1 ’’ 3/8 6 broches / spindles Ø 36 Ø 1 ,417

1 ’’ ¾ 6 broches / spindles Ø 45 Ø 1 ,771

FCMP Développement

Head office/ Siège social:

ZI Prés Paris – 430, rue des Techniques - 74970 , Marignier, FRANCE

Tel: 0033 (0)4 50 34 67 74 / Fax: 0033 (0)4 50 34 01 65

FCMP@FCMP.fr

slide2

FCMP

WHAT REVOLVES INVOLVES US

SCREW MACHINING

EQUIPMENT

PARC MACHINES

DECOLLETAGE

  • DECOLLETAGE GRANDES SERIES - SCREW MACHINING BIG VOLUMES
  • GILDEMEISTER
  • MULTISPINDLES CAPACITE (mm) CAPACITY (inch)
  • GM20 et / and AS20 6 broches / spindles Ø 25 Ø 0 ,984
  • UMU NILES 6 Milli
  • MULTIBROCHES/ MULTISPINDLES
  • 6 broches / spindles Ø 50 Ø 2
  • UMU NILES 6 x 125
  • MULTIBROCHES/ MULTISPINDLES
  • 6 broches / spindles Ø 125 Ø 5
  • UMU NILES 6 x 200
  • MULTIBROCHES/ MULTISPINDLES
  • 6 broches / spindles Ø 200 Ø 8
  • HYDROMAT / TRANSFER ROTARY MACHINES
  • MACHINES TRANSFERT Ø 25 Ø 0 ,984
  • MACHINES TRANSFERT Ø 32 Ø 1 ,259
  • WIRTH & GRUFFAT
  • TRANSFER MACHINES FOR SECONDARY OPERATIONS
  • Models C126 and C128 Ø 35 Ø 1 ,377
  • PLUSIEURS MACHINES DE CONTROLE A 100 % INCLUANT DES CAMERAS
  • SEVERAL 100 % INSPECTION AND MEASUREMENT MACHINES
  • INCLUDING CAMERAS

FCMP Développement

Head office/ Siège social:

ZI Prés Paris – 430, rue des Techniques - 74970 , Marignier, FRANCE

Tel: 0033 (0)4 50 34 67 74 / Fax: 0033 (0)4 50 34 01 65

FCMP@FCMP.fr

slide3

FCMP

WHAT REVOLVES INVOLVES US

SCREW MACHINING

EQUIPMENT

PARC MACHINES

DECOLLETAGE

DECOLLETAGE PETITES ET MOYENNES SERIES

SCREW MACHINING SMALL & MEDIUM VOLUMES:

TORNOS

POUPEE MOBILE / CNC MOVING HEADSTOCK CAPACITE (mm) CAPACITY (inch)

PM DECO 2000 Ø 13 Ø 0 ,511

STAR

POUPEE MOBILE / CNC MOVING HEADSTOCK Ø 20 Ø 0 ,787

TSUGAMI MORI BS18B-III

CNC MACHINES Ø 18 Ø 0 ,708

TSUGAMI MORI BS26C(E)-III

CNC MACHINES Ø 26 Ø 1 ,023

BIGLIA

CNC MACHINES

B42 et B42/S Ø 42 Ø 1 ,653

B56 Ø 56 Ø 2 ,204

MORI-SEIKI

CNC MACHINES

ZL 150 SMC Ø 42 Ø 1 ,653

ZL 200 SMC Ø 60 Ø 2 ,362

INDEX

CNC MACHINES

GBL 25 Ø 25 Ø 0 ,984

GB 42 Ø 42 Ø 1 ,653

GB 65 Ø 65 Ø 2.559

FCMP Développement

Head office/ Siège social:

ZI Prés Paris – 430, rue des Techniques - 74970 , Marignier, FRANCE

Tel: 0033 (0)4 50 34 67 74 / Fax: 0033 (0)4 50 34 01 65

FCMP@FCMP.fr

slide4

FCMP

WHAT REVOLVES INVOLVES US

SCREW MACHINING

EQUIPMENT

PARC MACHINES

DECOLLETAGE

  • DECOLLETAGE PETITES ET MOYENNES SERIES
  • SCREW MACHINING SMALL & MEDIUM VOLUMES:
  • GOODWAY GTS150CAPACITE (mm) CAPACITY (inch)
  • CNC MACHINES Ø 46 Ø 1,81
  • GOODWAY TB150
  • CNC MACHINES Ø 210 Ø 8 ,267
  • OKUMA LB 10 II
  • CNC MACHINES Ø 210 Ø 8
  • GOODWAY GCL 2L
  • CNC MACHINES Ø 250 Ø 9 ,842
  • OKUMA LCS 15 E
  • CNC MACHINES Ø 270 Ø 10
  • ENGELHARDT
  • CNC Ø 300 Ø 11 ,811
  • OKUMA LB15
  • CNC MACHINES Ø 310 Ø 12
  • PLUSIEURS MACHINES DE CONTROLE A 100 % INCLUANT DES CAMERAS
  • SEVERAL 100 % INSPECTION AND MEASUREMENT MACHINES
  • INCLUDING CAMERAS

FCMP Développement

Head office/ Siège social:

ZI Prés Paris – 430, rue des Techniques - 74970 , Marignier, FRANCE

Tel: 0033 (0)4 50 34 67 74 / Fax: 0033 (0)4 50 34 01 65

FCMP@FCMP.fr

slide5

FCMP

WHAT REVOLVES INVOLVES US

SCREW MACHINING

EQUIPMENT

PARC MACHINES

DECOLLETAGE

  • CENTRES D’USINAGE CNC - CNC MACHINING CENTERS
  • MORI SEIKI SH JUNIOR
  • CNC HORIZONTAL MACHINING CENTER
  • 315X315 double palette/ twin pallet
  • CAPACITE (mm ) CAPACITY ( inch )
  • X:500 Y:400 Z:300 X:19,685 Y:15,748 Z:11,811
  • MORI SEIKI NH5000
  • CNC HORIZONTAL MACHINING CENTER
  • 500X500 double palette/twin pallet
  • CAPACITE CAPACITY
  • X:630 Y:660 Z:770 X:24,803 Y:25,984 Z:30,314
  • DAHLIH MCV 1020 BA
  • CNC VERTICAL MACHINING CENTER
  • CAPACITE CAPACITY
  • X:800 Y:550 Z:560 X:31,496 Y:21,653 Z:22,047
  • MACHINES DE RECTIFICATION - GRINDING MACHINES
  • SCHAUDT CAPACITE ( mm ) CAPACITY ( inch)
  • CYLINDRICAL GRINDING MACHINEØ200 longueur 400 Ø 7,874 length 15,748
  • KOEBAU MULTIMAT 100
  • CENTERLESS GRINDING MACHINEØ100 Ø 3,937
  • KOEBAU MULTIMAT 150
  • CENTERLESS GRINDING MACHINEØ150 Ø 5,905
  • JUNGCAPACITE ( mm ) CAPACITY ( inch)
  • SURFACE GRINDING MACHINE X:300 Y:800 Z:150 X:11,811 Y:31,496 Z:5,905

FCMP Développement

Head office/ Siège social:

ZI Prés Paris – 430, rue des Techniques - 74970 , Marignier, FRANCE

Tel: 0033 (0)4 50 34 67 74 / Fax: 0033 (0)4 50 34 01 65

FCMP@FCMP.fr
