Ultra-stable flashlamp-pumped laser

Ultra-stable flashlamp-pumped laser. A.Brachmann, J.Clendenin, T.Galetto, T.Maruyama, J.Sodja, J.Turner, M.Woods. Outline. Introduction Laser System Setup Recent Modifications Experimental Results Conclusions and Summary. Introduction. SLAC built Flashlamp-pumped Ti:Sapphire laser system

vielka-tucker
Download Presentation

Ultra-stable flashlamp-pumped laser

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ultra-stable flashlamp-pumped laser A.Brachmann, J.Clendenin, T.Galetto, T.Maruyama, J.Sodja, J.Turner, M.Woods

  2. Outline • Introduction • Laser System Setup • Recent Modifications • Experimental Results • Conclusions and Summary

  3. Introduction • SLAC built Flashlamp-pumped Ti:Sapphire laser system • Installation in 1993 at the SLAC PES • Generation of polarized electrons in combination with SLAC’s Polarized Electron Gun • Recent Modifications result in increased stability and output power

  4. Benefit of low jitter • Statistics of experiments • Reduce Beam loading • Reduction of residual • dispersion and • wakefields • Facilitates beam tuning • and minimizes losses Time needed to achieve 100 ppb for E-158 assymmetry statistics (for 120 Hz rep. Rate) (assumption that laser is only source of jitter)

  5. Laser System Setup Cavity flashlamps Spectrometer CCD ‘SLICE’ Photodiode Brewster /2 Ti:Sapphire HBS F=500mm F=750mm ‘TOPS’ -PC ‘SLICE’ -PC PL /2 PL PL PL: Polarizer PC: Pockels cell ‘LONGPULSE’ Photodiode

  6. Laser system periphery • SLAC built pulsed power supply • SLAC built cooling water system (closed loop > 16 M) • Commercial Pockels cell driver • SLAC built HV power supply and control of TOPS Pockels cell • Variety of Controls & Diagnostics integrated into control system • (Power supply, Pockels cell HV, Photodiodes, Spectrometer, CCD)

  7. Parameters of operation

  8. Temporal pulse profile and timing setup

  9. Recent modifications • Cavity optimization according to thermal lensing included in resonator modelling results • Elimination of cavity halfwave plate reduces element sensitive to optical damage • Wavelength change to 805 nm required by new photocathode yields higher output power  Operation near gain maximum for Ti:Sapphire material

  10. Thermal lensing

  11. wx w0 x Rx Cavity simulations Thermal lens flat 2 mcc 5 mcc L1 L2

  12. Spotsize within gain medium as a function of thermal lens and mirror spacing

  13. Wavefront radius of curvature as a function of thermal lens and mirror spacing

  14. (500 data points) Slice J (Photodiode) TORO 488 TMIT MEAN 41.35 3.95E+11 Jitter [%] 0.54 0.46 Laser stability and e- beam stability near target are highly correlated

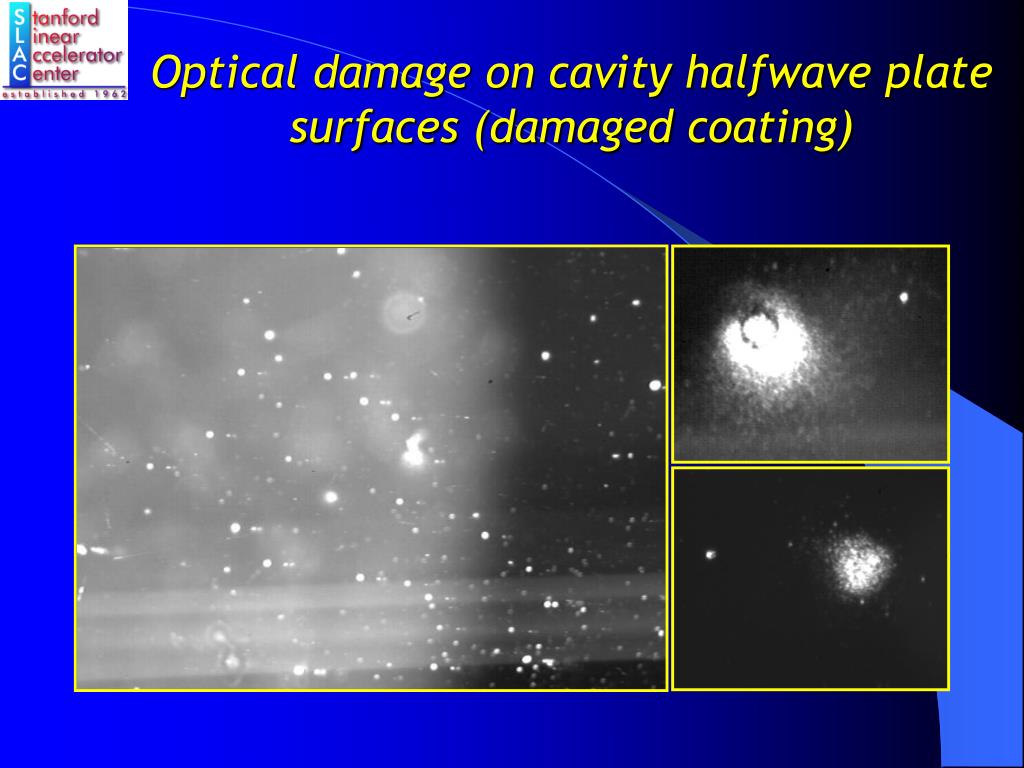

  15. Optical damage on cavity halfwave plate surfaces (damaged coating)
