  1. Blood Flow and the Control of Blood Pressure 15

  2. Arteriolar Resistance • Sympathetic reflexes • Local control of arteriolar resistance • Hormones

  3. Arteriolar Resistance

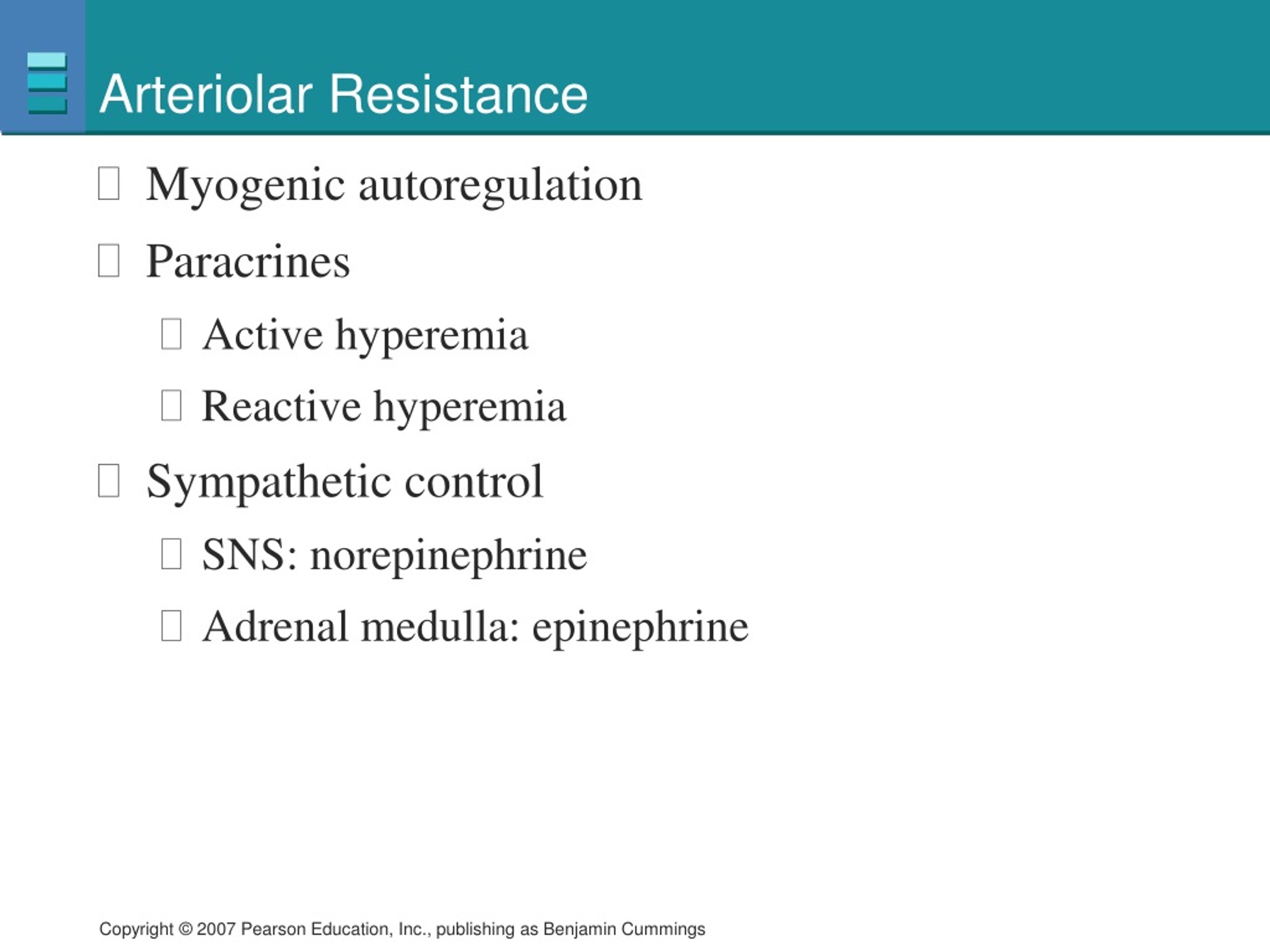

  4. Arteriolar Resistance • Myogenic autoregulation • Paracrines • Active hyperemia • Reactive hyperemia • Sympathetic control • SNS: norepinephrine • Adrenal medulla: epinephrine

  5. Hyperemia Figure 15-11a

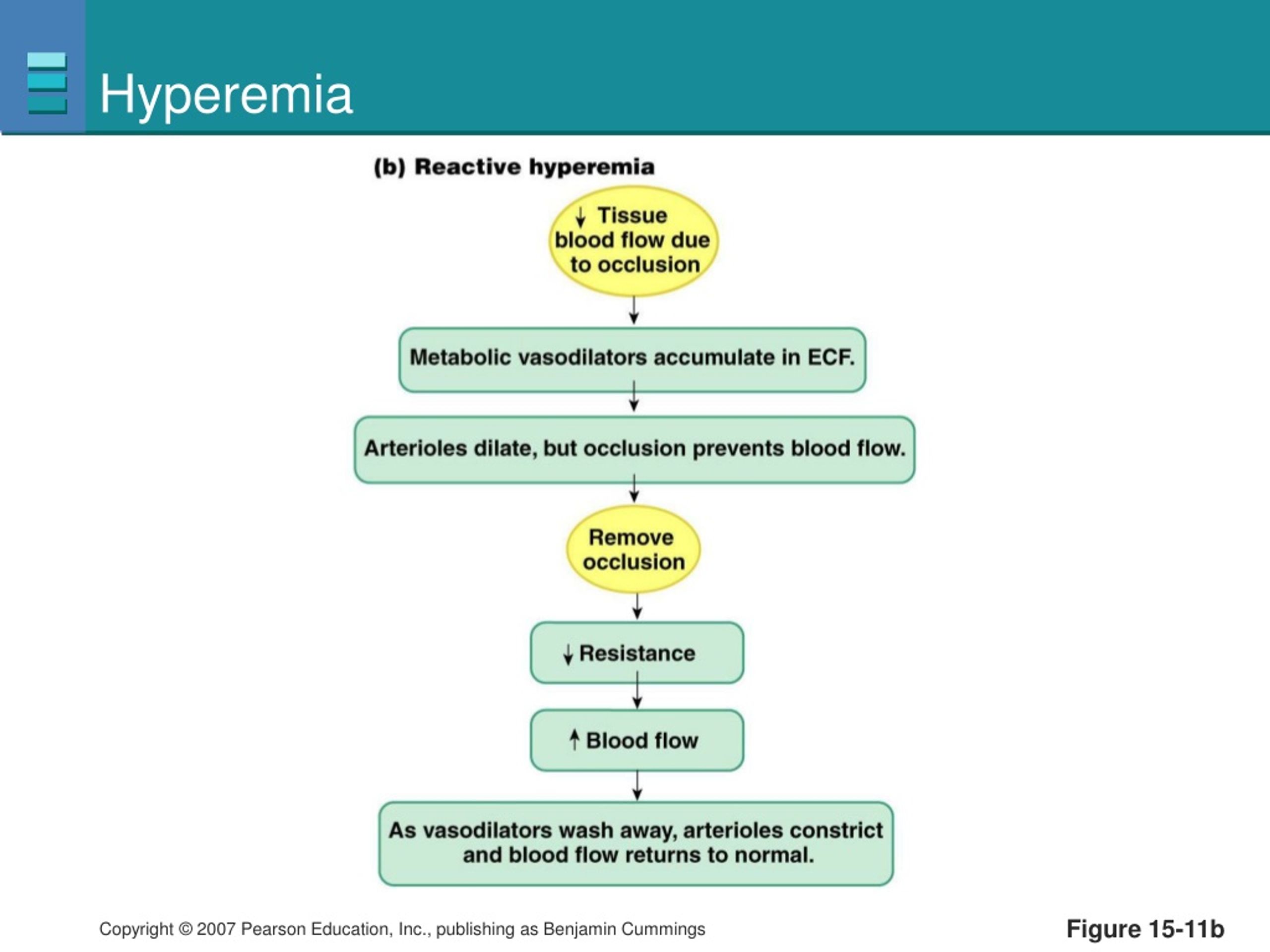

  6. Hyperemia Figure 15-11b

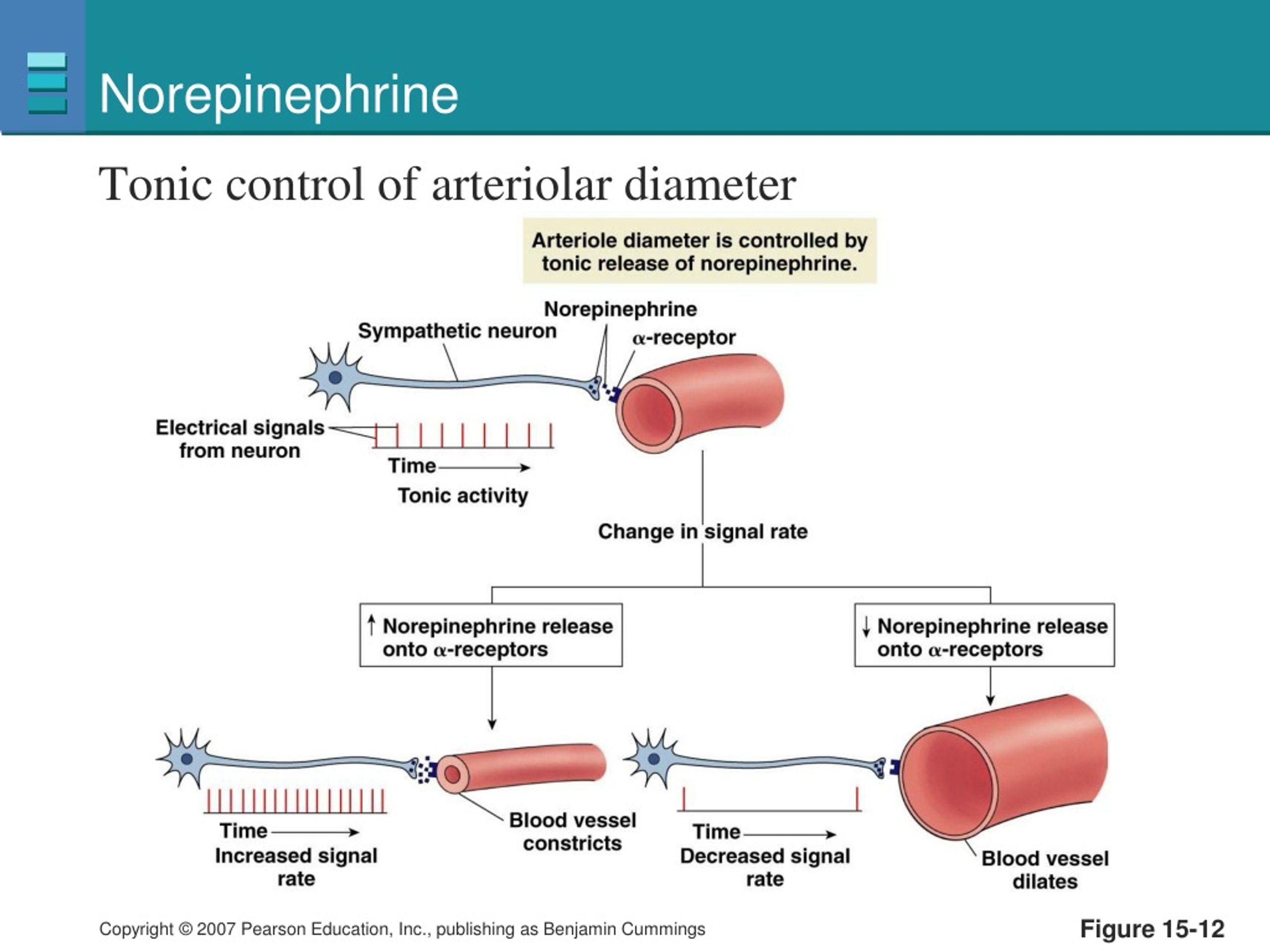

  7. Norepinephrine Tonic control of arteriolar diameter Figure 15-12

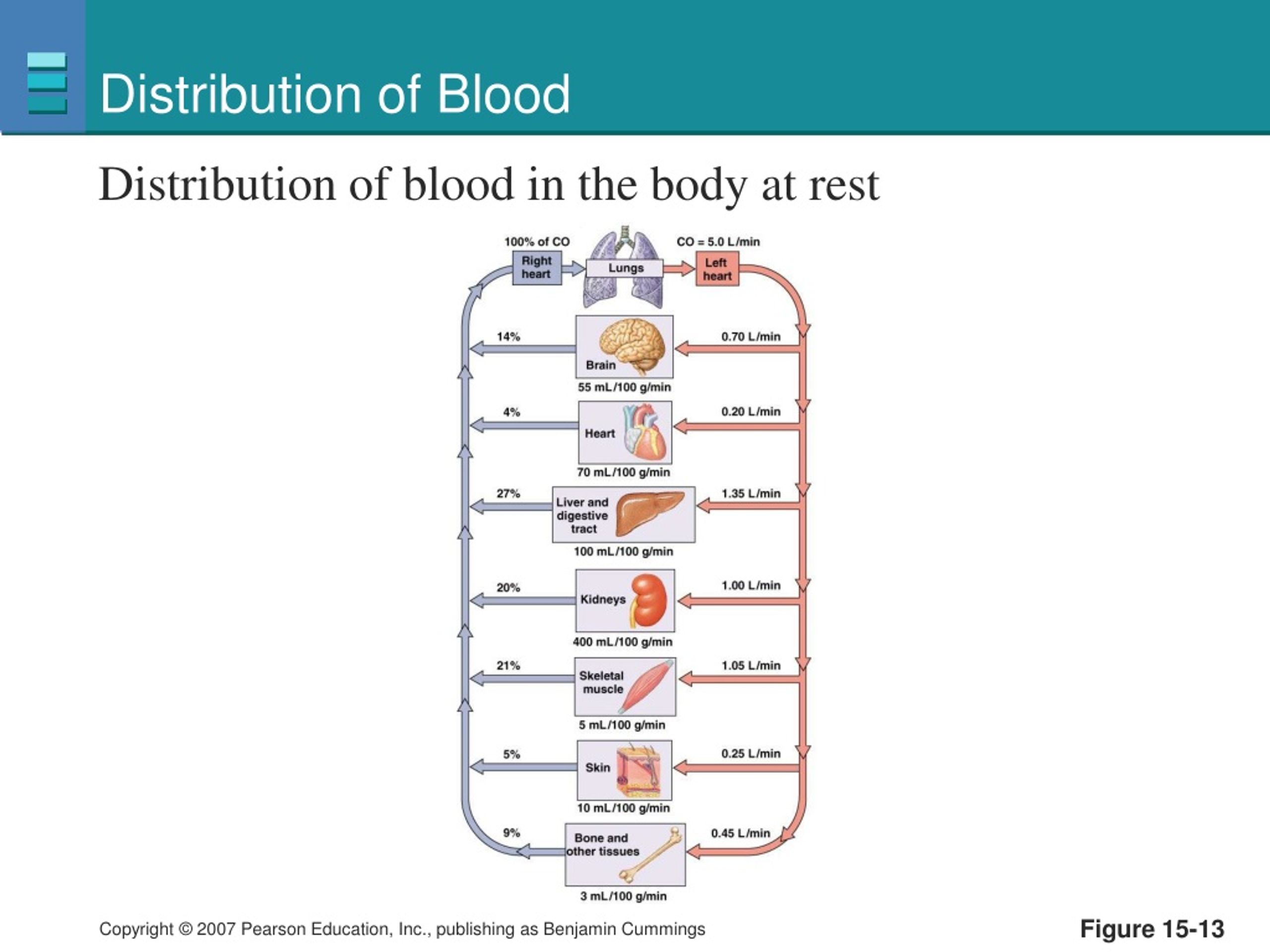

  8. Distribution of Blood Distribution of blood in the body at rest Figure 15-13

  9. Blood Flow Blood flow through individual blood vessels is determined by vessel’s resistance to flow Figure 15-14a

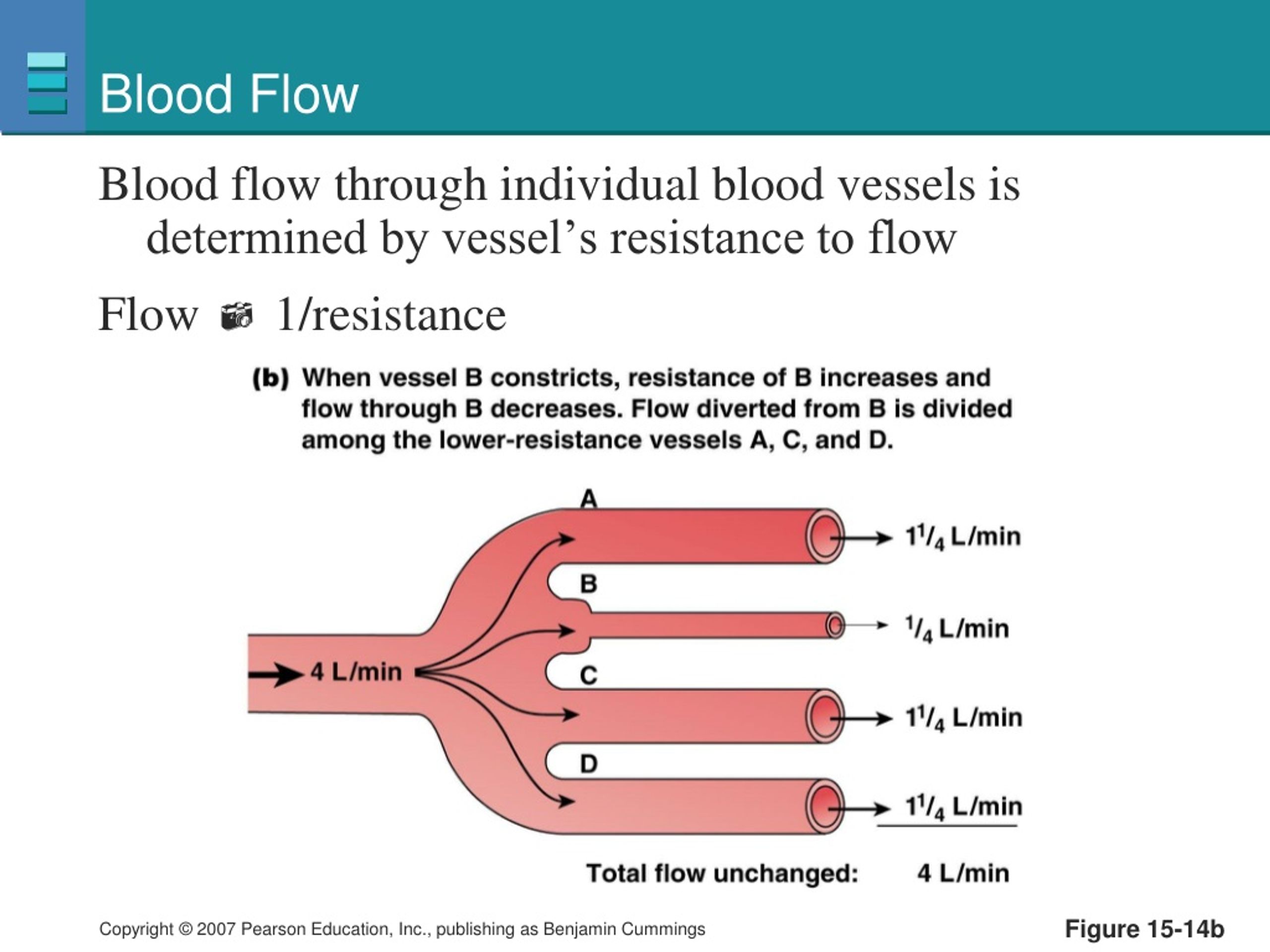

  10. Blood Flow Blood flow through individual blood vessels is determined by vessel’s resistance to flow Flow  1/resistance Figure 15-14b

  11. Precapillary Sphincters Figure 15-15a

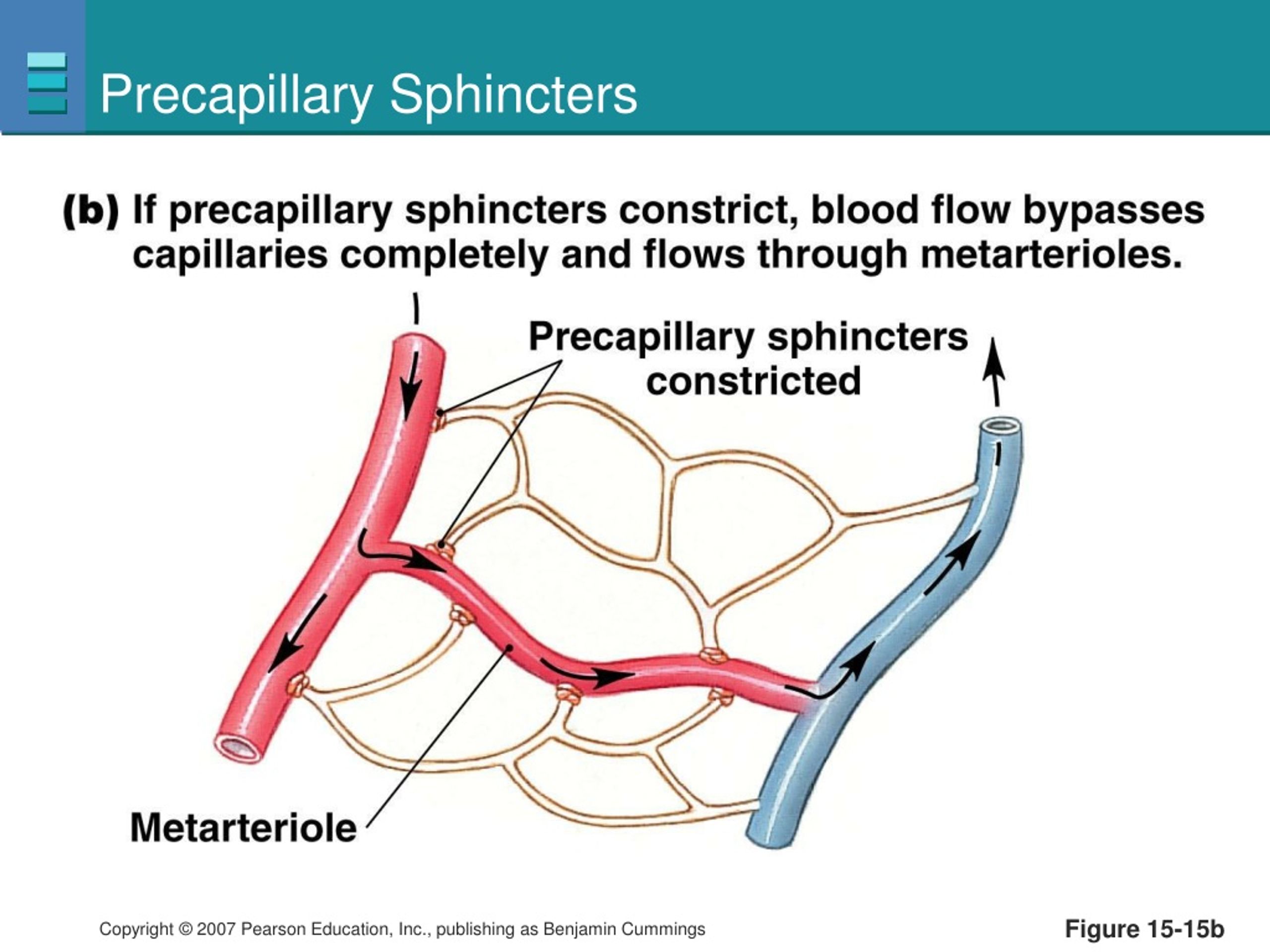

  12. Precapillary Sphincters Figure 15-15b

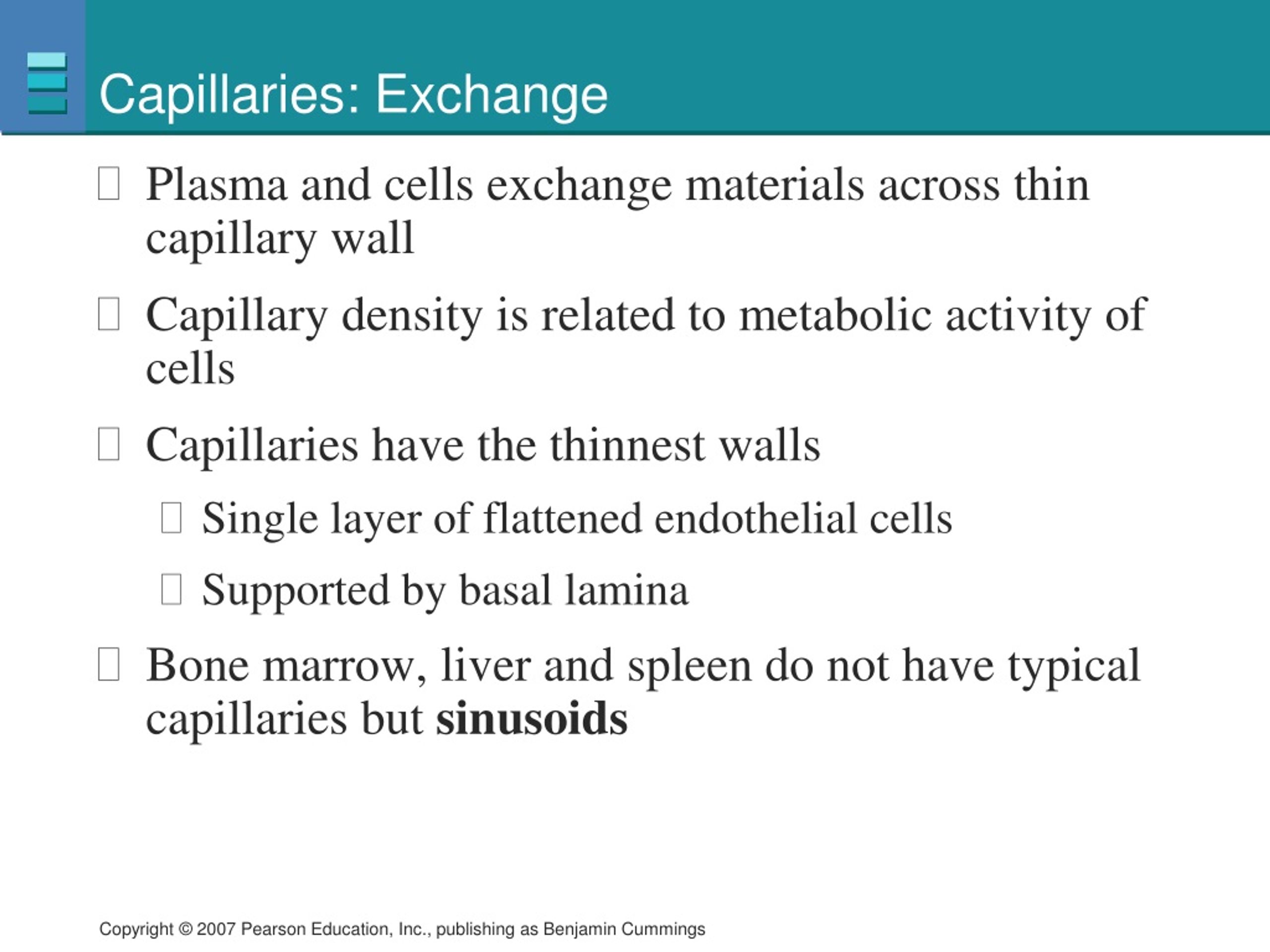

  13. Capillaries: Exchange • Plasma and cells exchange materials across thin capillary wall • Capillary density is related to metabolic activity of cells • Capillaries have the thinnest walls • Single layer of flattened endothelial cells • Supported by basal lamina • Bone marrow, liver and spleen do not have typical capillaries but sinusoids

  14. Two Types of Capillaries Figure 15-16a

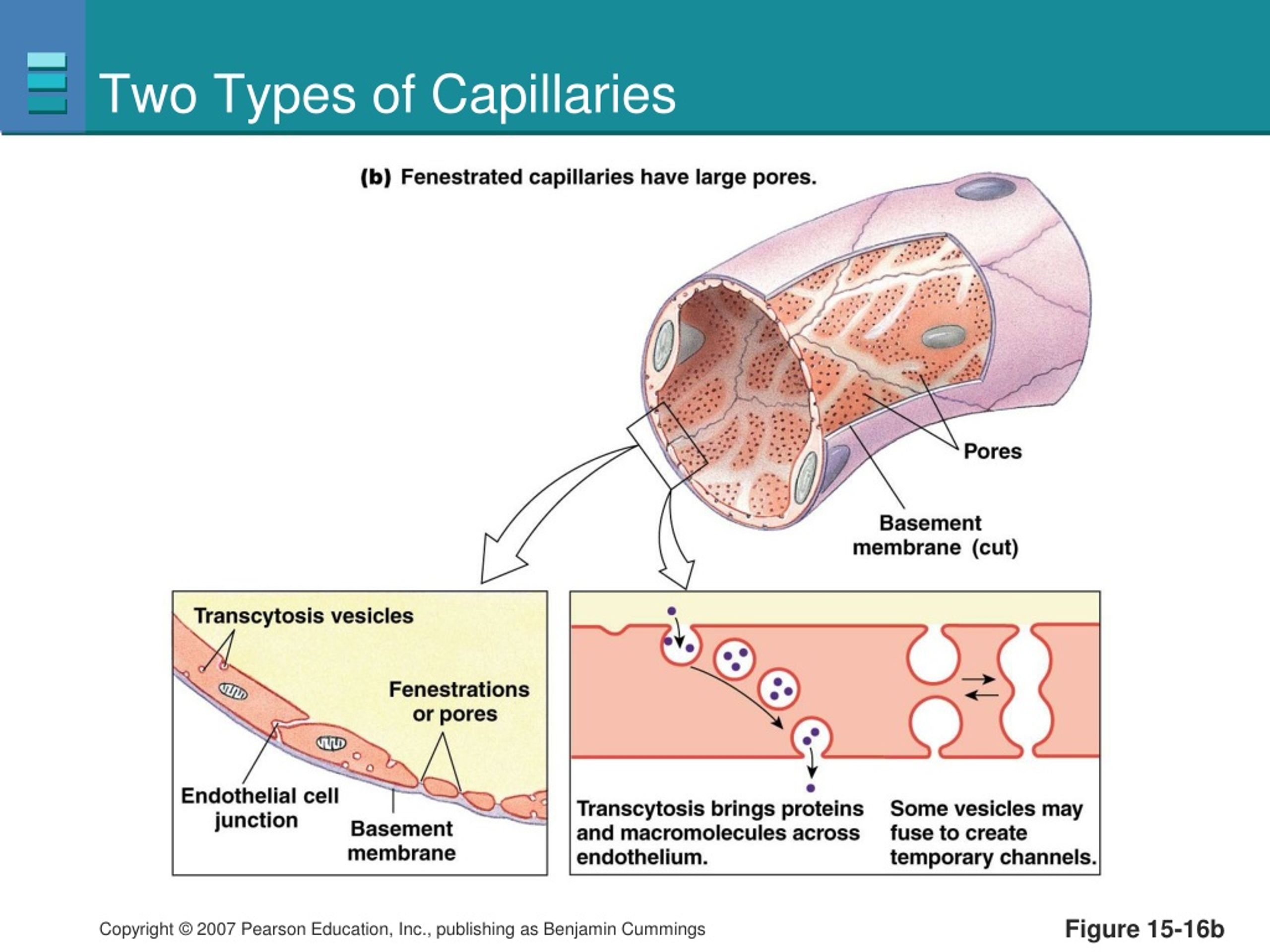

  15. Two Types of Capillaries Figure 15-16b

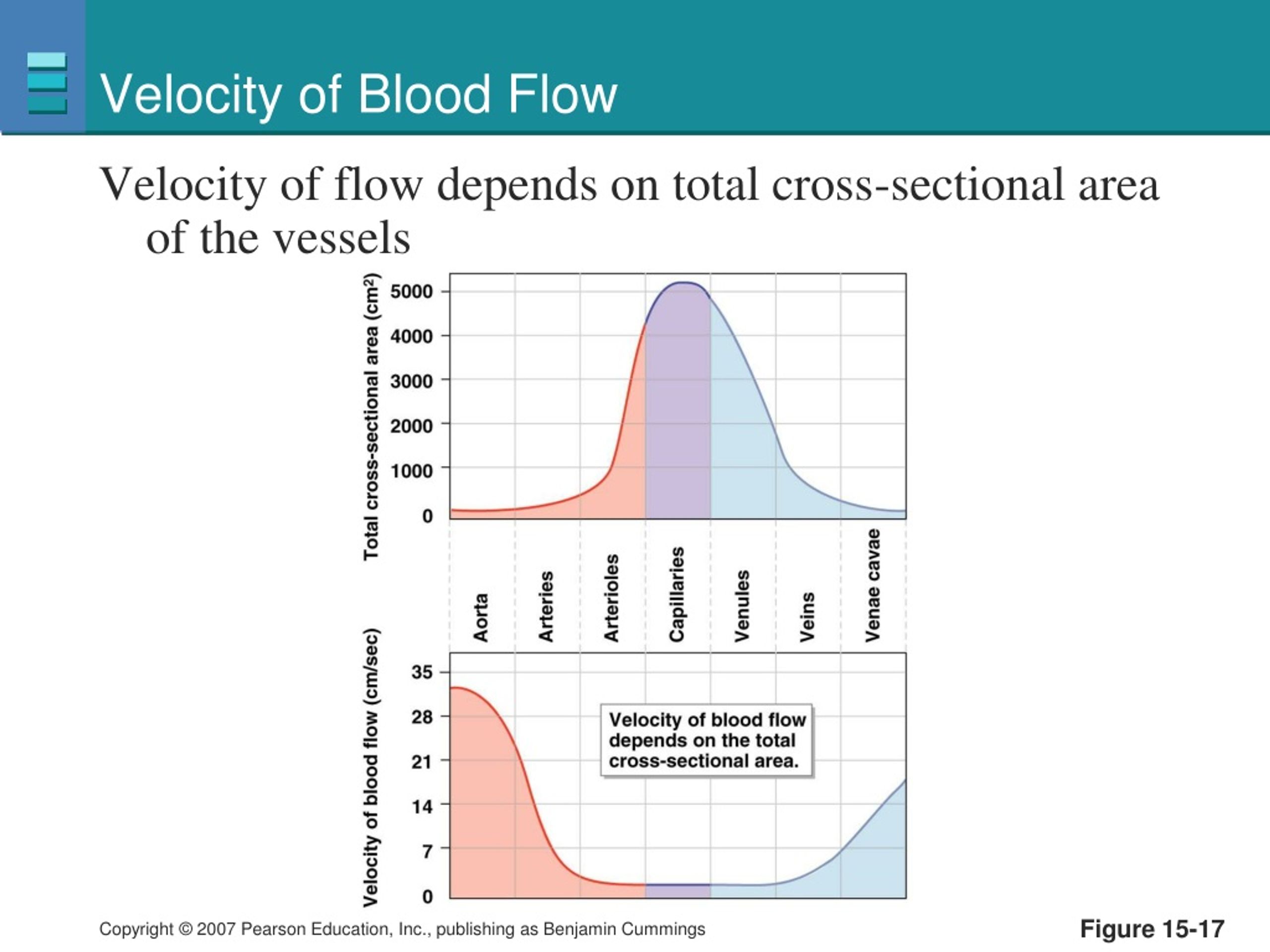

  16. Velocity of Blood Flow Velocity of flow depends on total cross-sectional area of the vessels Figure 15-17

  17. Capillary Exchange • Exchange by paracellular pathway or transendothelial transport • Small dissolved solutes and gasses by diffusion is determined by concentration gradient • Large solutes and proteins by vesicular transport • In most capillaries, large proteins are transported by transcytosis

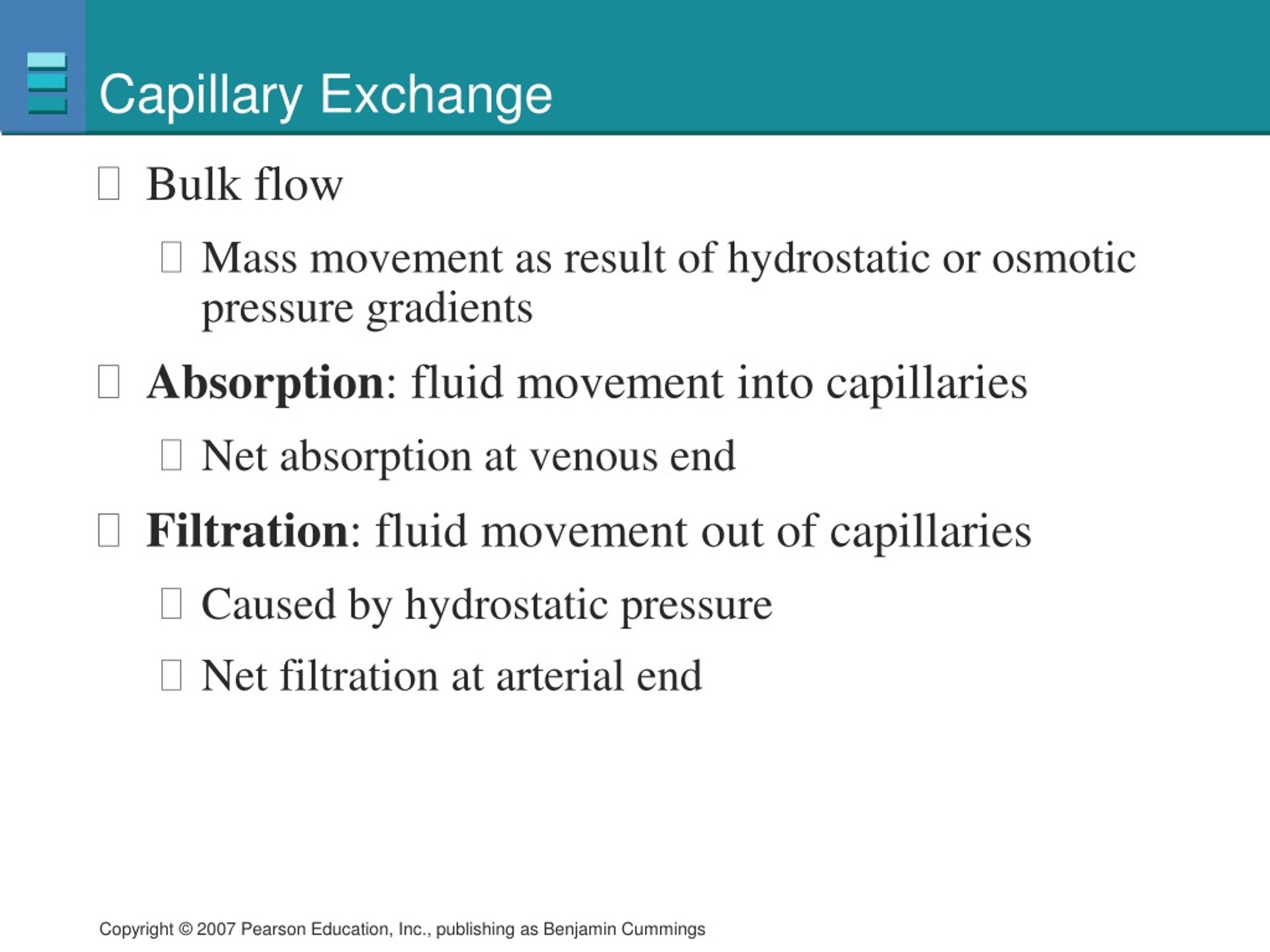

  18. Capillary Exchange • Bulk flow • Mass movement as result of hydrostatic or osmotic pressure gradients • Absorption: fluid movement into capillaries • Net absorption at venous end • Filtration: fluid movement out of capillaries • Caused by hydrostatic pressure • Net filtration at arterial end

  19. Fluid Exchange at a Capillary Hydrostatic pressure and osmotic pressure regulate bulk flow PLAY Animation: Cardiovascular System: Autoregulation and Capillary Dynamics Figure 15-18a

  20. Lymphatic System • Returning fluid and proteins to circulatory system • Picking up fat absorbed and transferring it to circulatory system • Serving as filter for pathogens

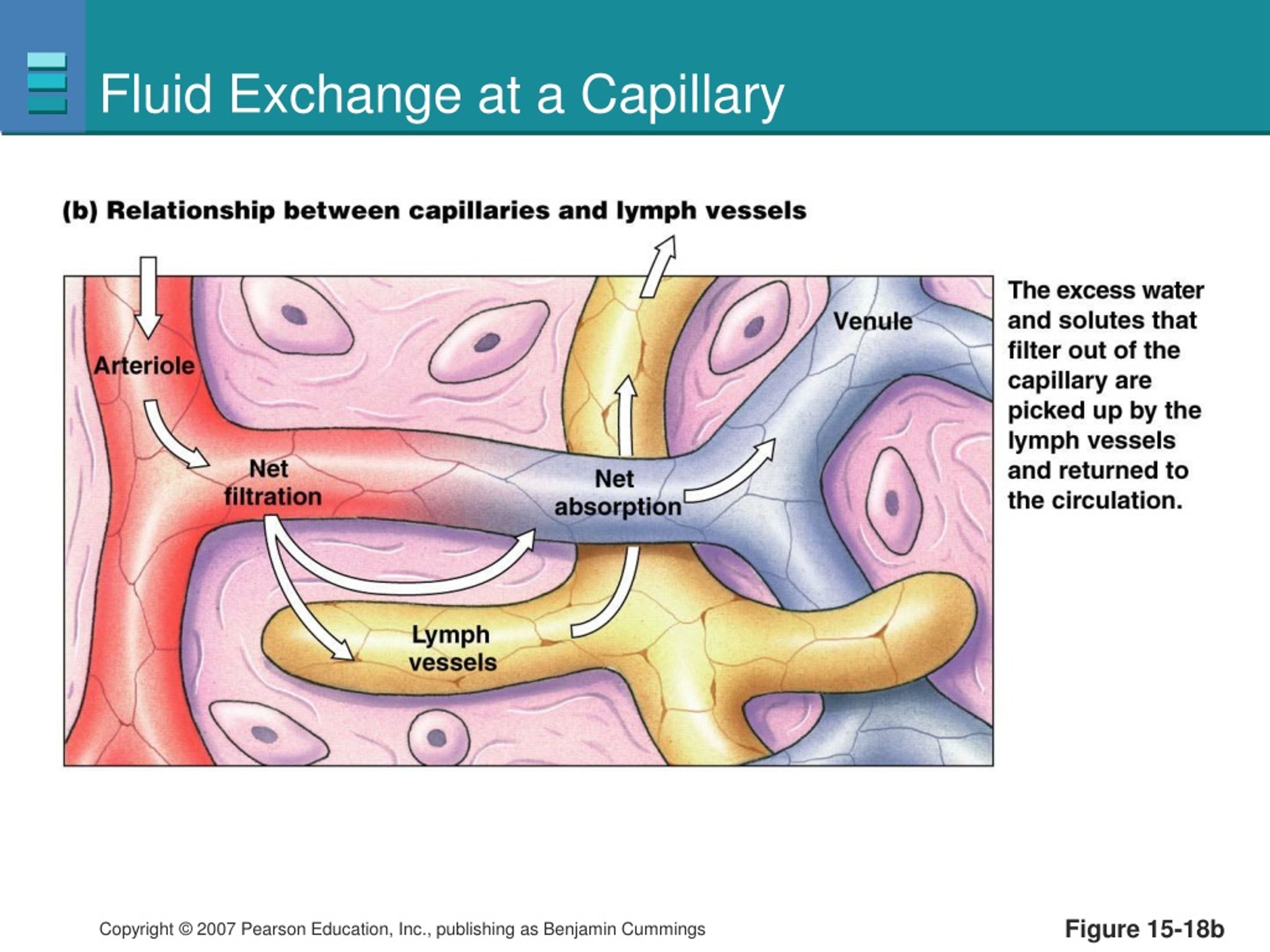

  21. Fluid Exchange at a Capillary Figure 15-18b

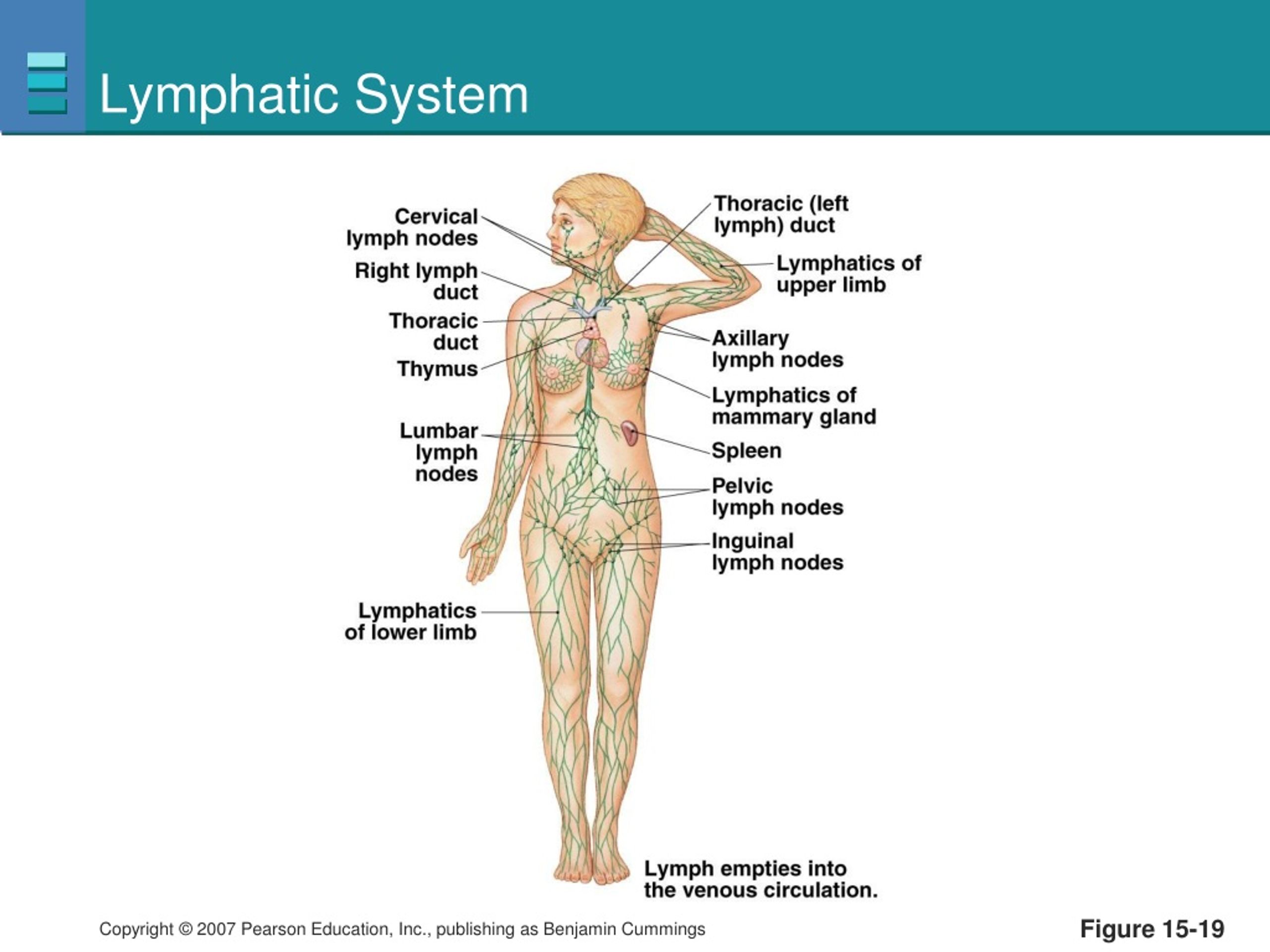

  22. Lymphatic System Figure 15-19

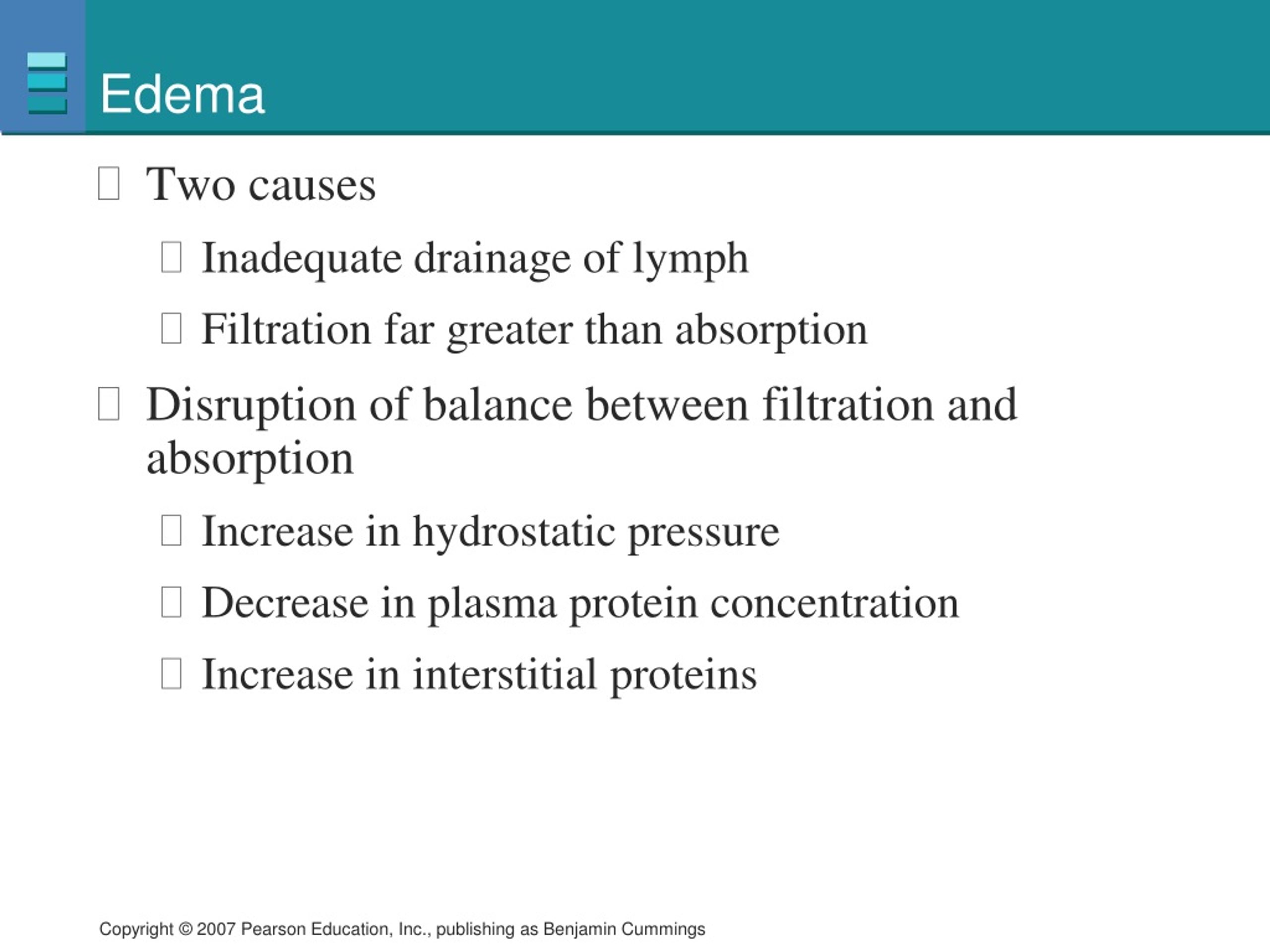

  23. Edema • Two causes • Inadequate drainage of lymph • Filtration far greater than absorption • Disruption of balance between filtration and absorption • Increase in hydrostatic pressure • Decrease in plasma protein concentration • Increase in interstitial proteins

  24. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons SA node Ventricles Veins Arterioles Components of the baroreceptor reflex Figure 15-21

  25. Blood Pressure KEY Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Figure 15-21 (1 of 10)

  26. Blood Pressure KEY Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Carotid and aortic baroreceptors Figure 15-21 (2 of 10)

  27. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Carotid and aortic baroreceptors Figure 15-21 (3 of 10)

  28. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Figure 15-21 (4 of 10)

  29. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons Figure 15-21 (5 of 10)

  30. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons SA node Figure 15-21 (6 of 10)

  31. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons SA node Figure 15-21 (7 of 10)

  32. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons SA node Ventricles Figure 15-21 (8 of 10)

  33. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons SA node Ventricles Arterioles Figure 15-21 (9 of 10)

  34. Blood Pressure KEY Medullary cardiovascular control center Stimulus Sensor/receptor Integrating center Efferent pathway Change in blood pressure Effector Parasympathetic neurons Carotid and aortic baroreceptors Sympathetic neurons SA node Ventricles Veins Arterioles Figure 15-21 (10 of 10)

  35. Blood Pressure The baroreceptor reflex: the response to increased blood pressure Figure 15-22

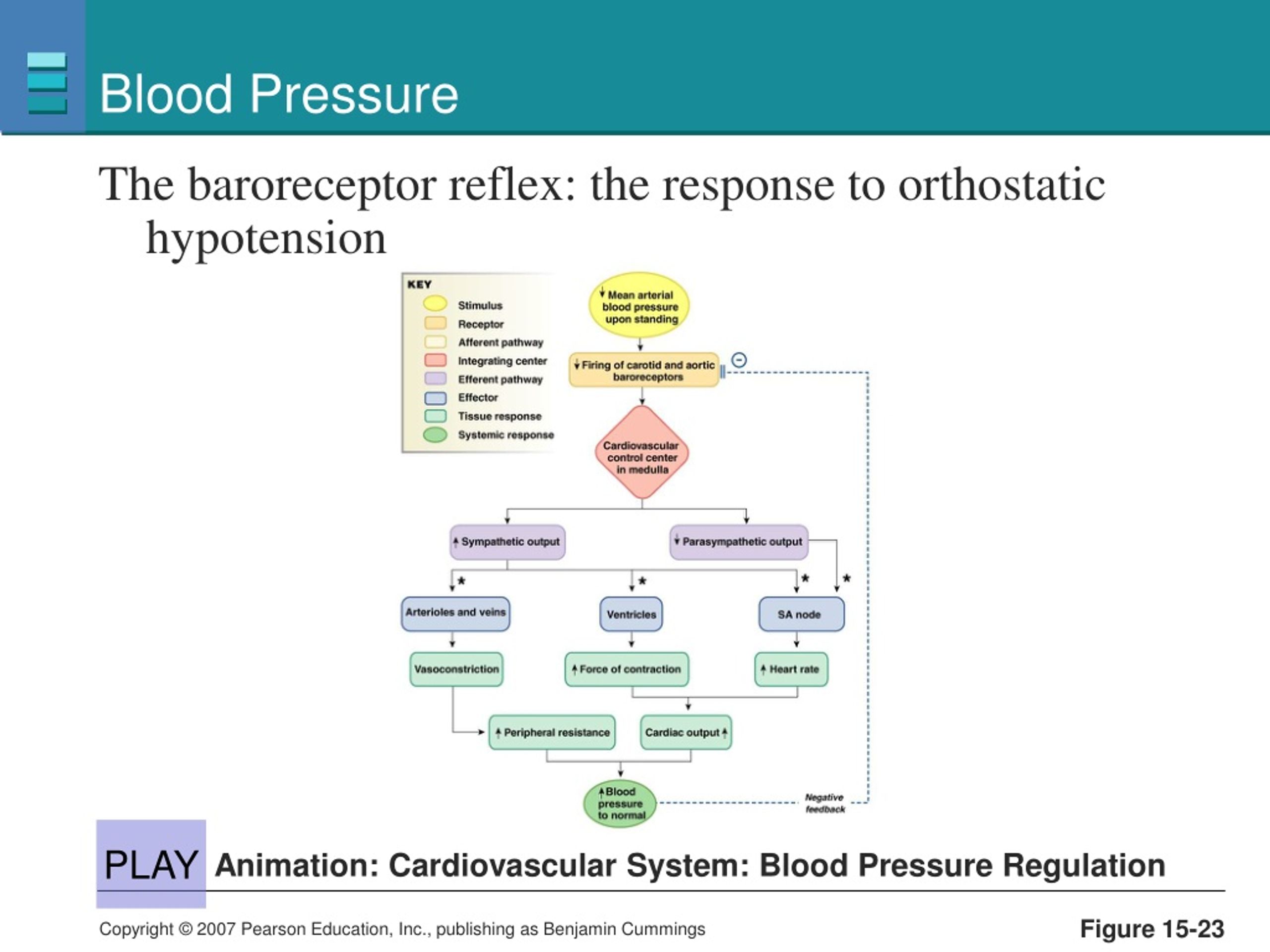

  36. Blood Pressure The baroreceptor reflex: the response to orthostatic hypotension PLAY Animation: Cardiovascular System: Blood Pressure Regulation Figure 15-23

  37. CVD: Risk Factors • Not controllable • Gender • Age • Family History • Controllable • Smoking • Obesity • Sedentary lifestyle • Untreated hypertension

  38. CVD: Risk Factors • Uncontrollable genetic but modifiable lifestyle • Blood lipids • Leads to atherosclerosis • HDL-C versus LDL-C • Diabetes mellitus • Metabolic disorder contributes to development of atherosclerosis

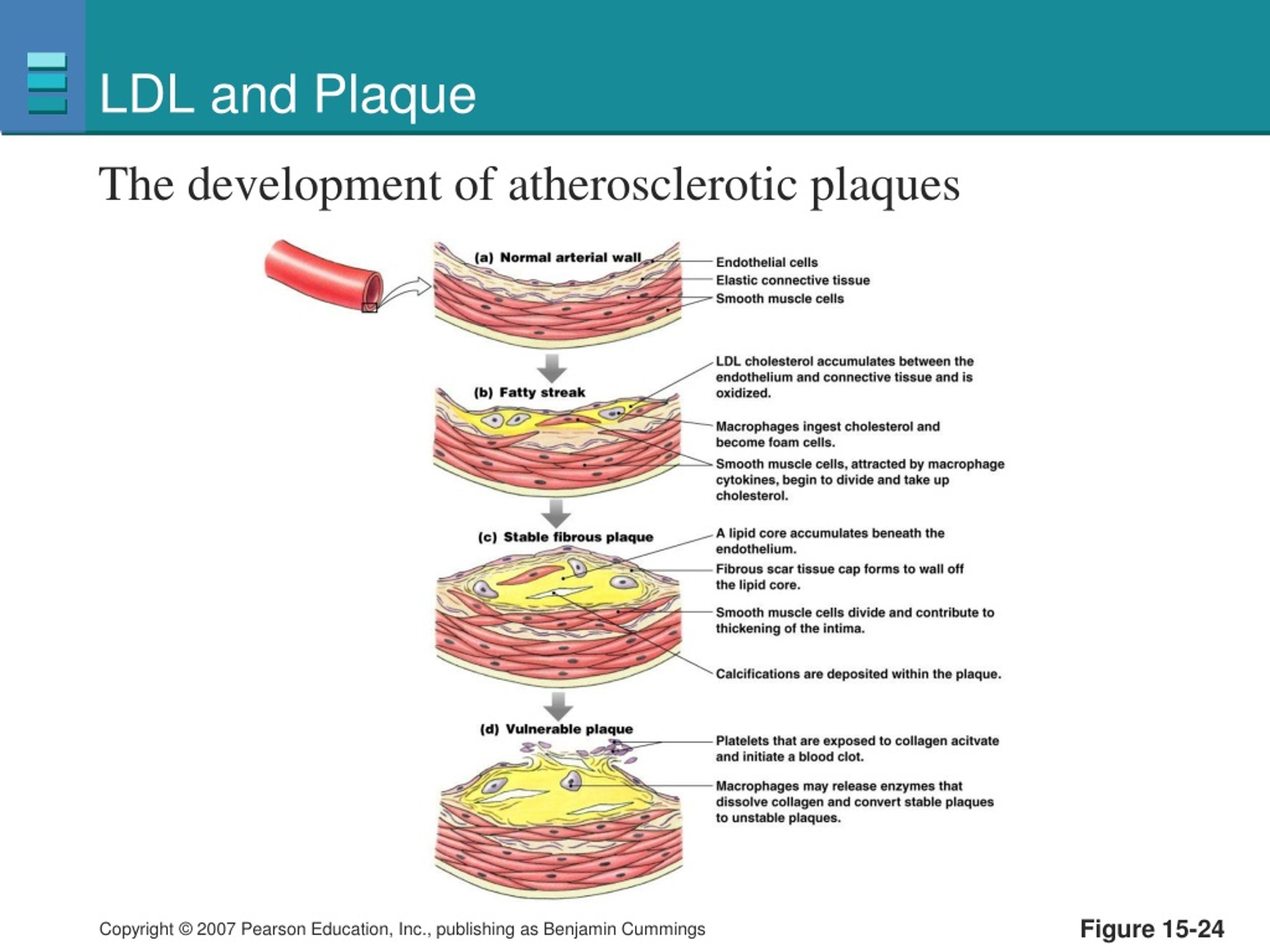

  39. LDL and Plaque The development of atherosclerotic plaques Figure 15-24

  40. Hypertension The relationship between blood pressure and the risk of developing cardiovascular disease Essential hypertension has no clear cause other than hereditary Figure 15-25

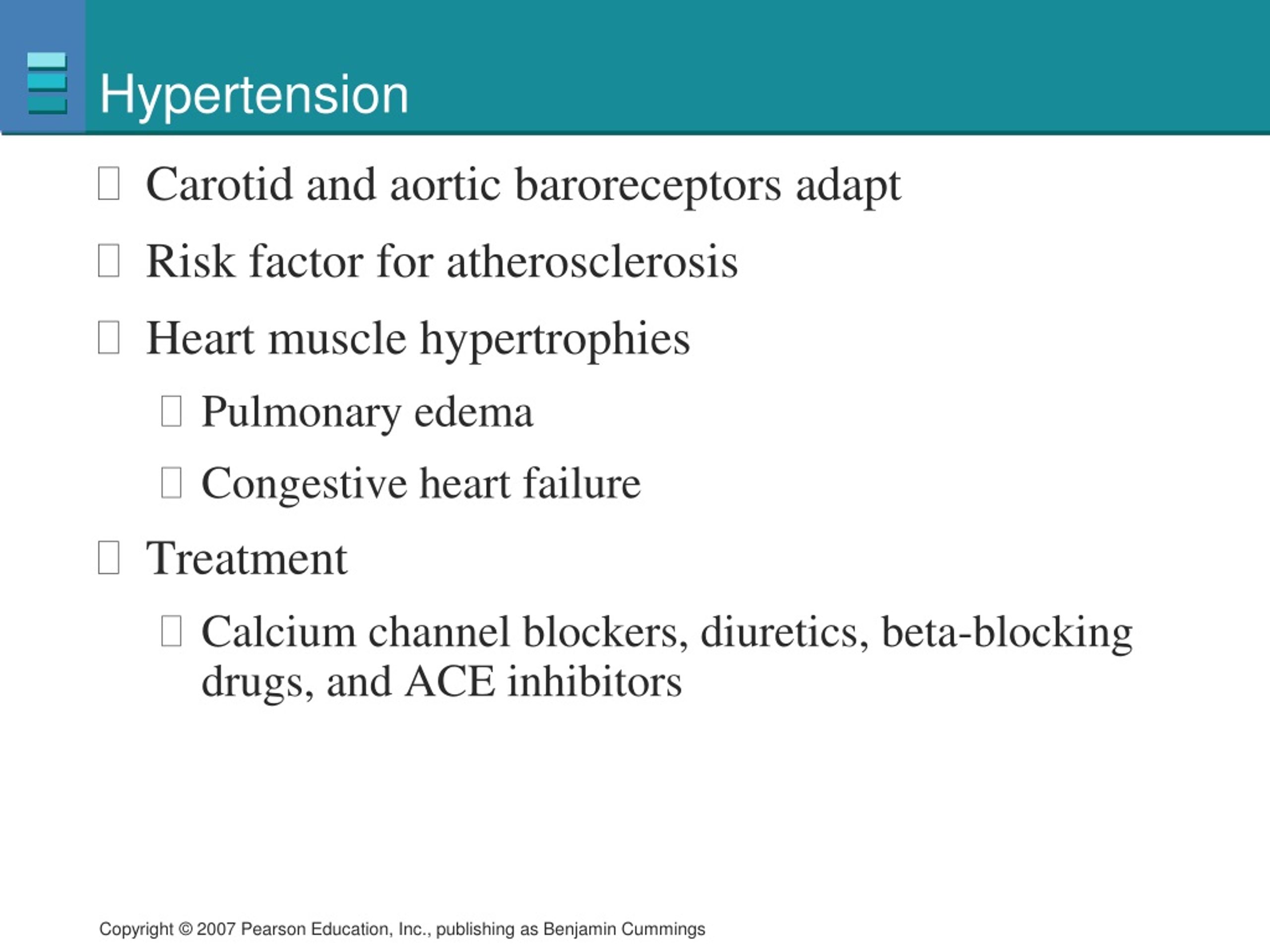

  41. Hypertension • Carotid and aortic baroreceptors adapt • Risk factor for atherosclerosis • Heart muscle hypertrophies • Pulmonary edema • Congestive heart failure • Treatment • Calcium channel blockers, diuretics, beta-blocking drugs, and ACE inhibitors

  42. Summary • Blood vessels • Vascular smooth muscle, metarterioles, venules, and angiogenesis • Measuring blood pressure • Systolic pressure, diastolic pressure, pulse pressure, MAP, and Korotkoff sounds • Resistance in the arterioles • Myogenic autoregulation, active hyperemia, and reactive hyperemia

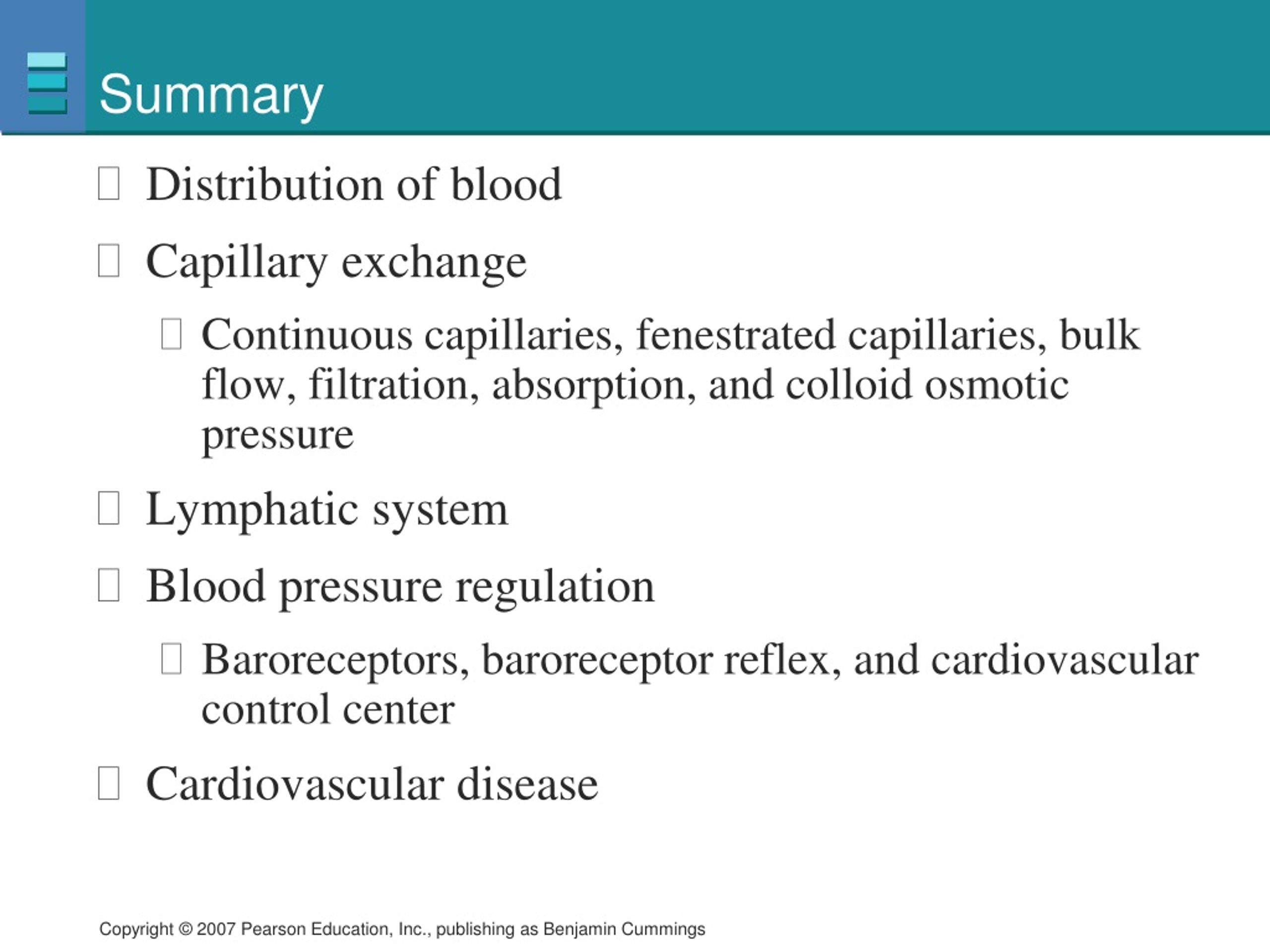

  43. Summary • Distribution of blood • Capillary exchange • Continuous capillaries, fenestrated capillaries, bulk flow, filtration, absorption, and colloid osmotic pressure • Lymphatic system • Blood pressure regulation • Baroreceptors, baroreceptor reflex, and cardiovascular control center • Cardiovascular disease
