Class I methanol masers and evolutionary stage of star-formation

Class I methanol masers and evolutionary stage of star-formation . Max Voronkov Software Scientist – ASKAP In collaboration with: Caswell J.L., Ellingsen S.P., Britton T.R., Green J.A., Sobolev A.M. 10 December 2009. Introduction: two classes of methanol masers.

vevay
Download Presentation

Class I methanol masers and evolutionary stage of star-formation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Class I methanol masers and evolutionary stage of star-formation Max Voronkov Software Scientist – ASKAP In collaboration with: Caswell J.L., Ellingsen S.P., Britton T.R., Green J.A., Sobolev A.M. 10 December 2009

  2. Introduction: two classes of methanol masers • Class I methanol (CH3OH) masers • Collisional excitation (e.g. by shocks) • Regions of star formation (possibly low-mass ones as well) • Usually offset from protostars (up to a parsec) • Many maser spots scattered over tens of arcsec • Widespread masers: 36, 44, 84, 95 GHz • Rare/weak: 9.9, series at 25, 104.3 GHz • Class II methanol (CH3OH) masers • Regions of high mass star formation only • Excited by infrared, located at the nearest vicinity of protostars • Usually just one maser spot at the arcsec scale • Widespread masers: 6.7, 12 GHz • Rare/weak: 19.9, 23, 85/86, 37/38, 107, 108 GHz

  3. Class I methanol masers in outflows

  4. Evolutionary stages of star-formation Image credit: Cormac Purcell • Different maser species may be good tracers of evolution! • OH masers trace late stage (e.g Forster & Caswell 1989) • Methanol masers at 6.7 GHz trace earlier stages (little overlap with HII regions) • Class I methanol masers ?

  5. Evolution of HMSF as traced by masers Diagram suggested by Ellingsen et al. (2007) GLIMPSE colours for 6.7 GHz masers sources with and without class I maser (Ellingsen 2006) • Infrared data: sources with class I masers are more red (more embedded and therefore younger) • Class I masers are associated with outflows: trace earlier stages

  6. Search for 9.9 GHz methanol masers • This is one of the rare class I masers • Only two sources were known prior to this work • Two new detections out of 48 targets observed • Detection limits as low as 0.1 Jy • Needs higher temperatures and densities to form • ATCA observations (pre-CABB) • 6A and 6C arrays • Continuum at 8.6 GHz as a by-product • Spectral resolution 0.12 km/s • Obtained absolute positions for masers

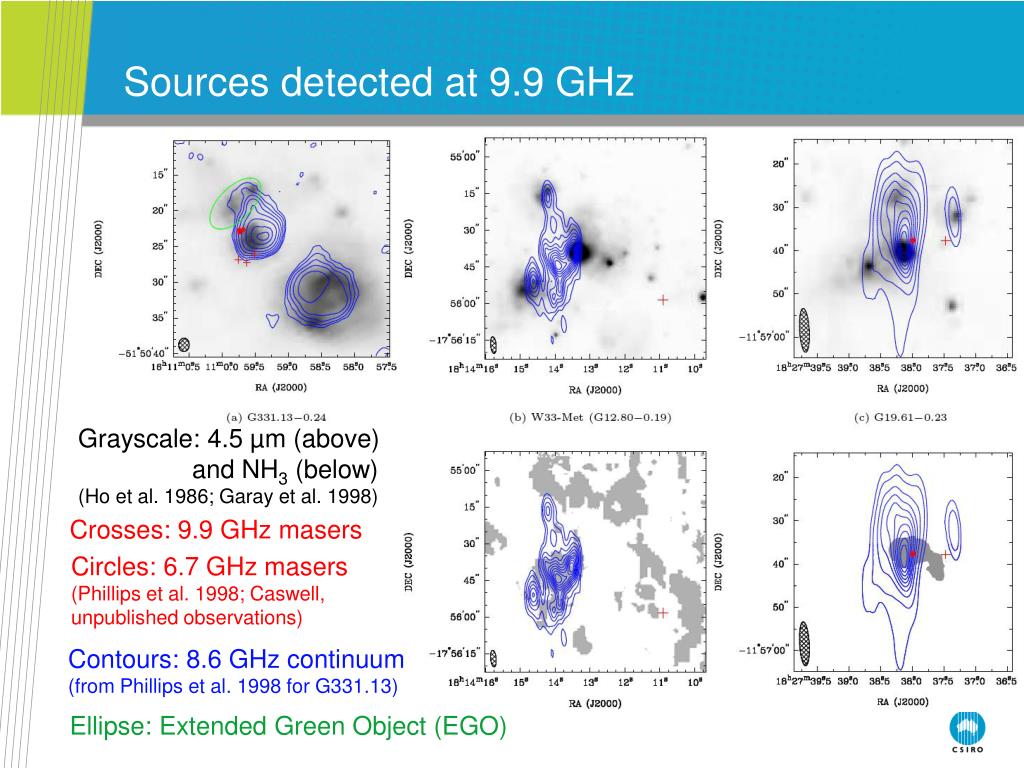

  7. Sources detected at 9.9 GHz Grayscale: 4.5 µm (above) and NH3 (below) (Ho et al. 1986; Garay et al. 1998) Crosses: 9.9 GHz masers Circles: 6.7 GHz masers (Phillips et al. 1998; Caswell, unpublished observations) Contours: 8.6 GHz continuum (from Phillips et al. 1998 for G331.13) Ellipse: Extended Green Object (EGO)

  8. Implications for the sequence Image credit: Cormac Purcell Image credit: Simon Ellingsen • More than one phenomenon may be responsible for the class I masers • Stage with class I masers is likely to outlast 6.7 GHz (class II) masers • Whether class I masers can precede class II masers is unclear • A notable overlap with OH masers which are not associated with the 6.7 GHz methanol masers is expected

  9. Search for methanol masers towards OH • The majority of class I methanol masers were found towards known class II masers at 6.7 GHz • Biased towards a particular evolutionary stage • Need blind surveys! • Blind surveys are impeded by the lack of a widespread low frequency class I maser (lowest sensible is 36 GHz!) • Search for class I methanol masers in old OH-selected SFR • Search for 44 GHz class I methanol masers towards OH masers not detected at 6.7 GHz in the Parkes Methanol Multibeam survey • Unfortunately delays of CABB zoom mode implementation slowed the project down

  10. Search for methanol masers towards OH • The majority of class I methanol masers were found towards known class II masers at 6.7 GHz • Biased towards a particular evolutionary stage • Need blind surveys! • Blind surveys are impeded by the lack of a widespread low frequency class I maser (lowest sensible is 36 GHz!) • Search for class I methanol masers in old OH-selected SFR • Search for 44 GHz class I methanol masers towards OH masers not detected at 6.7 GHz in the Parkes Methanol Multibeam survey • Unfortunately delays of CABB zoom mode implementation slowed the project down

  11. Observations without zooms • Coarse spectral resolution of 1 MHz = 6.8 km/s at 44 GHz • Not sensitive to weak masers (weaker than tens of Jy) • Can’t measure flux density and radial velocity accurately • Observed 19 OH masers which didn’t show up in MMB • Detected 10 methanol masers at 44 GHz (even without zooms!) New 44 GHz maser G307.808-0.456

  12. Summary Class I methanol masers may be caused by expanding HII regions This is in addition to the outflow scenario Applies to all class I maser transitions, not just to 9.9 GHz The evolutionary stage with the class I maser activity is likely to outlast the stage when the 6.7-GHz methanol masers are present overlap in time with the stage when the OH masers are active Search for the class I methanol masers at 44 GHz towards OH masers not associated with the 6.7 GHz masers was very successful The detection rate exceeds 50% even without zoom modes!

  13. Contact Us Phone: 1300 363 400 or +61 3 9545 2176 Email: enquiries@csiro.au Web: www.csiro.au Thank you Australia Telescope National Facility Max Voronkov Software Scientist (ASKAP) Phone: 02 9372 4427 Email: maxim.voronkov@csiro.au Web: http://www.narrabri.atnf.csiro.au/~vor010
