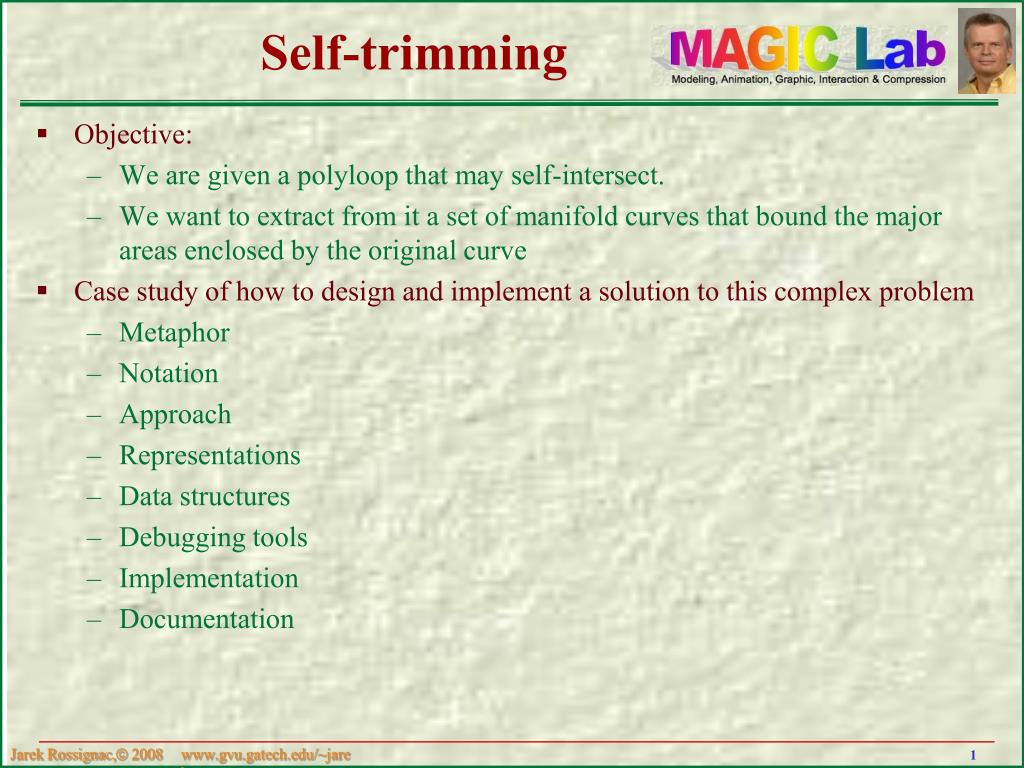

Self-trimming. Objective: We are given a polyloop that may self-intersect. We want to extract from it a set of manifold curves that bound the major areas enclosed by the original curve Case study of how to design and implement a solution to this complex problem Metaphor Notation Approach

veta
Download Presentation

Self-trimming

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Self-trimming • Objective: • We are given a polyloop that may self-intersect. • We want to extract from it a set of manifold curves that bound the major areas enclosed by the original curve • Case study of how to design and implement a solution to this complex problem • Metaphor • Notation • Approach • Representations • Data structures • Debugging tools • Implementation • Documentation

  2. Example input result

  3. Use a metaphor to invent a solution Invent a metaphor • The edges are streets • There are sidewalks along the network of streets Reformulate your problem using your metaphor terminology • The sidewalks form closed-loop circuits • We want to identify a subset of these circuits • If we only take the streets along these circuits, there should be no crossings Use this terminology to inventan approach • Compute all crossings and splits streets at these crossings (1) • Identify circuits (2) • Identify the smallest area circuit that goes through a crossing (3) • Delete (close) its streets and sidewalks (4) • Repeat (3) and (4) as necessary

  4. Test example (1) insert crossings (2) trace circuits (3) find smallest area circuit with crossing (4) delete its streets and sidewalks (…) repeat (3) and (4) as necessary

  5. Notation, primitive, operators • Define your primitives sidewalk s (1 block strip) • Select visualization symbol arrow along sidewalk • Select operators and notation s.n: next sidewalk (along circuit) s.o: opposite sidewalk (across street) s.v: vertex ID of crossing reached by s s.g: point where s.v is located This is a fundamental step in solving the problem. Explore several ideas and do not hesitate to change your notation. s.n s s.v s.o

  6. Initialization of sidewalks • The input is an ordered set of vertices n(v) is the next vertex after v in cyclic order (use modulo) • Initialize • Keep track of previous step previous sidewalks ps, po, and previous vertex pv • For each vertex ID v do Create two sidewalks s and o s.o=o; o.o=s; o.v=pv; s.v=v; ps.n=s; o.n=po; ps=s; po=o; pv=v; pv s v o po ps

  7. Insert crossings • Many cases, try to simplify the solution • Invent primitive steps • Do not worry about order yet • Identify coincident vertices and merge them • mergeVertices(s,t) • Split edge when a vertex overlaps the tolerance zone around its interior • insertVertex(s,t) • Split edges at their intersections • splitEdges(s,t) t s tolerance zone s t t s

  8. Fix the order • For each sidewalk, • identify its proper next n by computing angles for all sidewalks leaving s.v • If (n!=s.n) swap them s.n t.n s.n s s t t t.n

  9. Trace the circuits Define an algorithm at a high level Do not commit to any particular data structure or implementation • Associate a marker (color) with each sidewalk • Set all markers to white • As long as there is a white sidewalks s • Pick a new color and trace the circuit of s • using t=s; repeat { … t=t.n; } • until you are back to s s.n s s.v s.o

  10. Compute the area of each circuit • Pick a random point p • Set area A=0; • For each sidewalk s of circuit do A+=signedAreaOfTriangle(P, s.g, s.o.g); • Return abs(A);

  11. Look for crossings in circuit if (s.n.o.n!=s.o) s leads to a crossing s.n.o s.n.o s.n s.n s s s.o s.o

  12. Delete loop • Fix the .n pointers of the remaining sidewalks before deleting the small loop s.n s s s.n

  13. Data structures • The simpler--the better • Vertices: G[nv]; // table of points • Sidewalks: integers in [0,ns]; • Pointers from sidewalks: N[s] // next O[s] // opposite V[s] // vertex integer ID Notation-to-code s.n.o is O[N[s]] s.o=t.n is O[s]=N[t]

  14. Debugging tools • Use graphics • Have a global variable s • Show s, s.n, s.o as red, green, blue arrows • Use keys to move s=s.n s=s.o • Check the integrity of your model • Debug each operator • A different key activates • mergeVertices • insertVertex • splitEdge check each one before implementing the next • Show vertices (as dots). Crossings as larger dots. • Display the streets of the smallest loop. • Prepare test cases for each step.
