Temporal Energy Gain in Global Reflection of Snow and Water Surfaces

Explore reflection examples of snow and water surfaces, utilizing the albedo factor and transmission values. Analyze the global effects on energy gain over time under clear sky conditions.

veta
Download Presentation

Temporal Energy Gain in Global Reflection of Snow and Water Surfaces

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

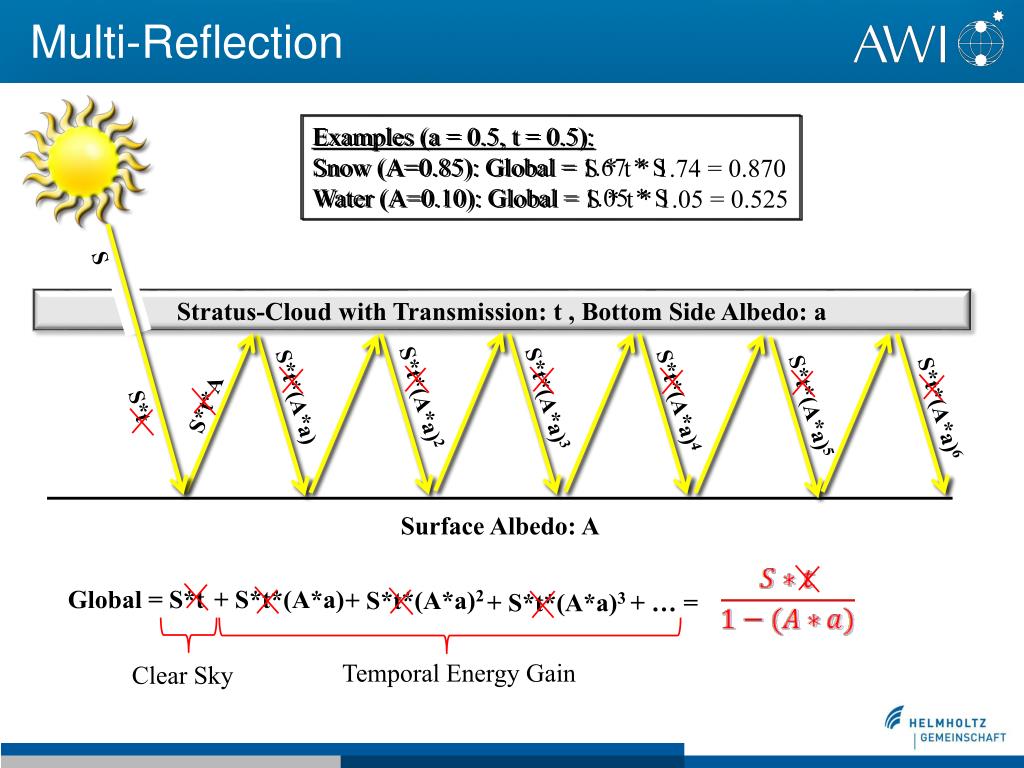

  1. Multi-Reflection Examples (a = 0.5, t = 0.5): Snow (A=0.85): Global = 1.67 * S Water (A=0.10): Global = 1.05 * S Examples (a = 0.5, t = 0.5): Snow (A=0.85): Global = S * t * 1.74 = 0.870 Water (A=0.10): Global = S * t * 1.05 = 0.525 S Stratus-Cloudwith Transmission: t , Bottom Side Albedo: a S*t*(A*a) S*t*(A*a)3 S*t*A S*t*(A*a)2 S*t S*t*(A*a)4 S*t*(A*a)5 S*t*(A*a)6 Surface Albedo: A Global = S *t + S*t*(A*a) + S*t*(A*a)2 + S*t*(A*a)3 + … = Temporal Energy Gain Clear Sky
