  1. 千分尺的读数

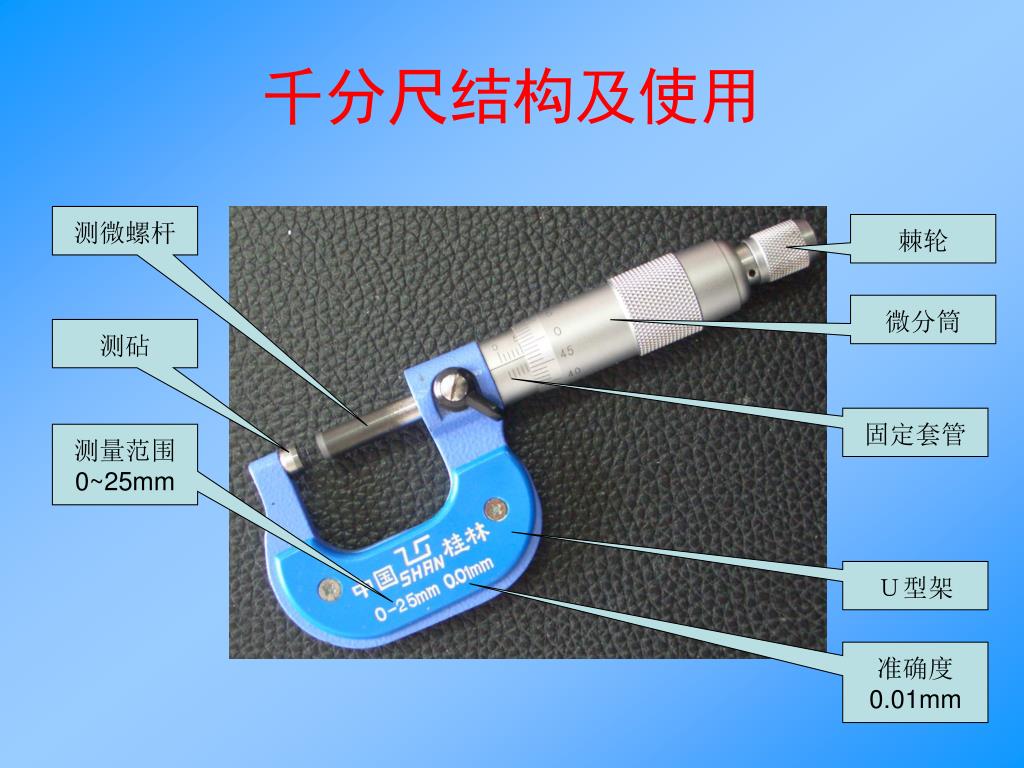

  2. 千分尺结构及使用 测微螺杆 棘轮 微分筒 测砧 固定套管 测量范围 0~25mm Ｕ型架 准确度 0.01mm

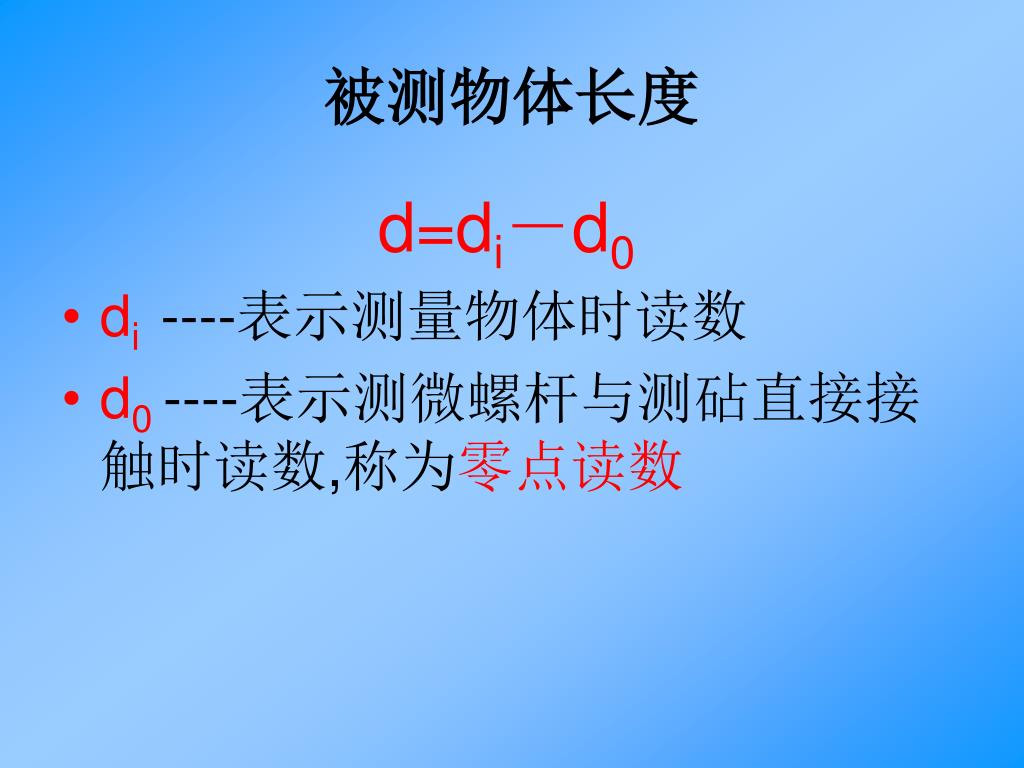

  3. 被测物体长度 d=di－d0 • di ----表示测量物体时读数 • d0 ----表示测微螺杆与测砧直接接 触时读数,称为零点读数

  4. 零点读数 • 图1读数为 d0=+0.005mm 图1 • 图２读数为 • d0=－0.015mm 图2

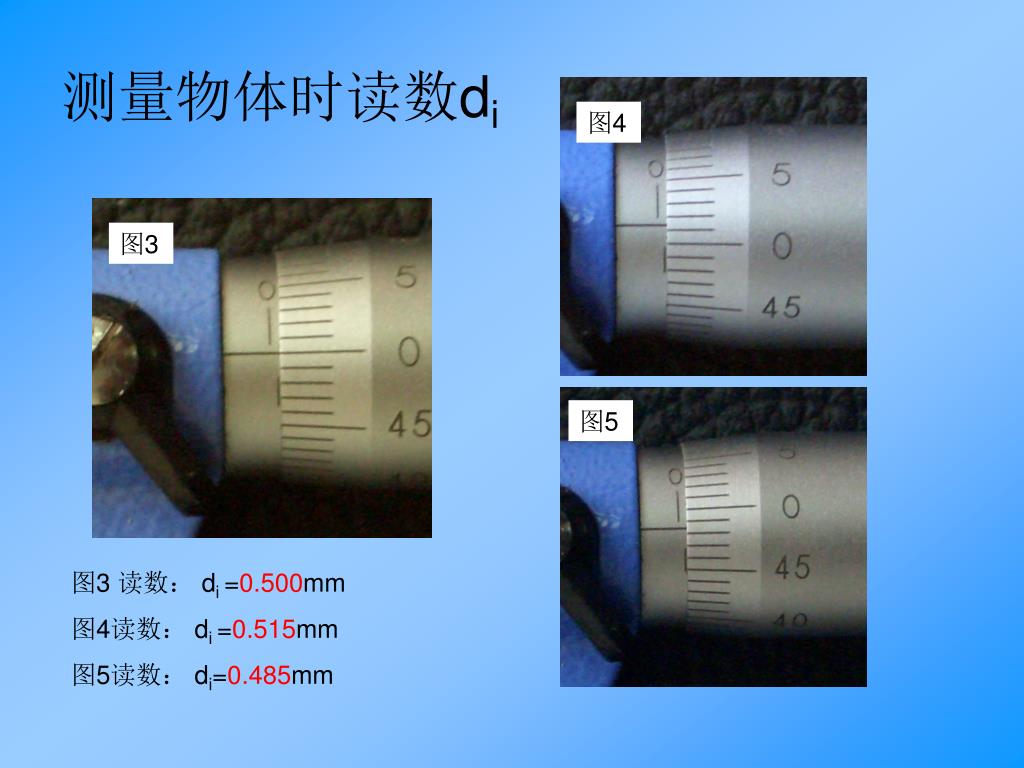

  5. 测量物体时读数di 图4 图3 图5 图3 读数： di=0.500mm 图4读数： di=0.515mm 图5读数： di=0.485mm

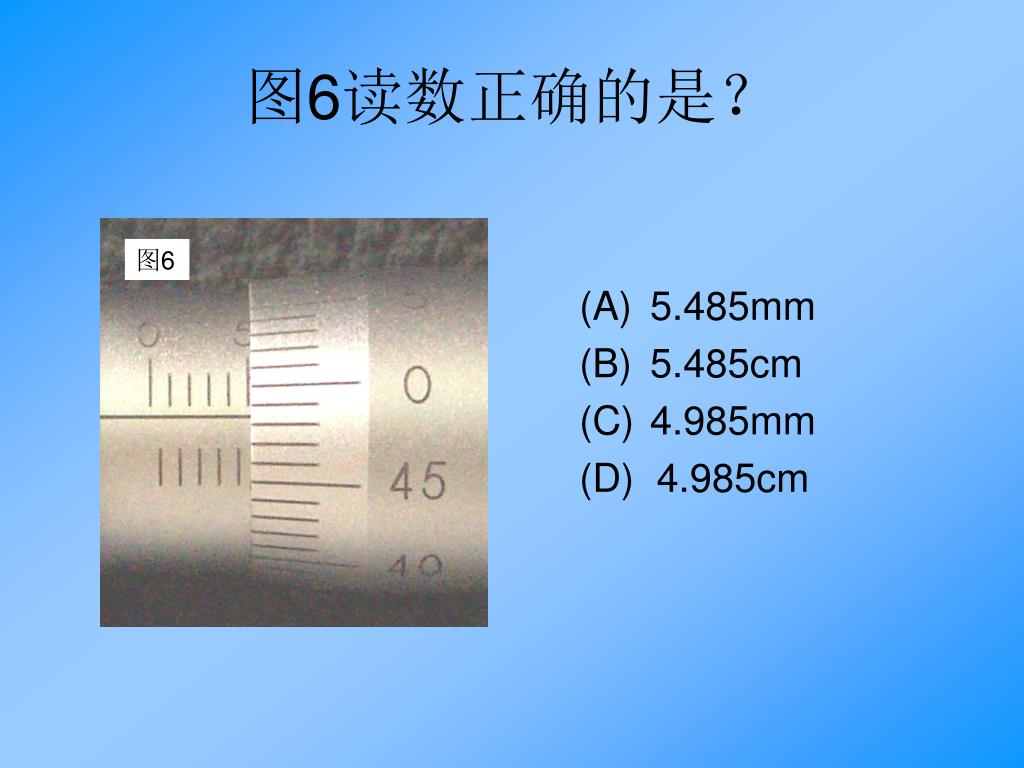

  6. 图6读数正确的是？ • 5.485mm • 5.485cm • 4.985mm (D) 4.985cm 图6
