Introduction to Grinding Wheels

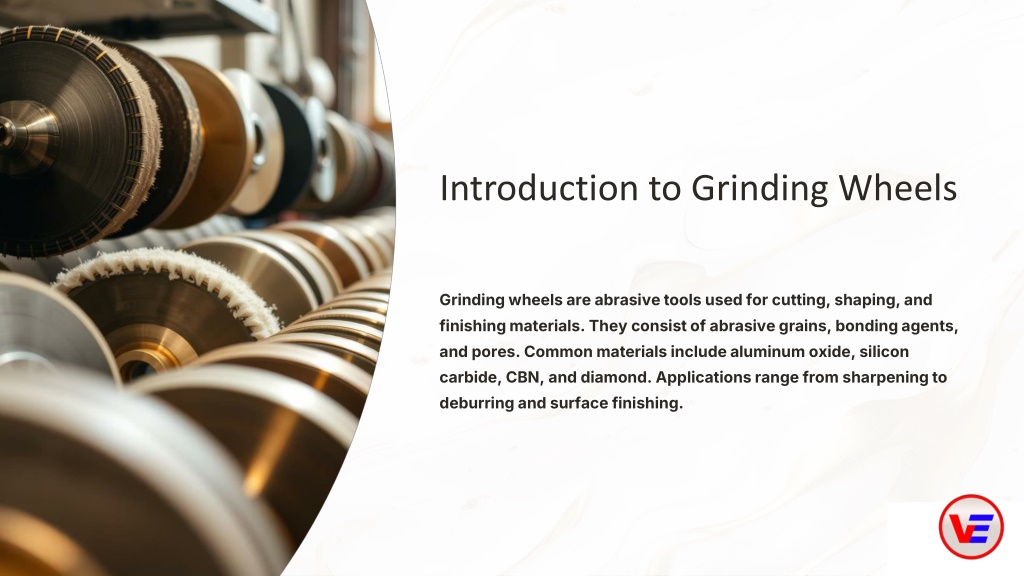

Grinding wheels are abrasive tools used for cutting, shaping, and finishing materials. They consist of abrasive grains, bonding agents, and pores. Common materials include aluminum oxide, silicon carbide, CBN, and diamond. Applications range from sharpening to deburring and surface finishing.<br>

vermaent
Download Presentation

Introduction to Grinding Wheels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to Grinding Wheels Grinding wheels are abrasive tools used for cutting, shaping, and finishing materials. They consist of abrasive grains, bonding agents, and pores. Common materials include aluminum oxide, silicon carbide, CBN, and diamond. Applications range from sharpening to deburring and surface finishing.

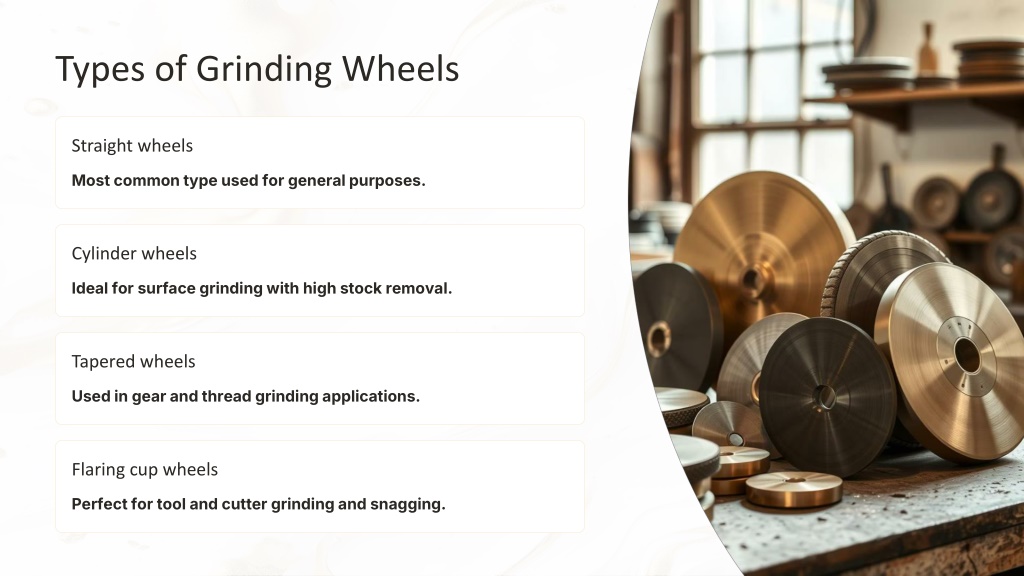

  2. Types of Grinding Wheels Straight wheels Most common type used for general purposes. Cylinder wheels Ideal for surface grinding with high stock removal. Tapered wheels Used in gear and thread grinding applications. Flaring cup wheels Perfect for tool and cutter grinding and snagging.

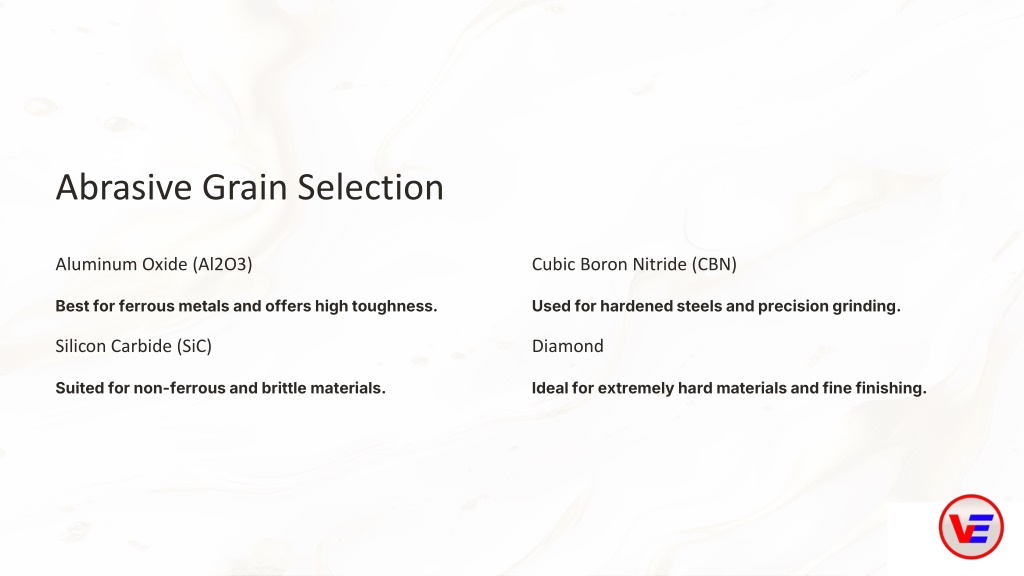

  3. Abrasive Grain Selection Aluminum Oxide (Al2O3) Cubic Boron Nitride (CBN) Best for ferrous metals and offers high toughness. Used for hardened steels and precision grinding. Silicon Carbide (SiC) Diamond Suited for non-ferrous and brittle materials. Ideal for extremely hard materials and fine finishing.

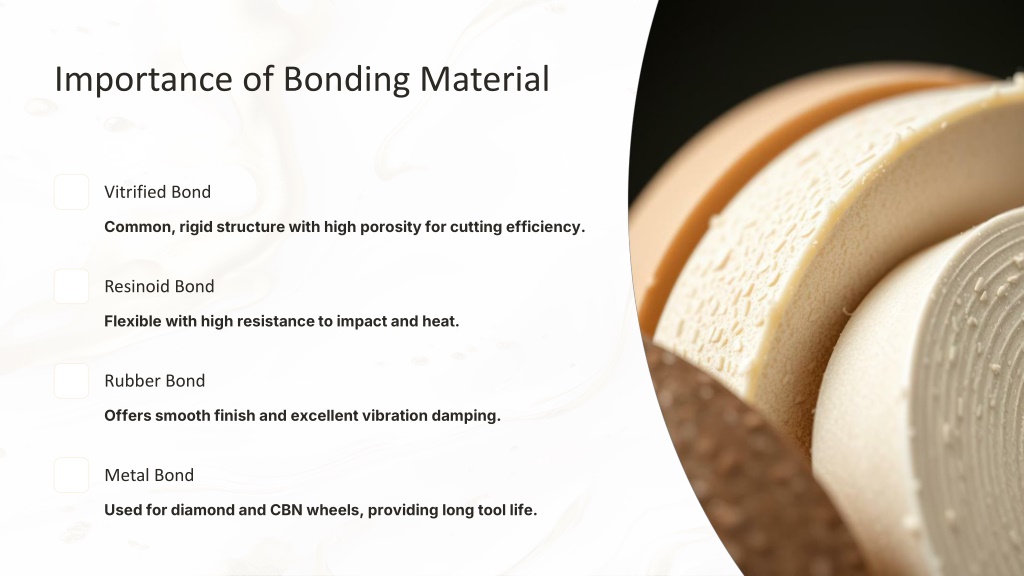

  4. Importance of Bonding Material Vitrified Bond Common, rigid structure with high porosity for cutting efficiency. Resinoid Bond Flexible with high resistance to impact and heat. Rubber Bond Offers smooth finish and excellent vibration damping. Metal Bond Used for diamond and CBN wheels, providing long tool life.

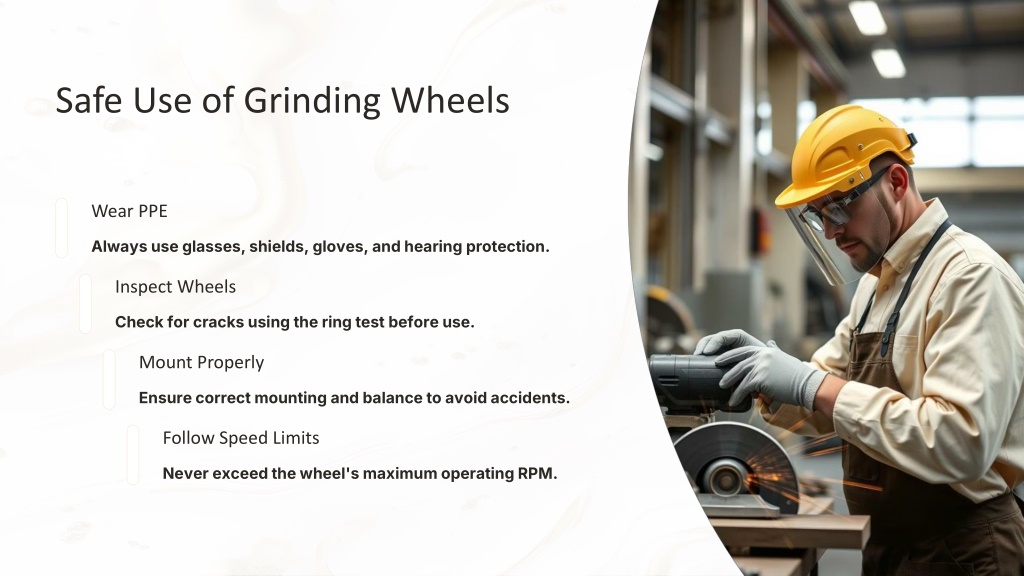

  5. Safe Use of Grinding Wheels Wear PPE Always use glasses, shields, gloves, and hearing protection. Inspect Wheels Check for cracks using the ring test before use. Mount Properly Ensure correct mounting and balance to avoid accidents. Follow Speed Limits Never exceed the wheel's maximum operating RPM.

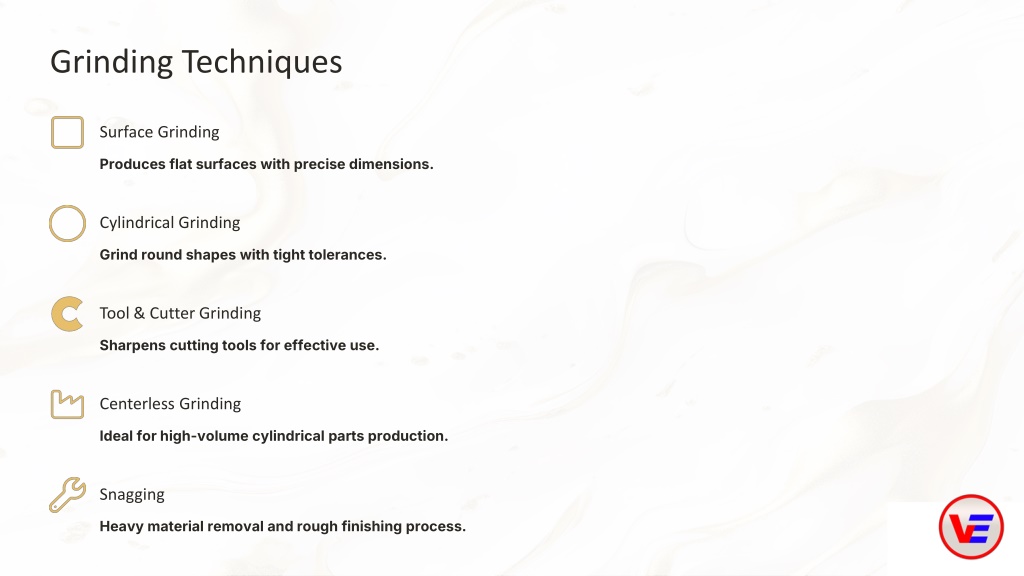

  6. Grinding Techniques Surface Grinding Produces flat surfaces with precise dimensions. Cylindrical Grinding Grind round shapes with tight tolerances. Tool & Cutter Grinding Sharpens cutting tools for effective use. Centerless Grinding Ideal for high-volume cylindrical parts production. Snagging Heavy material removal and rough finishing process.

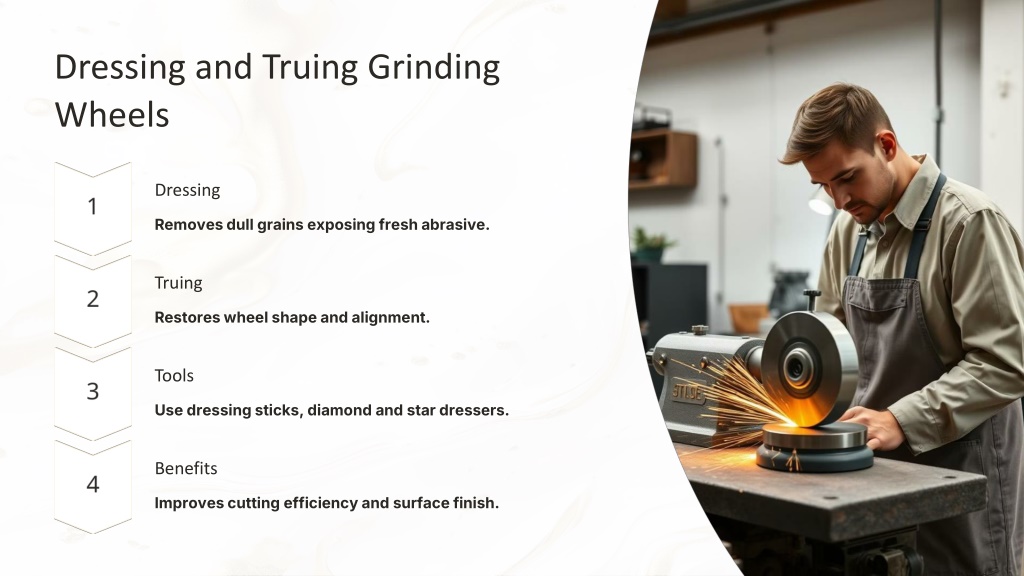

  7. Dressing and Truing Grinding Wheels Dressing Removes dull grains exposing fresh abrasive. Truing Restores wheel shape and alignment. Tools Use dressing sticks, diamond and star dressers. Benefits Improves cutting efficiency and surface finish.

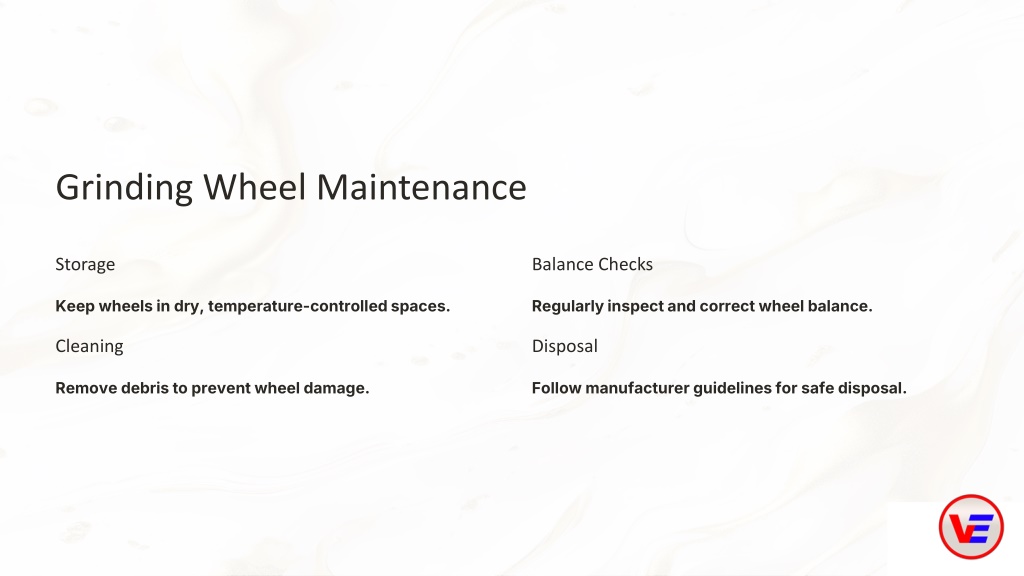

  8. Grinding Wheel Maintenance Storage Balance Checks Keep wheels in dry, temperature-controlled spaces. Regularly inspect and correct wheel balance. Cleaning Disposal Remove debris to prevent wheel damage. Follow manufacturer guidelines for safe disposal.
