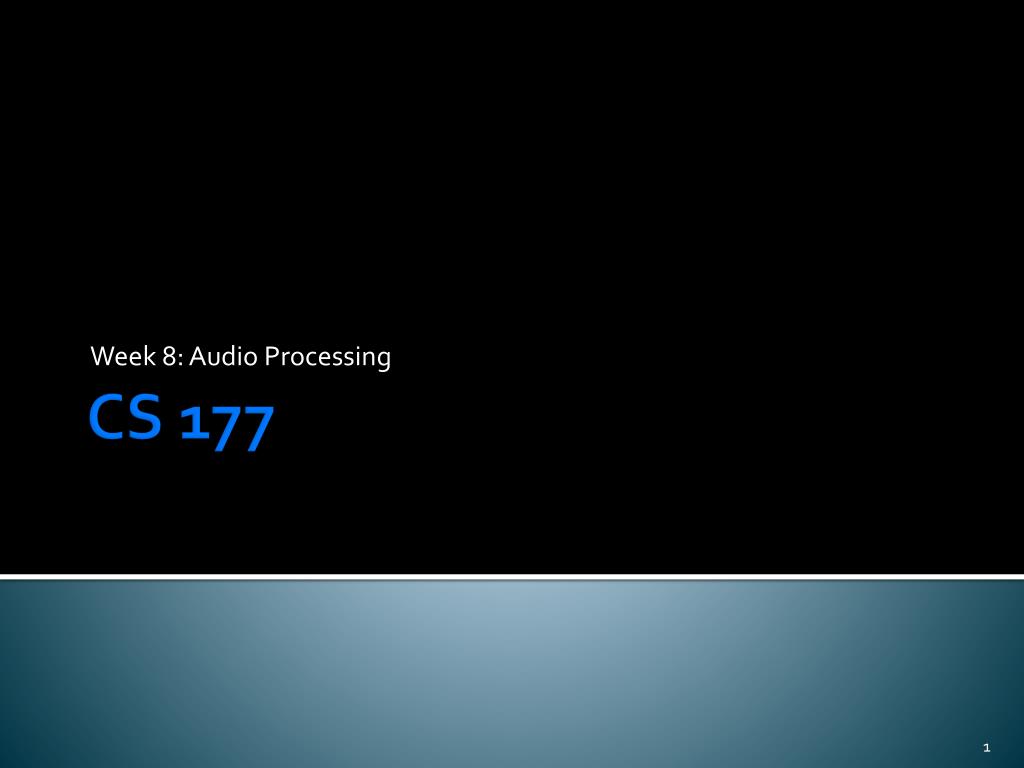

Week 8: Audio Processing

### CS 177

Sound
• Light and sound are both transmitted in waves

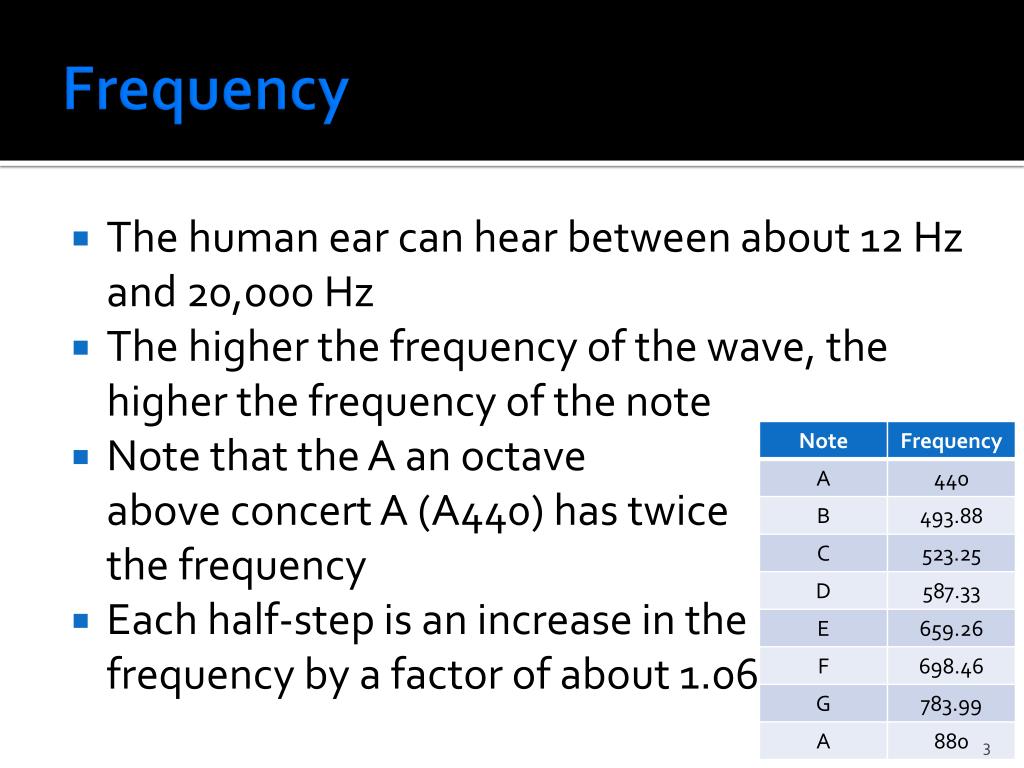

Frequency
• The human ear can hear between about 12 Hz and 20,000 Hz
• The higher the frequency of the wave, the higher the frequency of the note
• Note that the A an octave

above concert A (A440) has twice

the frequency

• Each half-step is an increase in the

frequency by a factor of about 1.06

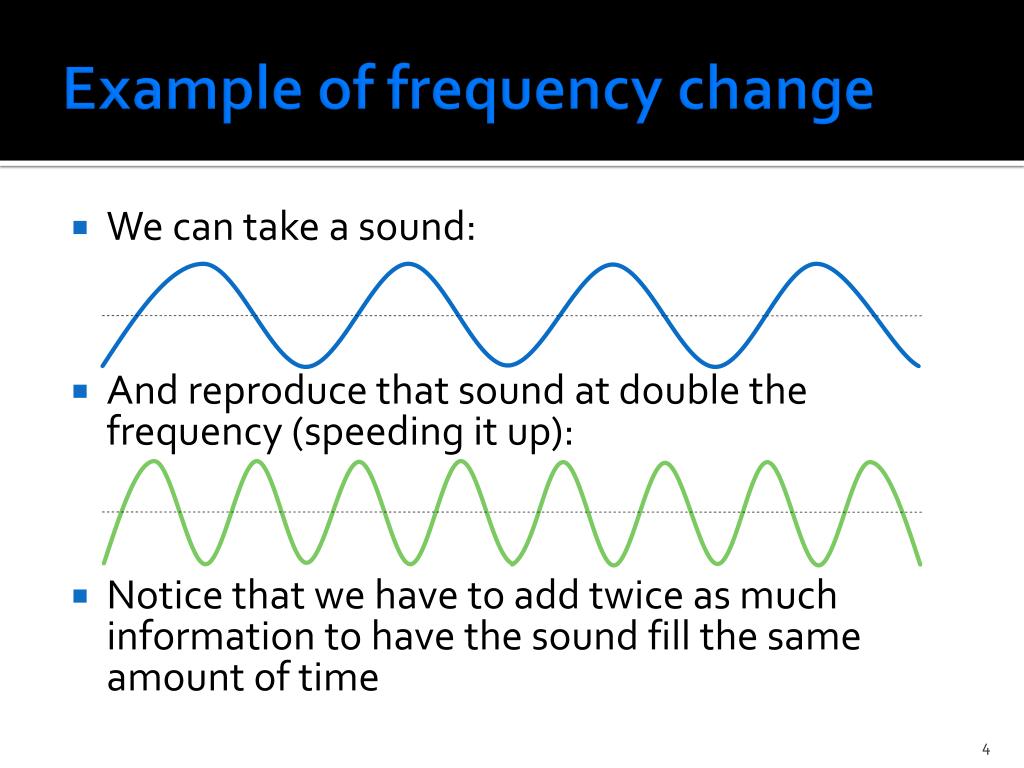

Example of frequency change
• We can take a sound:
• And reproduce that sound at double the frequency (speeding it up):
• Notice that we have to add twice as much information to have the sound fill the same amount of time

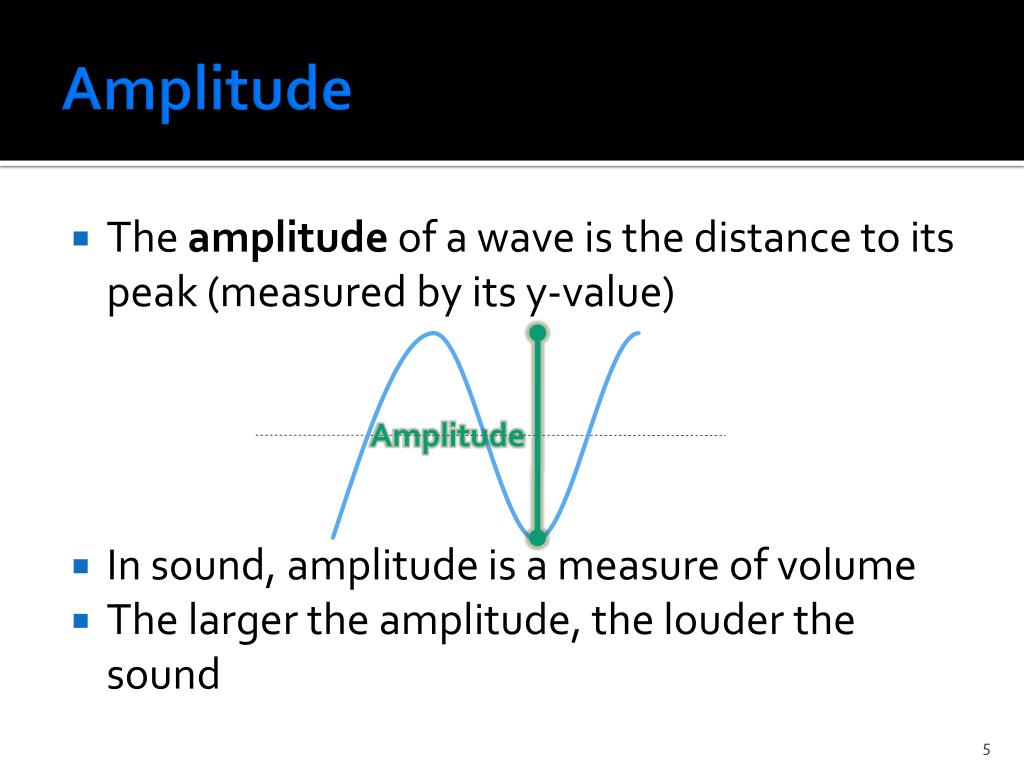

Amplitude
• The amplitude of a wave is the distance to its peak (measured by its y-value)
• In sound, amplitude is a measure of volume
• The larger the amplitude, the louder the sound

Amplitude

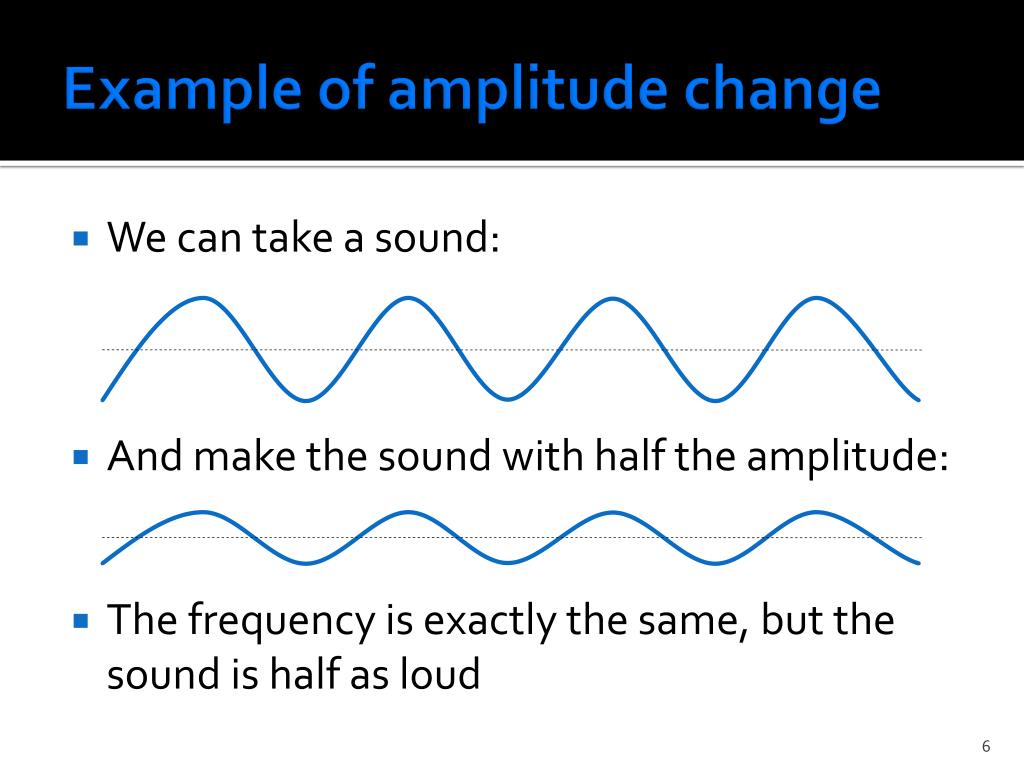

Example of amplitude change
• We can take a sound:
• And make the sound with half the amplitude:
• The frequency is exactly the same, but the sound is half as loud
Real sounds
• Something that looks like a smooth sine wave is called a pure tone
• No real instruments play anything like that
• Even the purest real sound has overtones and harmonics
• Real sound is the result of many messy waves added together:

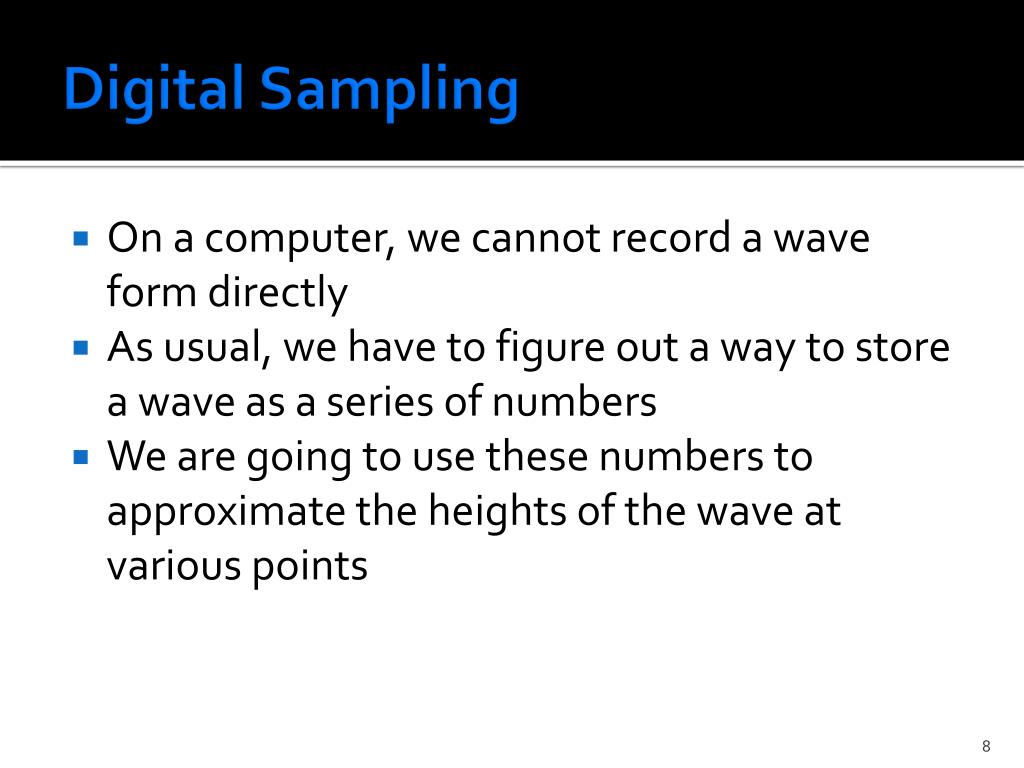

Digital Sampling
• On a computer, we cannot record a wave form directly
• As usual, we have to figure out a way to store a wave as a series of numbers
• We are going to use these numbers to approximate the heights of the wave at various points
Sample rate
• Hertz (Hz) is a unit that means a number of times per second
• We are going to break down the wave into lots of slices
• We are going to have 44,100 slices in a second
• Thus, we are slicing at 44,100 Hz

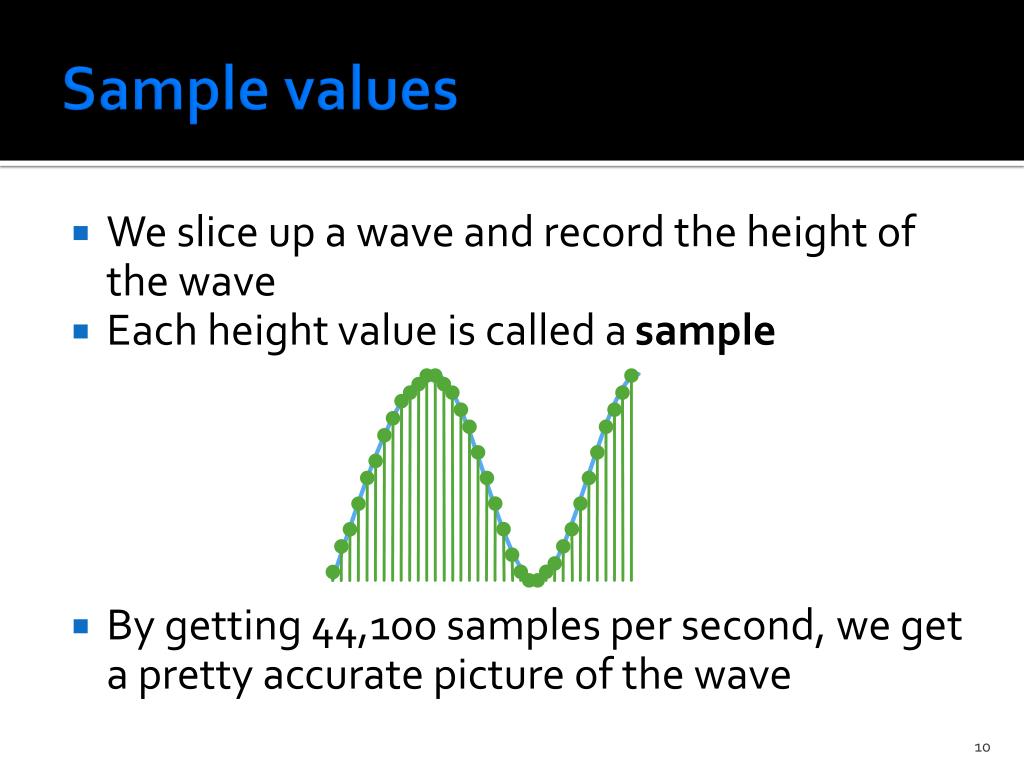

Sample values
• We slice up a wave and record the height of the wave
• Each height value is called a sample
• By getting 44,100 samples per second, we get a pretty accurate picture of the wave

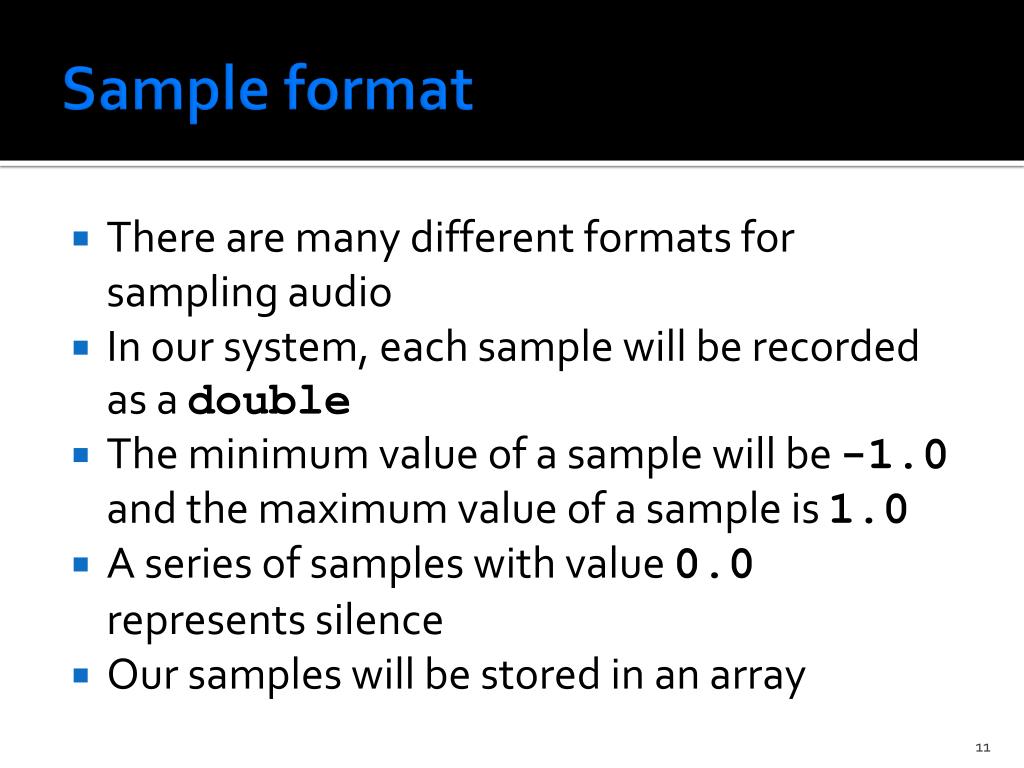

Sample format
• There are many different formats for sampling audio
• In our system, each sample will be recorded as a double
• The minimum value of a sample will be -1.0 and the maximum value of a sample is 1.0
• A series of samples with value 0.0 represents silence
• Our samples will be stored in an array
Purpose of the StdAudio class
• Audio data on computers is sometimes stored in a WAV file
• A WAV file is much simpler than an MP3 because it has no compression
• Even so, it contains two channels (for stereo) and can have many different sample rates and formats for recording sound
• The StdAudio class lets you read and write a WAV file easily and always deal with a single array of sound, sampled at 44,100 Hz

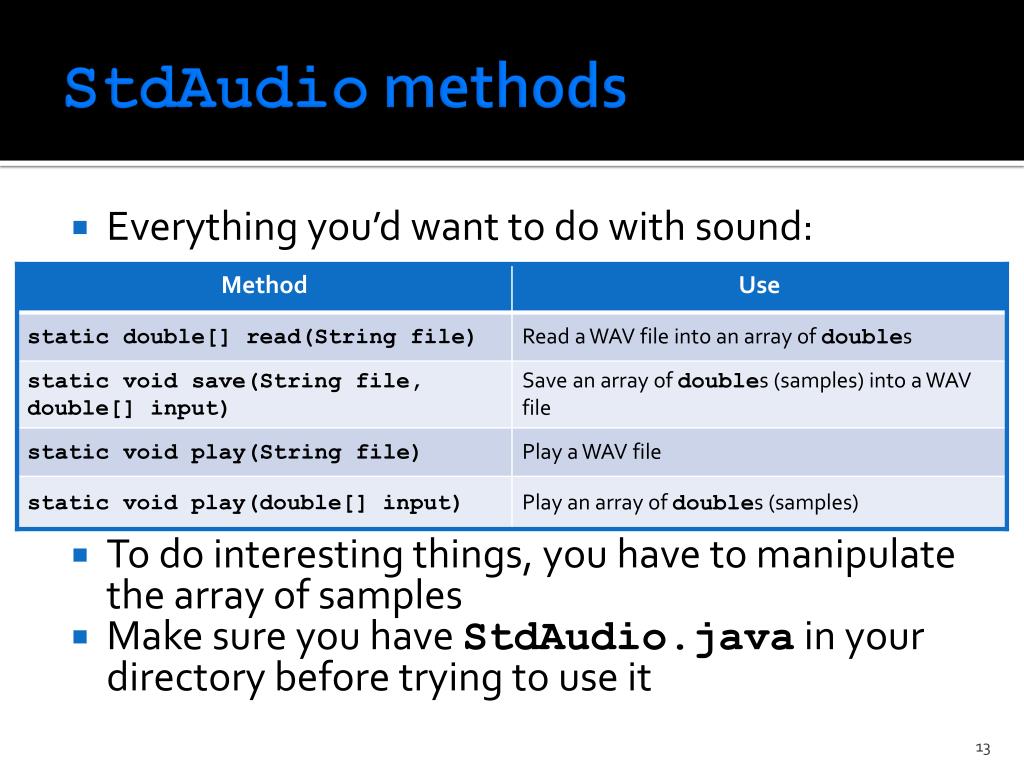

StdAudio methods
• Everything you’d want to do with sound:
• To do interesting things, you have to manipulate the array of samples
• Make sure you have StdAudio.java in your directory before trying to use it

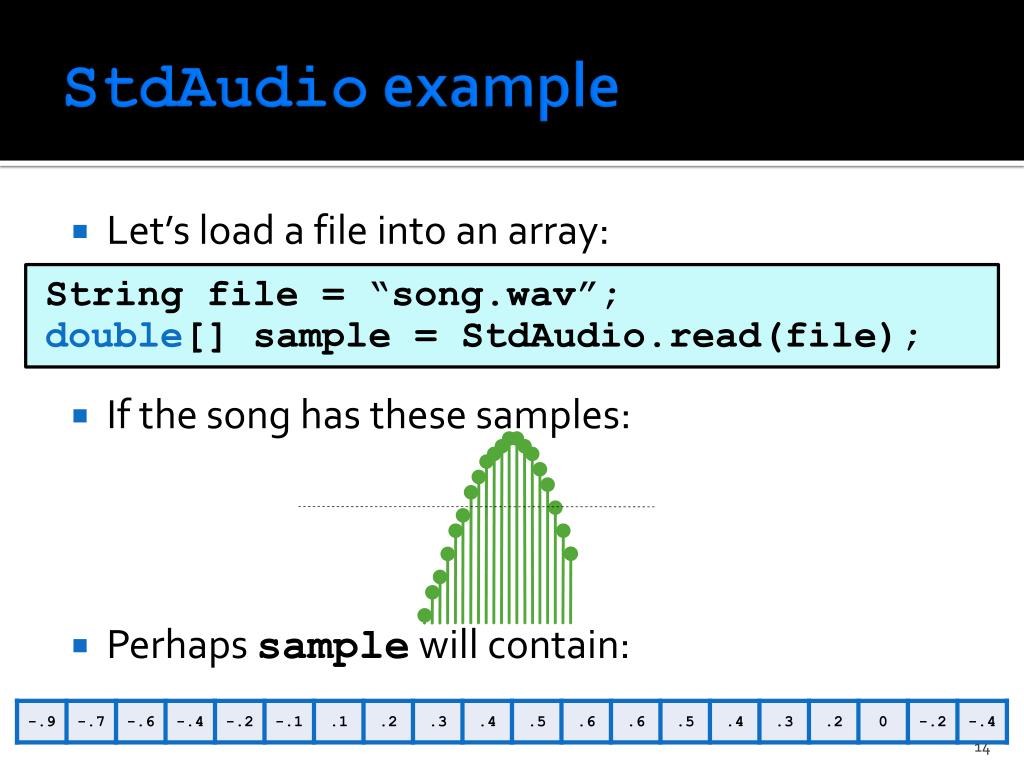

StdAudio example
• Let’s load a file into an array:
• If the song has these samples:
• Perhaps samplewill contain:

String file = “song.wav”;

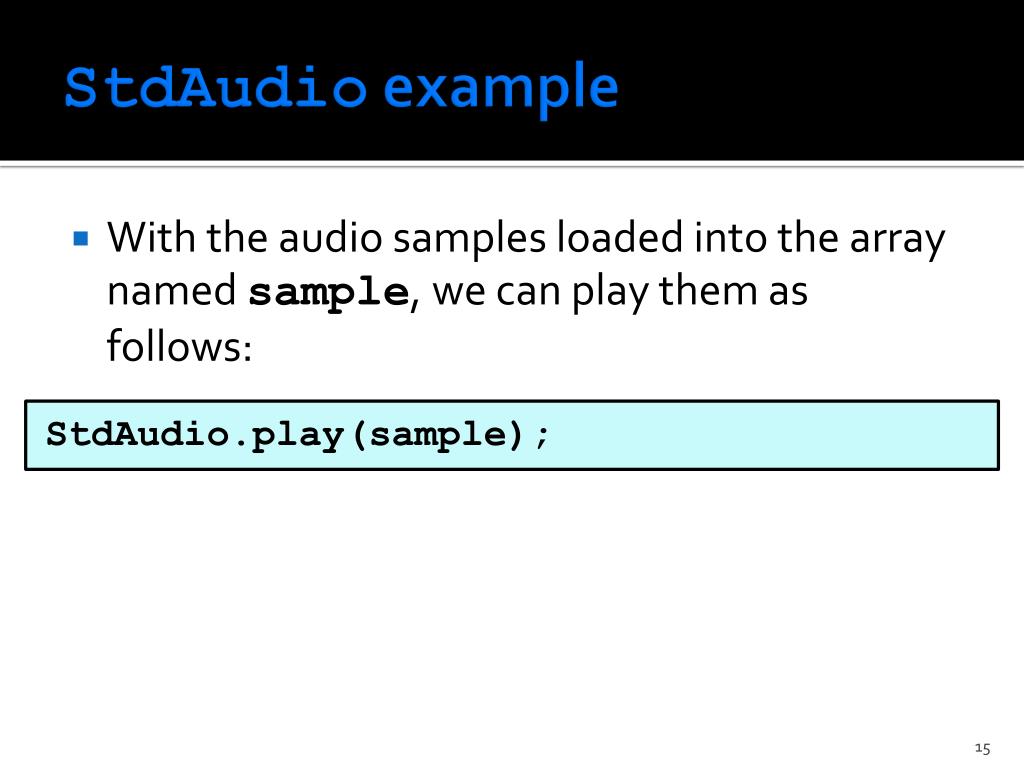

StdAudio example
• With the audio samples loaded into the array named sample, we can play them as follows:

StdAudio.play(sample);

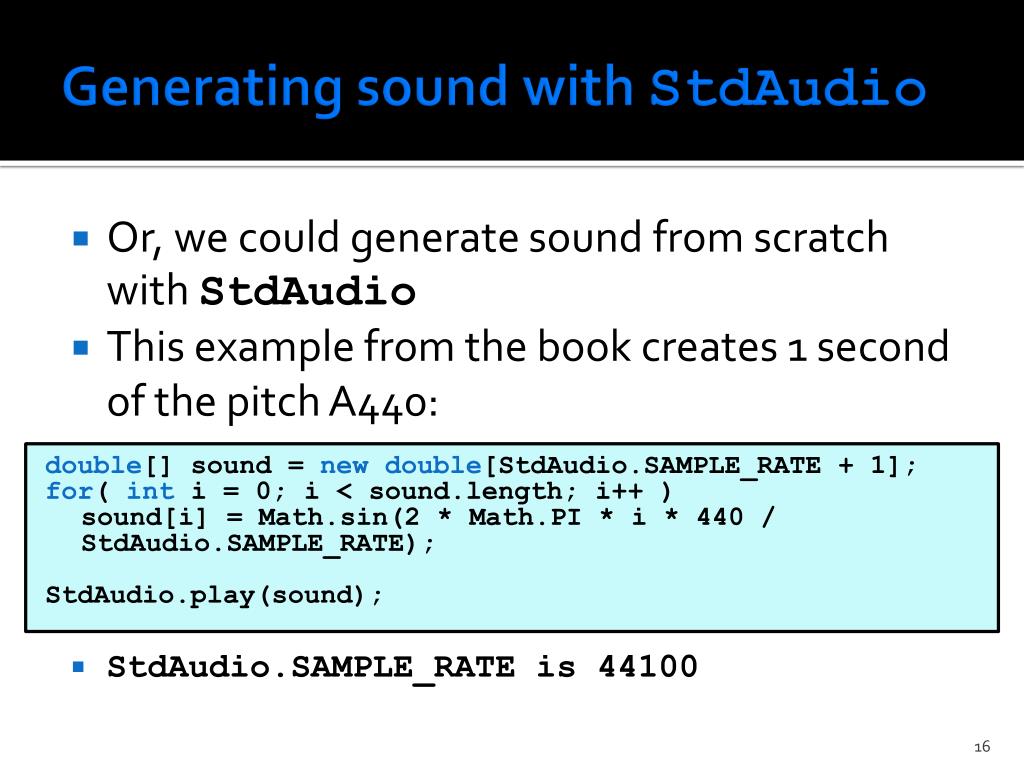

Generating sound with StdAudio
• Or, we could generate sound from scratch with StdAudio
• This example from the book creates 1 second of the pitch A440:
• StdAudio.SAMPLE_RATE is 44100
• double[] sound = new double[StdAudio.SAMPLE_RATE + 1];
• for( inti = 0; i < sound.length; i++ )
• sound[i] = Math.sin(2 * Math.PI * i * 440 / StdAudio.SAMPLE_RATE);
• StdAudio.play(sound);

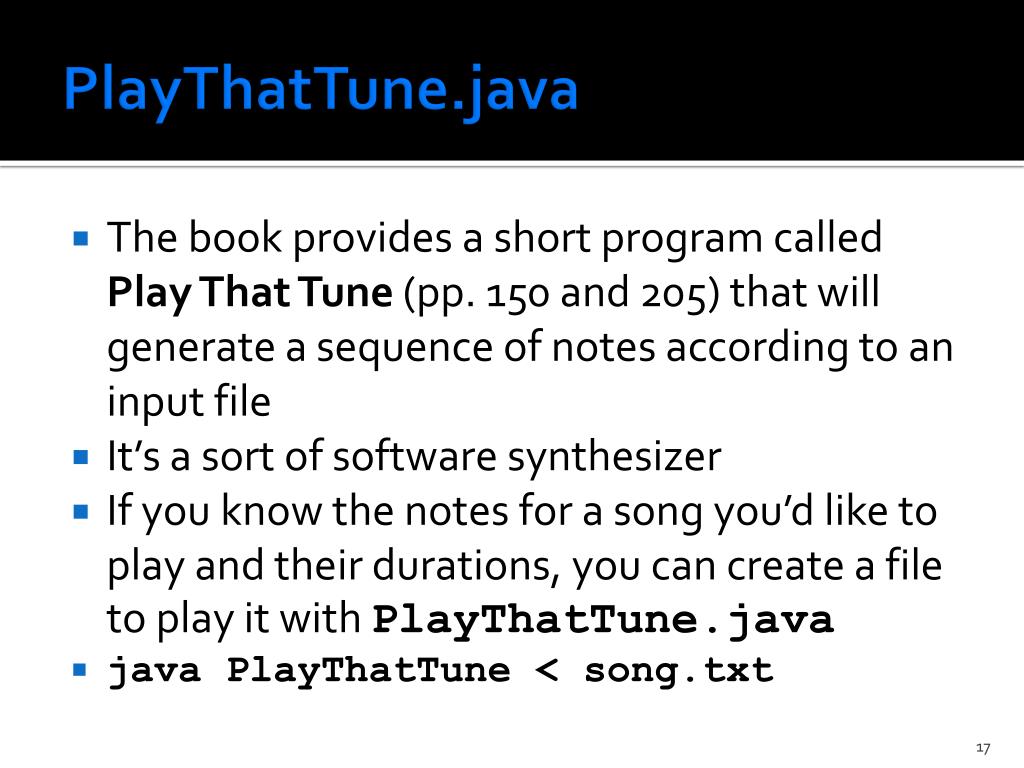

PlayThatTune.java
• The book provides a short program called Play That Tune (pp. 150 and 205) that will generate a sequence of notes according to an input file
• It’s a sort of software synthesizer
• If you know the notes for a song you’d like to play and their durations, you can create a file to play it with PlayThatTune.java
• java PlayThatTune < song.txt

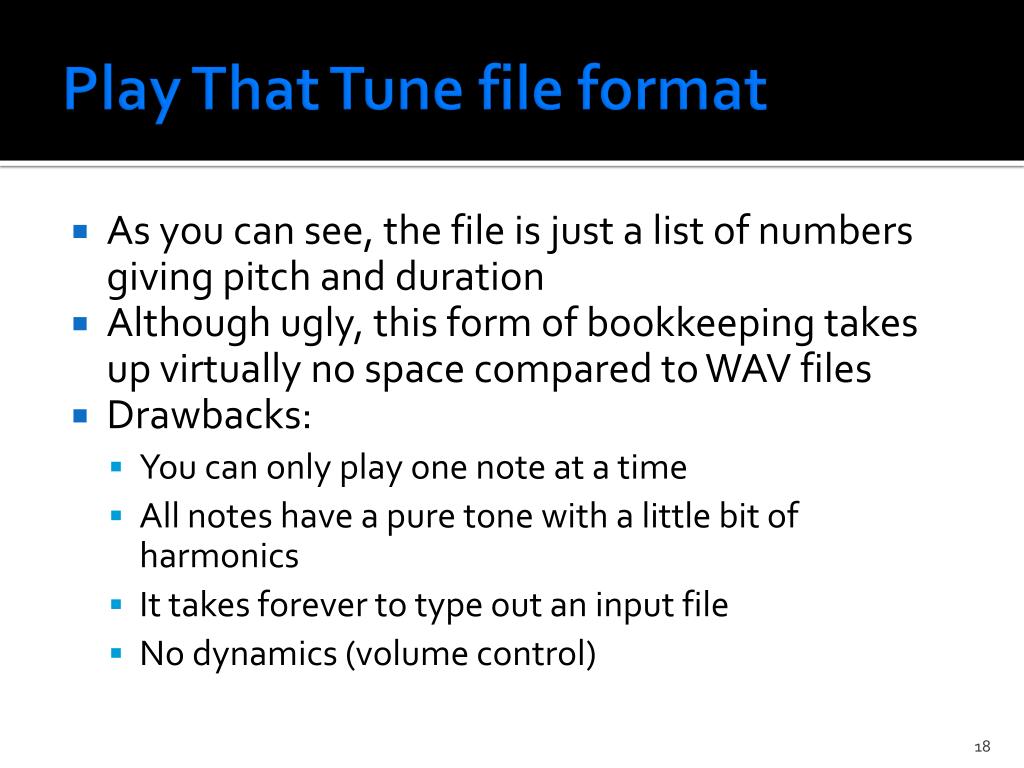

Play That Tune file format
• As you can see, the file is just a list of numbers giving pitch and duration
• Although ugly, this form of bookkeeping takes up virtually no space compared to WAV files
• Drawbacks:
• You can only play one note at a time
• All notes have a pure tone with a little bit of harmonics
• It takes forever to type out an input file
• No dynamics (volume control)
Sound waves
• Remember, sound is a wave
• We are going to start playing with the waveform now to get different effects
• Phase is a property of a wave that can be determined by its starting position
• You can think of phase as the alignment of the wave

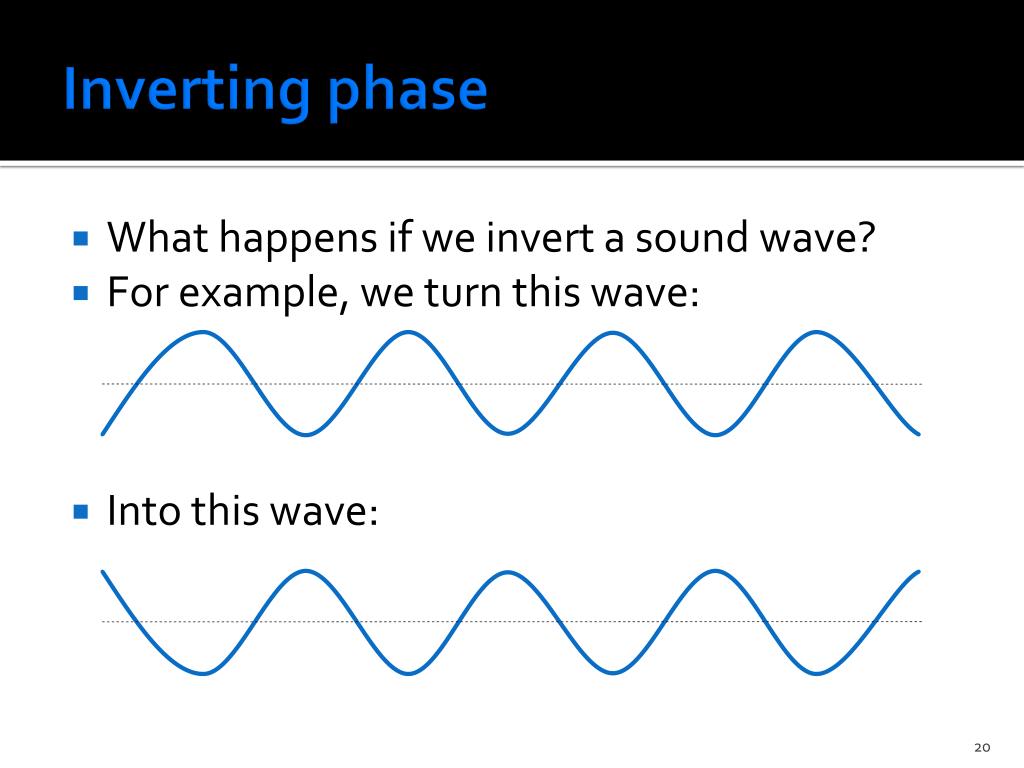

Inverting phase
• What happens if we invert a sound wave?
• For example, we turn this wave:
• Into this wave:

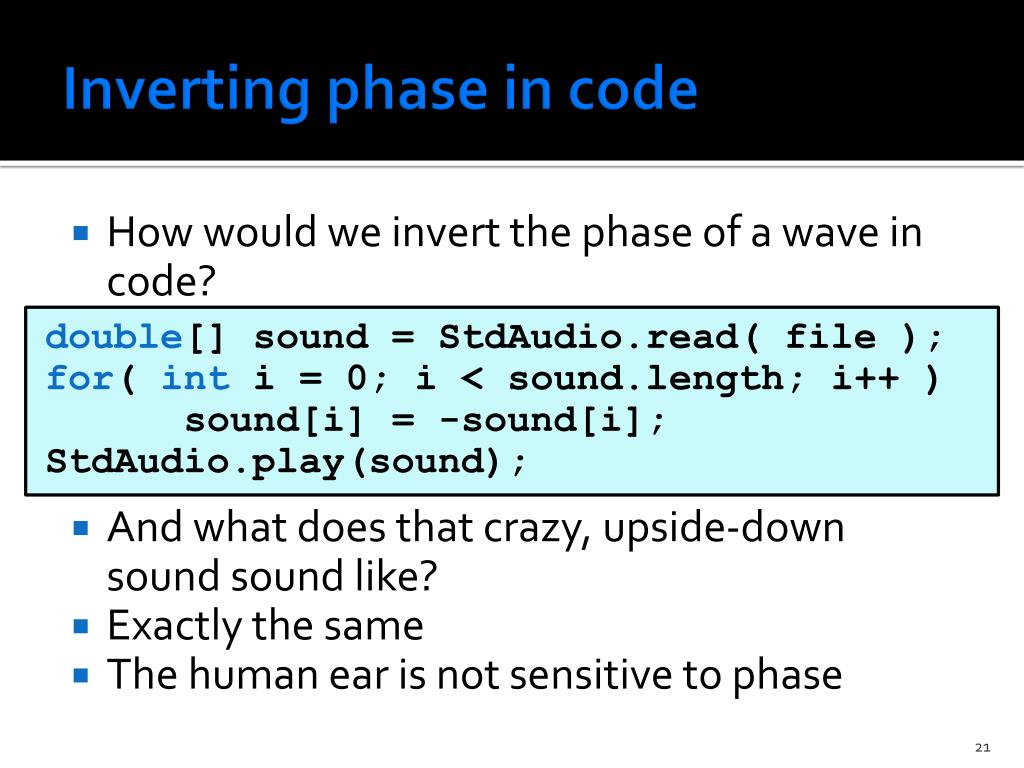

Inverting phase in code
• How would we invert the phase of a wave in code?
• And what does that crazy, upside-down sound sound like?
• Exactly the same
• The human ear is not sensitive to phase
• double[] sound = StdAudio.read( file );
• for( inti = 0; i < sound.length; i++ )
• sound[i] = -sound[i];
• StdAudio.play(sound);
Concerns with phase
• Phase is still worth knowing about
• If you hear two copies of the same sound, but one is 180° out of phase, the sounds will cancel each other out
• This can happen if you hook up one of your stereo speakers backwards

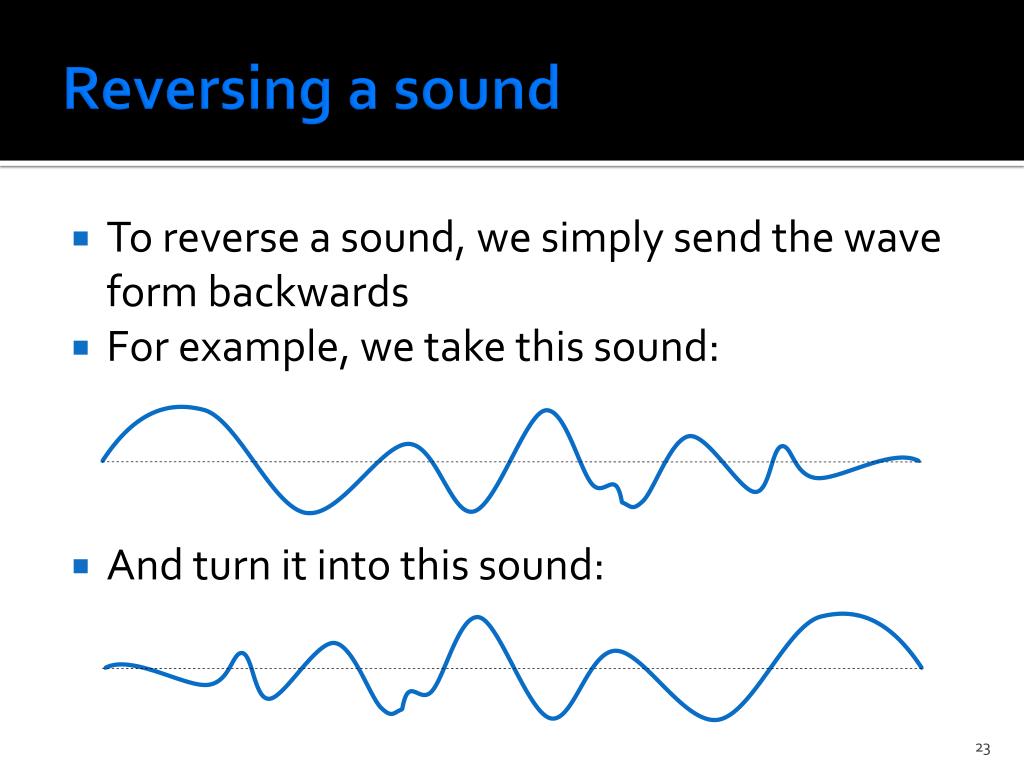

Reversing a sound
• To reverse a sound, we simply send the wave form backwards
• For example, we take this sound:
• And turn it into this sound:

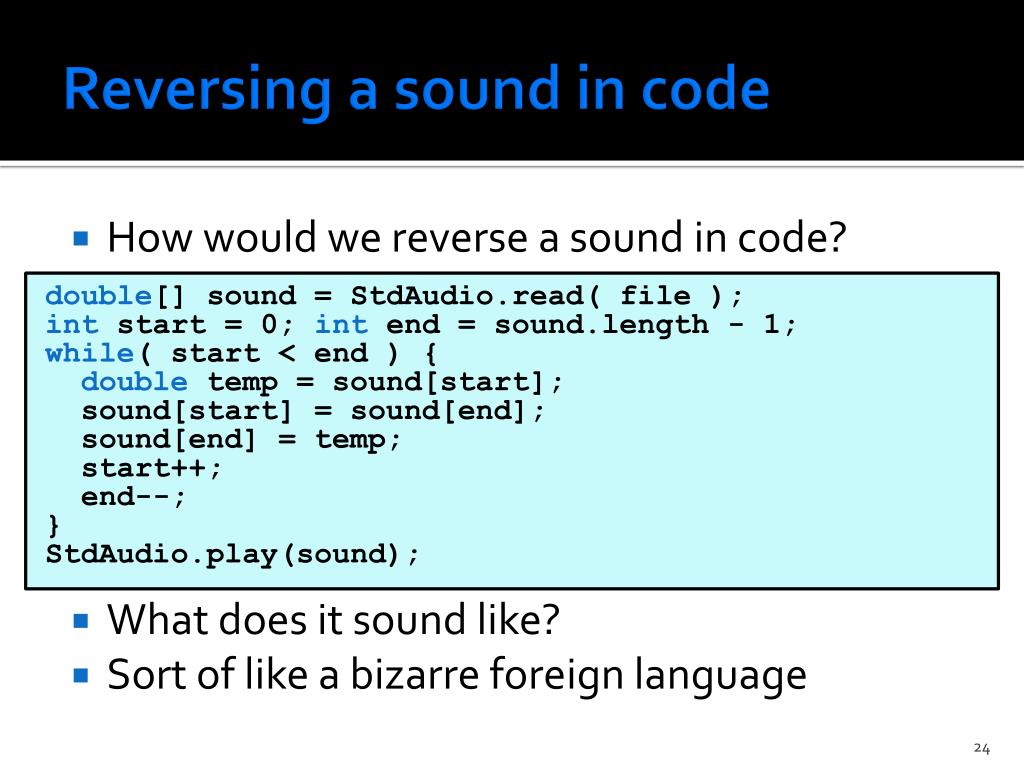

Reversing a sound in code
• How would we reverse a sound in code?
• What does it sound like?
• Sort of like a bizarre foreign language
• double[] sound = StdAudio.read( file );
• intstart = 0; int end = sound.length - 1;
• while( start < end ) {
• double temp = sound[start];
• sound[start] = sound[end];
• sound[end] = temp;
• start++;
• end--;
• }
• StdAudio.play(sound);
Amplitude
• Recall that the amplitude of a wave is the distance to its peak (measured by its y-value)
• In sound, amplitude is a measure of volume
• The larger the amplitude, the louder the sound

Amplitude

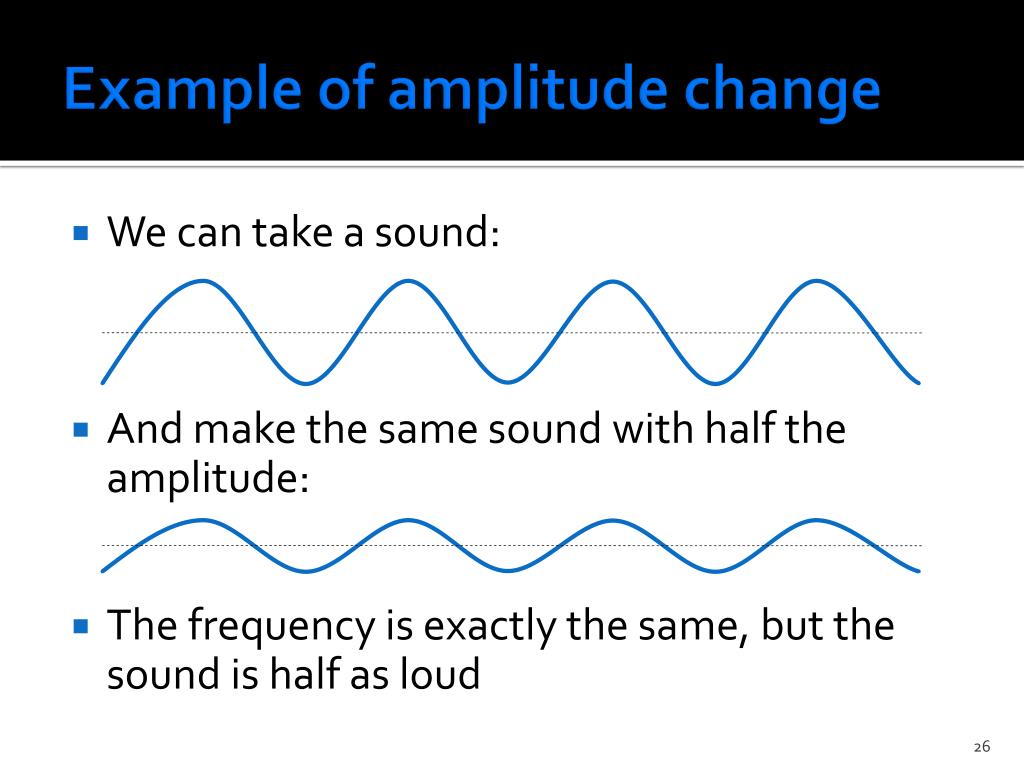

Example of amplitude change
• We can take a sound:
• And make the same sound with half the amplitude:
• The frequency is exactly the same, but the sound is half as loud

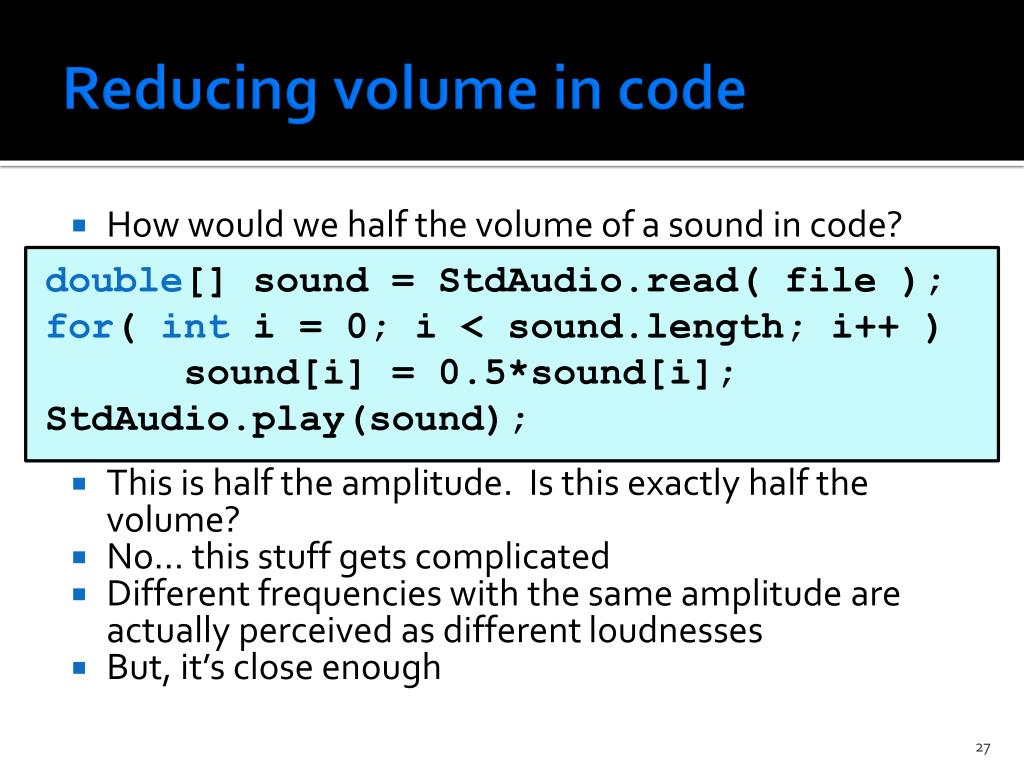

Reducing volume in code
• How would we half the volume of a sound in code?
• This is half the amplitude. Is this exactly half the volume?
• No… this stuff gets complicated
• Different frequencies with the same amplitude are actually perceived as different loudnesses
• But, it’s close enough
• double[] sound = StdAudio.read( file );
• for(inti = 0; i < sound.length; i++ )
• sound[i] = 0.5*sound[i];
• StdAudio.play(sound);
Increasing volume in code
• How would we double the volume of a sound in code?
• Be careful!
• Remember that the max is 1.0 and the min is -1.0
• If you go outside of that range, you should limit the values
• double[] sound = StdAudio.read( file );
• for(inti = 0; i < sound.length; i++ ) {
• sound[i] = 2*sound[i];
• if( sound[i] > 1.0 )
• sound[i] = 1.0;
• else if( sound[i] < -1.0 )
• sound[i] = -1.0;
• }
• StdAudio.play(sound);
Speeding up sound
• We can take a sound:
• And shrink that sound in half the time (while also doubling its frequency):

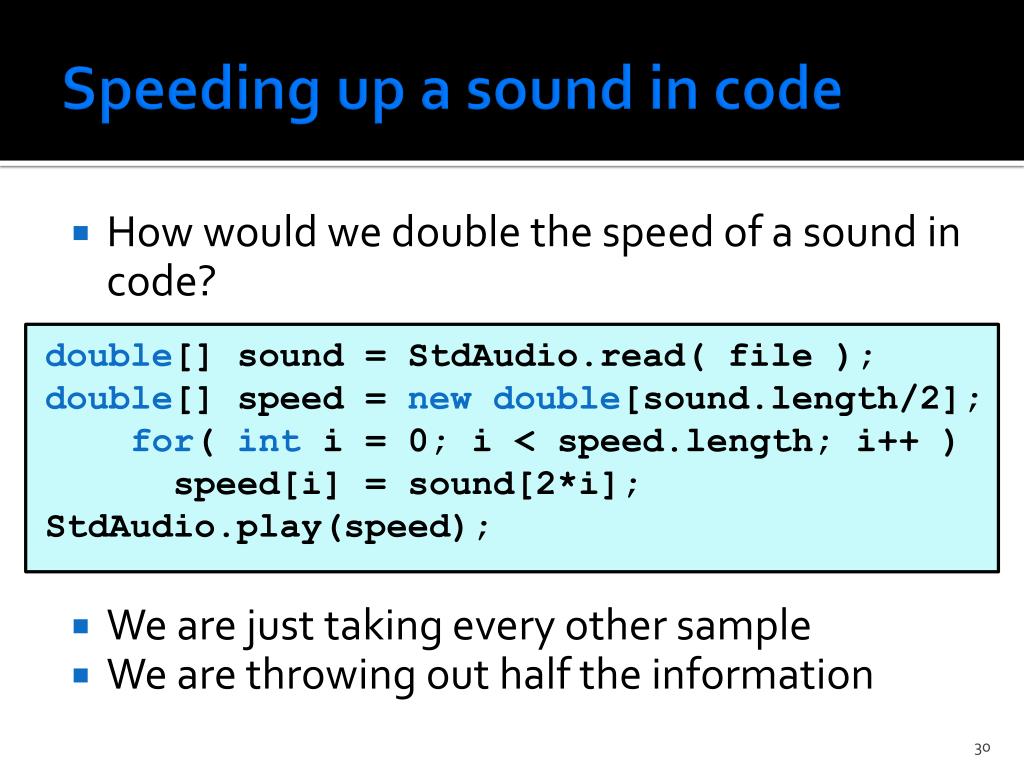

Speeding up a sound in code
• How would we double the speed of a sound in code?
• We are just taking every other sample
• We are throwing out half the information
• double[] sound = StdAudio.read( file );
• double[] speed = new double[sound.length/2];
• for(inti = 0; i < speed.length; i++ )
• speed[i] = sound[2*i];
• StdAudio.play(speed);
Slowing down sound
• We can take a sound:
• And stretch that sound to double the time (while also cutting its frequency in half):

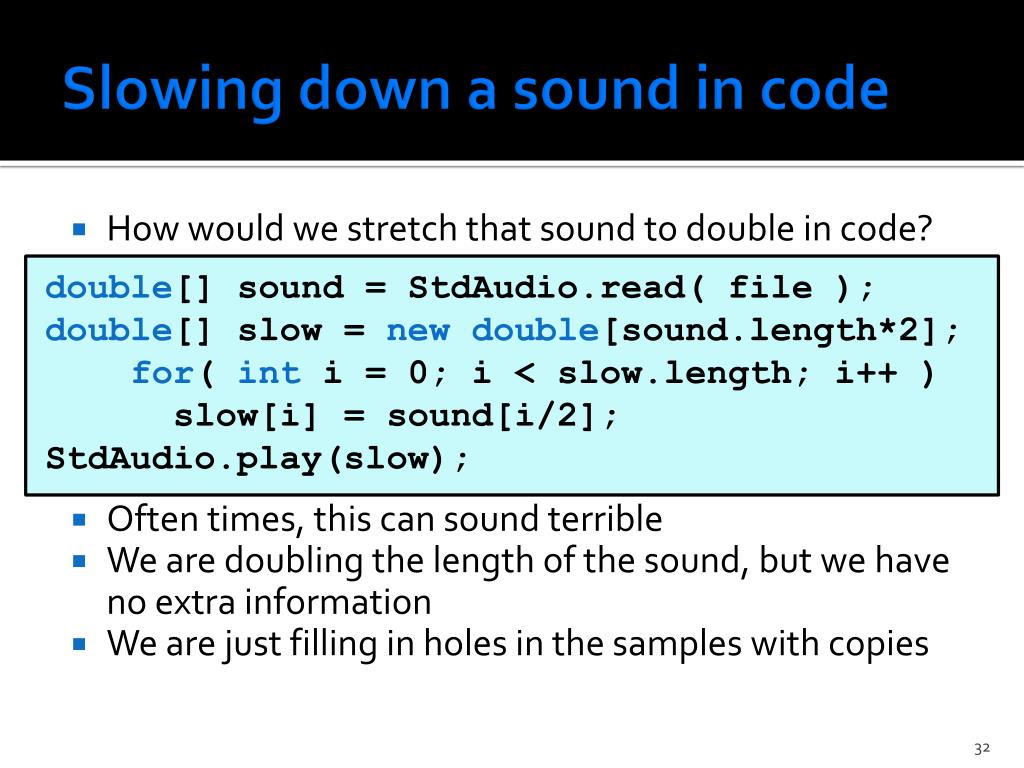

Slowing down a sound in code
• How would we stretch that sound to double in code?
• Often times, this can sound terrible
• We are doubling the length of the sound, but we have no extra information
• We are just filling in holes in the samples with copies
• double[] sound = StdAudio.read( file );
• double[] slow = new double[sound.length*2];
• for(inti = 0; i < slow.length; i++ )
• slow[i] = sound[i/2];
• StdAudio.play(slow);

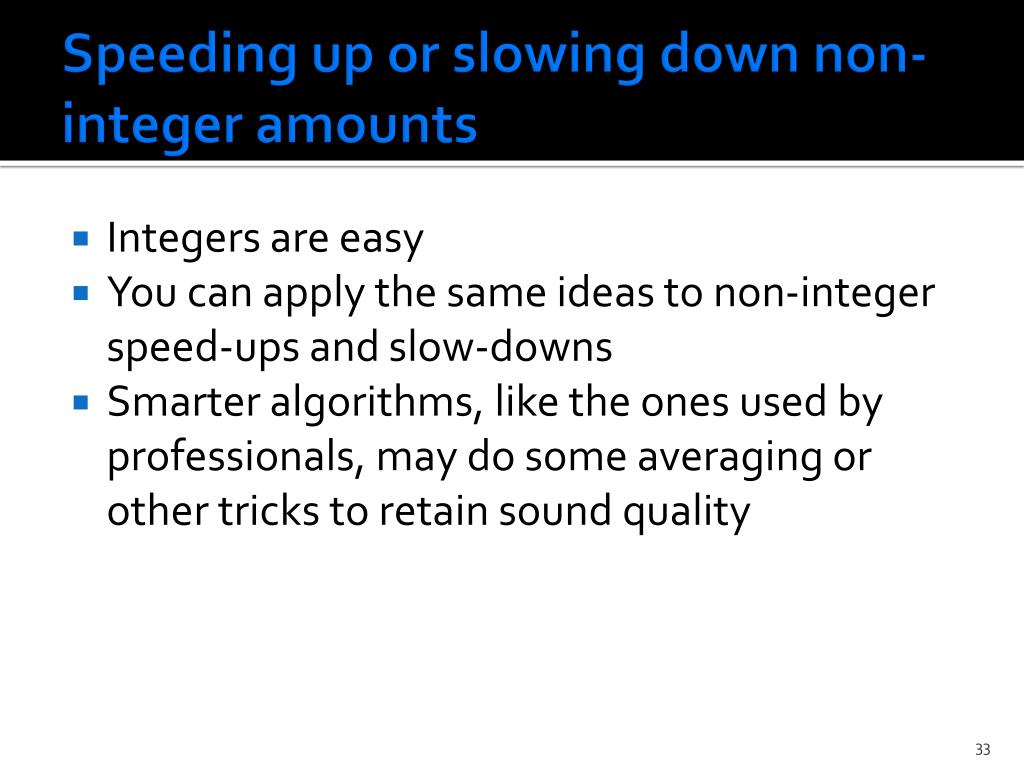

Speeding up or slowing down non-integer amounts
• Integers are easy
• You can apply the same ideas to non-integer speed-ups and slow-downs
• Smarter algorithms, like the ones used by professionals, may do some averaging or other tricks to retain sound quality
