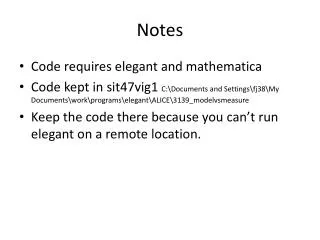

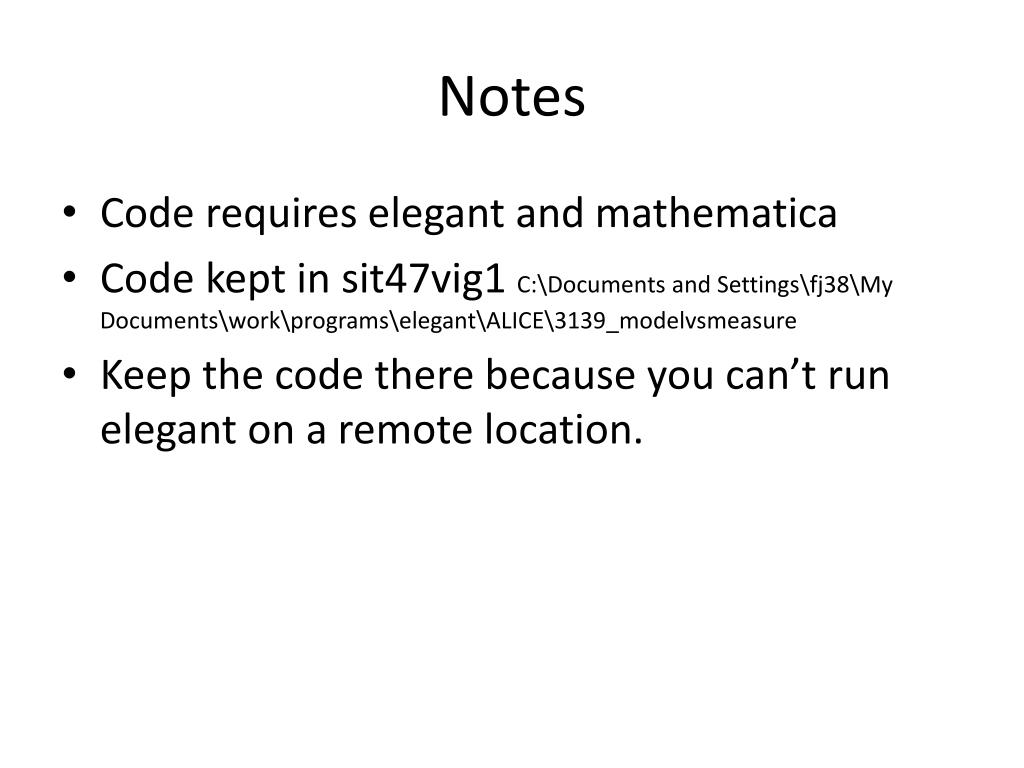

  1. Notes • Code requires elegant and mathematica • Code kept in sit47vig1 C:\Documents and Settings\fj38\My Documents\work\programs\elegant\ALICE\3139_modelvsmeasure • Keep the code there because you can’t run elegant on a remote location.

  2. Horizontal : en=8.46mm; b=77.4 ; a= +20.96 Vertical : en=3.14mm; b=22.3 ; a= -2.31 Line = ELEGANT model Points = Screen images ST1-3 ST1-4 AR1-1 AR1-2 ST2-1 ST2-2 UP/CNWG ST1QUAD01:KQUAD, l = 0.177, k1 = 1.29009; Twiss tracked from ENTRANCE to ST1-QUAD-01

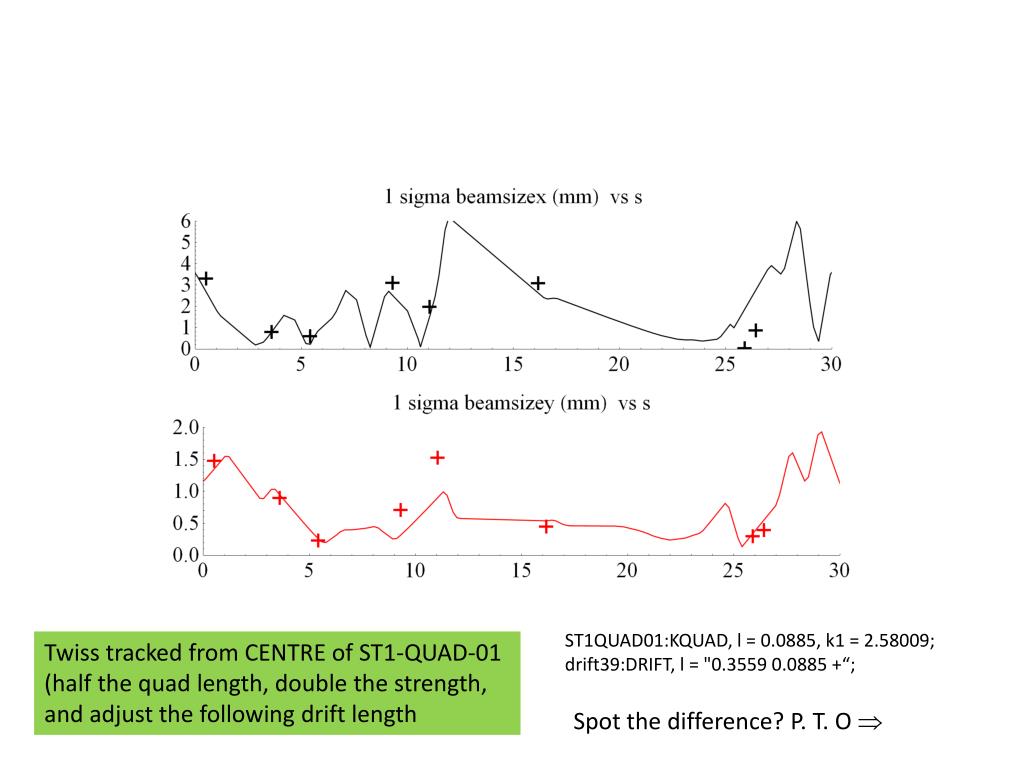

  3. ST1QUAD01:KQUAD, l = 0.0885, k1 = 2.58009; drift39:DRIFT, l = "0.3559 0.0885 +“; Twiss tracked from CENTRE of ST1-QUAD-01 (half the quad length, double the strength, and adjust the following drift length Spot the difference? P. T. O 

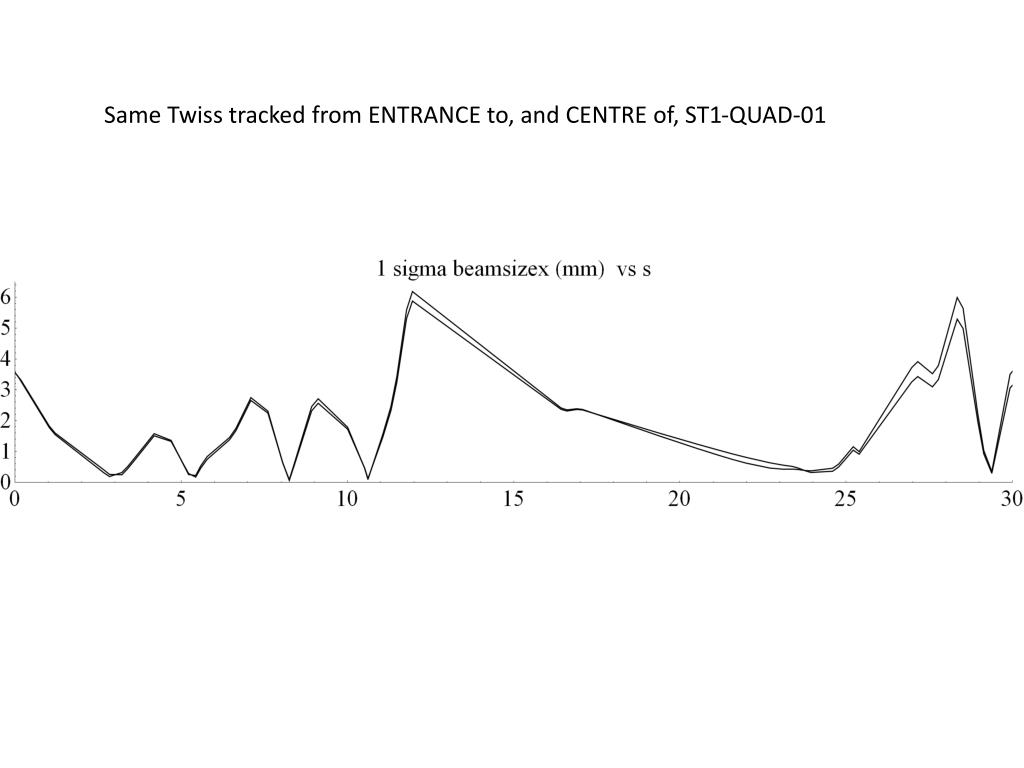

  4. Same Twiss tracked from ENTRANCE to, and CENTRE of, ST1-QUAD-01
