  1. NGN andClimate Change Telecommunications Technology Association Chaesub LEE

  2. Content • Protecting Environments • KeyFeatures of NGN • Benefits of NGN for Protecting Environments • Study Issues of NGN • Conclusion

  3. 1. Protecting Environments Objects for Protecting Environments Protect Natural Environment • Green House Gas emission • Pollutions of natural environment: Air, Water etc. • Natural disaster: earth quake, fire, thnami etc • Other natural disaster Impacts Protect Cultural Environment • Historical monuments • Artistic items: Paints, Sculptures etc. • Musical items: Musical instruments etc. • Literary items: Books, Records etc. • Infrastructural items: Building of Museum, Theater for Performance etc. • Other cultural environments

  4. 1. Protecting Environments Role of ICT for Protecting Environments • Processes for protecting environments Monitoring Warning Protect Maintain Improve ServiceCap. 1 ServiceCap. 1 ServiceCap. 2 ServiceCap. 1 ServiceCap. 2 ServiceCap. 2 ServiceCap. 3 ServiceCap. 3 ServiceCap. 3 Platform A Platform B Platform C Network Infrastructures(including Baseware: H/W Systems, Devices etc.) ICTs

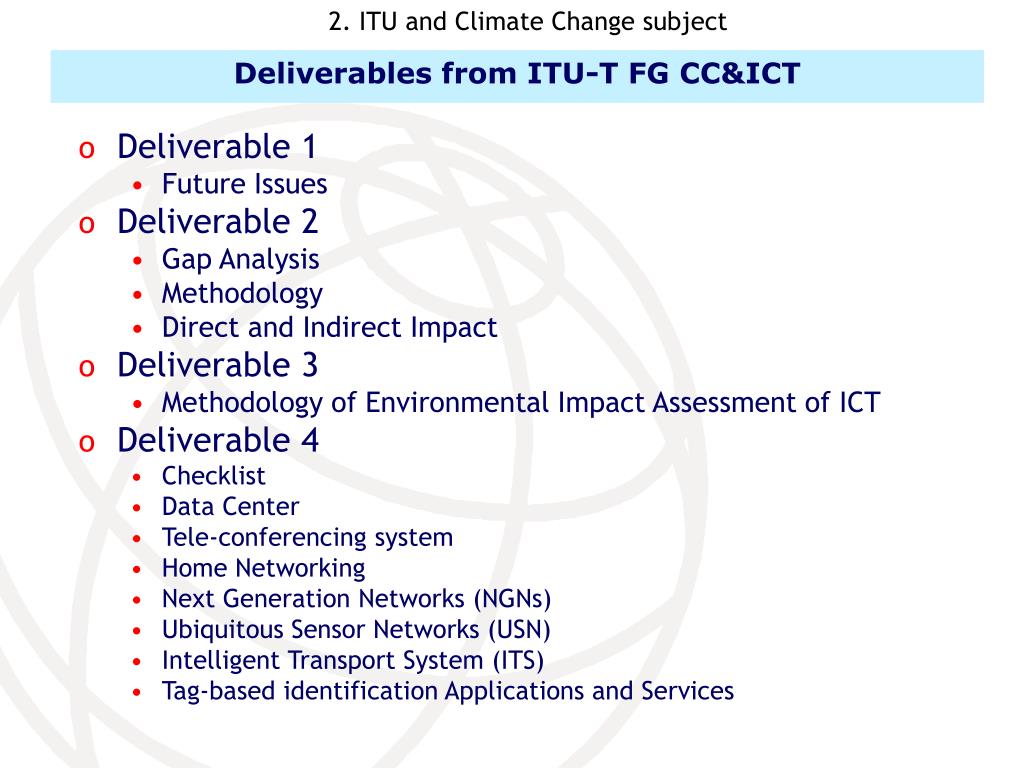

  5. 2. ITU and Climate Change subject Deliverables from ITU-T FG CC&ICT • Deliverable 1 • Future Issues • Deliverable 2 • Gap Analysis • Methodology • Direct and Indirect Impact • Deliverable 3 • Methodology of Environmental Impact Assessment of ICT • Deliverable 4 • Checklist • Data Center • Tele-conferencing system • Home Networking • Next Generation Networks (NGNs) • Ubiquitous Sensor Networks (USN) • Intelligent Transport System (ITS) • Tag-based identification Applications and Services

  6. 2. ITU and Climate Change subject Future Issues from ITU-T FG • Publish working definitions and terminology document in the context of ICT & CC as an ITU-T recommendation • The terminology definition document is one of the deliverables of FG-ICT&CC. • It is better to make the terminology document as an ITU-T Recommendation because it is indispensable for the readers in order to understand the ICT&CC-related Recommendations. • Definition of ICT (scope in the context of ICT and CC) • e.g. broadcasting business area?, IP-TV? and so on.

  7. 2. Key Features of NGN Definition of NGN Next Generation Network (NGN): a packet-based network able to provide telecommunication services and able to make use of multiple broadband, QoS-enabled transport technologies and in which service-related functions are independent from underlying transport-related technologies. It enables unfettered access for users to networks and to competing service providers and/or services of their choice. It supports generalized mobility which will allow consistent and ubiquitous provision of services to users. ITU-T Rec. Y.2001

  8. 2. Key Features of NGN Key Principles of NGN • Open architecture: open to support service creation, service updating, and incorporation of service logicprovision by third parties and also support “Distributed control” as well as enhanced security and protection. • Independent provisioning: service provision process should be separated from network operation by using distributed, open control mechanism to promote competition. • Multiplicity: The NGN functional architecture shall offer the configuration flexibility needed to support multiple access technologies.

  9. Applications ANI Application Support Functions & Service Support Functions Service User Profiles Service Control Functions Service stratum Transport User Profiles Management Functions Network Attachment Control Functions End-User Functions Resource and Admission Control Functions Other Networks Transport Control Functions Transport Functions UNI NNI Transport stratum Control Media Management Note: UNI/NNI/ANI are not meant to represent any specific interfaces. 2. Key Features of NGN NGN architecture overview (Rec. Y.2012)

  10. 3. Benefits of NGN for Protecting Environment General aspects of benefits using NGN on Climate Change • Overall network transformation: NGN is being developed as converged networks that support information, communication and entertainment services for a variety of fixed and wireless access technologies. Such networks eliminate the need for separate purpose-built networks and systems, each of which is an energy consumer and a producer. • Effective resource management and QoS enablement: Traditionally QoS is provided through over-engineering or -provisioning, which means more energy consumption and emission than necessary. ITU-T SG 13 is devising means for QoS assurance in NGN that can reduce the reliance on over-provisioning. • Security and identity management: ITU-T SG13 is developing security and identity management mechanisms that can properly authenticate and authorize the users of NGN services and protect their traffic anywhere, anytime. These mechanisms are fundamental to remote collaboration and virtual office services, which can reduce the need for commuting or traveling.

  11. Leverage various businesses on top of NGN FMC RFID IPTV Others Managed IP N G N Converged Broadband 3. Benefits of NGN for Protecting Environment Common Platform for variety of Services/Applications Limited Services BE IP Limited BB • Simple linkage btw layers • Simple business relationships • Simple players • Simple linkage btw layers with dynamics • Diverse and Flexible business relationships • Diverse business models and players

  12. 5. Case Study – 21CN PSTN Leased lines PSTN Copper KStream DSL ATM PDH access IP Fibre SDH VC-12 SDH access SDH VC-4 PDH access MSH -SDH PDH End User ~5.5k sites ~300 sites ~100 sites ~15 sites ~2k sites ~1k sites 3. Benefits of NGN for Protecting Environment BT networks before NGN

  13. 5. Case Study – 21CN Multi-service access Converged core Class 5 Call Server Copper WWW DSL IP-MPLS-WDM Fibre & Copper Agg Box ISP Content Wireless End User ~5.5k sites ~100 sites 3. Benefits of NGN for Protecting Environment BT Networks after the NGN

  14. 3. Benefits of NGN for Protecting Environment Impacts of NGN to reduce GHG in Telecom operations 30 ~ 40% Reduction of GHG # of nodes inCore Networks Number of nodes in Access Networks Number of nodes before NGN ~5.5k sites ~300 sites ~100 sites ~15 sites ~2k sites ~1k sites ~5.5k sites ~100 sites Number of nodes after NGN

  15. 4. Study Issues of NGN Life chain of ICTs and participation of NGN End user need Requirements Functions & Architectures Participating Areasof NGN Life Chain of ICTs Interfaces/Protocols Develop Systems Realize Net/Services Operations & Consume

  16. 4. Study Issues of NGN NGN Recommendations related with Environment • Y.iptv-netcontrol-fw: IPTV network control framework • Y.ngn-mcastsf: NGN multicast-based service framework • Y.NGN-R2-Reqts: Requirements and capabilities for ITU-T NGN release 2 • Y.USN-reqts: Requirements for support of USN applications and services in NGN environment • Y.IPTV-TM: Traffic management mechanisms for the support of IPTV services • Y.IPTV-netcontrol-fa: Functional architecture aspects of IPTV network control • Y.NGN-ubinet: Functional requirements and architecture for ubiquitous networking in NGN • Y.2213: NGN service requirements and capabilities for network aspects of applications and services using tag-based identification • Y.idserv-arch: Functional requirements and architecture of the NGN for ID-based applications and services • Y.MMCF: Mobility management and control framework and architecture for the NGN

  17. 4. Study Issues of NGN NGN Recommendations related with Environment • Y.NGN-FRA2: Functional requirements and architecture of the NGN of release 2 • Q.1701: Framework for IMT-2000 networks • Q.MM-VPN: Mobility management architecture and scenarios for mobile VPN services • Q.MM-WAU: Mobility management for interworking between WiMax and UMTS • Q.SMF: Mobility management in service stratum for NGN • Q.FMC-IMS: Stage 2 of fixed mobile convergence with a common IMS session control domain • Y.cgoe-cmpts: The database middleware CGOE component • Y.PTDN: The general technical architecture for public telecommunication data network (PTDN)

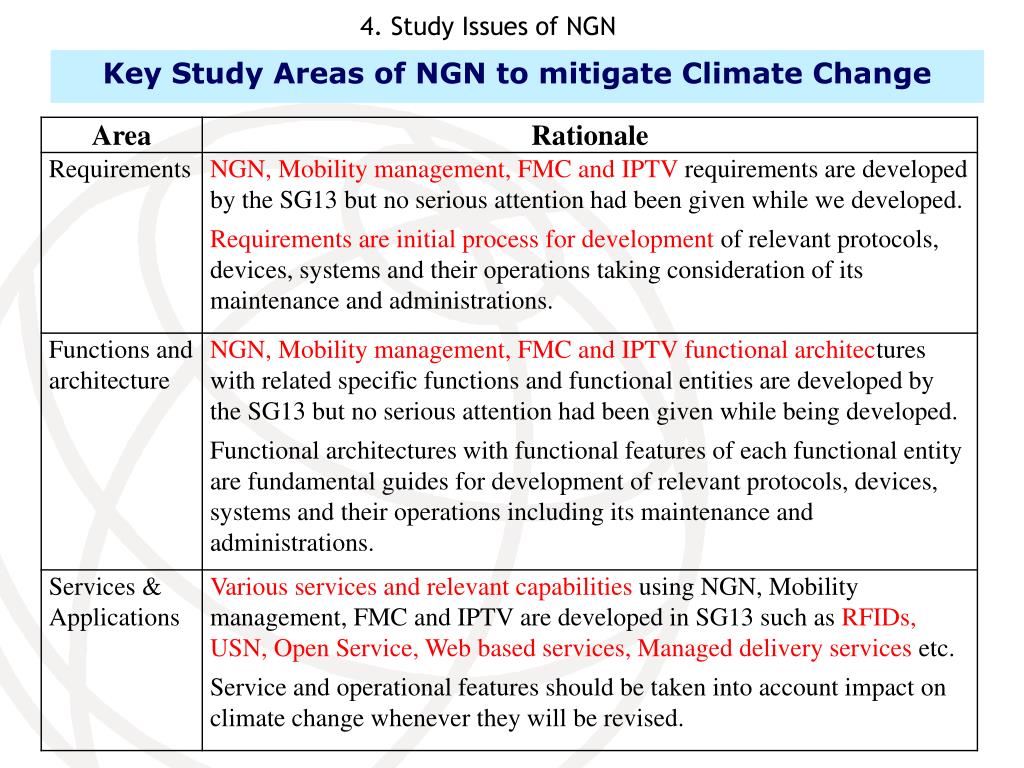

  18. 4. Study Issues of NGN Key Study Areas of NGN to mitigate Climate Change

  19. 4. Study Issues of NGN Key Technical Areas of NGN to improve environment

  20. 5. Conclusion Expansion roles of ICTs • ICTs had mainly involved in limited industries such as Telecom,computing etc. • But ICTs are now becoming essential parts of life • Furthermore ICTs is being important parts of social, national andinternational infrastructures Roles of ICTs in Protecting Environments • ICTs are rather environment friend than other industrial technologiesbut also have contribution to environment change • ICTs are being widely used whole processes of protecting environment • Several ICTs technologies are used at the field of environment Position of NGN in Protecting Environments • NGN is a common infrastructure for enabling ICTs and other industriesusing ICTs • NGN provides benefits to mitigate GHG by itself including supportvarious capabilities for protection of environments

  21. Thank you foryour attention !!!
