Presentation Transcript
  1. D-Link Surveillance Products Solution Present by D-Link South Africa Date: October 10, 2003

  2. D-Link Product Review • D-Link provides…. • Comparison of Internet Camera Server

  3. D-Link Provides

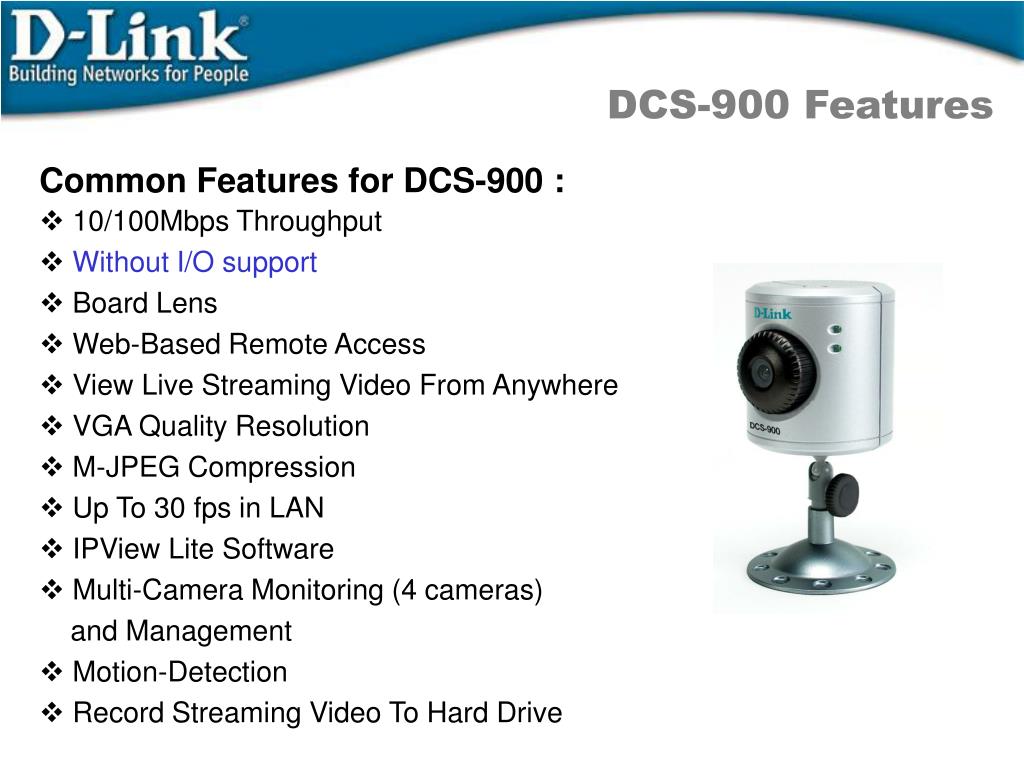

  4. DCS-900 Features Common Features for DCS-900 : • 10/100Mbps Throughput • Without I/O support • Board Lens • Web-Based Remote Access • View Live Streaming Video From Anywhere • VGA Quality Resolution • M-JPEG Compression • Up To 30 fps in LAN • IPView Lite Software • Multi-Camera Monitoring (4 cameras) and Management • Motion-Detection • Record Streaming Video To Hard Drive

  5. DCS-900W Features • Enhancements of the DCS-900W: • 802.11b Wireless or 10/100Mbps • Secure 128-bit 802.11b WEP Encryption • Low Price Leader With Advanced Features

  6. - Remote management Configuration and system log can be accessed via Web browser remotely - Networking Protocol HTTP, FTP, TCP/IP, UDP, RARP, PING, ARP, DHCP, PPPoE - Ethernet 10BaseT or 100BaseT Fast Ethernet 802.11b (DCS-900W) - Algorithm supported Motion JPEG - Video resolution Up to 30 frames at 640x480 in NTSC (25fps PAL) Up to 30 frames at 320x240 in NTSC (25fps PAL) - Security Administrator and user group protected Password authentication DCS-900/W Technical Spec. - Camera specification 1/3 inch color CMOS sensor 640x480 pixel 2.5Lux/F1.4 AGC/AWB Electronic shutter: 1/60 ~ 1/15000 second Board lens, - Power 5VDC 2.5A, external power supply - Weight About 300g - Viewing system requirement Protocol Standard Internet TCP/IP suite - Browser Internet Explorer 5.x or above Netscape

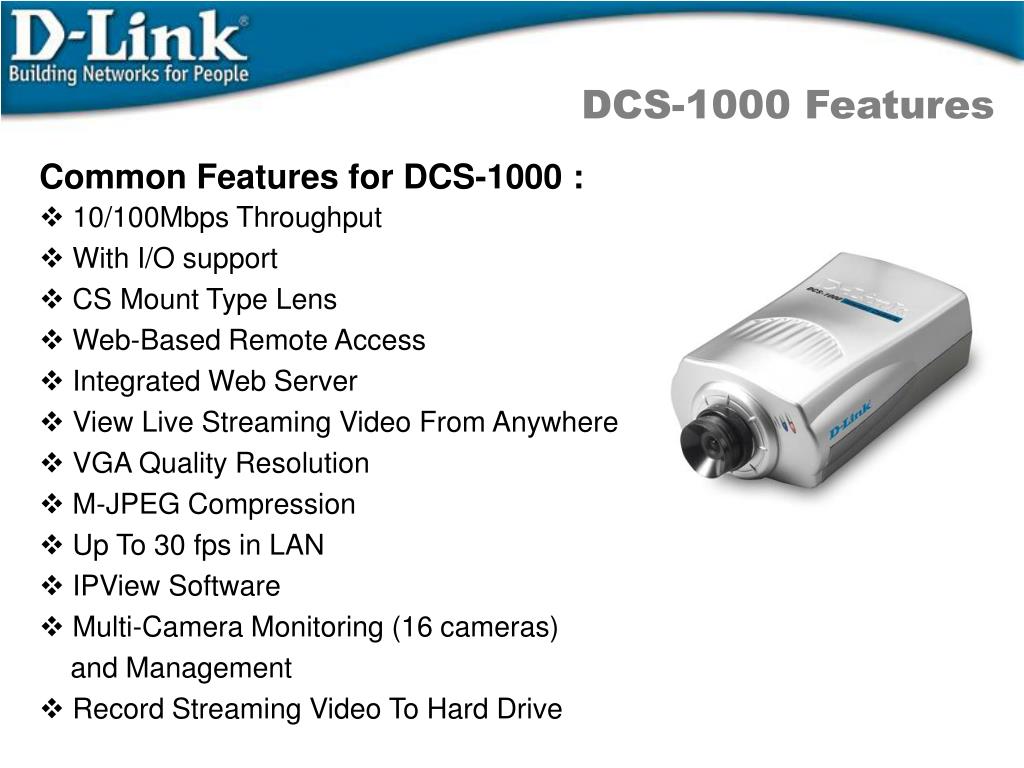

  7. DCS-1000 Features Common Features for DCS-1000 : • 10/100Mbps Throughput • With I/O support • CS Mount Type Lens • Web-Based Remote Access • Integrated Web Server • View Live Streaming Video From Anywhere • VGA Quality Resolution • M-JPEG Compression • Up To 30 fps in LAN • IPView Software • Multi-Camera Monitoring (16 cameras) and Management • Record Streaming Video To Hard Drive

  8. DCS-1000W Features • Enhancements of the 1000W: • 802.11b Wireless or 10/100Mbps • Secure 128-bit 802.11b WEP Encryption • First to Market With 802.11b Wireless Internet Camera

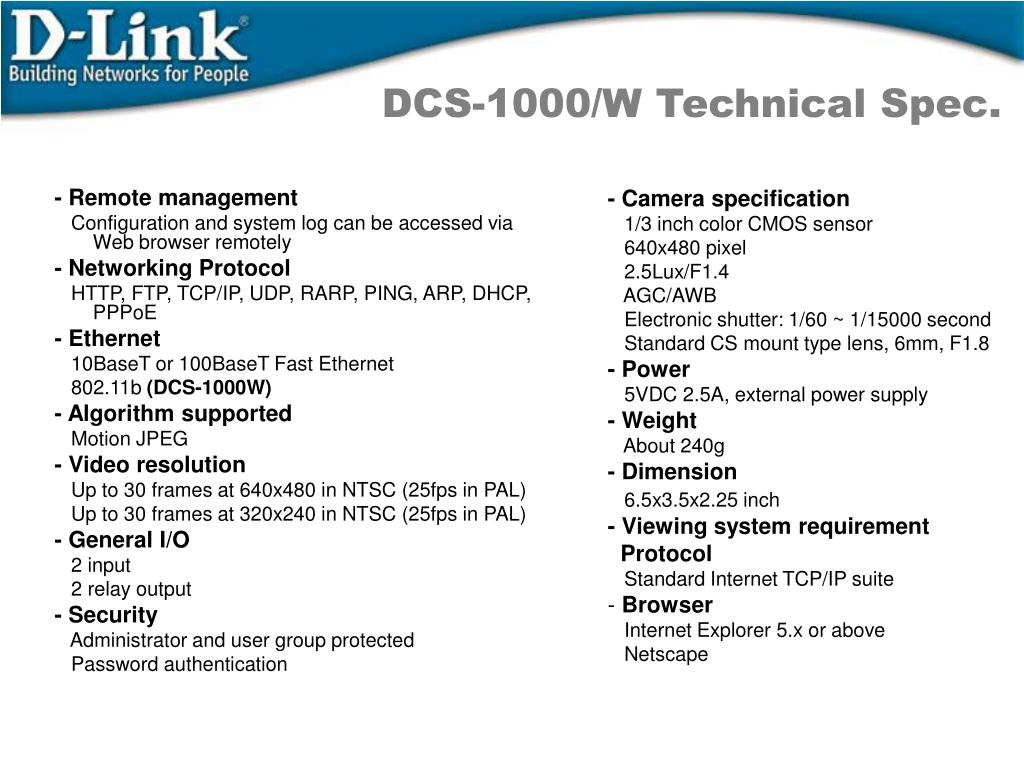

  9. - Remote management Configuration and system log can be accessed via Web browser remotely - Networking Protocol HTTP, FTP, TCP/IP, UDP, RARP, PING, ARP, DHCP, PPPoE - Ethernet 10BaseT or 100BaseT Fast Ethernet 802.11b (DCS-1000W) - Algorithm supported Motion JPEG - Video resolution Up to 30 frames at 640x480 in NTSC (25fps in PAL) Up to 30 frames at 320x240 in NTSC (25fps in PAL) - General I/O 2 input 2 relay output - Security Administrator and user group protected Password authentication DCS-1000/W Technical Spec. - Camera specification 1/3 inch color CMOS sensor 640x480 pixel 2.5Lux/F1.4 AGC/AWB Electronic shutter: 1/60 ~ 1/15000 second Standard CS mount type lens, 6mm, F1.8 - Power 5VDC 2.5A, external power supply - Weight About 240g - Dimension 6.5x3.5x2.25 inch - Viewing system requirement Protocol Standard Internet TCP/IP suite - Browser Internet Explorer 5.x or above Netscape

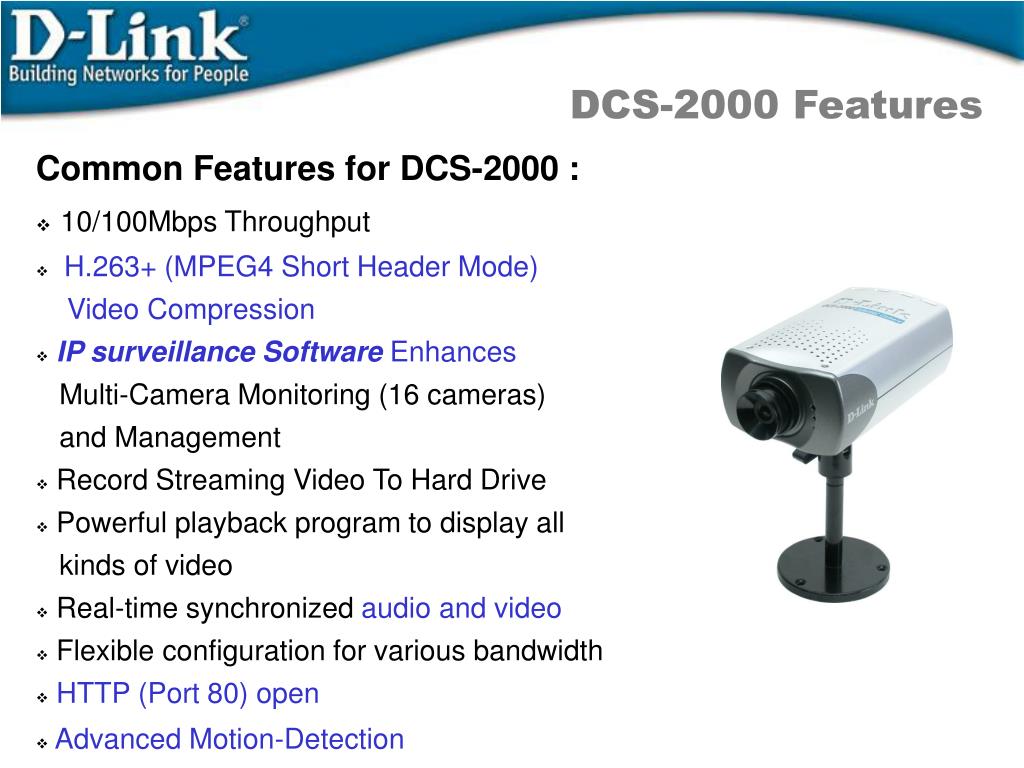

  10. DCS-2000 Features • Common Features for DCS-2000: • 10/100Mbps Throughput • H.263+ (MPEG4 Short Header Mode) Video Compression • IP surveillance Software Enhances Multi-Camera Monitoring (16 cameras) and Management • Record Streaming Video To Hard Drive • Powerful playback program to display all kinds of video • Real-time synchronized audio and video • Flexible configuration for various bandwidth • HTTP (Port 80) open • Advanced Motion-Detection

  11. DCS-2100+ Features • Enhancements of the 2100+: • 802.11b+ Wireless or 10/100Mbps • Secure 256-bit WEP Encryption • First to Market With 802.11b+ Wireless Internet Camera

  12. - Remote management Configuration and system log can be accessed via Web browser and FTP application remotely - Networking Protocol TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DDNS, DHCP and UPnP - Ethernet 10BaseT or 100BaseT Fast Ethernet 802.11b+ (DCS-2100+) - Video Algorithm supported MPEG4(short header mode) - Features Three adjustable image size and quality Intelligent motion detection windows Flexible bit rate - Audio 24Kbps, 8Kbps(optional) - Video resolution Up to 30 frames at 160x120 Up to 30 frames at 320x240 Full screen mode(depends on PC display chip) - General I/O 1 opto-isolated sensor input(max. 12VDC 50mA) 1 relay output(max. 24VDC 1A, 125VAC 0.5A) DCS-2000/2100+ Technical Spec. - Security Administrator and user group protected Password authentication - LED indicator Bi-color status indicator - Camera specification 1/3 inch color CMOS sensor 640x480 2.5Lux/F1.4 AGC/AWB Electronic shutter: 1/60 ~ 1/15000 second Standard CS mount type lens, 6mm, F1.8 - Power 12VDC 1.2A, external power supply - Weight About 240g - Dimension 6.x3.2x2 inch - Viewing system requirement Protocol Standard Internet TCP/IP suite - Operating system Microsoft Windows - Browser Internet Explorer 5.x or above

  13. DCS-5300 Features • Common Features for DCS-5300 : • 10/100Mbps Throughput • H.263+ (MPEG4 Short Header Mode) Video Compression • Pan: range +/- 135 degree • Tilt: range +90~-45 degree • IP surveillance Software comply with DCS-2000 & DCS-2100+ • UPnP support • DDNS support with several famous DDNS server • Real-time synchronized audio and video • HTTP server: max. 10 users to view at the same time

  14. DCS-5300W Features • Enhancements of the 5300W: • 802.11b+ Wireless or 10/100Mbps • Secure 256-bit WEP Encryption

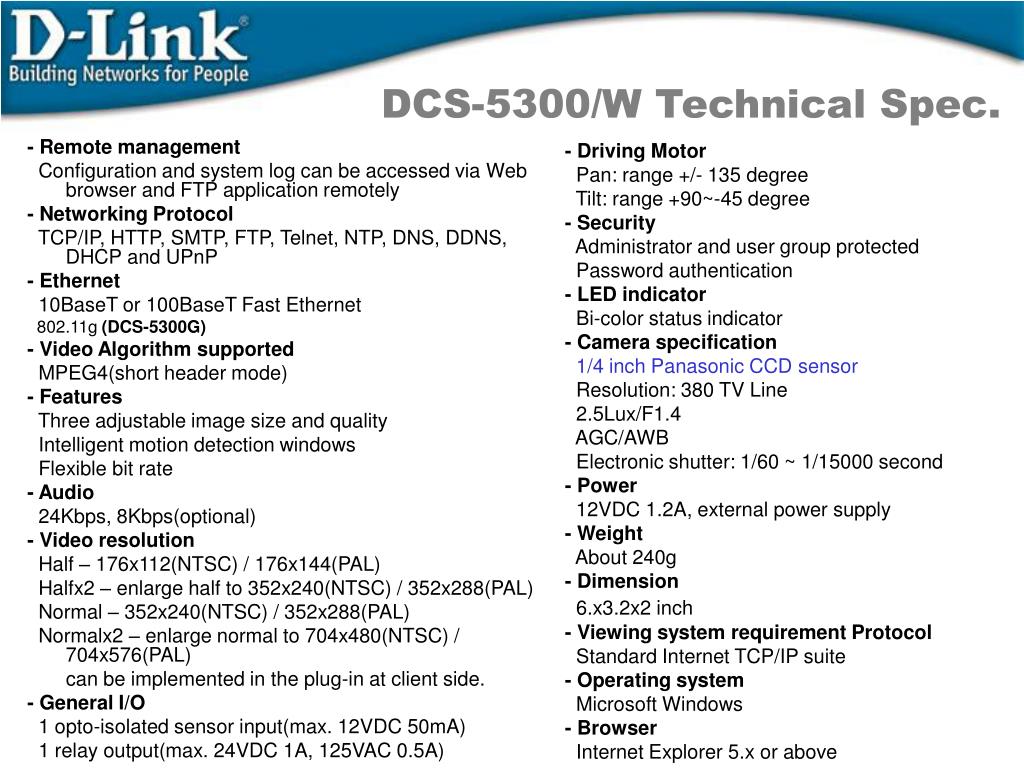

  15. - Remote management Configuration and system log can be accessed via Web browser and FTP application remotely - Networking Protocol TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DDNS, DHCP and UPnP - Ethernet 10BaseT or 100BaseT Fast Ethernet 802.11g (DCS-5300G) - Video Algorithm supported MPEG4(short header mode) - Features Three adjustable image size and quality Intelligent motion detection windows Flexible bit rate - Audio 24Kbps, 8Kbps(optional) - Video resolution Half – 176x112(NTSC) / 176x144(PAL) Halfx2 – enlarge half to 352x240(NTSC) / 352x288(PAL) Normal – 352x240(NTSC) / 352x288(PAL) Normalx2 – enlarge normal to 704x480(NTSC) / 704x576(PAL) can be implemented in the plug-in at client side. - General I/O 1 opto-isolated sensor input(max. 12VDC 50mA) 1 relay output(max. 24VDC 1A, 125VAC 0.5A) DCS-5300/W Technical Spec. - Driving Motor Pan: range +/- 135 degree Tilt: range +90~-45 degree - Security Administrator and user group protected Password authentication - LED indicator Bi-color status indicator - Camera specification 1/4 inch Panasonic CCD sensor Resolution: 380 TV Line 2.5Lux/F1.4 AGC/AWB Electronic shutter: 1/60 ~ 1/15000 second - Power 12VDC 1.2A, external power supply - Weight About 240g - Dimension 6.x3.2x2 inch - Viewing system requirement Protocol Standard Internet TCP/IP suite - Operating system Microsoft Windows - Browser Internet Explorer 5.x or above

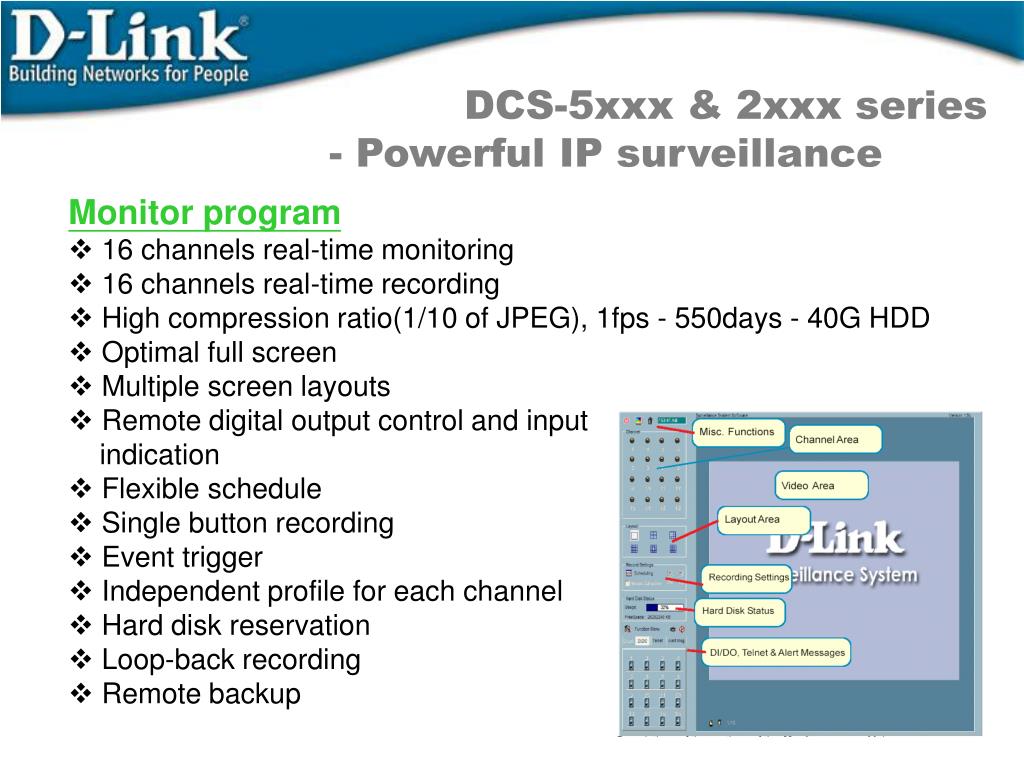

  16. DCS-5xxx & 2xxx series - Powerful IP surveillance Monitor program • 16 channels real-time monitoring • 16 channels real-time recording • High compression ratio(1/10 of JPEG), 1fps - 550days - 40G HDD • Optimal full screen • Multiple screen layouts • Remote digital output control and input indication • Flexible schedule • Single button recording • Event trigger • Independent profile for each channel • Hard disk reservation • Loop-back recording • Remote backup

  17. DCS-5xxx & 2xxx series - Powerful IP surveillance Playback program • Zero waiting searching • 16x play forwarding • Event searching • Time searching • Searching on click • Nine preview windows • Event indication in any period • Easy magnification • AVI output • Encrypted database

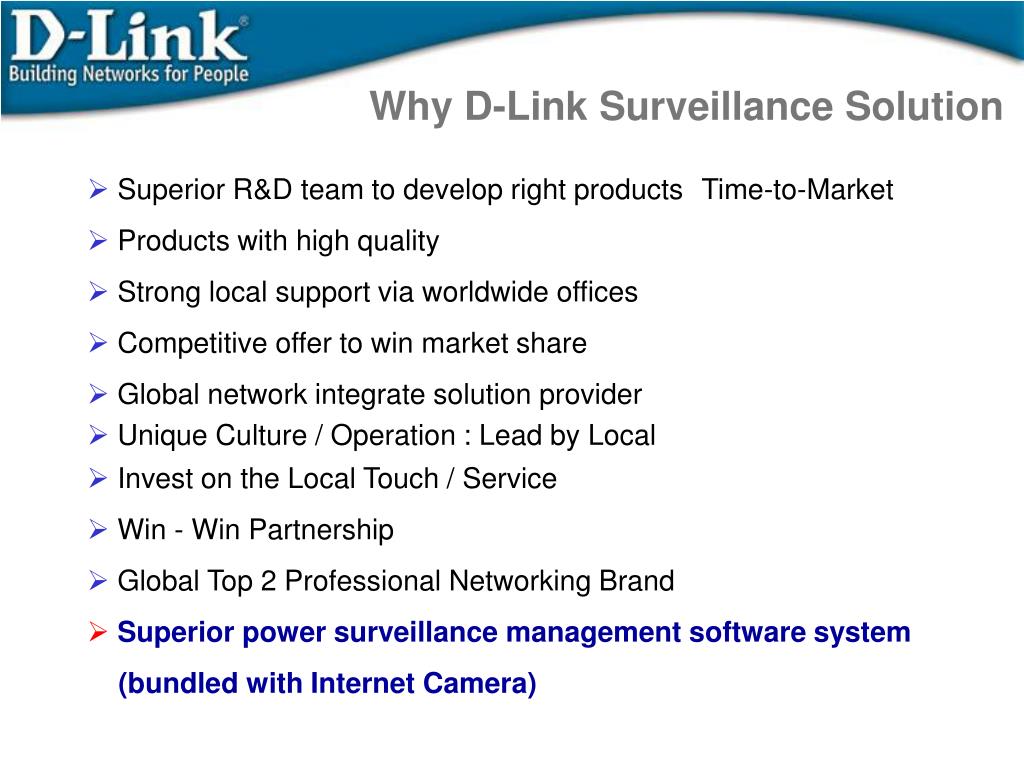

  18. Why D-Link Surveillance Solution • Superior R&D team to develop right products Time-to-Market • Products with high quality • Strong local support via worldwide offices • Competitive offer to win market share • Global network integrate solution provider • Unique Culture / Operation : Lead by Local • Invest on the Local Touch / Service • Win - Win Partnership • Global Top 2 Professional Networking Brand • Superior power surveillance management software system (bundled with Internet Camera)

  19. Why D-Link Surveillance Solution–con’t Superior R&D • Over 600 engineers in 4 R&D centers • ASIC design and cost down engineering • Software development and system integration • Award-winning designs and products Irvine Chengdu Hsinchu DongGuan Mumbai

  20. Why D-Link Surveillance Solution–con’t World Class Manufacturing Capability • ISO 9001/14000/TL 9000 Certified. • ASRS and Shop Floor Control for flawless process engineering. • Global ERP system, Supply Chain Management, and e-Business for comprehensive IT Support. • Manufacturing facilities in Taiwan, China, and India. • World renowned customers including IBM, Intel, HP, Nortel, Extreme, Enterasys in US and Fujitsu, NEC in Japan.

  21. Sweden Russia UK Germany Canada China Middle East U.S.A Japan India Taiwan Singapore Brazil South Africa Australia Chili Extensive Global Brand & Channels D-Link Taiwan Head Office / D-Link China D-Link North America D-Link Europe D-Link International Leading brand name in SMB market segment 83 Sales Offices worldwide in 36 Countries Divided into 4 business units 14 RMA / logistic centers

  22. Comparison of D-Link Camera Servers

  23. Comparison of D-Link & Competitor

  24. Camera Server Roadmap • Black: Ready • Red: Release in Q4 2003 • Purple: Release in Q1 2004 • Brown: Release in Q2 2004 • Blue: Release in Q3 2004 DCS-5620G 10/100M + 802.11g CCD sensor Internet Camera With Pan/Tilt/Optical Zoom support DCS-5620 10/100M CCD sensor Internet Camera With Pan/Tilt/Optical Zoom support Audio+PTZ DCS-5325 10/100M CCD sensor Pan/Tilt Internet Camera With POE support Bi-Directional Audio+PT DCS-5320 10/100M CCD sensor Internet Camera With Pan/Tilt support DCS-5320G 10/100M + 802.11g CCD sensor Internet Camera With Pan/Tilt support DCS-5300 10/100M CCD sensor Internet Camera With Pan/Tilt support DCS-5300W 10/100M + 802.11b+ CCD sensor Internet Camera With Pan/Tilt support Audio+PT DCS-2125 10/100M Bi-directional Audio Internet camera with POE support DCS-2100+ 10/100M+802.11b+ Internet camera w/Audio-in DCS-2000 10/100M Internet camera w/Audio-in Audio DCS-1000 SOHO 10/100M Internet camera DCS-1000W SOHO 10/100M+802.11b Internet camera SOHO DCS-905 10/100M Internet camera with POE support DCS-900 10/100M Internet camera w/o I/O DCS-900W 10/100M+802.11b Internet camera w/o I/O Entry Level 10/100 Ethernet 802.11b 802.11b+ 802.11g POE

  25. Building Networks for People Thank You!
