  1. Reduction Potential and Cells

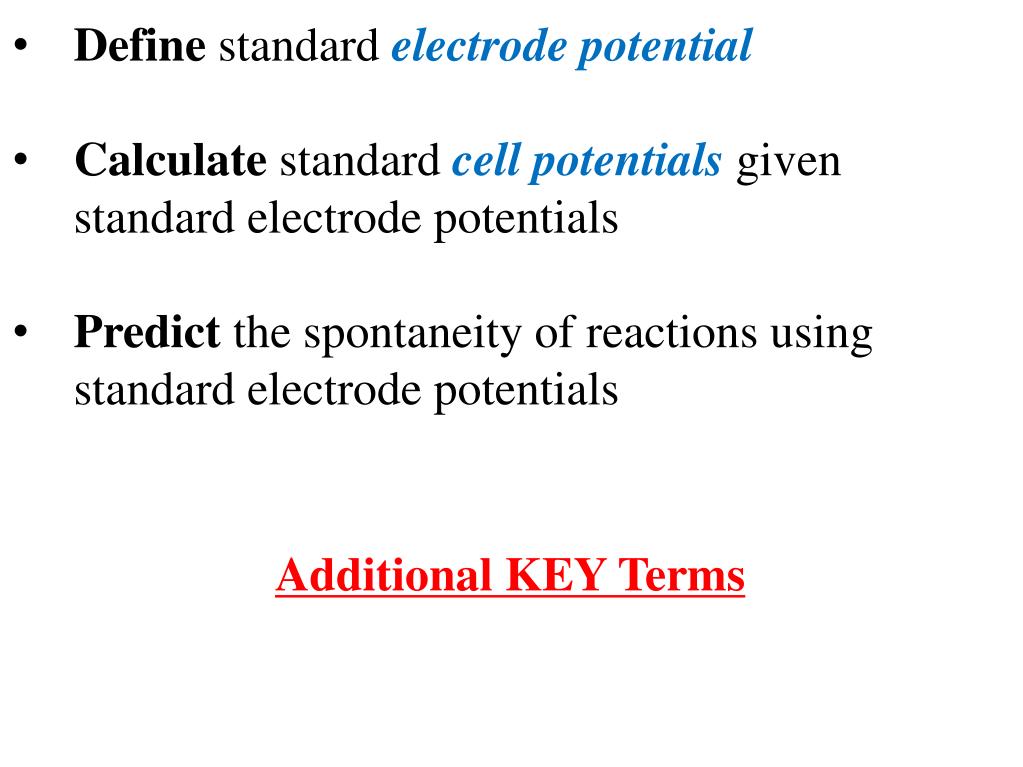

  2. Define standard electrode potential • Calculate standard cell potentials given standard electrode potentials • Predict the spontaneity of reactions using standard electrode potentials Additional KEY Terms

  3. Spontaneous reactions occur without added energy 2 Ag+(aq) + Cu(s) → Ag(s) + Cu2+(aq) → 2 Ag(s) + Cu2+(aq) no reaction Ag+ions can oxidizeCu metal. Cu2+cannot oxidize Ag metal.

  4. Cell potential (Eocell) • measured in terms of cellvoltage Used to be called Emf – electromotive force • found using electrodereduction potentials • Electrode potentials (Eo) • voltagefrom placing each substance in a cell to compete with hydrogen 2H+(aq) + 2e– ↔ H2(g) Hydrogen was chosen as the “standard”to compare things

  5. (+) Eo • reduced - acceptelectrons fromH+ • X – reduced Hydrogen – oxidized H2(g) / H+(aq) // Cu2+(aq) / Cu(s) Eo = +0.34 V • (-) Eo • oxidized – donated electrons to H+ • X – oxidized Hydrogen – reduced Eo = -0.76 V Zn(s) / Zn2+(aq) // H+(aq) / H2(g)

  6. Reduction Potential Chart (+) means a good “potential” to be reduced – substances likely to take electrons (-) means a bad “potential” to be reduced – substances more likely to give electrons

  7. Cell potential (Eocell) • sumof potentials of each half-cell E°cell = E°ox + E°red Yourtable lists electrode reductionpotentials Oxidationpotentials are the reverse – so we need to switch the sign If… (+) E°cell– spontaneousreaction (-) E°cell– non – spontaneous reaction

  8. What is the cell potential for a silver-copper cell? Ag+(aq) + 1e– → Ag(s) E° = +0.80 V red → Cu(s) – Cu2+(aq) + 2e– E° = 0.34 V ox + The substance with the lowest reduction potential will be oxidized – reverse the reaction and switch the sign on the potential E°cell = E°ox + E°red = - 0.34 + 0.80 + 0.46 spontaneous

  9. For a cell of zinc and gold metal as electrodes: a) What is the cathode and what is the anode?b) What is the cell potential? c) What is the net reaction? d) What is the line notation for the cell?

  10. [ ] ×2 Au3+(aq) + 3e– → Au(s) E° = +1.50 V red [ ] ×3 → Zn(s) Zn2+(aq) + 2e– - E° = 0.76 V ox + + 2.26 E°cell = To write the net reaction you will need to balance the electrons lost and gained Do not multiple the potentials 2 Au3+(aq) + 3 Zn(s) → 2 Au(s) + 3 Zn2+(aq) Zn(s) / Zn2+(aq) // Au3+(aq) / Au(s) (oxidized) (reduced)

  11. 2 Ag+(aq) + Cu(s) → Ag(s) + Cu2+(aq) → 2 Ag(s) + Cu2+(aq) E°c = +0.46 no reaction E°c = - 0.46 You should be able to predict spontaneity by doing the math for the cell potential

  12. Will tin strips in hydrochloric acid react? Sn(s) + H+(aq) → ?? E°c = +0.14 Sn(s) + H+(aq) → Sn2+(aq) + H2(g) 2 Which is reduced and which is oxidized? Will it be spontaneous?

  13. CAN YOU / HAVE YOU? • Definestandard electrode potential • Calculate standard cell potentials given standard electrode potentials • Predict the spontaneity of reactions using standard electrode potentials Additional KEY Terms
