Proper Installation of Frame Rail Components for Euro 535i

DESCRIPTION

Pay close attention to the frame rail outlined in yellow, particularly the red-marked area that extends in front of the radiator support panel. Ensure that the bumper bracket fits securely within the frame rail, resting on the designated ledge. This ledge is part of the green-outlined component that is welded to both the frame rail and the front radiator support. When sourcing replacement parts, refer to realoem.com or other ETK listings to locate component #5, essential for your Euro 535i's frame assembly.

Download

1 / 1

Mar 18, 2014

Download Presentation

Proper Installation of Frame Rail Components for Euro 535i

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

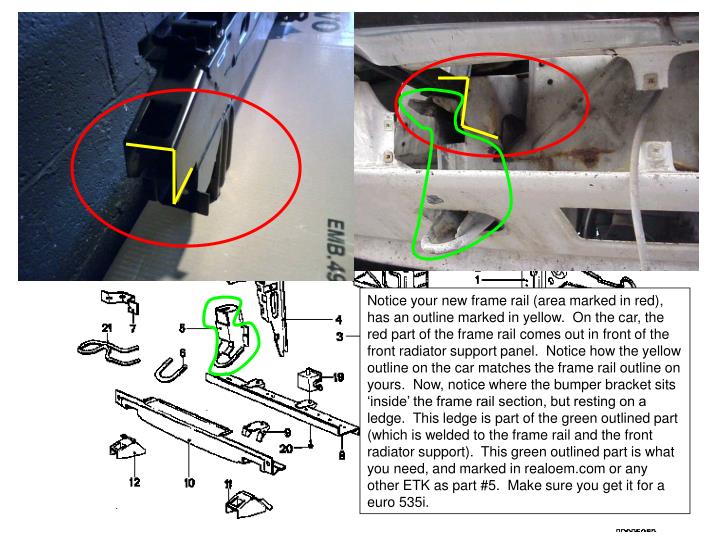

Notice your new frame rail (area marked in red), has an outline marked in yellow. On the car, the red part of the frame rail comes out in front of the front radiator support panel. Notice how the yellow outline on the car matches the frame rail outline on yours. Now, notice where the bumper bracket sits ‘inside’ the frame rail section, but resting on a ledge. This ledge is part of the green outlined part (which is welded to the frame rail and the front radiator support). This green outlined part is what you need, and marked in realoem.com or any other ETK as part #5. Make sure you get it for a euro 535i.
