  1. Lecture 6: Reasoning about Data Abstractions David Evans http://www.cs.virginia.edu/evans CS201J: Engineering Software University of Virginia Computer Science

  2. Requests • By 5pm tomorrow send any questions you have about Java programming to cs201j-staff@cs.virginia.edu • We’ll go over questions raised in class Thursday or section Friday • Please don’t harass the Assistant Coaches! • If they are not in Small Hall, don’t bother them with 201J questions. They have their own work to do also. CS 201J Fall 2003

  3. Rep Invariant • The Representation Invariant expresses properties all legitimate objects of the ADT must satisfy I: C→ Boolean Function from concrete representation to a Boolean. • Helps us reason about correctness of methods independently CS 201J Fall 2003

  4. Reasoning with Rep Invariants • Prove all objects satisfy the invariant before leaving the implementation code • Assume all objects passed in satisfy the invariant REQUIRES: Rep Invariant is true for this (and any other reachable ADT objects) EFFECTS: Rep Invariant is true for all new and modified ADT object on exit. CS 201J Fall 2003

  5. Preserving the Rep Invariant clients Cannot manipulate rep directly down up up Abstract Type Concrete Representation StringSet () insert (String s) Constructors must initialize this in a way that satisfies the rep invariant Mutators: assume rep invariant holds on entry, ensure that it holds on all exits class implementation CS 201J Fall 2003

  6. Rep Invariant for StringSet public class StringSet { // OVERVIEW: StringSets are unbounded, // mutable sets of Strings. // A typical StringSet is {x1, ..., xn} // Representation: private Vector rep; // RepInvariant (c) = // c contains no duplicates // && c != null && all elements are Strings CS 201J Fall 2003

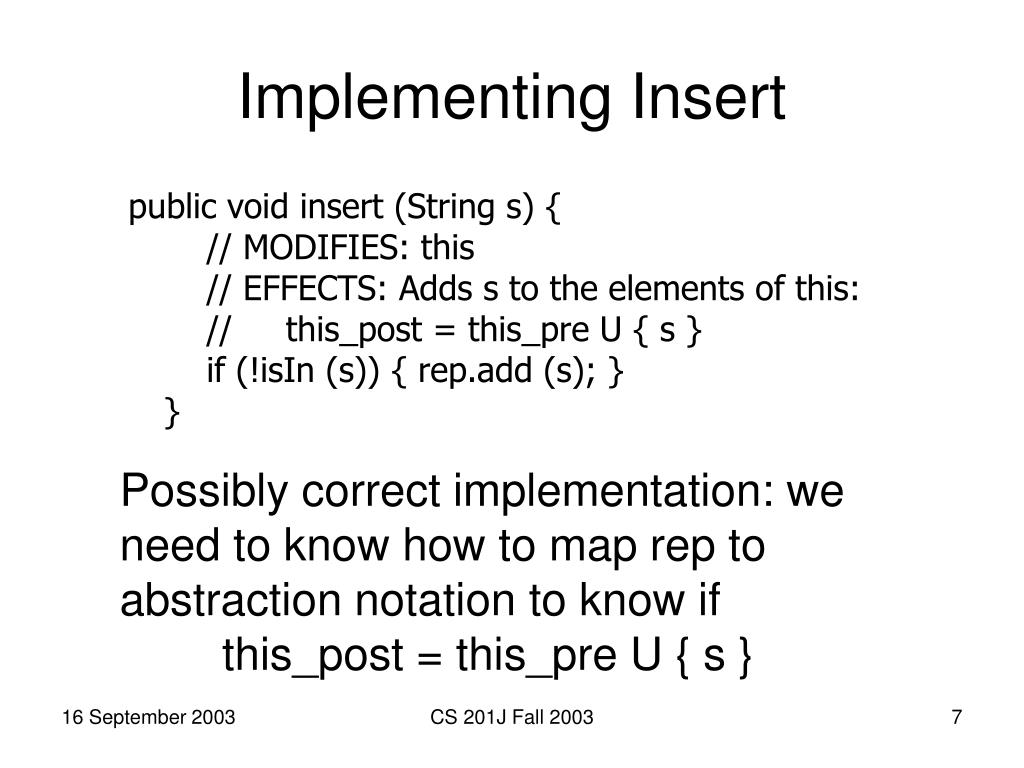

  7. Implementing Insert public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Possibly correct implementation: we need to know how to map rep to abstraction notation to know if this_post = this_pre U { s } CS 201J Fall 2003

  8. Abstraction Function • The Abstraction Function maps a concrete state to an abstract state: AF: C→ A Function from concrete representation to the abstract notation introduced in overview specification. • Range is concrete states for which rep invariant is true CS 201J Fall 2003

  9. Abstraction Function for StringSet public class StringSet { // OVERVIEW: StringSets are unbounded, // mutable sets of Strings. // A typical StringSet is {x1, ..., xn} // Representation: private Vector rep; // AF (c) = // { AFString (c.rep[i]) | 0 <= i < c.rep.size () } CS 201J Fall 2003

  10. Correctness of Insert public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Use abstraction function to show if add implements its specification, the AF(rep_post) = AF(rep_pre) U {AFString(s)} CS 201J Fall 2003

  11. public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Correctness of Insert Path 1: isIn (s) is true this is not modified, this_post = this_pre public boolean isIn (String s) // EFFECTS: Returns true iff s is an element of this. So, if isIn (s) returns true, we know sthis_pre. sx  x  s = x Hence, this_post = this_pre = this_pre  s AF(rep_post) = AF(rep_pre) U {AFString(s)} CS 201J Fall 2003

  12. public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Correctness of Insert Path 2: isIn (s) is false this_post = this_pre.add (s) If isIn (s) returns false, we know s  this_pre. So, we need to know that AF(rep_pre.add(s)) = AF(rep_pre) U {AFString(s)} What does add do? CS 201J Fall 2003

  13. public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Correctness of Insert boolean add (Object o) // Modifies: this // Effects: Appends o to the end of this. // this_post.size = this_pre.size + 1 // this_post[i] = this_pre[i] // forall 0 <= i < this_pre.size // this_post[this_pre.size] = o CS 201J Fall 2003

  14. public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Correctness of Insert java.util.Vector.add (Object o) // Modifies: this // Effects: Adds o to the end of this. // this_post.size = this_pre.size + 1 // this_post[i] = this_pre[i] // forall 0 <= i < this_pre.sze // this_post[this_pre.size] = o So, after rep.add (s): rep_post.size = rep_pre.size + 1 rep_post[i] = rep_pre[i] forall 0 <= i < rep_pre.size rep_post[rep_pre.size] = s CS 201J Fall 2003

  15. public void insert (String s) { // MODIFIES: this // EFFECTS: Adds s to the elements of this: // this_post = this_pre U { s } if (!isIn (s)) { rep.add (s); } } Correctness of Insert AF (c) = { AFString (c.rep[i]) | 0 <= i < c.rep.size () } rep_post.size == rep_pre.size + 1 rep_post[i] = rep_pre[i] forall 0 <= i < rep_pre.size rep_post[rep_pre.size] = s AF (rep_post) = { AFString (rep_post[i]) | 0 <= i < rep_post.size } = { rep_post[0], rep_post[1], …, rep_post[rep_post.size – 1] } = { rep_post[0], rep_post[1], …, rep_post[rep_post.size – 1] } = { rep_pre[0], rep_pre[1], …, rep_pre[rep_post.size – 1], s } = AF (rep_pre) U { s } CS 201J Fall 2003

  16. Reality Check • Writing abstraction functions, rep invariants, testing code thoroughly, reasoning about correctness, etc. for a big program is a ridiculous amount of work! • Does anyone really do this? • Yes (and a lot more), but usually only when its really important to get things right: • Cost per line of code: • Small, unimportant projects: $1-5/line • WindowsNT: about $100/line • FAA’s Automation System (1982-1994): $900/line CS 201J Fall 2003

  17. PS2 Wagering Strategy • How did you decide what to wager? • How should you have decided what to wager? CS 201J Fall 2003

  18. Commerce School Strategy If p is the probability your code is correct, Expected Return = wp – 2w (1-p) = 3wp - 2w If p < 2/3, maximize with w = 0. If p = 2/3, expected return is 0 regardless of wager. If p > 2/3, expected return increases with w, bet maximum. CS 201J Fall 2003

  19. Psychological Strategies • Expected return is a bad model, since the value is non-linear • If my ps was worth 90 without wager, 1/3 change of getting a 50 is not worth 2/3 chance of getting 110. • Dave is probably crazy for asking such a question, so I have no clue how this will be graded CS 201J Fall 2003

  20. Why Confidence Matters? • Incorrect code, no confidence • Worthless, no one can use it (but if they do, they get what they deserve) • Correct code, no confidence • Worthless, no one can use it (but if they do, they get lucky) • Incorrect code, high confidence • Dangerous! • Correct code, high confidence • Valuable CS 201J Fall 2003

  21. Easy way to get 100 on PS 2: • Get full credit for questions 1-4 • Answer question 5 (specify name trends) badly (0): static public void main (String args[]) // REQUIRES: false // EFFECTS: Prints out a correct proof of // P = NP. CS 201J Fall 2003

  22. Remaining Answers • Implement program that satisfies spec: • Testing Strategy • No testing necessary, no way to satisfy requires • Bet: 20 • static public void main (String args[]) { • // REQUIRES: false • // EFFECTS: Prints out a correct proof of P = NP. • System.err.println (“Ha ha ha!”) • } Note: I didn’t actually want you to do this! CS 201J Fall 2003

  23. Charge • Remember to email your Java programming questions to cs201j-staff@cs.virginia.edu • PS3 is due 1 week from today • I have office hours now CS 201J Fall 2003
