  1. Welcome to McQuay Shenzhen!

  2. AHU Product introduction MSW MSW-H MSW-V

  3. Content • Application • Standard unit • Components • Feature

  4. Application for MSW Hotels Super market AirportHospital Factory Office buildingResearch institutes

  5. Content • Application • Standard unit • Components • Feature

  6. Standard unit for MSW Nominal cooling capacity:12kw-246kw Nominal heating capacity:18kw-261kw Power supply: 380V/3N~/50Hz

  7. Standard unit for MSW

  8. Content • Application • Standard unit • Components • Feature

  9. Components for MSW Filter

  10. Components for MSW Coil Hydrophilic split fins Gold Corrugated fins Coil

  11. Components for MSW

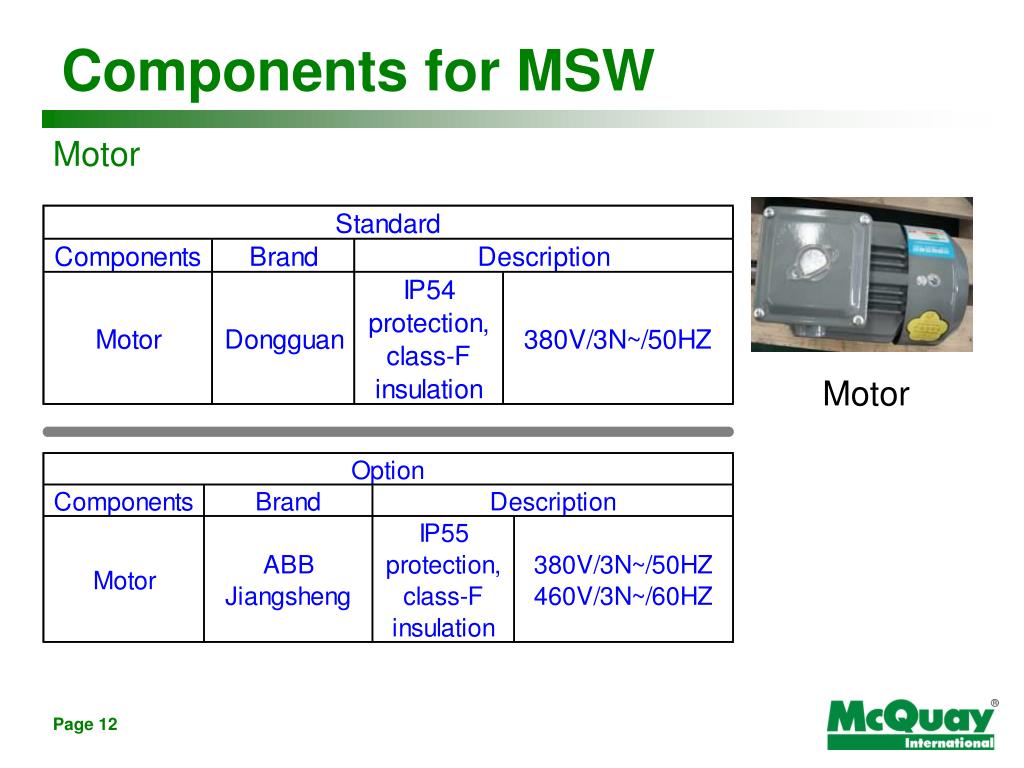

  12. Components for MSW Motor Motor

  13. Components for MSW Others Fan Wet Film Humidifier

  14. Content • Application • Standard unit • Components • Feature

  15. Feature for MSW Sound-absorbing Against condensation 1. Panel with PU insulator Against cold bridge 2. Flexible External Total Pressure

  16. Feature for MSW low noise 1. centrifugal fans high reliability large air flow 2. Gasket with fan to lower noise 3 Air flow :2000m3/h-25000m3/h

  17. Feature for MSW • Saving Installation space • 1.Two kinds of connection water pipe orientation • 2.Compact design • Easy service and maintenance • 1.Simple structure • 2.Washable filter • 3.Light weight • 4.Fan bearing requires no oiling

  18. AHU Product introduction MHW

  19. Content • Application • Standard unit • Components • Feature • Main project

  20. Application for MHW Hotels Super Market AirportHospital Factory Office buildingResearch institutes Specially used for limited installation room

  21. Content • Application • Standard unit • Components • Feature • Main project

  22. Standard unit for MHW Nominal cooling capacity:6kw-84kw Nominal heating capacity:11kw-87kw Power supply: 208-230V/1Ph/50Hz

  23. Standard unit for MHW

  24. Standard unit for MHW

  25. Content • Application • Standard unit • Components • Feature • Main project

  26. Components for MHW Filter

  27. Components for MHW Coil

  28. Components for MHW Motor

  29. Components for MHW Others

  30. Content • Application • Standard unit • Components • Feature • Main project

  31. Product introduc-MHW Features 1.Only 420mm in height for all of the unit. The MHW series can be mounted in a wide variety of places, Especially those with limited space 2. Flexible external total pressure (ETP) 3. Simple structure for installation and maintenance 4. Lower starting current Save price

  32. Product introduction-MHW Installation Mounting Location Suspending Installation The minimum shown as above drawing

  33. Content • Application • Standard unit • Components • Feature • Main project

  34. Main project MSW unit Guang zhou baiyun airport Guan zhou

  35. Main project Bei JingWorld Economic Market
