slide1

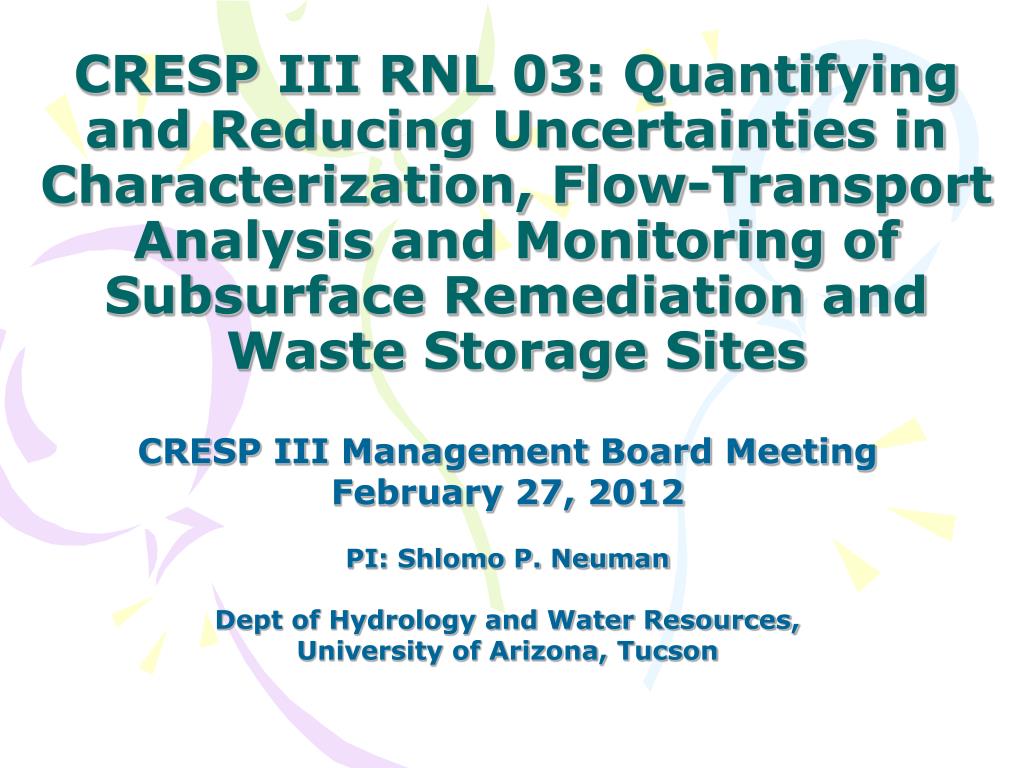

CRESP III RNL 03: Quantifying and Reducing Uncertainties in Characterization, Flow-Transport Analysis and Monitoring of Subsurface Remediation and Waste Storage Sites

CRESP III Management Board Meeting

February 27, 2012

PI: Shlomo P. Neuman

Dept of Hydrology and Water Resources,

University of Arizona, Tucson

project objectives

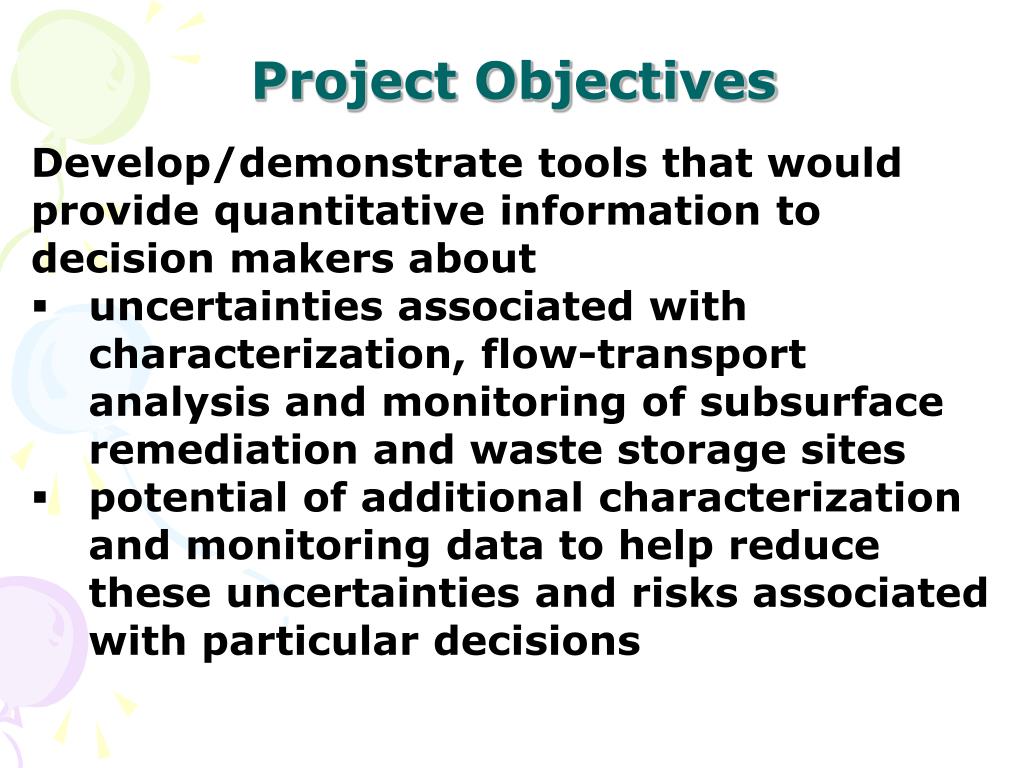

Project Objectives
  • Develop/demonstrate tools that would provide quantitative information to decision makers about
  • uncertainties associated with characterization, flow-transport analysis and monitoring of subsurface remediation and waste storage sites
  • potential of additional characterization and monitoring data to help reduce these uncertainties and risks associated with particular decisions
relevance and impact to doe

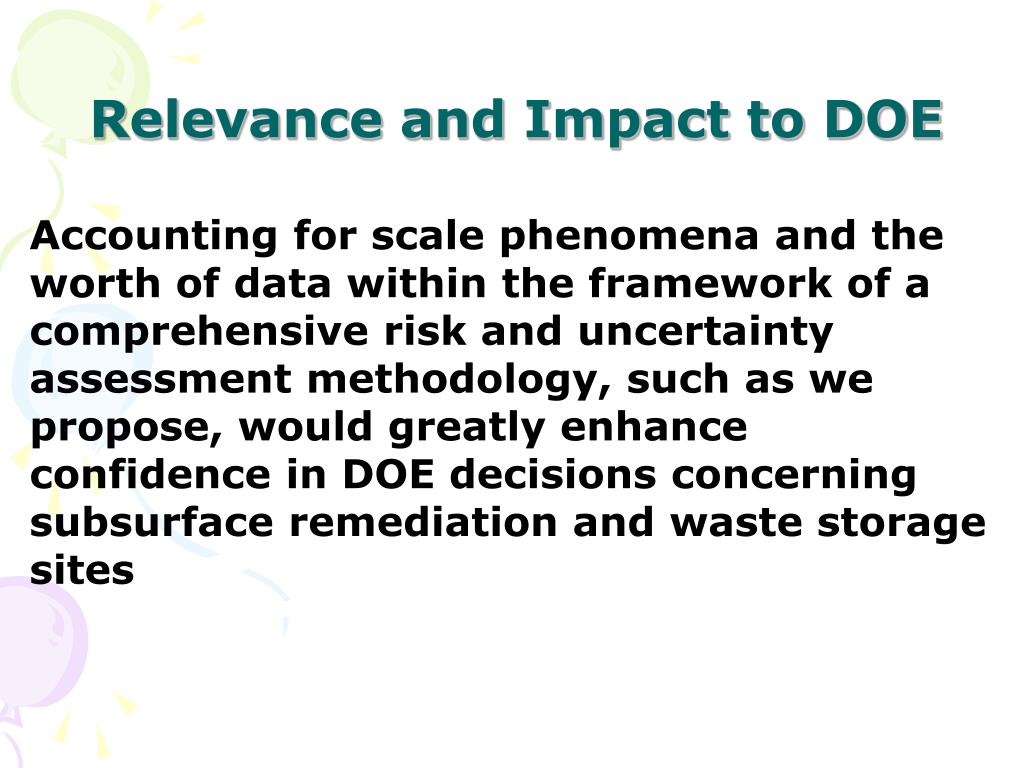

Relevance and Impact to DOE

Accounting for scale phenomena and the worth of data within the framework of a comprehensive risk and uncertainty assessment methodology, such as we propose, would greatly enhance confidence in DOE decisions concerning subsurface remediation and waste storage sites

recent accomplishments

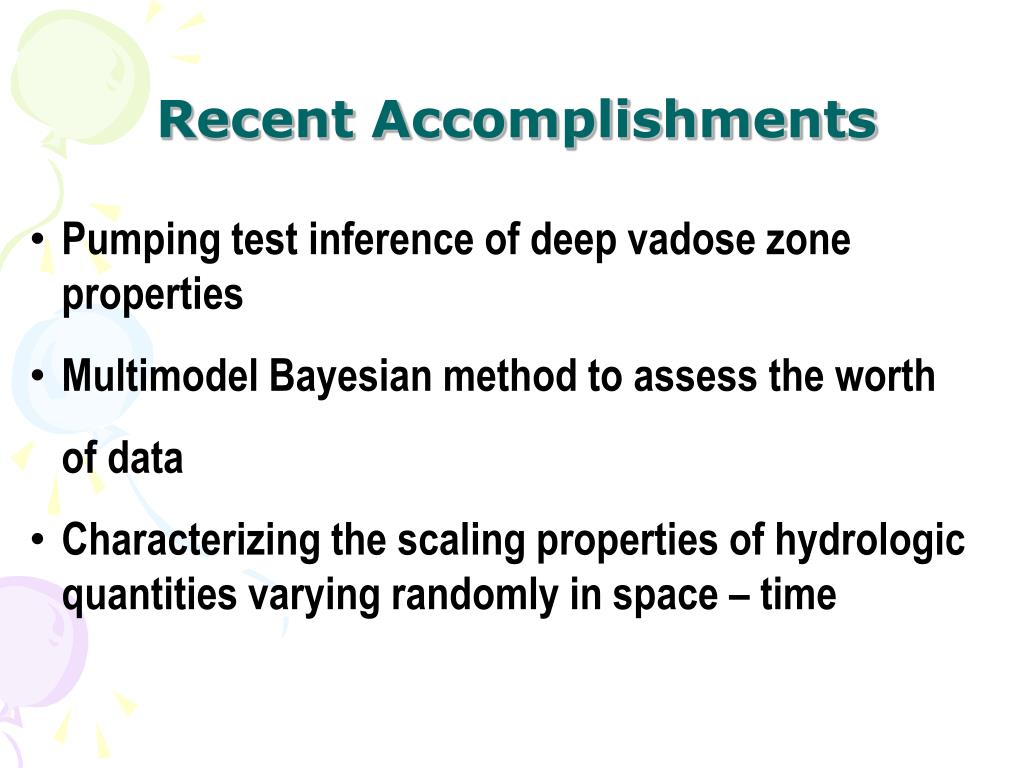

Recent Accomplishments
  • Pumping test inference of deep vadose zone properties
  • Multimodel Bayesian method to assess the worth
  • of data
  • Characterizing the scaling properties of hydrologic quantities varying randomly in space – time
pumping test inference of deep vadose zone properties
Pumping Test Inference of Deep Vadose Zone Properties
  • The Problem:
    • There presently is no good way to assess large (field) scale vadose zone hydraulic properties at depth
    • Infiltration experiments and laboratory samples limited mostly to shallow depths
  • The Solution:
  • Infer such properties by pumping water from
  • saturated zone beneath deep vadose zone
  • Work Products:
  • 1 doctoral dissertation, 2 papers in archival
  • journal, 1 paper in WM2011
pumping test inference of deep vadose zone properties3
Pumping Test Inference of Deep Vadose Zone Properties

Borden Best-Fit Parameter Estimates:

pumping test inference of deep vadose zone properties4
Pumping Test Inference of Deep Vadose Zone Properties

Borden Vadose Zone Characteristic Estimates:

multimodel bayesian method to assess the worth of data

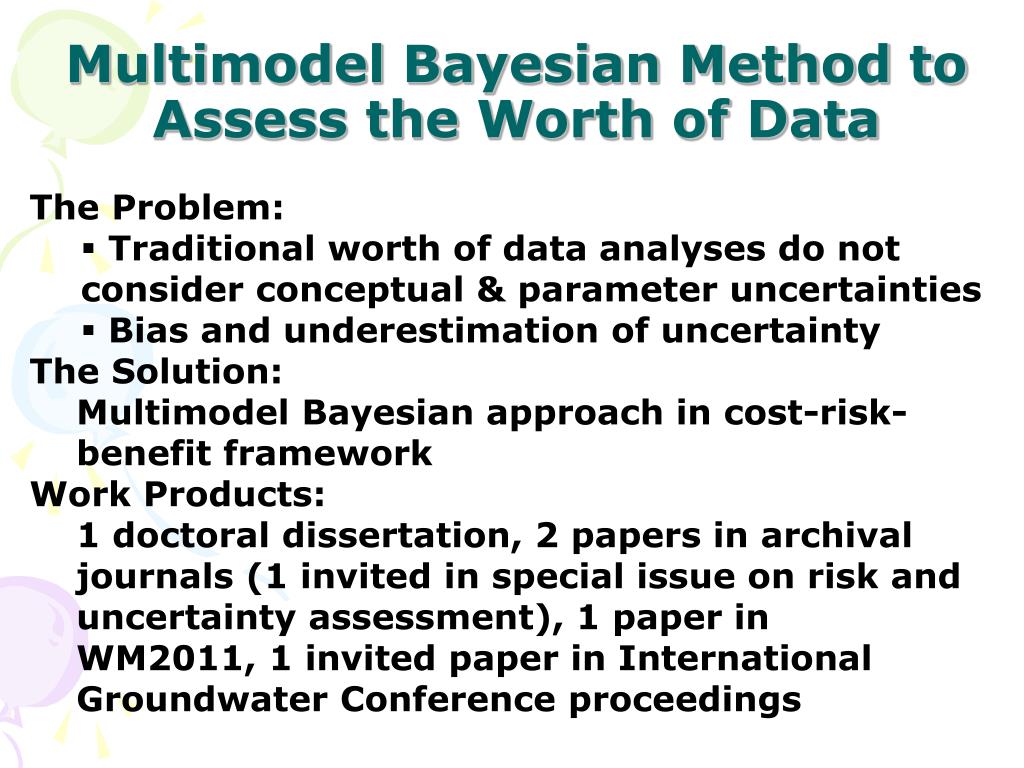

Multimodel Bayesian Method to Assess the Worth of Data
  • The Problem:
    • Traditional worth of data analyses do not consider conceptual & parameter uncertainties
    • Bias and underestimation of uncertainty
  • The Solution:
  • Multimodel Bayesian approach in cost-risk-
  • benefit framework
  • Work Products:
  • 1 doctoral dissertation, 2 papers in archival
  • journals (1 invited in special issue on risk and
  • uncertainty assessment), 1 paper in
  • WM2011, 1 invited paper in International
  • Groundwater Conference proceedings
multimodel bayesian method to assess the worth of data1

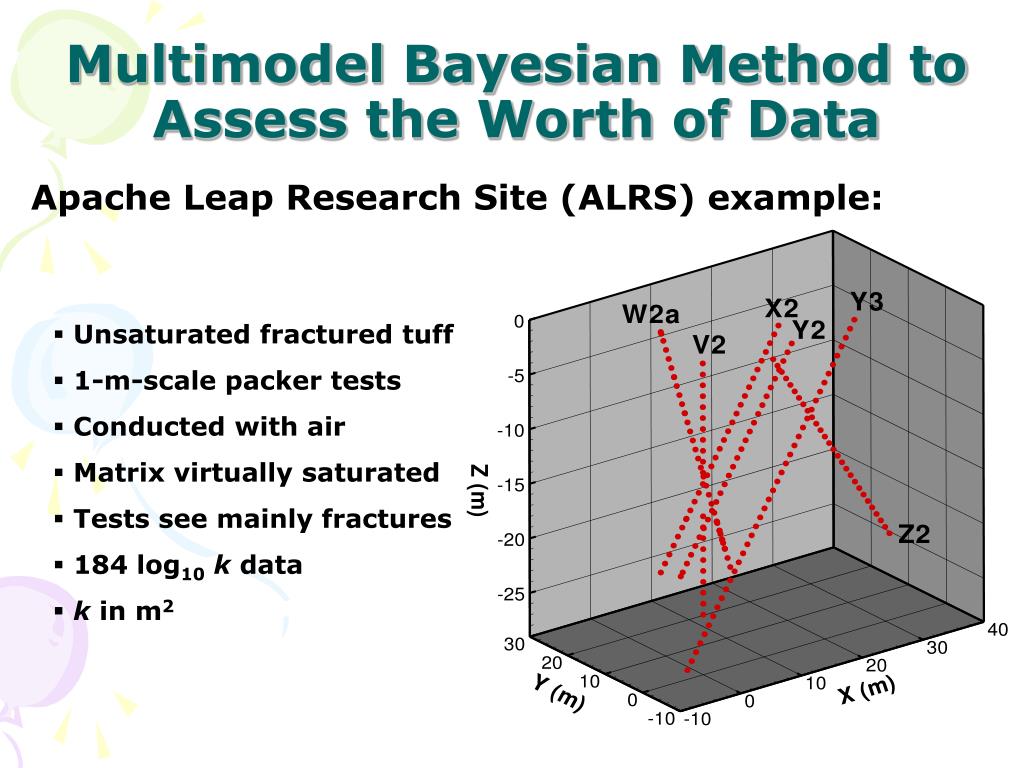

Multimodel Bayesian Method to Assess the Worth of Data

Apache Leap Research Site (ALRS) example:

  • Unsaturated fractured tuff
  • 1-m-scale packer tests
  • Conducted with air
  • Matrix virtually saturated
  • Tests see mainly fractures
  • 184 log10k data
  • k in m2
multimodel bayesian method to assess the worth of data2

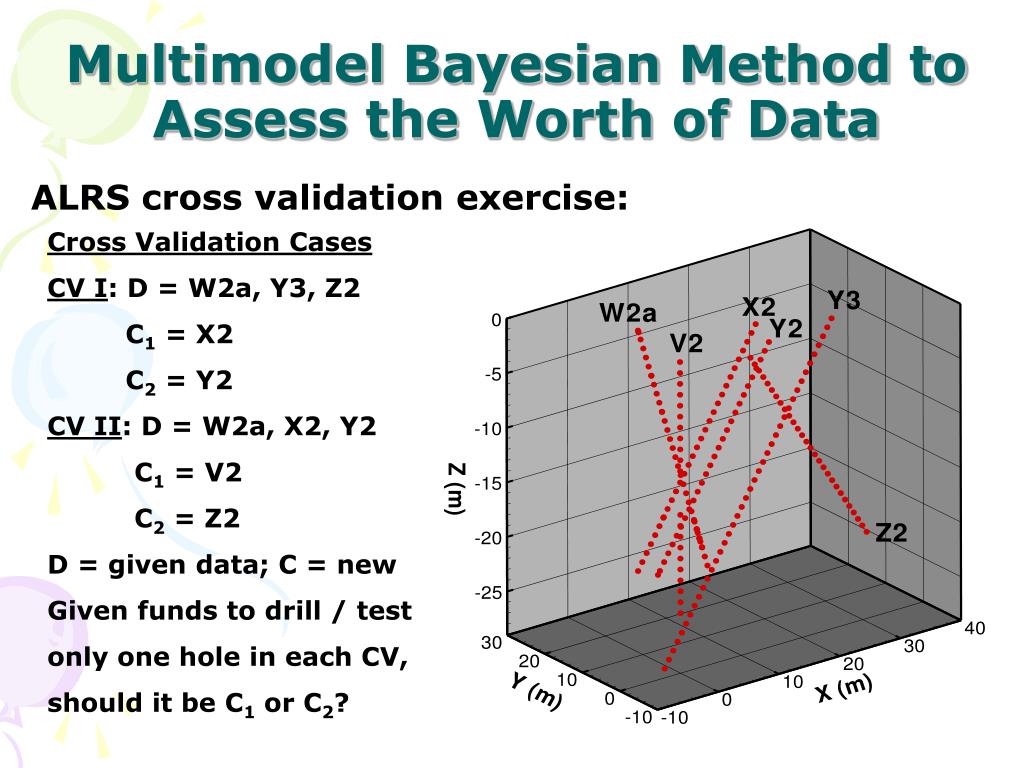

Multimodel Bayesian Method to Assess the Worth of Data

ALRS cross validation exercise:

Cross Validation Cases

CV I: D = W2a, Y3, Z2

C1 = X2

C2 = Y2

CV II: D = W2a, X2, Y2

C1 = V2

C2 = Z2

D = given data; C = new

Given funds to drill / test

only one hole in each CV,

should it be C1 or C2?

multimodel bayesian method to assess the worth of data3

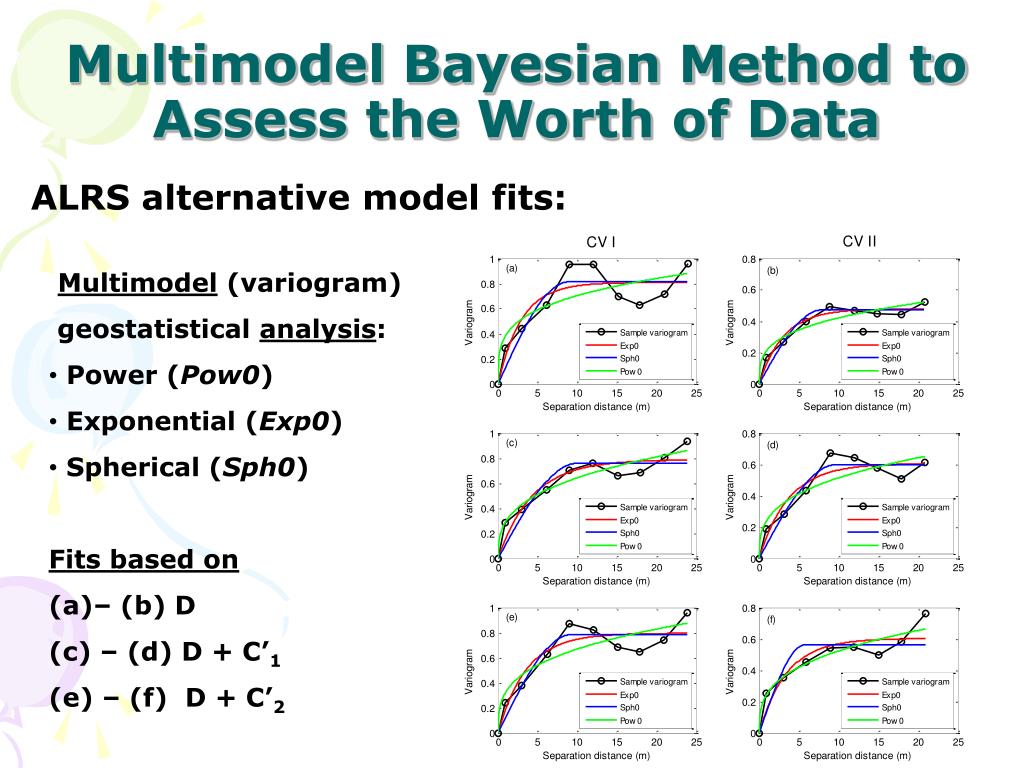

Multimodel Bayesian Method to Assess the Worth of Data

ALRS alternative model fits:

  • Multimodel (variogram)
  • geostatistical analysis:
  • Power (Pow0)
  • Exponential (Exp0)
  • Spherical (Sph0)
  • Fits based on
  • – (b) D
  • (c) – (d) D + C’1
  • (e) – (f) D + C’2
multimodel bayesian method to assess the worth of data4

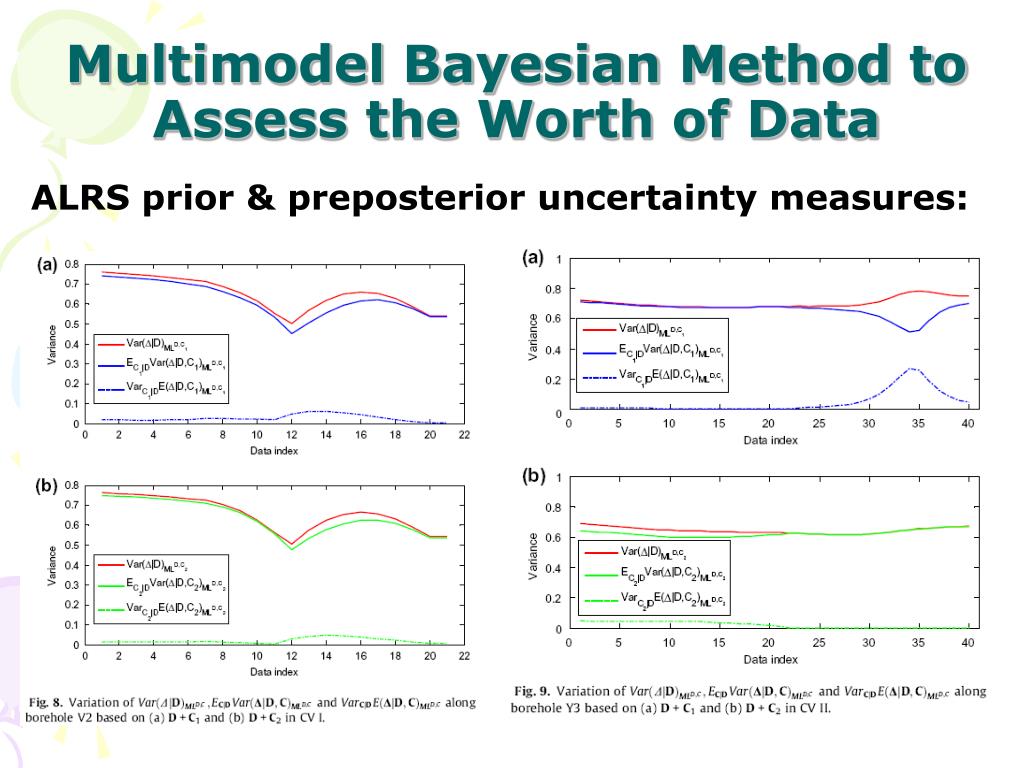

Multimodel Bayesian Method to Assess the Worth of Data

ALRS prior & preposterior uncertainty measures:

multimodel bayesian method to assess the worth of data5
Multimodel Bayesian Method to Assess the Worth of Data

ALRS posterior & preposterior uncertainty reduction measures:

Though preposterior and posterior measures

differ, both select borehole X2 in CV I and V2

in CV II

scaling properties of space time variables
Scaling Properties of Space – Time Variables
  • The Problem:
    • Earth and environmental variables span multiple space – time scales
    • Their multiscale statistics remain poorly understood
  • The Solution:
    • New model that unifies seemingly disparate fractal / multifractal Gaussian / non-Gaussian power-law / breakdown scaling behaviors
    • New statistical inference method based on it
    • Application to synthetic / field / lab data
  • Work Products:
  • Multiple papers in varied archival journals;
  • invited / keynote talks at AGU / PEDOFRACT
scaling properties of space time variables1
Scaling Properties of Space – Time Variables
  • AGU Invited Talk: Are log permeabilities Gaussian? Their increments may tell.
  • The Problem:
    • Log permeabilities appear to be Gaussian or nearly so (say beta)
    • Their increments are often heavy tailed
    • Can these be reconciled?
  • The Solution:
    • Demonstrate consistency with our scaling model
    • Apply model to ALRS log permeability data
scaling properties of space time variables2
Scaling Properties of Space – Time Variables
  • ALRS log k data are close to Gaussian
  • Their increments show heavy tails
scaling properties of space time variables3
Scaling Properties of Space – Time Variables
  • Can fit Levy distributions to increments
  • Levy index increases with separation
  • scale (lag) s toward Gaussian value of 2
  • Consistent with
  • our model and
  • Hurst scaling
  • exponent H = 0.33
scaling properties of space time variables6
Scaling Properties of Space – Time Variables

ALRS log k signal (highly irregular, not

unlike synthetic signal):

scaling properties of space time variables7
Scaling Properties of Space – Time Variables
  • We conclude:
  • ALRS log k is Levy with index slightly
  • smaller than Gaussian value of 2
  • Statistics of earth and environmental
  • variables should be inferred jointly from
  • data and their increments in a mutually
  • consistent manner
scaling properties of space time variables8
Scaling Properties of Space – Time Variables
  • Additional key findings:
  • Multifractal scaling, exhibited by many earth
  • and environmental variables, is fully reproduced
  • by our (truncated monofractal) signals; as such
  • it is likely an artifact of sampling
  • Our model reproduces observed power-law
  • breakdown at small / large lags
  • Our model is the first to explain the widely
  • observed phenomenon of Extended Self
  • Similarity (ESS)
current future efforts with co pi prof marcel schaap
Current / Future Efforts(with Co-PI Prof. Marcel Schaap)
  • Explore extreme value statistics of measured and
  • synthetic signals that scale in the above manner
  • Develop a data base of pedologic and hydraulic properties of samples from the Hanford 200 Area vadose zone
  • Use neural network, statistical and inverse methods to estimate vadose zone hydraulic properties at Hanford 200 Area and at Maricopa, AZ.
comment by pnnl colleague
Comment by PNNL Colleague
  • There was some effort to develop a database of physical and hydraulic properties and to port these to the HEIS database. That work was supported by one of the site contractors, CHPRC.
  • Unfortunately the project was discontinued in Jan 2011, after CHPRC over-ran their budget on a large-scale pump-and-treat system on site, and no data were actually put into HEIS. There has been no mention of restarting that effort.
  • Unless DOE/CHPRC/other decides to fund that effort again, it will not happen.
