Ⅱ. N700E#0(comparison table)

Ⅱ. N700E#0(comparison table). N700E Upgrade version is added the input and digital output in the I/O terminal. RS485 communication port is installed RJ45 type by default. Ⅱ. N700E#0(Terminal). N700E Upgrade version terminal changed 14 ports to 25 ports include option. N700E. TERMINAL ADDED.

veda-giles
Download Presentation

Ⅱ. N700E#0(comparison table)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ⅱ. N700E#0(comparison table) N700E Upgrade version is added the input and digital output in the I/O terminal. RS485 communication port is installed RJ45 type by default.

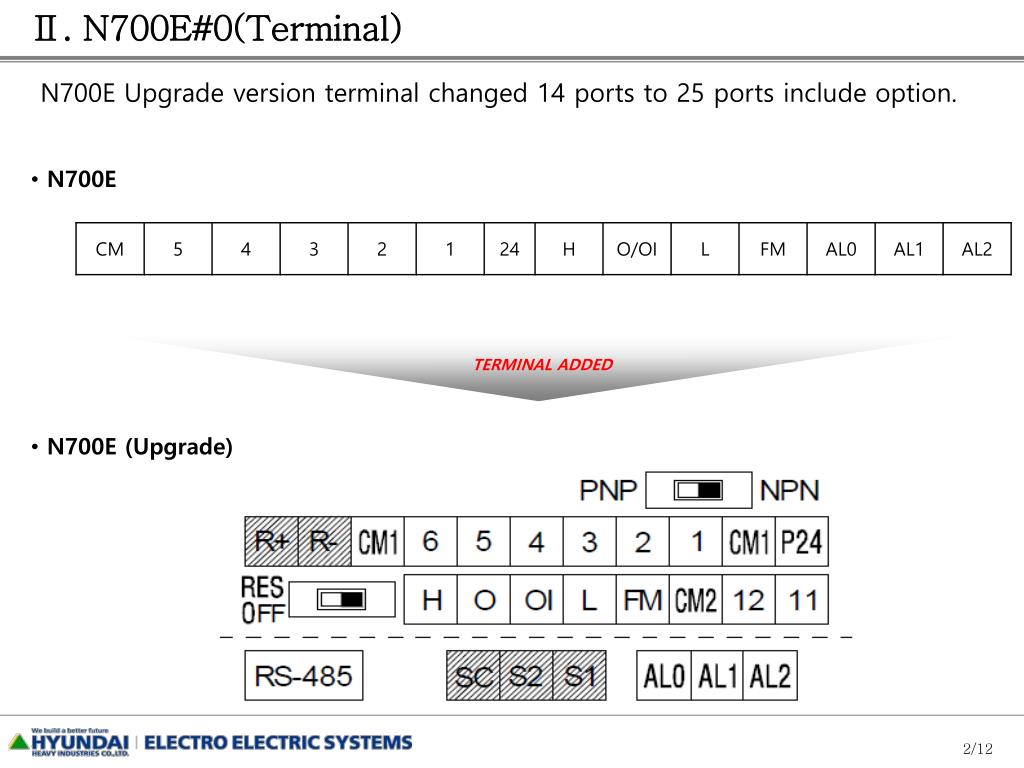

  2. Ⅱ. N700E#0(Terminal) N700E Upgrade version terminal changed 14 ports to 25 ports include option. • N700E TERMINAL ADDED • N700E (Upgrade)

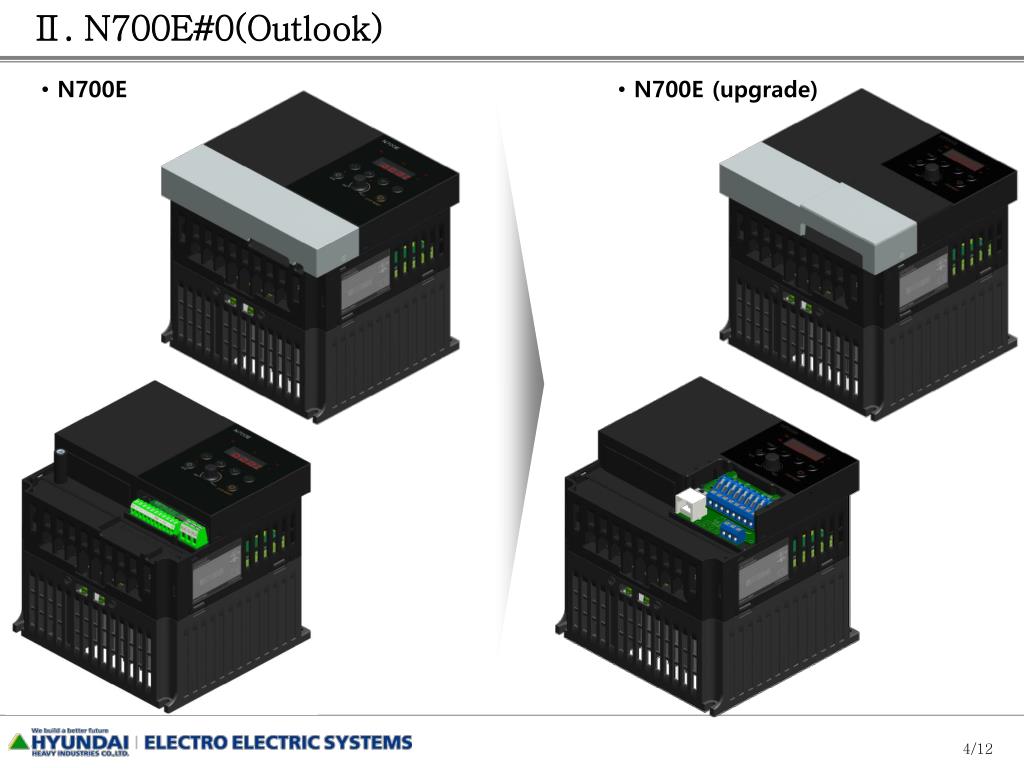

  3. Ⅱ. N700E#0(Outlook) N700E Upgrade version appearance is changed because of terminal change. • N700E • N700E (upgrade) Operator Control Terminal Cover RJ45 (RS485) Control circuit Terminal Main circuit Terminal

  4. Ⅱ. N700E#0(Outlook) • N700E • N700E (upgrade)

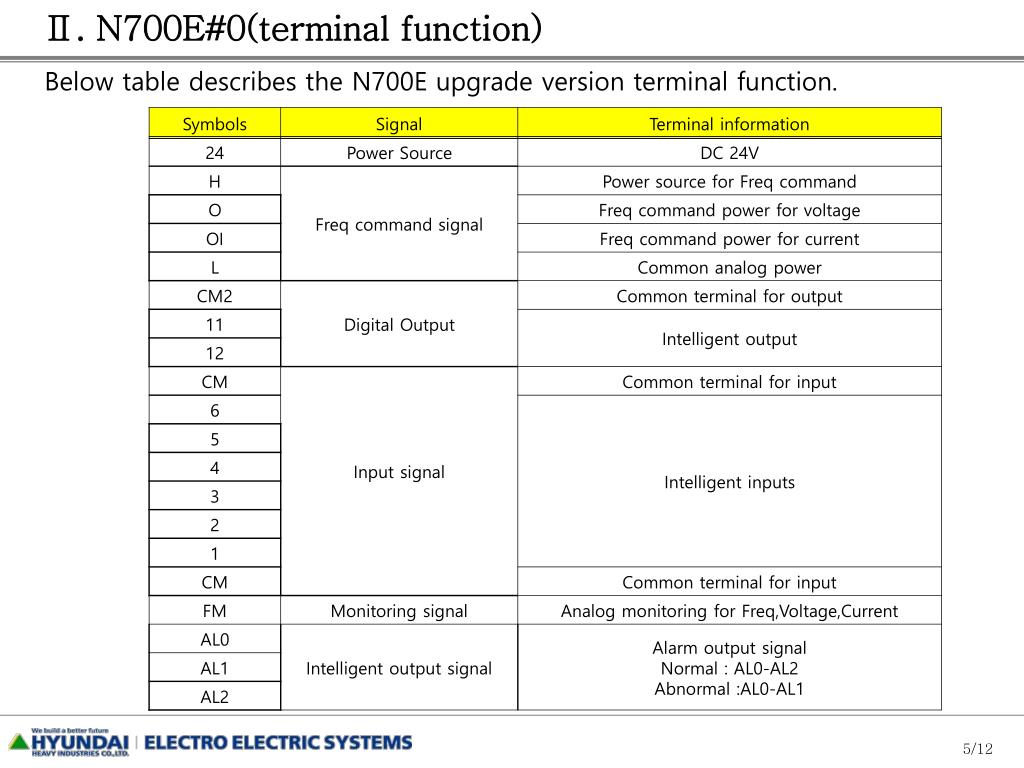

  5. Ⅱ. N700E#0(terminal function) Below table describes the N700E upgrade version terminal function.

  6. Ⅲ. ROP7(Features) ROP7 is remote operator option for N700E series. Features -. The function is similar to DOP7 -. SHIFT button : data position change -. Read/Copy operation -. Support inverter version with ROP7 Appearance of ROP7

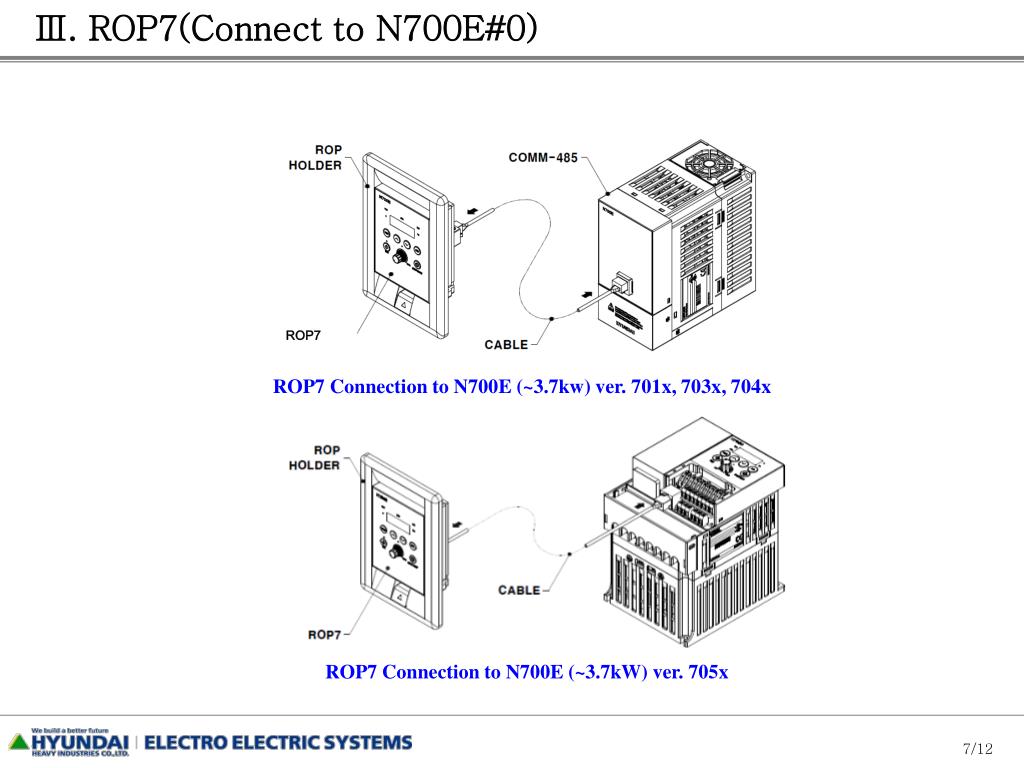

  7. Ⅲ. ROP7(Connect to N700E#0) ROP7 • ROP7 Connection to N700E (~3.7kw) ver. 701x, 703x, 704x • ROP7 Connection to N700E (~3.7kW) ver. 705x

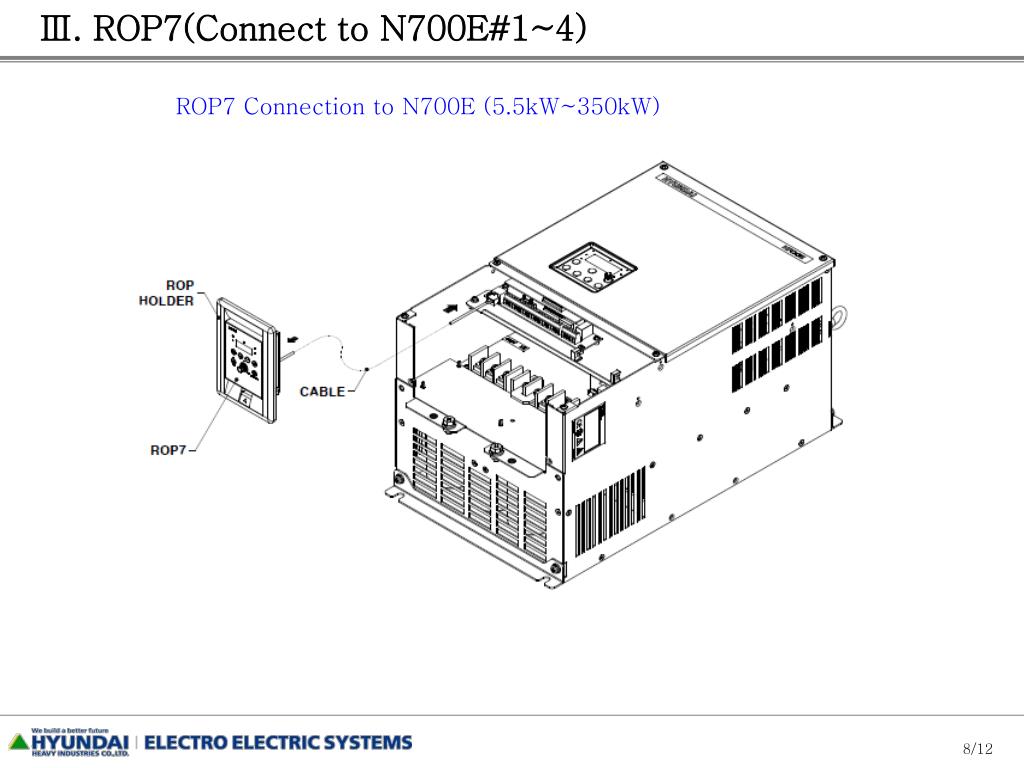

  8. Ⅲ. ROP7(Connect to N700E#1~4) ROP7 Connection to N700E (5.5kW~350kW)

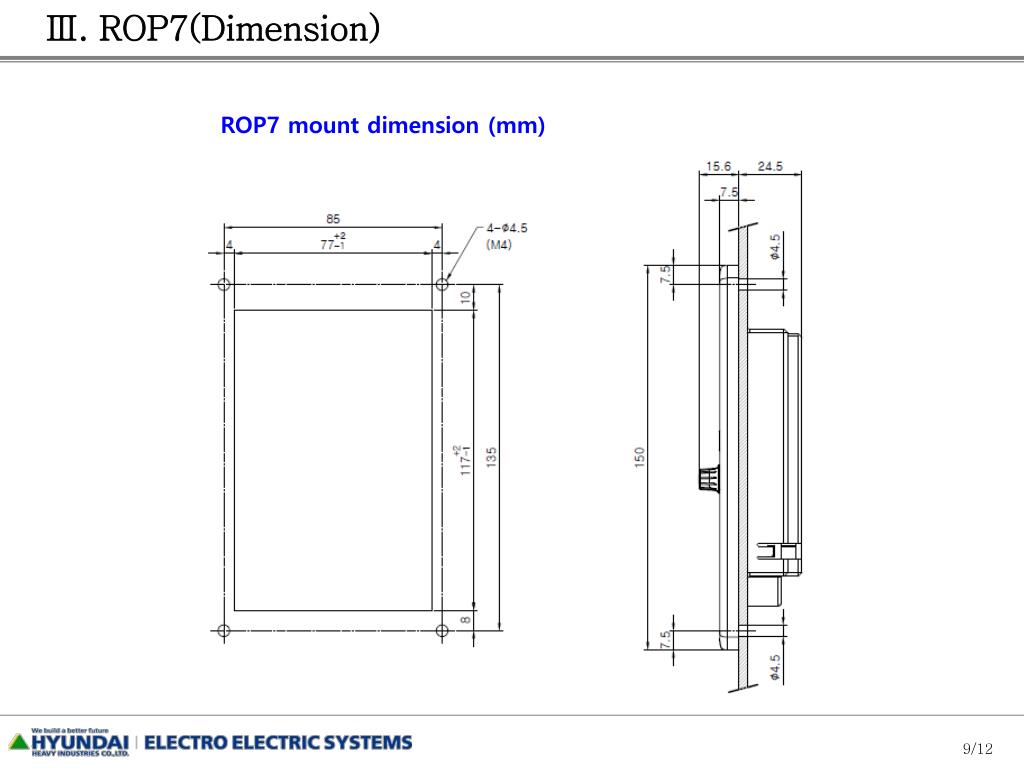

  9. Ⅲ. ROP7(Dimension) • ROP7 mount dimension (mm)
