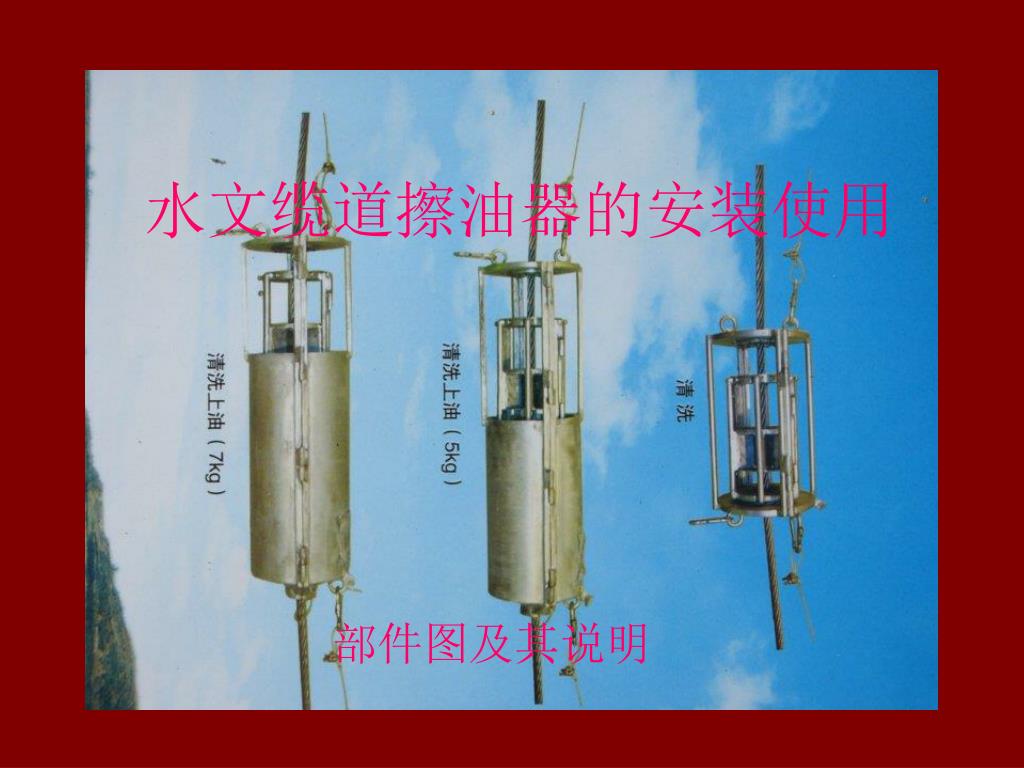

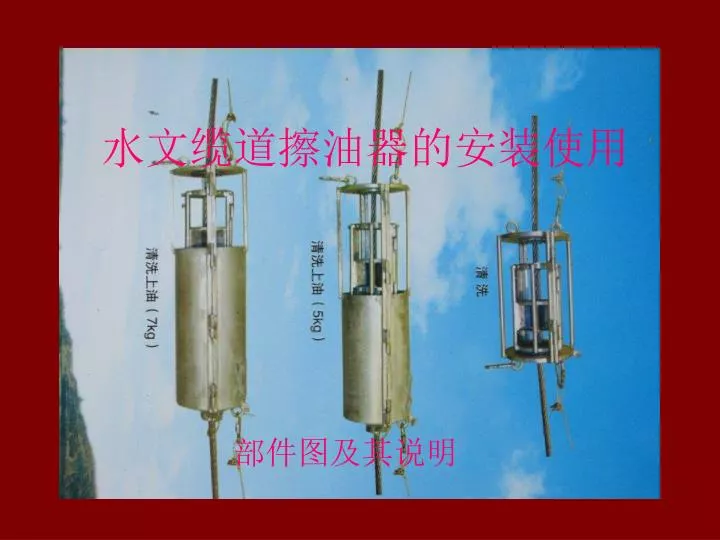

  1. 水文缆道擦油器的安装使用 部件图及其说明

  2. 主索擦油器各部件的认识

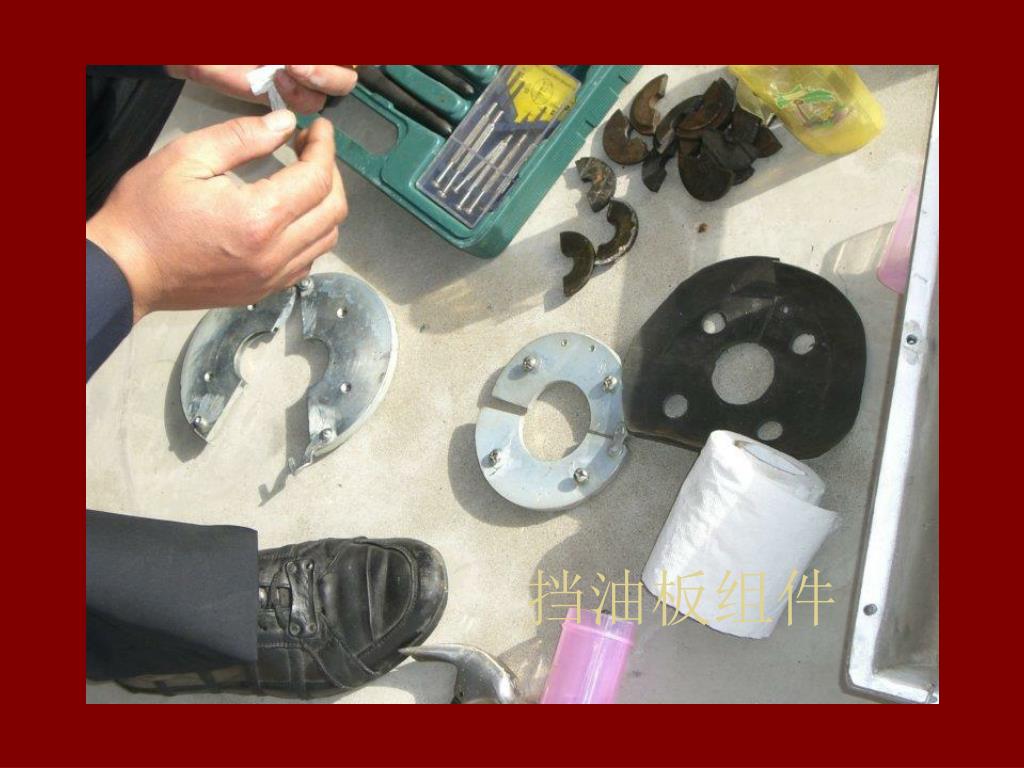

  3. 挡油板组件

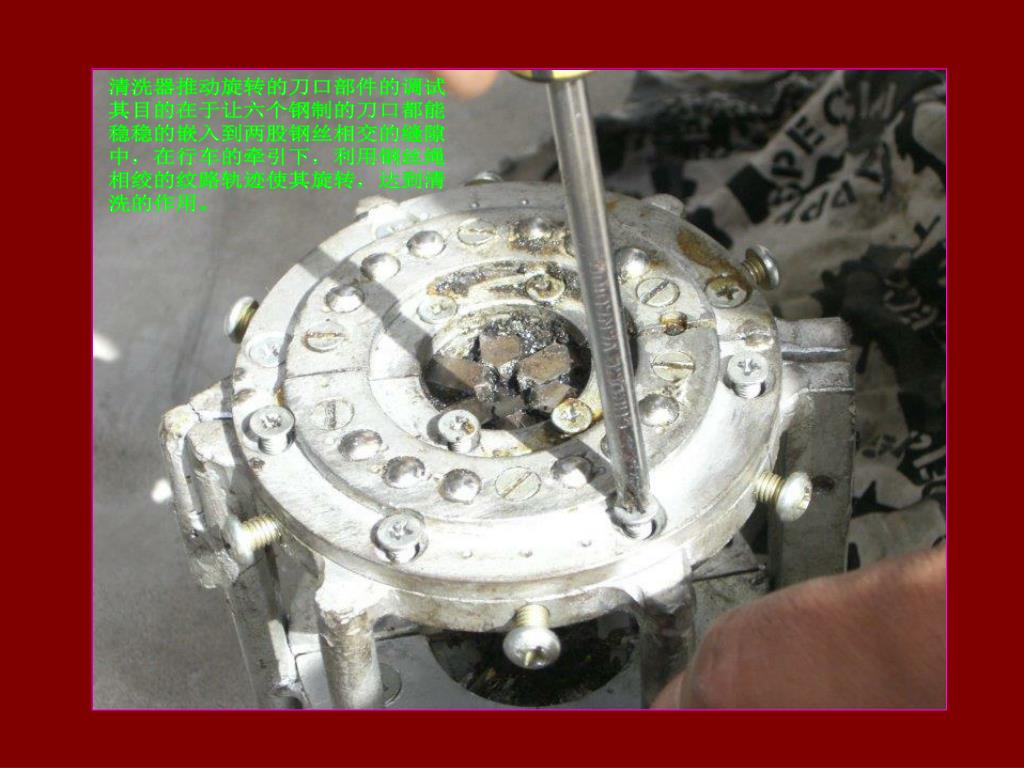

  4. 清洗器推动旋转的刀口部件的调试 其目的在于让六个钢制的刀口都能 稳稳的嵌入到两股钢丝相交的缝隙 中，在行车的牵引下，利用钢丝绳 相绞的纹路轨迹使其旋转，达到清 洗的作用。

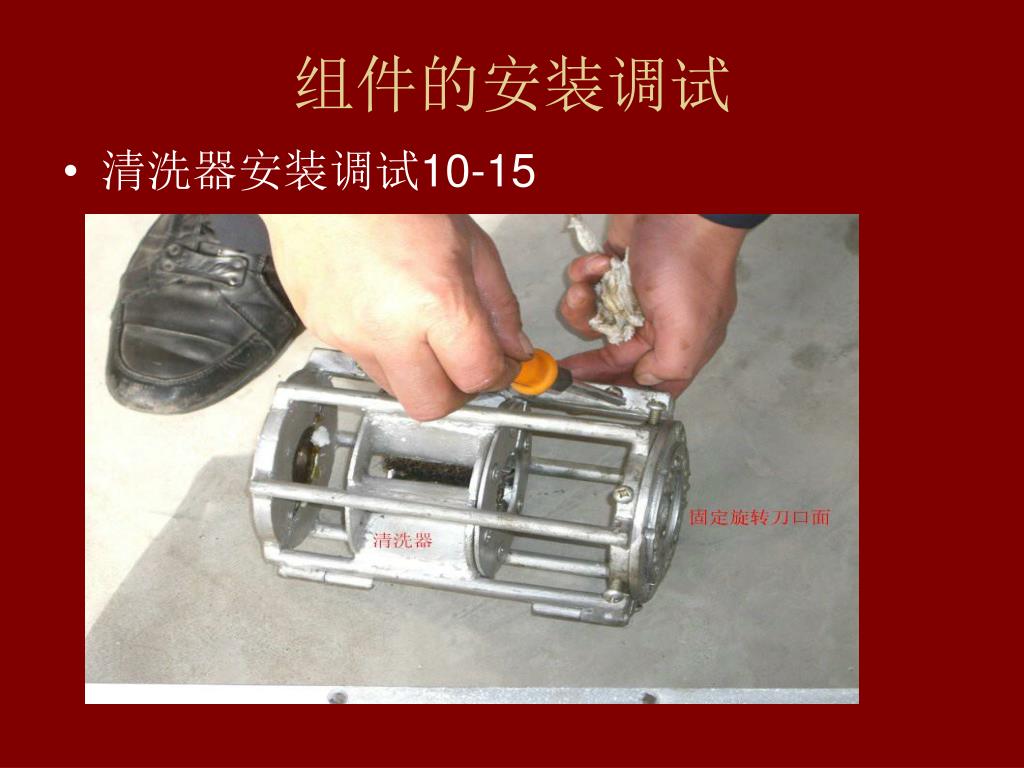

  5. 组件的安装调试 • 清洗器安装调试10-15

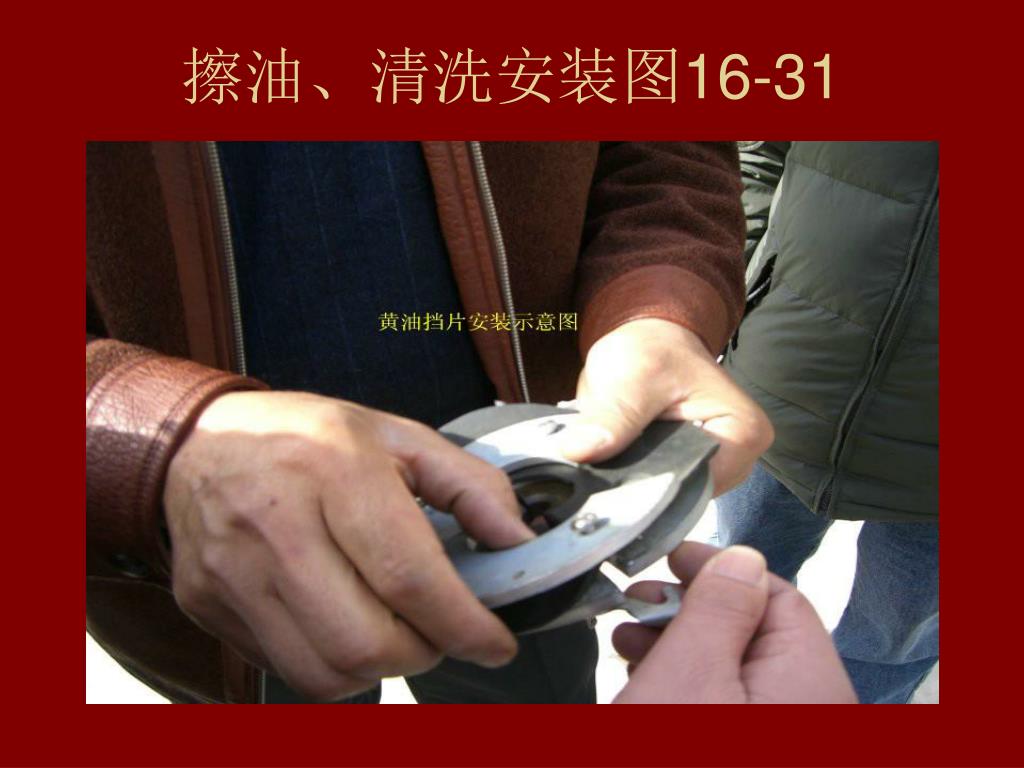

  6. 擦油、清洗安装图16-31
