  1. PRESENTS SOLARITY LAB SCOPE TECH TRAINING

  2. Enter Scroll to Scope with InfoTech 2005 Scroll to Scope with InfoTech 2005 and press Enter.

  3. Enter Scroll to Vehicle Entry Scroll to Vehicle Entry and press Enter.

  4. Enter Scroll to GM Scroll to GM and press Enter.

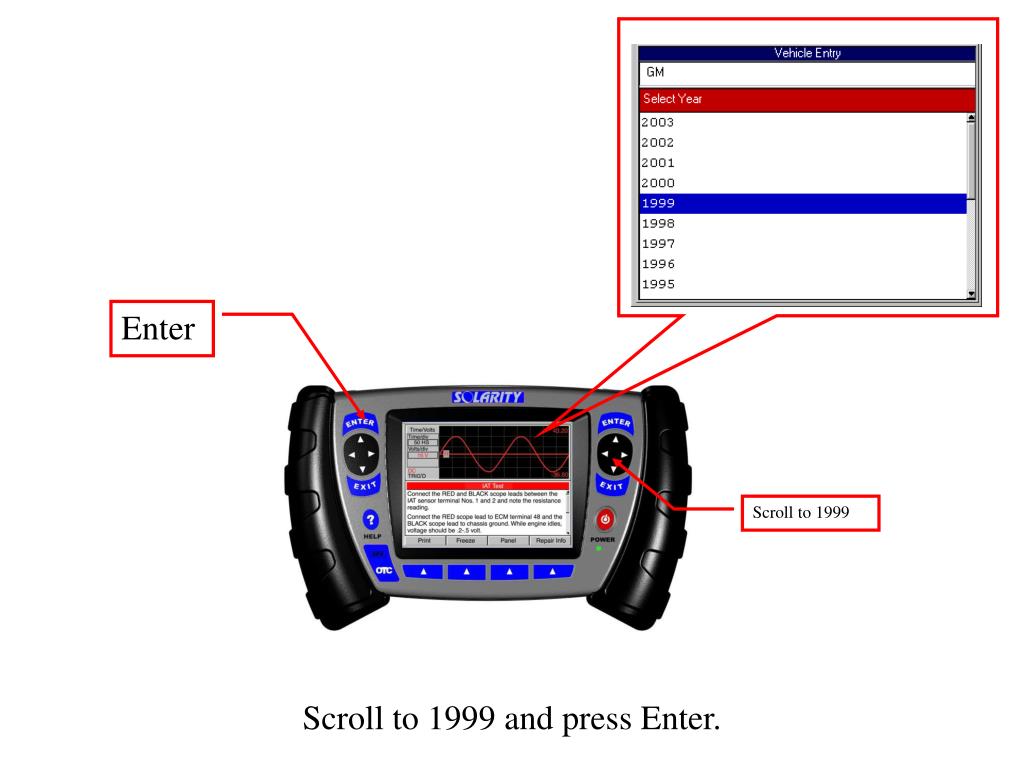

  5. Enter Scroll to 1999 Scroll to 1999 and press Enter.

  6. Enter Scroll to Chevrolet Scroll to Chevrolet and press Enter.

  7. Enter Scroll to Truck Scroll to Truck and press Enter.

  8. Enter Scroll to C1500 Scroll to C1500 and press Enter.

  9. Enter Scroll to 5.7L, VIN R Scroll to 5.7L, VIN R and press Enter.

  10. Enter Scroll to Engine Scroll to Engine and press Enter.

  11. Enter Scroll to Component Tests Scroll to Component Tests and press Enter.

  12. Enter Scroll to Heated Oxygen Sensor Scroll to Heated Oxygen Sensor and press Enter.

  13. Press the Repair info soft key The display describes the how to hook up the scope for testing. To find the wiring diagram press the Repair info soft key.

  14. Enter Scroll to Ckt Diagram Scroll to Ckt Diagram, and press Enter to view the Wire Diagram.

  15. Enter Scroll to 4L80E

  16. Press the Back soft key Press the Back soft key to complete the scope lead hook up.

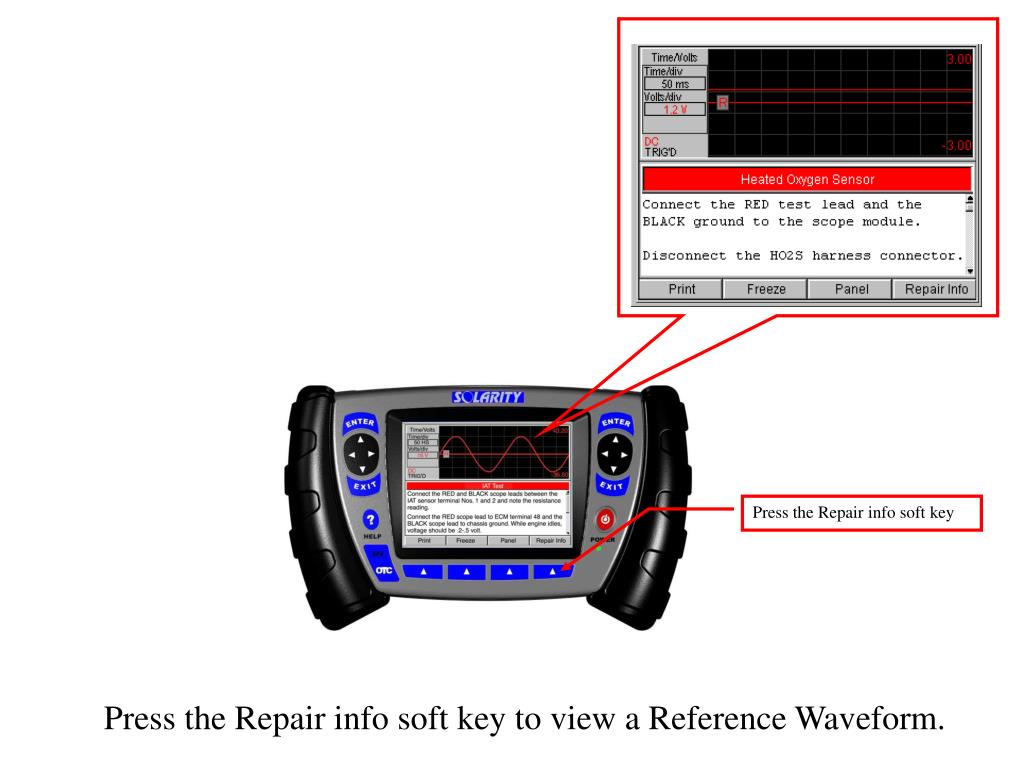

  17. Press the Repair info soft key Press the Repair info soft key to view a Reference Waveform.

  18. Enter Scroll to Ref Wave Scroll to Ref Wave, and press Enter to view the Reference Waveform.

  19. Press the Back soft key To return to the previous screen press the Back soft key.

  20. Exit Press Exit to return the Scope Multi-Meter menu.

  21. Enter Scroll to Digital Multi-Meter Scroll to Digital Multi-Meter and press Enter.

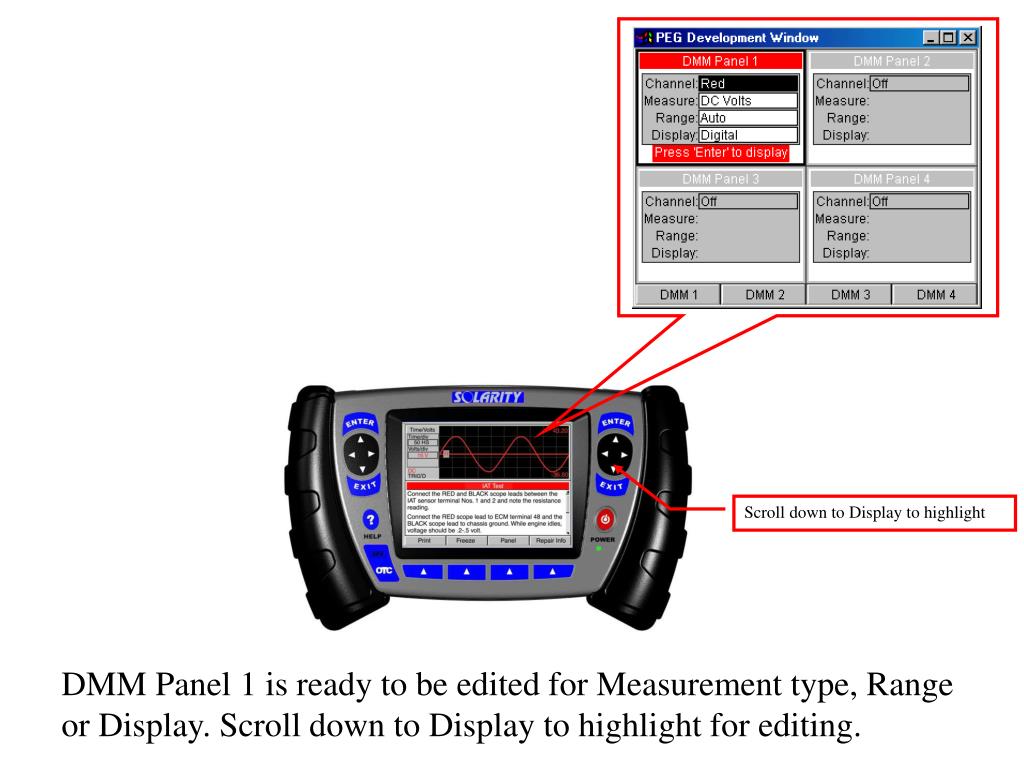

  22. Scroll down to Display to highlight DMM Panel 1 is ready to be edited for Measurement type, Range or Display. Scroll down to Display to highlight for editing.

  23. Scroll to the right Press DMM 2 soft key Scroll to the right or left to edit the Display from Digital-Bar-Dial-Strip. To turn on and edit another Multi-Meter Panel press the desire DMM soft key.

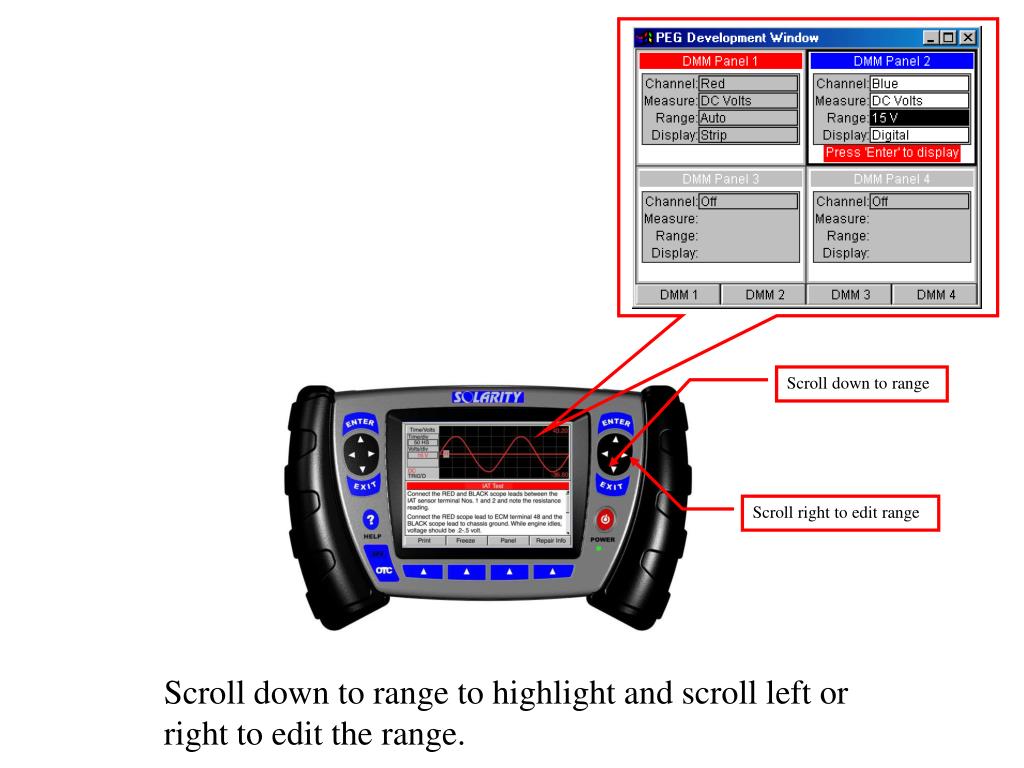

  24. Scroll down to range Scroll right to edit range Scroll down to range to highlight and scroll left or right to edit the range.

  25. Enter Press Enter to Display data. Note; Multiple Panels may share the same channel color so that multiple types of measurements may be shown.

  26. Enter When the Panel border is moving you can change the Display, Digital-Bar-Dial-Strip, by pressing Enter.

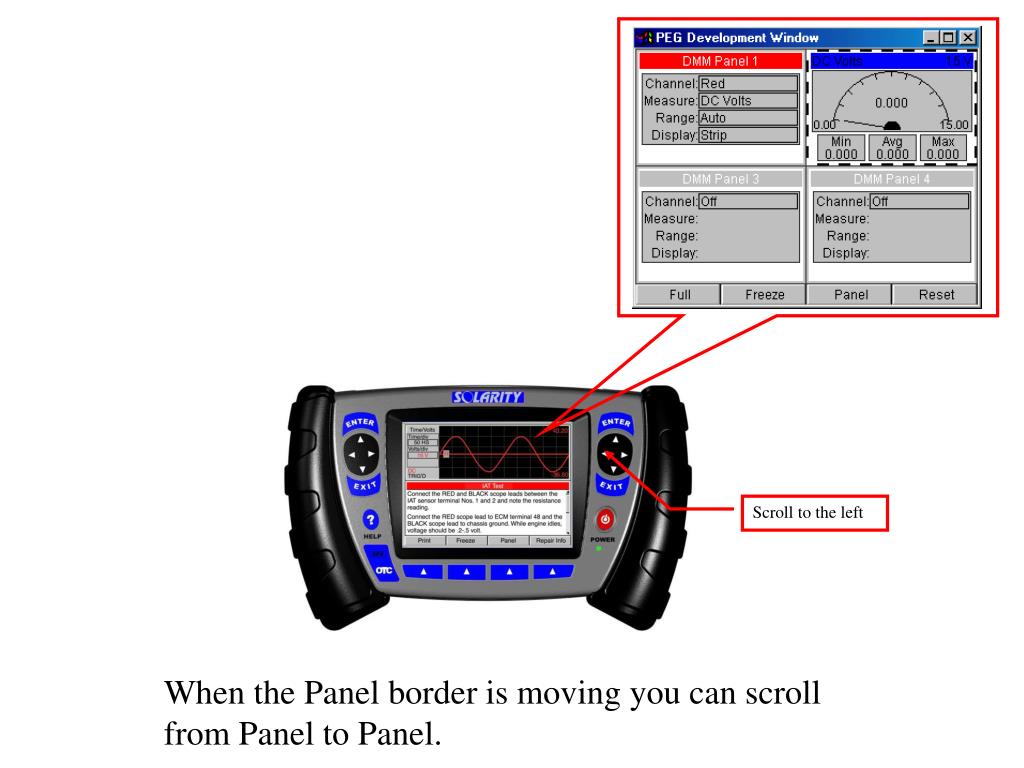

  27. Scroll to the left When the Panel border is moving you can scroll from Panel to Panel.

  28. Enter Press Enter to edit Panel 1.

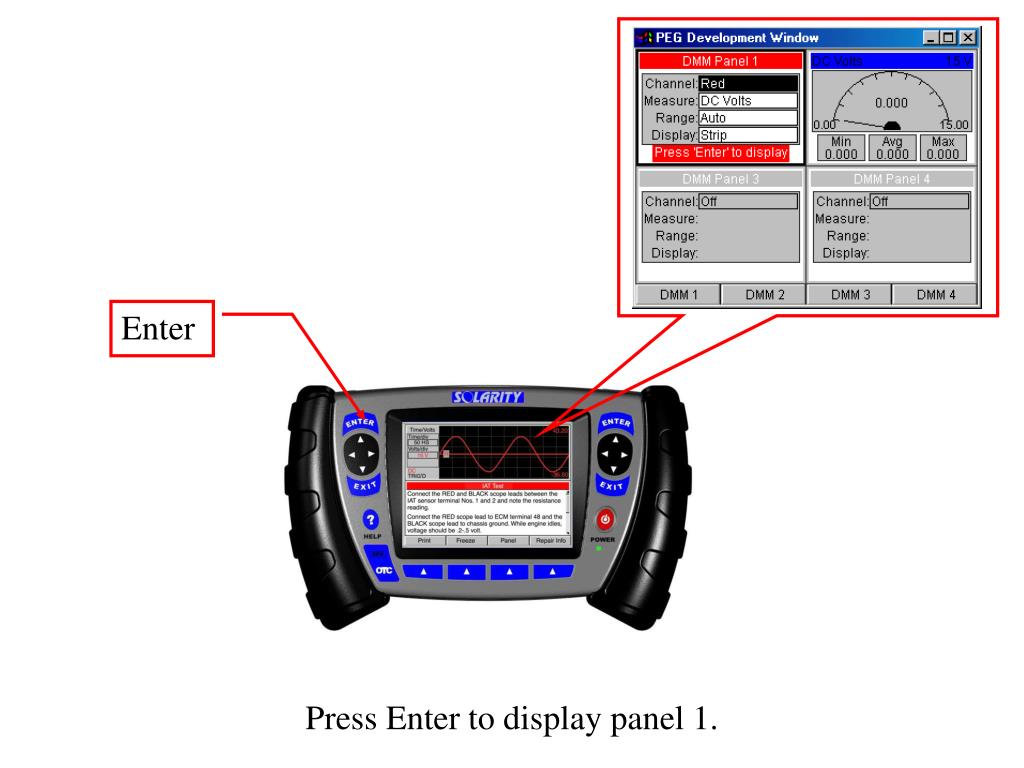

  29. Enter Press Enter to display panel 1.

  30. Press the Full soft key The Panel that has moving borders can be setup as a full screen by pressing the Full soft key.

  31. Press the Freeze soft key Press the Freeze soft key to store data to review.

  32. Press the Go soft key Press the Go soft key to unfreeze and see live data.

  33. Press the Reset soft key Press the Reset soft key to reset the meter to zero.

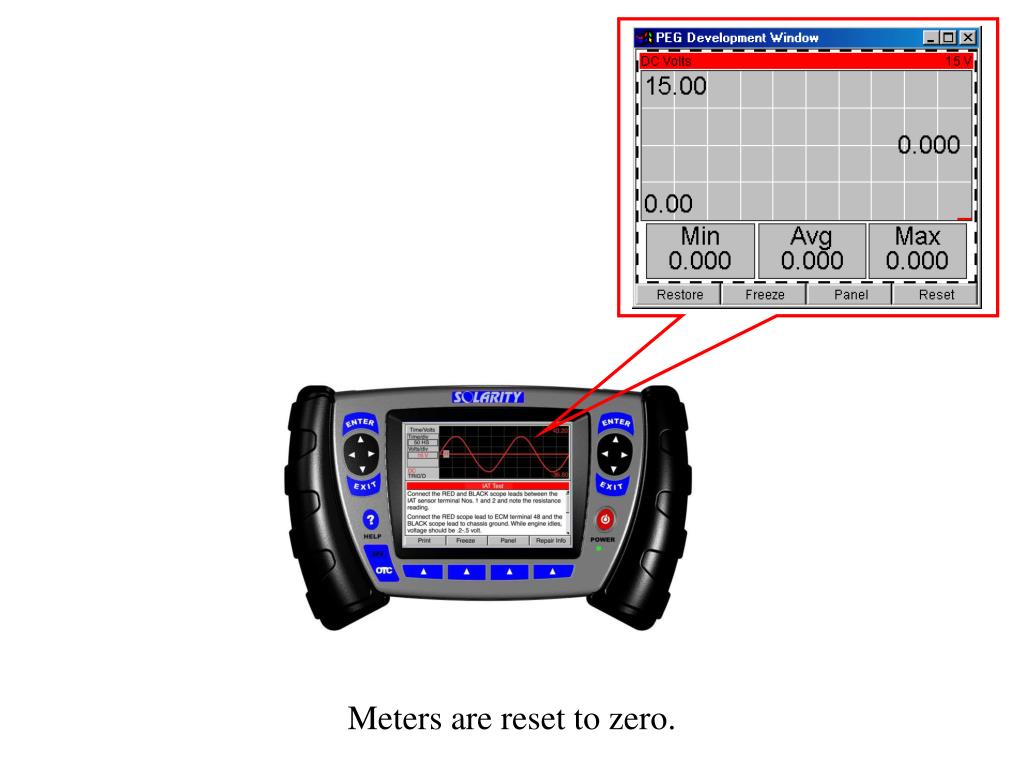

  34. Meters are reset to zero.

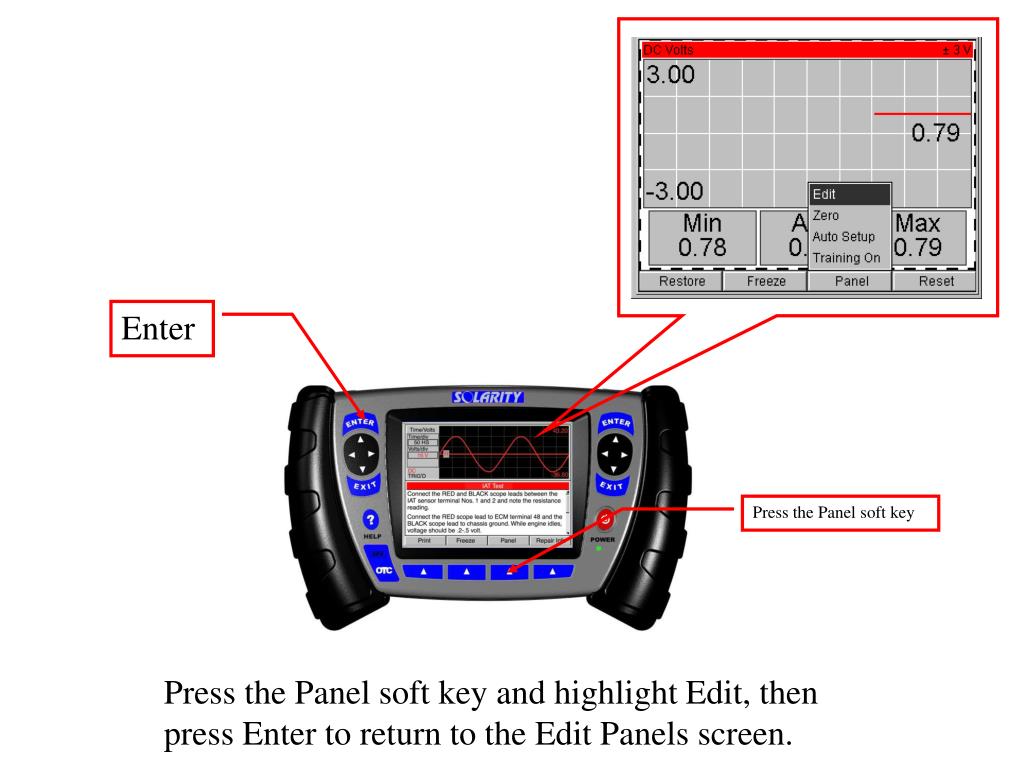

  35. Enter Press the Panel soft key Press the Panel soft key and highlight Edit, then press Enter to return to the Edit Panels screen.

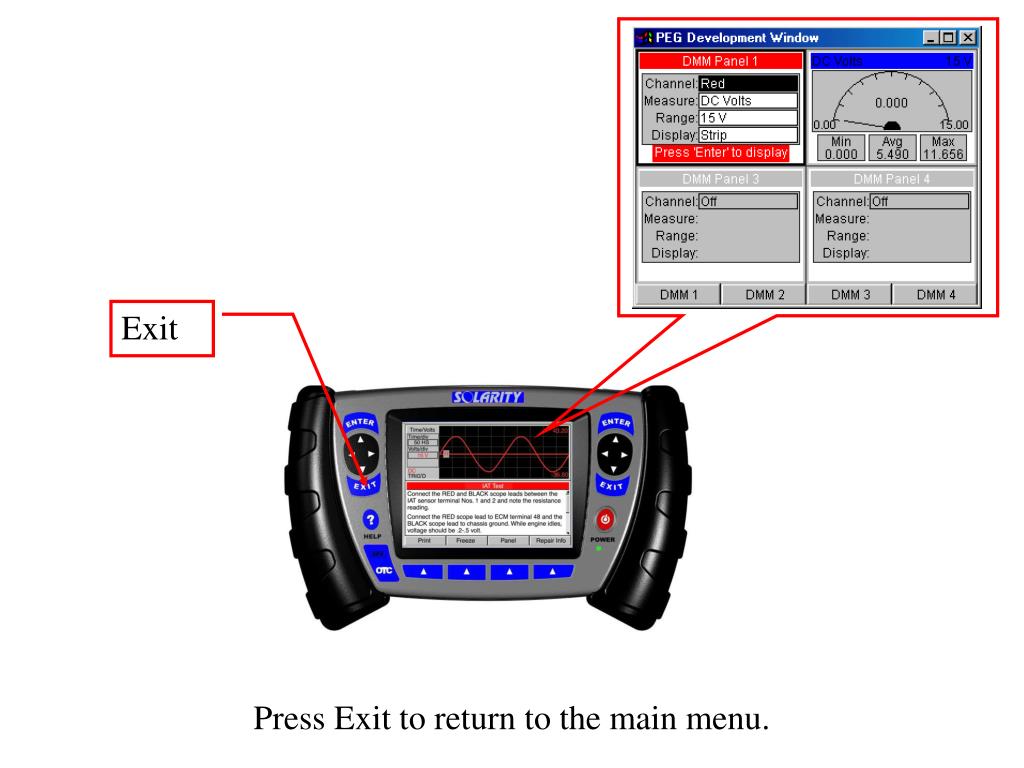

  36. Exit Press Exit to return to the main menu.

  37. Enter Scroll to Scope Scroll down to Scope and press Enter.

  38. Enter Scroll to Lab Scope Scroll down to Lab Scope and press Enter.

  39. Scroll right Scroll to range Scroll down to range to edit. Scroll right or left to edit the range.

  40. Enter Scroll right Scroll down to Channel Scroll down to highlight the next channel to turn on. Scroll right to select channel color to use. Each color my be used once while in lab scope. Press Enter to display pattern.

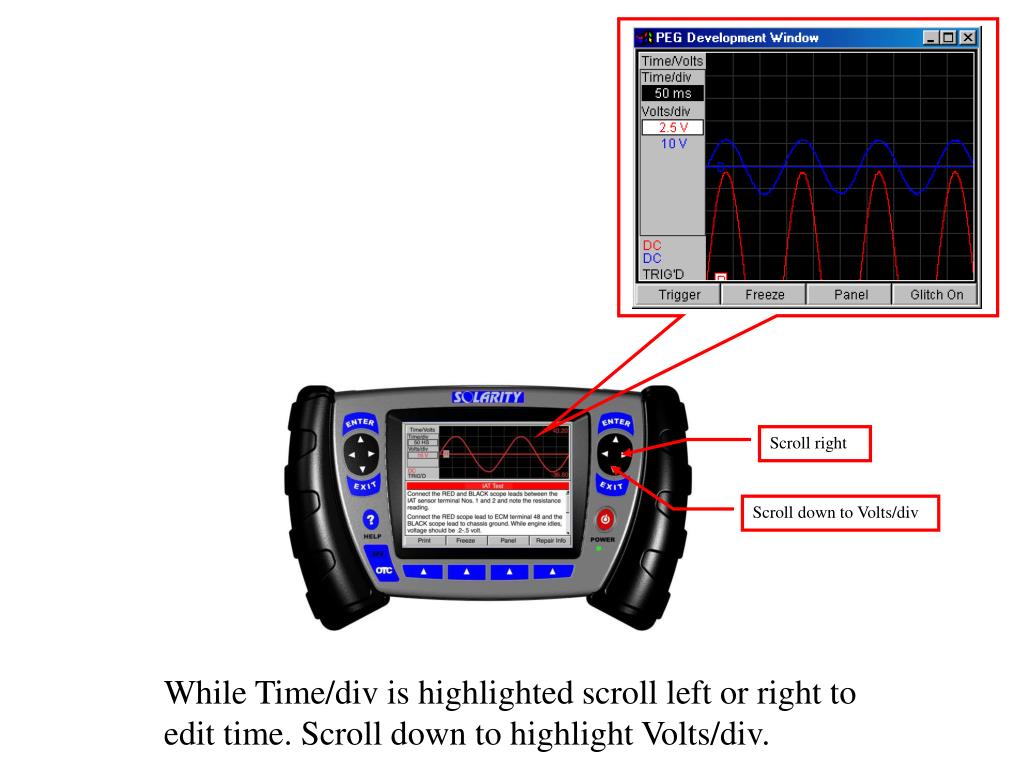

  41. Scroll right Scroll down to Volts/div While Time/div is highlighted scroll left or right to edit time. Scroll down to highlight Volts/div.

  42. Scroll right Scroll down to R Scroll down to highlight R zero reference line. Scroll left or right to adjust reference line up or down.

  43. Press the Trigger soft key Press the Trigger soft key to turn on the trigger. The upper right panel of the edit screen is the trigger channel.

  44. Scroll right Scroll to the right to turn the trigger from Off to On.

  45. Scroll right to Falling Scroll to down to highlight Scroll down to highlight Rising. Scroll right or left to change from Rising to Falling.

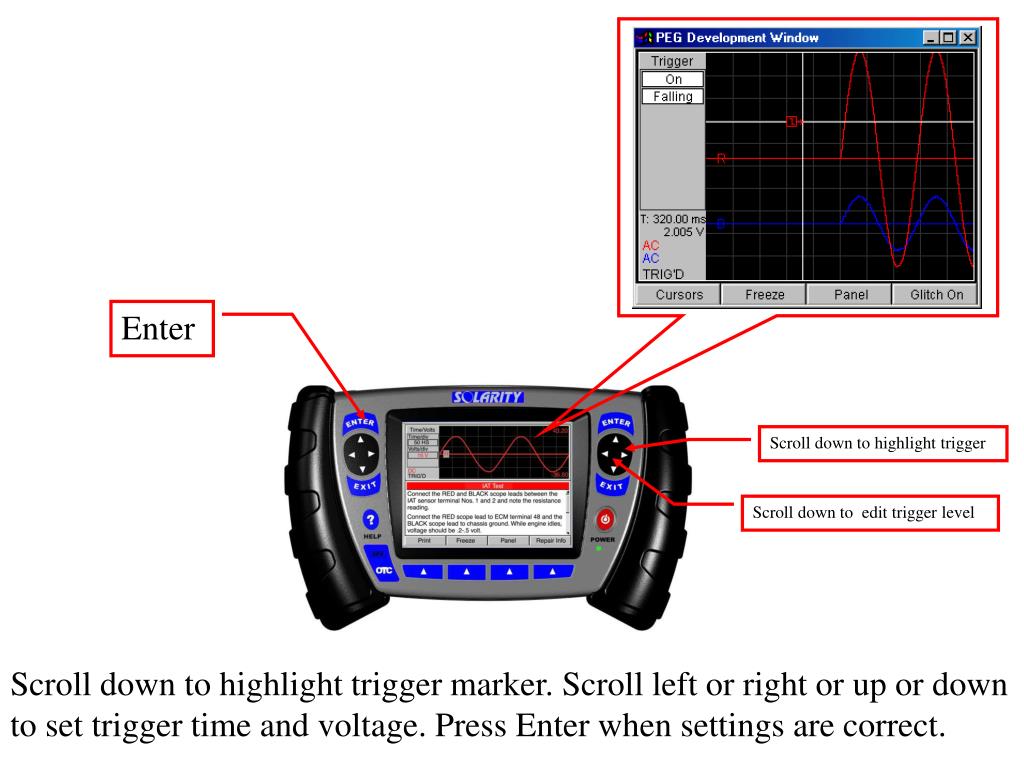

  46. Enter Scroll down to highlight trigger Scroll down to edit trigger level Scroll down to highlight trigger marker. Scroll left or right or up or down to set trigger time and voltage. Press Enter when settings are correct.

  47. Scroll right Press the Cursor soft key Press the Cursors soft key. Scroll right or left to turn the Cursors on.

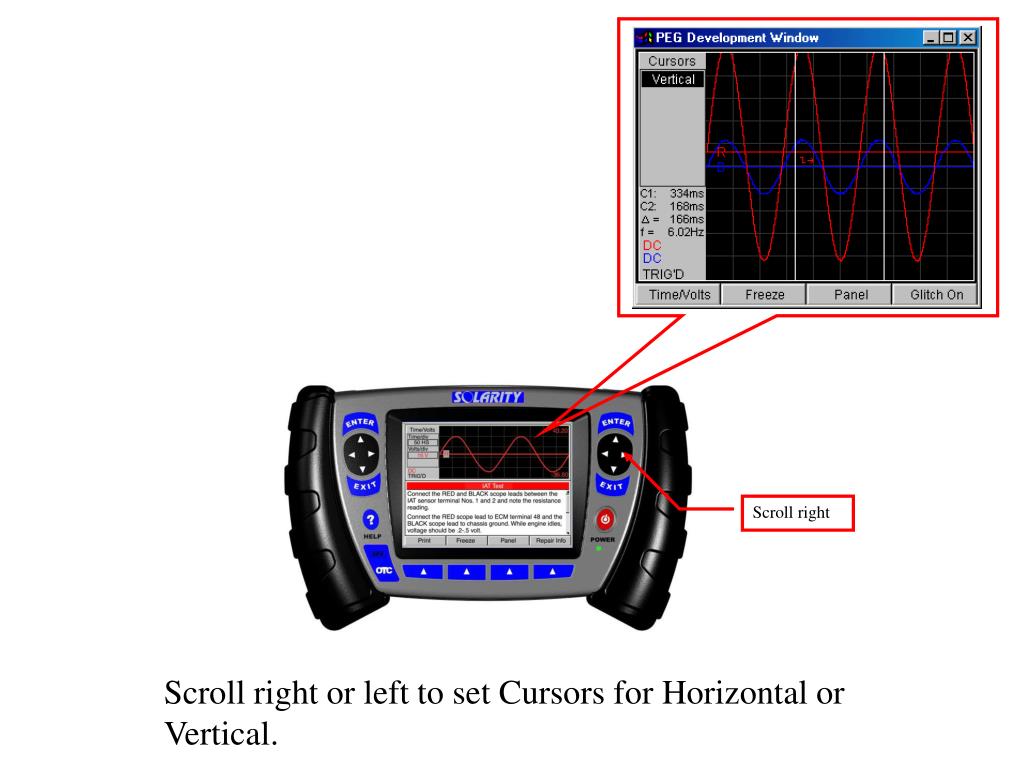

  48. Scroll right Scroll right or left to set Cursors for Horizontal or Vertical.

  49. Scroll right Scroll down to C1 Scroll down to highlight C1 - Cursor 1. Note; the Cursor is solid in color when highlighted. Scroll left or right to move C1.

  50. Scroll right Scroll down to C2 Scroll down to highlight C2. Scroll left or right to move C2.
