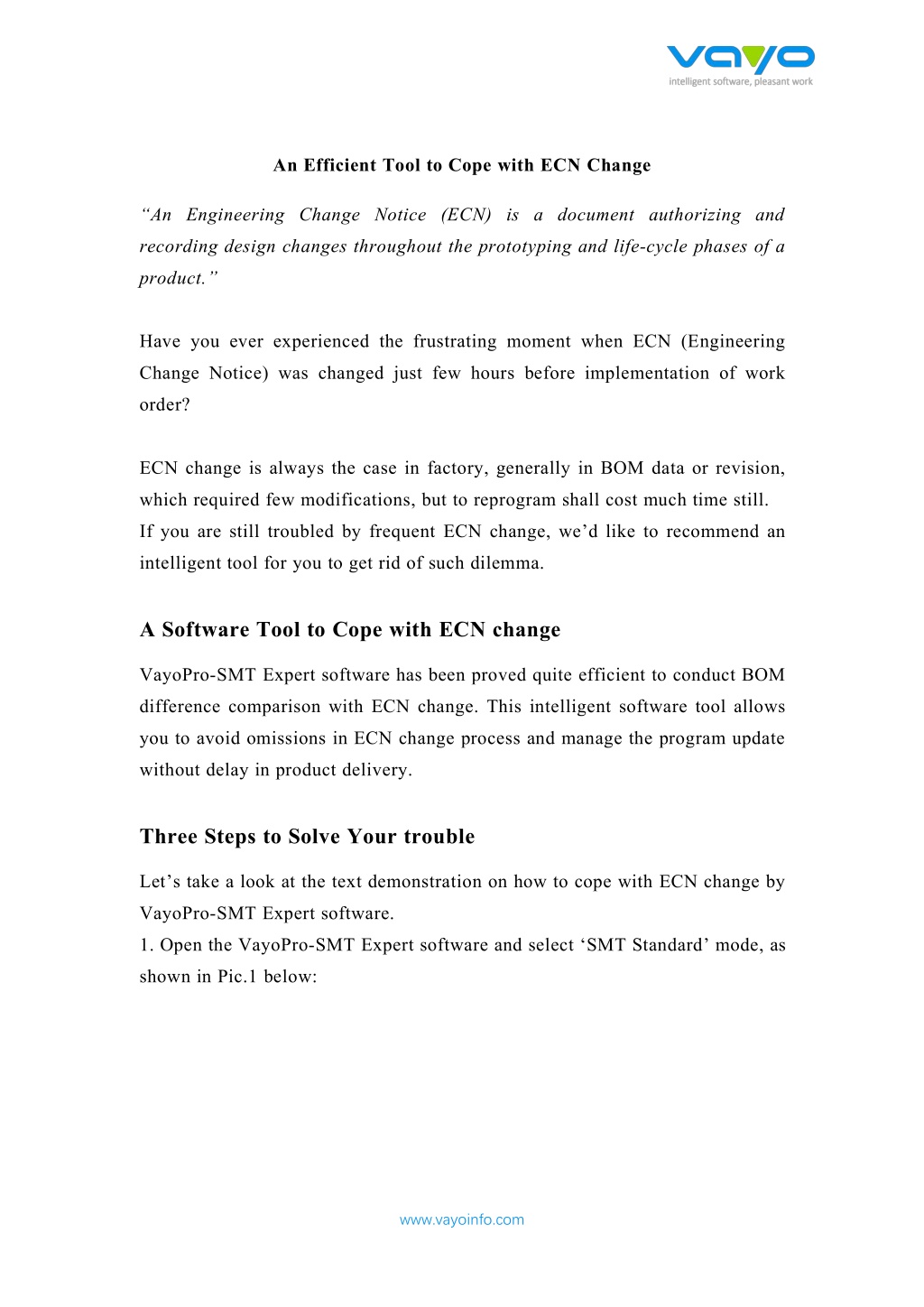

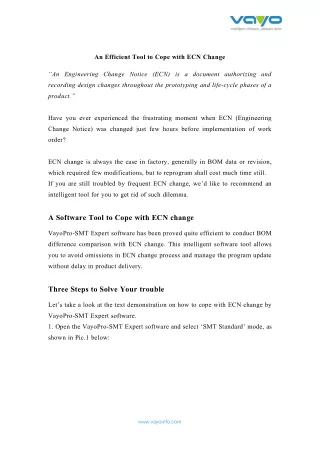

  1. An Efficient Tool to Cope with ECN Change “An Engineering Change Notice (ECN) is a document authorizing and recording design changes throughout the prototyping and life-cycle phases of a product.” Have you ever experienced the frustrating moment when ECN (Engineering Change Notice) was changed just few hours before implementation of work order? ECN change is always the case in factory, generally in BOM data or revision, which required few modifications, but to reprogram shall cost much time still. If you are still troubled by frequent ECN change, we’d like to recommend an intelligent tool for you to get rid of such dilemma. A Software Tool to Cope with ECN change VayoPro-SMT Expert software has been proved quite efficient to conduct BOM difference comparison with ECN change. This intelligent software tool allows you to avoid omissions in ECN change process and manage the program update without delay in product delivery. Three Steps to Solve Your trouble Let’s take a look at the text demonstration on how to cope with ECN change by VayoPro-SMT Expert software. 1. Open the VayoPro-SMT Expert software and select ‘SMT Standard’ mode, as shown in Pic.1 below: www.vayoinfo.com

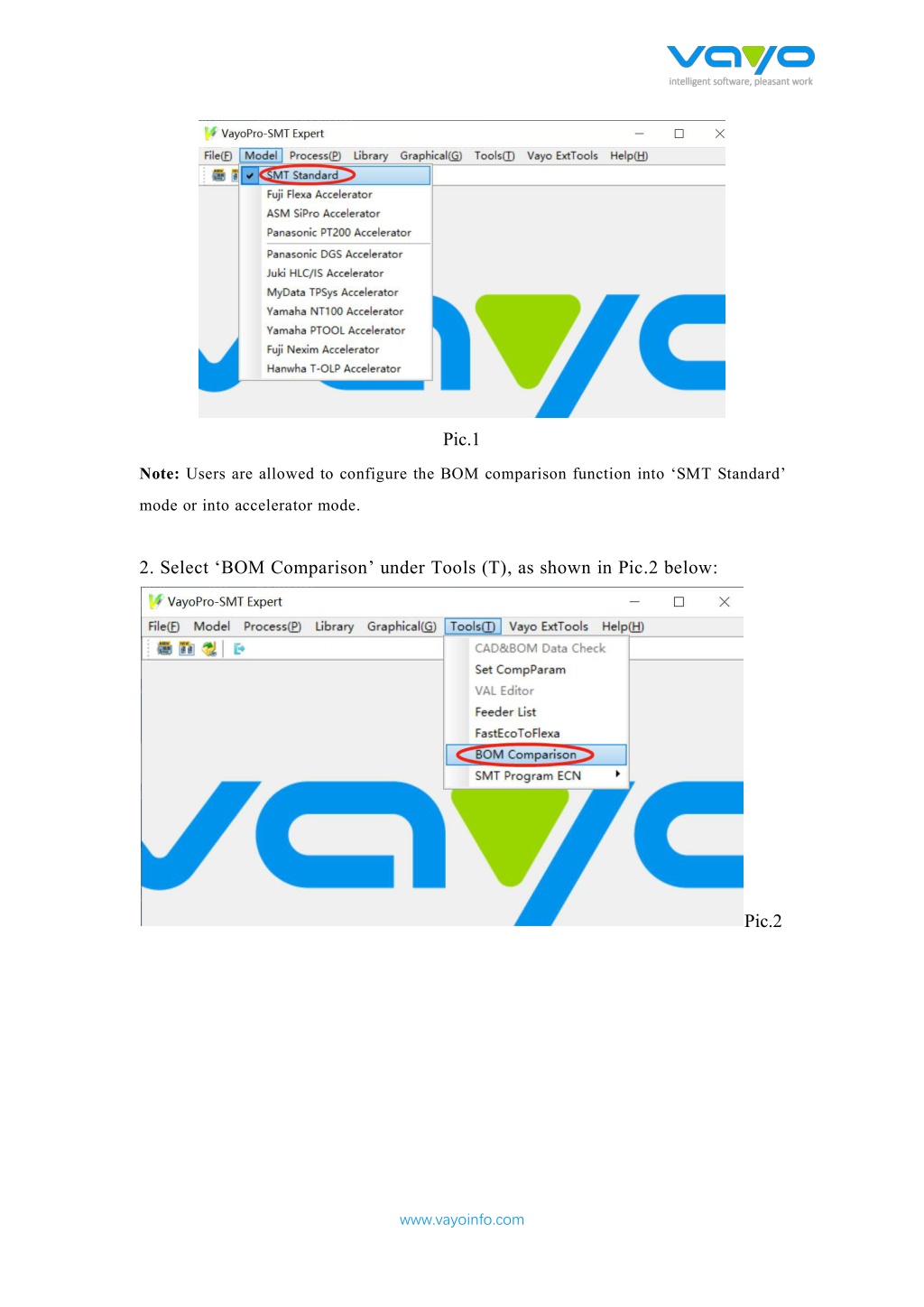

  2. Pic.1 Note: Users are allowed to configure the BOM comparison function into ‘SMT Standard’ mode or into accelerator mode. 2. Select ‘BOM Comparison’ under Tools (T), as shown in Pic.2 below: Pic.2 www.vayoinfo.com

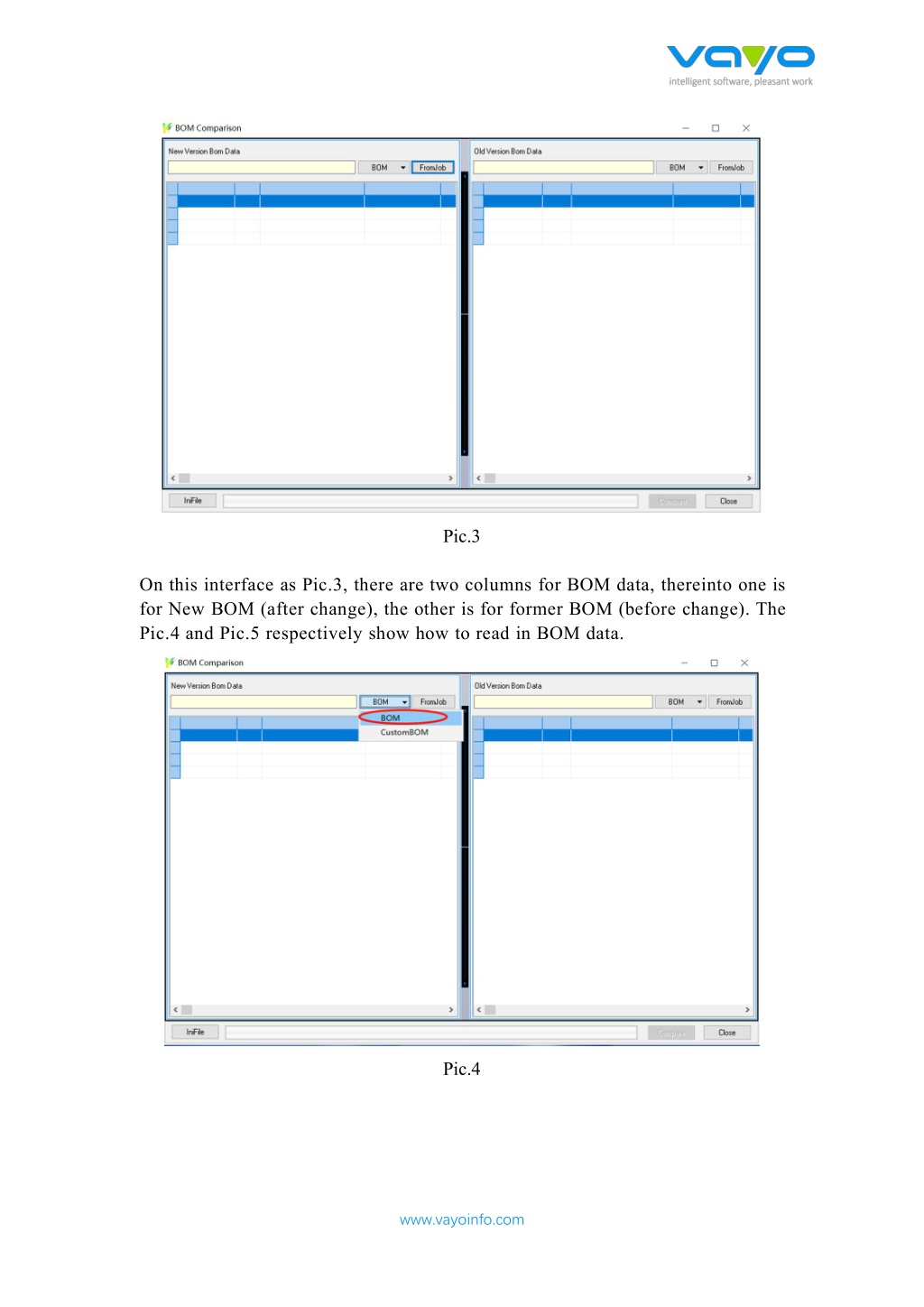

  3. Pic.3 On this interface as Pic.3, there are two columns for BOM data, thereinto one is for New BOM (after change), the other is for former BOM (before change). The Pic.4 and Pic.5 respectively show how to read in BOM data. Pic.4 www.vayoinfo.com

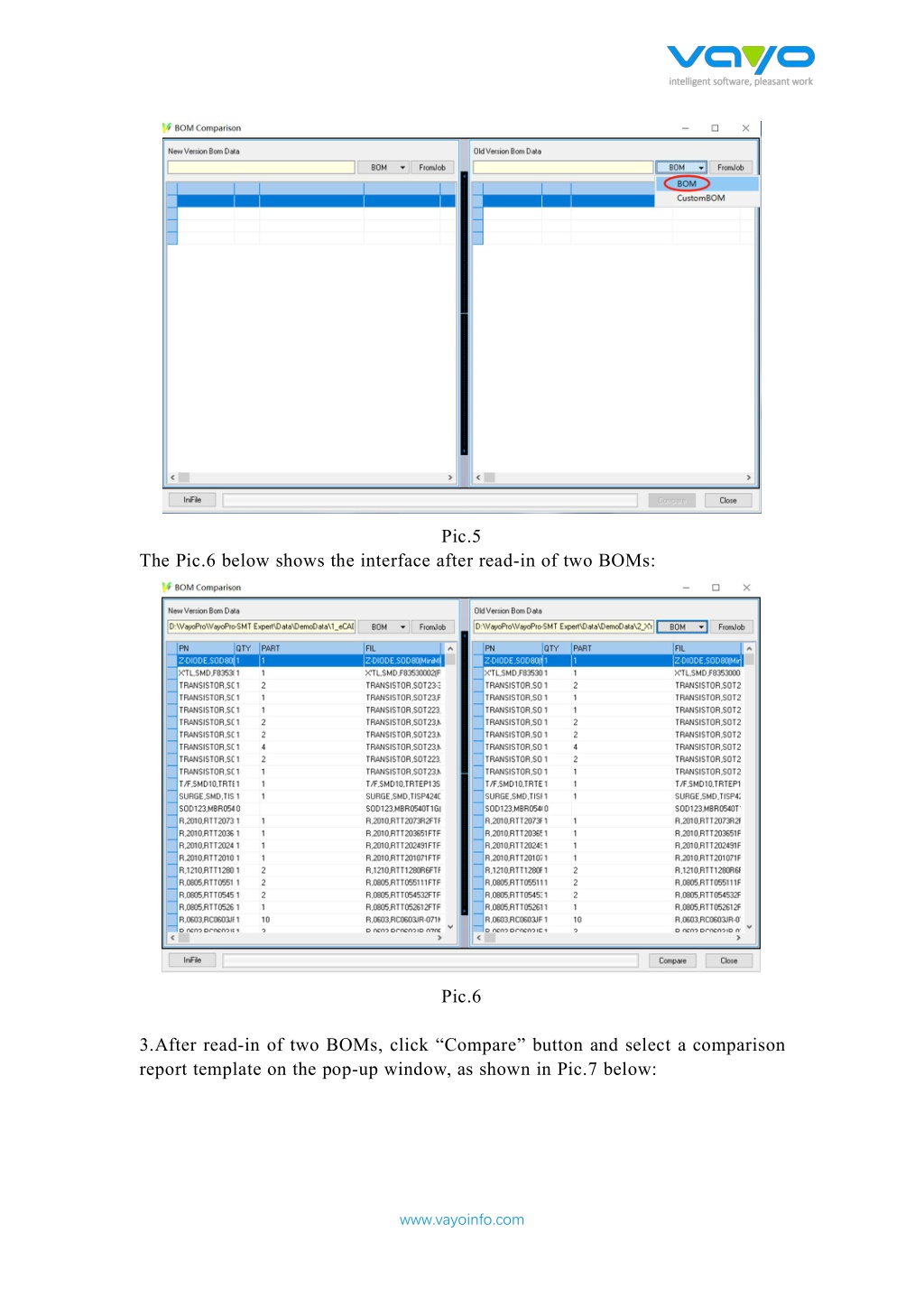

  4. Pic.5 The Pic.6 below shows the interface after read-in of two BOMs: Pic.6 3.After read-in of two BOMs, click “Compare” button and select a comparison report template on the pop-up window, as shown in Pic.7 below: www.vayoinfo.com

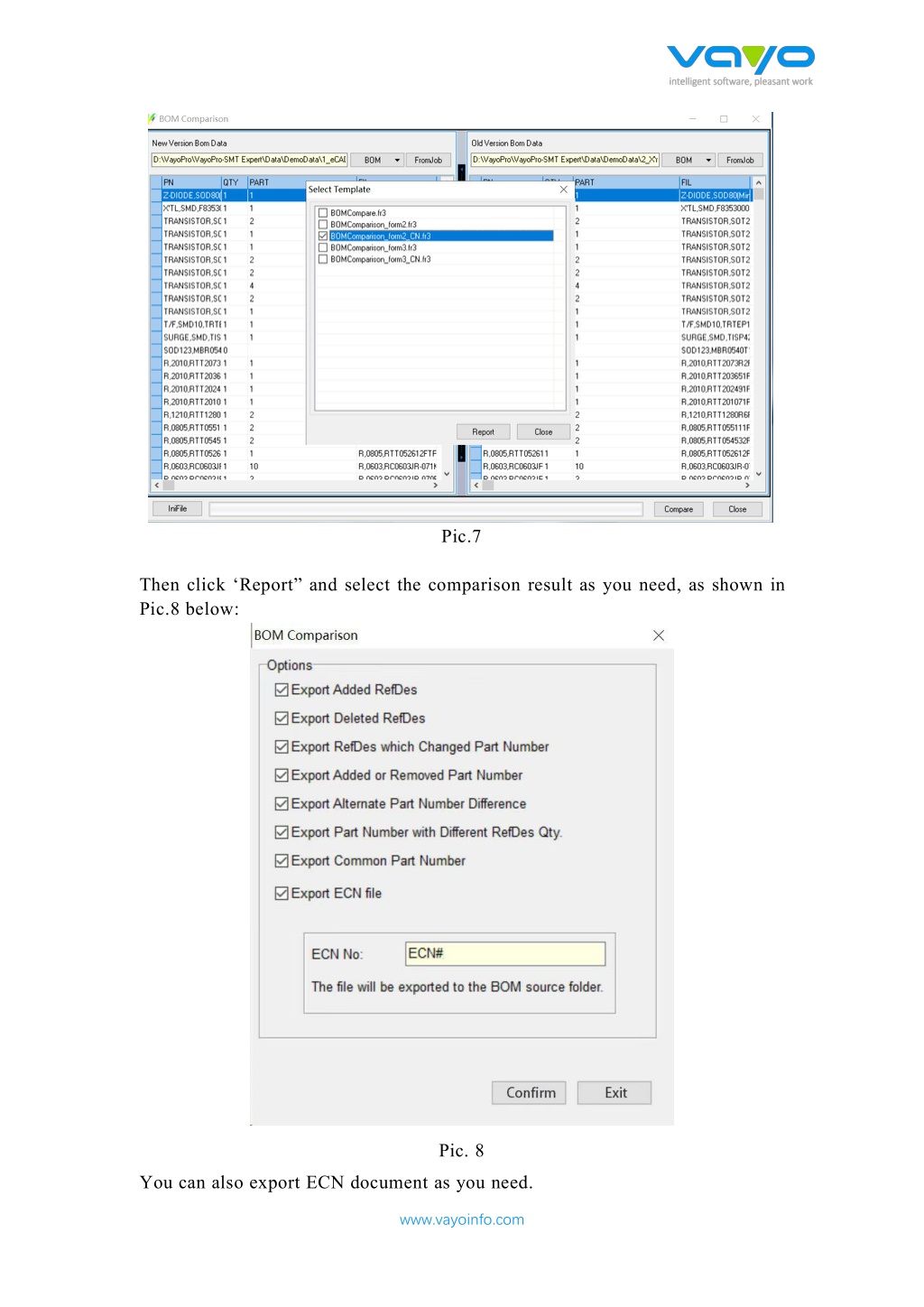

  5. Pic.7 Then click ‘Report” and select the comparison result as you need, as shown in Pic.8 below: Pic. 8 You can also export ECN document as you need. www.vayoinfo.com

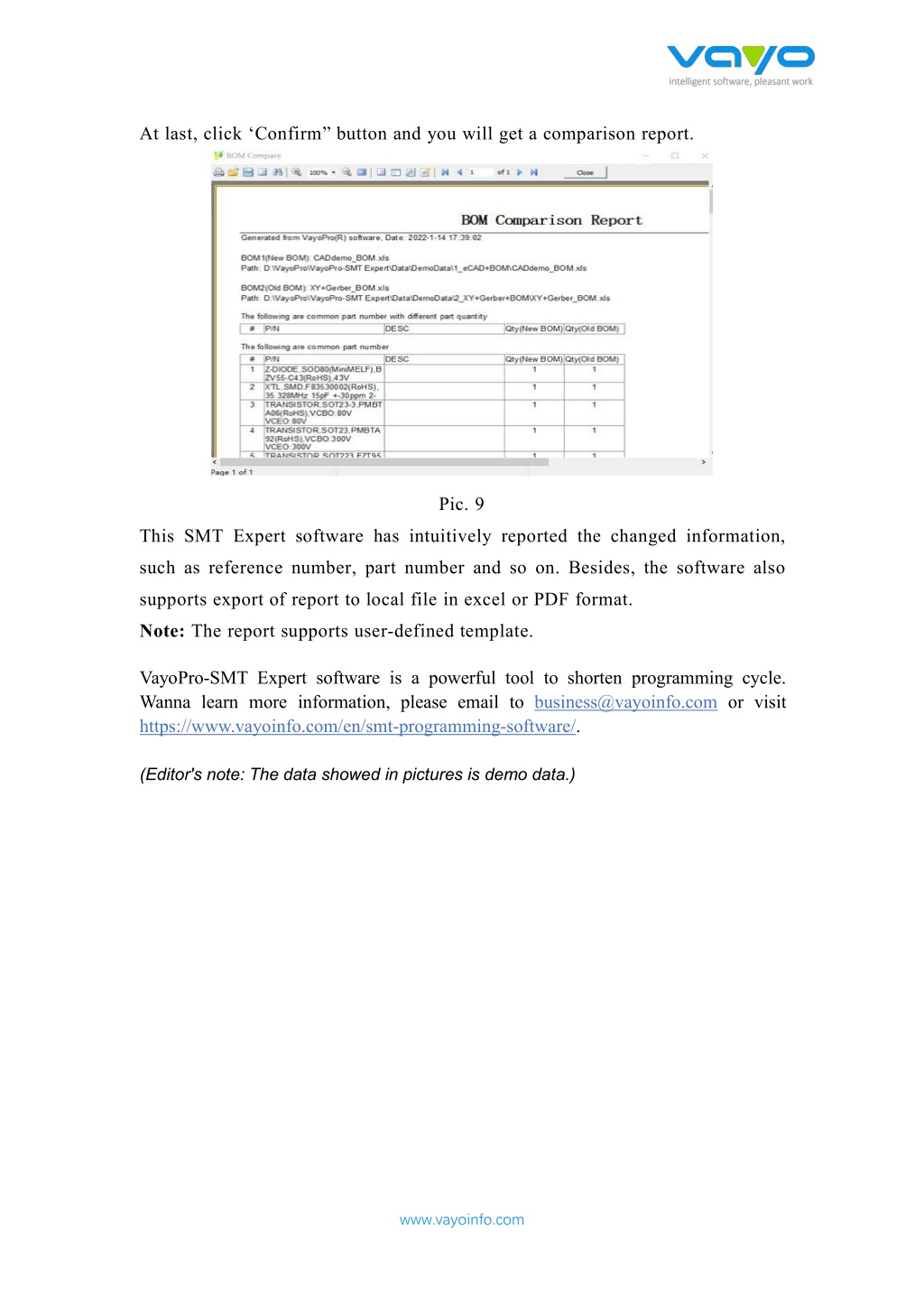

  6. At last, click ‘Confirm” button and you will get a comparison report. Pic. 9 This SMT Expert software has intuitively reported the changed information, such as reference number, part number and so on. Besides, the software also supports export of report to local file in excel or PDF format. Note: The report supports user-defined template. VayoPro-SMT Expert software is a powerful tool to shorten programming cycle. Wanna learn more information, please email to business@vayoinfo.com or visit https://www.vayoinfo.com/en/smt-programming-software/. (Editor's note: The data showed in pictures is demo data.) www.vayoinfo.com
