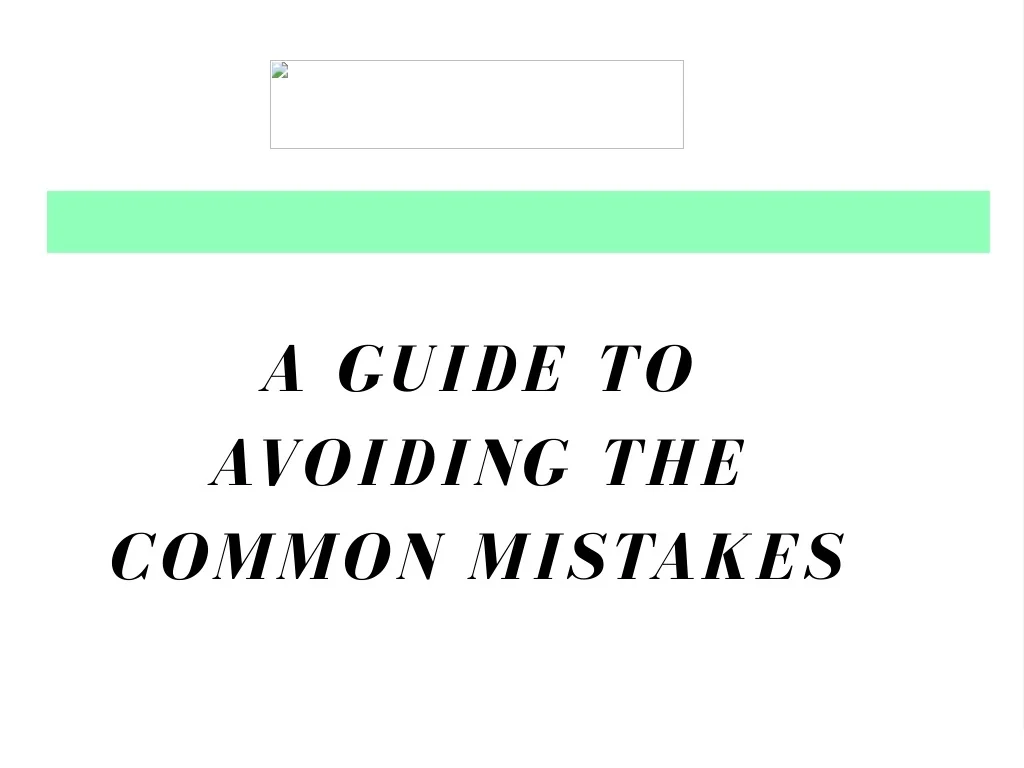

  1. A GUIDE TO AVOIDING THE COMMON MISTAKES

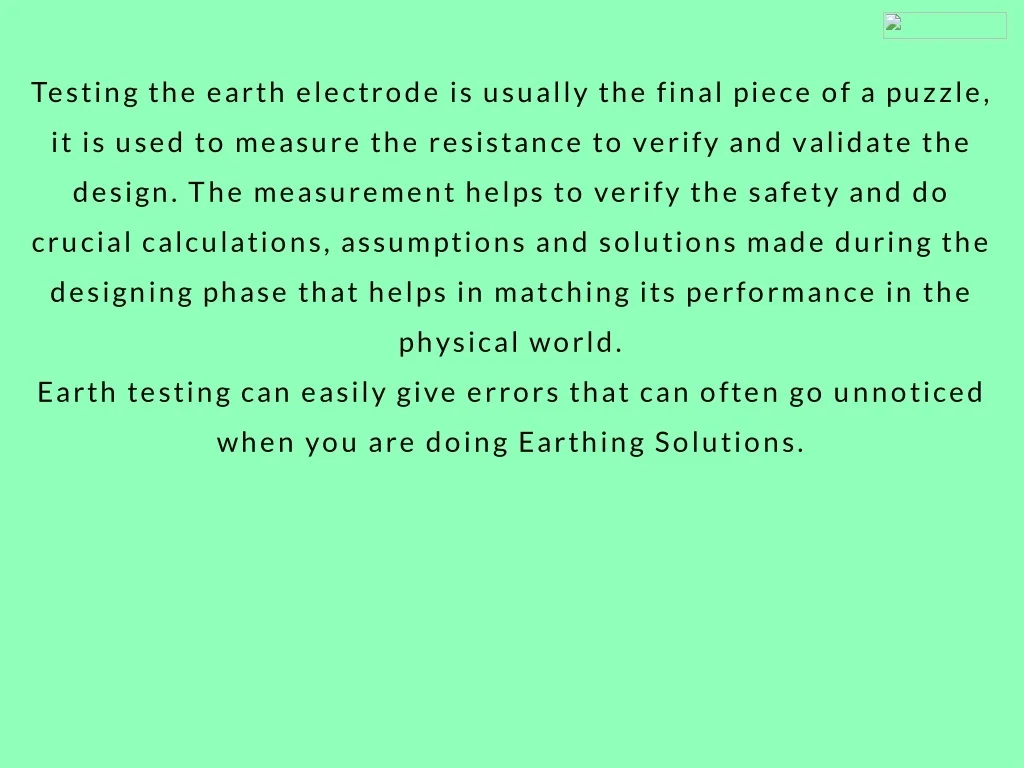

  2. Testing the earth electrode is usually the final piece of a puzzle, it is used to measure the resistance to verify and validate the design. The measurement helps to verify the safety and do crucial calculations, assumptions and solutions made during the designing phase that helps in matching its performance in the physical world. Earth testing can easily give errors that can often go unnoticed when you are doing Earthing Solutions.

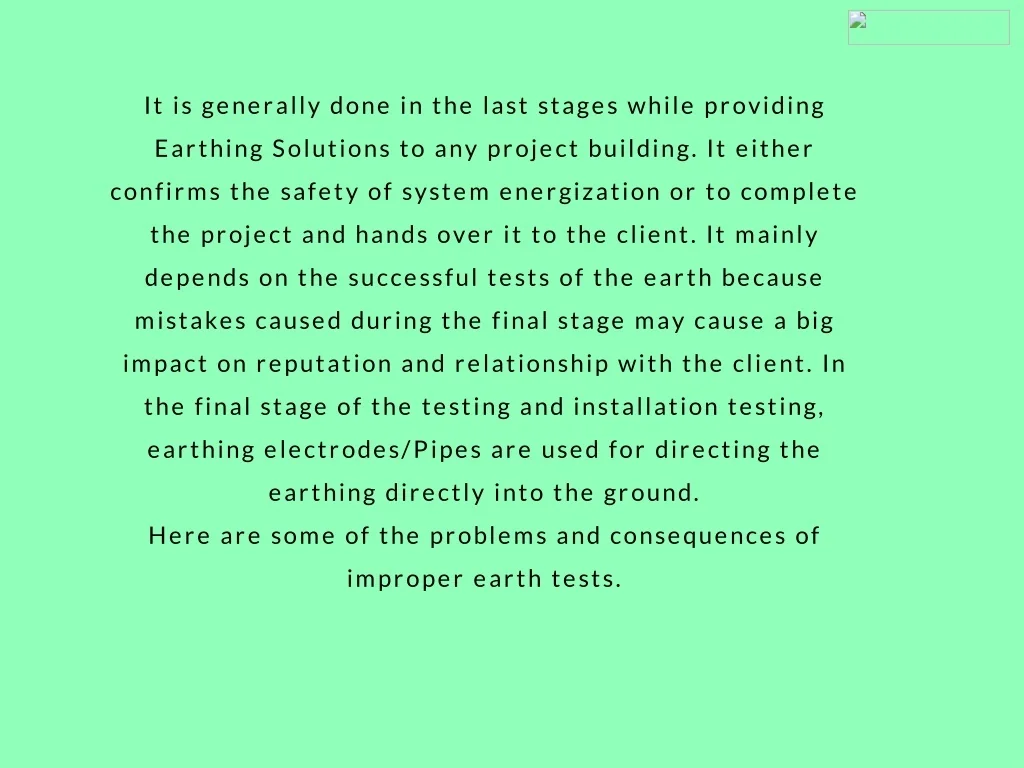

  3. It is generally done in the last stages while providing Earthing Solutions to any project building. It either confirms the safety of system energization or to complete the project and hands over it to the client. It mainly depends on the successful tests of the earth because mistakes caused during the final stage may cause a big impact on reputation and relationship with the client. In the final stage of the testing and installation testing, earthing electrodes/Pipes are used for directing the earthing directly into the ground. Here are some of the problems and consequences of improper earth tests.

  4. ELEMENTUM Problems that may occur during the earth test:- Overstated resistance value Understated resistance value Resistance Value of the Earthing System Material of the earthing system Moisture availability

  5. LIGULA CONVALLIS Overstated resistance is usually the most obvious. Overstated resistance carries less risk with it as high reading is usually a red flag that can block progress. Shree Vasudha provides solution-oriented products across the country. We are engaged in Earthing Material manufacturers, trading & servicing a wide range of power products for various domestic & industrial applications. The negative outcome is mainly important for an increasing resistance test that falls in constructability and delays. There is less risk when it comes to safety if the given project cannot pass the test until it goes through low earth test values when measured.

  6. LIGULA CONVALLIS Now it brings us to the second outcome which is understated resistance. Understated testing is a silent killer, error in the test may lead to artificially low resistance value that gives undetectable and false information. When you think you have concurred on another milestone of providing Earthing Solutions but you haven’t realized a high resistance is lying in the background.

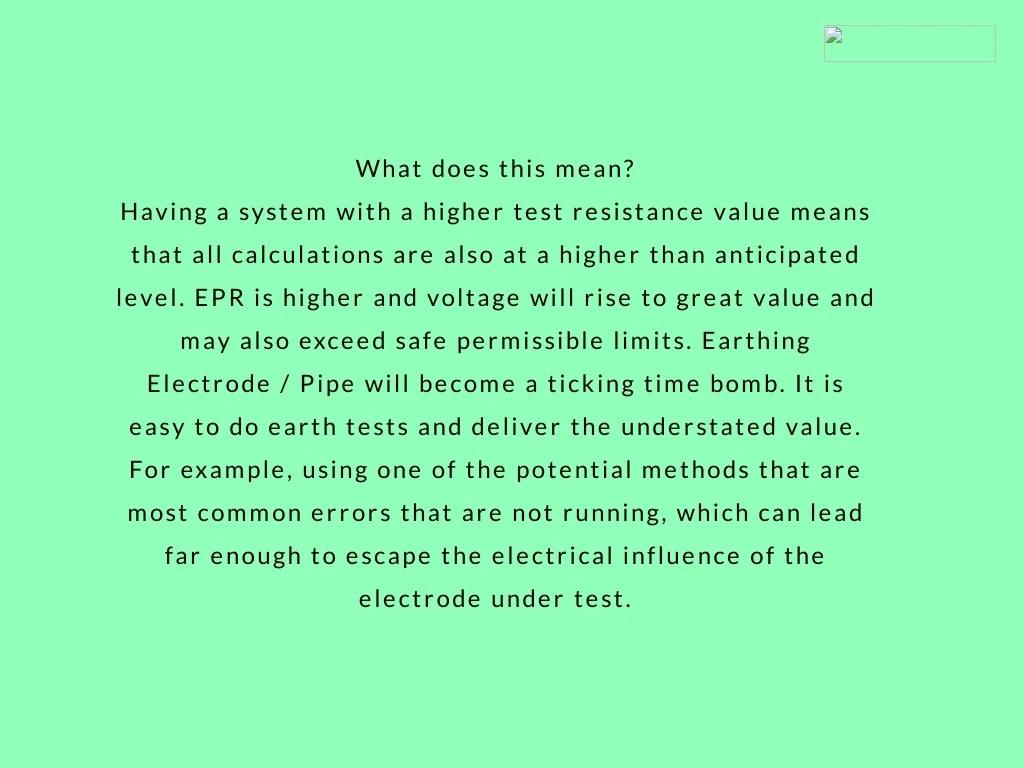

  7. LIGULA CONVALLIS What does this mean? Having a system with a higher test resistance value means that all calculations are also at a higher than anticipated level. EPR is higher and voltage will rise to great value and may also exceed safe permissible limits. Earthing Electrode / Pipe will become a ticking time bomb. It is easy to do earth tests and deliver the understated value. For example, using one of the potential methods that are most common errors that are not running, which can lead far enough to escape the electrical influence of the electrode under test.

  8. Here are 3 factors of a good earthing system: If you want to check the health of the current earthing system and if you are not sure which type of earthing you should choose for your safety, the resistance value of the Earthing Electrode / Pipe. Lower the resistance value better the earthing system. Generally, in normal soil conditions, the resistance values of 2 ohms or below are considered good. But if the resistance value is zero, the earthing system is considered dead or damaged. Earthing Material manufacturer for the earthing system is also a major factor that determines the capability, efficiency and life. Earthing systems in India are found in either Galvanized Iron (GI) or Copper made. Both systems have different life and cost. Galvanized iron is generally used in the earthing system. It has a comparatively lower life span than any other material such as copper or bronze, but it is pocket-friendly and makes it a favorable system. Availability of water and moisture is unavoidable for any earthing system around the globe. Any system for earthing needs moisture in order to sustain and work efficiently.
