sc 214 wg 78 sg 3 status of interop standards at plenary 9

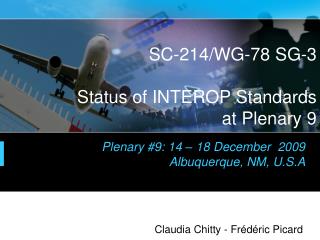

SC-214/WG-78 SG-3Status of INTEROP Standardsat Plenary 9

Plenary #9: 14 – 18 December 2009Albuquerque, NM, U.S.A

Claudia Chitty - Frédéric Picard

slide2
Issues to be addressed

Technical Issues

Documentation Isssues

Validation Process Issues

  • SC-214 / WG78 Standard Status
    • ATN INTEROP Standard
    • FANS Accommodation Standard
    • ATN Technical Specifications
    • SC-214 / WG78 Data Link Profiles
ats interop atn
ATS INTEROP (ATN)

Current Scope:

DLIC+,

CPDLC: ACL+, ACM+, AMC+, D-TAXI, DCL

ADS-C

DOTIS, RVR

Backwards compatibility rules with ED110B ATN implementations (LK2+)

Current Version

V0.16

Aligned with SPR Version G

Editors: F. Picard (DLIC,CPDLC/FIS) G. Saccone (ADS-C)

Status

Review to be completed this week (17 ATN comments)

Ready for validation

Future Work

Completion D-RVR (P10)

Inclusion of D-HZWX, ITP and Oceanic Services (2010)

Validation Effort

CPDLC : medium (validation by « delta » vs. ED110B/DO280B)

ADS-C and FIS: high (new)

INTEROP LK2+ Backwards Compatibility Specifications: high (new)

fans1 a interop
FANS1/A+ INTEROP

Scope:

Accommodation for CM & CPDLC (WP1)

Guidance Material for ADS-C (WP2)

Current Version

WP1_v11 – WP2_v0.3

Aligned with SPR Version G

Editor: G. Collings

Status

7 comments on DCL

Ready for validation

Validation Effort

CPDLC-based services: low (validation by « delta » vs. ED-154 / DO-306)

sc 214 wg78 data link profiles poics
SC-214 / WG78 Data Link Profiles(POICS)

CPDLC

Editor: Bruce Eckeert

Current Version: v0.16

Review in progress (1 comment)

ADS-C

Current version: V0.16

Editor: Fred Picard

Airborne part only available

4DTRAD Support only

Concern

Simplification of POICS proforma for a better use

Future Work

Ground ADS-C Part

FIS not started

NEW

atn technical specifications doc 9880
ATN Technical Specifications(Doc 9880)

CM – ATN A/G Protocol Specification

Doc 9880 Edition 1 fully applicable

No change require to support SC-214 profile

PM-CPDLC – ATN A/G Protocol Specification

Doc 9880 Edition 1 fully applicable

No change require to support SC-214 profile

PM-ADS – ATN A/G Protocol Specification

Editor: G. Saccone

V0.6 (V0.5 output ICAO)

Aligned with Doc 9694 Draft 12

Distribution at Plenary #9

PM-FIS – ATN A/G Protocol Specification

V1.4 (V1 output ICAO)

Distributed with the April FAA Evaluation Version

Status

Review in progress (no comments)

Ready for validation (PM-ADS & PM-FIS)

Required Validation Effort

CM & (PM)CPDLC = low (validation/implentation done)

(PM)ADS-C & (PM)FIS : medium (ICAO validation in 2006)

NEW

technical issues
Technical Issues

CPDLC (5)

showstopper: Error / enhancement in ASN.1

No LINK backwards compatibility for [route clearance] parameter

ACM (2)

Document differences between normal and abrupt CPDLC connection termination (End vs. Abort)

No latency check on downlink system messages (e.g. DM99 CDA)

DCL (8)

Inconsistency SPR / IOP

Messages in DCL requests (a/c type, prefered level, departure frequency…)

ADS-C (7)

showstopper: single or multiple RTA ?

Emergency status in ADS-C contract reject message ?

Level defined twice in ADS-C report

Fixname replaced by Waypoint Identifier in ADS-C report

« Lateral Type » values, EPP parameter optional/mandatory attributes not consistent with SPR

SNOWTAM (1)

ASN.1 definition of SNOWTAM report (close)

ITP (1)

Alignment with ED122 Change 1 proposal

PICS (1)

Errors detected in CPDLC PICS

documentation management issues
Documentation Management Issues
  • Traceability
    • SC-214 INTEROP Requirements to ED110B/DO280B IRs
    • SC-214 FANS Accommodatrion Requirements to ED-154/DO-306 Requirements
    • Question to Plenary: confirm the need for such traceability.
  • Document Naming
    • Names required for SC-214/WG-78 documents (e.g. « PU-40 » before ED-154 publication)
  • Document Versions
    • Several version conventions for SPR (letter), INTEROP documents (major/minor release) – Decide on way and document in José’s WP.
  • Document Configuration Control
    • Wide distribution of defects and defect resolutions
    • Need for a formal Configuration Process
      • Comment matrix is not sufficient
      • Formal PDR (Proposed Defect Report)
    • Need for establishing a CCB before validation starts
    • Need for a dedicated mailing list and/or a PDR data base (e.g. bugzilla)
validation process 2010 s 214 issues
Validation Process (2010) – S-214 Issues
  • Need to define a Validation Plan with Validation Objectives covering all documents (SPR, IOP, Tech Specs)
      • Functional Validation Objectives (VO)
      • Technical Validation Objectives (TO)
      • Document/Specification Validation Objecftives (SO)
  • Need to define Validation means and Validation level
    • Paper Review
    • Implementation of Prototypes by 1 or more than 2 independant initiatives
  • Consolidate a Validation Report
    • From validation reports sent by validation initiatives
    • Validation Coverage Analysis
    • Validation Assessment and Statement
week output
Week output
  • No separate INTEROP meeting – Common working sessions with the SPR SG. Issues and resolution are the one reported by SPR SG.
  • 32 new comments have been raised. Editors have clear instructions how to handle these comments. Should be done by January. No showstopper for INTEROP.
  • The DCL issues for FANS accommodation have been addressed in the DCL session and are closed.
  • CPDLC PICS are up to date.
  • Material for CPDLC is now stable.
  • Work remains to be done is to align the INTEROP doc with the decisions taken this week on ADS-C
