  1. UML Model Development and Registration – Some Things You May not Know Session Date: May 4, 2005 Session Length: 30 Minutes Target Audience: TBPT Modelers Trainer: Tommie Curtis curtist@mail.nih.gov NCICB Liaison / Expert Curator: Dianne Reeves reevesd@mail.nih.gov

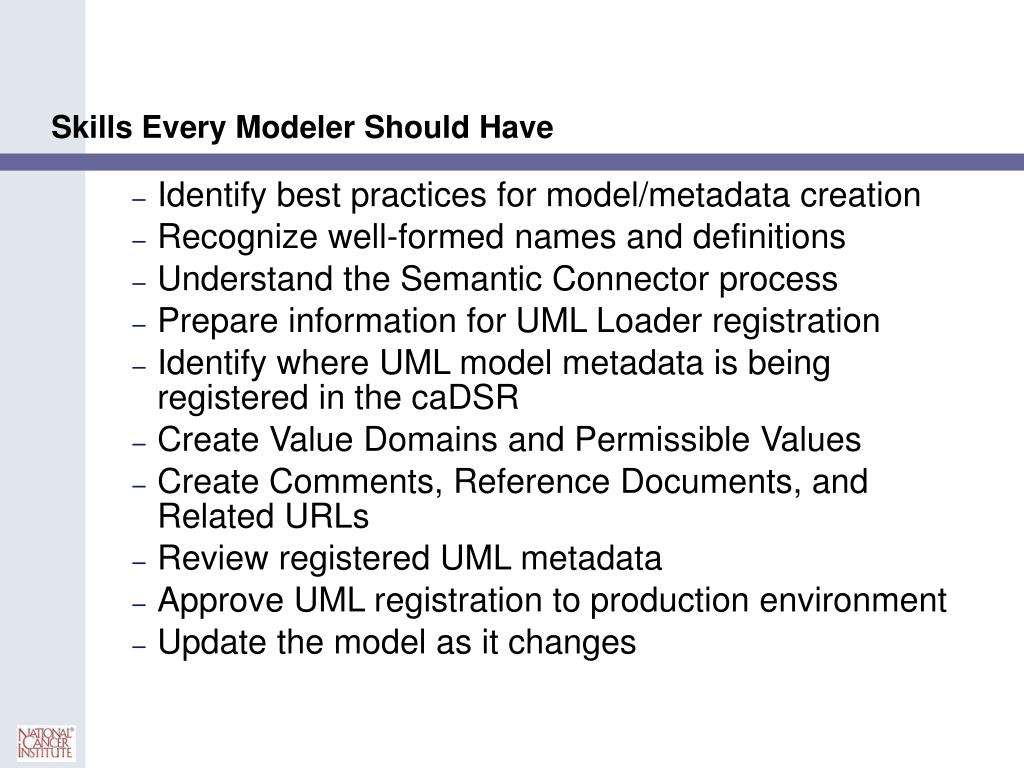

  2. Skills Every Modeler Should Have • Identify best practices for model/metadata creation • Recognize well-formed names and definitions • Understand the Semantic Connector process • Prepare information for UML Loader registration • Identify where UML model metadata is being registered in the caDSR • Create Value Domains and Permissible Values • Create Comments, Reference Documents, and Related URLs • Review registered UML metadata • Approve UML registration to production environment • Update the model as it changes

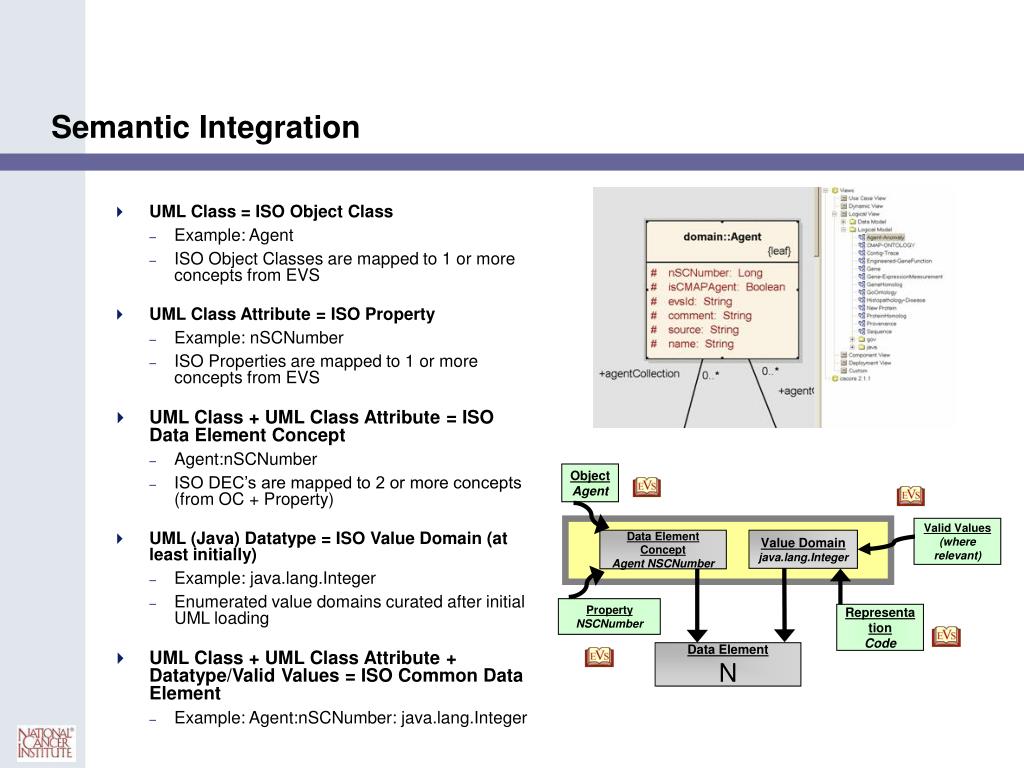

  3. Object Agent Valid Values (where relevant) Data Element Concept Agent NSCNumber Value Domain java.lang.Integer Property NSCNumber Representation Code Data Element N Semantic Integration • UML Class = ISO Object Class • Example: Agent • ISO Object Classes are mapped to 1 or more concepts from EVS • UML Class Attribute = ISO Property • Example: nSCNumber • ISO Properties are mapped to 1 or more concepts from EVS • UML Class + UML Class Attribute = ISO Data Element Concept • Agent:nSCNumber • ISO DEC’s are mapped to 2 or more concepts (from OC + Property) • UML (Java) Datatype = ISO Value Domain (at least initially) • Example: java.lang.Integer • Enumerated value domains curated after initial UML loading • UML Class + UML Class Attribute + Datatype/Valid Values = ISO Common Data Element • Example: Agent:nSCNumber: java.lang.Integer

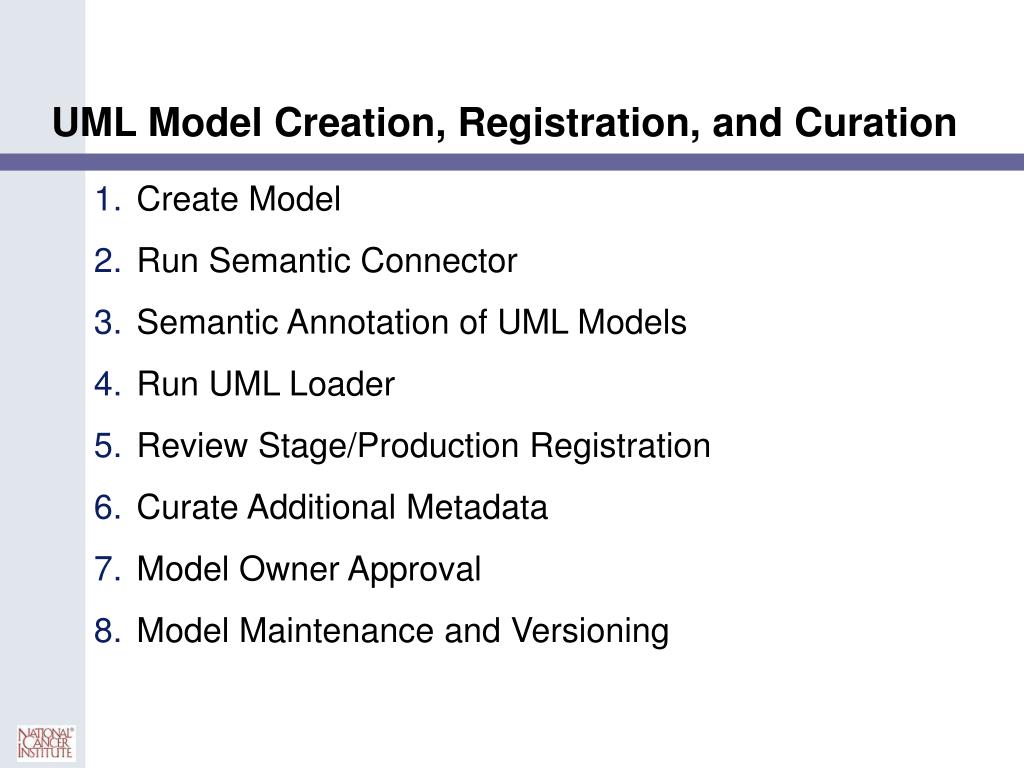

  4. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

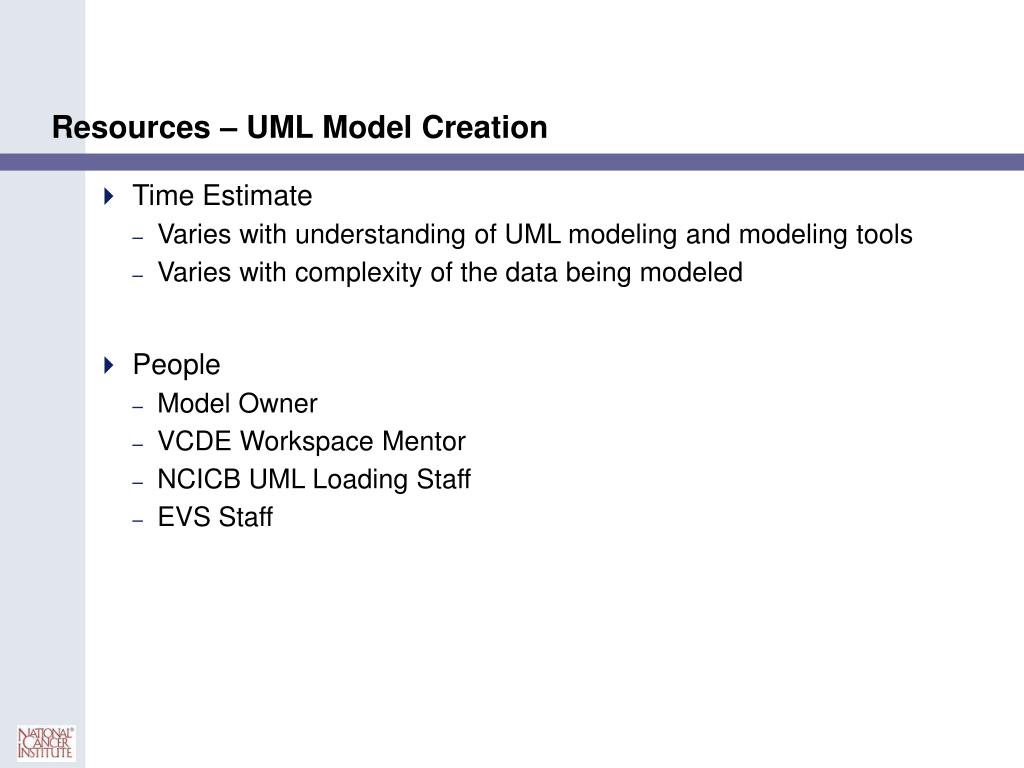

  5. Resources – UML Model Creation • Time Estimate • Varies with understanding of UML modeling and modeling tools • Varies with complexity of the data being modeled • People • Model Owner • VCDE Workspace Mentor • NCICB UML Loading Staff • EVS Staff

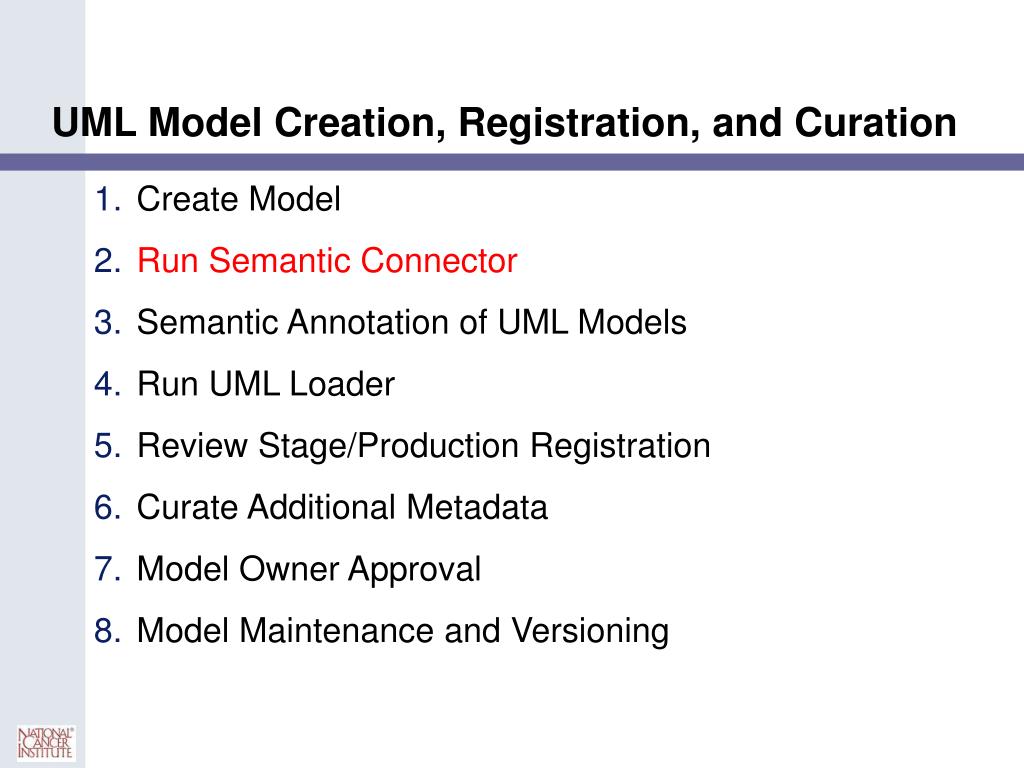

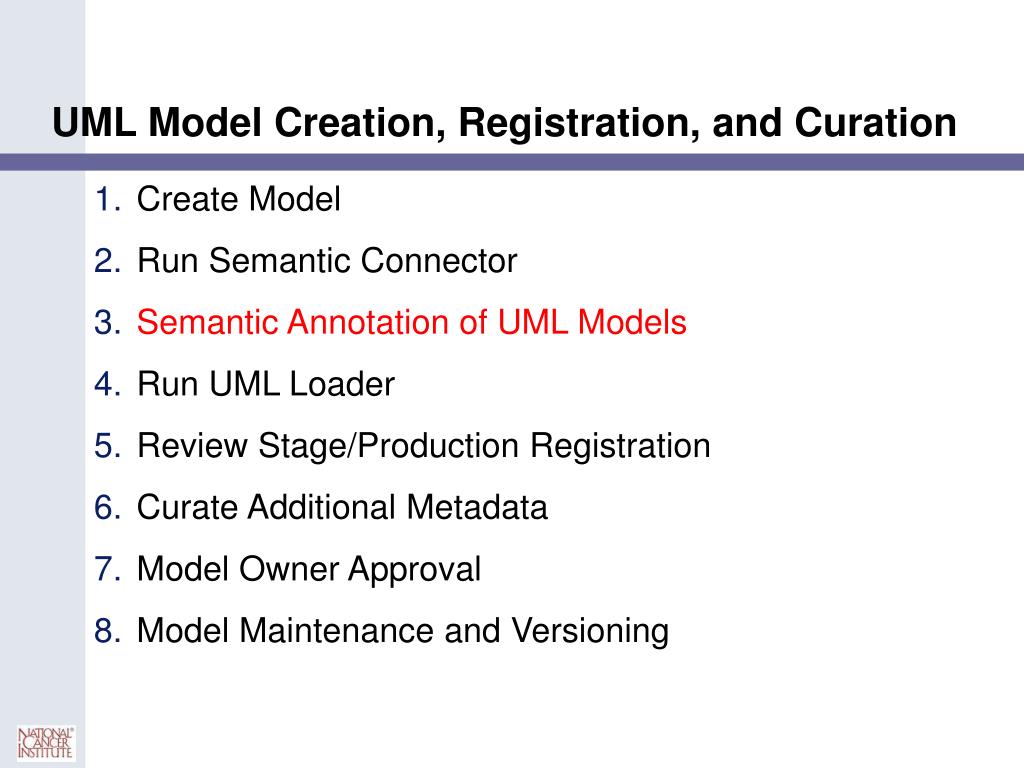

  6. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

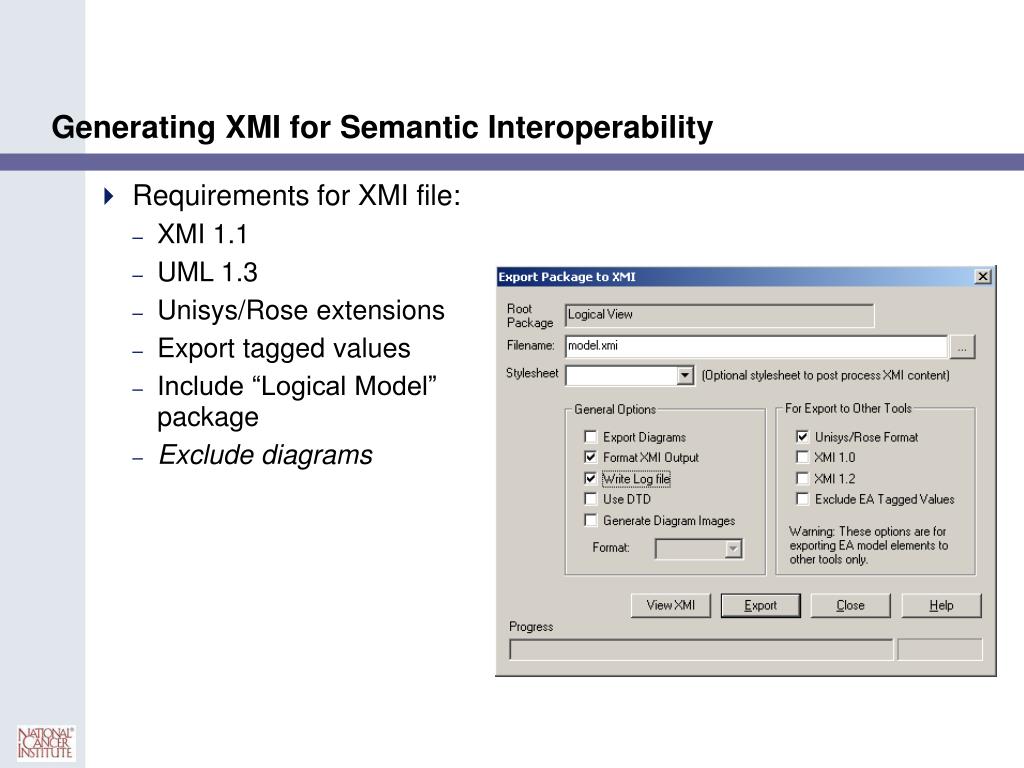

  7. Generating XMI for Semantic Interoperability • Requirements for XMI file: • XMI 1.1 • UML 1.3 • Unisys/Rose extensions • Export tagged values • Include “Logical Model” package • Exclude diagrams

  8. Running the Semantic Connector • If you know terms/concepts that you will need at not currently in the EVS vocabulary, submit a request to EVS for the addition of the terms prior to running the Semantic Connector. • Send an email to NCICB@pop.nic.nih.gov with the terms and definitions. • Include “Terms for EVS” in the subject line. • Submit the annotated XMI file to NCICB: • To NCICB@pop.nci.nih.gov • Include “For semantic connection” in the subject line • Your model will be run through the Semantic Connector • A semantic connector report will be generated • Comma-separated file (CSV) • Relates terms from diagram to EVS concepts • Report will be curated, verified and sent to you for approval and submission for loading

  9. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

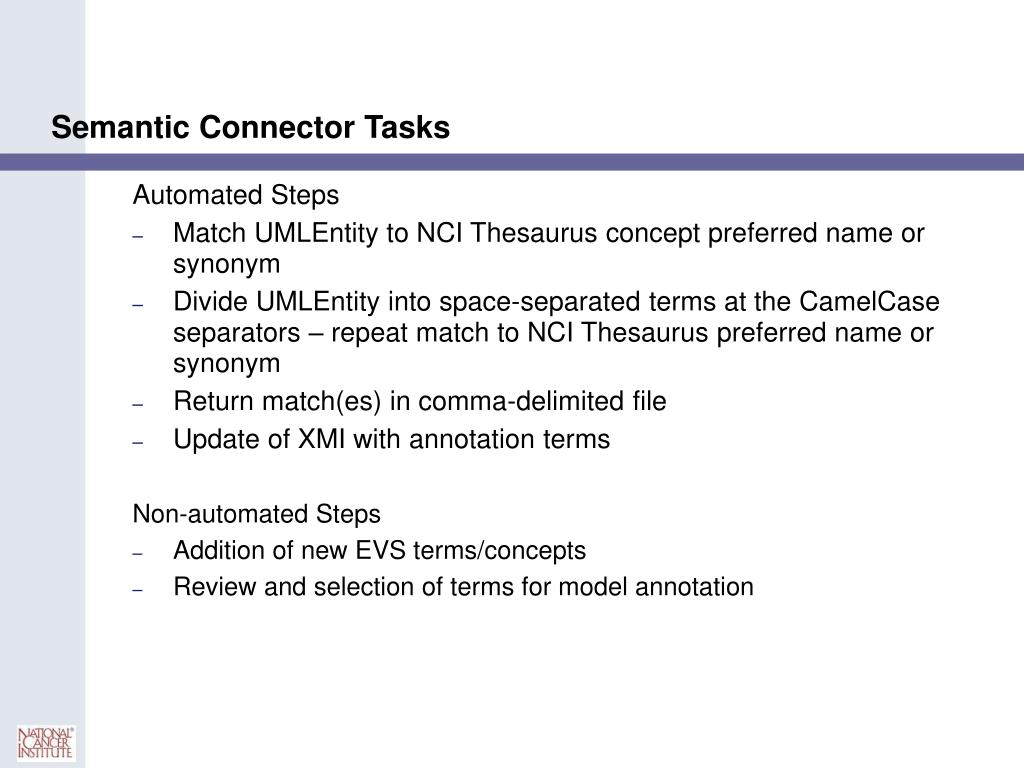

  10. Semantic Connector Tasks Automated Steps • Match UMLEntity to NCI Thesaurus concept preferred name or synonym • Divide UMLEntity into space-separated terms at the CamelCase separators – repeat match to NCI Thesaurus preferred name or synonym • Return match(es) in comma-delimited file • Update of XMI with annotation terms Non-automated Steps • Addition of new EVS terms/concepts • Review and selection of terms for model annotation

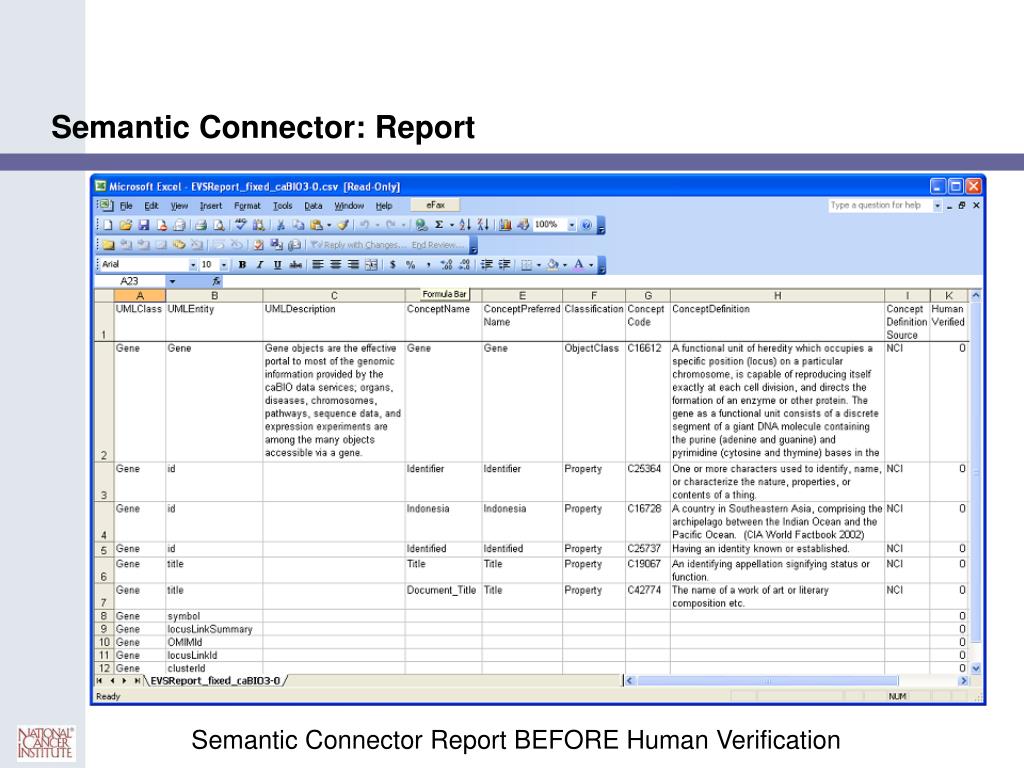

  11. Semantic Connector: Report Semantic Connector Report BEFORE Human Verification

  12. Semantic Connector: Report UMLEntities lacking UMLDescription

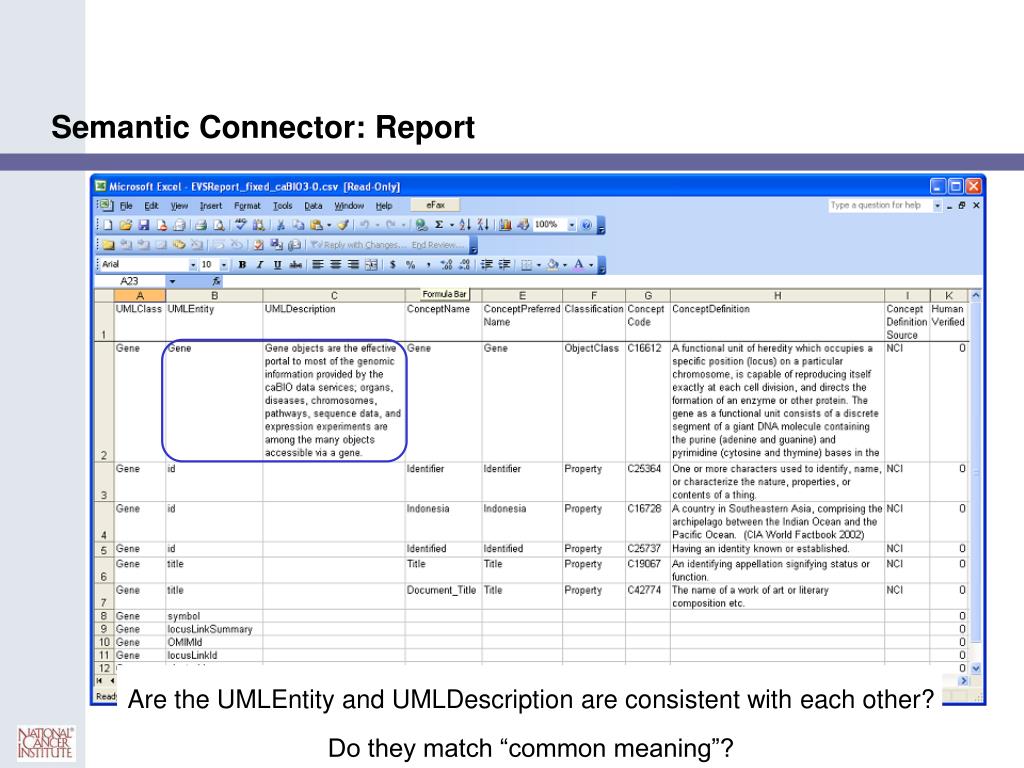

  13. Semantic Connector: Report Are the UMLEntity and UMLDescription are consistent with each other? Do they match “common meaning”?

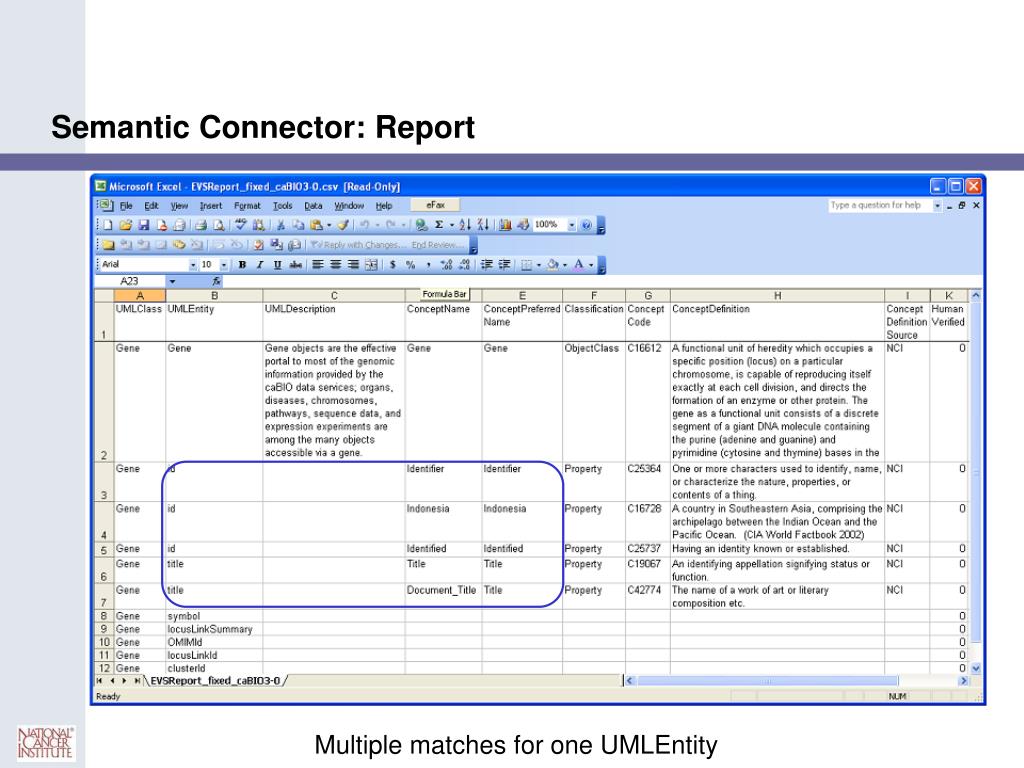

  14. Semantic Connector: Report Multiple matches for one UMLEntity

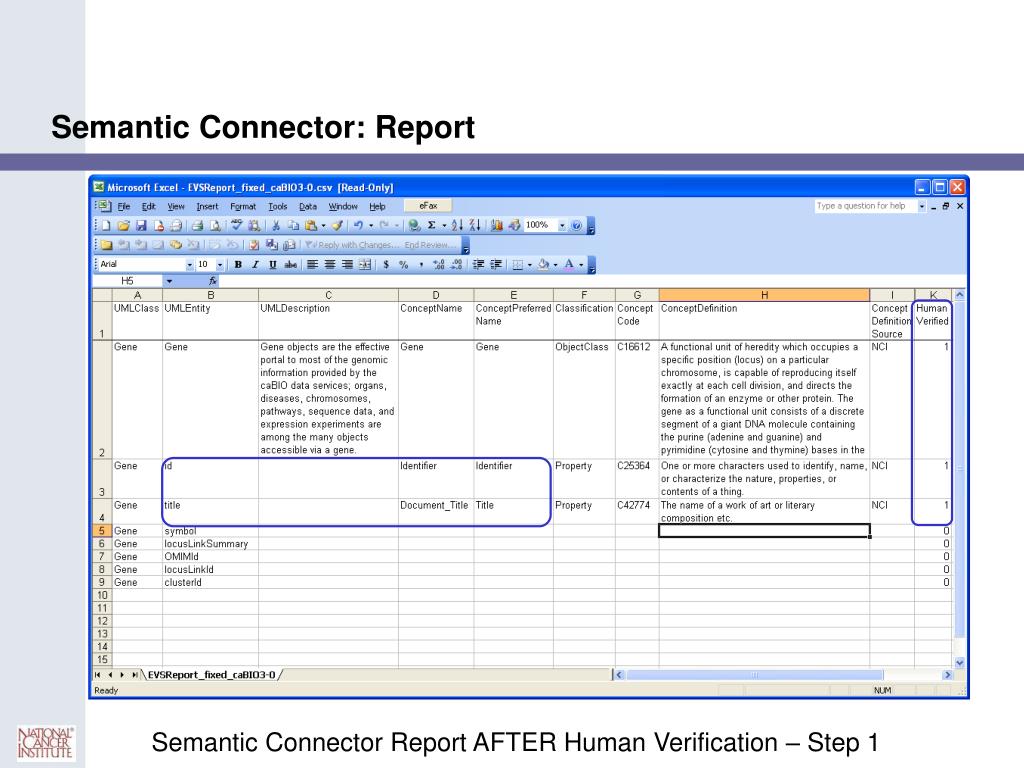

  15. Semantic Connector: Report Semantic Connector Report AFTER Human Verification – Step 1

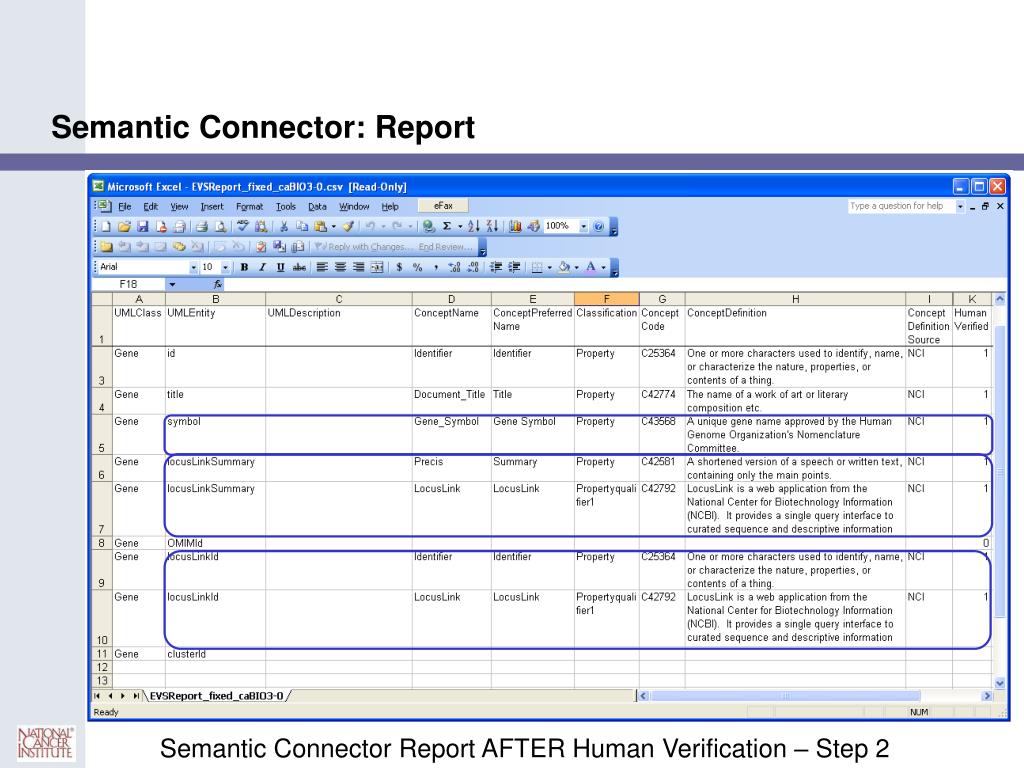

  16. Semantic Connector: Report Semantic Connector Report AFTER Human Verification – Step 2

  17. Problems and Pitfalls • The needed terms are not registered in NCI Thesaurus • Multiple matches are found for a single term • UML Model is changing during the review process • Model requires multiple passes through the Semantic Connector

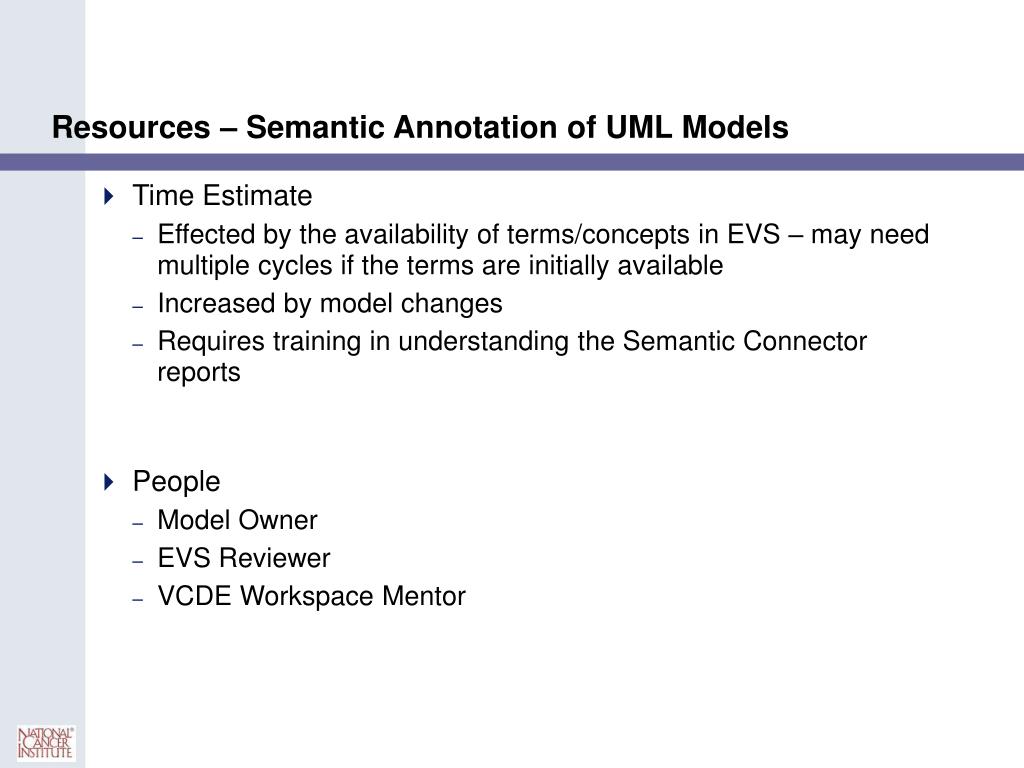

  18. Resources – Semantic Annotation of UML Models • Time Estimate • Effected by the availability of terms/concepts in EVS – may need multiple cycles if the terms are initially available • Increased by model changes • Requires training in understanding the Semantic Connector reports • People • Model Owner • EVS Reviewer • VCDE Workspace Mentor

  19. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

  20. Content of the UML Loader Package • UML Loader Submission Form • Classification Scheme (Project Name) with brief description • Version Number • UML Package(s) Alias and Relationships • Context for Loading • Workflow Status • Datatypes Used in Model • Annotated XMI (terms from the Semantic Connector have been added to the XMI) • Final Semantic Connector Report • Point of Contact Name, Email, and Telephone Number * Required information

  21. Submit the Model for UML Loading • Submit the annotated XMI file to NCICB: • To NCICB@pop.nci.nih.gov • Include “For UML Loading” in the subject line

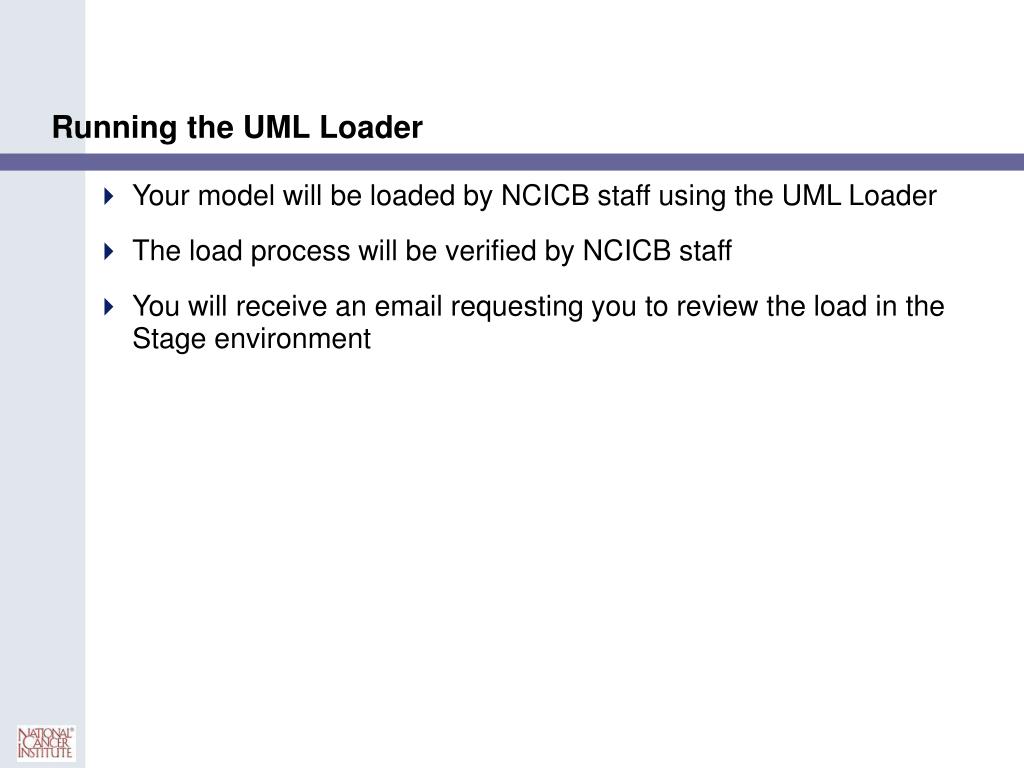

  22. Running the UML Loader • Your model will be loaded by NCICB staff using the UML Loader • The load process will be verified by NCICB staff • You will receive an email requesting you to review the load in the Stage environment

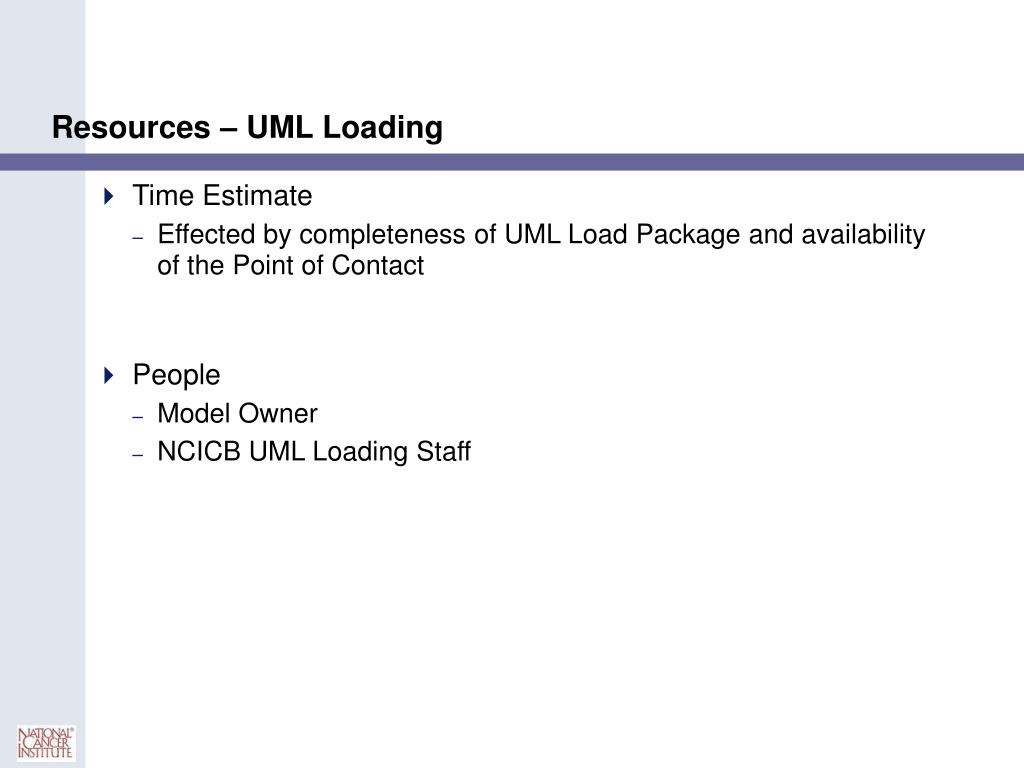

  23. Resources – UML Loading • Time Estimate • Effected by completeness of UML Load Package and availability of the Point of Contact • People • Model Owner • NCICB UML Loading Staff

  24. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Prepare Submission Package • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

  25. Steps for UML Model Review and Curation • Access into Stage for initial review • Address questions to NCICB staff/VCDE Workspace Mentor • Approve model load in Stage • Load into Production for curation of additional metadata • Review final metadata in Production • Release for public use

  26. Staging Review – Is everything in the model registered? Visible with current tools • Object Classes (SDK, p. 84) • Are all Classes represented by Object terms? • Data Element Concepts (SDK, p 29, 112) • Are all Class/Attribute pairs represented by DECs? • Do all DECs have Object Classes and related EVS term CUIs? • Data Elements (SDK, p. 55, 113) • Are all Attributes in the model registered? • Are there Attributes that are not in the model registered? • Naming and Definitions (SDK, p. 112 – 113) • Are Alternate, Preferred, and Long Name formatted correctly? • Do all Objects, Data Element Concepts and Data Elements have Alternate Definitions? • Datatypes (SDK, p. 55) • Does the Representation term in the Data Element match the datatype in the model?

  27. Staging Review – Is everything in the model registered? Not visible with current tools. • Relationships (SDK, p. 58) • Are all Associations and Generalization (or Inheritance) relationships represented correctly? • Specification of Multiplicities (SDK, p. 30, 117) • Are all instances recorded correctly? • Direction (SDK, p. 30) • Are all directional associations specified as entered in the model? • Role Names for Associations between Classes (SDK, p. 59) • Are Roles named correctly?

  28. Problems and Pitfalls • Model Classes/Attributes not registered in caDSR • Missing from submitted model • Not entered in model correctly • Semantic information not recorded in XMI file • caDSR has Classes/Attributes not seen in model • Inconsistent naming • Should not have been exported in XMI file • Missing Definitions • Missing Objects, Properties, and/or Representations • Improper Datatypes • Used Datatype not registered in caDSR • Wrong Datatype selected during registration

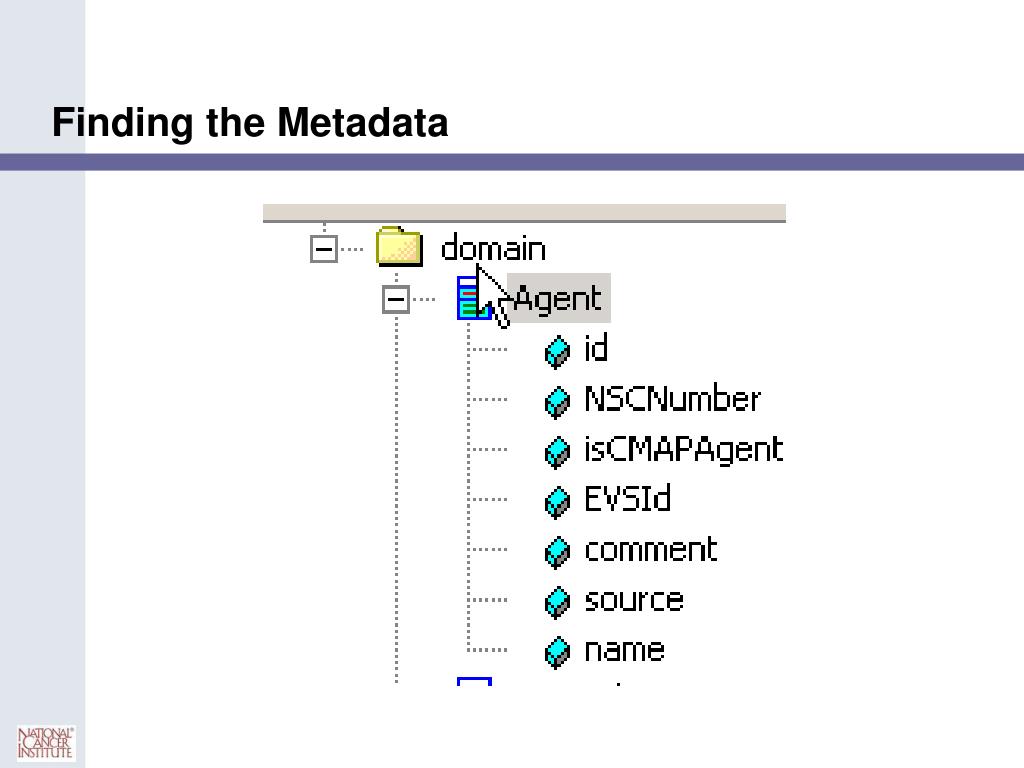

  29. Finding the Metadata

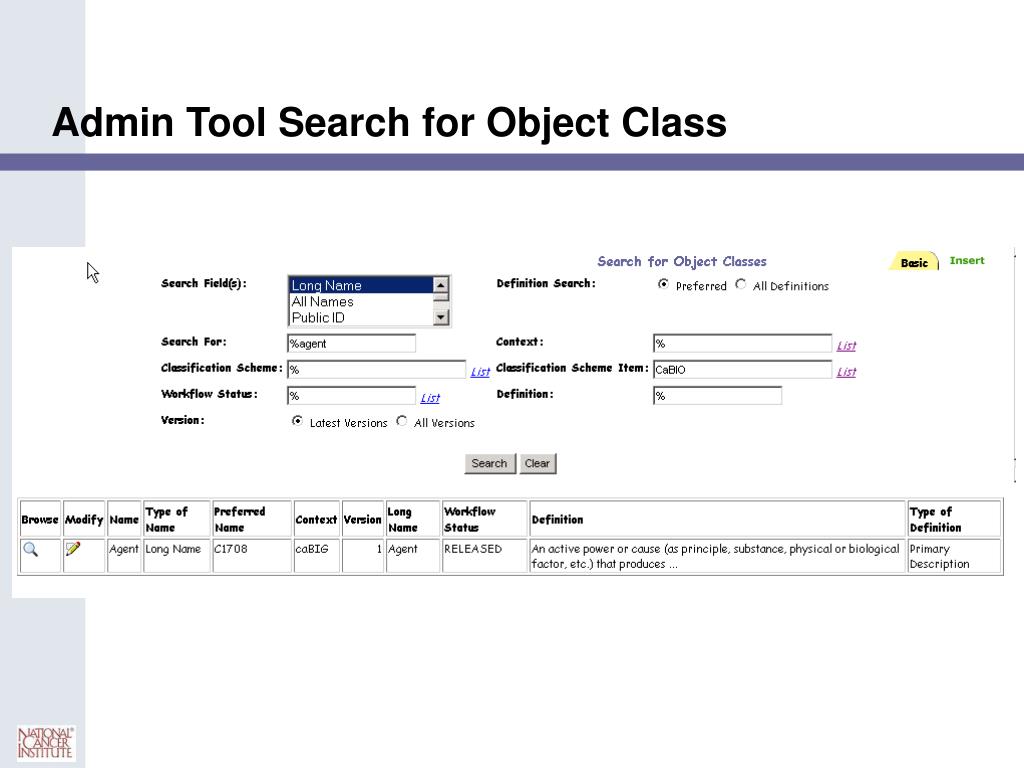

  30. Admin Tool Search for Object Class

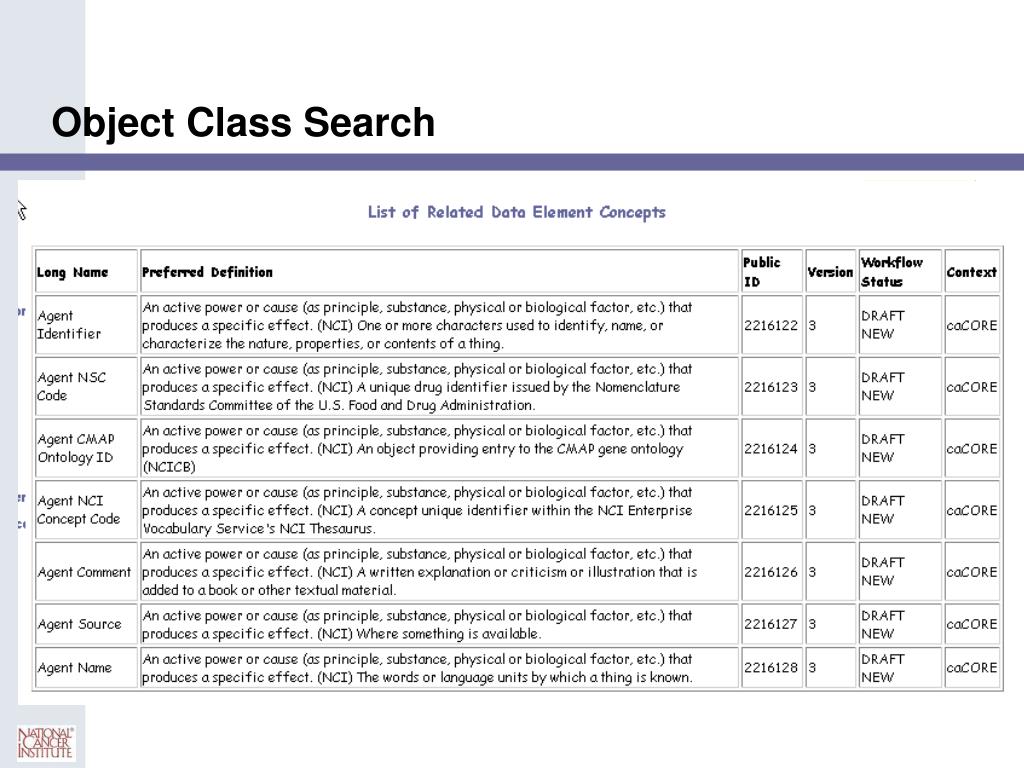

  31. Object Class Search

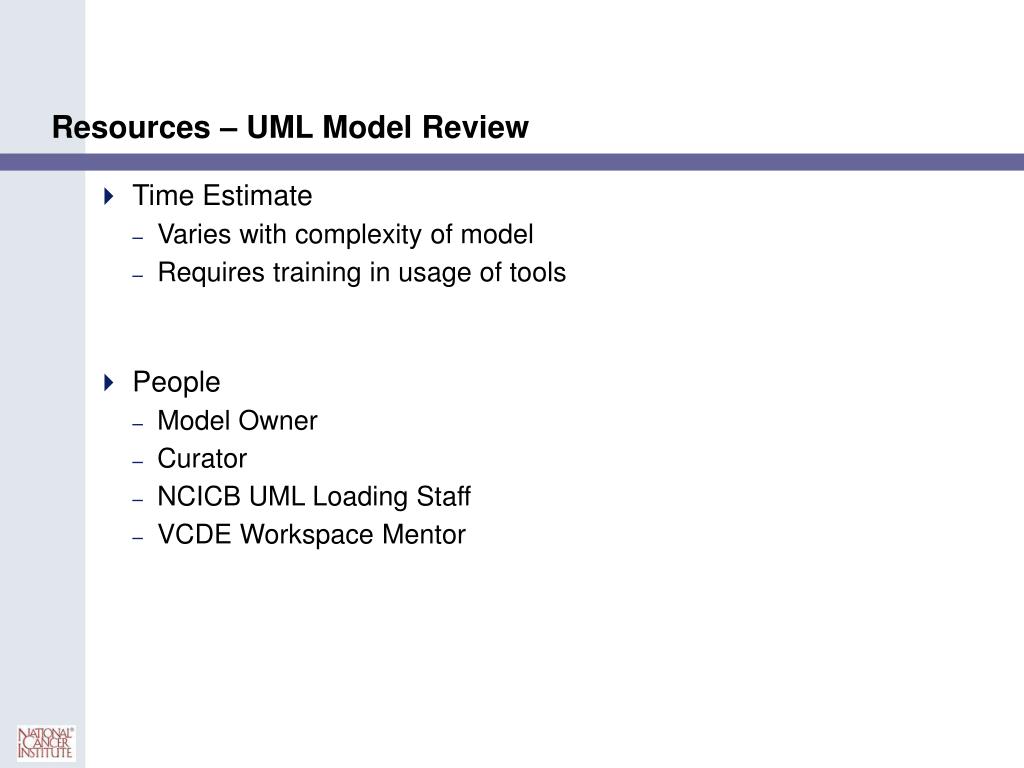

  32. Resources – UML Model Review • Time Estimate • Varies with complexity of model • Requires training in usage of tools • People • Model Owner • Curator • NCICB UML Loading Staff • VCDE Workspace Mentor

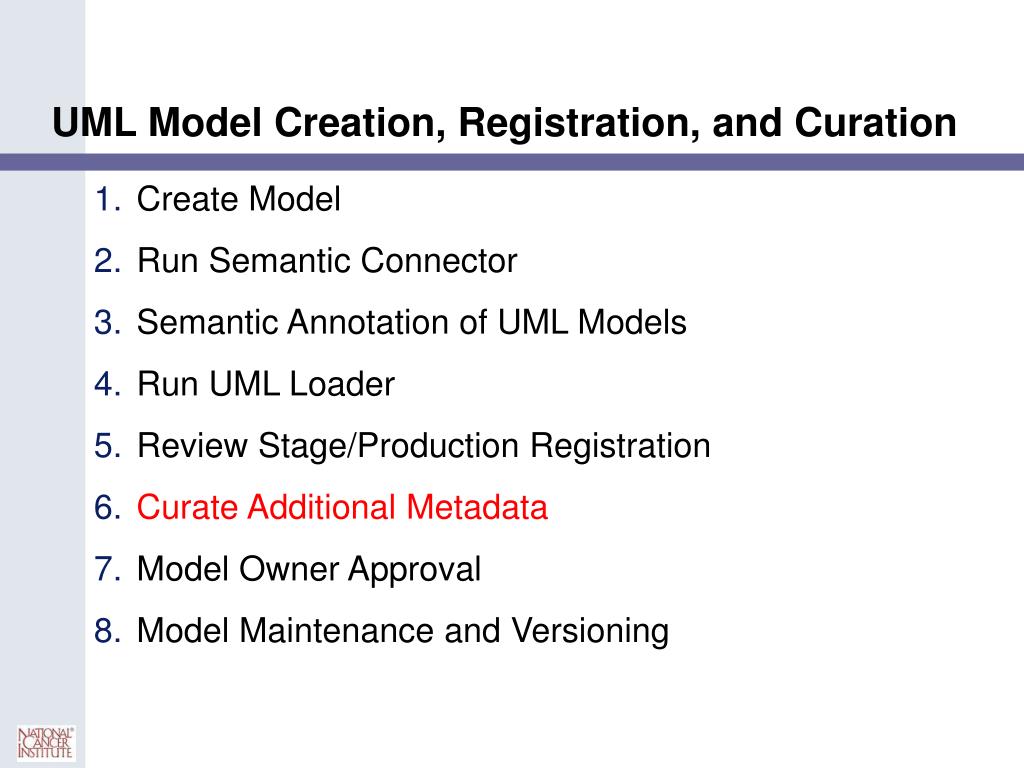

  33. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

  34. Content of the Submission Package • UML Model File (EA Preferred), include diagram • Final Semantic Connector Report • Enumerated Permissible Value Lists with Value Meanings • Point of Contact Name, Email, and Telephone Number • Data Dictionary • User Documentation * Minimum required information

  35. Steps for Curation • Replace initial Value Domains with enumerated Value Domains as needed • Add Explanatory Comments • Associate Reference Documents, Files, or URLs

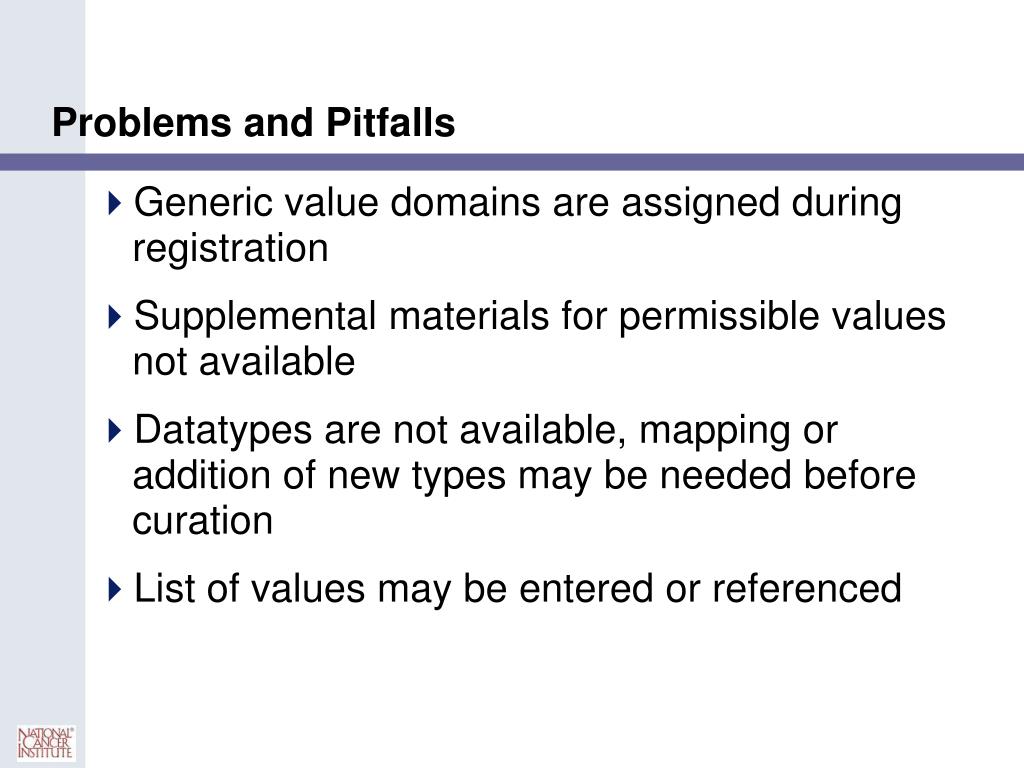

  36. Problems and Pitfalls • Generic value domains are assigned during registration • Supplemental materials for permissible values not available • Datatypes are not available, mapping or addition of new types may be needed before curation • List of values may be entered or referenced

  37. Adding Supplemental Information • Requires Manual Curation using the Admin Tool • Comments • Reference Documents • Related URL’s

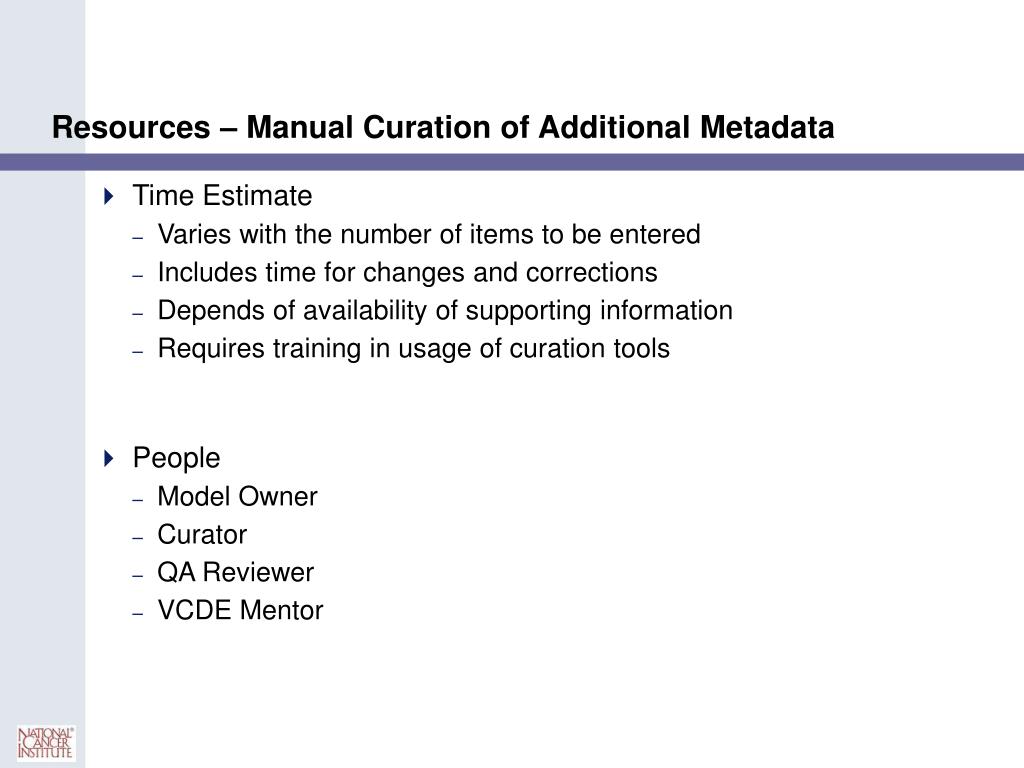

  38. Resources – Manual Curation of Additional Metadata • Time Estimate • Varies with the number of items to be entered • Includes time for changes and corrections • Depends of availability of supporting information • Requires training in usage of curation tools • People • Model Owner • Curator • QA Reviewer • VCDE Mentor

  39. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

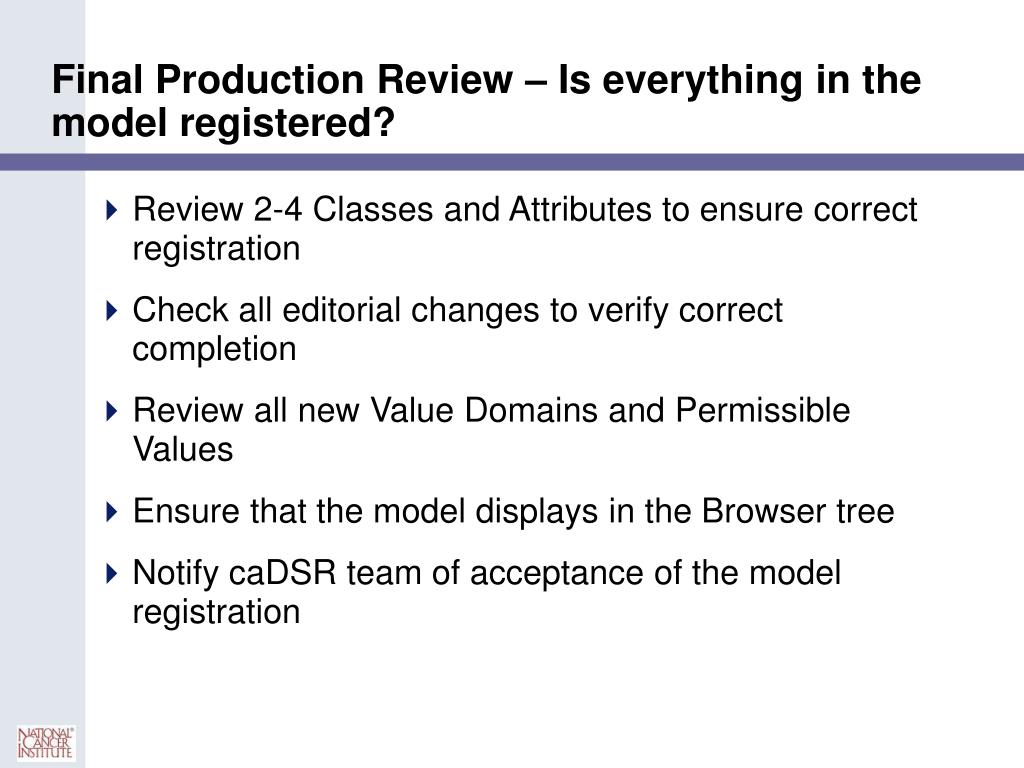

  40. Final Production Review – Is everything in the model registered? • Review 2-4 Classes and Attributes to ensure correct registration • Check all editorial changes to verify correct completion • Review all new Value Domains and Permissible Values • Ensure that the model displays in the Browser tree • Notify caDSR team of acceptance of the model registration

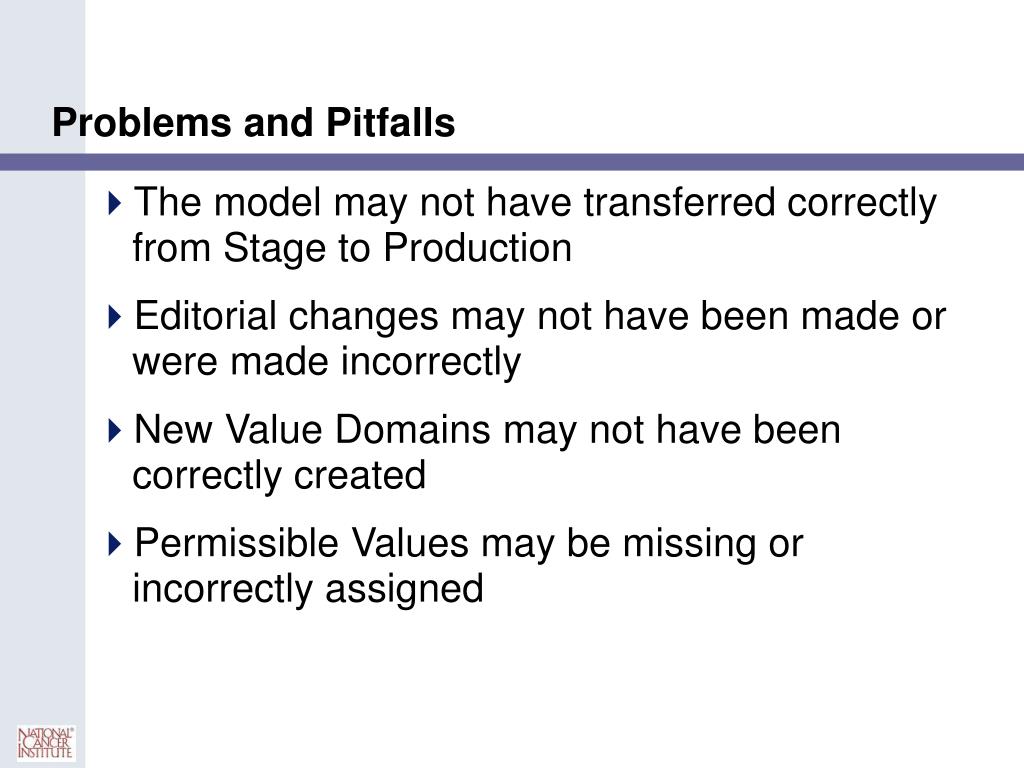

  41. Problems and Pitfalls • The model may not have transferred correctly from Stage to Production • Editorial changes may not have been made or were made incorrectly • New Value Domains may not have been correctly created • Permissible Values may be missing or incorrectly assigned

  42. Resources – Model Owner Approval • Time Estimate • Varies with complexity of model • Requires training in the usage of tools • People • Model Owner • NCICB UML Loading Staff • Curator • QA Reviewer • VCDE Mentor

  43. UML Model Creation, Registration, and Curation • Create Model • Run Semantic Connector • Semantic Annotation of UML Models • Run UML Loader • Review Stage/Production Registration • Curate Additional Metadata • Model Owner Approval • Model Maintenance and Versioning

  44. Resources – UML Maintenance • Time Estimate • Varies with frequency and complexity of model change • People • Model Owner • EVS staff • NCICB UML Loading staff • VCDE Workspace Mentor • Curator

  45. Thank you to various team members who contributed to this presentation Overview - George Komatsoulis UML Model Creation - Nafis Zebarjadi Semantic Connector Review – Nicole Thomas UML Loader - Ram Chilukuri Data Review and Curation – Brenda Maeske

  46. Questions?
