slide1

This PowerPoint is a quick guide to configuration of

SheepShaver (v 2.3)

for running Mac OS 8.5 to 9.0.2 on a

Mac Intel under OS X, 10.4.9

Any comment ? : click <here>

Jean-Pascal Cogné

Université de Paris 7 - Denis Diderot

IPG

4 Place Jussieu

75252 Paris Cedex 05

France

This is a helper. In no case the author can be considered liable of bad issues on your computer…

slide2

Before starting, you will need:

 A Mac ROM, normally present on every Mac OS 8 or 9 install CD.

 A generic Mac OS 8 or 9 install CD… Not an install dedicated to a given machine, as often distributed with machines in the past, but a general OS install…

OK, let’s go…!

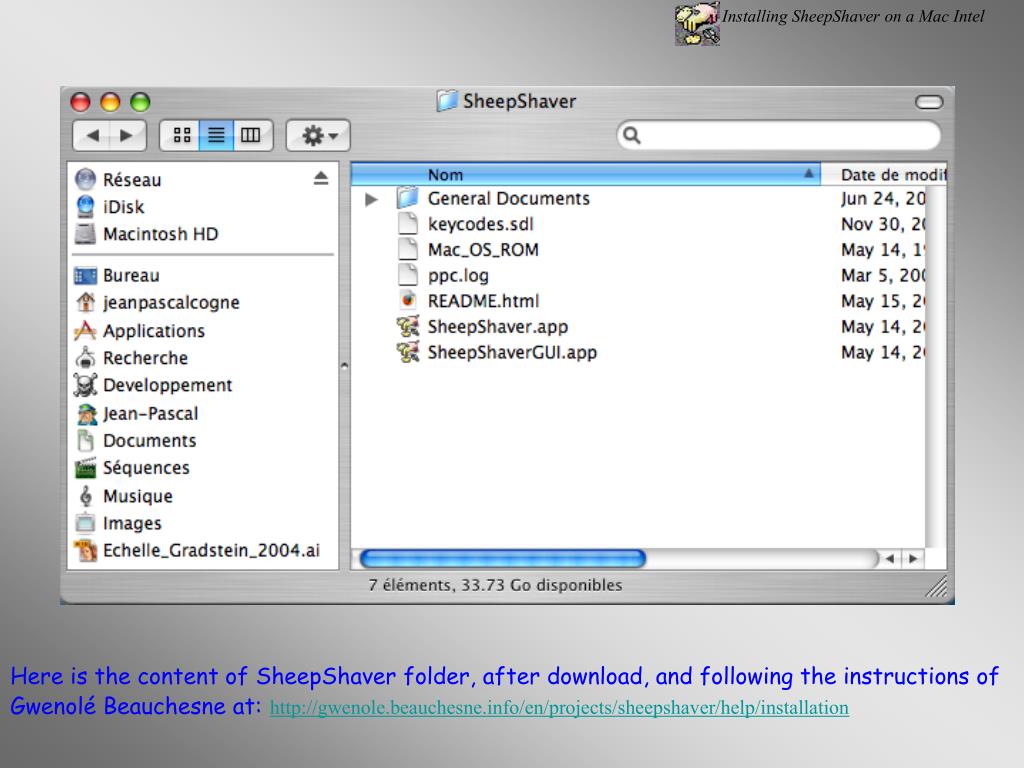

slide3

Installing SheepShaver on a Mac Intel

Here is the content of SheepShaver folder, after download, and following the instructions of Gwenolé Beauchesne at:http://gwenole.beauchesne.info/en/projects/sheepshaver/help/installation

slide4

Installing SheepShaver on a Mac Intel

You will need an OS ROM from Mac..

This ROM can be found on any Mac OS 8 or 9 install CD; see also numerous forums on this subject..

See: http://www.gibix.net/dokuwiki/en:projects:sheepshaver for more info…

slide5

Installing SheepShaver on a Mac Intel

Then… run SheepShaverGUI..

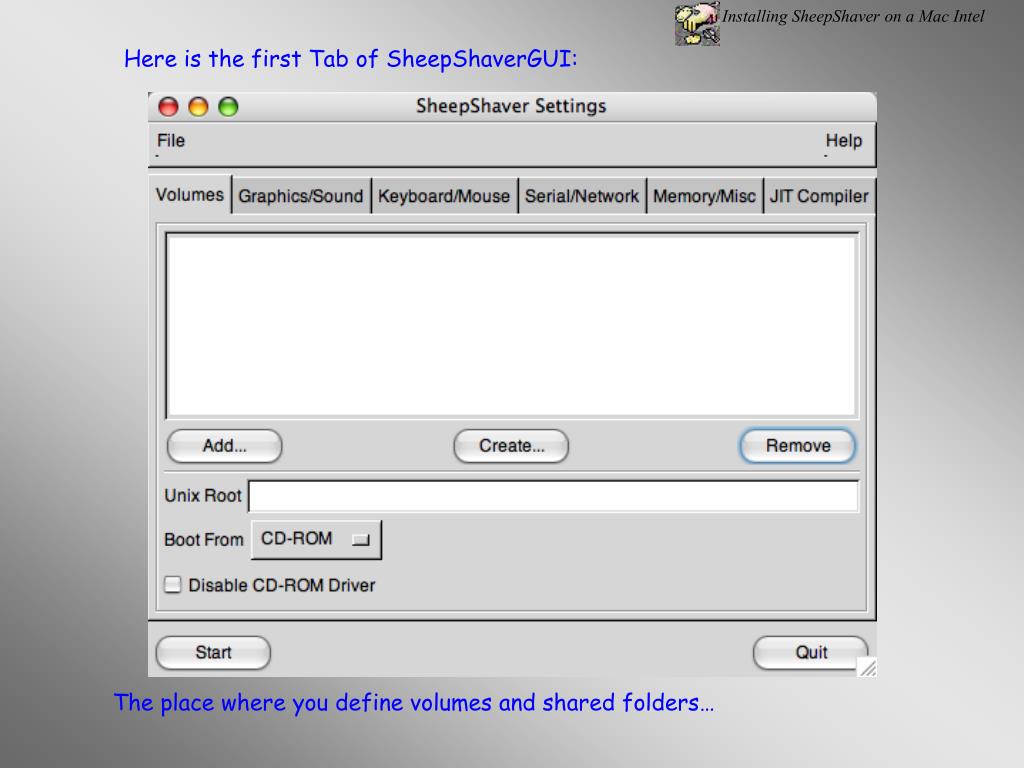

slide6

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

The place where you define volumes and shared folders…

slide7

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

1. Create a disk image which will contain your Mac

slide8

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

1. Create a disk image which will contain your Mac

Here I have created a 4GB disk in the SheepShaver Directory…

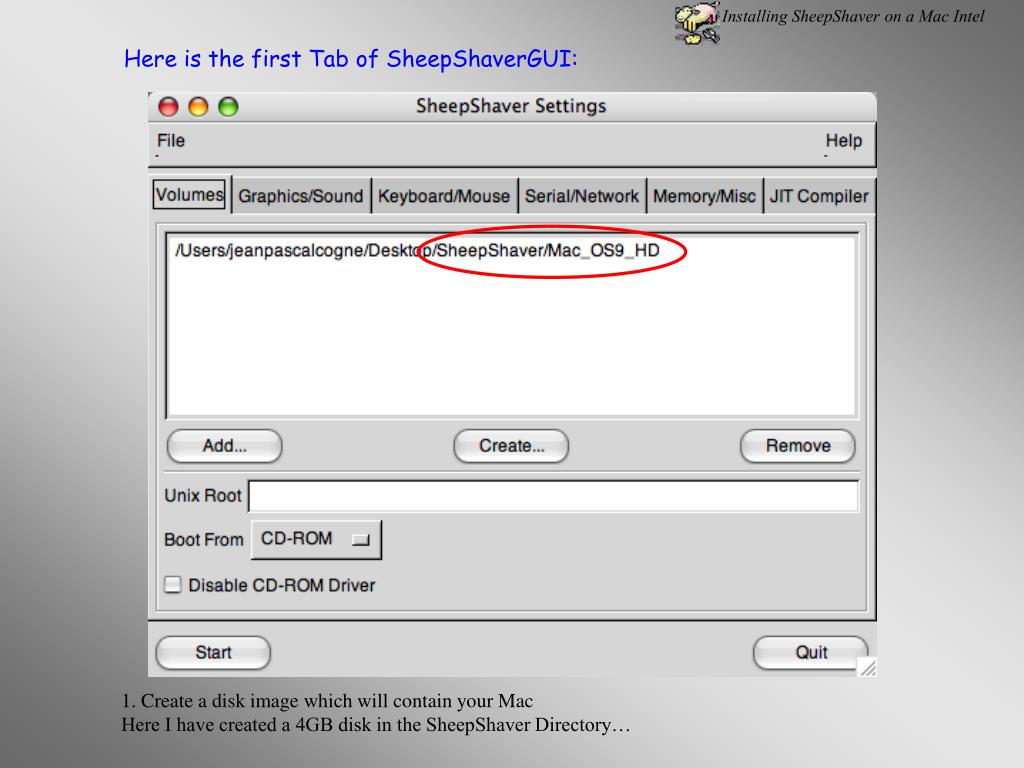

slide9

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

1. Create a disk image which will contain your Mac

Here I have created a 4GB disk in the SheepShaver Directory…

slide10

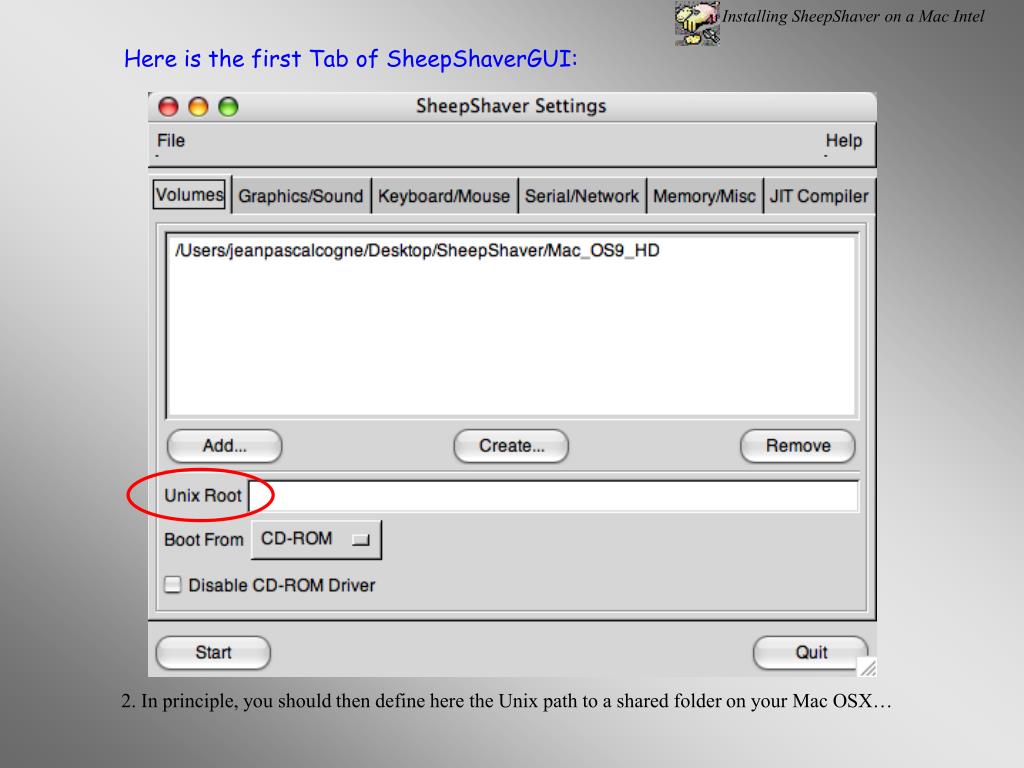

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

2. In principle, you should then define here the Unix path to a shared folder on your Mac OSX…

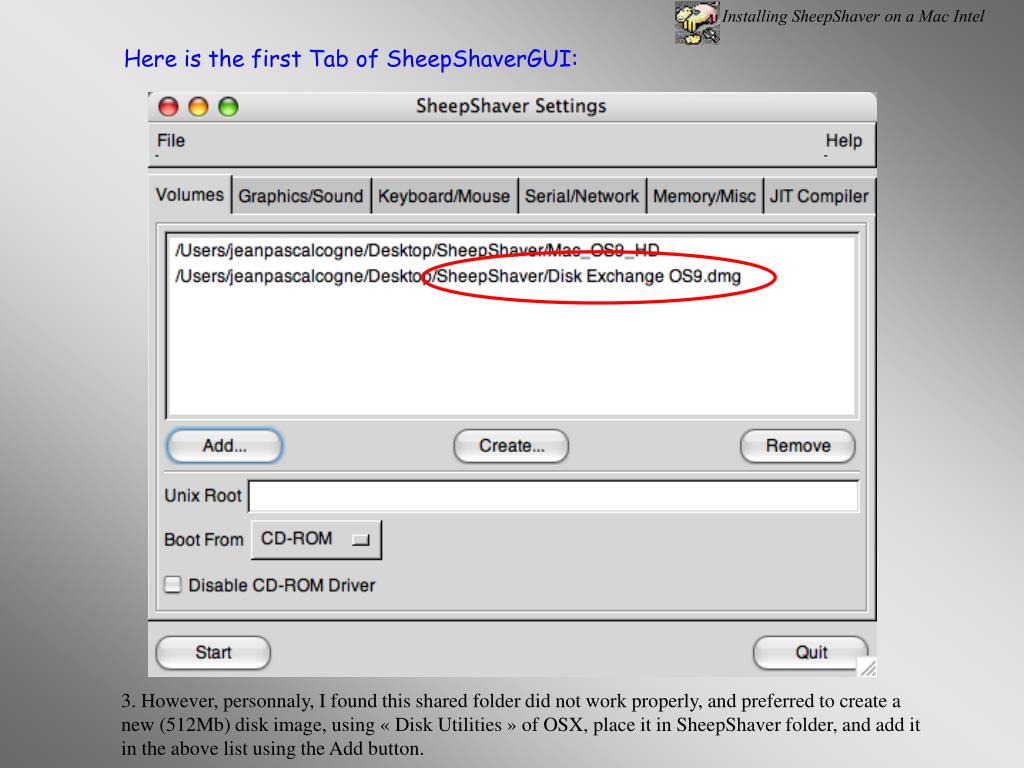

slide11

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

3. However, personnaly, I found this shared folder did not work properly, and preferred to create a new (512Mb) disk image, using « Disk Utilities » of OSX, place it in SheepShaver folder, and add it in the above list using the Add button.

slide12

Installing SheepShaver on a Mac Intel

Here is the first Tab of SheepShaverGUI:

4. Finally, select "Boot from CD-ROM", in order to load Mac OS 9 from the install disk at the 1st run of SheepShaver…

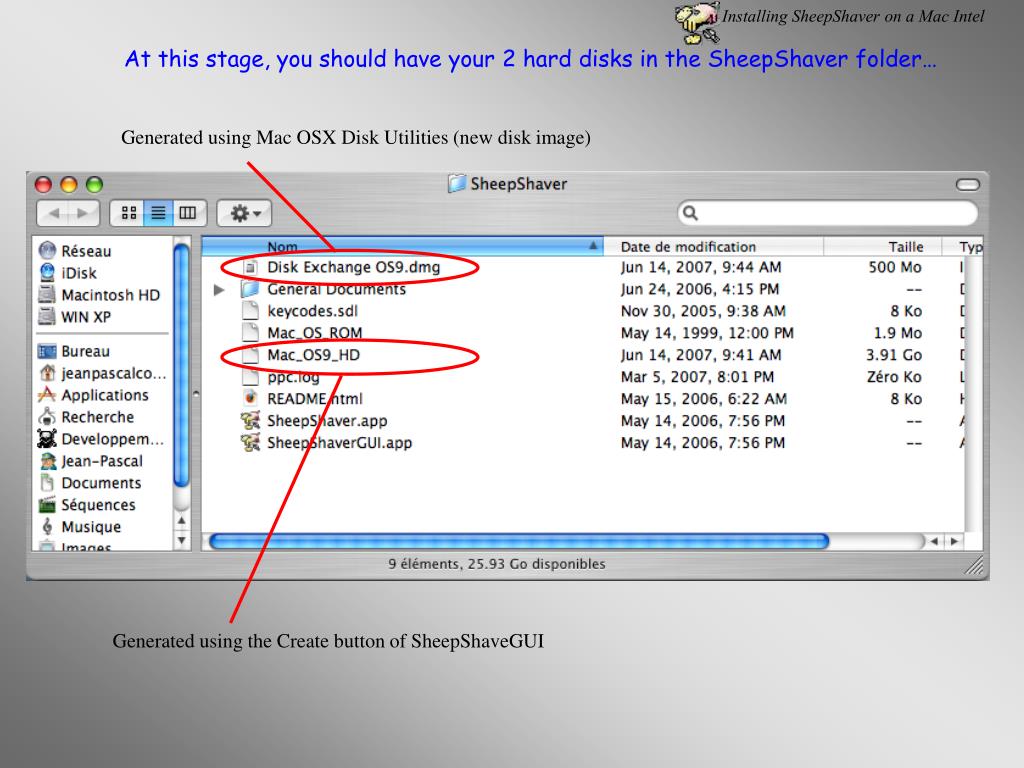

slide13

Installing SheepShaver on a Mac Intel

At this stage, you should have your 2 hard disks in the SheepShaver folder…

Generated using Mac OSX Disk Utilities (new disk image)

Generated using the Create button of SheepShaveGUI

slide14

Installing SheepShaver on a Mac Intel

In the second Tab, you setup the size of your Mac window…

No comments…

slide15

Installing SheepShaver on a Mac Intel

Third Tab: define the link to keycodes.sdl file

Use the Browse button to define the path of this file which is normally situated in your SheepShaver folder

slide16

Installing SheepShaver on a Mac Intel

Fourth Tab: defining serial ports…

I did not make anything here.. There are numerous forums on this subject, if needed…

slide17

Installing SheepShaver on a Mac Intel

Fifth Tab: one of the most important settings, memory..!

slide18

Installing SheepShaver on a Mac Intel

Fifth Tab: one of the most important settings, memory..!

1. Define the size of the memory you wish to use in your Mac.. here set at 512 Mb

slide19

Installing SheepShaver on a Mac Intel

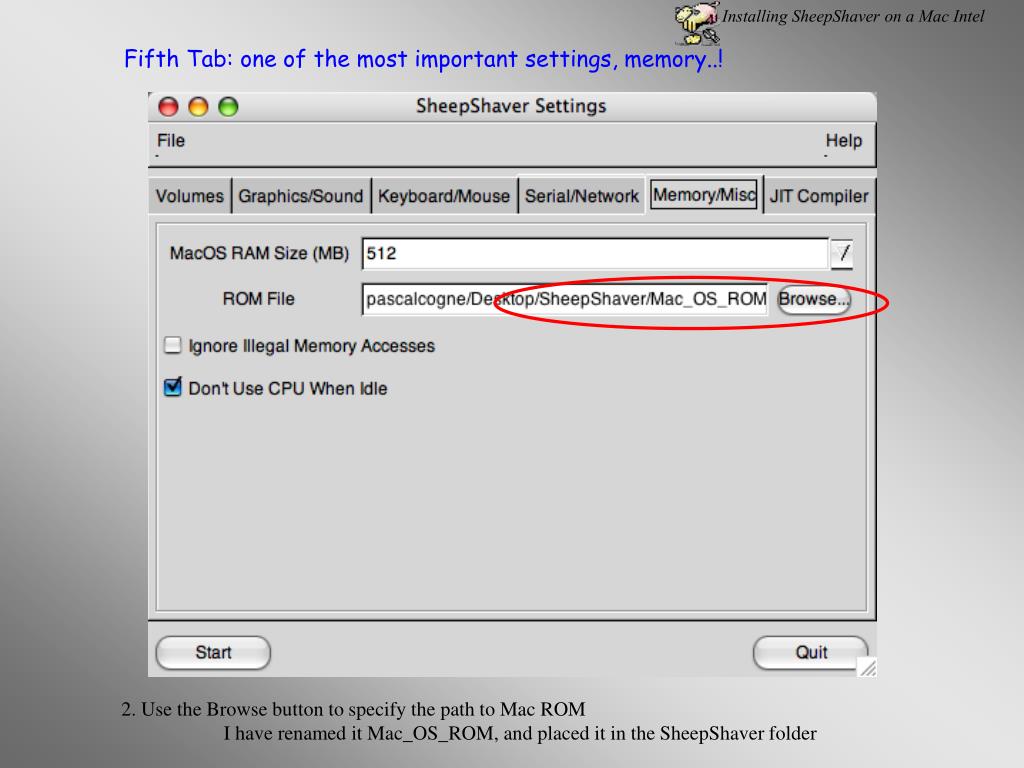

Fifth Tab: one of the most important settings, memory..!

2. Use the Browse button to specify the path to Mac ROM

I have renamed it Mac_OS_ROM, and placed it in the SheepShaver folder

slide20

Installing SheepShaver on a Mac Intel

And the final Tab…

Be sure to check the Enable JIT Compiler checkbox…

slide21

Installing SheepShaver on a Mac Intel

And that’s all..! Just click on Start button, with the Mac OS install CD in the disk drive…

Important Notes:

        - Mac Install CD should be loaded in the disk drive before loading SheepShaverGUI (i.e. before the           first step of this tutorial…)

        - SheepShaver should start on the CD, and you are ready to install MacOS (8.5 to 9.0.2           recommended)

- and finally….

slide22

Installing SheepShaver on a Mac Intel

You will be fascinated by this wonderful PaleoMac

application running under Mac OS 9 on your Mac Intel…!

slide23

Installing SheepShaver on a Mac Intel

A few tips… (1)

I have placed an alias of SheepShaver on OS X desktop, renamed it Mac OS9 HD, and changed its icon…

NOTE: this is NOT an alias of the hard disk generated by SheepShaverGUI as explained in previous steps…

slide24

Installing SheepShaver under Windows XP

Installing SheepShaver on a Mac Intel

A few tips… (2)

I have also placed an alias of the 2nd disk on OS X desktop…

This is my way to exchange data between OS X and OS 9…
