  1. Bi-Clustering COMP 790-90 Seminar Spring 2008

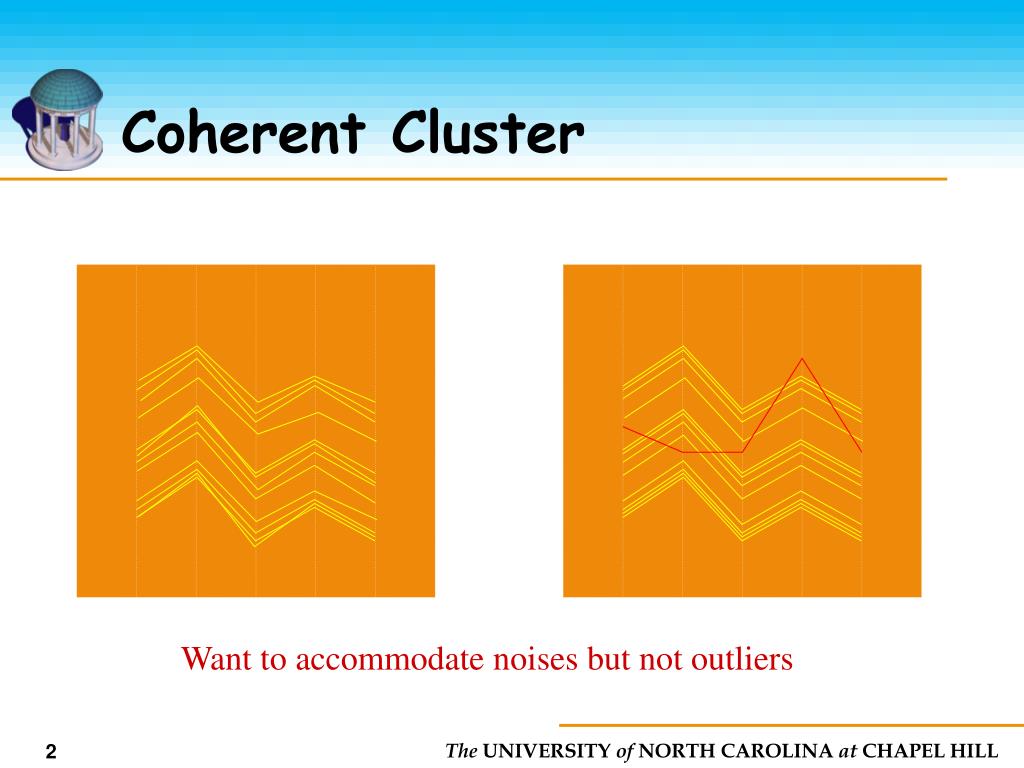

  2. Coherent Cluster Want to accommodate noises but not outliers

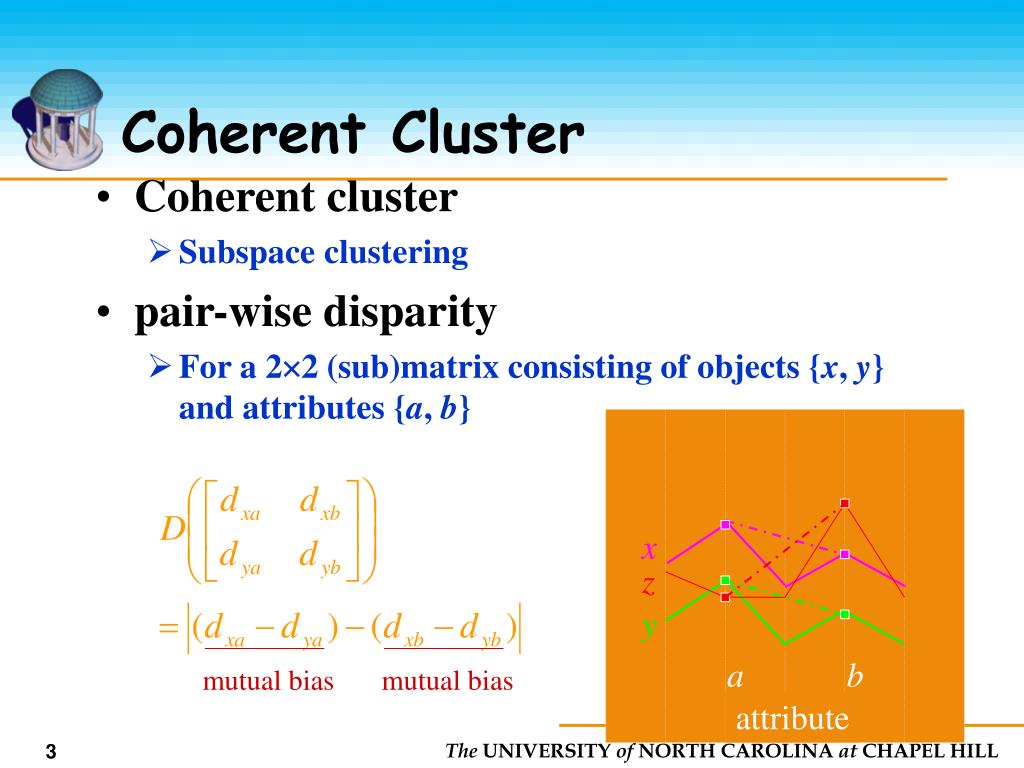

  3. dxa dxb x x dya z dyb y y a a b b Coherent Cluster • Coherent cluster • Subspace clustering • pair-wise disparity • For a 22 (sub)matrix consisting of objects {x, y} and attributes {a, b} mutual bias of attribute a mutual bias of attribute b attribute

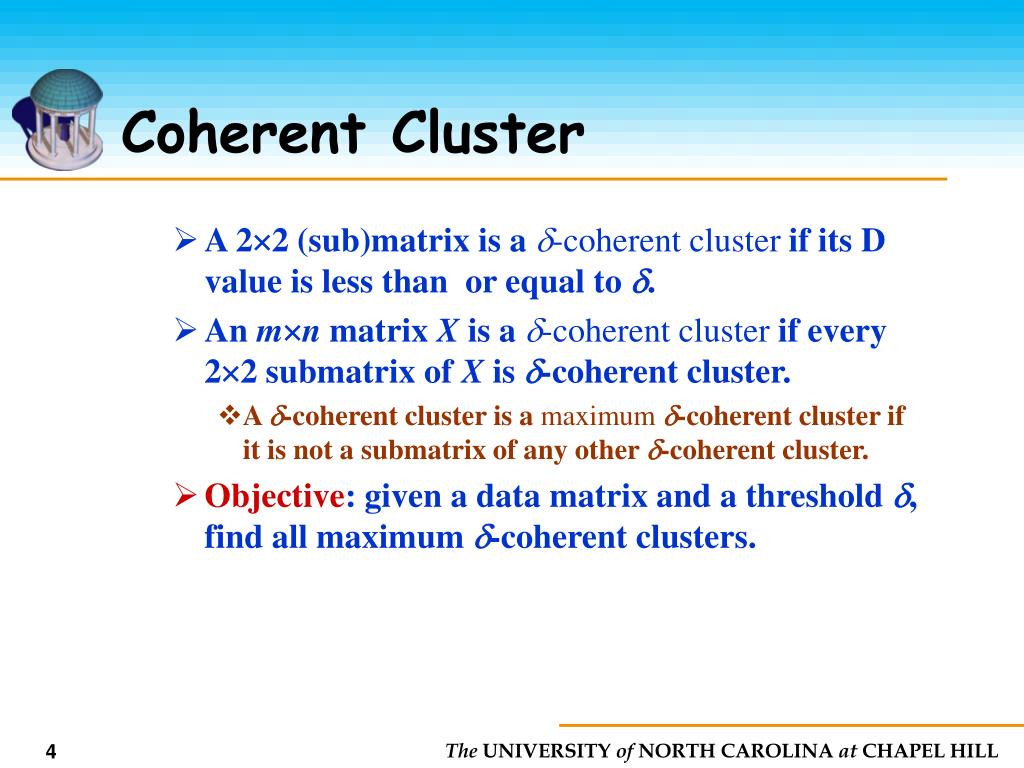

  4. Coherent Cluster • A 22 (sub)matrix is a -coherent cluster if its D value is less than or equal to . • An mn matrix X is a -coherent cluster if every 22 submatrix of X is -coherent cluster. • A -coherent cluster is a maximum-coherent cluster if it is not a submatrix of any other -coherent cluster. • Objective: given a data matrix and a threshold , find all maximum -coherent clusters.

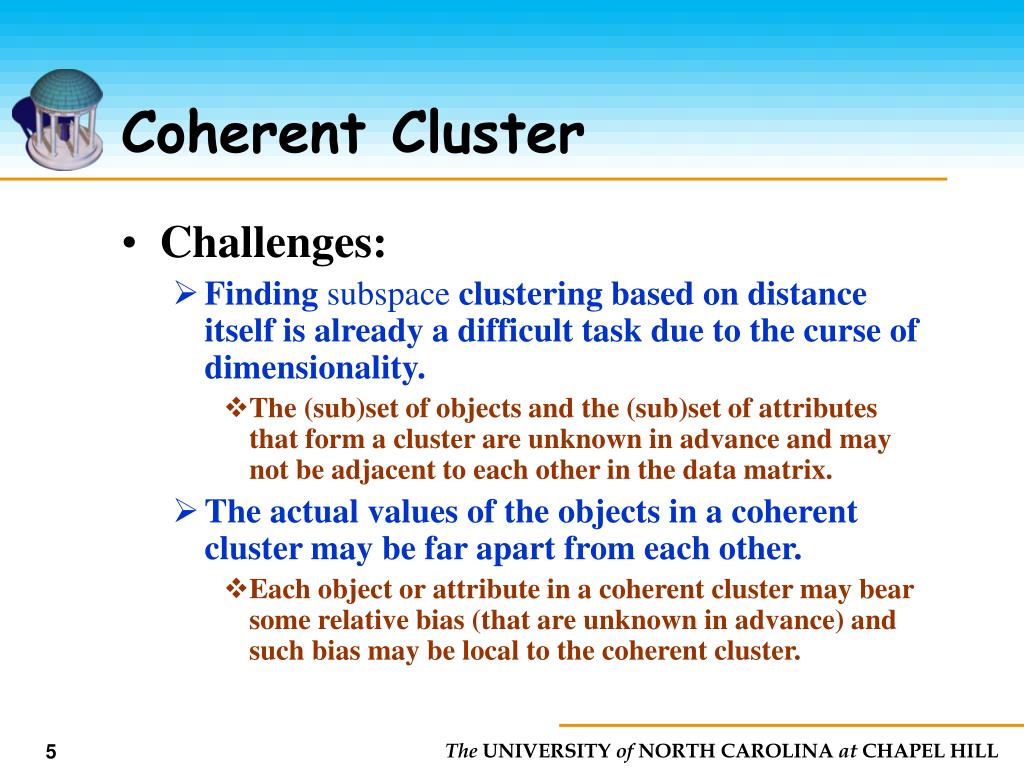

  5. Coherent Cluster • Challenges: • Finding subspace clustering based on distance itself is already a difficult task due to the curse of dimensionality. • The (sub)set of objects and the (sub)set of attributes that form a cluster are unknown in advance and may not be adjacent to each other in the data matrix. • The actual values of the objects in a coherent cluster may be far apart from each other. • Each object or attribute in a coherent cluster may bear some relative bias (that are unknown in advance) and such bias may be local to the coherent cluster.

  6. Coherent Cluster Compute the maximum coherent attribute sets for each pair of objects Two-way Pruning Construct the lexicographical tree Post-order traverse the tree to find maximum coherent clusters

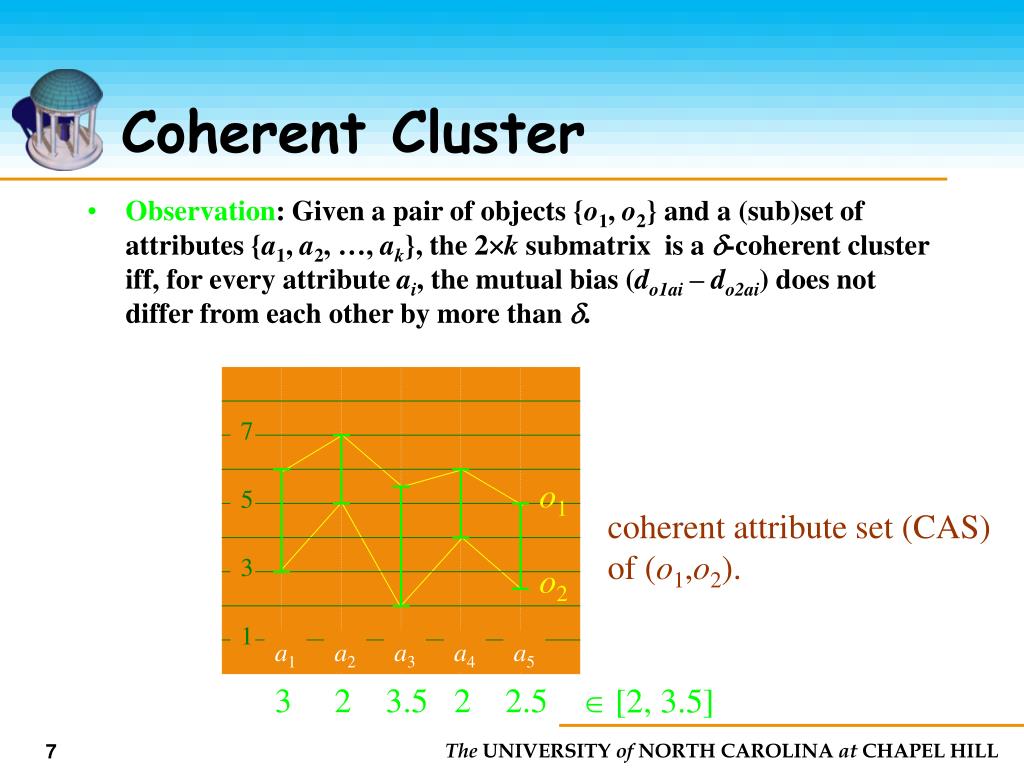

  7. 7 o1 5 3 o2 1 a1 a2 a3 a4 a5 3 2 3.5 2 2.5  [2, 3.5] Coherent Cluster • Observation: Given a pair of objects {o1, o2} and a (sub)set of attributes {a1, a2, …, ak}, the 2ksubmatrix is a -coherent cluster iff, for every attribute ai, the mutual bias (do1ai – do2ai) does not differ from each other by more than . If  = 1.5, then {a1,a2,a3,a4,a5} is a coherent attribute set (CAS) of (o1,o2).

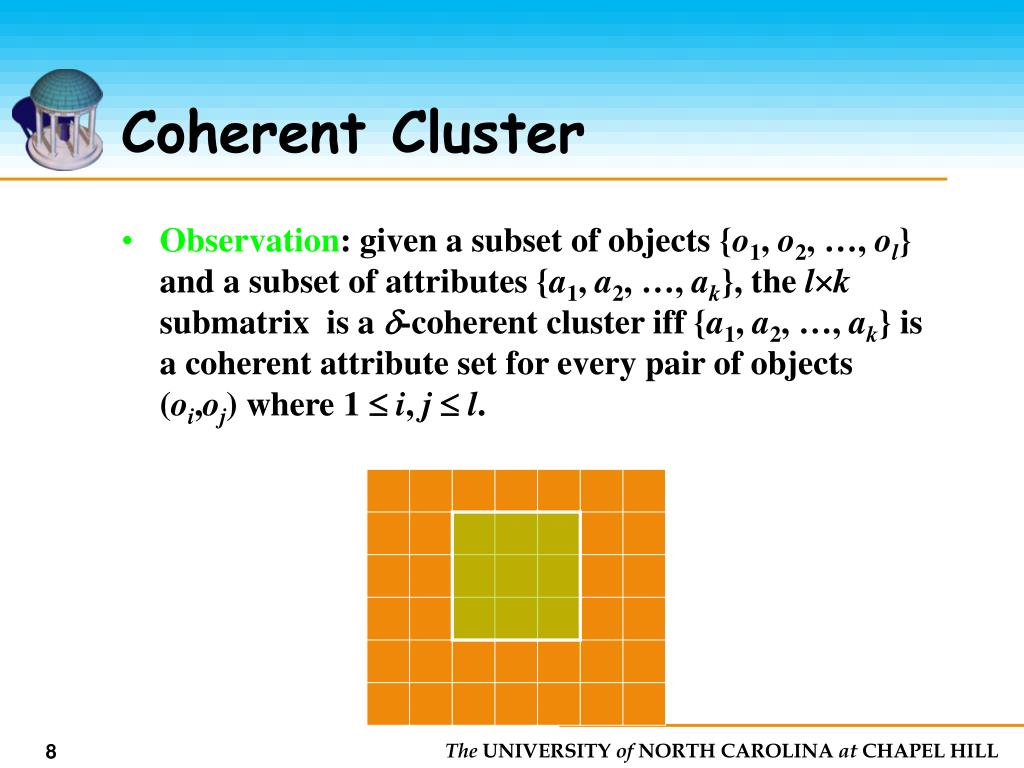

  8. a1 a2 a3 a4 a5 a6 a7 o1 o2 o3 o4 o5 o6 Coherent Cluster • Observation: given a subset of objects {o1, o2, …, ol} and a subset of attributes {a1, a2, …, ak}, the lksubmatrix is a -coherent cluster iff {a1, a2, …, ak} is a coherent attribute set for every pair of objects (oi,oj) where 1  i, j  l.

  9. 7 r1 5 7 3 r2 r1 5 1 3 r2 1 a1 a1 a2 a2 a3 a3 a4 a4 a5 a5 3 3 2 2 3.5 3.5 2 2 2.5 2.5 Coherent Cluster • Strategy: find the maximum coherent attribute sets for each pair of objects with respect to the given threshold .  = 1 The maximum coherent attribute sets define the search space for maximum coherent clusters.

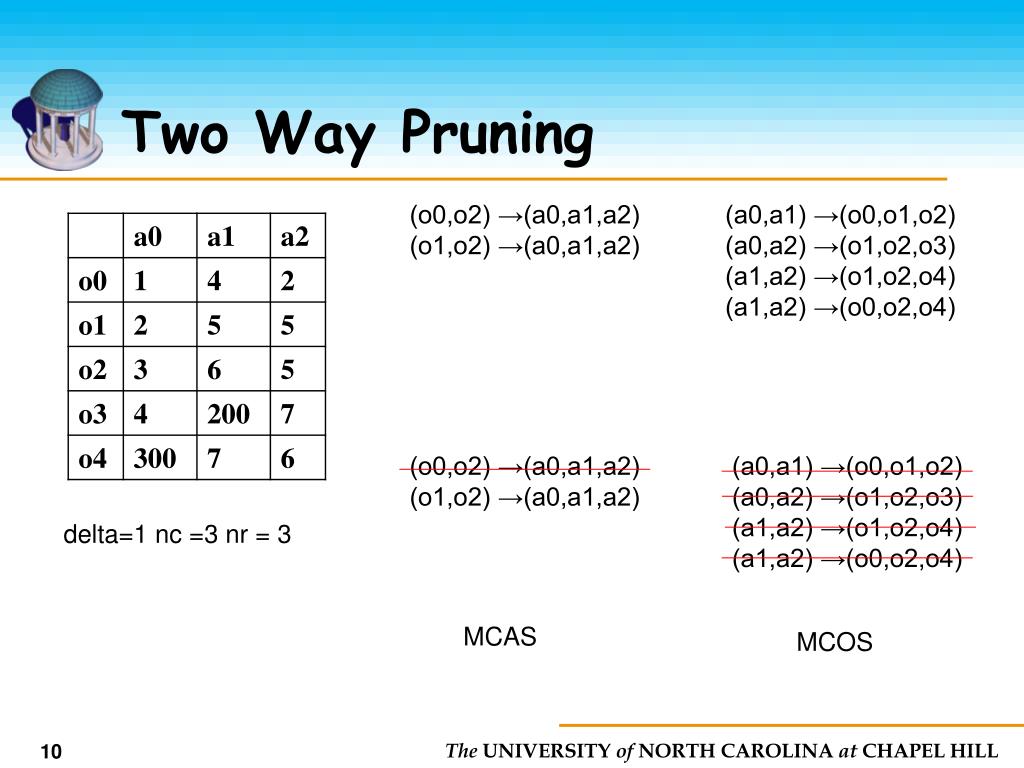

  10. Two Way Pruning (o0,o2) →(a0,a1,a2) (o1,o2) →(a0,a1,a2) (a0,a1) →(o0,o1,o2) (a0,a2) →(o1,o2,o3) (a1,a2) →(o1,o2,o4) (a1,a2) →(o0,o2,o4) (o0,o2) →(a0,a1,a2) (o1,o2) →(a0,a1,a2) (a0,a1) →(o0,o1,o2) (a0,a2) →(o1,o2,o3) (a1,a2) →(o1,o2,o4) (a1,a2) →(o0,o2,o4) delta=1 nc =3 nr = 3 MCAS MCOS

  11. attributes objects Coherent Cluster • Strategy: grouping object pairs by their CAS and, for each group, find the maximum clique(s). • Implementation: using a lexicographical tree to organize the object pairs and to generate all maximum coherent clusters with a single post-order traversal of the tree.

  12. (o0,o1): {a0,a1}, {a2,a3} (o0,o2): {a0,a1,a2,a3} (o0,o4): {a1,a2} (o1,o2): {a0,a1,a2}, {a2,a3} (o1,o3): {a0,a2} (o1,o4): {a1,a2} (o2,o3): {a0,a2} (o2,o4): {a1,a2} {a0,a1} :(o0,o1) (o1,o2) (o0,o2) {a0,a2} :(o1,o3),(o2,o3) (o1,o2) (o0,o2) {a1,a2} :(o0,o4),(o1,o4),(o2,o4) (o1,o2) (o0,o2) {a2,a3} :(o0,o1),(o1,o2) (o0,o2) {a0,a1,a2} :(o1,o2) (o0,o2) {a0,a1,a2,a3} :(o0,o2) a0 a2 a1 assume  = 1 a1 a2 a2 a3 (o0,o1) (o1,o3) (o0,o4) (o0,o1) (o2,o3) (o1,o4) (o1,o2) a2 (o2,o4) (o1,o2) a3 (o0,o2)

  13. a0 a2 a1 a3 a3 a1 a2 a2 a3      (o1,o2)     (o0,o2) (o0,o1) (o1,o3) (o0,o4) (o0,o1) (o0,o2)  (o1,o2)     (o2,o3) (o1,o4) (o1,o2) a2 (o0,o2) (o1,o2) (o2,o4) (o0,o2)  a3 a3 a3 (o1,o2) (o0,o2) (o0,o2) a3 (o0,o2) (o0,o2) (o0,o2) (o0,o2) {o0,o2}  {a0,a1,a2,a3} {o1,o2}  {a0,a1,a2} {o0,o1,o2}  {a0,a1} {o1,o2,o3}  {a0,a2} {o0,o2,o4}  {a1,a2} {o1,o2,o4}  {a1,a2} {o0,o1,o2}  {a2,a3} (o0,o2)

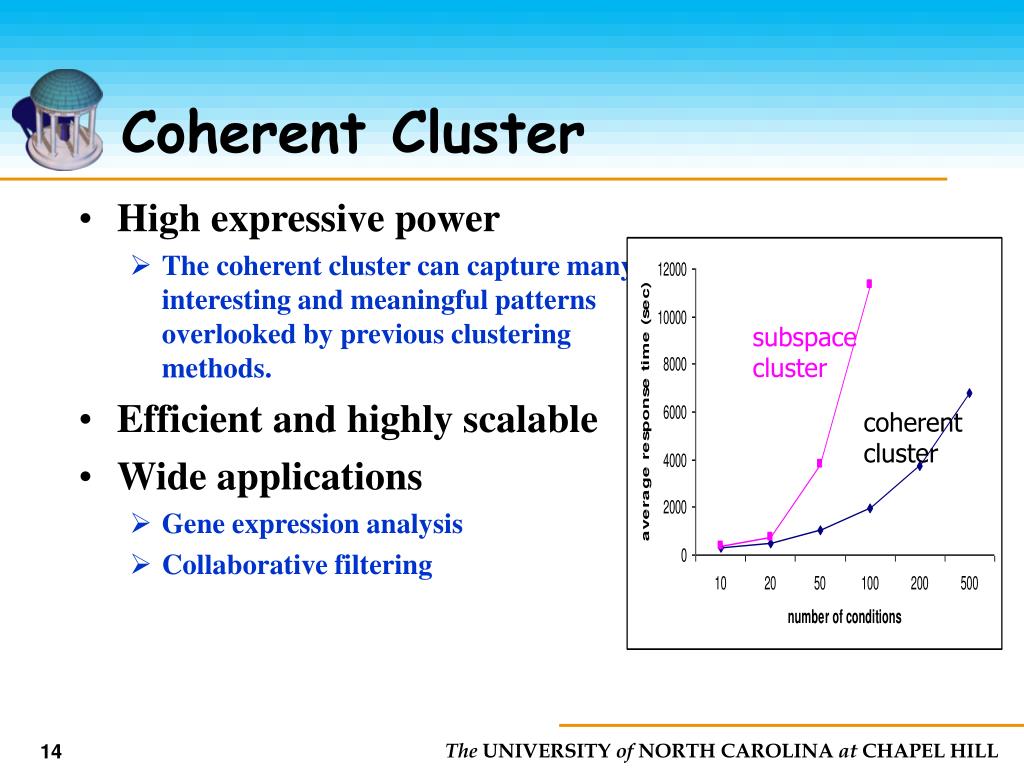

  14. Coherent Cluster • High expressive power • The coherent cluster can capture many interesting and meaningful patterns overlooked by previous clustering methods. • Efficient and highly scalable • Wide applications • Gene expression analysis • Collaborative filtering subspace cluster coherent cluster

  15. Remark • Comparing to Bicluster • Can well separate noises and outliers • No random data insertion and replacement • Produce optimal solution

  16. Definition of OP-Cluster • Let I be a subset of genes in the database. Let J be a subset of conditions. We say <I, J> forms an Order Preserving Cluster (OP-Cluster),if one of the following relationships exists for any pair of conditions. Expression Levels A1 A2 A3 A4 when

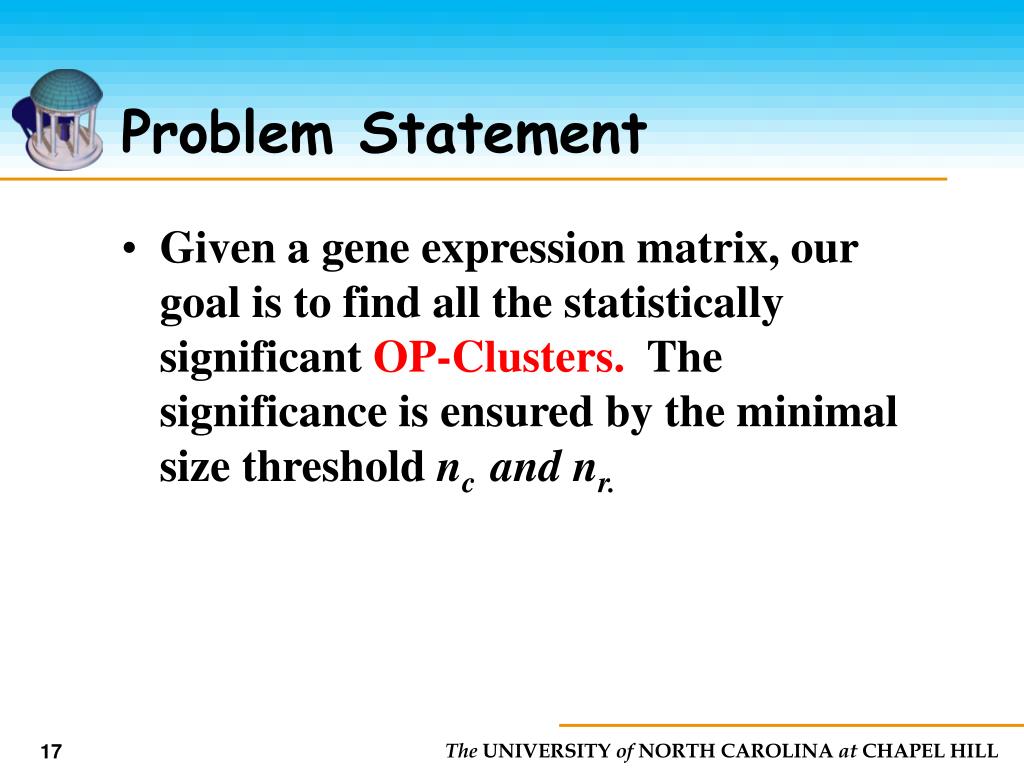

  17. Problem Statement • Given a gene expression matrix, our goal is to find all the statistically significant OP-Clusters. The significance is ensured by the minimal size threshold nc and nr.

  18. Conversion to Sequence Mining Problem Sequence: Expression Levels A1 A2 A3 A4

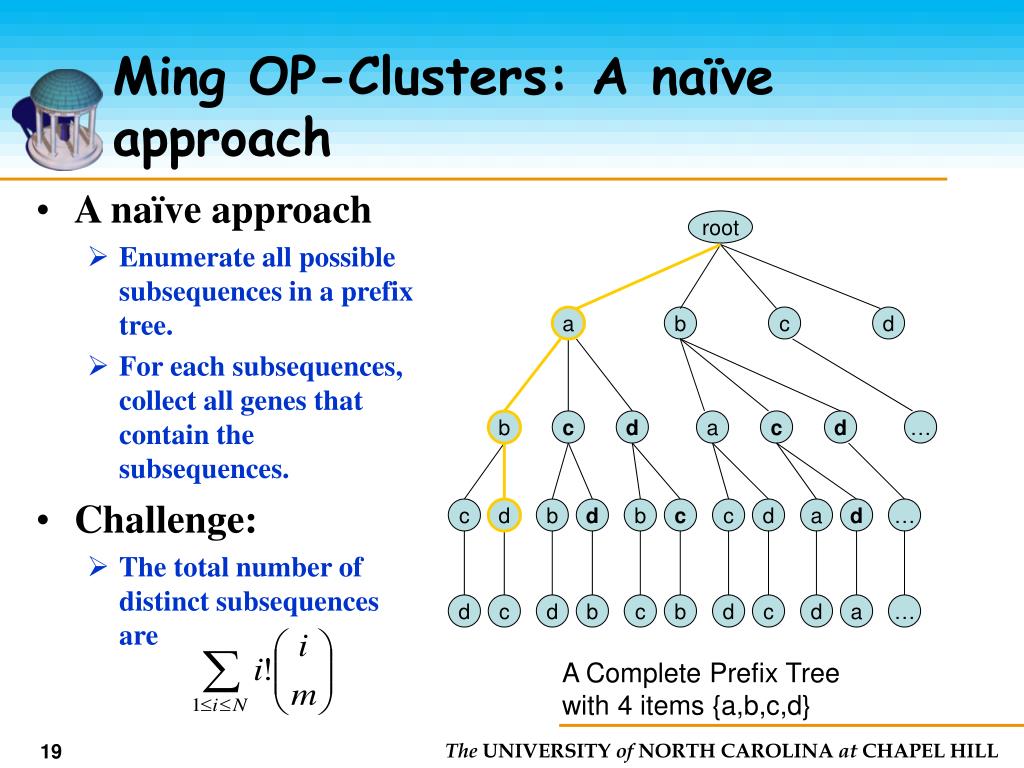

  19. Ming OP-Clusters: A naïve approach root • A naïve approach • Enumerate all possible subsequences in a prefix tree. • For each subsequences, collect all genes that contain the subsequences. • Challenge: • The total number of distinct subsequences are a a b c d b b c d a c d … c d d b d b c c d a d … d c d b c b d c d a … A Complete Prefix Tree with 4 items {a,b,c,d}

  20. a:3 d:2 d:3 c:2 c:3 Mining OP-Clusters: Prefix Tree • Goal: • Build a compact prefix tree that includes all sub-sequences only occurring in the original database. • Strategies: • Depth-First Traversal • Suffix concatenation: Visit subsequences that only exist in the input sequences. • Apriori Property: Visit subsequences that are sufficiently supported in order to derive longer subsequences. Root a:1,2 a:1,2,3 a:1,2 a:1,2,3 b:3 d:1 d:1,2,3 d:1,2,3 d:1,3 d:1,3 b:2 a:3 b:1 c:1,3 c:1,2,3 d:2 d:3 c:1 c:2 c:3

  21. References • J. Young, W. Wang, H. Wang, P. Yu, Delta-cluster: capturing subspace correlation in a large data set, Proceedings of the 18th IEEE International Conference on Data Engineering (ICDE), pp. 517-528, 2002. • H. Wang, W. Wang, J. Young, P. Yu, Clustering by pattern similarity in large data sets, to appear in Proceedings of the ACM SIGMOD International Conference on Management of Data (SIGMOD), 2002. • Y. Sungroh,  C. Nardini, L. Benini, G. De Micheli, Enhanced pClustering and its applications to gene expression data Bioinformatics and Bioengineering, 2004. • J. Liu and W. Wang, OP-Cluster: clustering by tendency in high dimensional space, ICDM’03.
