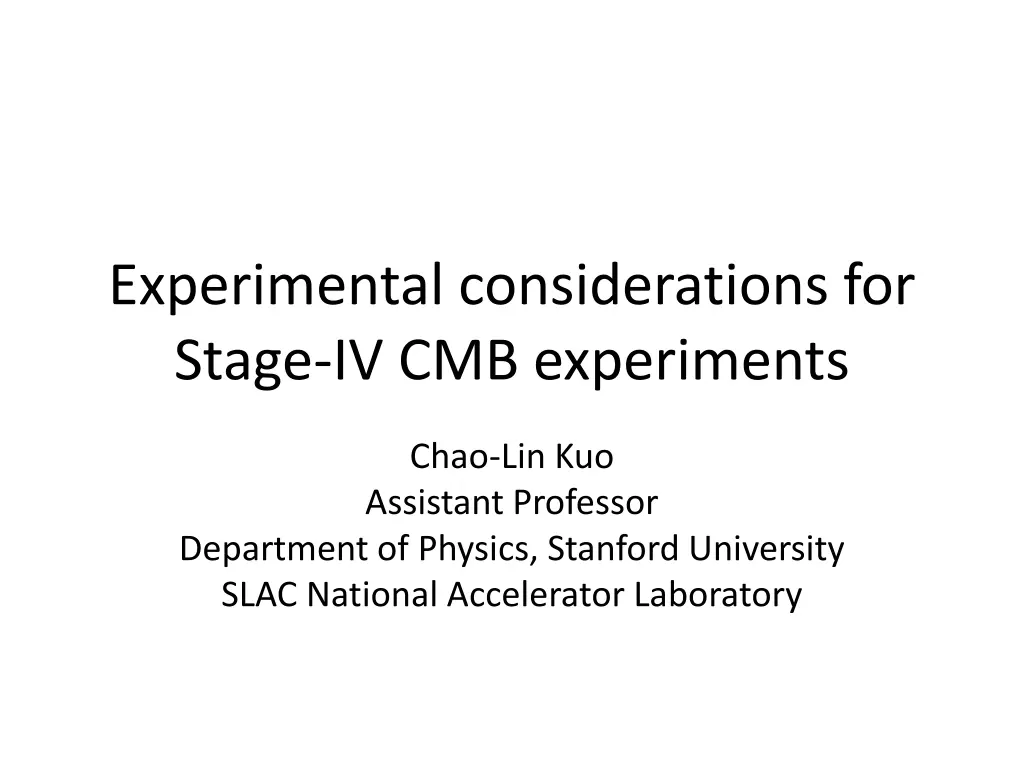

  1. Experimental considerations for Stage-IV CMB experiments Chao-Lin Kuo Assistant Professor Department of Physics, Stanford University SLAC National Accelerator Laboratory

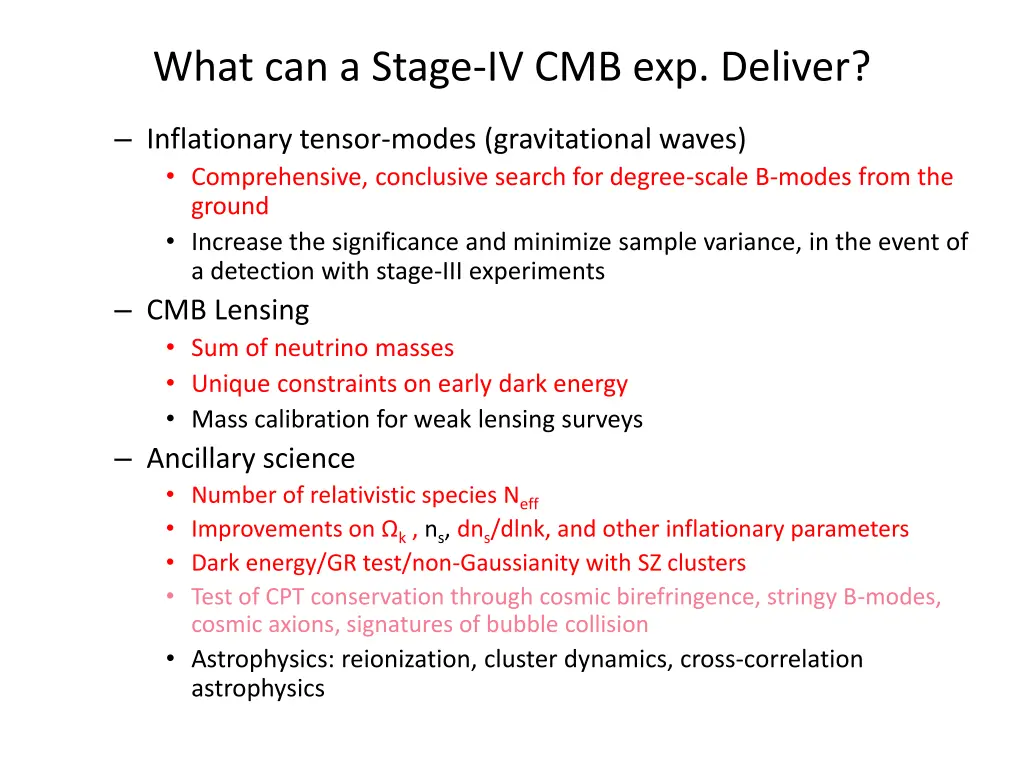

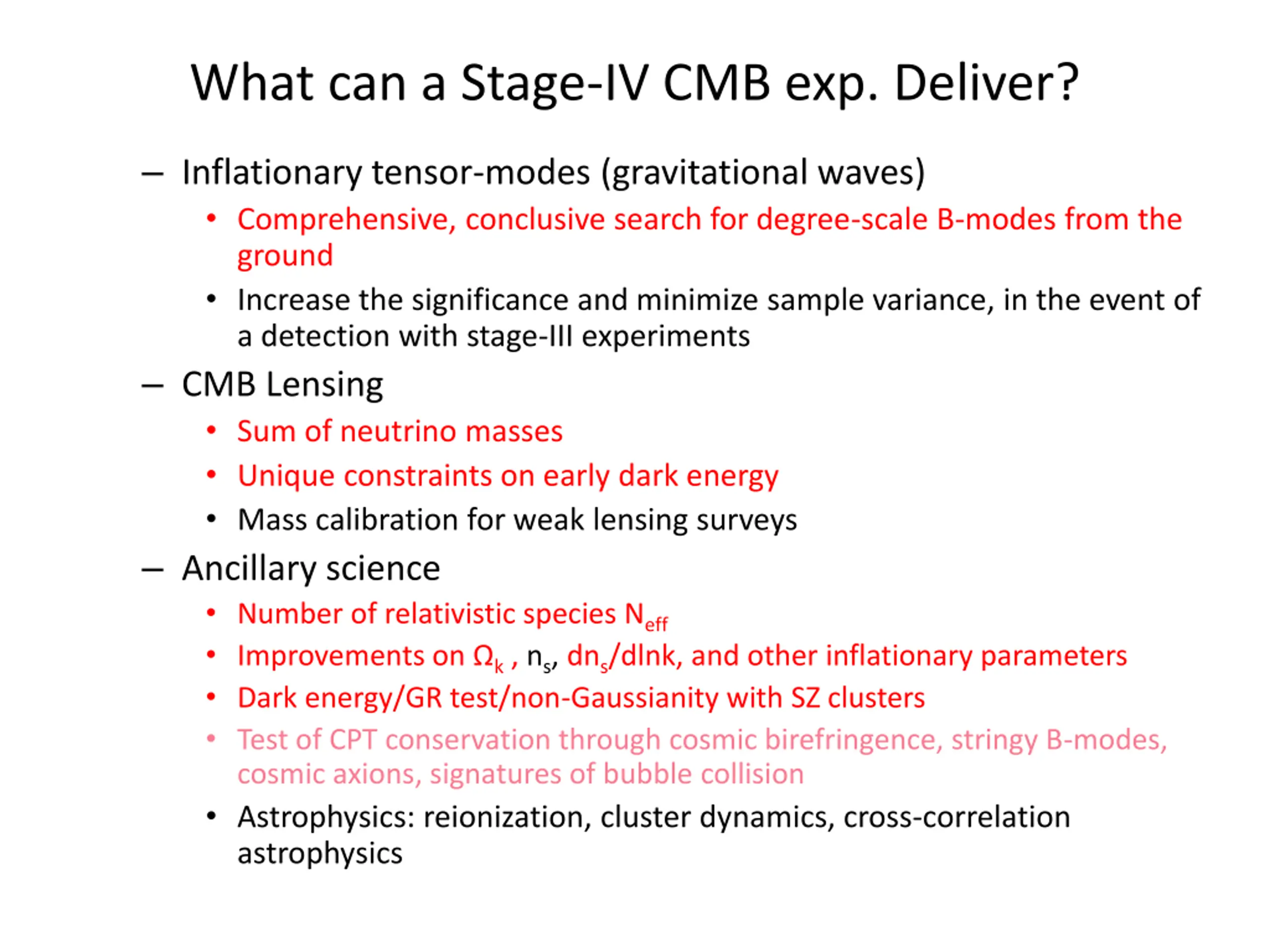

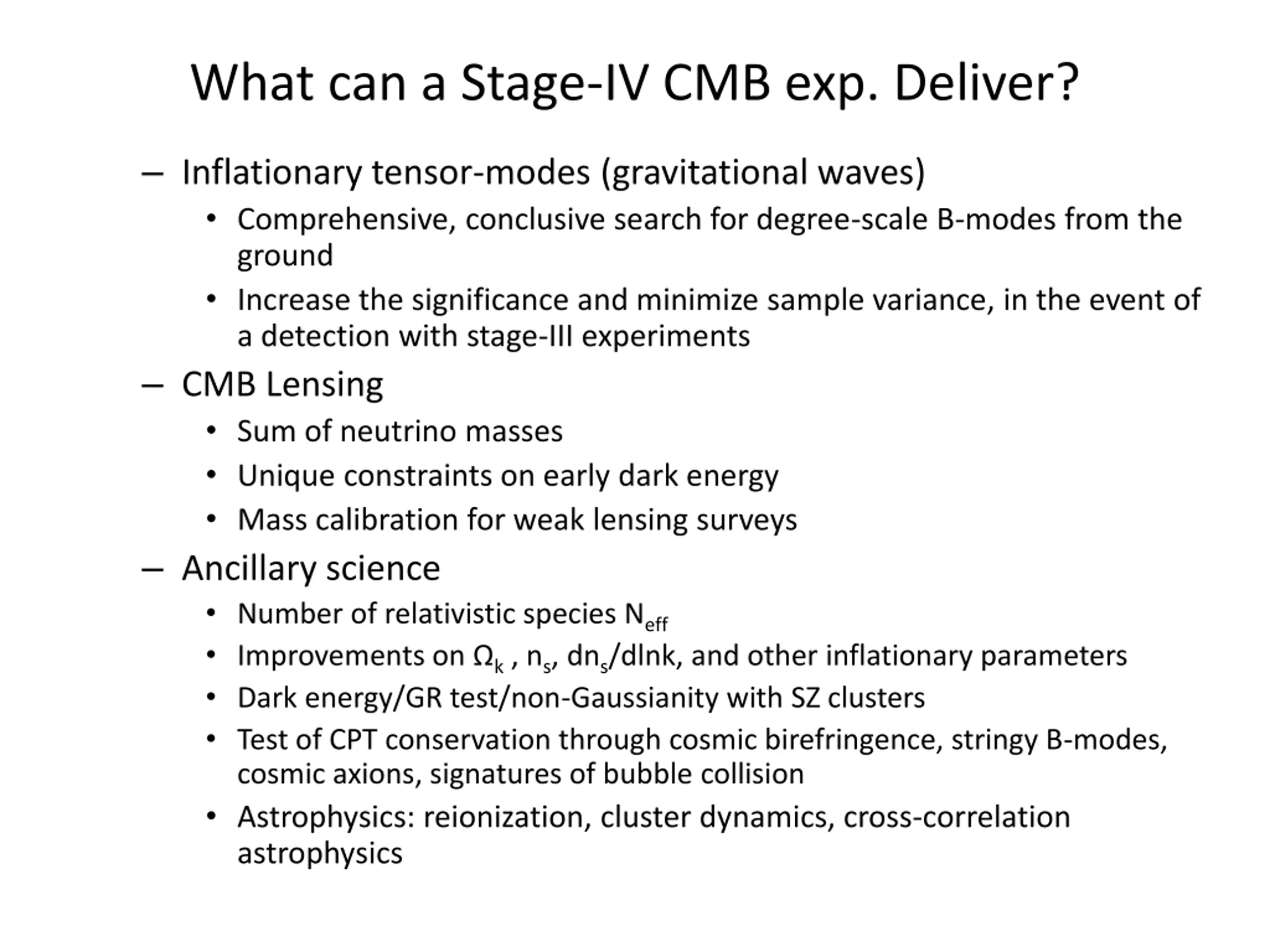

  2. What can a Stage-IV CMB exp. Deliver? – Inflationary tensor-modes (gravitational waves) • Comprehensive, conclusive search for degree-scale B-modes from the ground • Increase the significance and minimize sample variance, in the event of a detection with stage-III experiments – CMB Lensing • Sum of neutrino masses • Unique constraints on early dark energy • Mass calibration for weak lensing surveys – Ancillary science • Number of relativistic species Neff • Improvements on Ωk, ns, dns/dlnk, and other inflationary parameters • Dark energy/GR test/non-Gaussianity with SZ clusters • Test of CPT conservation through cosmic birefringence, stringy B-modes, cosmic axions, signatures of bubble collision • Astrophysics: reionization, cluster dynamics, cross-correlation astrophysics

  3. What can a Stage-IV CMB exp. Deliver? – Inflationary tensor-modes (gravitational waves) • Comprehensive, conclusive search for degree-scale B-modes from the ground • Increase the significance and minimize sample variance, in the event of a detection with stage-III experiments – CMB Lensing • Sum of neutrino masses • Unique constraints on early dark energy • Mass calibration for weak lensing surveys – Ancillary science • Number of relativistic species Neff • Improvements on Ωk, ns, dns/dlnk, and other inflationary parameters • Dark energy/GR test/non-Gaussianity with SZ clusters • Test of CPT conservation through cosmic birefringence, stringy B-modes, cosmic axions, signatures of bubble collision • Astrophysics: reionization, cluster dynamics, cross-correlation astrophysics

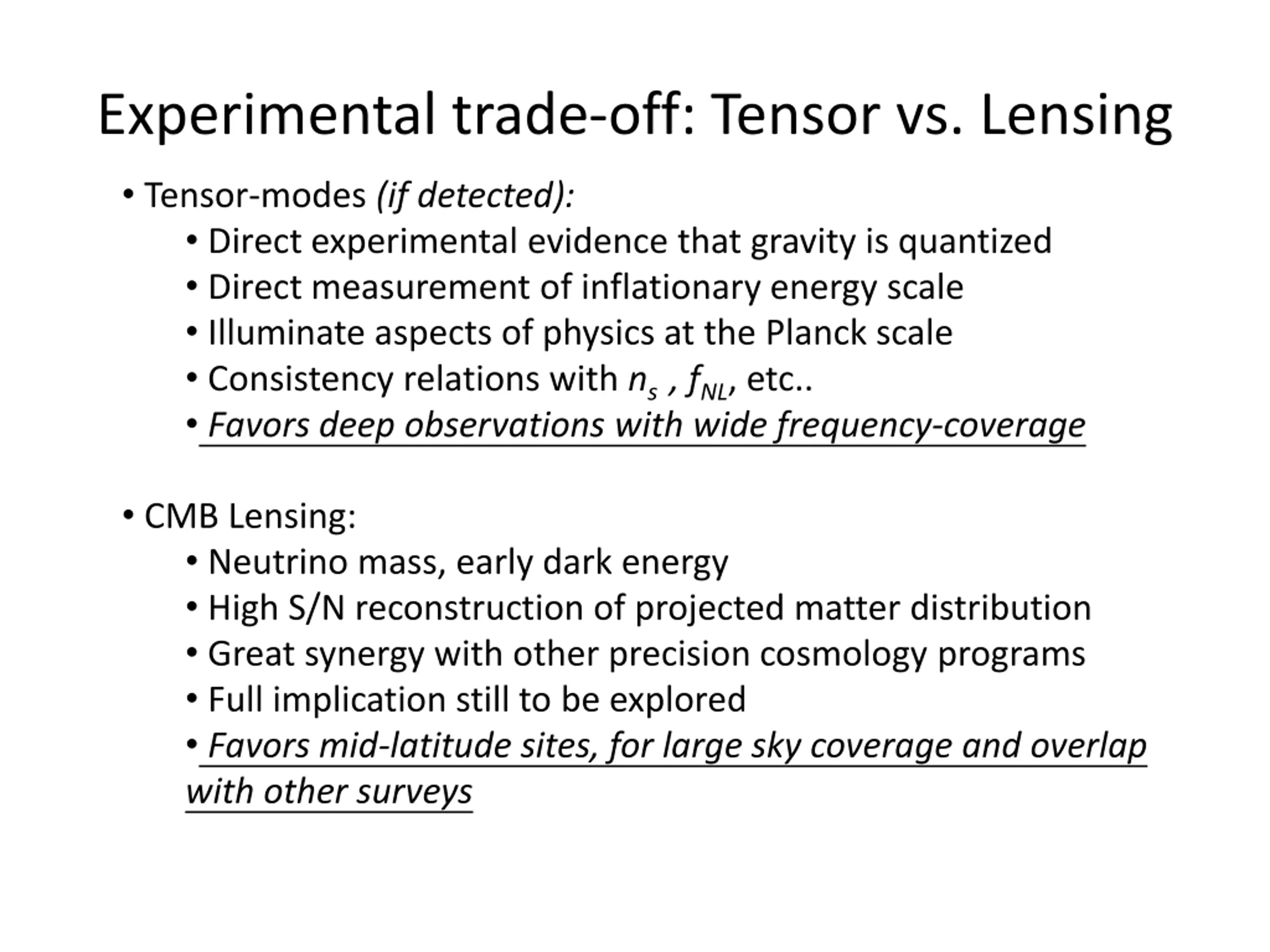

  4. Experimental trade-off: Tensor vs. Lensing • Tensor-modes (if detected): • Direct experimental evidence that gravity is quantized • Direct measurement of inflationary energy scale • Illuminate aspects of physics at the Planck scale • Consistency relations with ns , fNL, etc.. • Favors deep observations with wide frequency-coverage • CMB Lensing: • Neutrino mass, early dark energy • High S/N reconstruction of projected matter distribution • Great synergy with other precision cosmology programs • Full implication still to be explored • Favors mid-latitude sites, for large sky coverage and overlap with other surveys

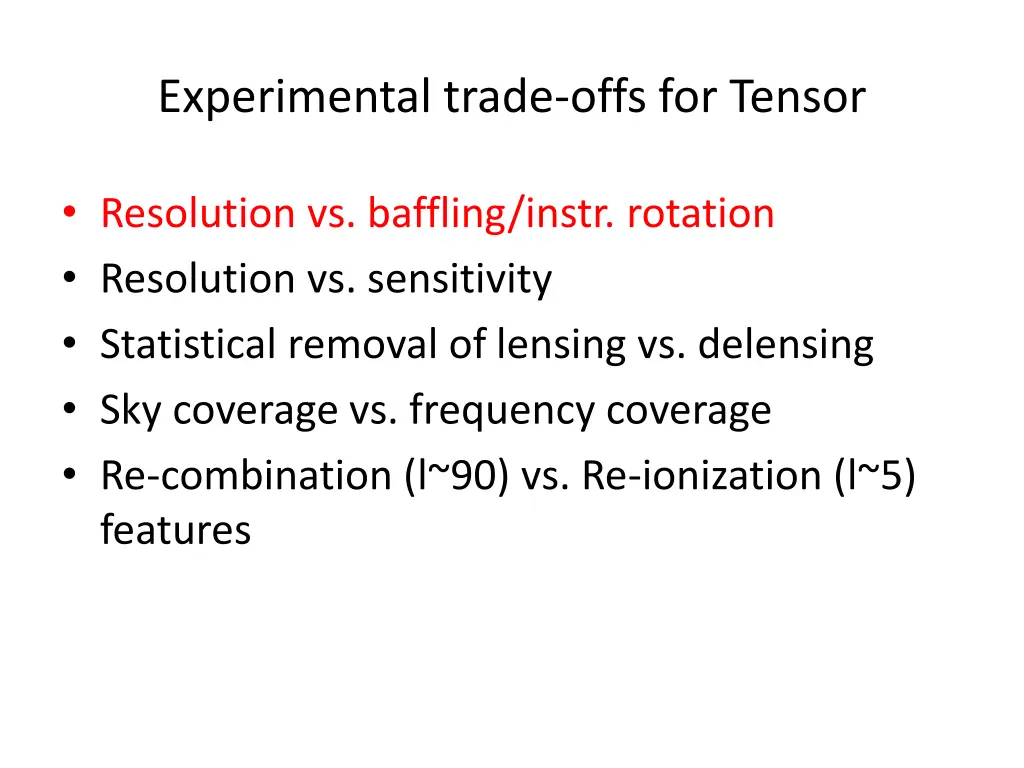

  5. Experimental trade-offs for Tensor • Resolution vs. baffling/instr. rotation • Resolution vs. sensitivity • Statistical removal of lensing vs. delensing • Sky coverage vs. frequency coverage • Re-combination (l~90) vs. Re-ionization (l~5) features

  6. Experimental trade-offs for Tensor • Resolution vs. baffling/instr. rotation • Resolution vs. sensitivity • Statistical removal of lensing vs. delensing • Sky coverage vs. frequency coverage • Re-combination (l~90) vs. Re-ionization (l~5) features

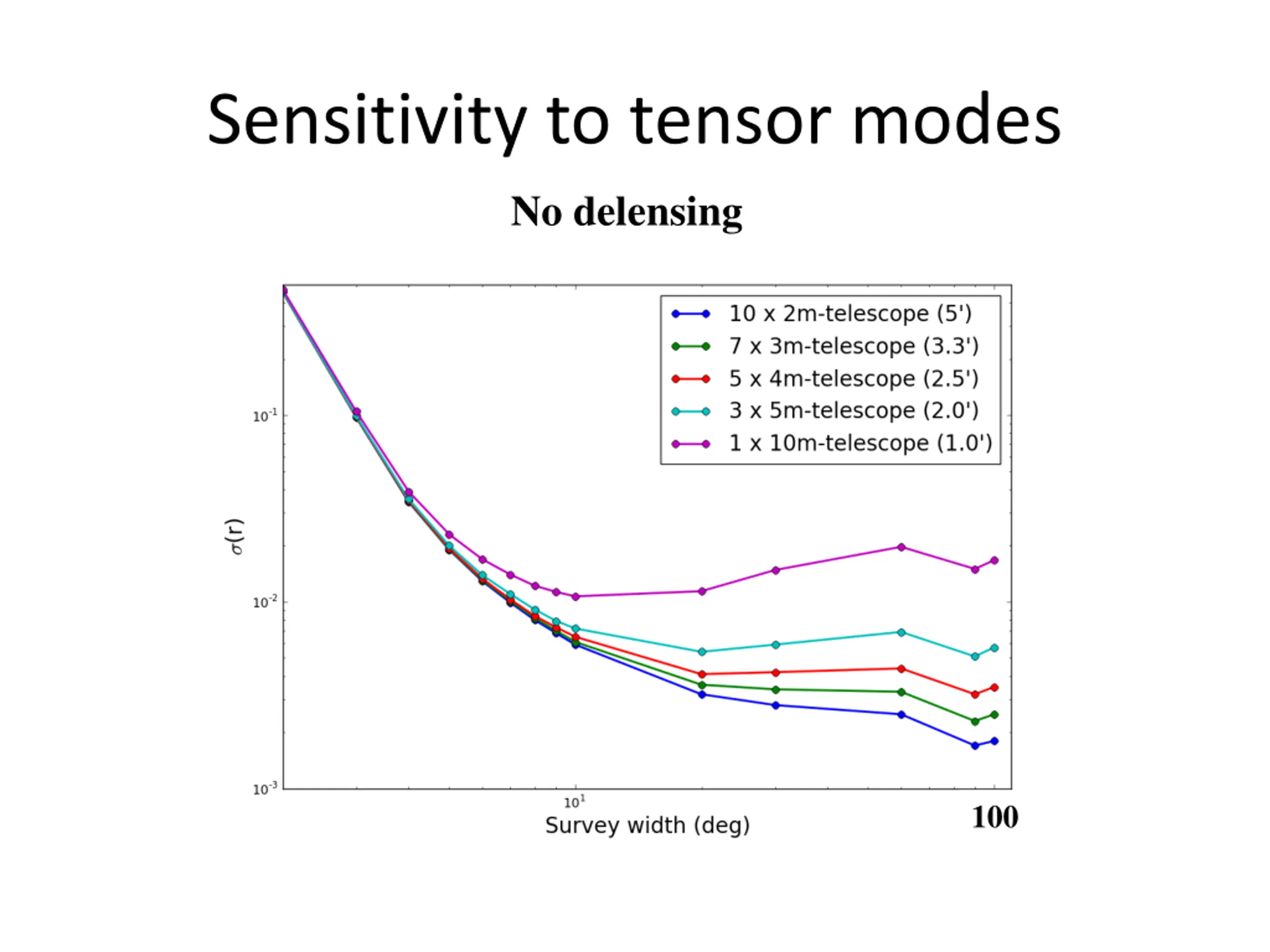

  7. Sensitivity to tensor modes No delensing 100

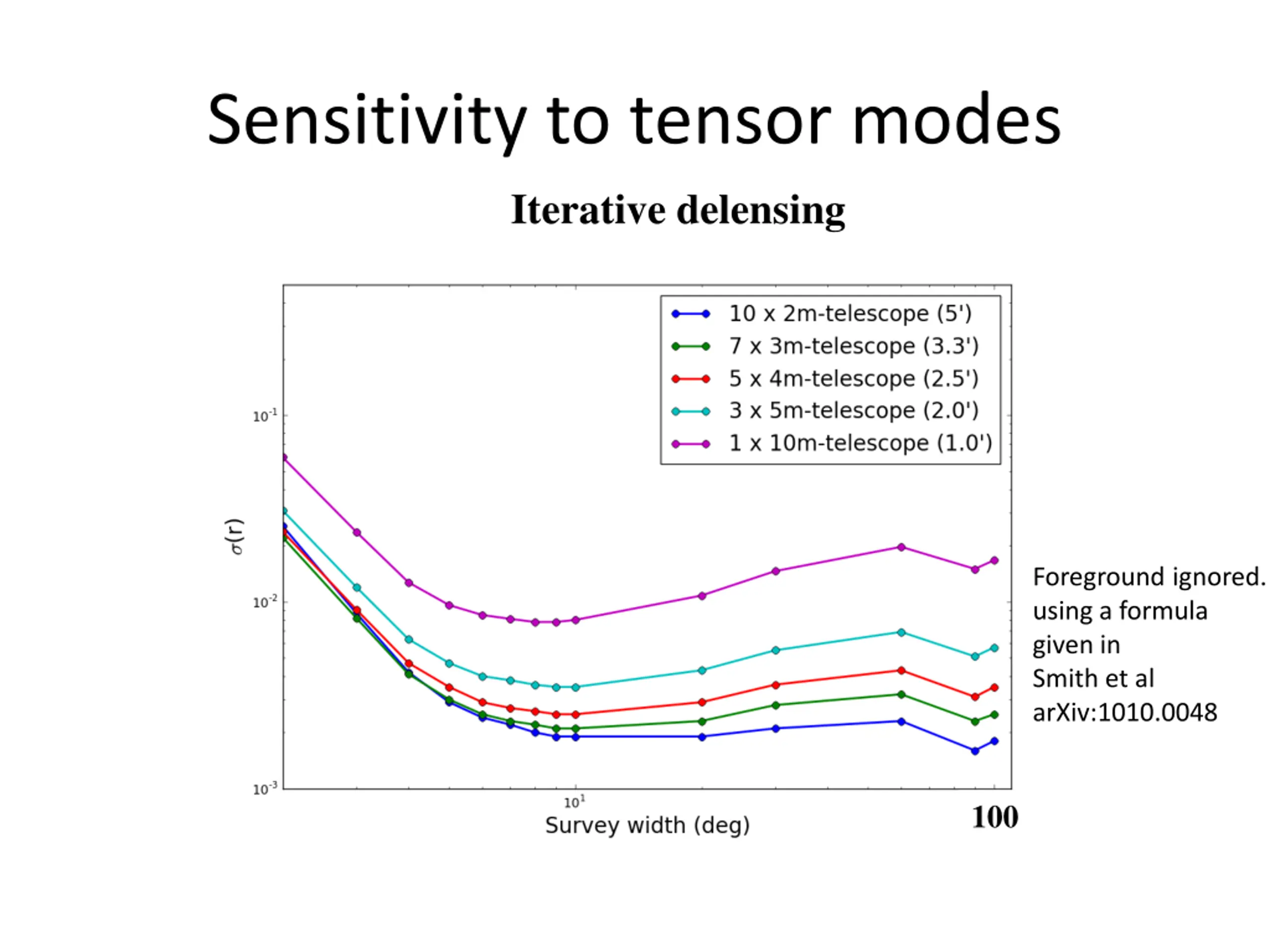

  8. Sensitivity to tensor modes Iterative delensing Foreground ignored. using a formula given in Smith et al arXiv:1010.0048 100

  9. Experimental trade-offs for Tensor • Resolution vs. baffling/instr. rotation • Resolution vs. sensitivity • Statistical removal of lensing vs. delensing • Sky coverage vs. frequency coverage • Re-combination (l~90) vs. Re-ionization (l~5) features

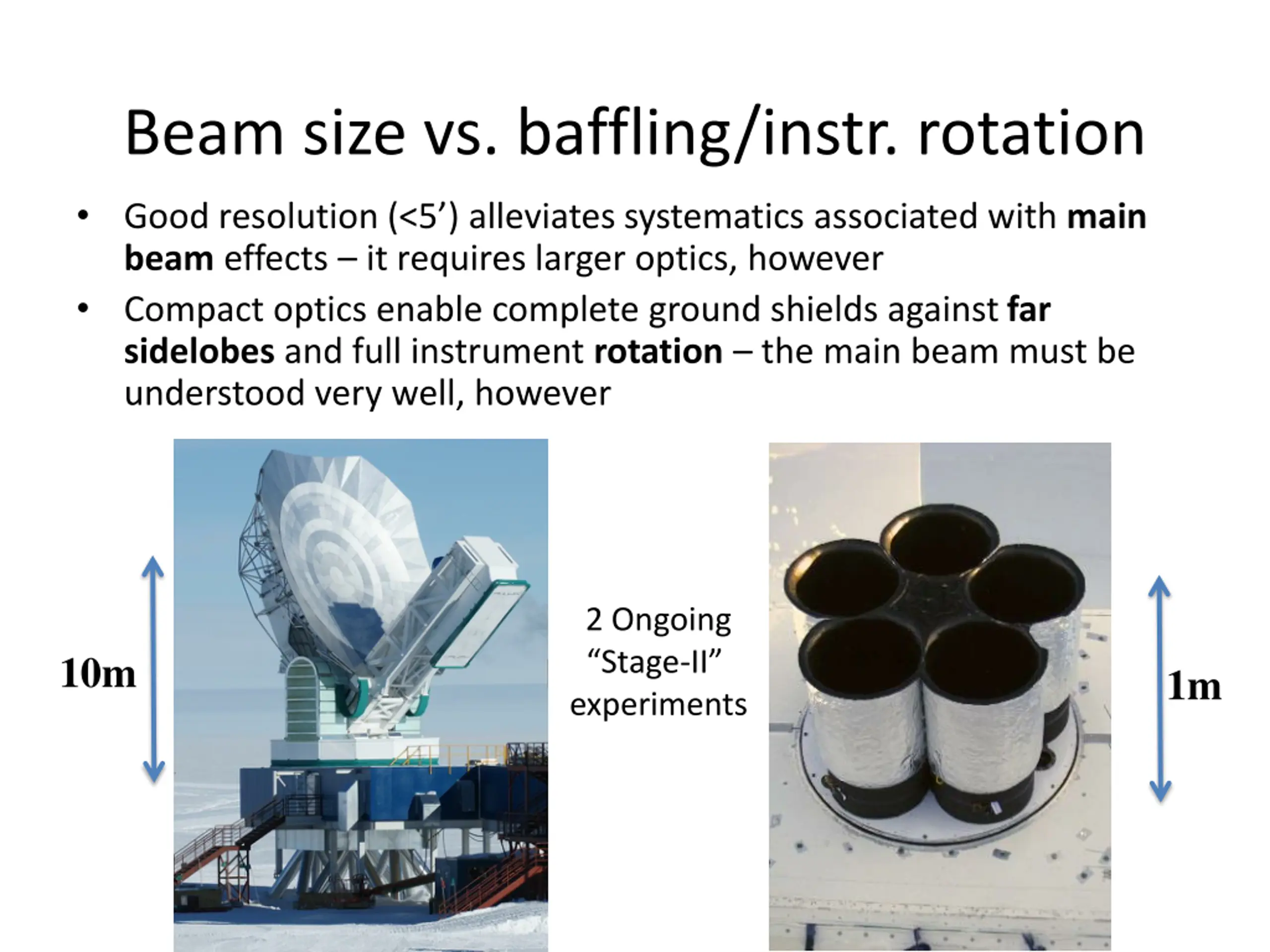

  10. Beam size vs. baffling/instr. rotation • Good resolution (<5’) alleviates systematics associated with main beam effects – it requires larger optics, however • Compact optics enable complete ground shields against far sidelobes and full instrument rotation – the main beam must be understood very well, however 2 Ongoing “Stage-II” experiments 10m 1m

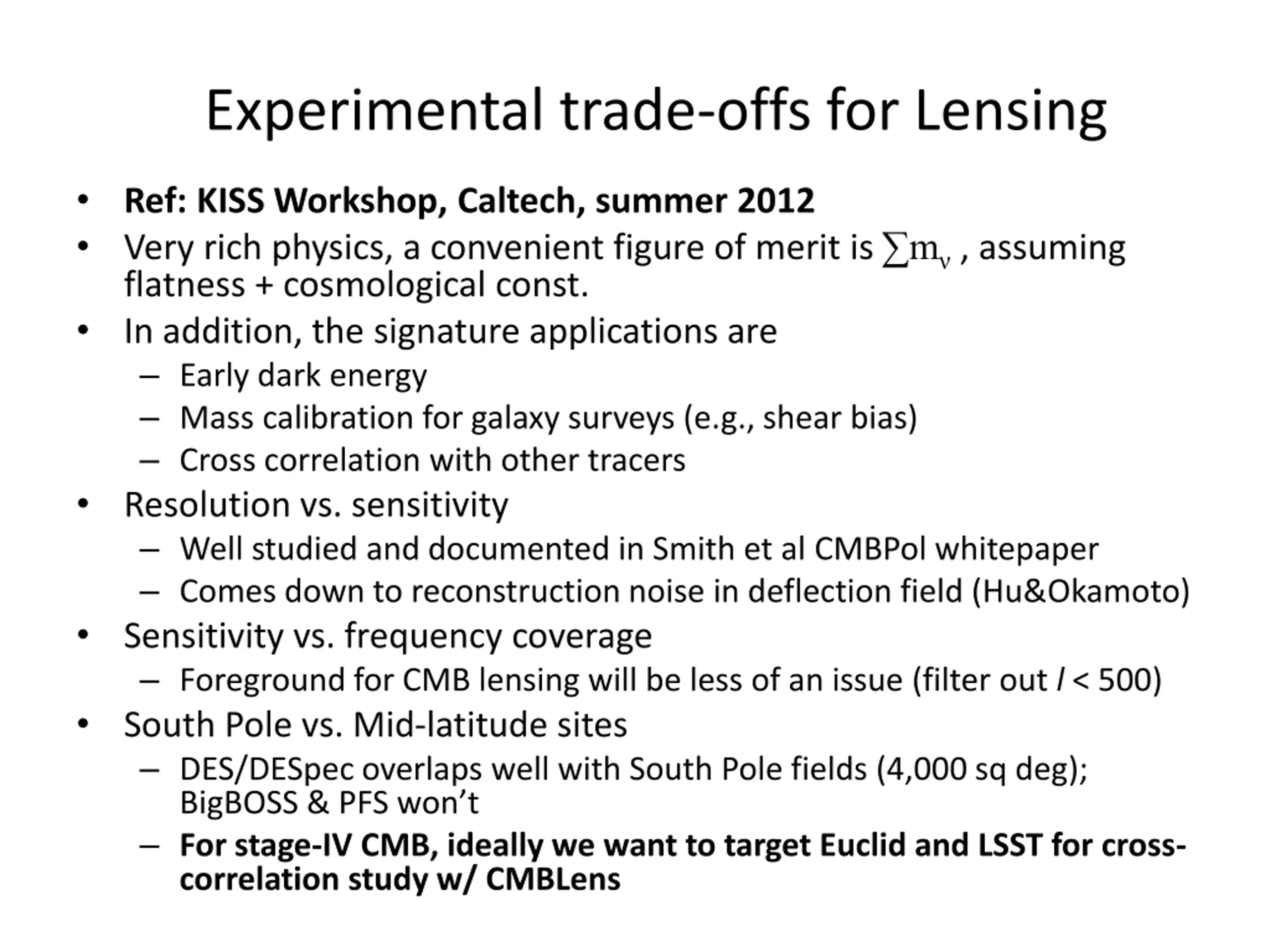

  11. Experimental trade-offs for Lensing • Ref: KISS Workshop, Caltech, summer 2012 • Very rich physics, a convenient figure of merit is ∑mν, assuming flatness + cosmological const. • In addition, the signature applications are – Early dark energy – Mass calibration for galaxy surveys (e.g., shear bias) – Cross correlation with other tracers • Resolution vs. sensitivity – Well studied and documented in Smith et al CMBPol whitepaper – Comes down to reconstruction noise in deflection field (Hu&Okamoto) • Sensitivity vs. frequency coverage – Foreground for CMB lensing will be less of an issue (filter out l < 500) • South Pole vs. Mid-latitude sites – DES/DESpec overlaps well with South Pole fields (4,000 sq deg); BigBOSS & PFS won’t – For stage-IV CMB, ideally we want to target Euclid and LSST for cross- correlation study w/ CMBLens

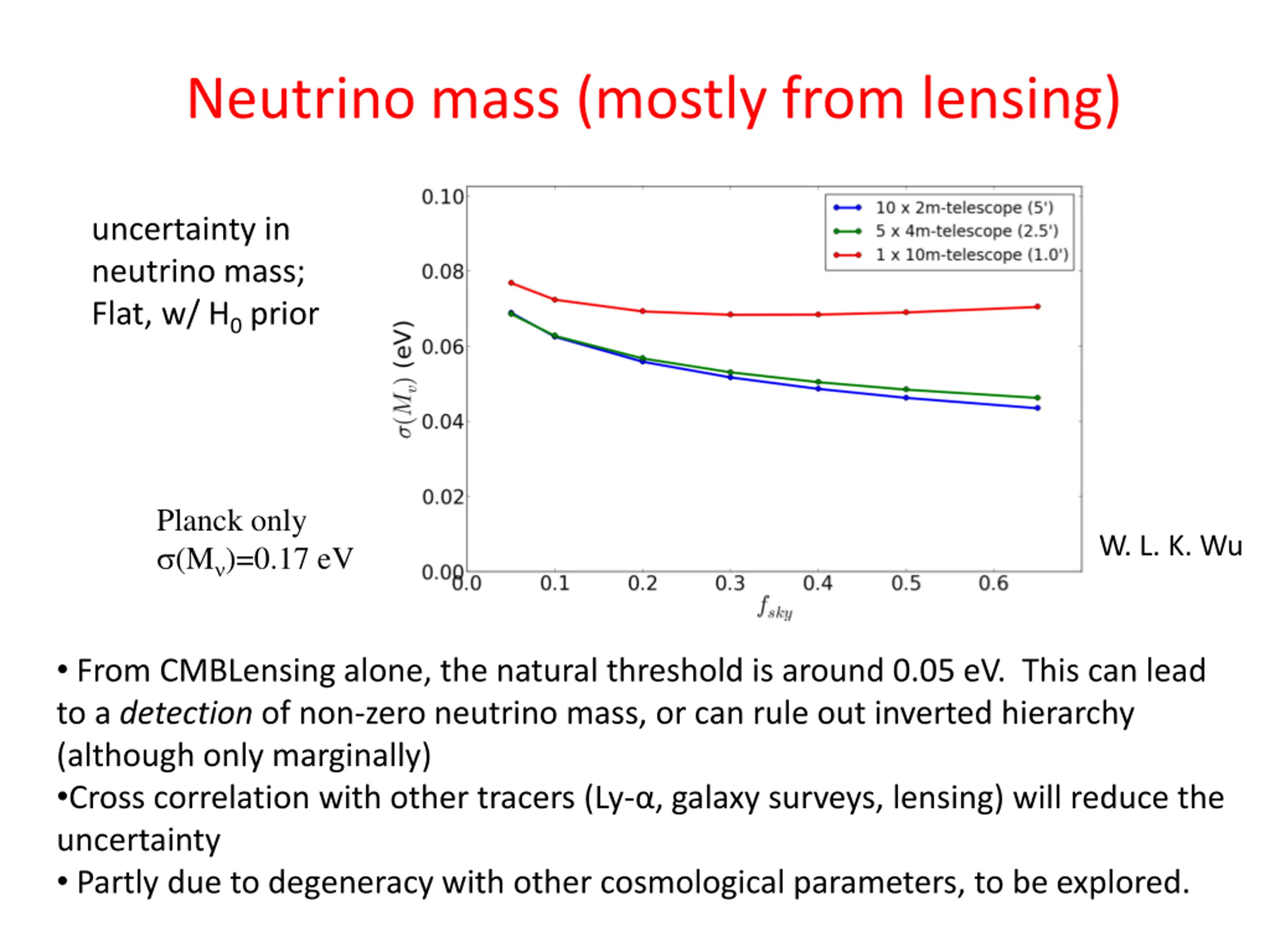

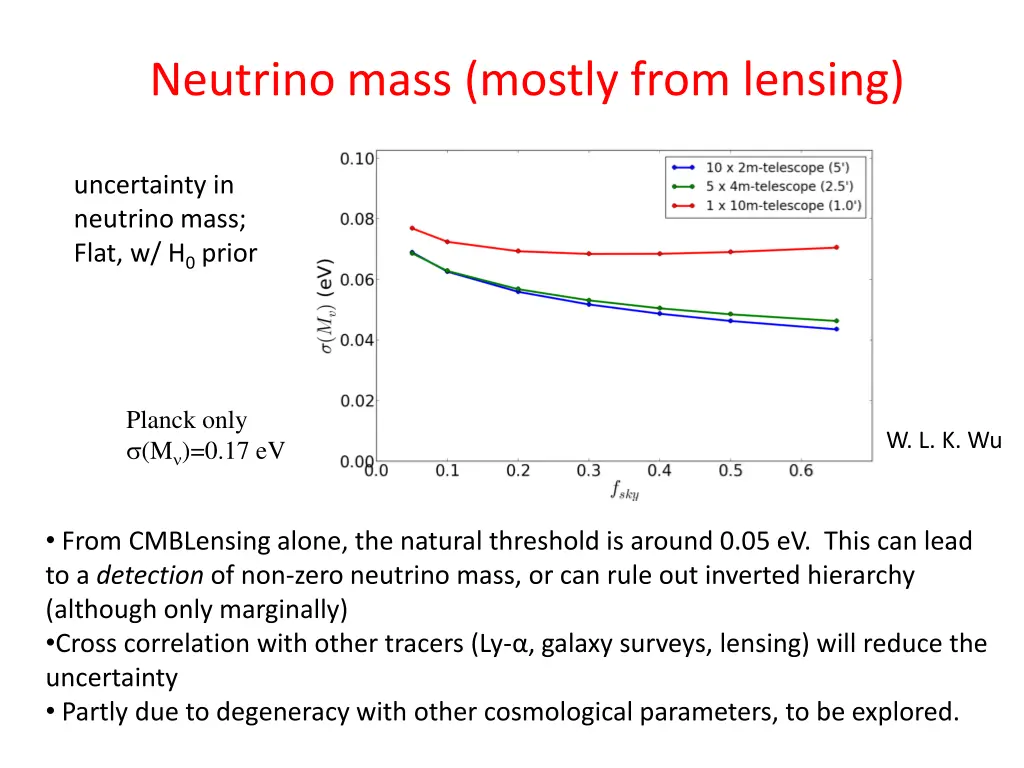

  12. Neutrino mass (mostly from lensing) uncertainty in neutrino mass; Flat, w/ H0prior Planck only s(Mn)=0.17 eV W. L. K. Wu • From CMBLensing alone, the natural threshold is around 0.05 eV. This can lead to a detection of non-zero neutrino mass, or can rule out inverted hierarchy (although only marginally) •Cross correlation with other tracers (Ly-α, galaxy surveys, lensing) will reduce the uncertainty • Partly due to degeneracy with other cosmological parameters, to be explored.

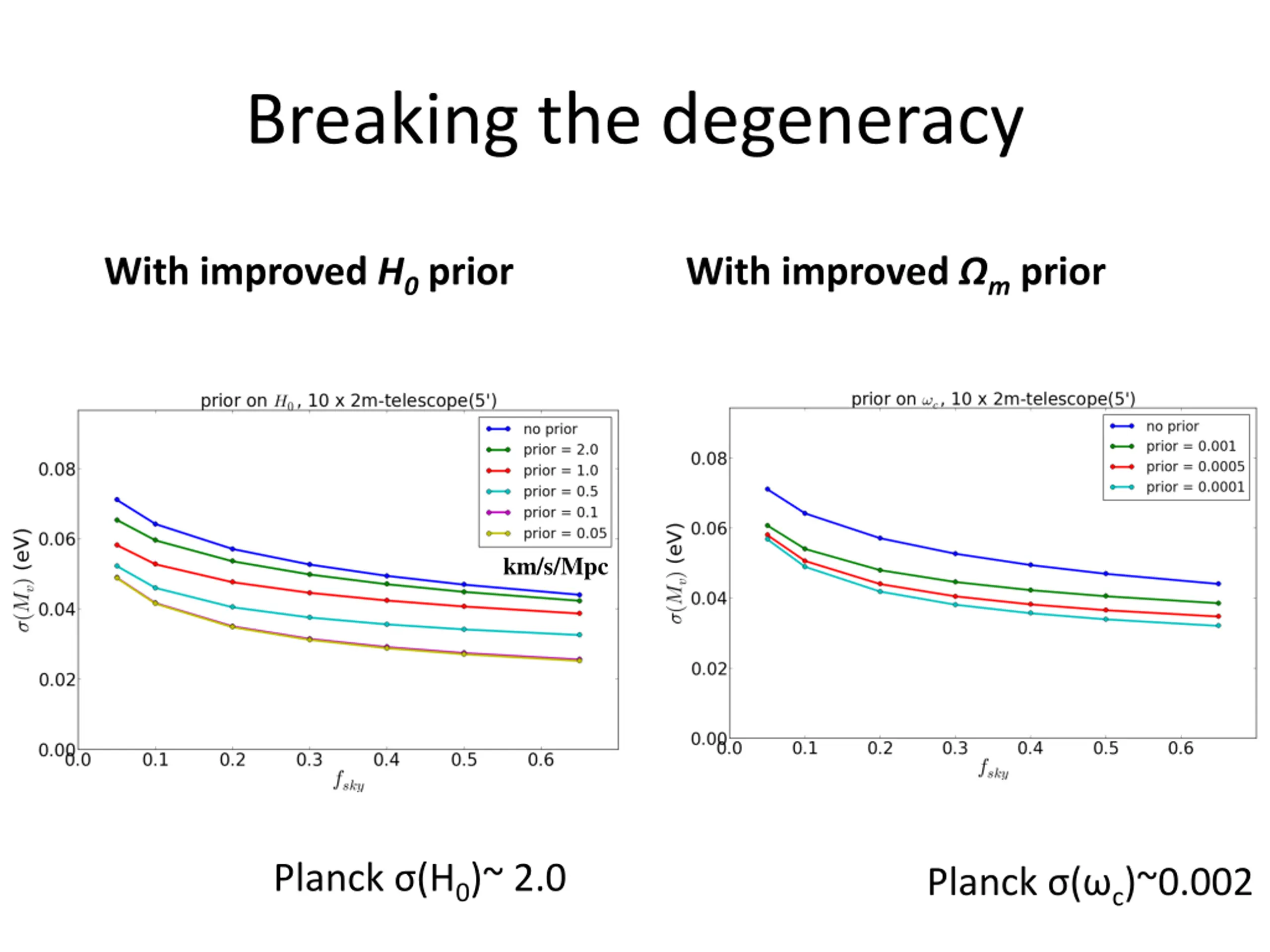

  13. Breaking the degeneracy With improved H0prior With improved Ωmprior km/s/Mpc Planck σ(H0)~ 2.0 Planck σ(ωc)~0.002

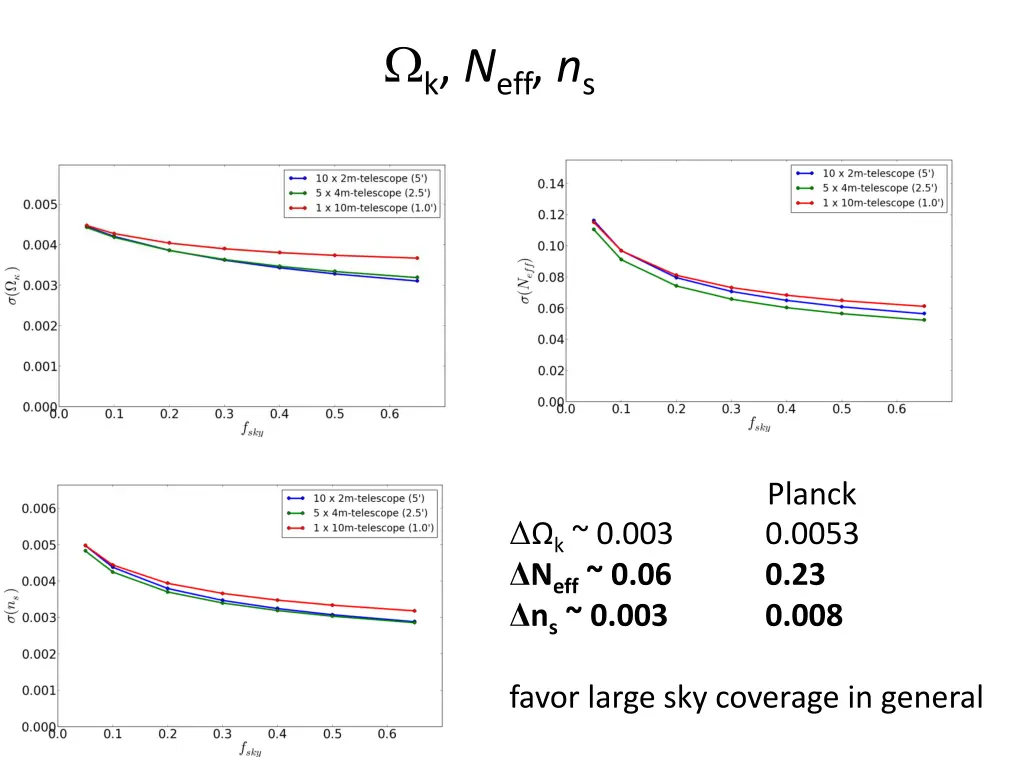

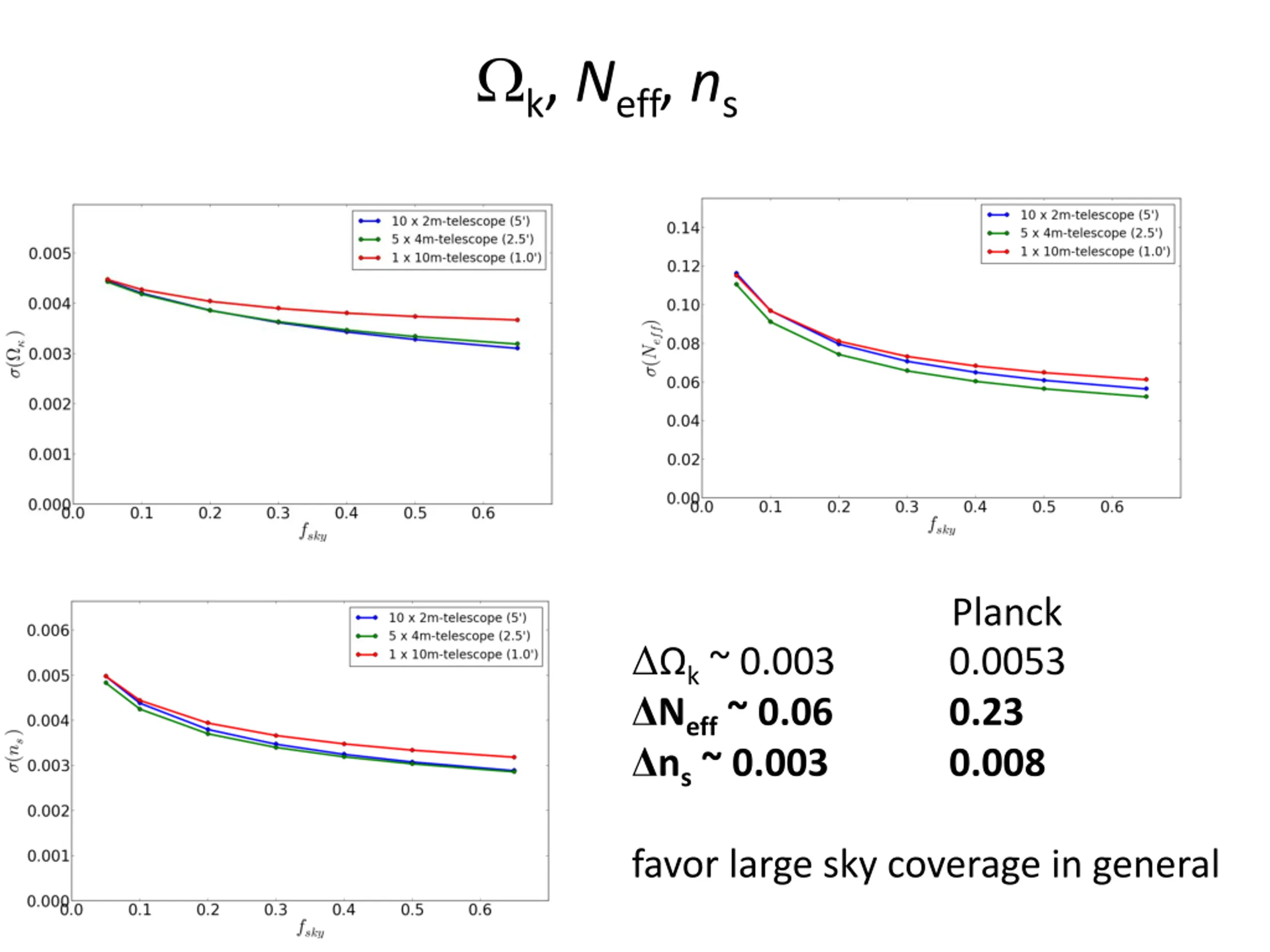

  14. Wk, Neff, ns Planck ΔΩk~ 0.003 ΔNeff~ 0.06 Δns~ 0.003 0.008 0.0053 0.23 favor large sky coverage in general

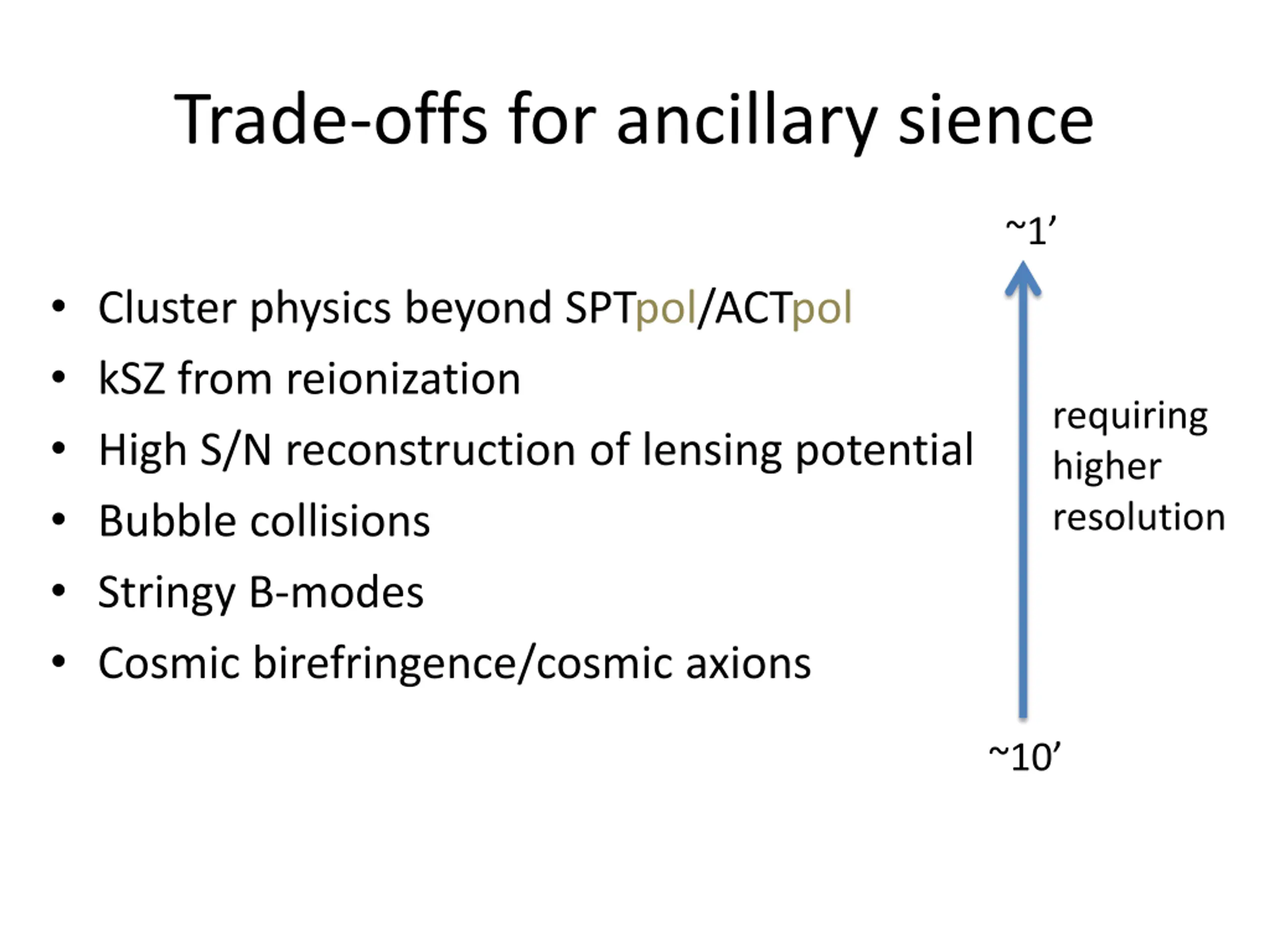

  15. Trade-offs for ancillary sience ~1’ • Cluster physics beyond SPTpol/ACTpol • kSZ from reionization • High S/N reconstruction of lensing potential • Bubble collisions • Stringy B-modes • Cosmic birefringence/cosmic axions requiring higher resolution ~10’

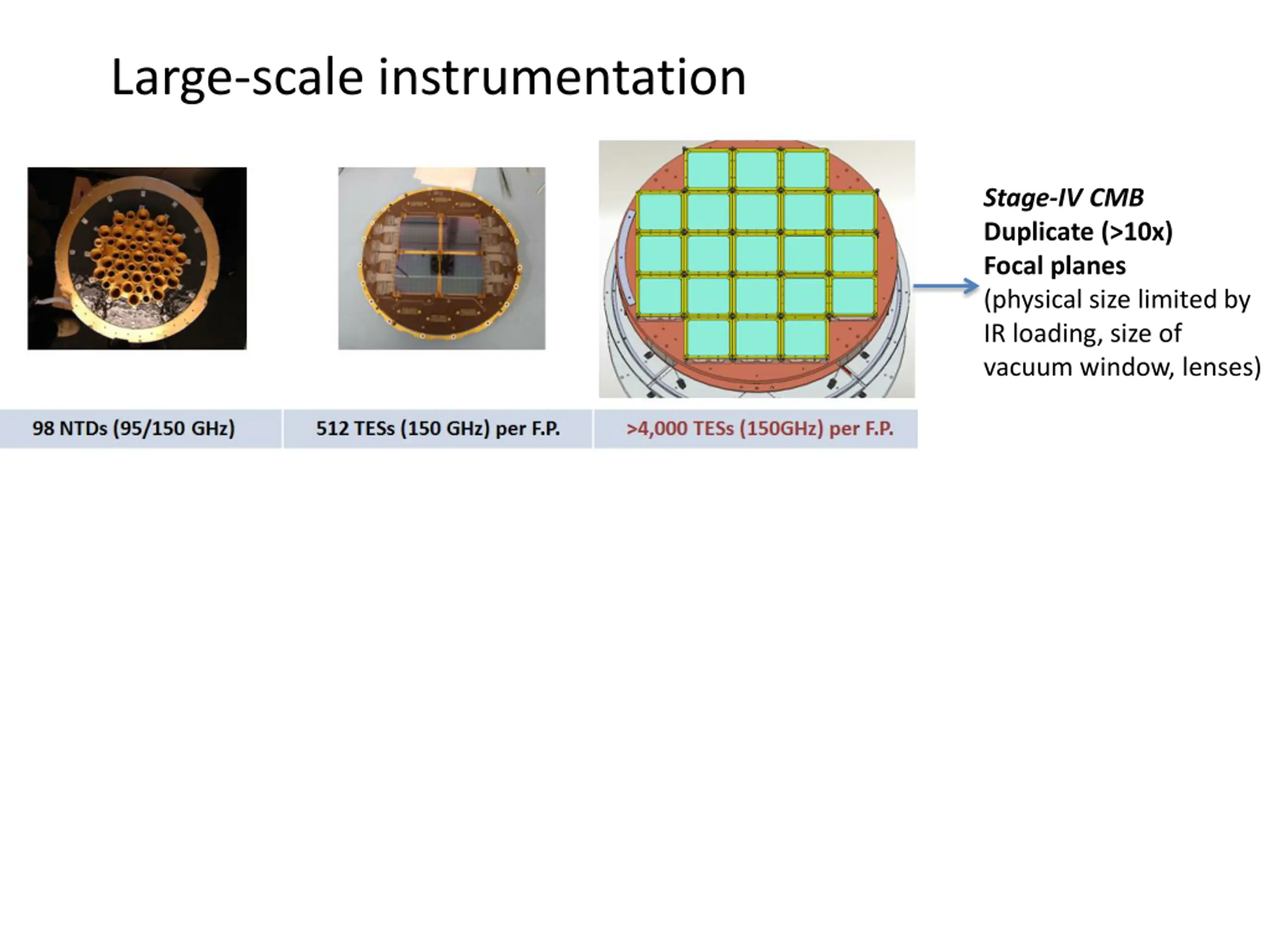

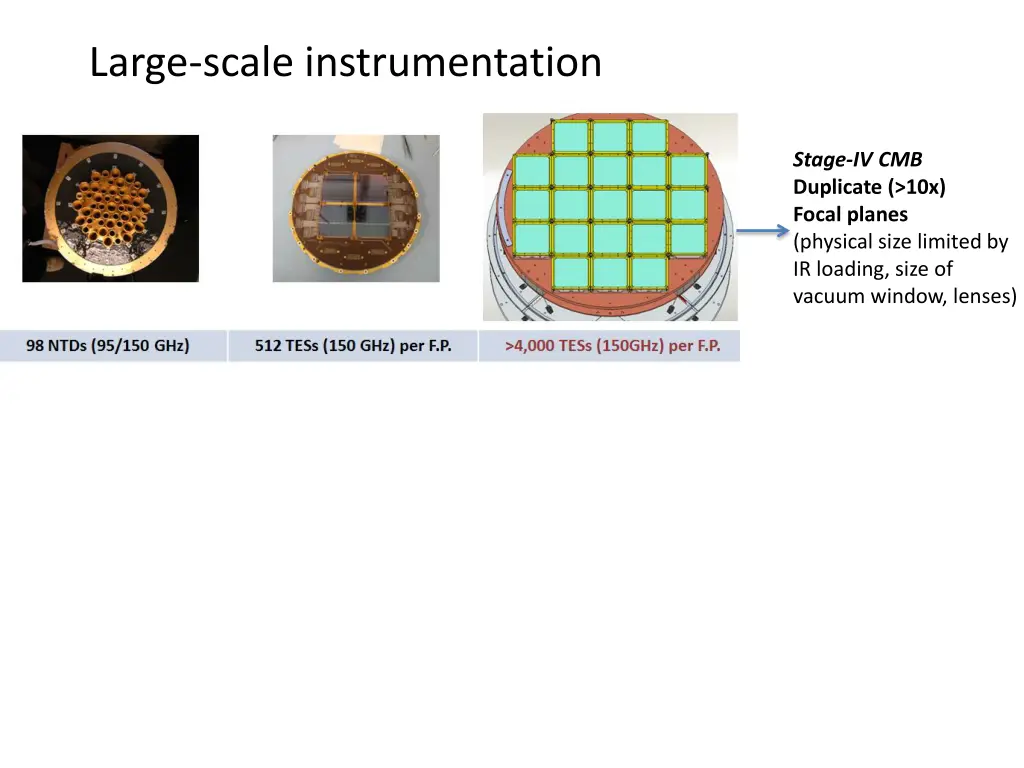

  16. Large-scale instrumentation Stage-IV CMB Duplicate (>10x) Focal planes (physical size limited by IR loading, size of vacuum window, lenses)

  17. Large-scale instrumentation at National Labs Stage-IV CMB Duplicate (>10x) Focal planes (physical size limited by IR loading, size of vacuum window, lenses) Fermi-LAT Super CDMS LCLS Detectors • R&D with Cornell Univ. • SLAC made 10 million pixels in total so far via robotic assembly • 80 square meters of silicon sensors • Silicon LAT assembled at SLAC • Scaling up of Germanium sensors and fab throughput

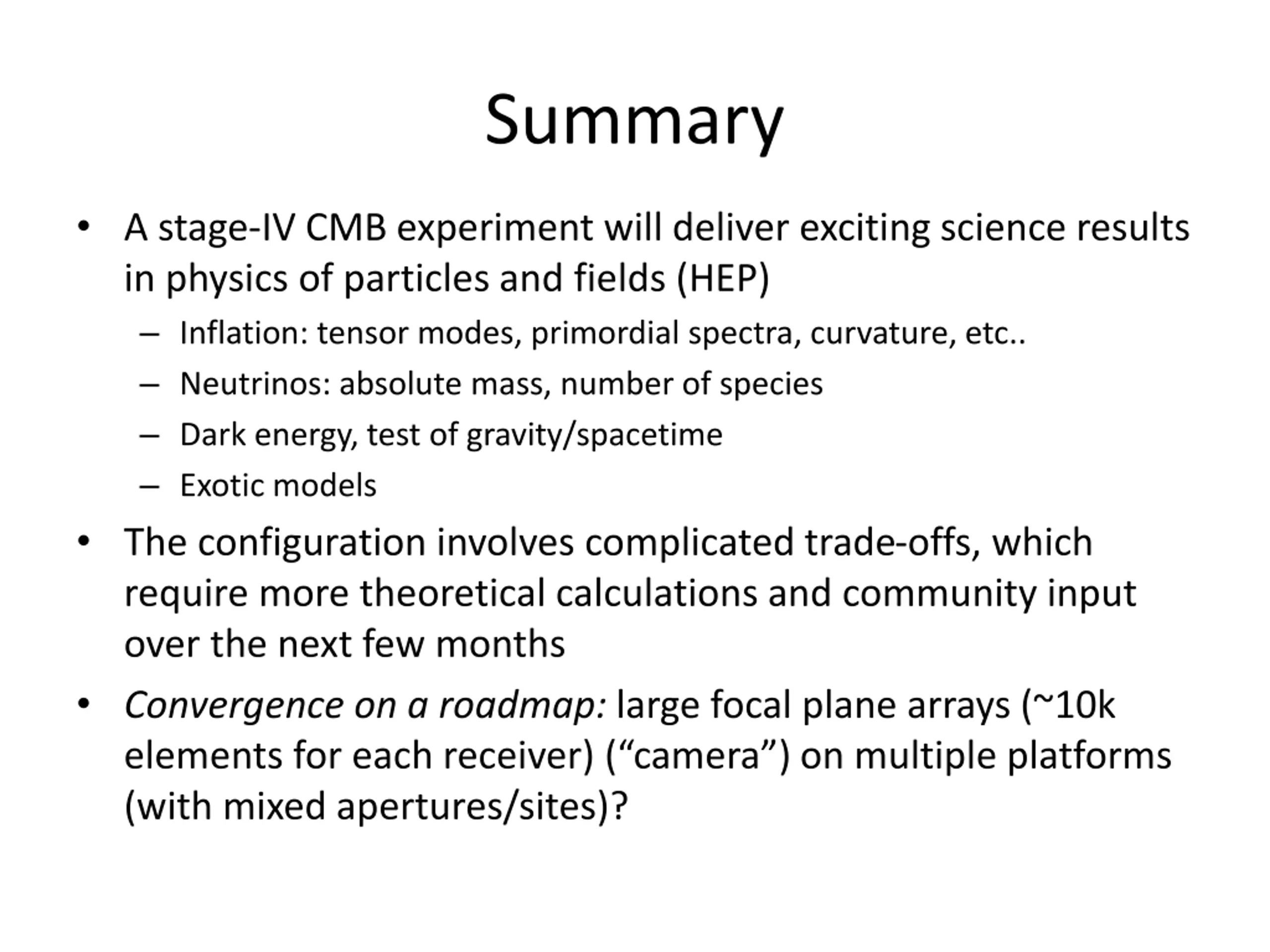

  18. Summary • A stage-IV CMB experiment will deliver exciting science results in physics of particles and fields (HEP) – Inflation: tensor modes, primordial spectra, curvature, etc.. – Neutrinos: absolute mass, number of species – Dark energy, test of gravity/spacetime – Exotic models • The configuration involves complicated trade-offs, which require more theoretical calculations and community input over the next few months • Convergence on a roadmap: large focal plane arrays (~10k elements for each receiver) (“camera”) on multiple platforms (with mixed apertures/sites)?
