Presentation Transcript

  1. Active Infrared Sensor for High performance doors 新型赤外線センサ DA-6500

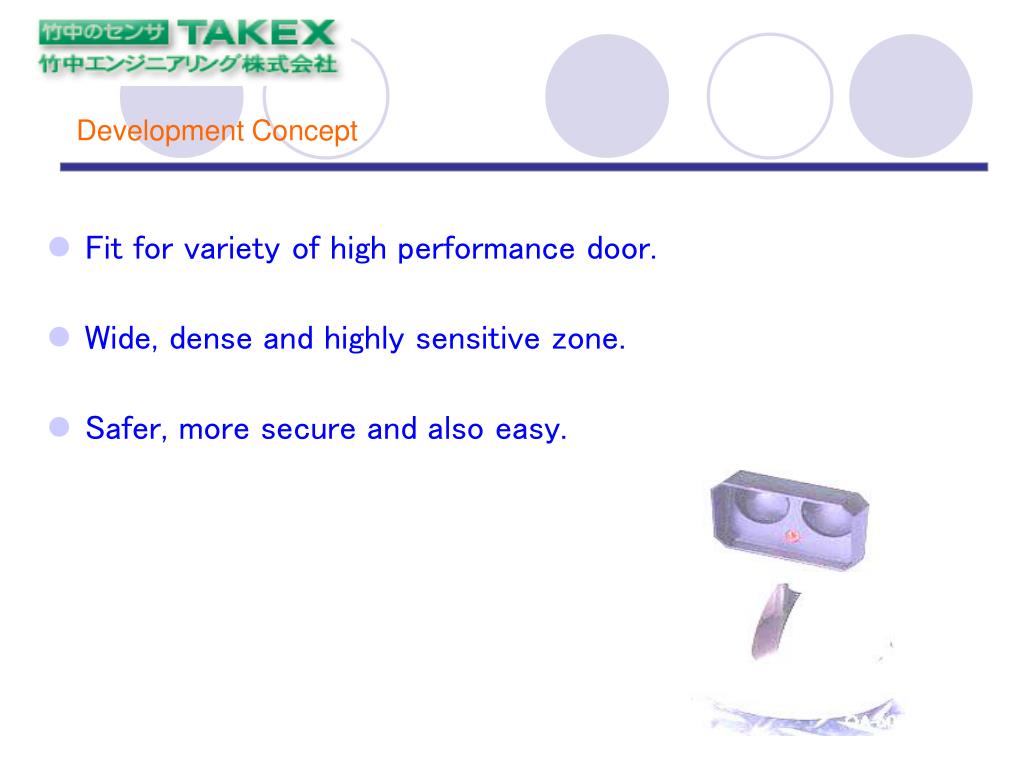

  2. Development Concept • Fit for variety of high performance door. • Wide, dense and highly sensitive zone. • Safer, more secure and also easy.

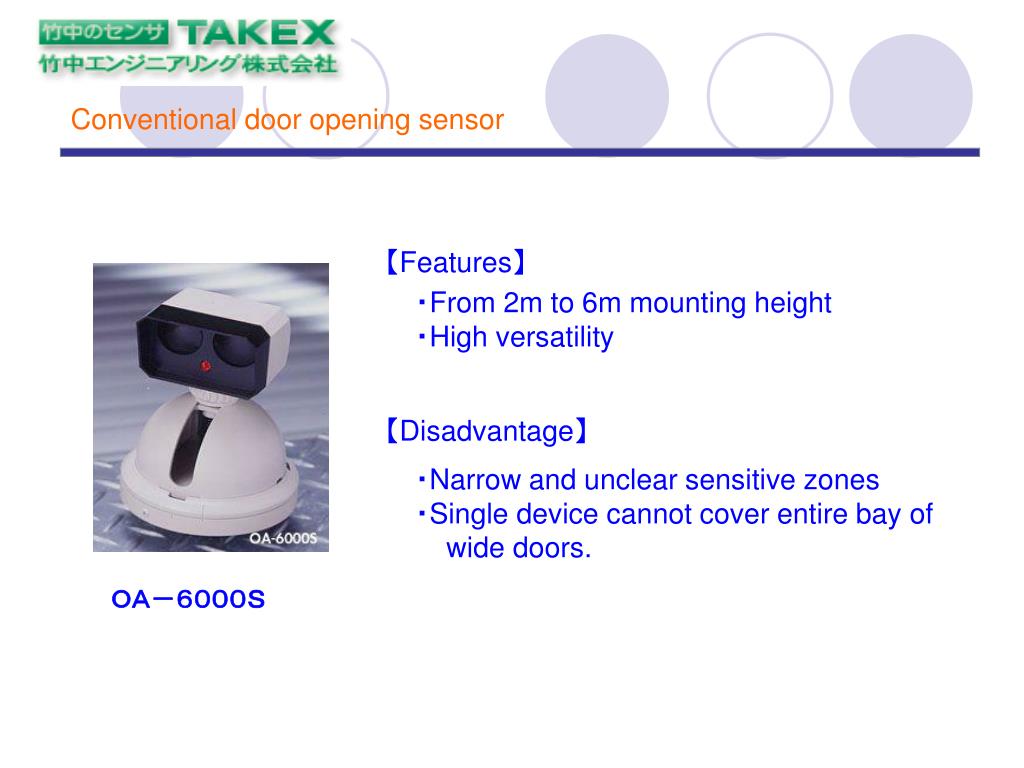

  3. Conventional door opening sensor 【Features】 ・From 2m to 6m mounting height ・High versatility 【Disadvantage】 ・Narrow and unclear sensitive zones ・Single device cannot cover entire bay of wide doors. OA-6000S

  4. Features for DA-6500 ①Single unit can fit on most of high performance doors. ・Save installation cost and man power ② Wide and dense sensitive area ・Reliably detects both human bodies and machines ③ Various features superior to MW dopplar ・Presence detection     ・Direction conscious     ・Snow mode ④ Easy setting ・IR Remote controller

  5. DA-6500 【Specs】 ・Mounting height: 2.0m(6.6ft) to 6.5(21.5ft) ・Sensitive area: 6.9m(22.6ft) width 4.2m(13.8ft) depth ・Sensitive zones: 60 (5rows X 12zones) ・Directional sensitivity: 6 patterns ・Fine area adjustment ・Remote controller (Option) ・Weather-proof (IP*5) DA-6500R (OPTIONAL)

  6. Remote Controller DA-6500R

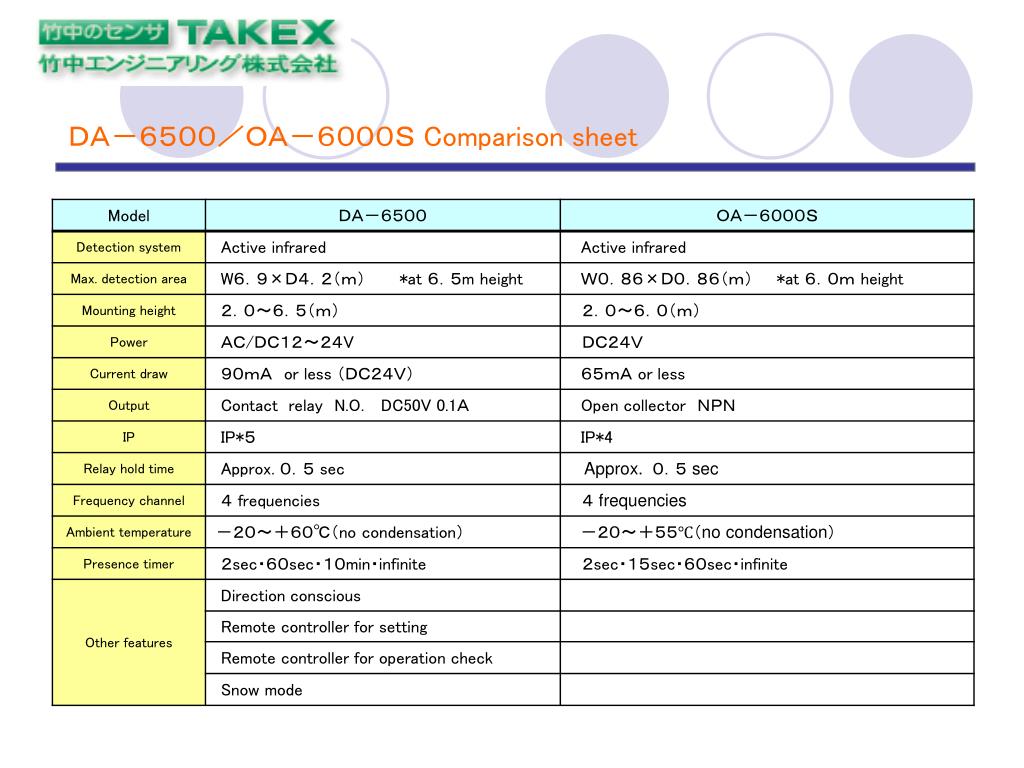

  7. DA-6500/OA-6000S Comparison sheet

  8. DA-6500/OA-6000S Max detection area DA-6500 OA-6000S 6.0m 6.5m 0.86m 4.2m 6.9m

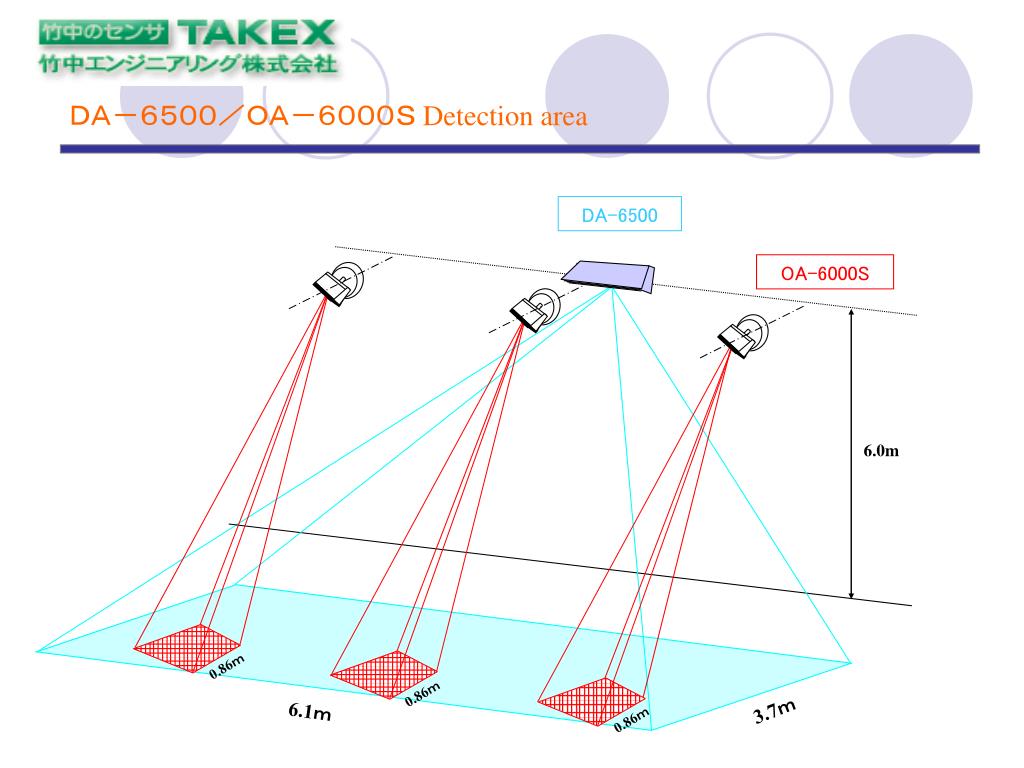

  9. DA-6500/OA-6000S Detection area DA-6500 OA-6000S 6.0m 0.86m 0.86m 3.7m 6.1m 0.86m

  10. DA-6500 Directional sensitivity × × ※Cancel out approaches from side directions. DA-6500 Detection area

  11. DA-6500 Directional sensitivity ○ × ※No detection movements away from the door. DA-6500Detection area
