  1. RAIK 283: Data Structures & Algorithms Brute Force * Dr. Ying Lu ylu@cse.unl.edu September 20, 2012 *slides referred to http://www.aw-bc.com/info/levitin Design and Analysis of Algorithms – Chapter 3

  2. Brute force • A straightforward approach usually based on problem statement and definitions • Examples: • Selection Sort • Graph Traversal • Simple Computational Tasks • Exhaustive Search Design and Analysis of Algorithms – Chapter 3

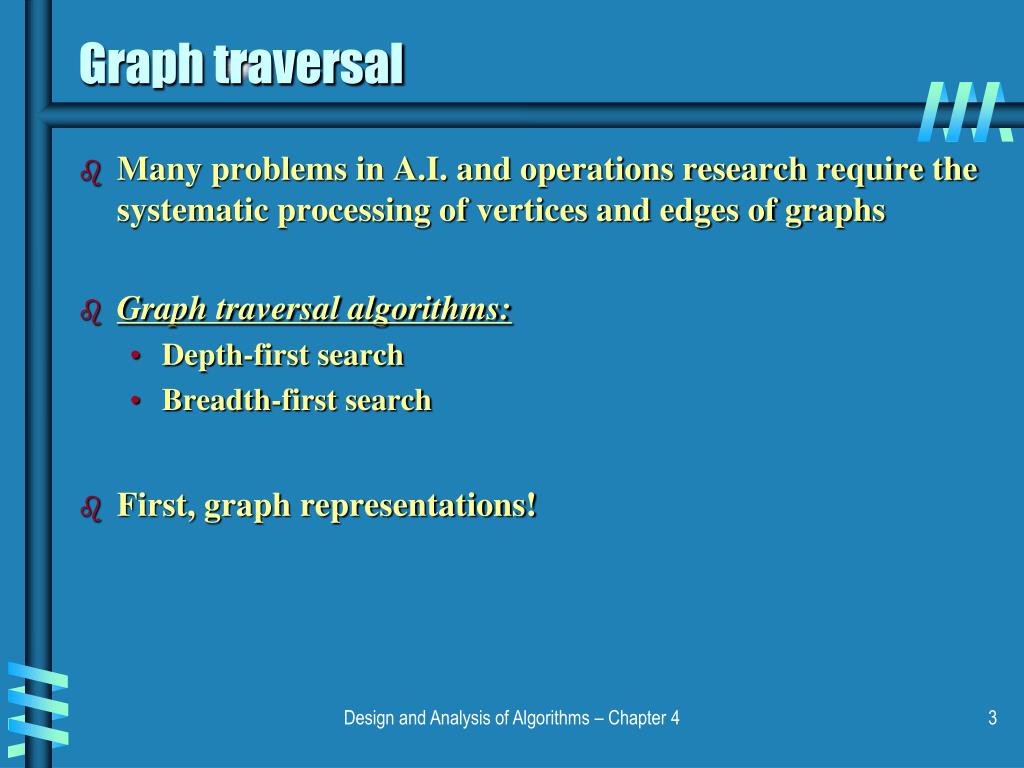

  3. Graph traversal • Many problems in A.I. and operations research require the systematic processing of vertices and edges of graphs • Graph traversal algorithms: • Depth-first search • Breadth-first search • First, graph representations! Design and Analysis of Algorithms – Chapter 4

  4. Graph representations using data structures • Adjacency Matrix Representation • Let G = (V, E), n = |V|, m = |E|, V = {v1, v2, …, vn) • G can be represented by an nn matrix C Design and Analysis of Algorithms – Chapter 4

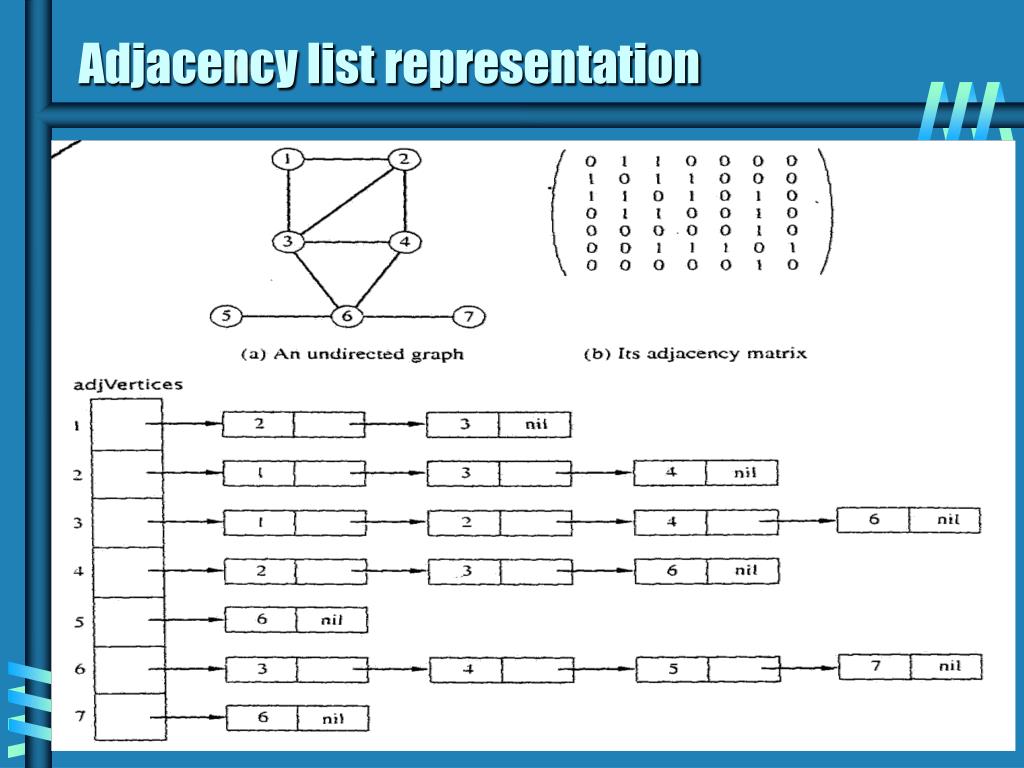

  5. Adjacency list representation Design and Analysis of Algorithms – Chapter 4

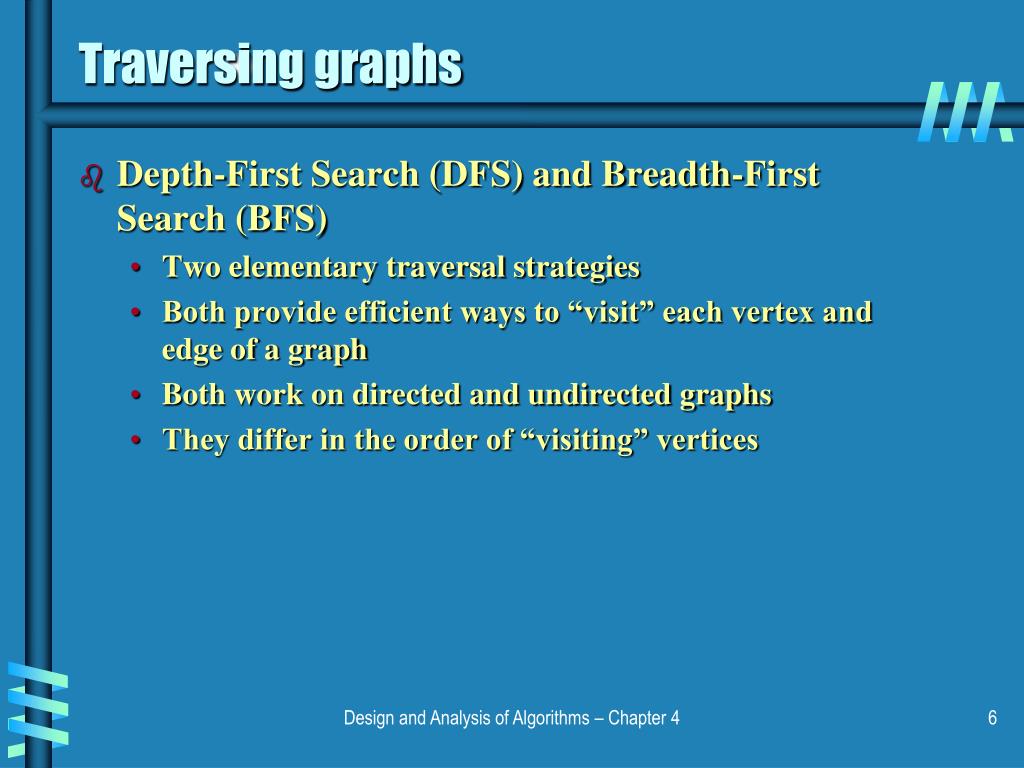

  6. Traversing graphs • Depth-First Search (DFS) and Breadth-First Search (BFS) • Two elementary traversal strategies • Both provide efficient ways to “visit” each vertex and edge of a graph • Both work on directed and undirected graphs • They differ in the order of “visiting” vertices Design and Analysis of Algorithms – Chapter 4

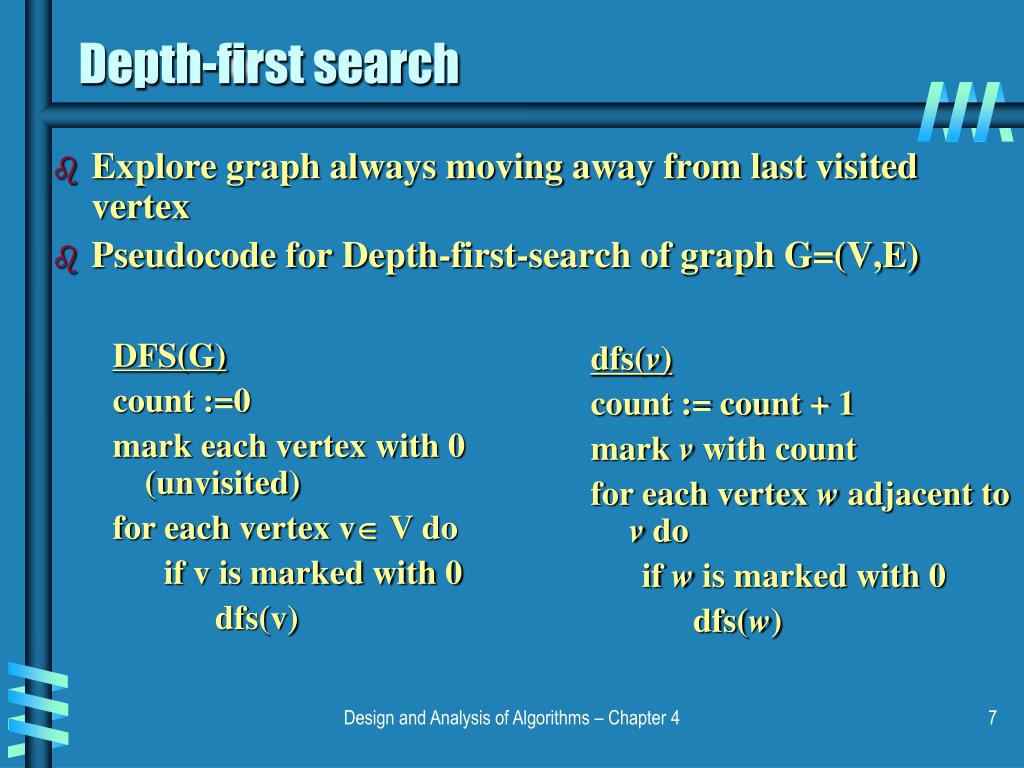

  7. Depth-first search • Explore graph always moving away from last visited vertex • Pseudocode for Depth-first-search of graph G=(V,E) • DFS(G) • count :=0 • mark each vertex with 0 (unvisited) • for each vertex vV do • if v is marked with 0 • dfs(v) • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

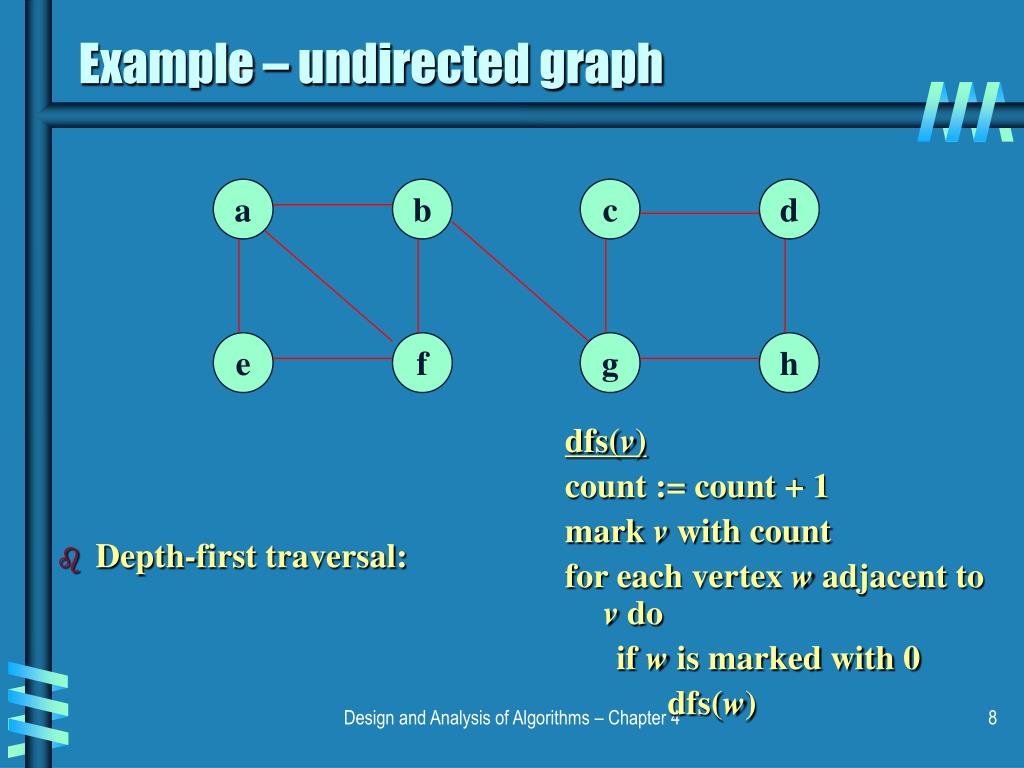

  8. a b c d e f g h Example – undirected graph • Depth-first traversal: • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

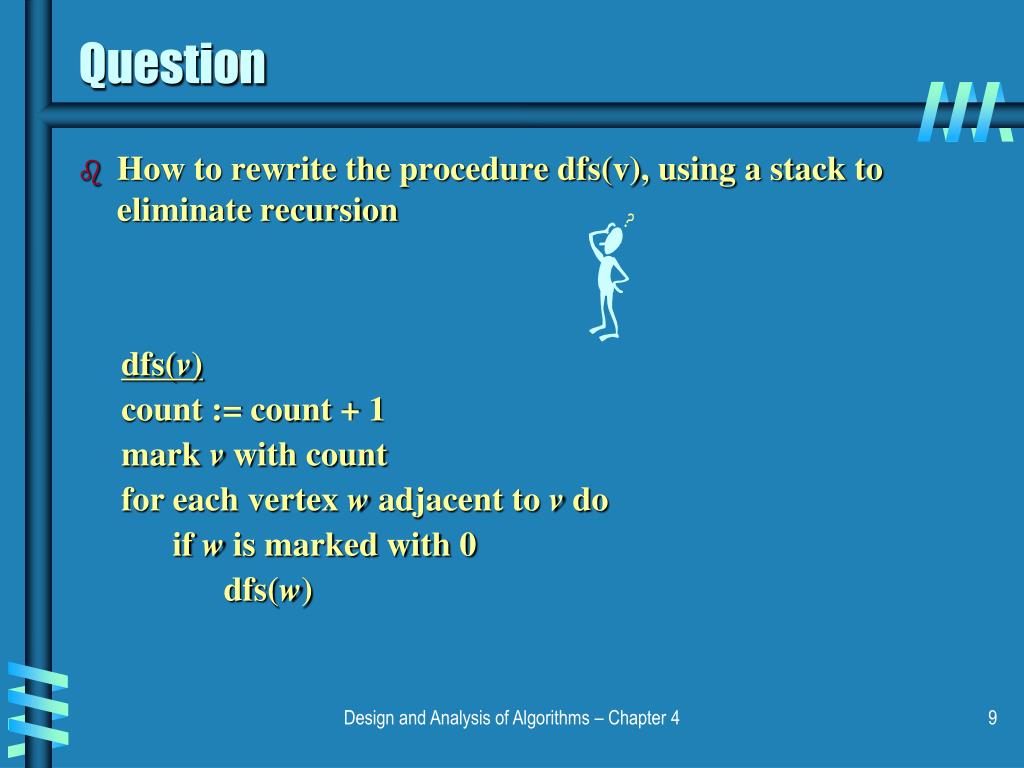

  9. Question • How to rewrite the procedure dfs(v), using a stack to eliminate recursion • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

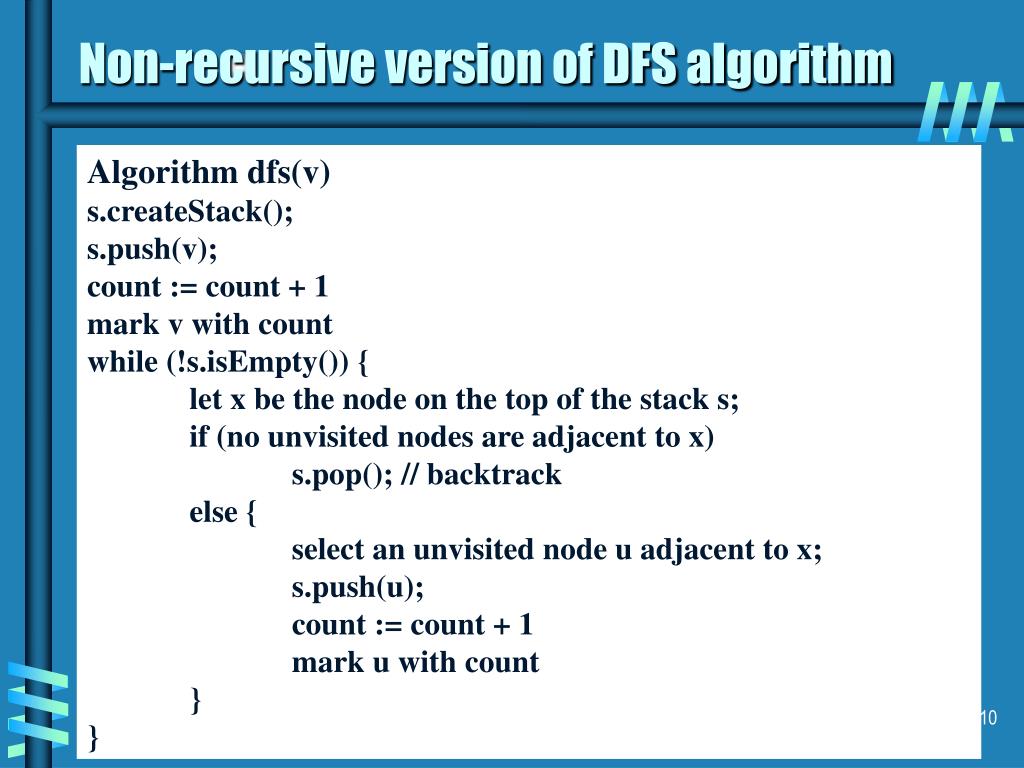

  10. Non-recursive version of DFS algorithm Algorithm dfs(v) s.createStack(); s.push(v); count := count + 1 mark v with count while (!s.isEmpty()) { let x be the node on the top of the stack s; if (no unvisited nodes are adjacent to x) s.pop(); // backtrack else { select an unvisited node u adjacent to x; s.push(u); count := count + 1 mark u with count } } Design and Analysis of Algorithms – Chapter 4

  11. Time efficiency analysis • DFS can be implemented with graphs represented as: • Adjacency matrices: • DFS(G) • count :=0 • mark each vertex with 0 (unvisited) • for each vertex vV do • if v is marked with 0 • dfs(v) • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

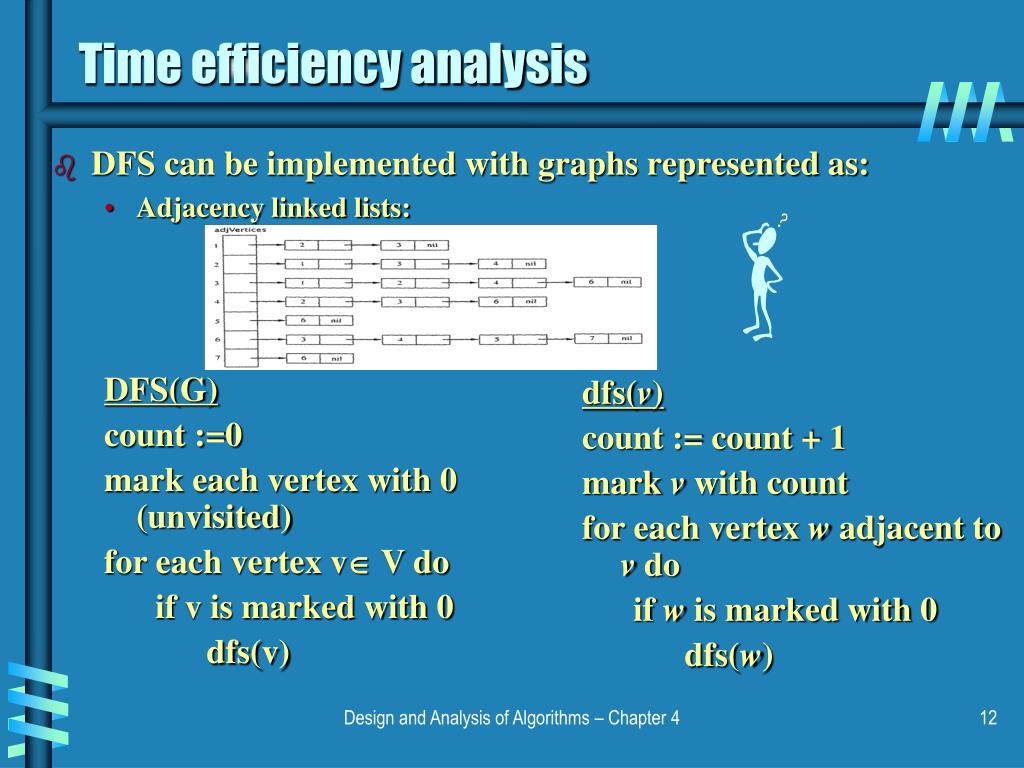

  12. Time efficiency analysis • DFS can be implemented with graphs represented as: • Adjacency linked lists: • DFS(G) • count :=0 • mark each vertex with 0 (unvisited) • for each vertex vV do • if v is marked with 0 • dfs(v) • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

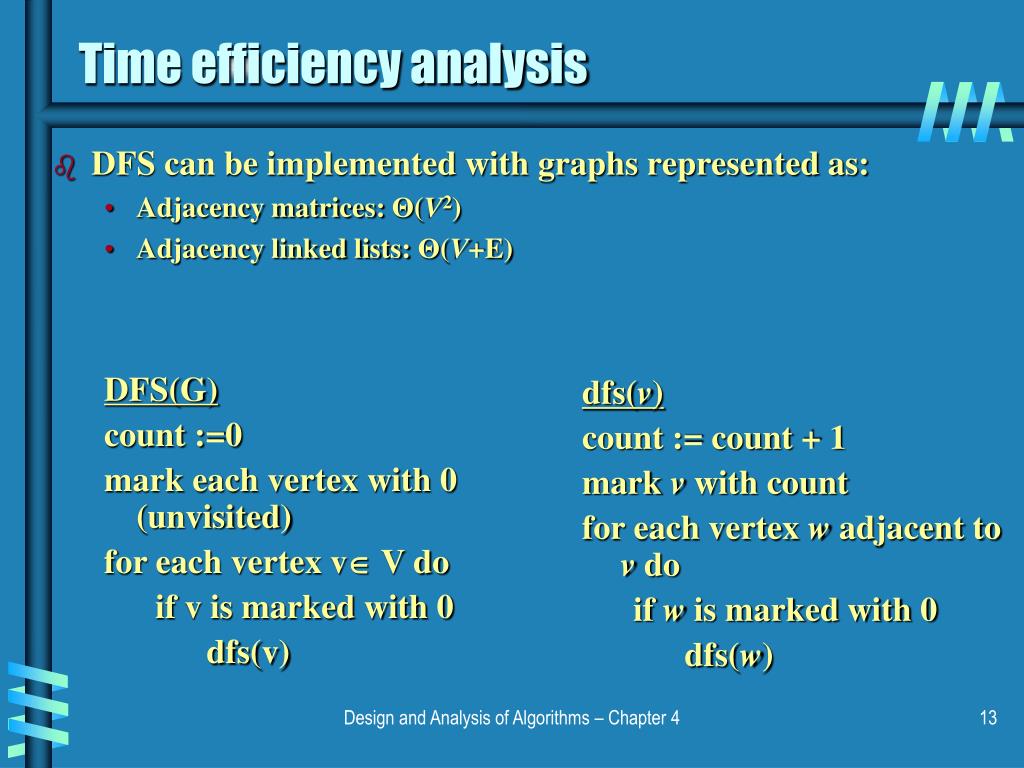

  13. Time efficiency analysis • DFS can be implemented with graphs represented as: • Adjacency matrices: Θ(V2) • Adjacency linked lists: Θ(V+E) • DFS(G) • count :=0 • mark each vertex with 0 (unvisited) • for each vertex vV do • if v is marked with 0 • dfs(v) • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

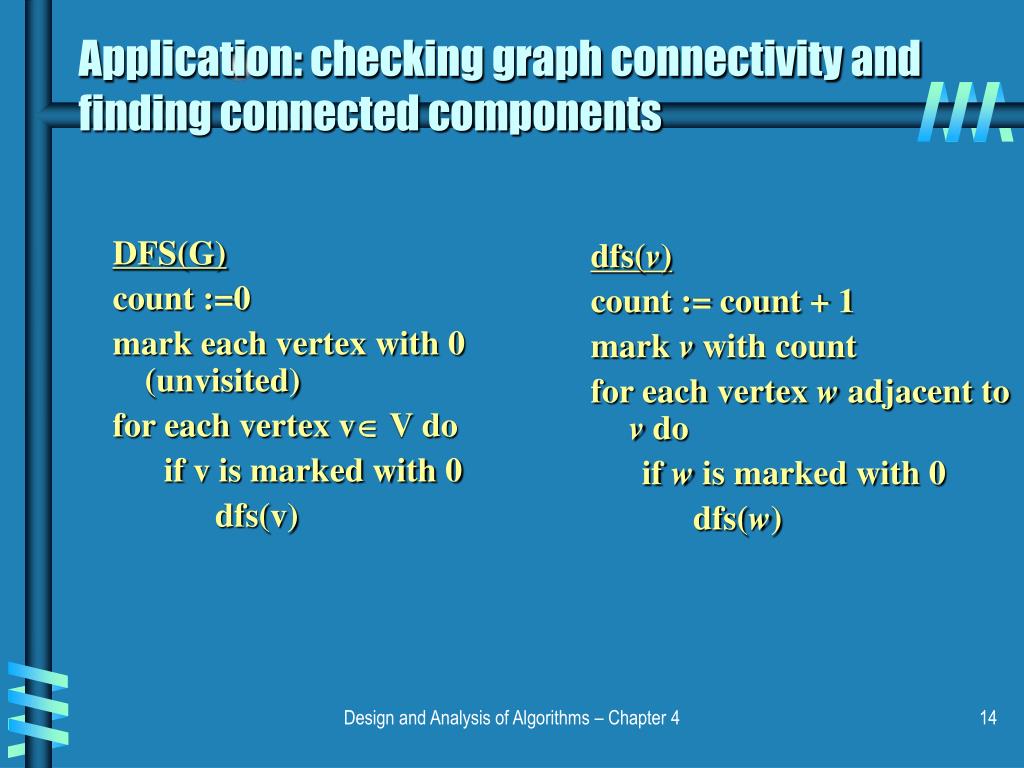

  14. Application: checking graph connectivity and finding connected components • DFS(G) • count :=0 • mark each vertex with 0 (unvisited) • for each vertex vV do • if v is marked with 0 • dfs(v) • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

  15. Application: checking acyclicity • DFS(G) • count :=0 • mark each vertex with 0 (unvisited) • for each vertex vV do • if v is marked with 0 • dfs(v) • dfs(v) • count := count + 1 • mark v with count • for each vertex w adjacent to vdo • if w is marked with 0 • dfs(w) Design and Analysis of Algorithms – Chapter 4

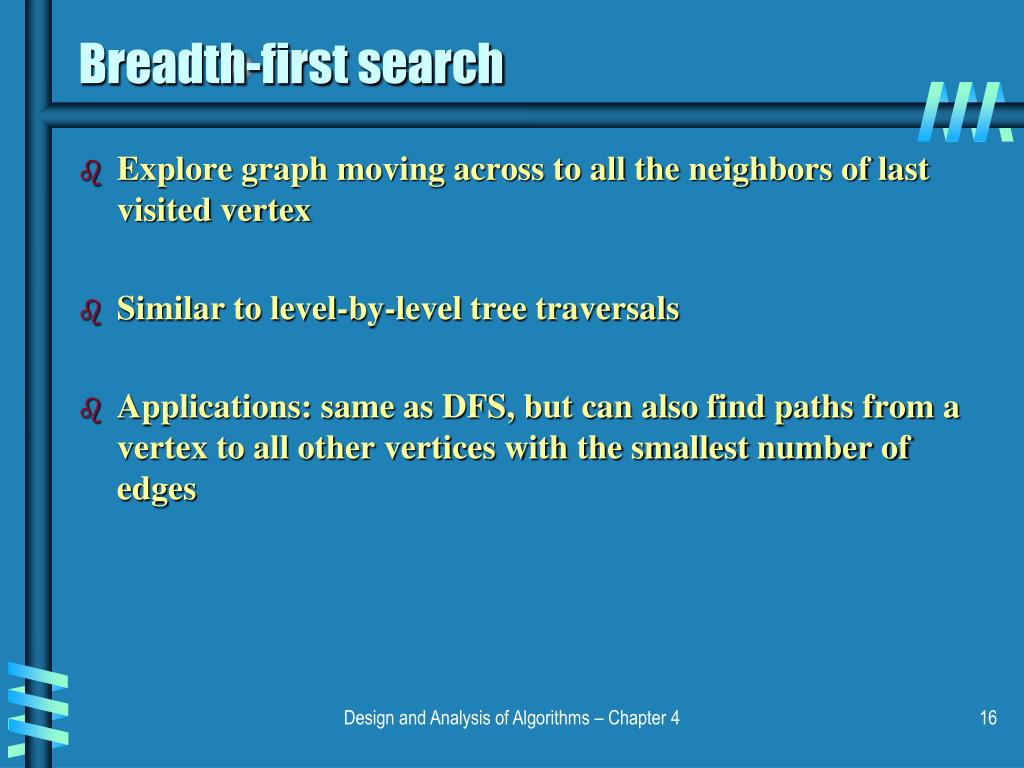

  16. Breadth-first search • Explore graph moving across to all the neighbors of last visited vertex • Similar to level-by-level tree traversals • Applications: same as DFS, but can also find paths from a vertex to all other vertices with the smallest number of edges Design and Analysis of Algorithms – Chapter 4

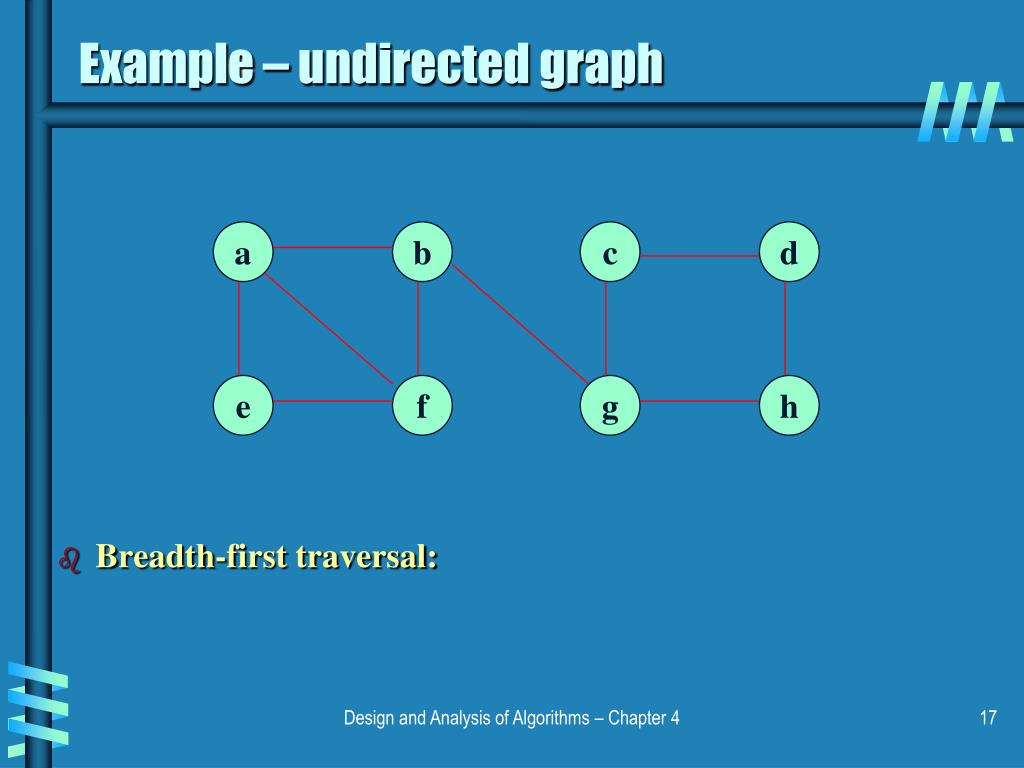

  17. a b c d e f g h Example – undirected graph • Breadth-first traversal: Design and Analysis of Algorithms – Chapter 4

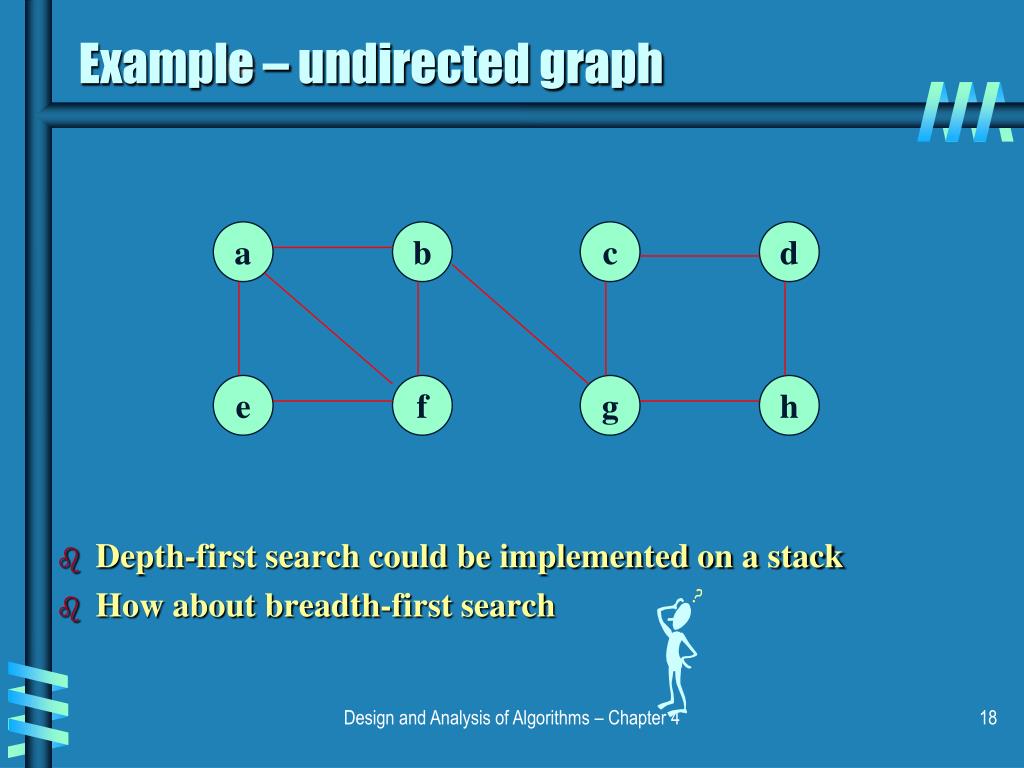

  18. a b c d e f g h Example – undirected graph • Depth-first search could be implemented on a stack • How about breadth-first search Design and Analysis of Algorithms – Chapter 4

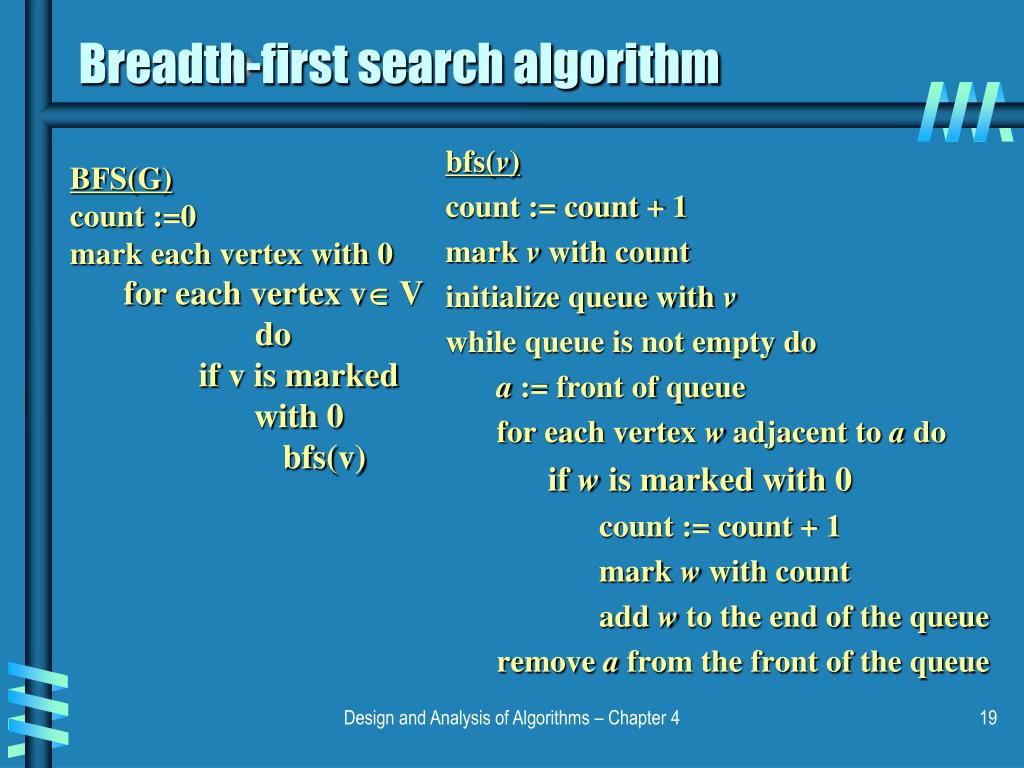

  19. Breadth-first search algorithm bfs(v) count := count + 1 mark v with count initialize queue with v while queue is not empty do a := front of queue for each vertex w adjacent to a do if w is marked with 0 count := count + 1 mark w with count add w to the end of the queue remove a from the front of the queue • BFS(G) • count :=0 • mark each vertex with 0 • for each vertex v V do • if v is marked with 0 • bfs(v) Design and Analysis of Algorithms – Chapter 4

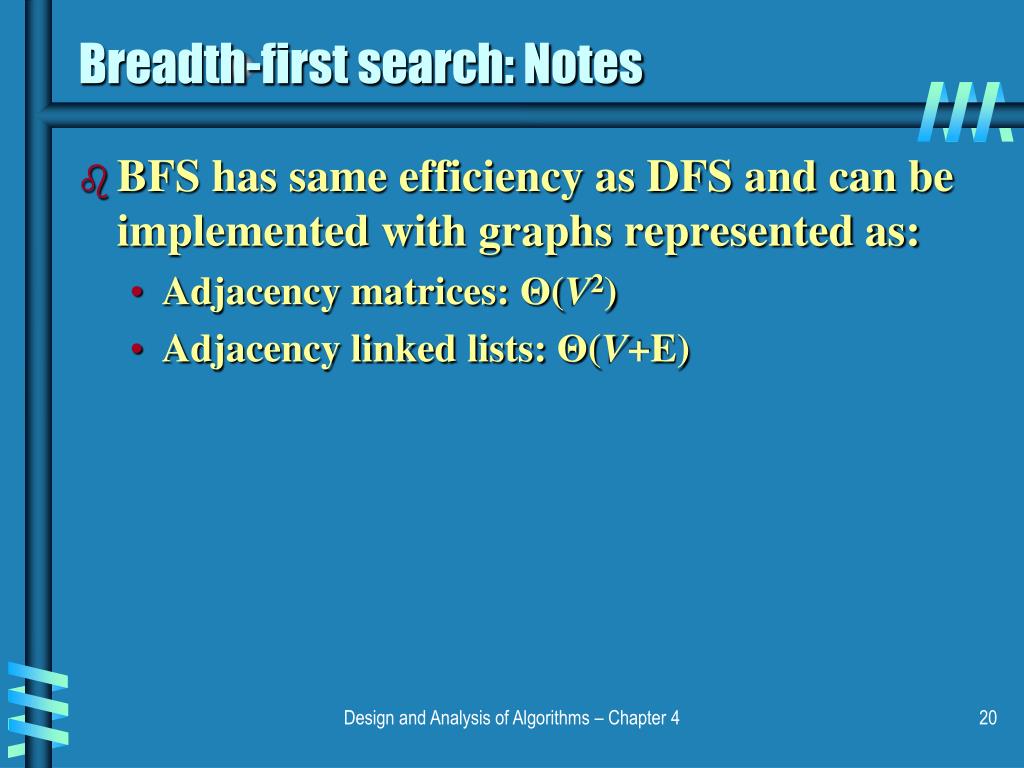

  20. Breadth-first search: Notes • BFS has same efficiency as DFS and can be implemented with graphs represented as: • Adjacency matrices: Θ(V2) • Adjacency linked lists: Θ(V+E) Design and Analysis of Algorithms – Chapter 4

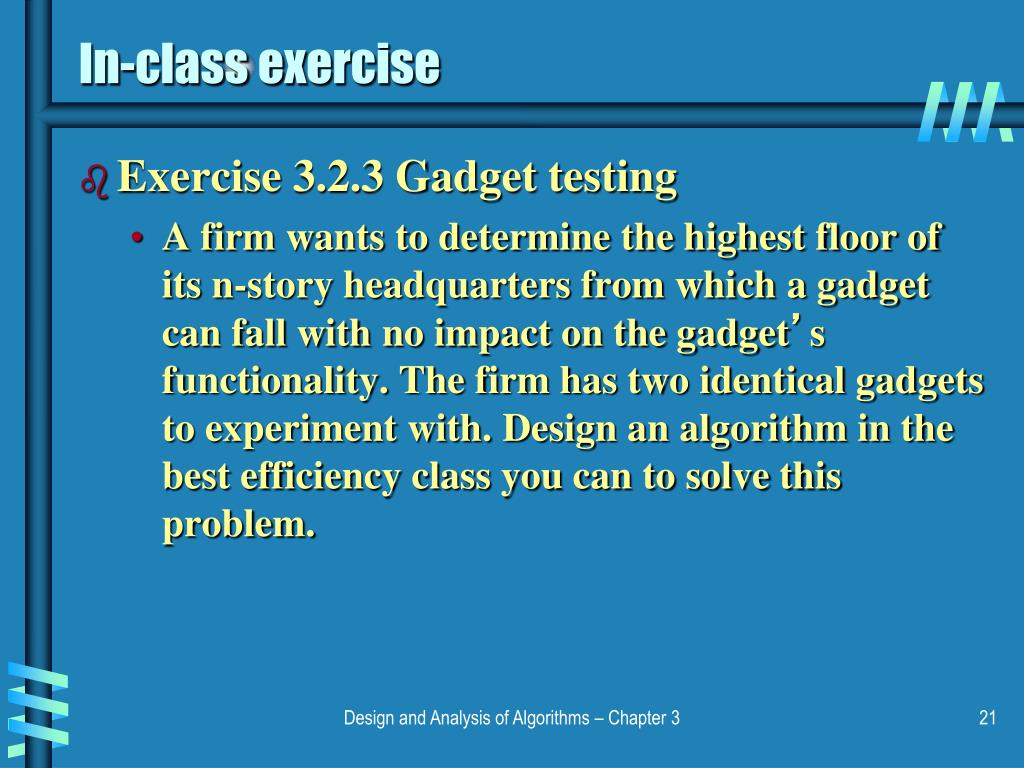

  21. In-class exercise • Exercise 3.2.3 Gadget testing • A firm wants to determine the highest floor of its n-story headquarters from which a gadget can fall with no impact on the gadget’s functionality. The firm has two identical gadgets to experiment with. Design an algorithm in the best efficiency class you can to solve this problem. Design and Analysis of Algorithms – Chapter 3

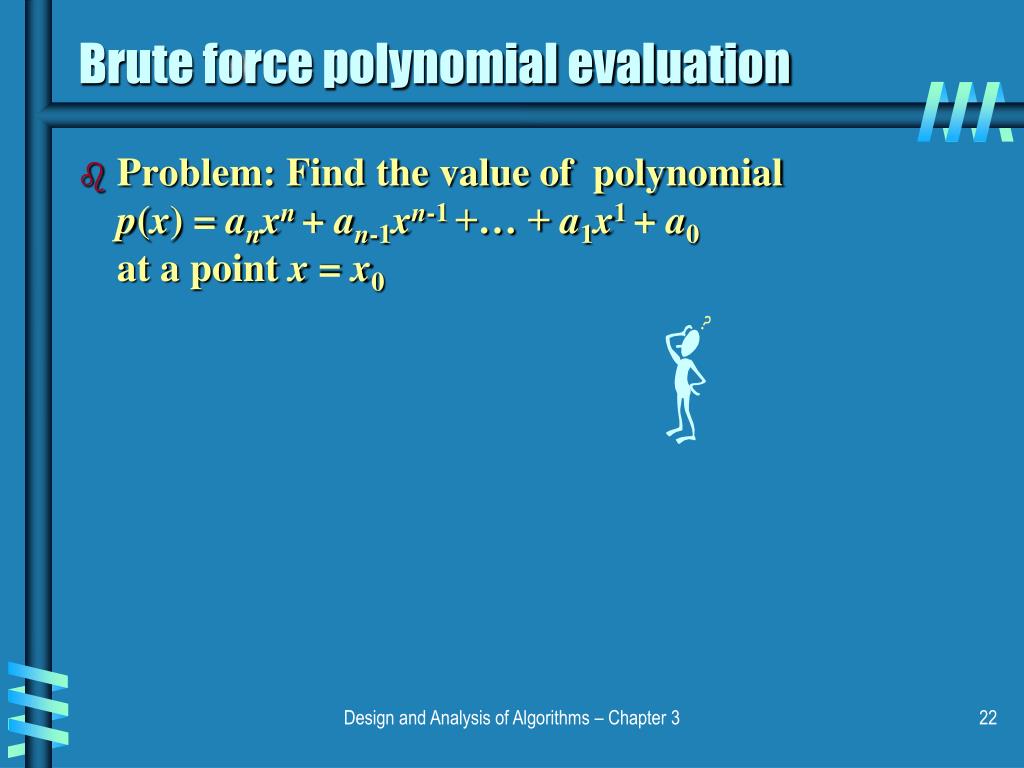

  22. Brute force polynomial evaluation • Problem: Find the value of polynomial p(x) = anxn+ an-1xn-1 +… + a1x1 + a0 at a point x = x0 Design and Analysis of Algorithms – Chapter 3

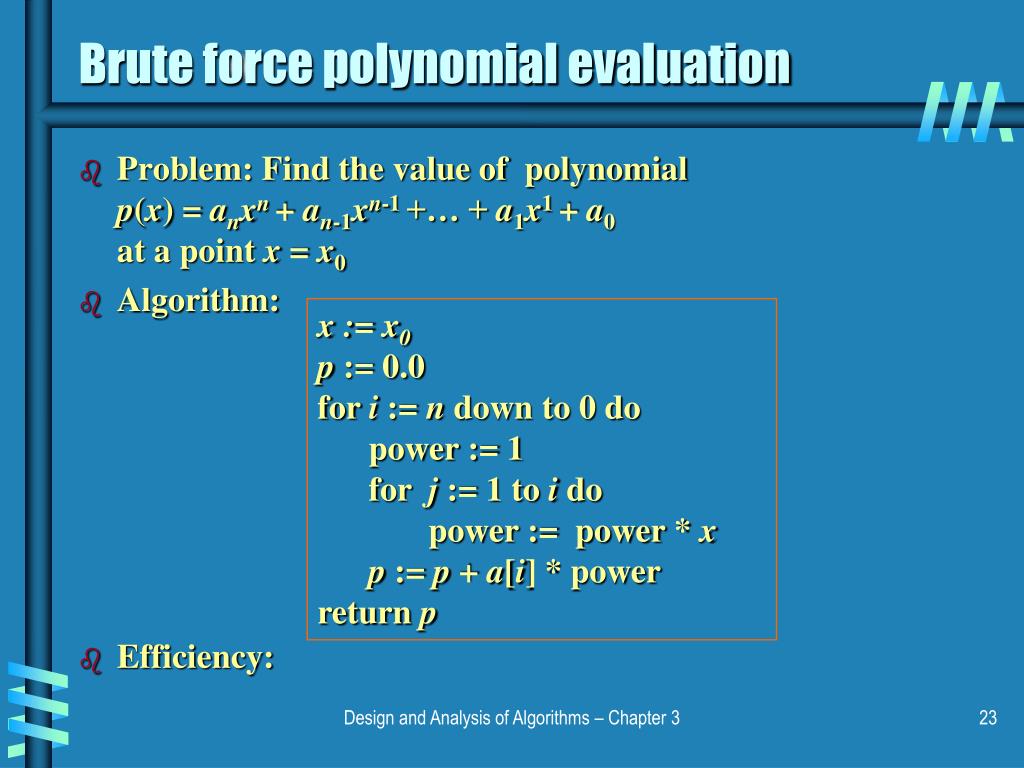

  23. Brute force polynomial evaluation • Problem: Find the value of polynomial p(x) = anxn+ an-1xn-1 +… + a1x1 + a0 at a point x = x0 • Algorithm: x := x0 p := 0.0 for i := n down to 0 do power := 1 for j := 1 to i do power := power * x p := p + a[i] * power return p • Efficiency: Design and Analysis of Algorithms – Chapter 3

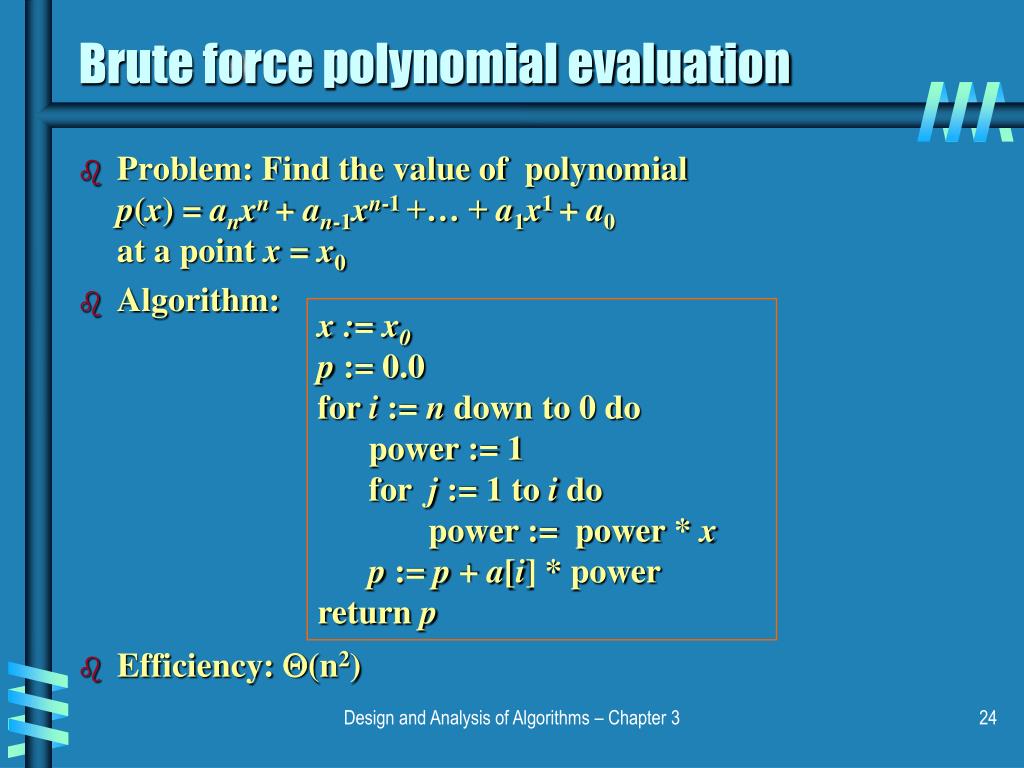

  24. Brute force polynomial evaluation • Problem: Find the value of polynomial p(x) = anxn+ an-1xn-1 +… + a1x1 + a0 at a point x = x0 • Algorithm: x := x0 p := 0.0 for i := n down to 0 do power := 1 for j := 1 to i do power := power * x p := p + a[i] * power return p • Efficiency: (n2) Design and Analysis of Algorithms – Chapter 3

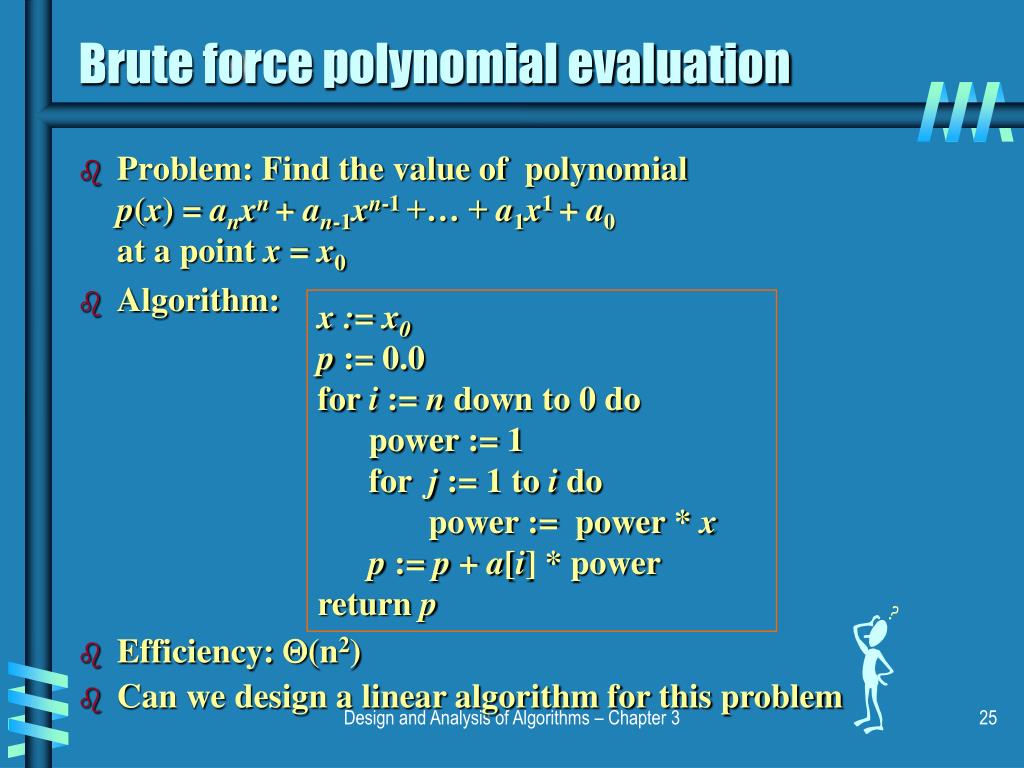

  25. Brute force polynomial evaluation • Problem: Find the value of polynomial p(x) = anxn+ an-1xn-1 +… + a1x1 + a0 at a point x = x0 • Algorithm: x := x0 p := 0.0 for i := n down to 0 do power := 1 for j := 1 to i do power := power * x p := p + a[i] * power return p • Efficiency: (n2) • Can we design a linear algorithm for this problem Design and Analysis of Algorithms – Chapter 3

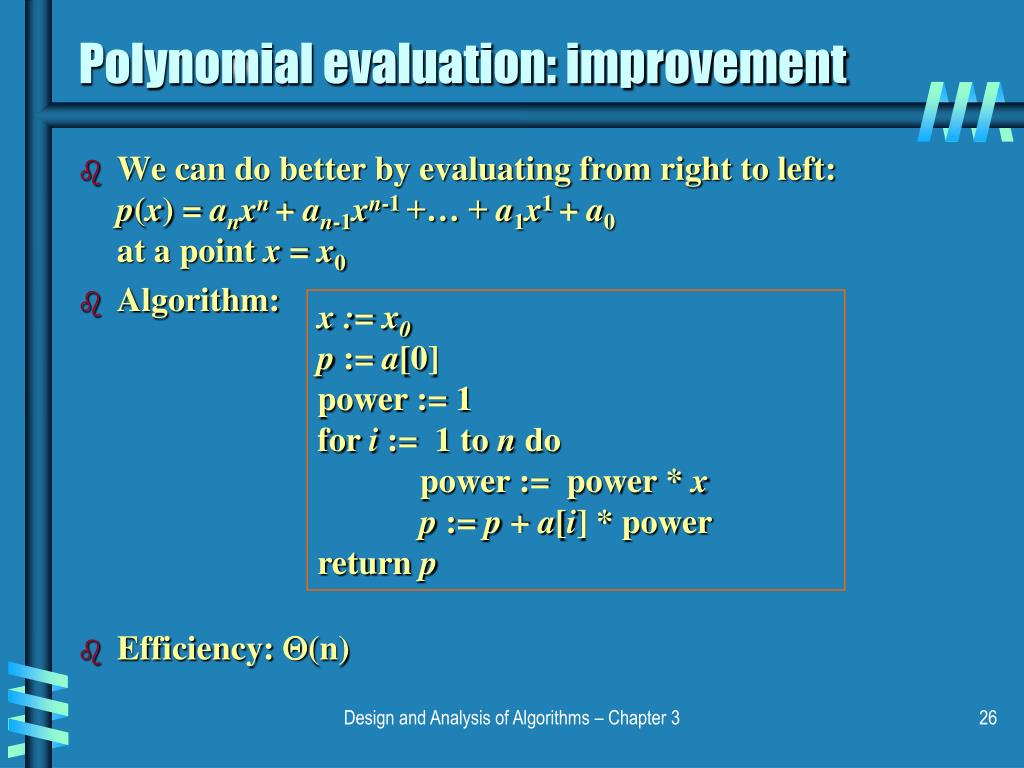

  26. Polynomial evaluation: improvement • We can do better by evaluating from right to left: p(x) = anxn+ an-1xn-1 +… + a1x1 + a0 at a point x = x0 • Algorithm: • x := x0 • p := a[0] • power := 1 • for i := 1 to n do • power := power * x • p := p + a[i] * power • return p • Efficiency: (n) Design and Analysis of Algorithms – Chapter 3

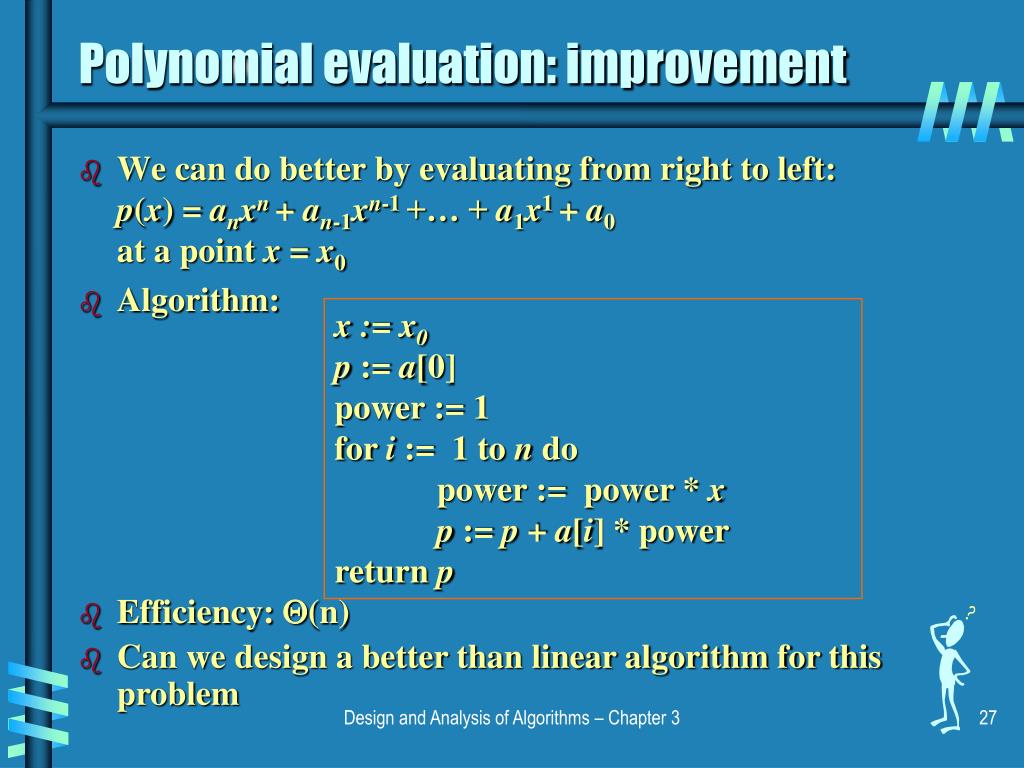

  27. Polynomial evaluation: improvement • We can do better by evaluating from right to left: p(x) = anxn+ an-1xn-1 +… + a1x1 + a0 at a point x = x0 • Algorithm: • x := x0 • p := a[0] • power := 1 • for i := 1 to n do • power := power * x • p := p + a[i] * power • return p • Efficiency: (n) • Can we design a better than linear algorithm for this problem Design and Analysis of Algorithms – Chapter 3

  28. Brute force closest-pair algorithm • Closest pair • Problem: find the closest pair among n points in k-dimensional space Design and Analysis of Algorithms – Chapter 3

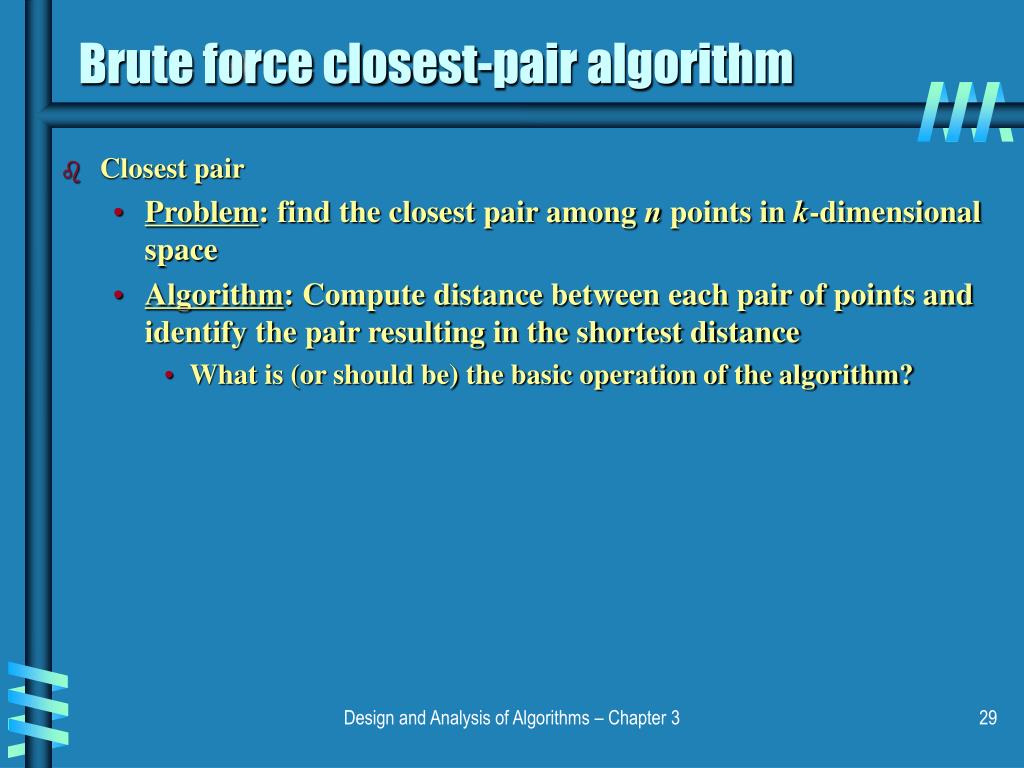

  29. Brute force closest-pair algorithm • Closest pair • Problem: find the closest pair among n points in k-dimensional space • Algorithm: Compute distance between each pair of points and identify the pair resulting in the shortest distance • What is (or should be) the basic operation of the algorithm? Design and Analysis of Algorithms – Chapter 3

  30. Brute force closest-pair algorithm • Closest pair • Problem: find the closest pair among n points in k-dimensional space • Algorithm: Compute distance between each pair of points and identify the pair resulting in the shortest distance • Basic operation (squaring): Design and Analysis of Algorithms – Chapter 3

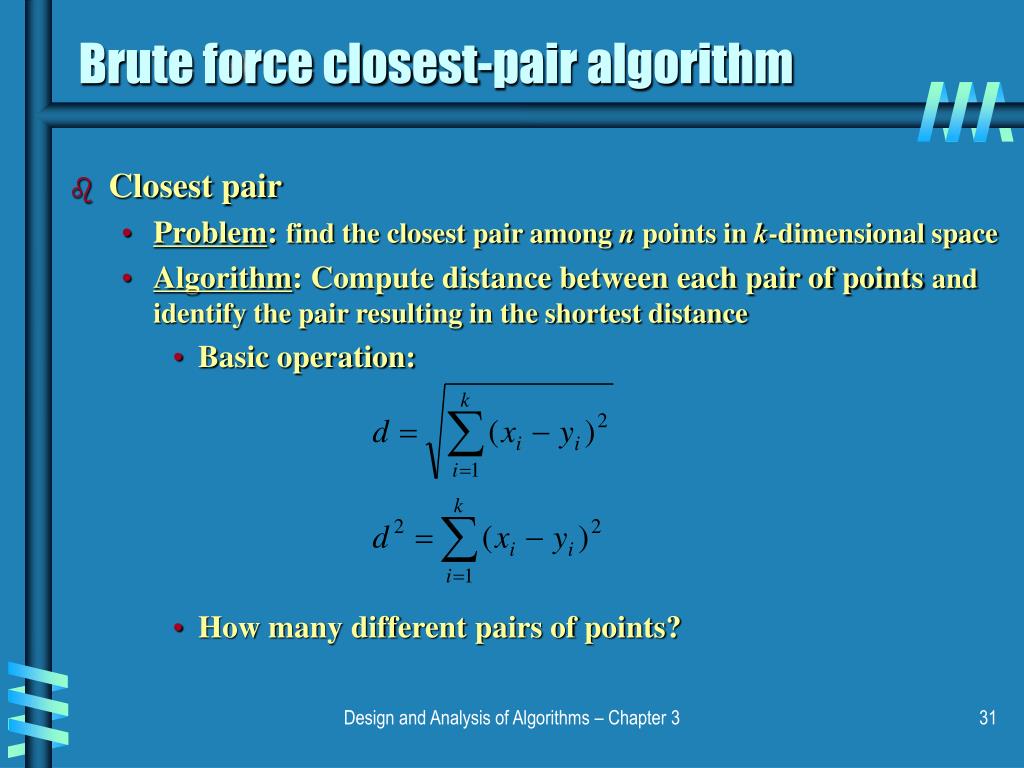

  31. Brute force closest-pair algorithm • Closest pair • Problem: find the closest pair among n points in k-dimensional space • Algorithm: Compute distance between each pair of points and identify the pair resulting in the shortest distance • Basic operation: • How many different pairs of points? Design and Analysis of Algorithms – Chapter 3

  32. Principle of counting: Product Rule • The Product Rule • Suppose that a procedure can be broken down into a sequence of two tasks. If there are n1 ways to do the first task and for each of these ways of doing the first task, there are n2 ways to do the second task, then there are n1n2 ways to do the procedure. Design and Analysis of Algorithms – Chapter 3

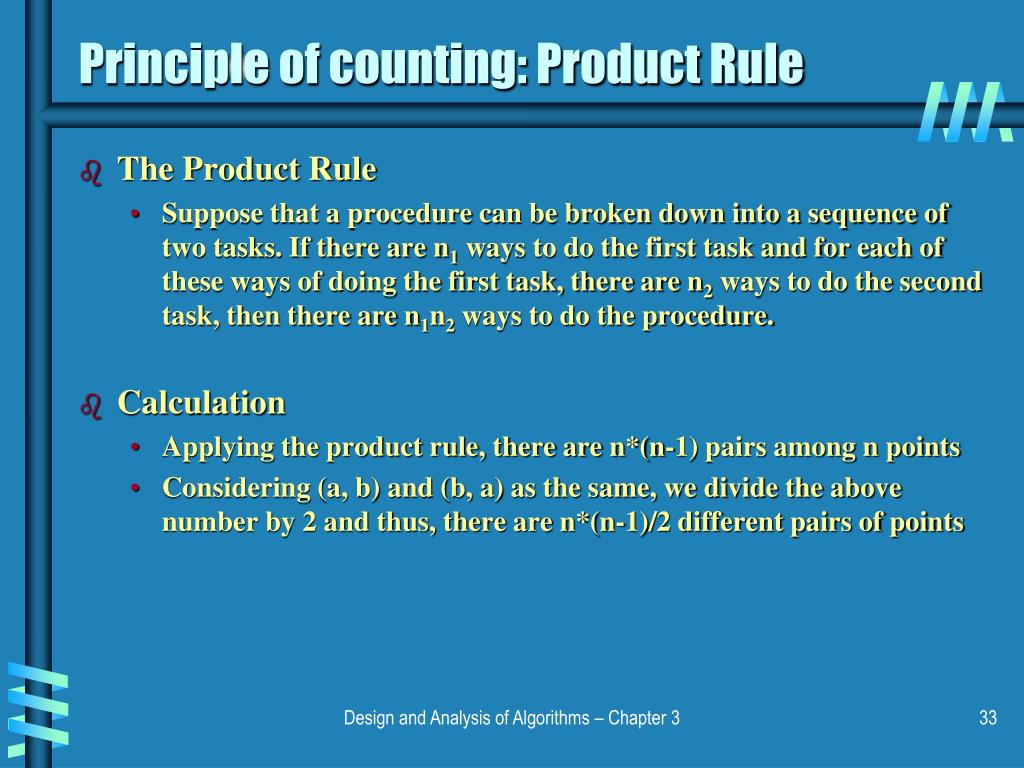

  33. Principle of counting: Product Rule • The Product Rule • Suppose that a procedure can be broken down into a sequence of two tasks. If there are n1 ways to do the first task and for each of these ways of doing the first task, there are n2 ways to do the second task, then there are n1n2 ways to do the procedure. • Calculation • Applying the product rule, there are n*(n-1) pairs among n points • Considering (a, b) and (b, a) as the same, we divide the above number by 2 and thus, there are n*(n-1)/2 different pairs of points Design and Analysis of Algorithms – Chapter 3

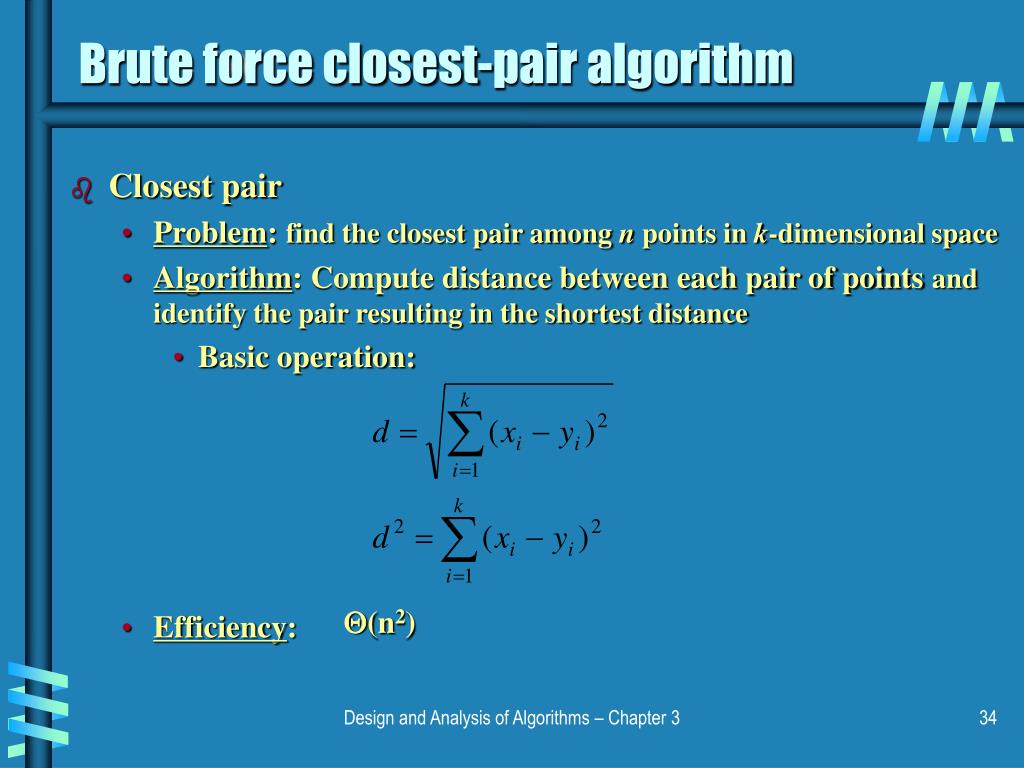

  34. Brute force closest-pair algorithm • Closest pair • Problem: find the closest pair among n points in k-dimensional space • Algorithm: Compute distance between each pair of points and identify the pair resulting in the shortest distance • Basic operation: • Efficiency: (n2) Design and Analysis of Algorithms – Chapter 3

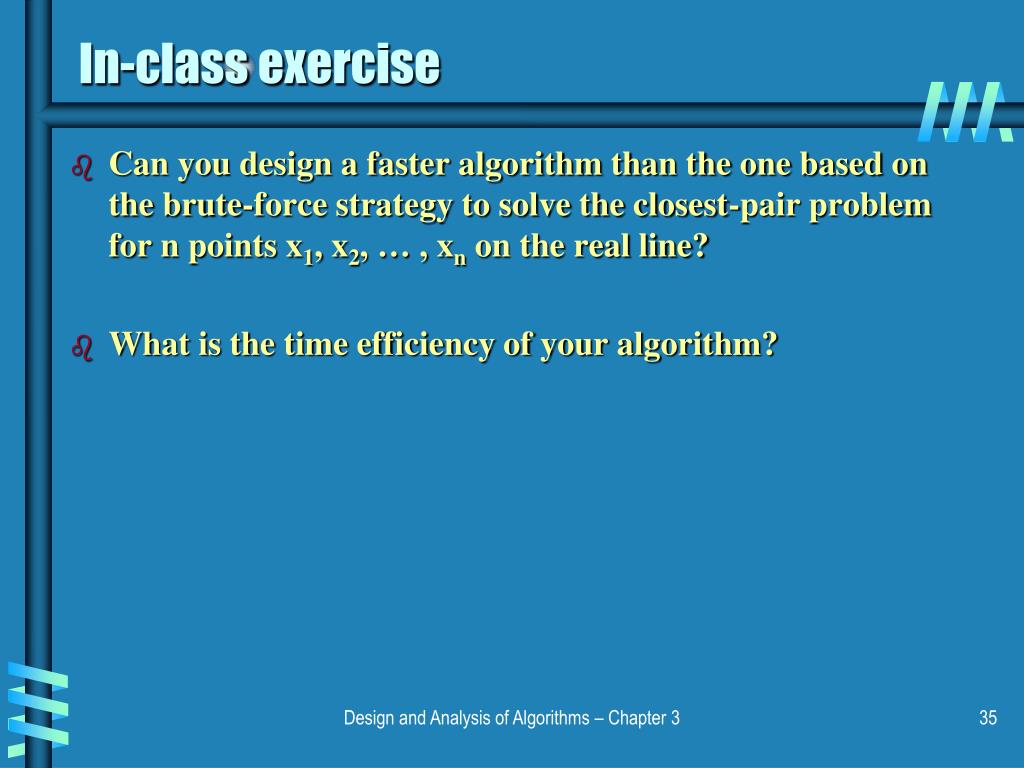

  35. In-class exercise • Can you design a faster algorithm than the one based on the brute-force strategy to solve the closest-pair problem for n points x1, x2, … , xn on the real line? • What is the time efficiency of your algorithm? Design and Analysis of Algorithms – Chapter 3

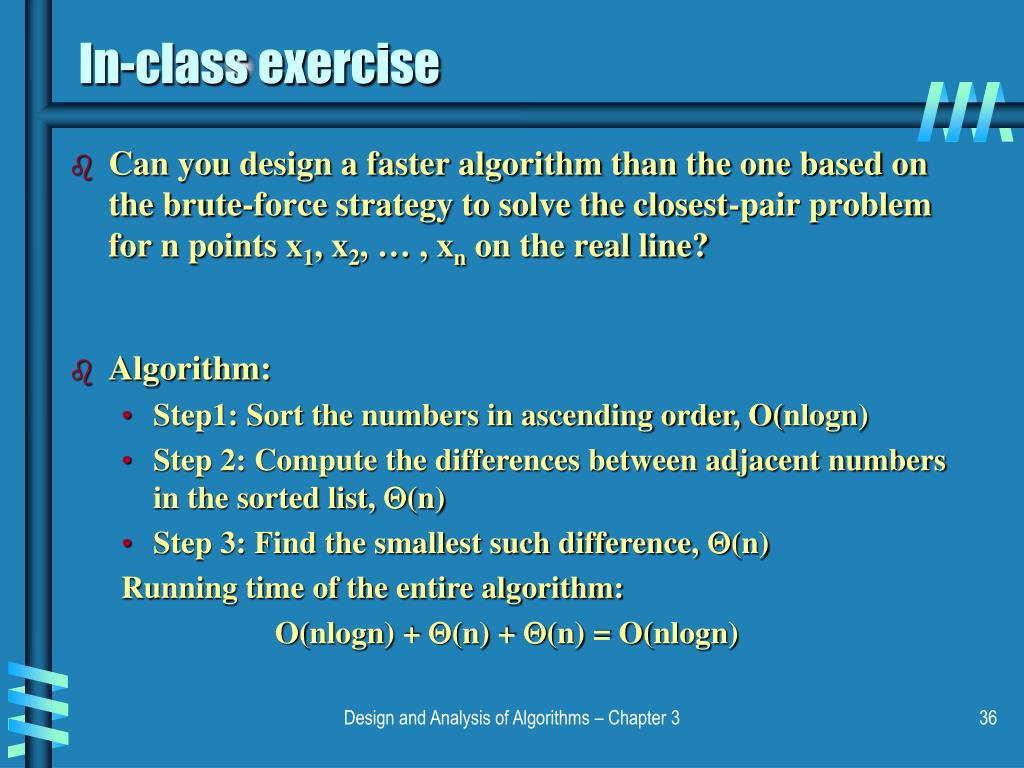

  36. In-class exercise • Can you design a faster algorithm than the one based on the brute-force strategy to solve the closest-pair problem for n points x1, x2, … , xn on the real line? • Algorithm: • Step1: Sort the numbers in ascending order, O(nlogn) • Step 2: Compute the differences between adjacent numbers in the sorted list, (n) • Step 3: Find the smallest such difference, (n) • Running time of the entire algorithm: • O(nlogn) + (n) + (n) = O(nlogn) Design and Analysis of Algorithms – Chapter 3

  37. Convex hull problem • Convex hull • Problem: Find smallest convex polygon enclosing n points on the plane • Convex: • A geometric figure with no indentations. • Formally, a geometric figure is convex if every line segment connecting interiorpoints is entirely contained within the figure's interior. convex Non-convex Design and Analysis of Algorithms – Chapter 3

  38. Example: Convex Hull Input: p1,p2,p3,p4,p5,p6,p7,p8,p9,p10,p11 p9 Output: p2,p9,p11,p4,p5,p6,p8,p2 p11 p4 p1 p2 p3 p7 p5 p10 p8 p6

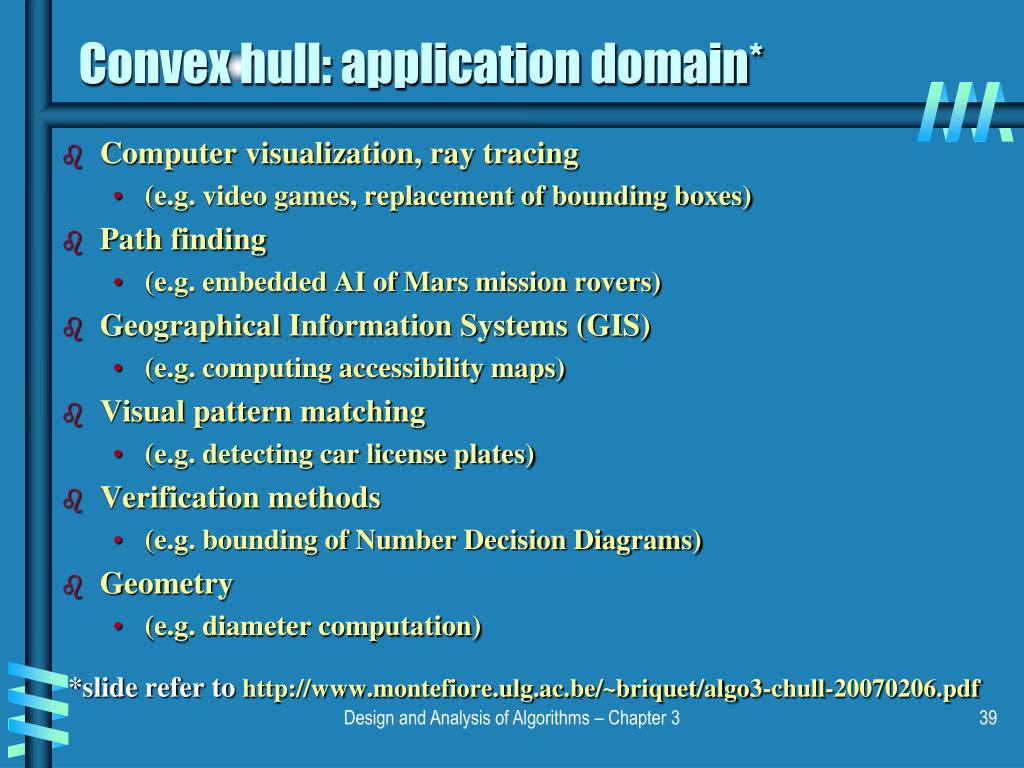

  39. Convex hull: application domain* • Computer visualization, ray tracing • (e.g. video games, replacement of bounding boxes) • Path finding • (e.g. embedded AI of Mars mission rovers) • Geographical Information Systems (GIS) • (e.g. computing accessibility maps) • Visual pattern matching • (e.g. detecting car license plates) • Verification methods • (e.g. bounding of Number Decision Diagrams) • Geometry • (e.g. diameter computation) *slide refer to http://www.montefiore.ulg.ac.be/~briquet/algo3-chull-20070206.pdf Design and Analysis of Algorithms – Chapter 3

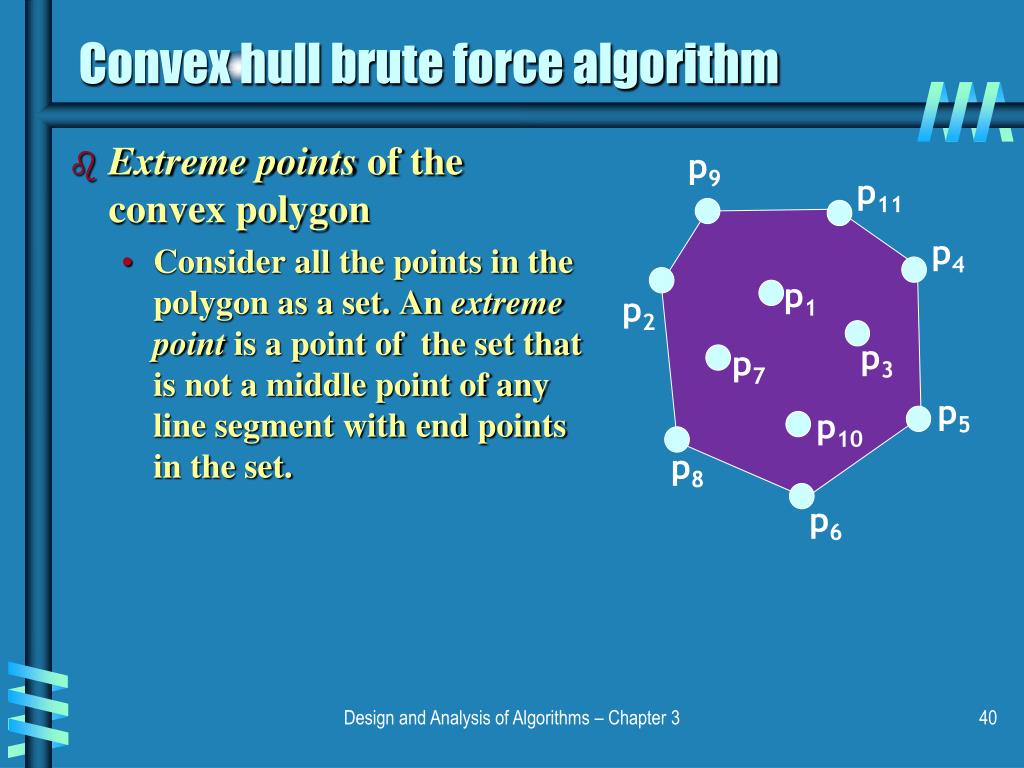

  40. Convex hull brute force algorithm p9 • Extreme points of the convex polygon • Consider all the points in the polygon as a set. An extreme point is a point of the set that is not a middle point of any line segment with end points in the set. p11 p4 p1 p2 p3 p7 p5 p10 p8 p6 Design and Analysis of Algorithms – Chapter 3

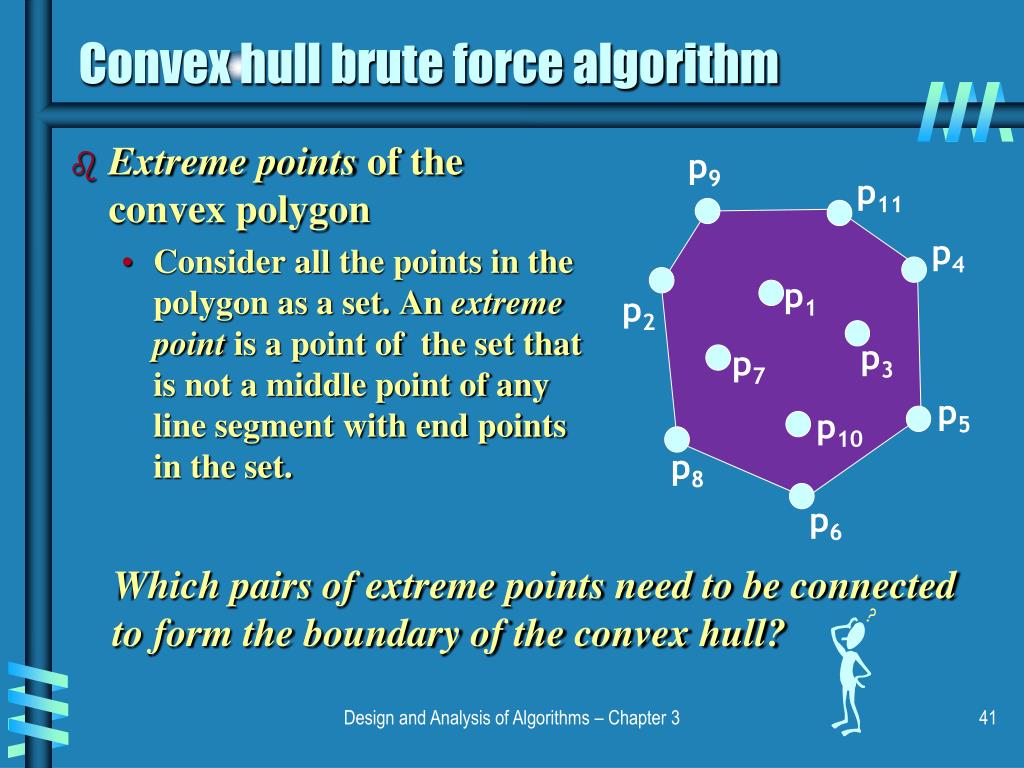

  41. Convex hull brute force algorithm p9 • Extreme points of the convex polygon • Consider all the points in the polygon as a set. An extreme point is a point of the set that is not a middle point of any line segment with end points in the set. p11 p4 p1 p2 p3 p7 p5 p10 p8 p6 Which pairs of extreme points need to be connected to form the boundary of the convex hull? Design and Analysis of Algorithms – Chapter 3

  42. Convex hull brute force algorithm • A line segment connecting two points Pi and Pj of a set of n points is a part of its convex hull’s boundary if and only if all the other points of the set lies on the same side of the straight line through these two points. Design and Analysis of Algorithms – Chapter 3

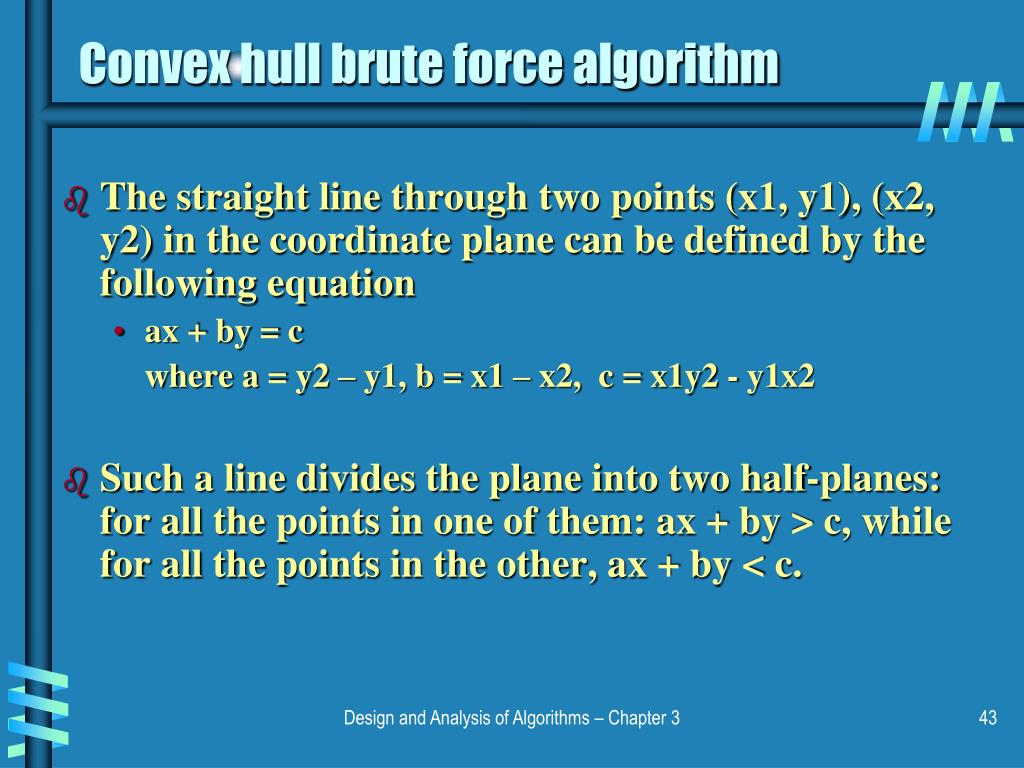

  43. Convex hull brute force algorithm • The straight line through two points (x1, y1), (x2, y2) in the coordinate plane can be defined by the following equation • ax + by = c where a = y2 – y1, b = x1 – x2, c = x1y2 - y1x2 • Such a line divides the plane into two half-planes: for all the points in one of them: ax + by > c, while for all the points in the other, ax + by < c. Design and Analysis of Algorithms – Chapter 3

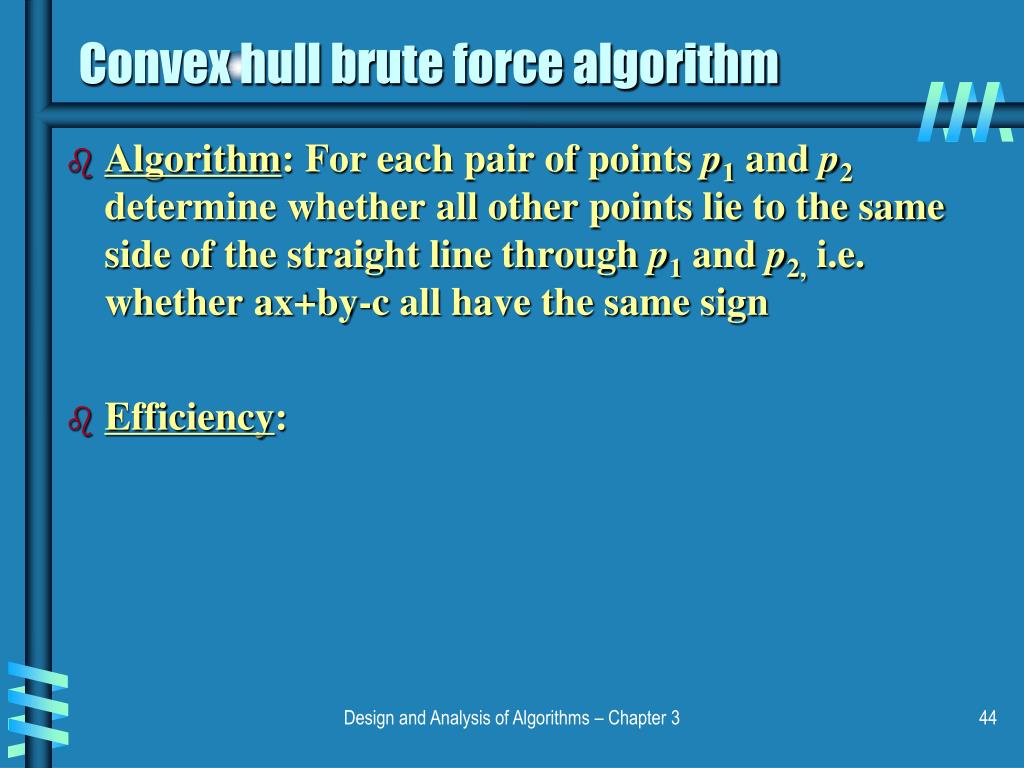

  44. Convex hull brute force algorithm • Algorithm: For each pair of points p1 and p2 determine whether all other points lie to the same side of the straight line through p1 and p2, i.e. whether ax+by-c all have the same sign • Efficiency: Design and Analysis of Algorithms – Chapter 3

  45. Convex hull brute force algorithm • Algorithm: For each pair of points p1 and p2 determine whether all other points lie to the same side of the straight line through p1 and p2, i.e. whether ax+by-c all have the same sign • Efficiency: (n3) Design and Analysis of Algorithms – Chapter 3

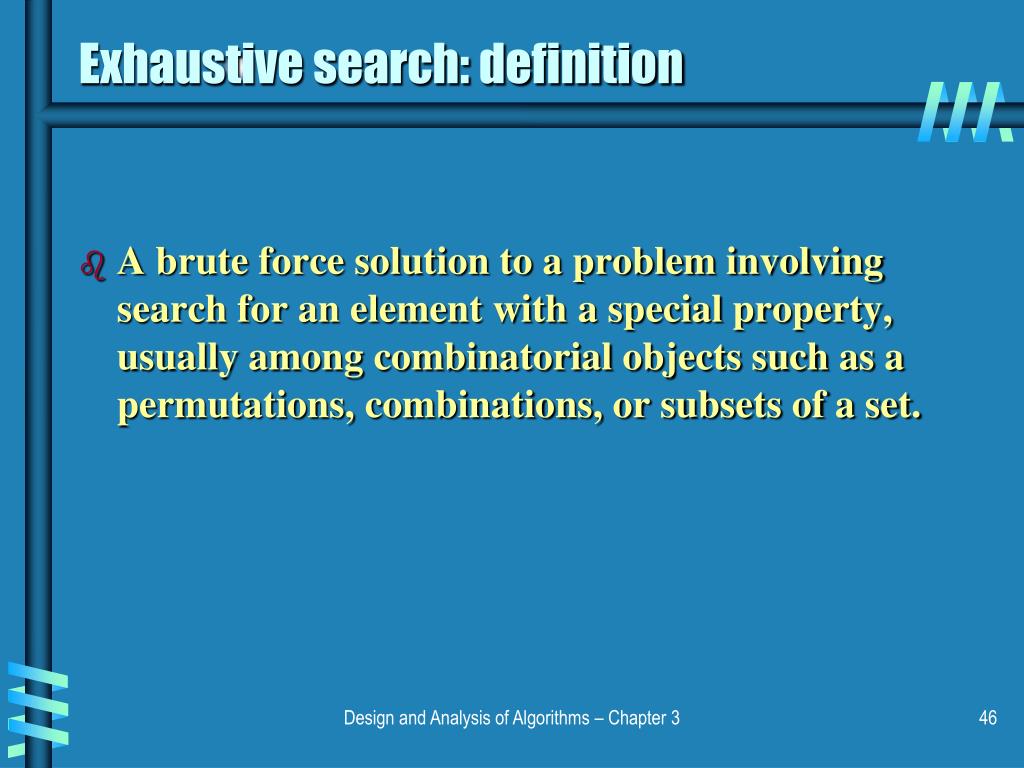

  46. Exhaustive search: definition • A brute force solution to a problem involving search for an element with a special property, usually among combinatorial objects such as a permutations, combinations, or subsets of a set. Design and Analysis of Algorithms – Chapter 3

  47. Exhaustive search: method • Construct a way of listing all potential solutions to the problem in a systematic manner • all solutions are eventually listed • no solution is repeated • Evaluate solutions one by one, perhaps disqualifying infeasible ones and keeping track of the best one found so far • When search ends, announce the winner Design and Analysis of Algorithms – Chapter 3

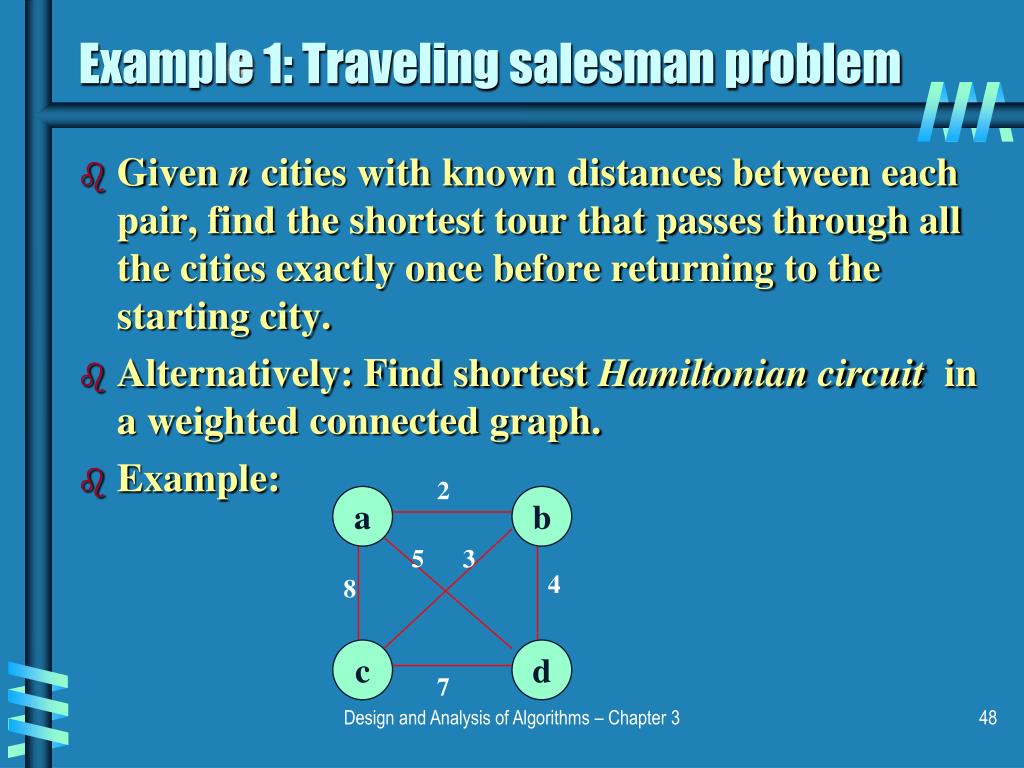

  48. 2 a b 5 3 4 8 c d 7 Example 1: Traveling salesman problem • Given n cities with known distances between each pair, find the shortest tour that passes through all the cities exactly once before returning to the starting city. • Alternatively: Find shortest Hamiltonian circuit in a weighted connected graph. • Example: Design and Analysis of Algorithms – Chapter 3

  49. Traveling salesman by exhaustive search • Tour Cost . • a→b→c→d→a 2+3+7+5 = 17 • a→b→d→c→a 2+4+7+8 = 21 • a→c→b→d→a 8+3+4+5 = 20 • a→c→d→b→a 8+7+4+2 = 21 • a→d→b→c→a 5+4+3+8 = 20 • a→d→c→b→a 5+7+3+2 = 17 • Efficiency: Design and Analysis of Algorithms – Chapter 3

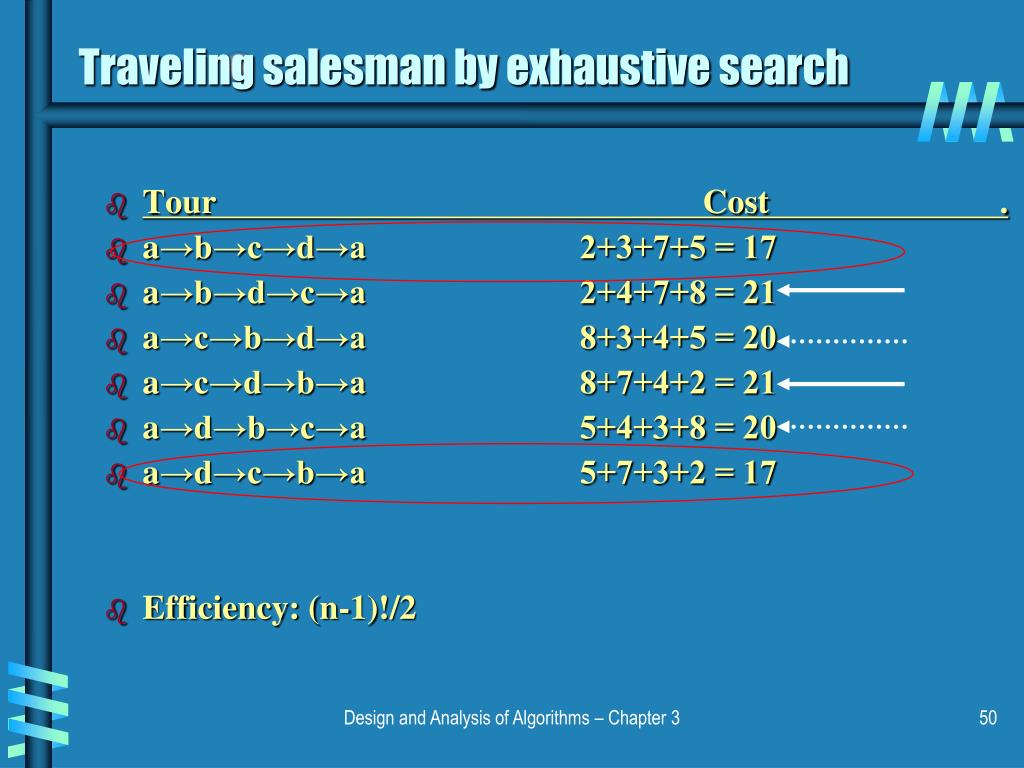

  50. Traveling salesman by exhaustive search • Tour Cost . • a→b→c→d→a 2+3+7+5 = 17 • a→b→d→c→a 2+4+7+8 = 21 • a→c→b→d→a 8+3+4+5 = 20 • a→c→d→b→a 8+7+4+2 = 21 • a→d→b→c→a 5+4+3+8 = 20 • a→d→c→b→a 5+7+3+2 = 17 • Efficiency: (n-1)!/2 Design and Analysis of Algorithms – Chapter 3
