Evaluating the Reliability of VIL Density for Determining Severe Hail in Iowa

Loading in 2 Seconds...

play fullscreen
1 / 31

Evaluating the Reliability of VIL Density for Determining Severe Hail in Iowa - PowerPoint PPT Presentation


  • 188 Views
  • Uploaded on

Evaluating the Reliability of VIL Density for Determining Severe Hail in Iowa. Penny Zabel. Overview. Introduction. Data Analysis. - Estimation by VIL Density. - Baron Radar Algorithm. Results. Future. Vertically Integrated Liquid. VIL= ∑ 3.44 x 10 -6 [(z i +z i+1 )/2] 4/7 dh.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Evaluating the Reliability of VIL Density for Determining Severe Hail in Iowa' - valarie


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
overview

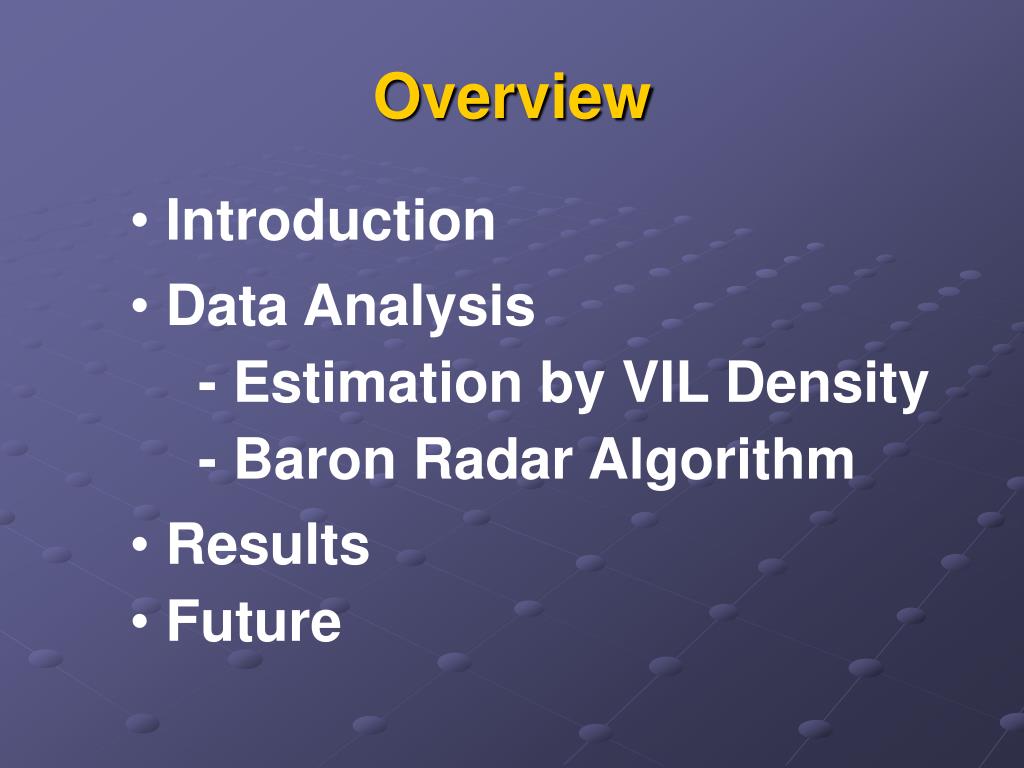

Overview
  • Introduction
  • Data Analysis

- Estimation by VIL Density

- Baron Radar Algorithm

  • Results
  • Future
vertically integrated liquid
Vertically Integrated Liquid
  • VIL=∑ 3.44 x 10-6[(zi+zi+1)/2]4/7 dh
  • zi and zi+1 are reflectivity values at top and bottom of layer with depth dh.
  • VIL is the equivalent liquid water content value derived from radar reflectivity data.

(American Meteorological Society, 2000)

cone of silence
Cone of Silence

(American Meteorological Society, 1993)

vil density
VIL Density
  • VIL Density = VIL / Echo Top
  • Makes VIL independent of height.
  • Reduces distance error in radar measurements
typical vil and vil density
Typical VIL and VIL Density

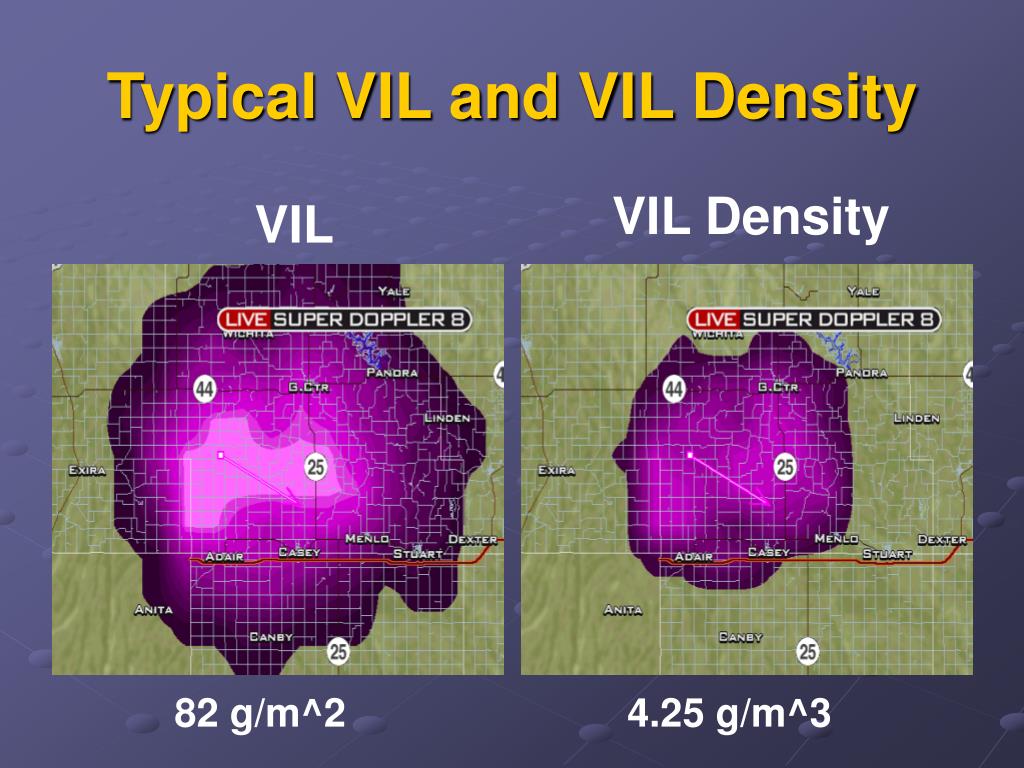

VIL Density

VIL

82 g/m^2

4.25 g/m^3

within cone of silence
Within Cone of Silence

VIL Density

VIL

23 g/m^2

5.25 g/m^3

how can vil density estimate hail size
How Can VIL Density Estimate Hail Size?
  • Reflectivity is proportional to the diameter of a target to the sixth power.
  • Reflectivity increases exponentially as target size increases.
  • VIL increases exponentially.
slide9

Drop Size is Everything!

(American Meteorological Society, 1993)

slide10
Data
  • 110 Hail reports
  • 2 events each from spring, early summer, and late summer.
  • Recorded VIL, echo top, and calculated VIL Density for each report.
average vil density
Average VIL Density
  • 0.75”-0.99” 4.39 g/m3
  • 1.00”-1.99” 4.61 g/m3
  • 2.00”or greater 5.30 g/m3
data summary

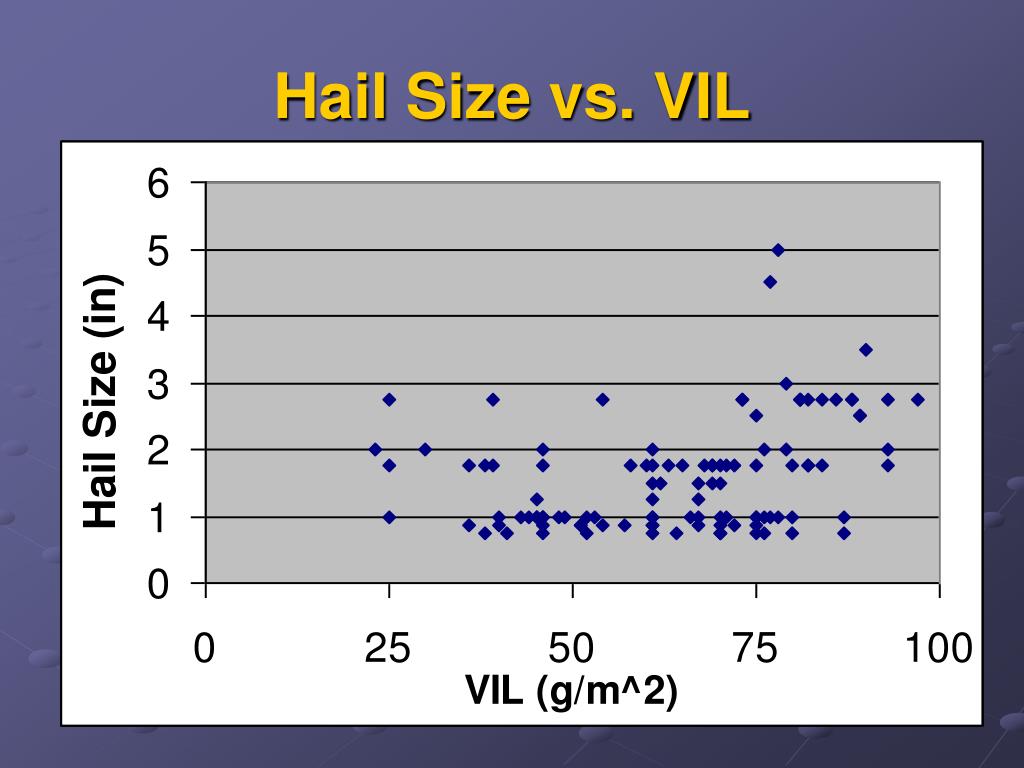

Data Summary

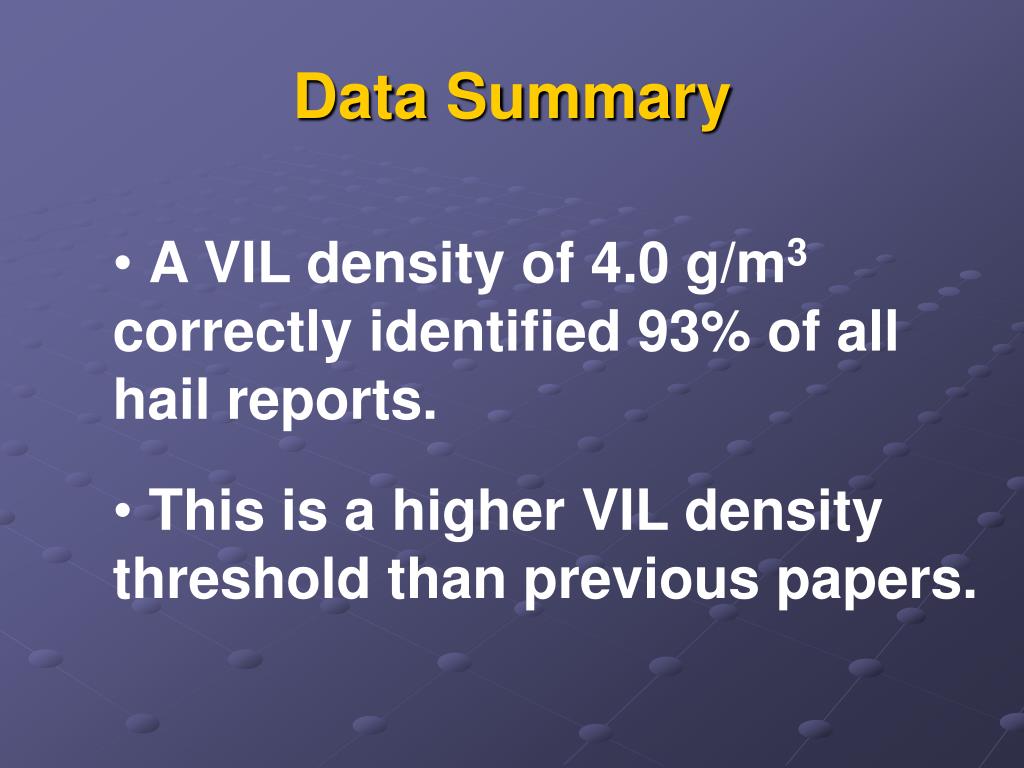

  • A VIL density of 4.0 g/m3 correctly identified 93% of all hail reports.
  • This is a higher VIL density threshold than previous papers.
slide15

Data Summary

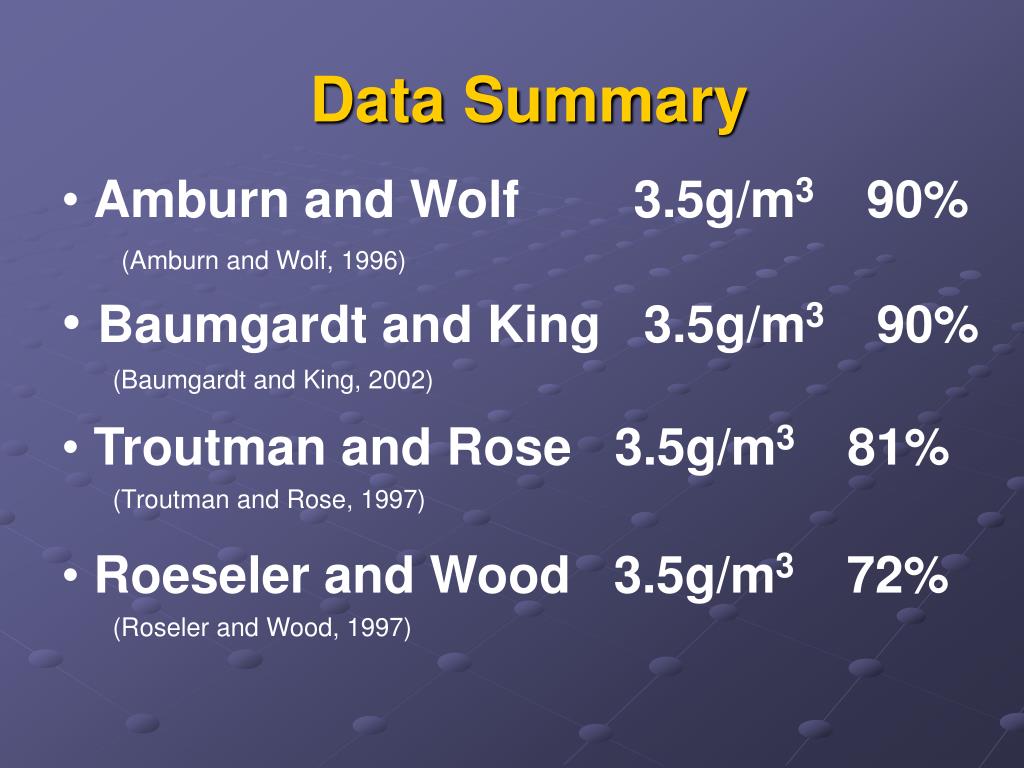

  • Amburn and Wolf 3.5g/m3 90%

(Amburn and Wolf, 1996)

  • Baumgardt and King 3.5g/m3 90%

(Baumgardt and King, 2002)

  • Troutman and Rose 3.5g/m3 81%

(Troutman and Rose, 1997)

  • Roeseler and Wood 3.5g/m3 72%

(Roseler and Wood, 1997)

wet bulb zero height
Wet Bulb Zero Height
  • Low wet bulb zero height means more of the energy that is back-scattered can be from frozen instead of liquid targets.
  • A low wet bulb zero height also often signifies less instability, and smaller updrafts.
overestimate hail size
Overestimate Hail Size
  • Low wet bulb zero height may lead to high VIL density, but small hail.
  • April 8, 1999 WBZ 7,000 ft.
  • VIL density of 4.25 g/m3
  • Hail size 0.75”
underestimate hail size
Underestimate Hail Size
  • High wet bulb zero height may lead to large hail with small VIL density.
  • July 2, 1999 WBZ 13,400 ft.
  • VIL density of 3.50 g/m3
  • Hail size 1.75”
vil is not the only thing
VIL is not the only thing
  • VIL Density is an indicator, but should be used in conjunction with other radar signatures of severe hail.
  • Three Body Scatter Spike
  • Bounded Weak Echo Region
slide23

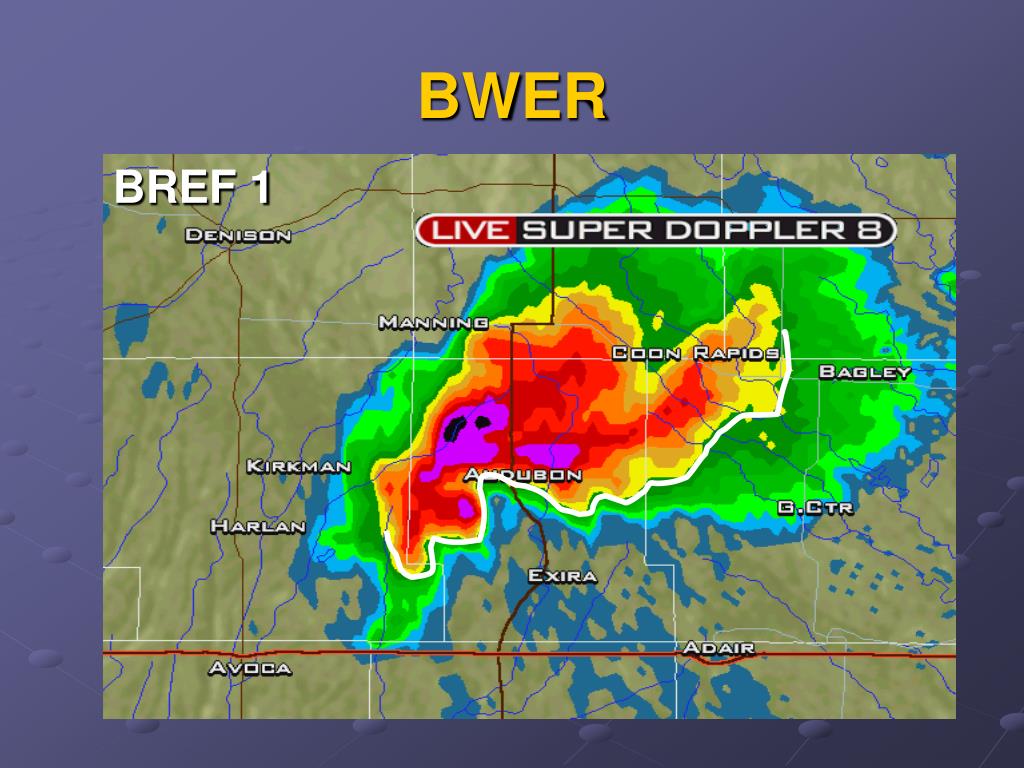

BWER

BREF 1

slide24

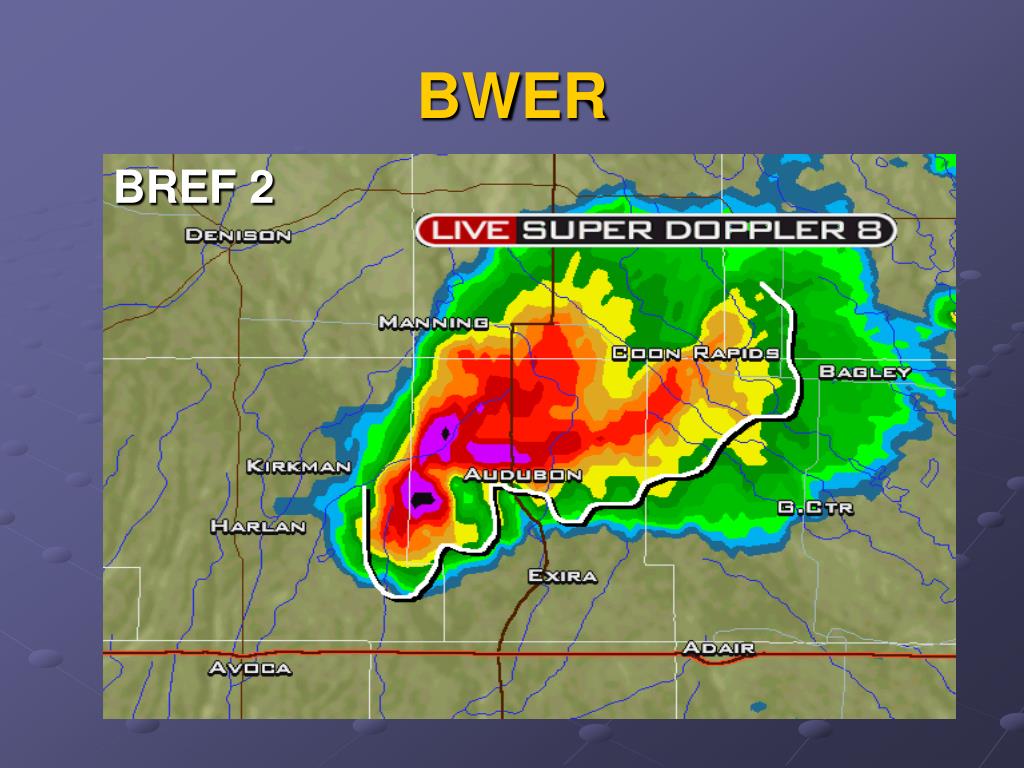

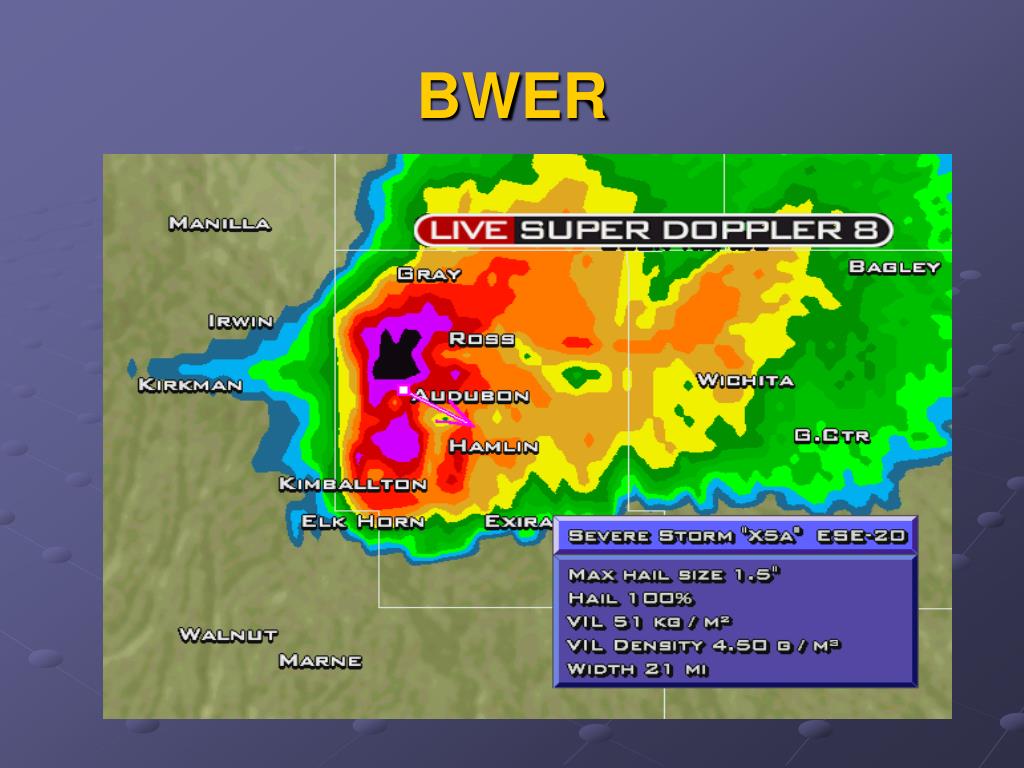

BWER
