slide1

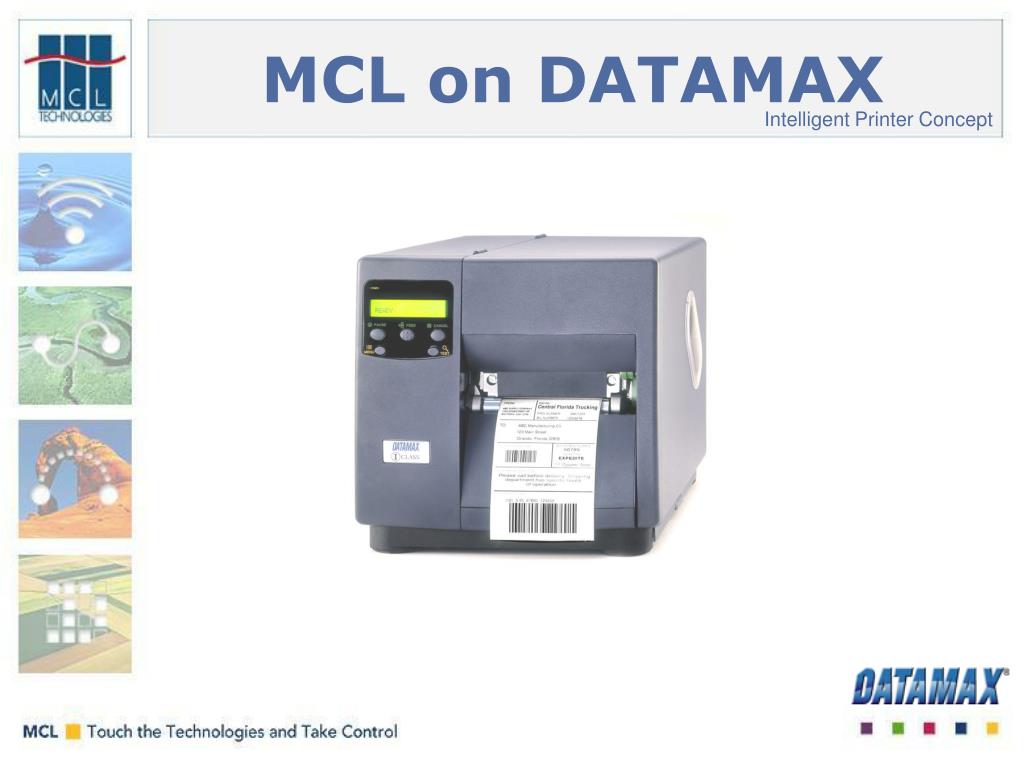

MCL on DATAMAX

Intelligent Printer Concept

slide2

MCL on Datamax

Intelligent Printer Concept

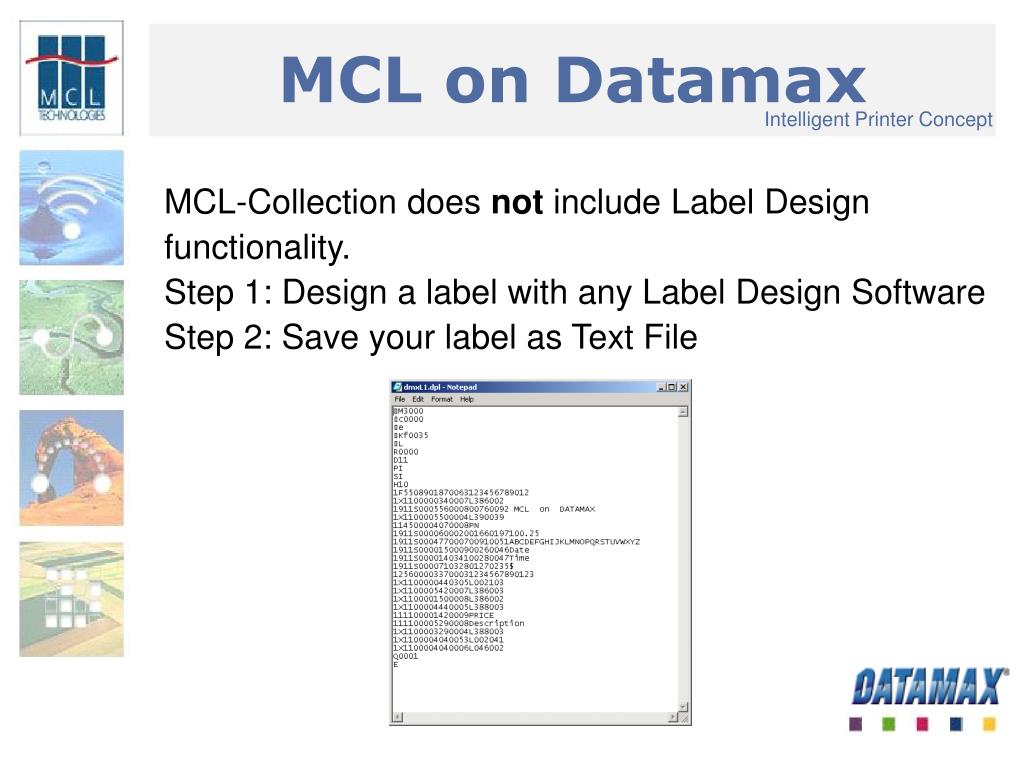

MCL-Collection does not include Label Design

functionality.

Step 1: Design a label with any Label Design Software

Step 2: Save your label as Text File

slide3

MCL on Datamax

Intelligent Printer Concept

MCL-Collection does not include Label Design

functionality.

Step 3: Import the DPL Text File in MCL-Designer

Step 4: Import Variable Data into DPL File

slide4

Why MCL on DATAMAX?

Intelligent Printer Concept

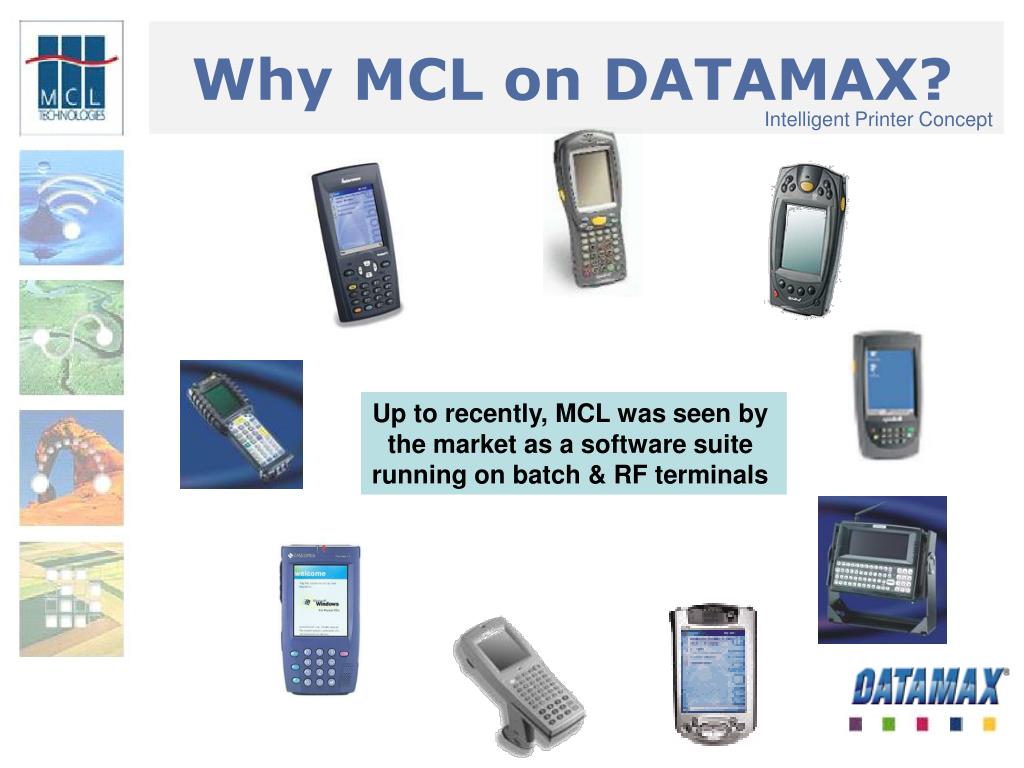

Up to recently, MCL was seen by

the market as a software suite

running on batch & RF terminals

slide5

Why MCL on DATAMAX?

Intelligent Printer Concept

Why add Datamax ?

slide6

Why MCL on DATAMAX?

Intelligent Printer Concept

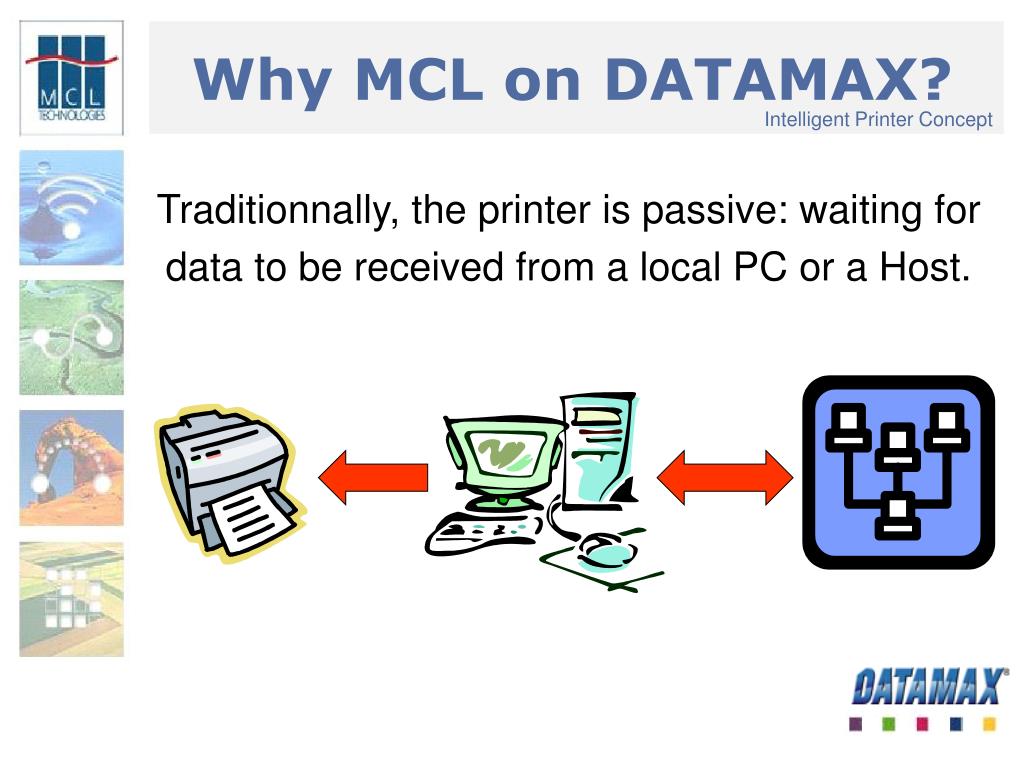

Traditionnally, the printer is passive: waiting for

data to be received from a local PC or a Host.

slide7

Why MCL on DATAMAX?

Intelligent Printer Concept

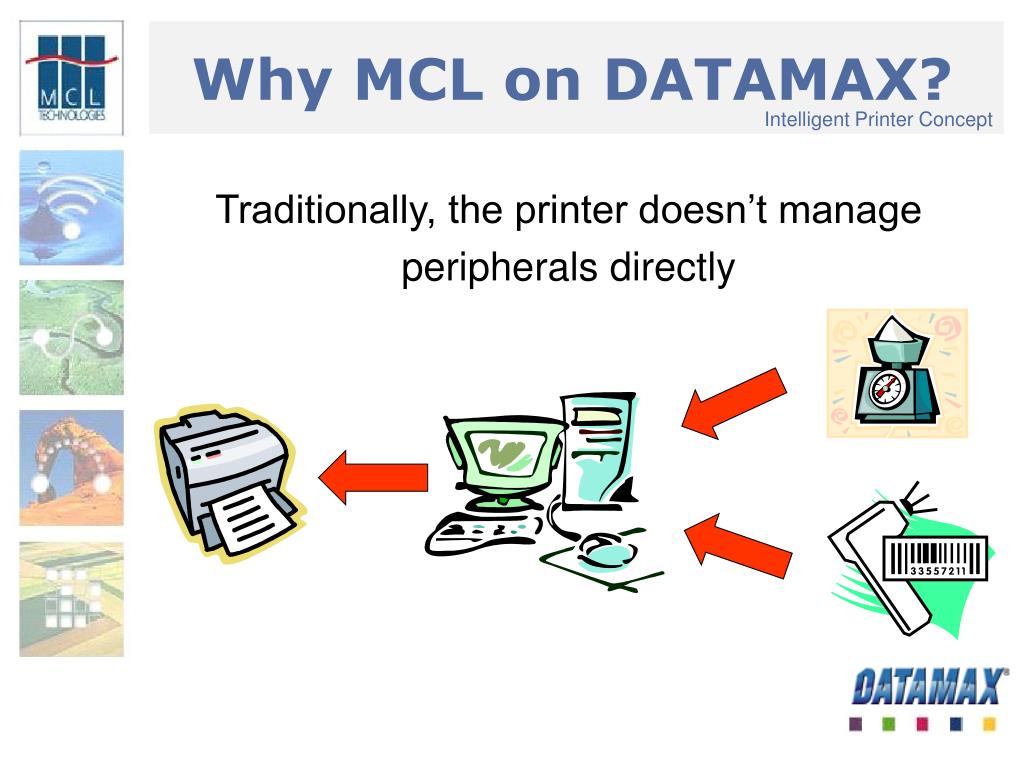

Traditionally, the printer doesn’t manage

peripherals directly

slide8

Why MCL on DATAMAX?

Intelligent Printer Concept

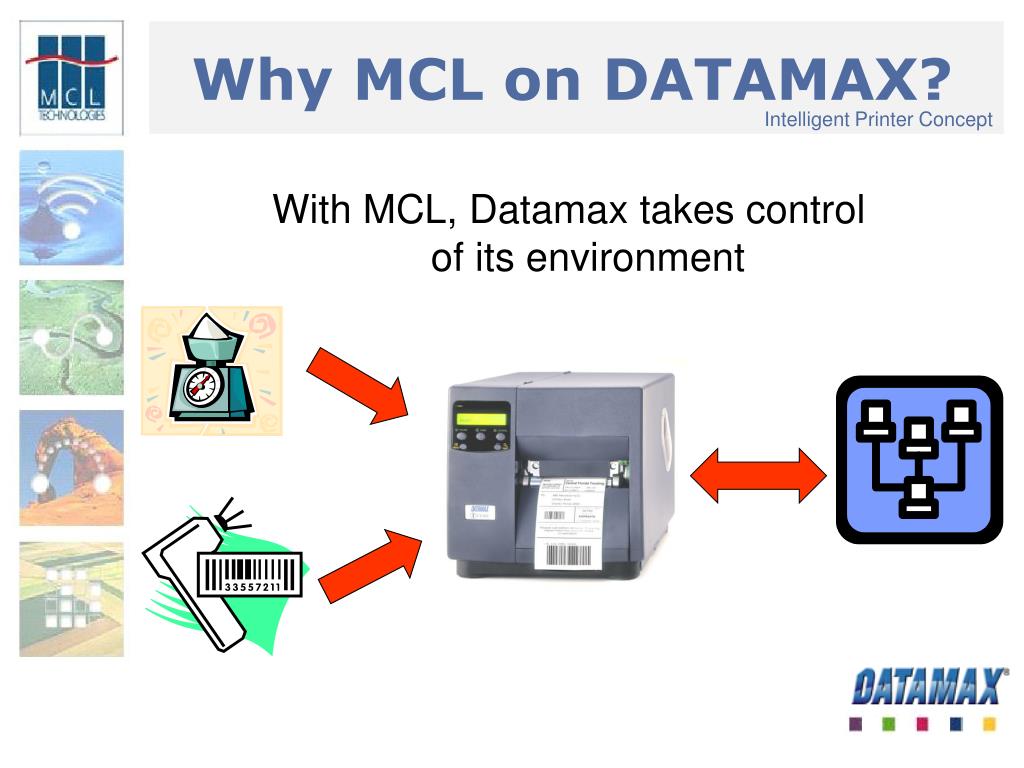

With MCL, Datamax takes control of its environment

slide9

MCL & DATAMAX

Intelligent Printer Concept

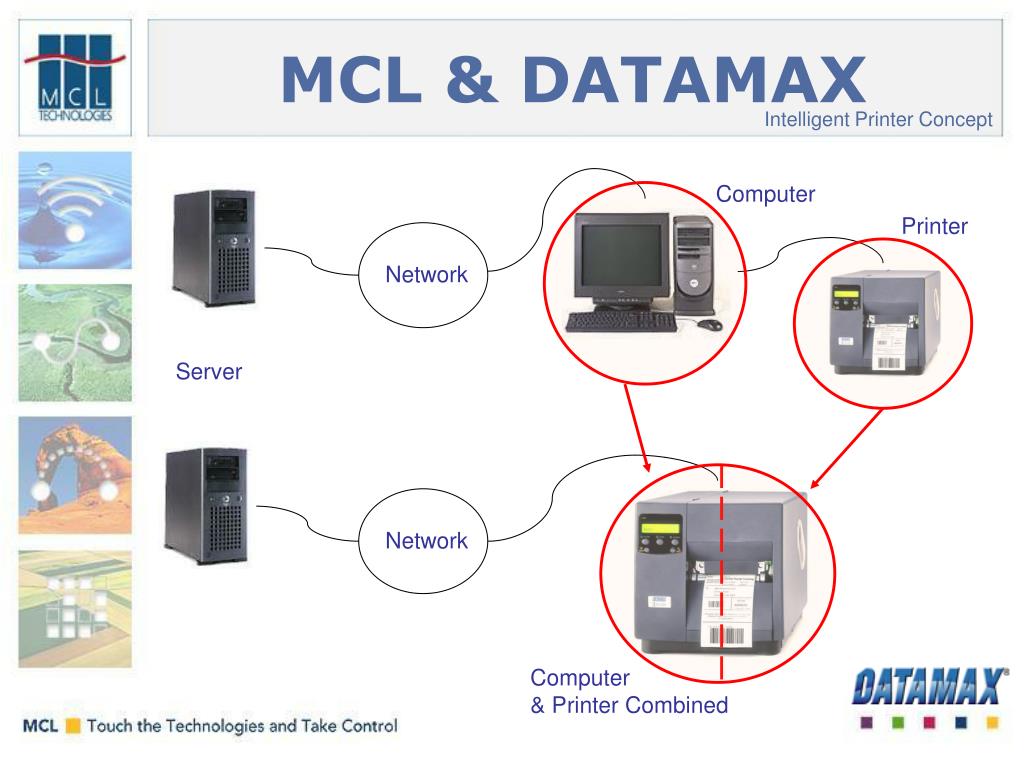

Computer

Printer

Network

Server

Network

Computer

& Printer Combined

slide10

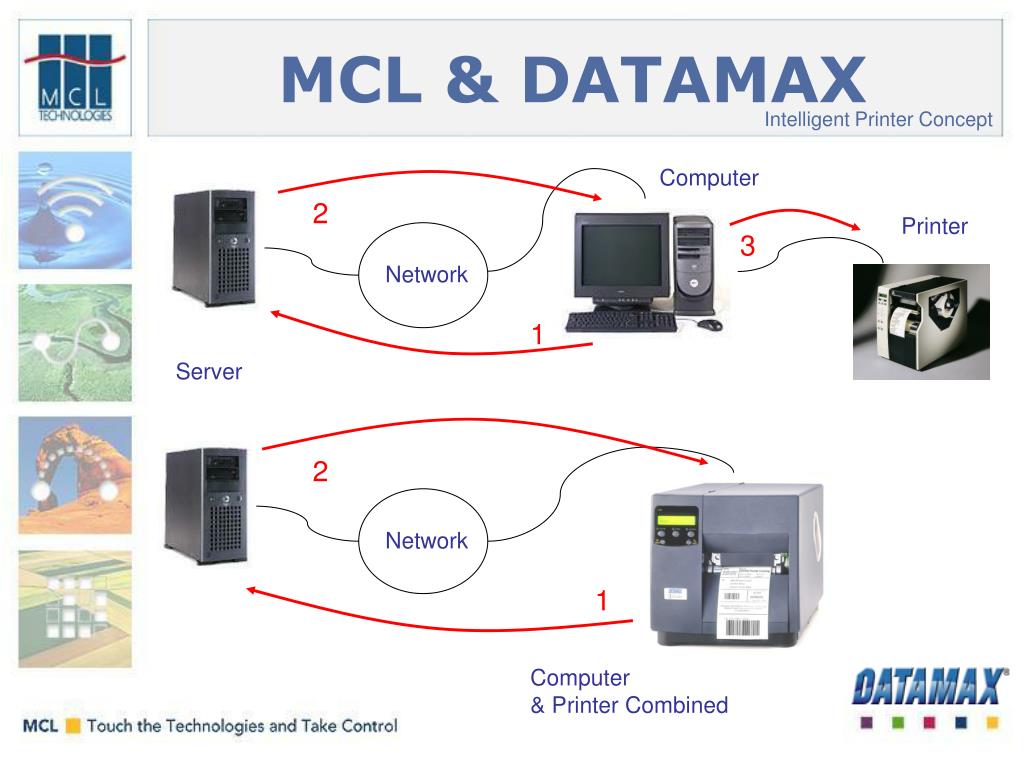

MCL & DATAMAX

Intelligent Printer Concept

Computer

2

Printer

3

Network

1

Server

2

Network

1

Computer

& Printer Combined

slide11

MCL & DATAMAX

Intelligent Printer Concept

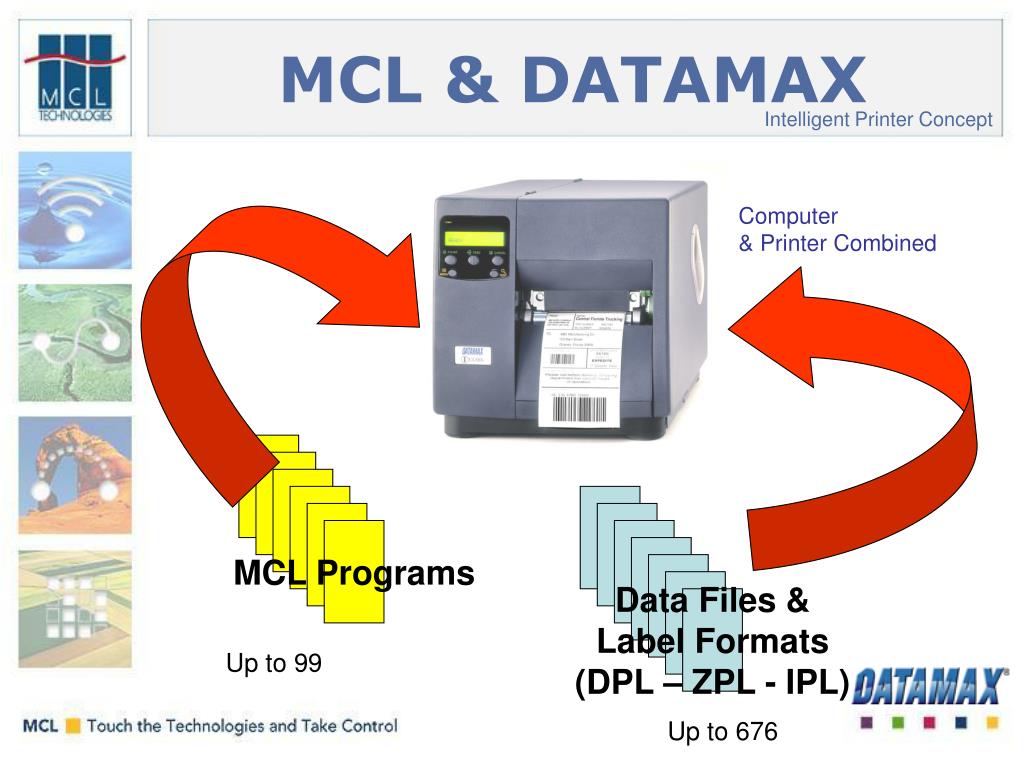

Computer

& Printer Combined

MCL Programs

Data Files &

Label Formats

(DPL – ZPL - IPL)

Up to 99

Up to 676

mcl on datamax
MCL on DATAMAX

Intelligent Printer Concept

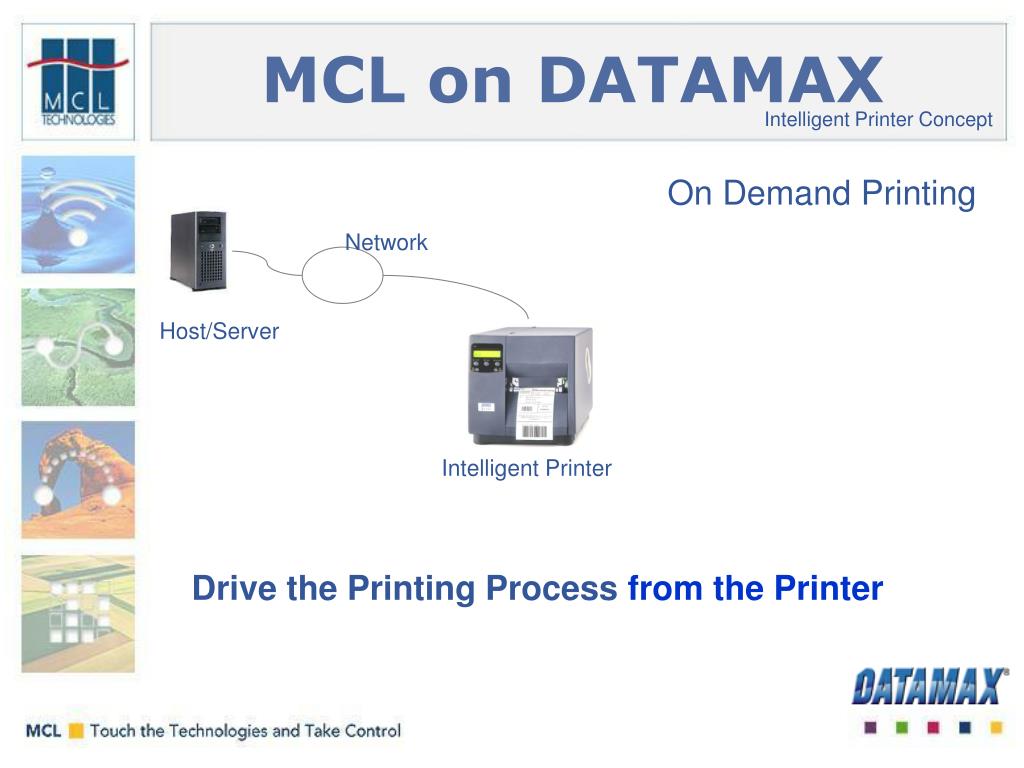

On Demand Printing

Network

Host/Server

Intelligent Printer

Drive the Printing Process from the Printer

mcl on datamax1
MCL on DATAMAX

Intelligent Printer Concept

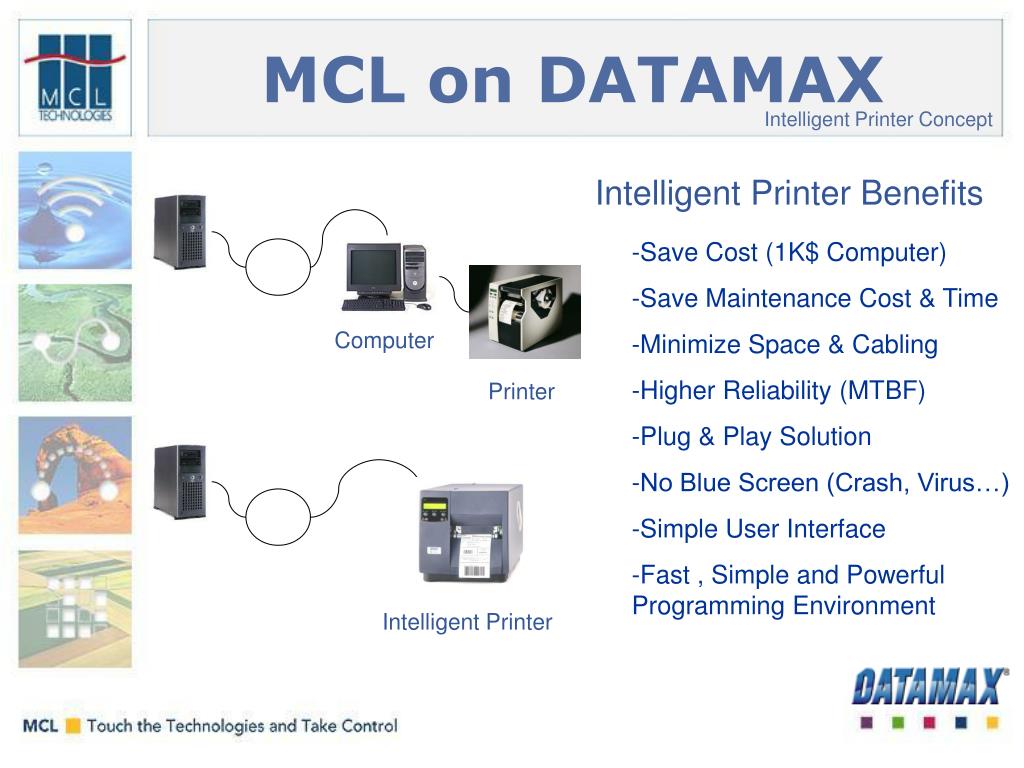

Intelligent Printer Benefits

-Save Cost (1K$ Computer)

-Save Maintenance Cost & Time

-Minimize Space & Cabling

-Higher Reliability (MTBF)

-Plug & Play Solution

-No Blue Screen (Crash, Virus…)

-Simple User Interface

-Fast , Simple and Powerful Programming Environment

Computer

Printer

Intelligent Printer

mcl on datamax2
MCL on DATAMAX

Intelligent Printer Concept

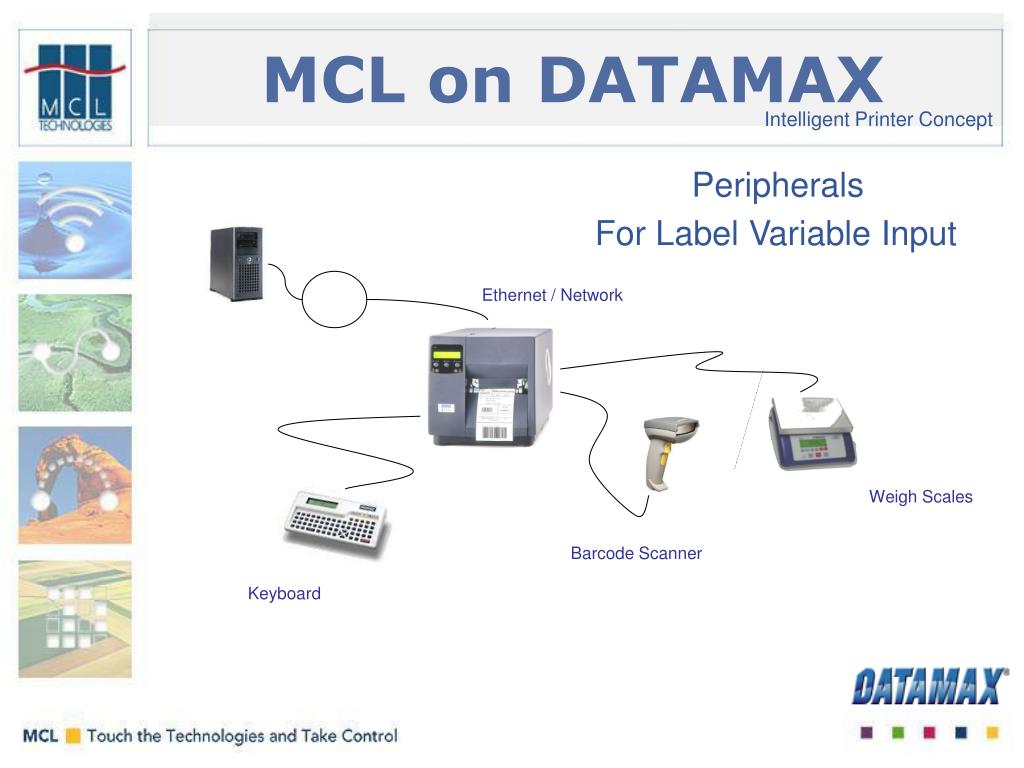

Peripherals

For Label Variable Input

Ethernet / Network

Weigh Scales

Barcode Scanner

Keyboard

mcl on datamax3
MCL on DATAMAX

Intelligent Printer Concept

Server

ERP / Databases…

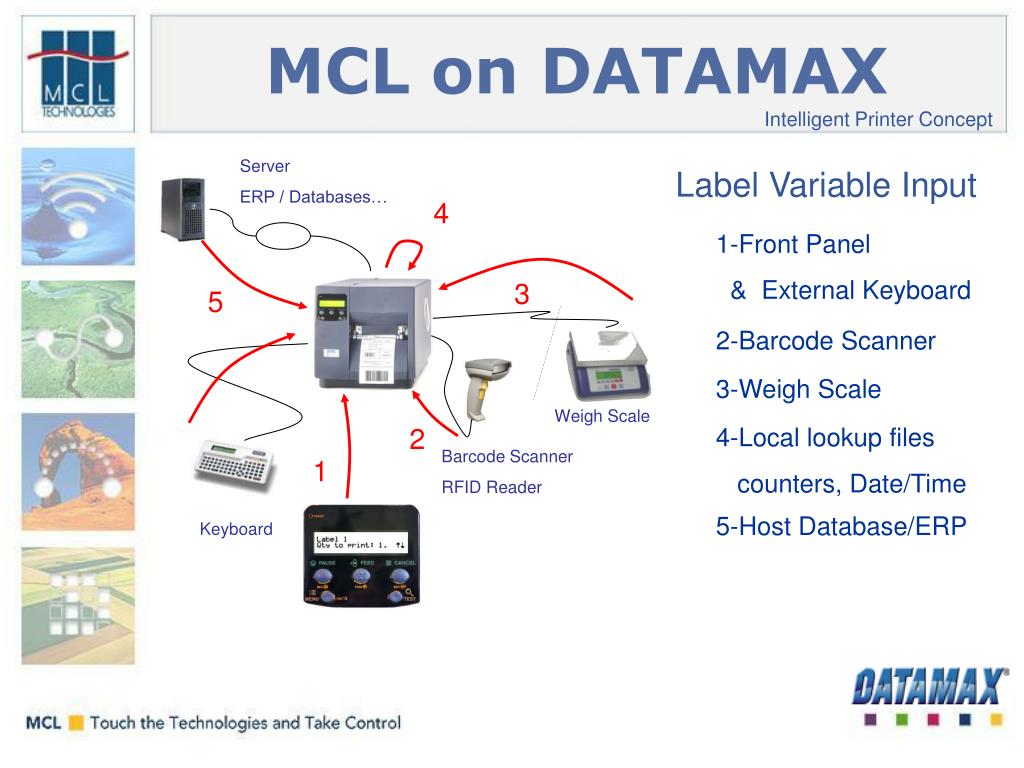

Label Variable Input

4

1-Front Panel

& External Keyboard

3

5

2-Barcode Scanner

3-Weigh Scale

Weigh Scale

2

4-Local lookup files

counters, Date/Time

Barcode Scanner

RFID Reader

1

5-Host Database/ERP

Keyboard

mcl on datamax4
MCL on DATAMAX

Intelligent Printer Concept

To have an intelligent printer is one thing.

To put the technology to work is something else.

Datamax not only brings you the first intelligent

printer to market but also in the most

accessible way :

Technology Delivered

mcl on datamax5
MCL on DATAMAX

Intelligent Printer Concept

Introduction of

MCL-Designer for Datamax

slide18

MCL-Designer

Intelligent Printer Concept

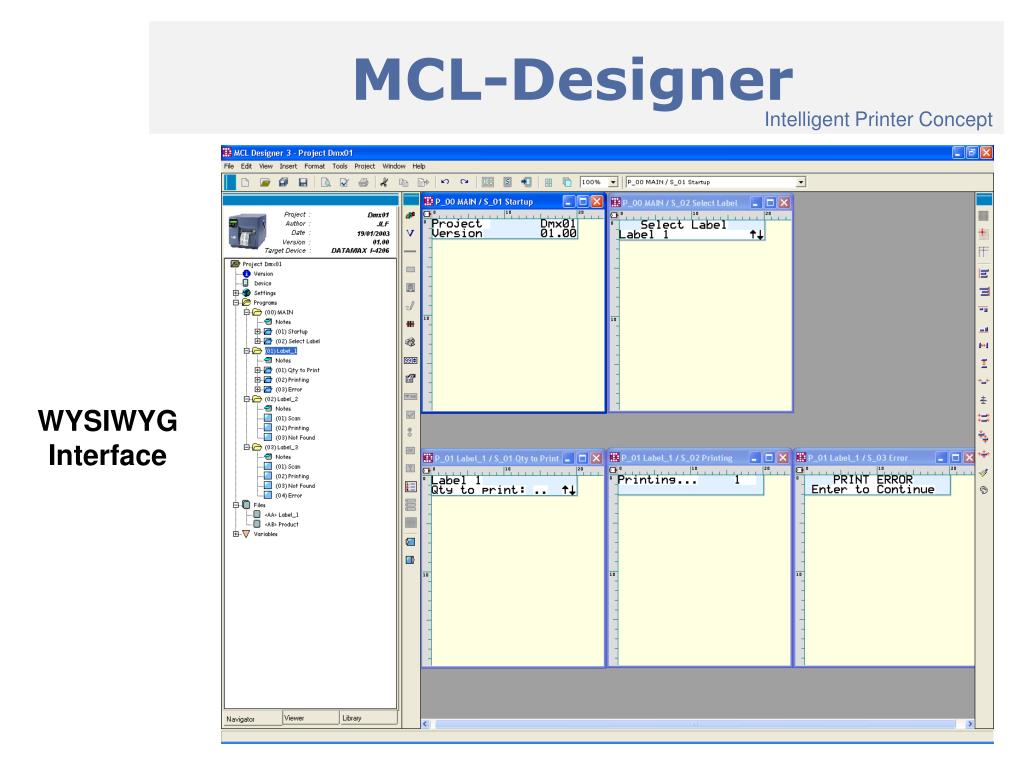

WYSIWYG

Interface

slide19

MCL-Designer

Intelligent Printer Concept

Different Tree Views

slide20

MCL-Designer

Intelligent Printer Concept

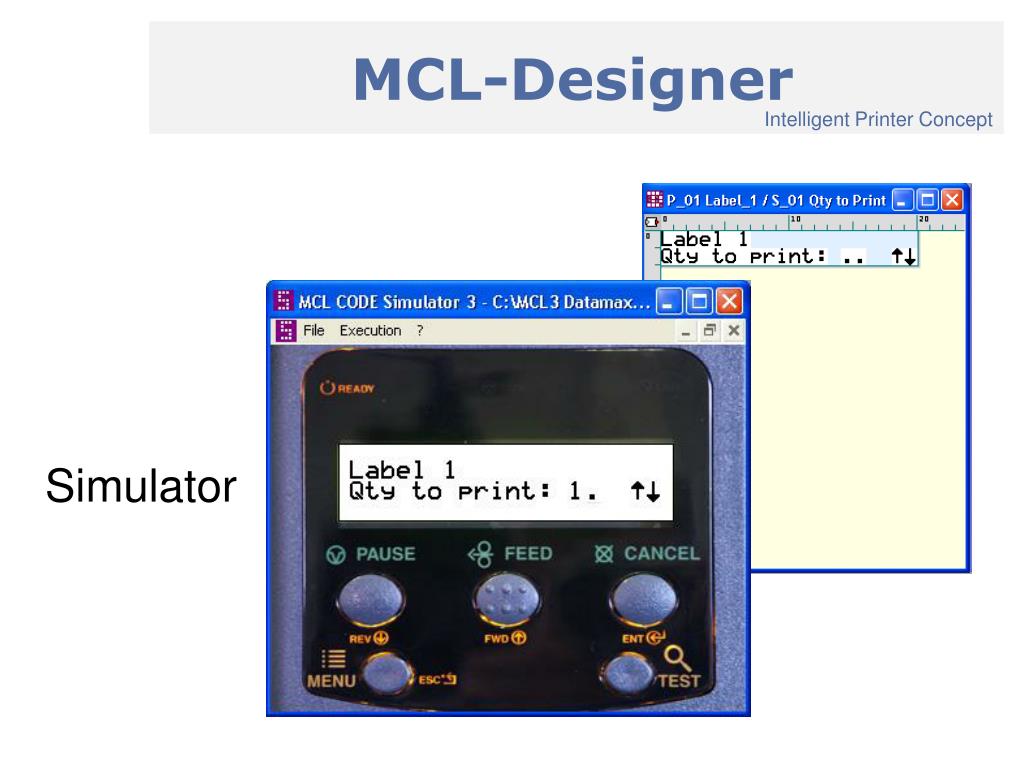

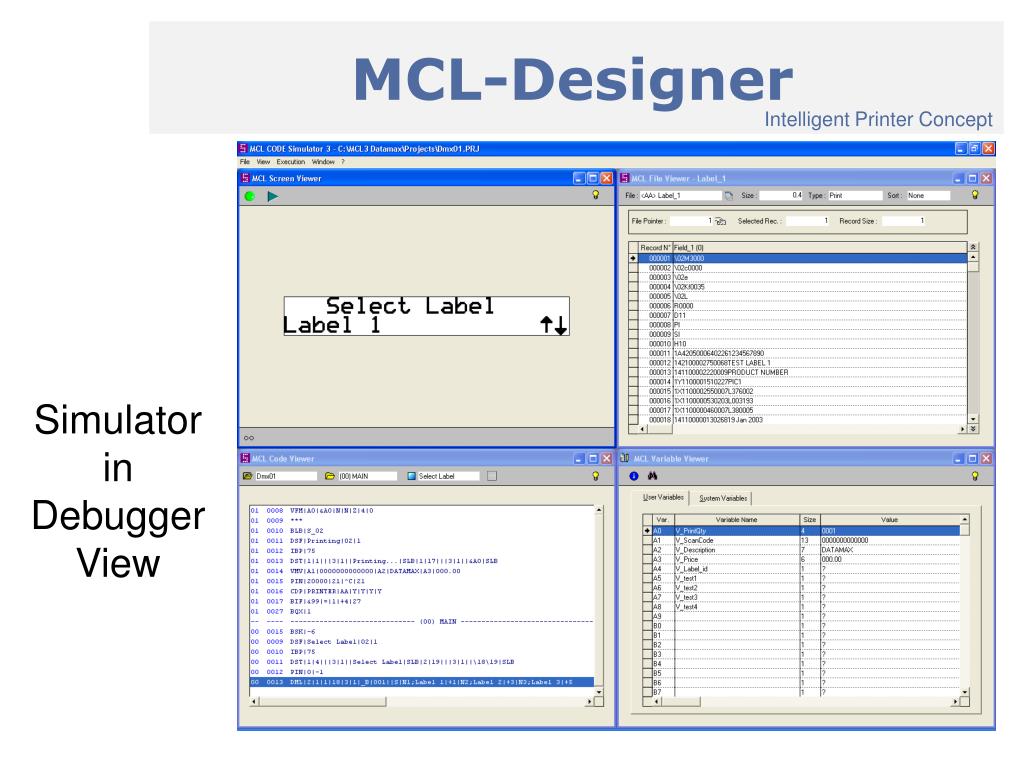

Simulator

slide21

MCL-Designer

Intelligent Printer Concept

Simulator

in

Debugger

View

slide22

MCL-Designer

Intelligent Printer Concept

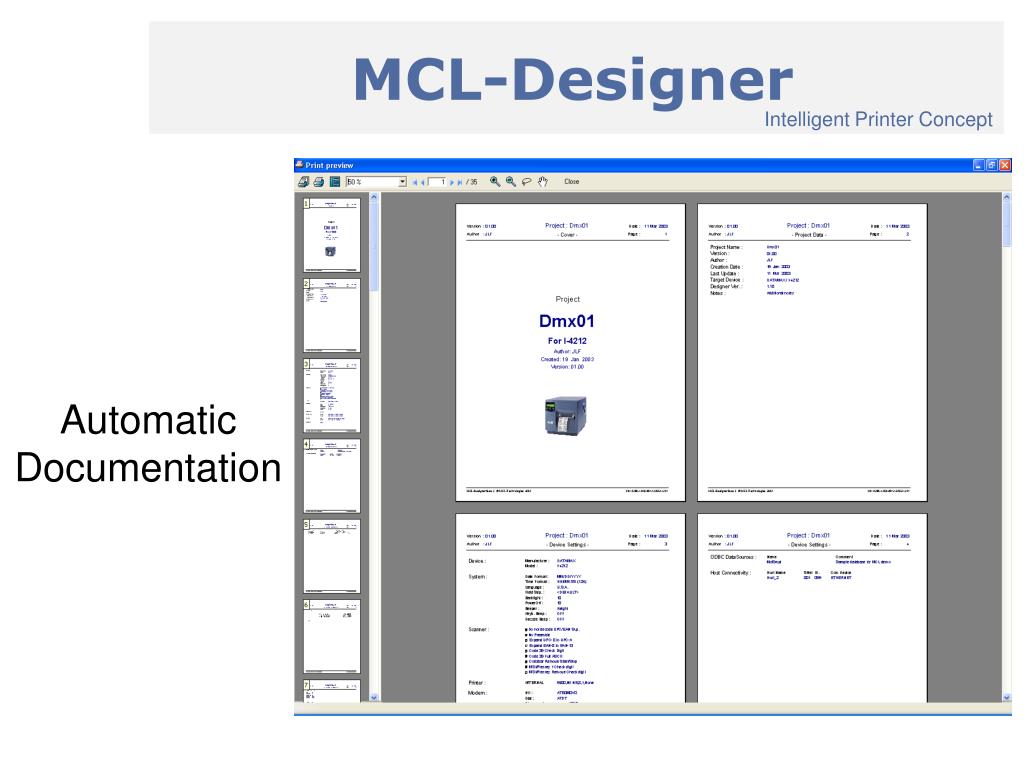

Automatic

Documentation

mcl on datamax6
MCL on DATAMAX

Intelligent Printer Concept

MCL-Collection

Architecture

mcl architecture

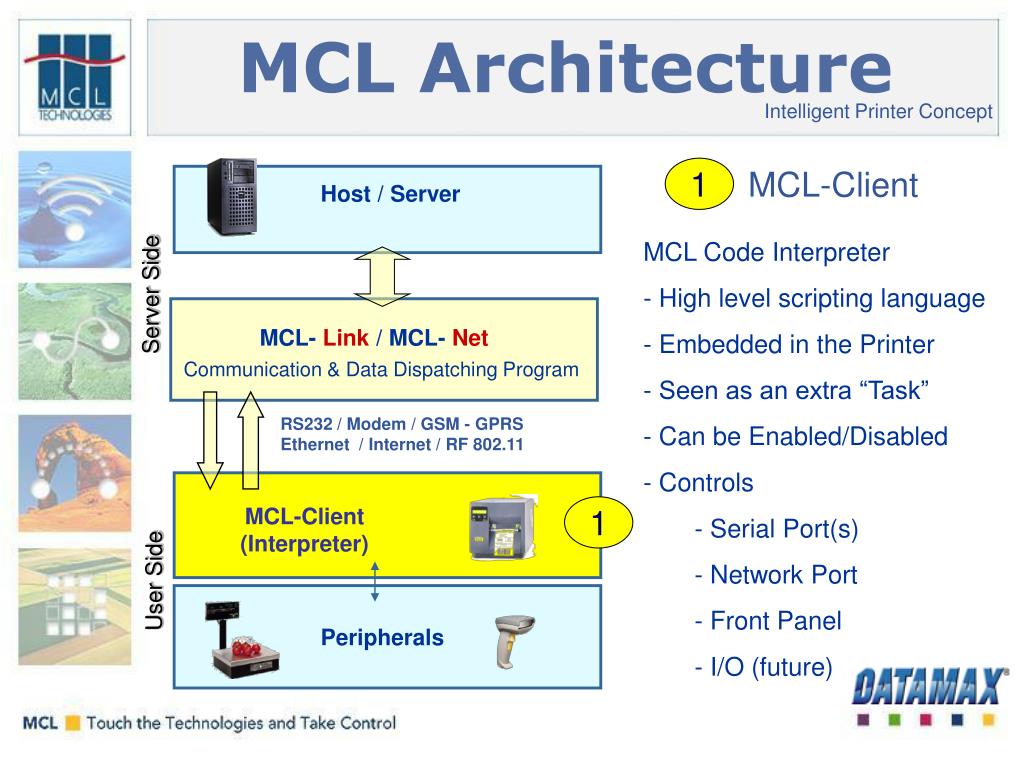

MCL Architecture

Intelligent Printer Concept

1

MCL-Client

Host / Server

  • MCL Code Interpreter
  • - High level scripting language
  • - Embedded in the Printer
  • - Seen as an extra “Task”
  • Can be Enabled/Disabled
  • Controls
    • Serial Port(s)
    • Network Port
    • Front Panel
    • - I/O (future)

Server Side

MCL- Link / MCL- Net

Communication & Data Dispatching Program

RS232 / Modem / GSM - GPRS Ethernet / Internet / RF 802.11

MCL-Client

(Interpreter)

1

User Side

Peripherals

mcl architecture1
MCL Architecture

Intelligent Printer Concept

2

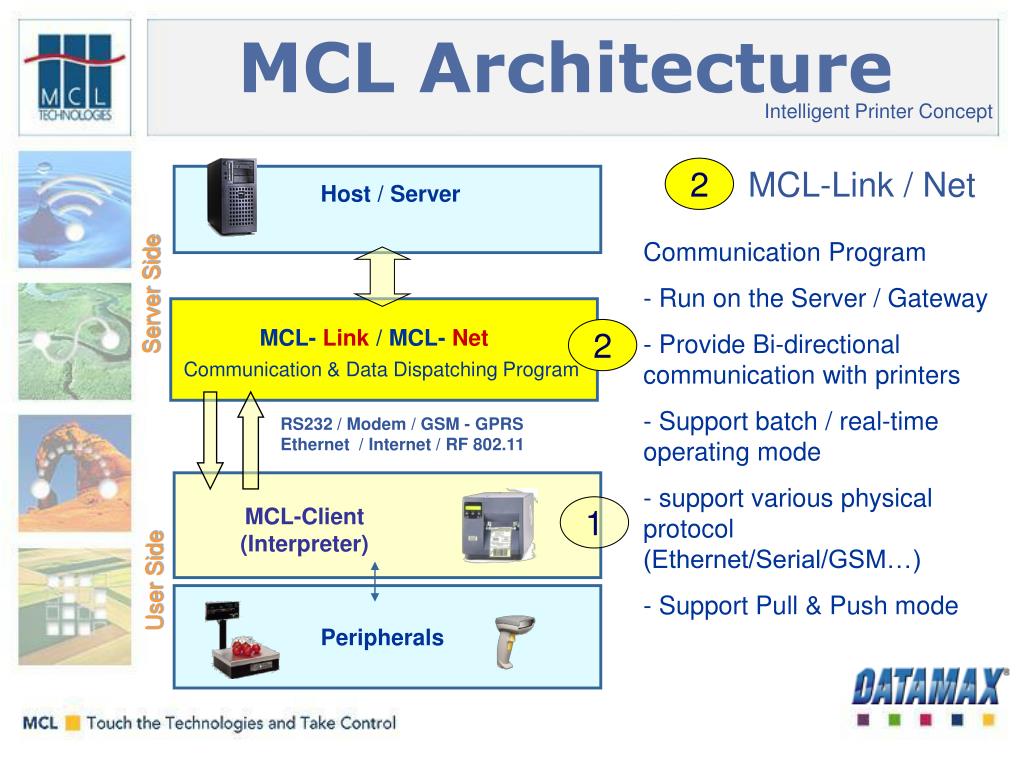

MCL-Link / Net

Host / Server

  • Communication Program
  • - Run on the Server / Gateway
  • Provide Bi-directional communication with printers
  • - Support batch / real-time operating mode
  • support various physical protocol (Ethernet/Serial/GSM…)
  • Support Pull & Push mode

Server Side

MCL- Link / MCL- Net

2

Communication & Data Dispatching Program

RS232 / Modem / GSM - GPRS Ethernet / Internet / RF 802.11

MCL-Client

(Interpreter)

1

User Side

Peripherals

mcl architecture2
MCL Architecture

Intelligent Printer Concept

3

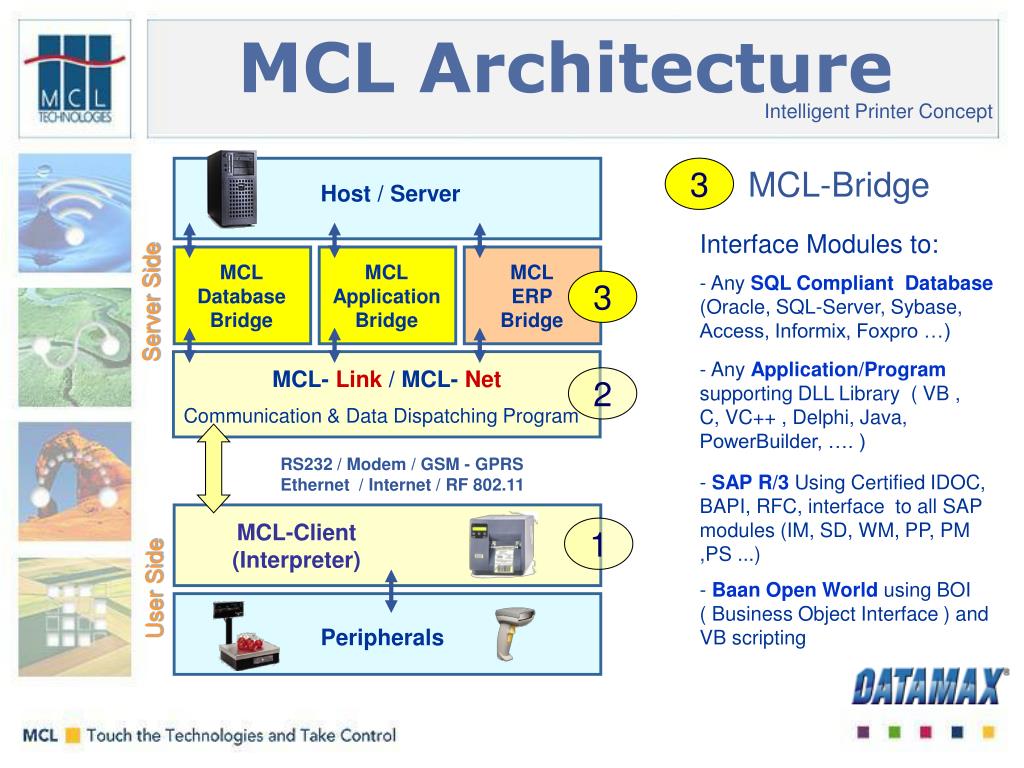

MCL-Bridge

Host / Server

Interface Modules to:

- Any SQL Compliant Database (Oracle, SQL-Server, Sybase, Access, Informix, Foxpro …)

MCL

Database

Bridge

MCL

Application

Bridge

MCL

ERP

Bridge

3

Server Side

  • Any Application/Program supporting DLL Library ( VB , C, VC++ , Delphi, Java, PowerBuilder, …. )

MCL- Link / MCL- Net

2

Communication & Data Dispatching Program

RS232 / Modem / GSM - GPRS Ethernet / Internet / RF 802.11

  • SAP R/3 Using Certified IDOC, BAPI, RFC, interface to all SAP modules (IM, SD, WM, PP, PM ,PS ...)
  • Baan Open World using BOI ( Business Object Interface ) and VB scripting

MCL-Client

(Interpreter)

1

User Side

Peripherals

mcl architecture3
MCL Architecture

Intelligent Printer Concept

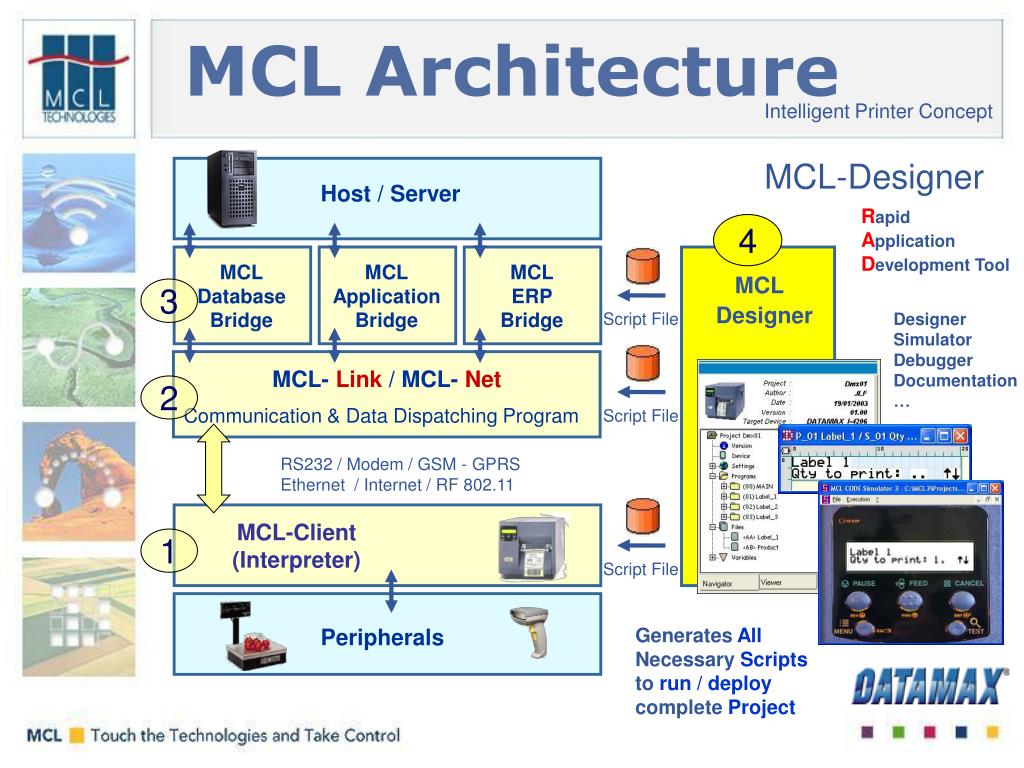

MCL-Designer

Host / Server

Rapid

ApplicationDevelopment Tool

4

MCL

Database

Bridge

MCL

Application

Bridge

MCL

ERP

Bridge

MCL

Designer

3

Script File

Designer

Simulator

Debugger

Documentation …

MCL- Link / MCL- Net

2

Communication & Data Dispatching Program

Script File

RS232 / Modem / GSM - GPRS Ethernet / Internet / RF 802.11

MCL-Client

(Interpreter)

1

Script File

Peripherals

Generates All

Necessary Scripts to run / deploy complete Project
