horizontal autoclave sterilizer

Horizontal autoclave 26-HAC200 series is a microprocessor-controlled autoclave with a capacity of 150 litres. It effectively sterilises media, liquids, and waste to be discarded at a maximum working temperature of 134u00b0C.u00a0

uzz
Download Presentation

horizontal autoclave sterilizer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

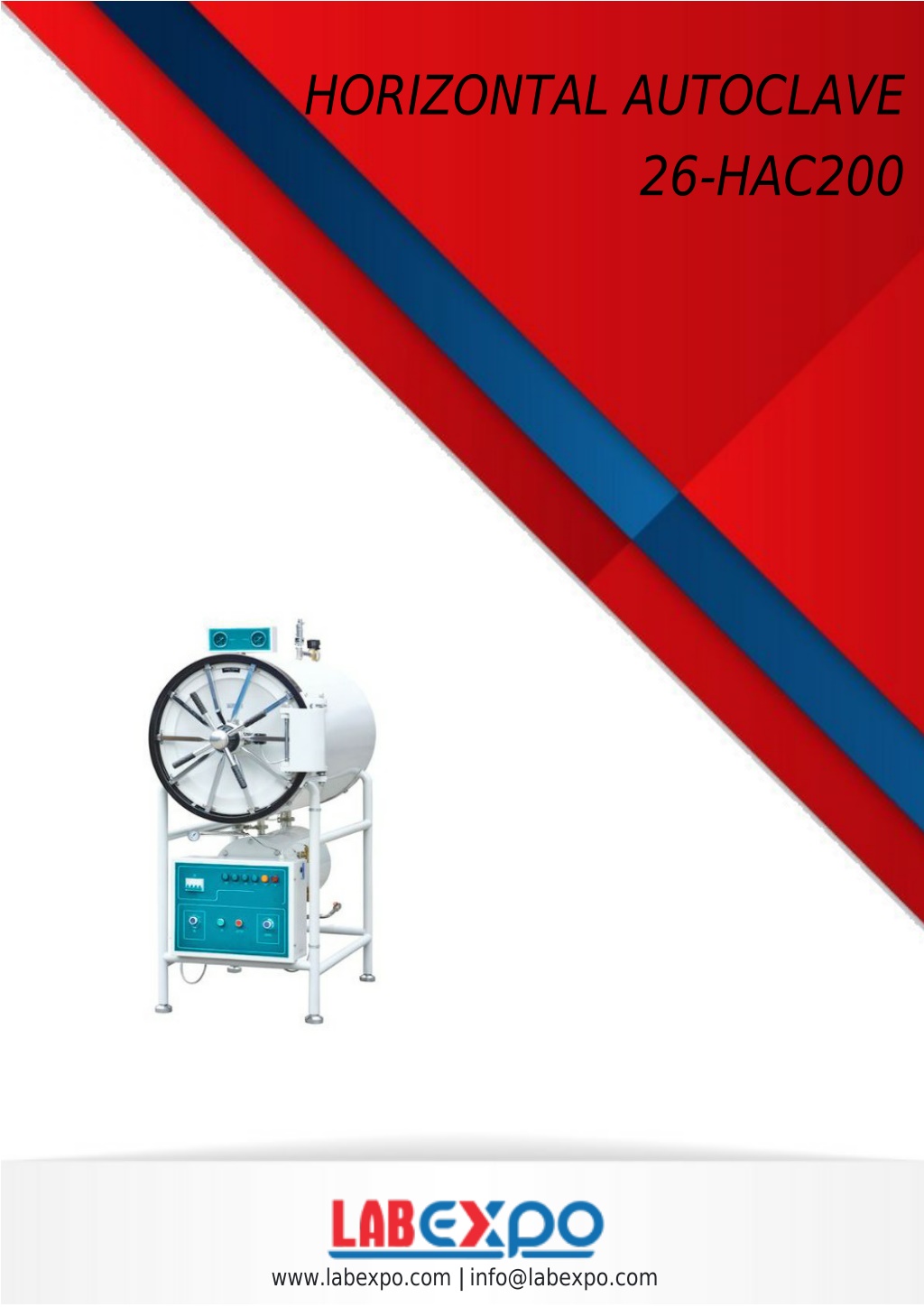

  1. HORIZONTAL AUTOCLAVE 26-HAC200 www.labexpo.com info@labexpo.com |

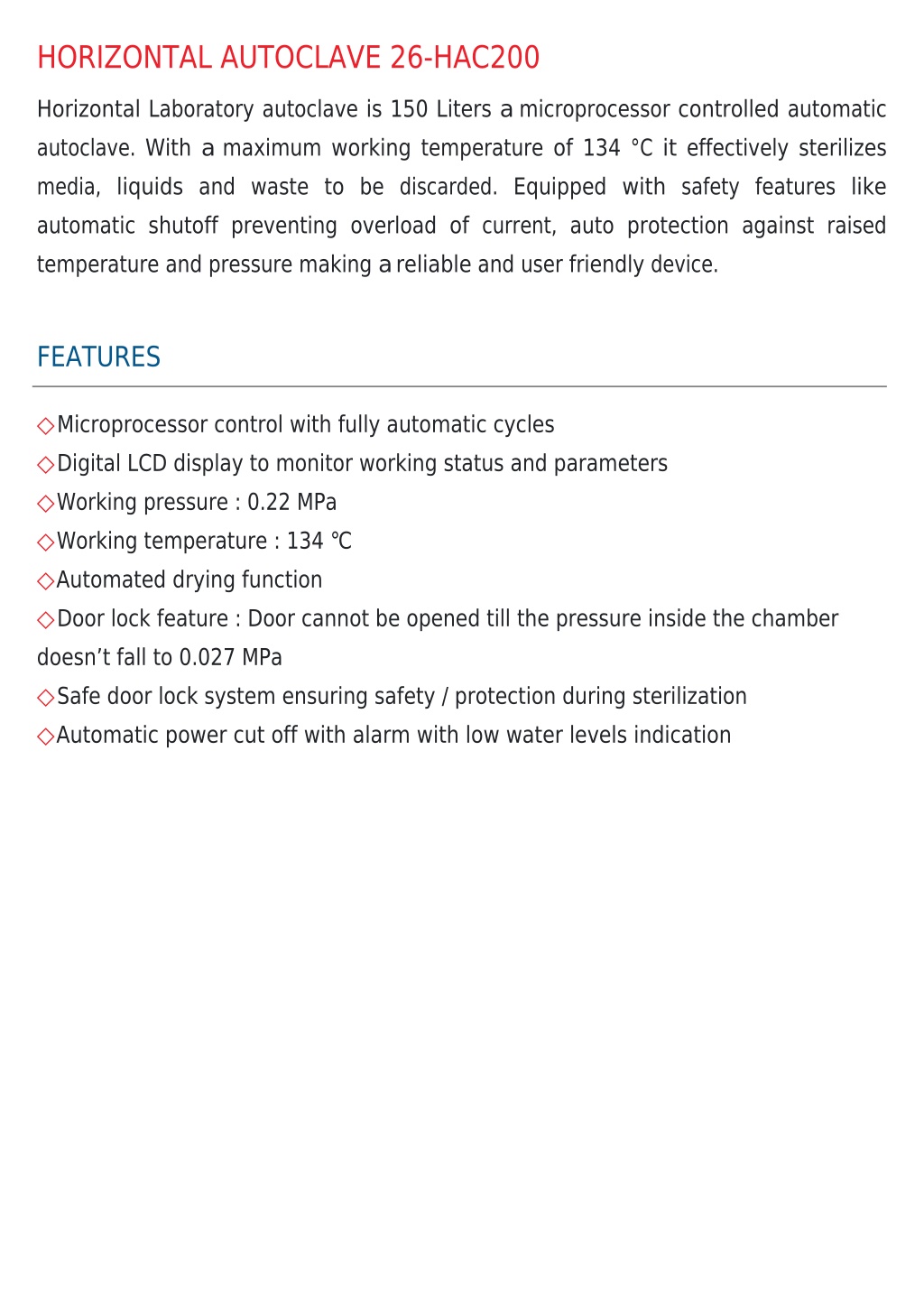

  2. HORIZONTAL AUTOCLAVE 26-HAC200 Horizontal Laboratory autoclave is 150 Liters a microprocessor controlled automatic autoclave. With a maximum working temperature of 134 °C it effectively sterilizes media, liquids and waste to be discarded. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making areliable and user friendly device. FEATURES ◇ Microprocessor control with fully automatic cycles ◇ Digital LCD display to monitor working status and parameters ◇ Working pressure : 0.22 MPa ◇ Working temperature : 134 ℃ ◇ Automated drying function ◇ Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa ◇ Safe door lock system ensuring safety / protection during sterilization ◇ Automatic power cut off with alarm with low water levels indication

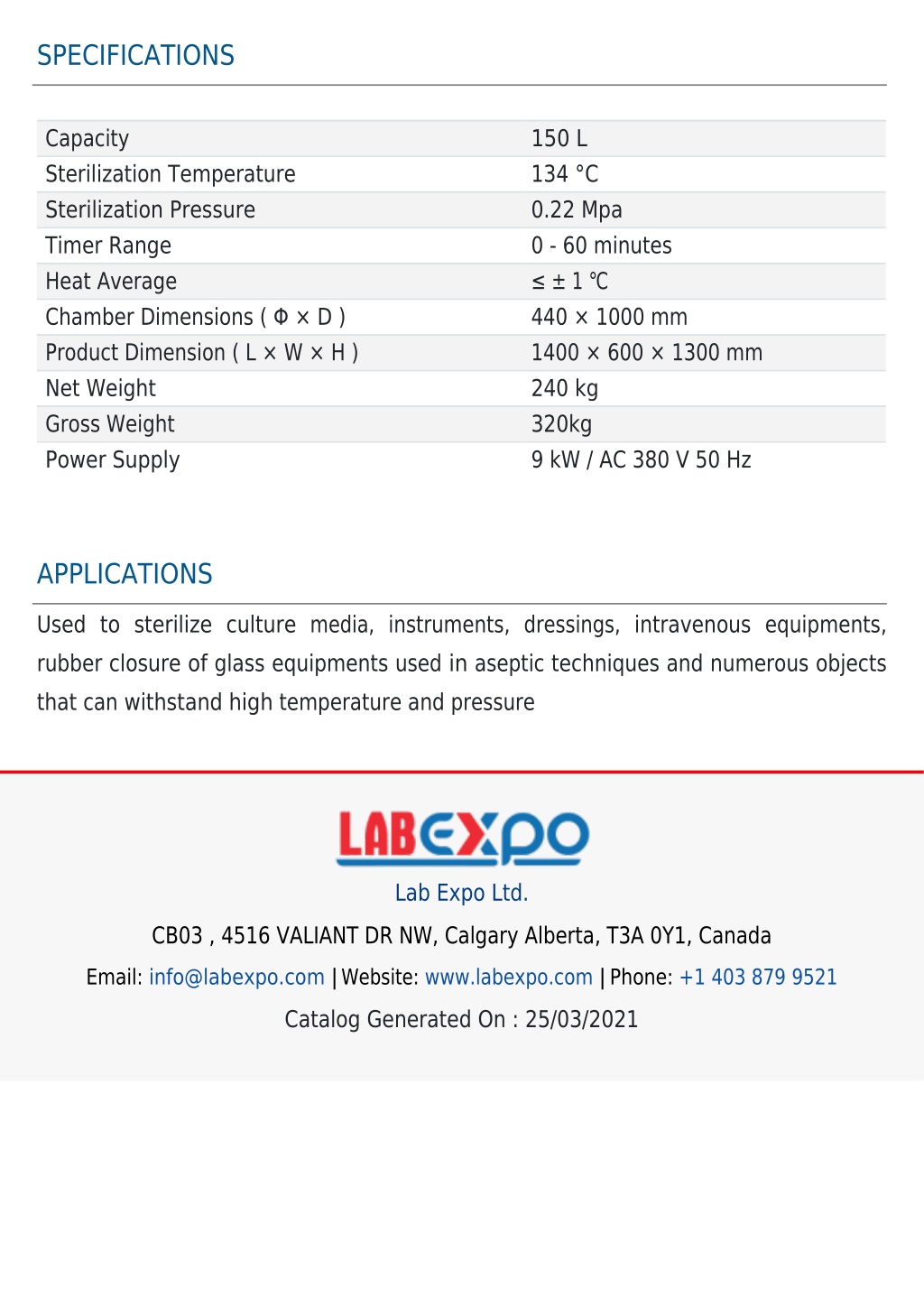

  3. SPECIFICATIONS Capacity Sterilization Temperature Sterilization Pressure Timer Range Heat Average Chamber Dimensions ( Φ × D ) Product Dimension ( L × W × H ) Net Weight Gross Weight Power Supply 150 L 134 °C 0.22 Mpa 0 - 60 minutes ≤ ± 1 ℃ 440 × 1000 mm 1400 × 600 × 1300 mm 240 kg 320kg 9 kW / AC 380 V 50 Hz APPLICATIONS Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure Lab Expo Ltd. CB03 , 4516 VALIANT DR NW, Calgary Alberta, T3A 0Y1, Canada Email: info@labexpo.com Website: www.labexpo.com Phone: +1 403 879 9521 | | Catalog Generated On : 25/03/2021
