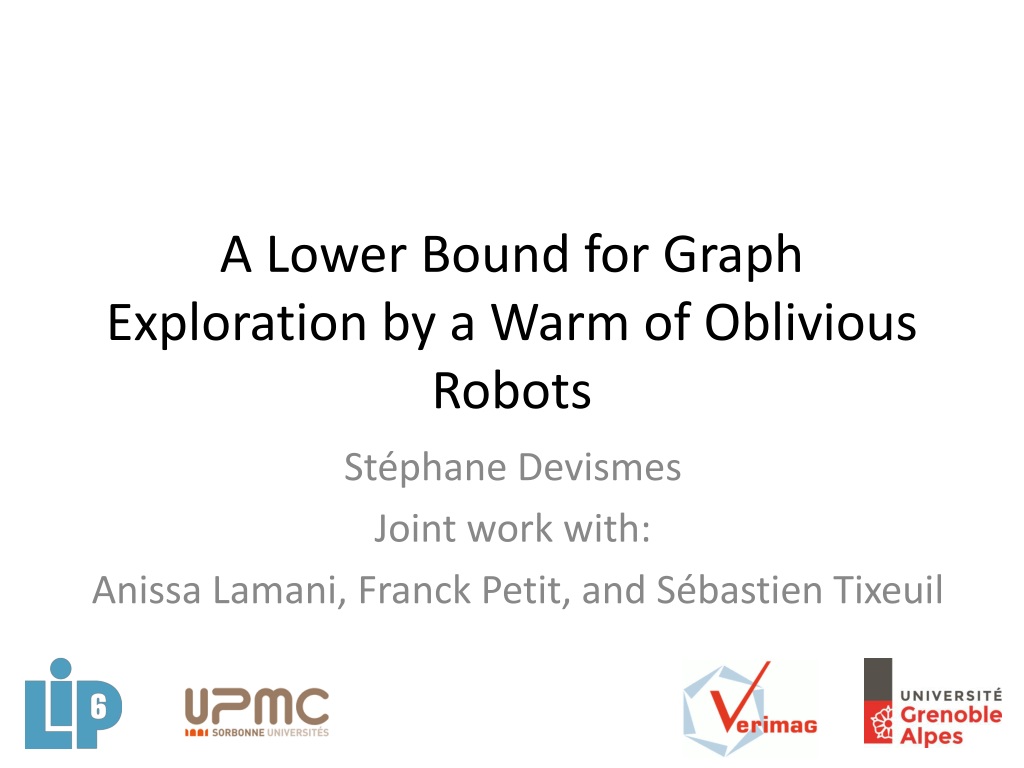

  1. A Lower Bound for Graph Exploration by a Warm of Oblivious Robots Stéphane Devismes Joint work with: Anissa Lamani, Franck Petit, and Sébastien Tixeuil

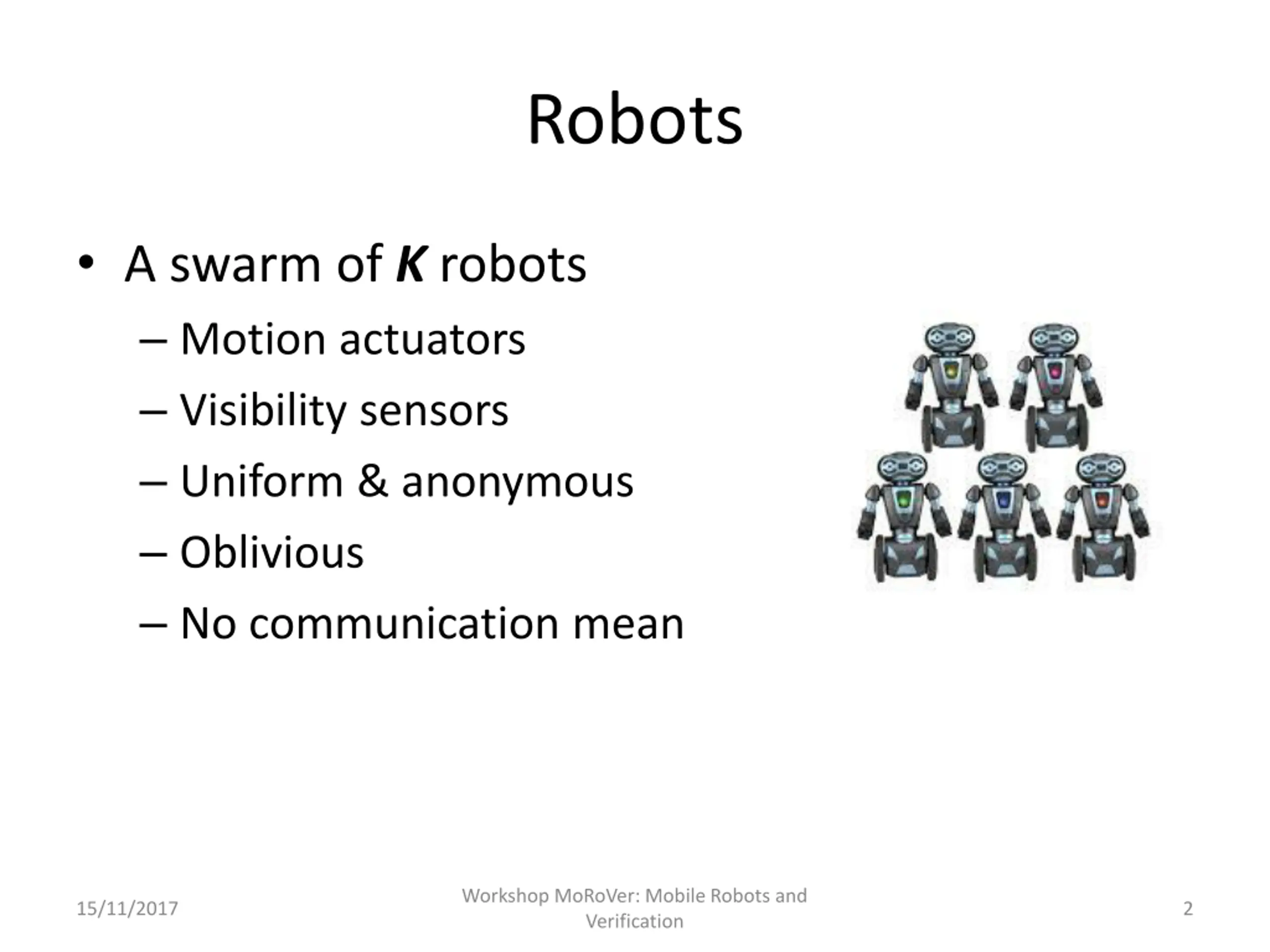

  2. Robots • A swarm of K robots – Motion actuators – Visibility sensors – Uniform & anonymous – Oblivious – No communication mean Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 2

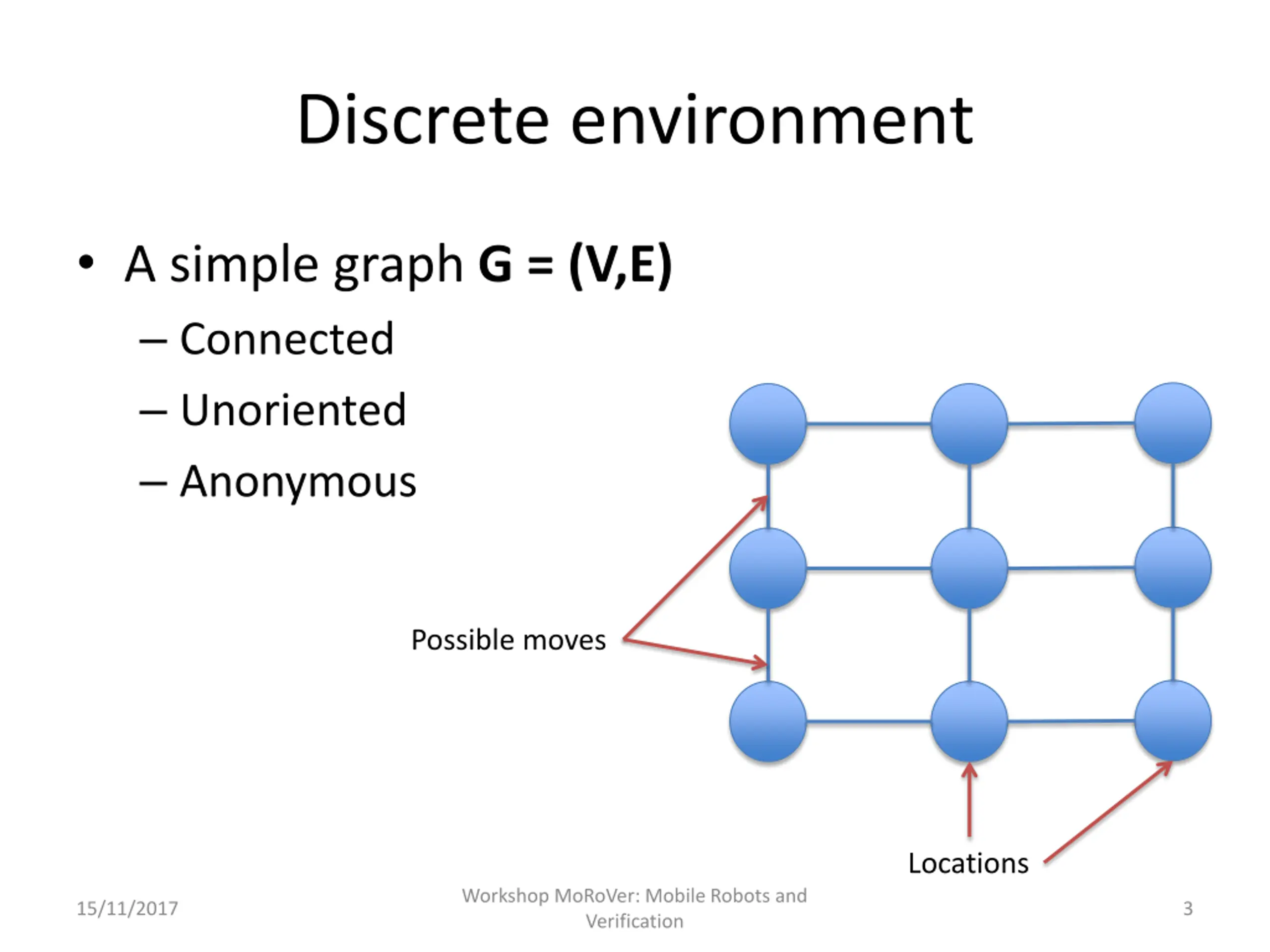

  3. Discrete environment • A simple graph G = (V,E) – Connected – Unoriented – Anonymous Possible moves Locations Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 3

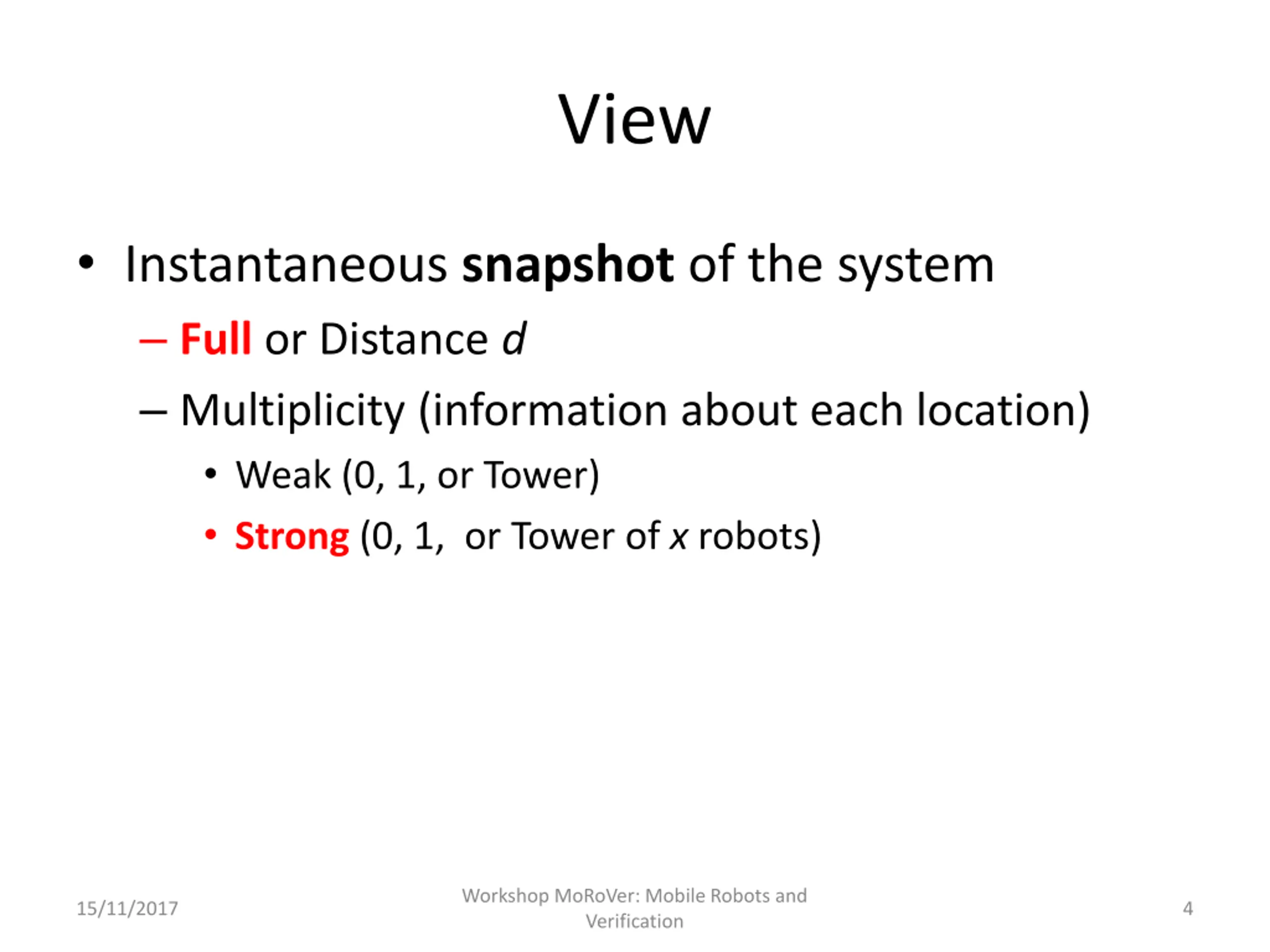

  4. View • Instantaneous snapshot of the system – Full or Distance d – Multiplicity (information about each location) • Weak (0, 1, or Tower) • Strong (0, 1, or Tower of x robots) Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 4

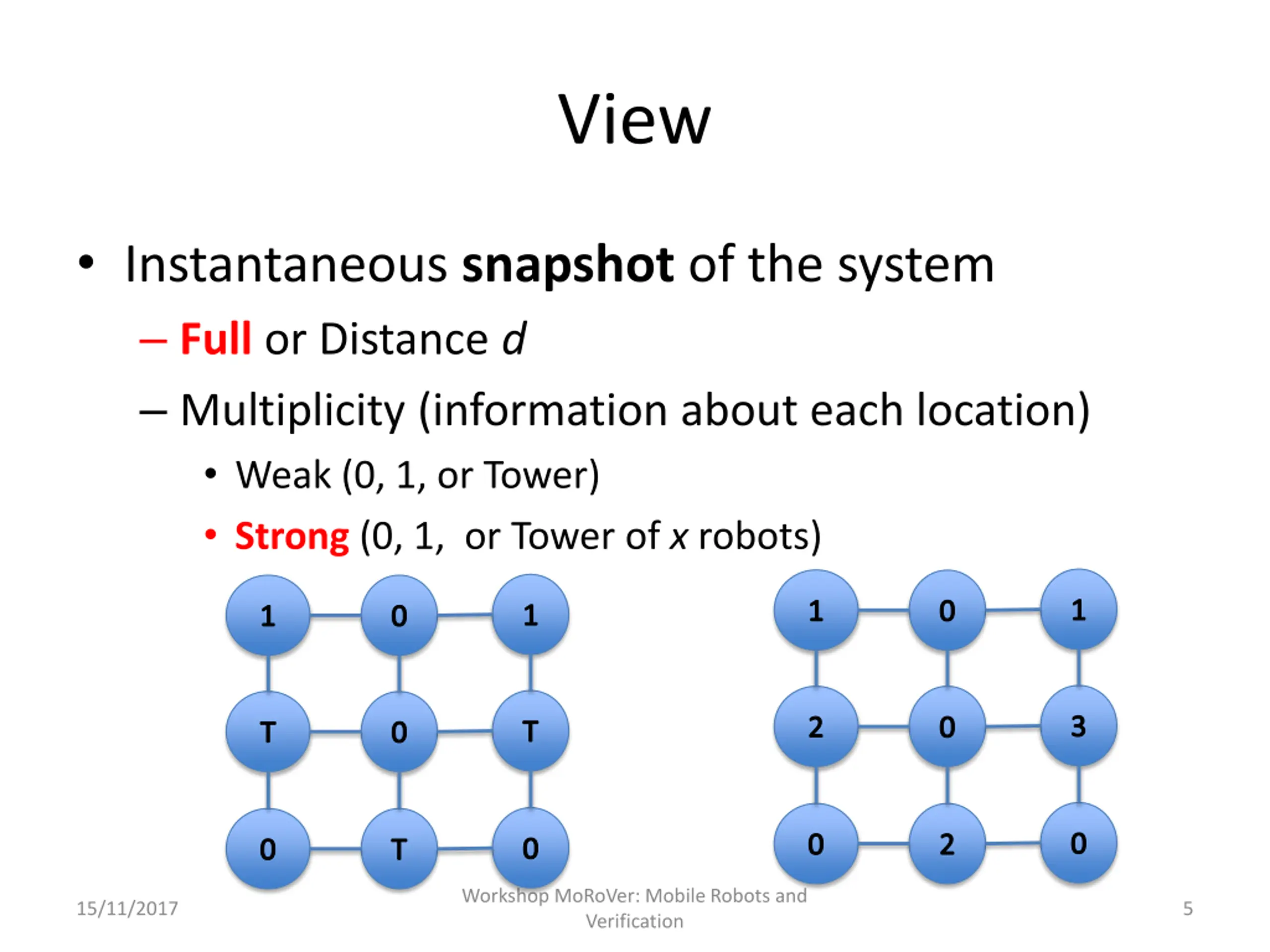

  5. View • Instantaneous snapshot of the system – Full or Distance d – Multiplicity (information about each location) • Weak (0, 1, or Tower) • Strong (0, 1, or Tower of x robots) Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 5

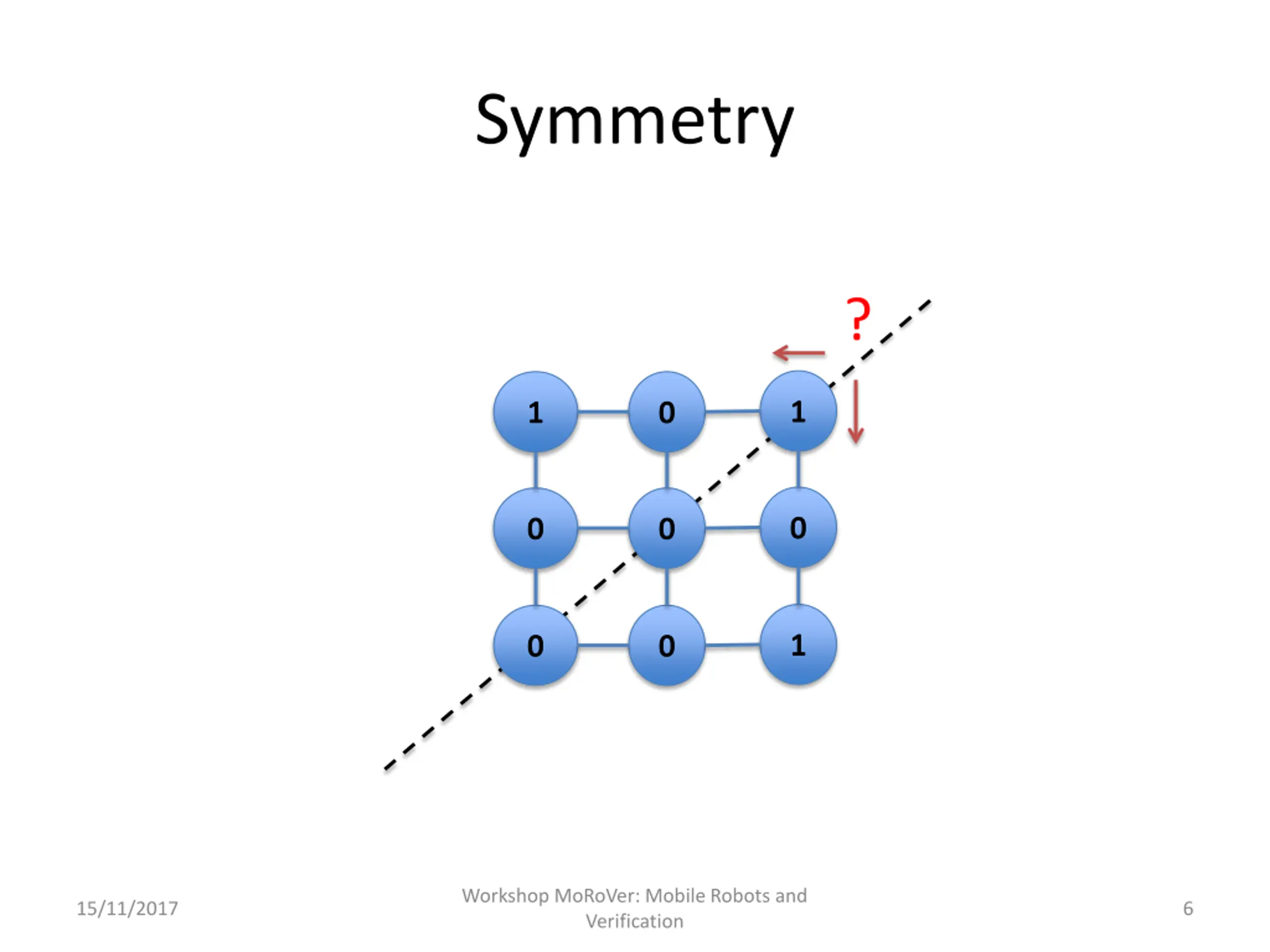

  6. Symmetry ? Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 6

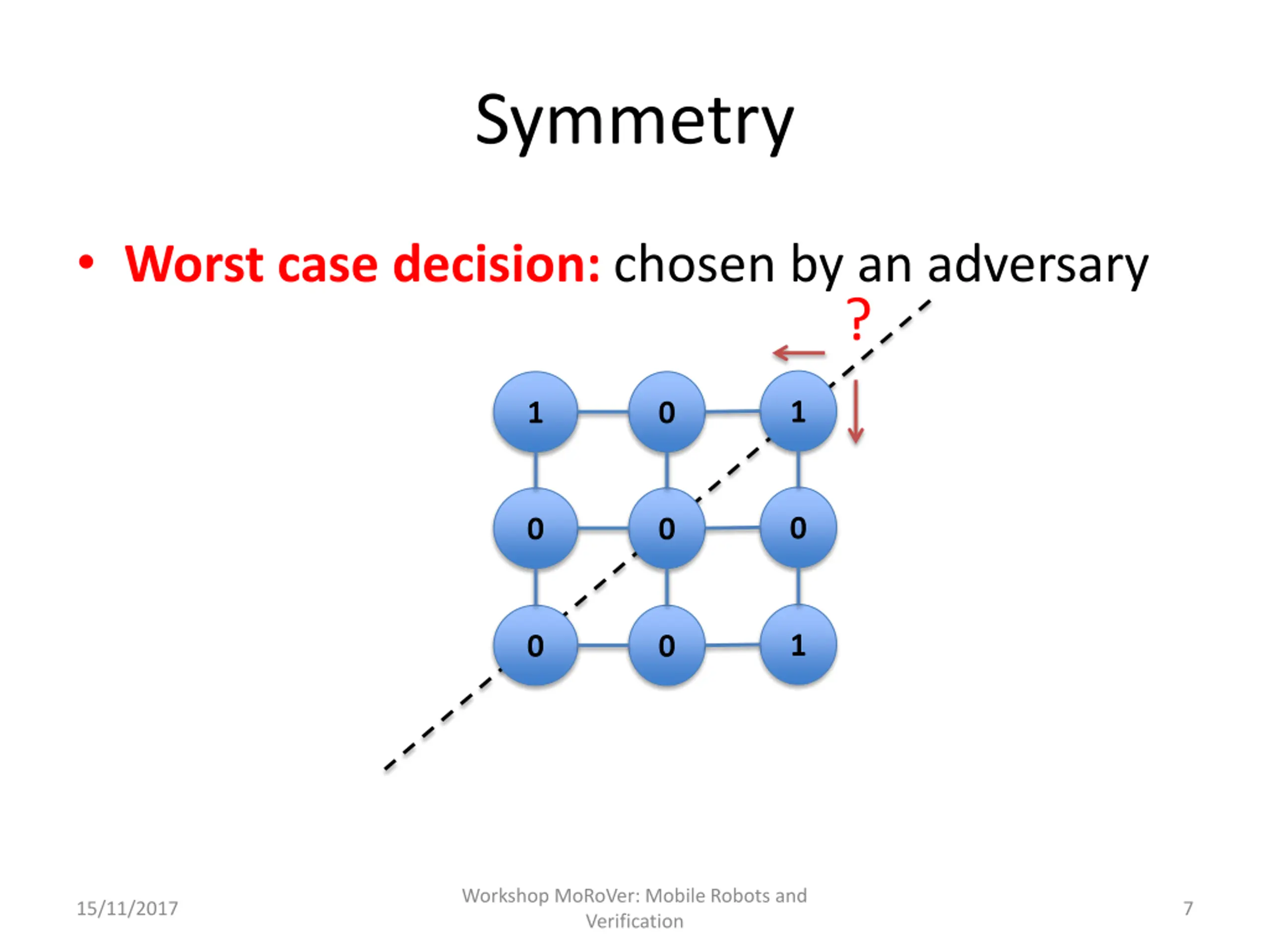

  7. Symmetry • Worst case decision: chosen by an adversary ? Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 7

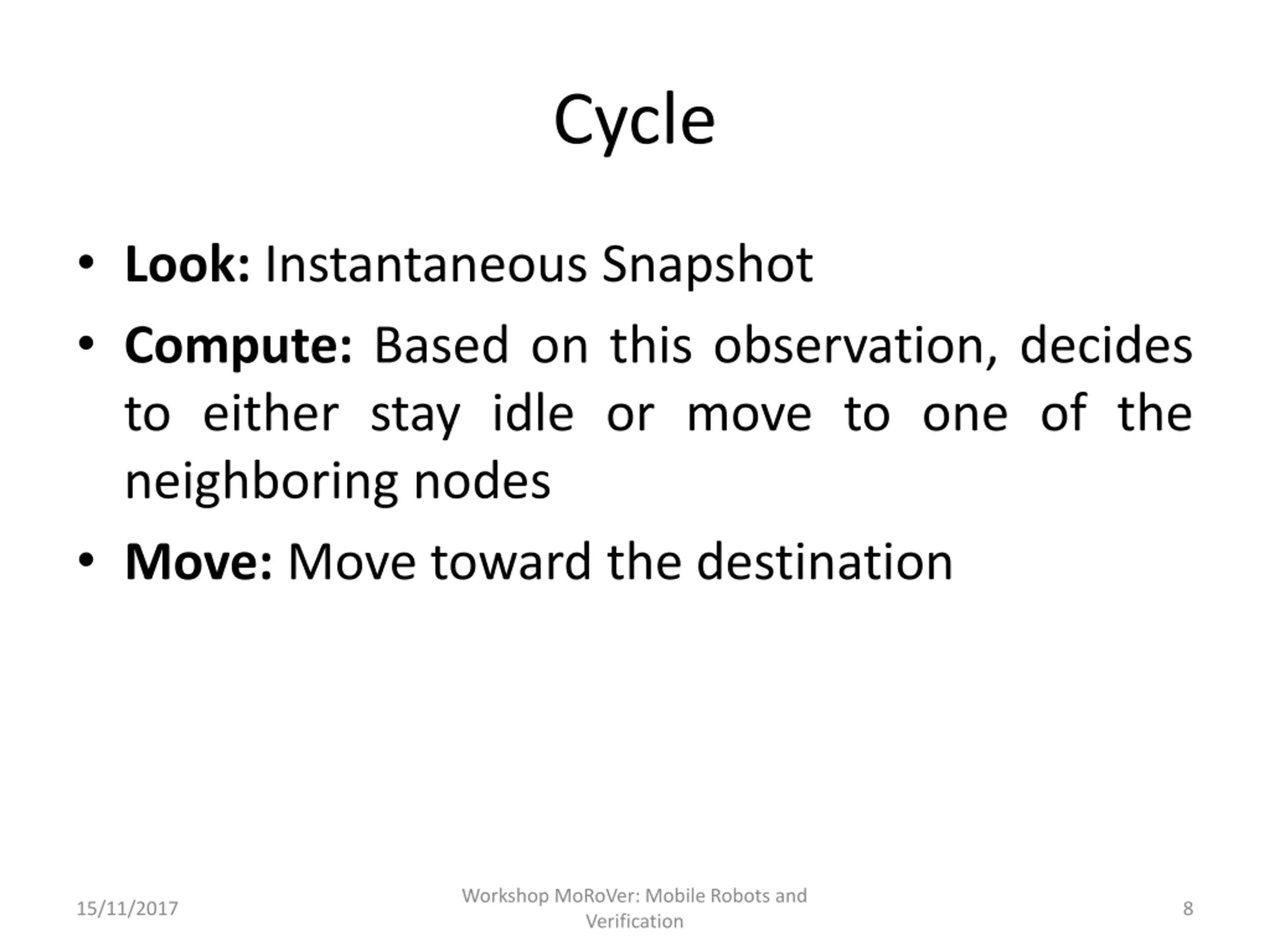

  8. Cycle • Look: Instantaneous Snapshot • Compute: Based on this observation, decides to either stay idle or move to one of the neighboring nodes • Move: Move toward the destination Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 8

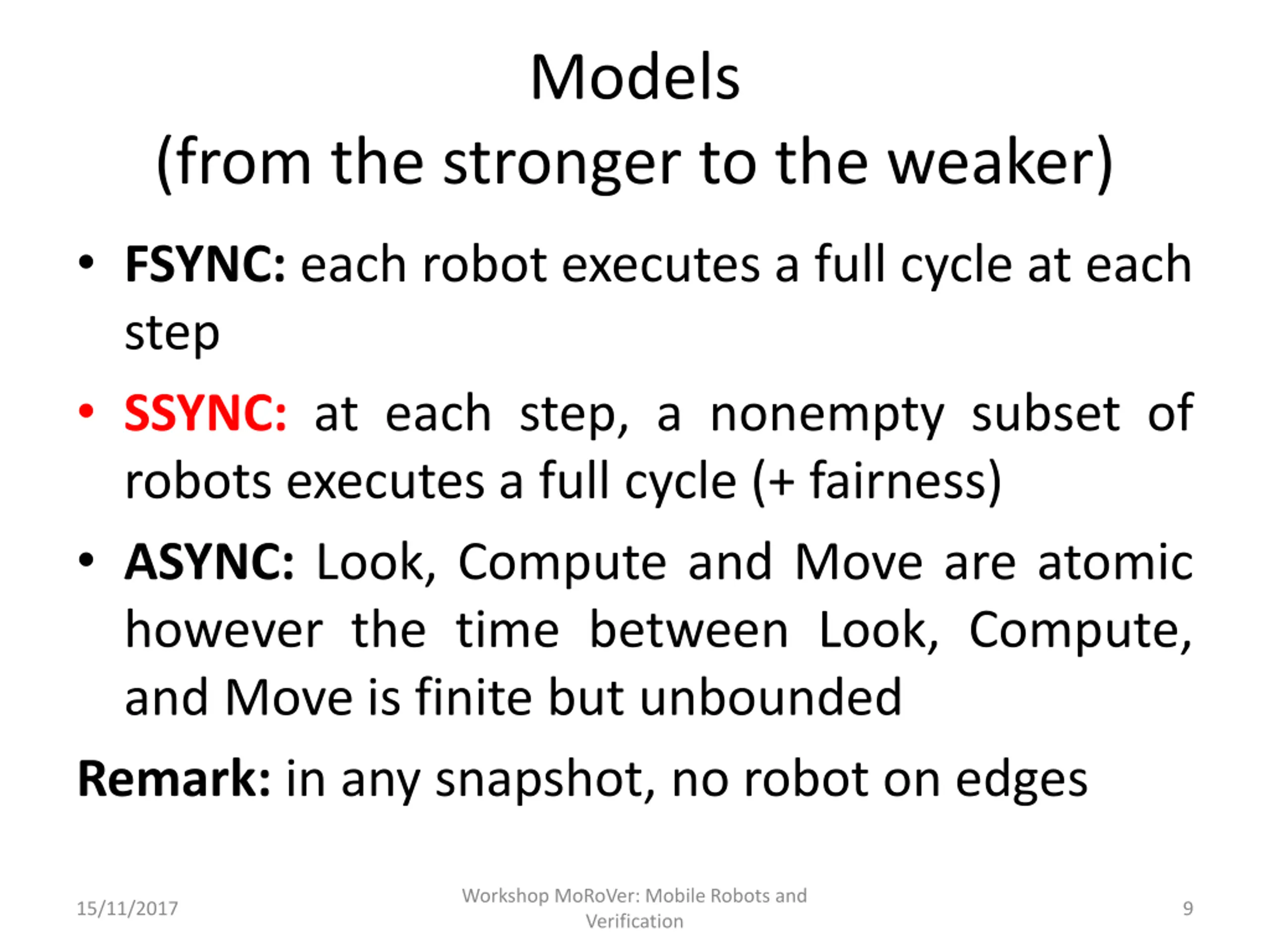

  9. Models (from the stronger to the weaker) • FSYNC: each robot executes a full cycle at each step • SSYNC: at each step, a nonempty subset of robots executes a full cycle (+ fairness) • ASYNC: Look, Compute and Move are atomic however the time between Look, Compute, and Move is finite but unbounded Remark: in any snapshot, no robot on edges Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 9

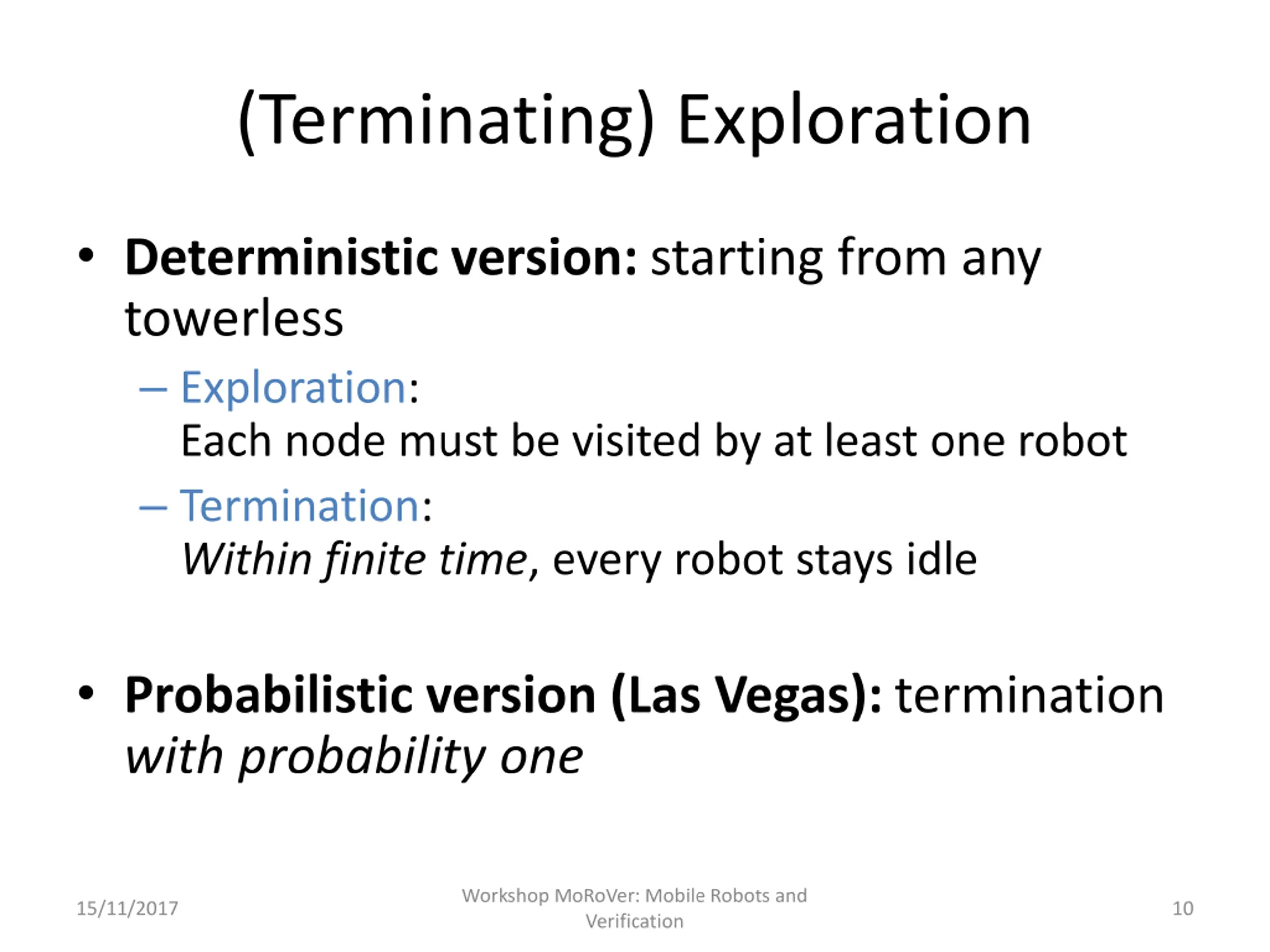

  10. (Terminating) Exploration • Deterministic version: starting from any towerless – Exploration: Each node must be visited by at least one robot – Termination: Within finite time, every robot stays idle • Probabilistic version (Las Vegas): termination with probability one Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 10

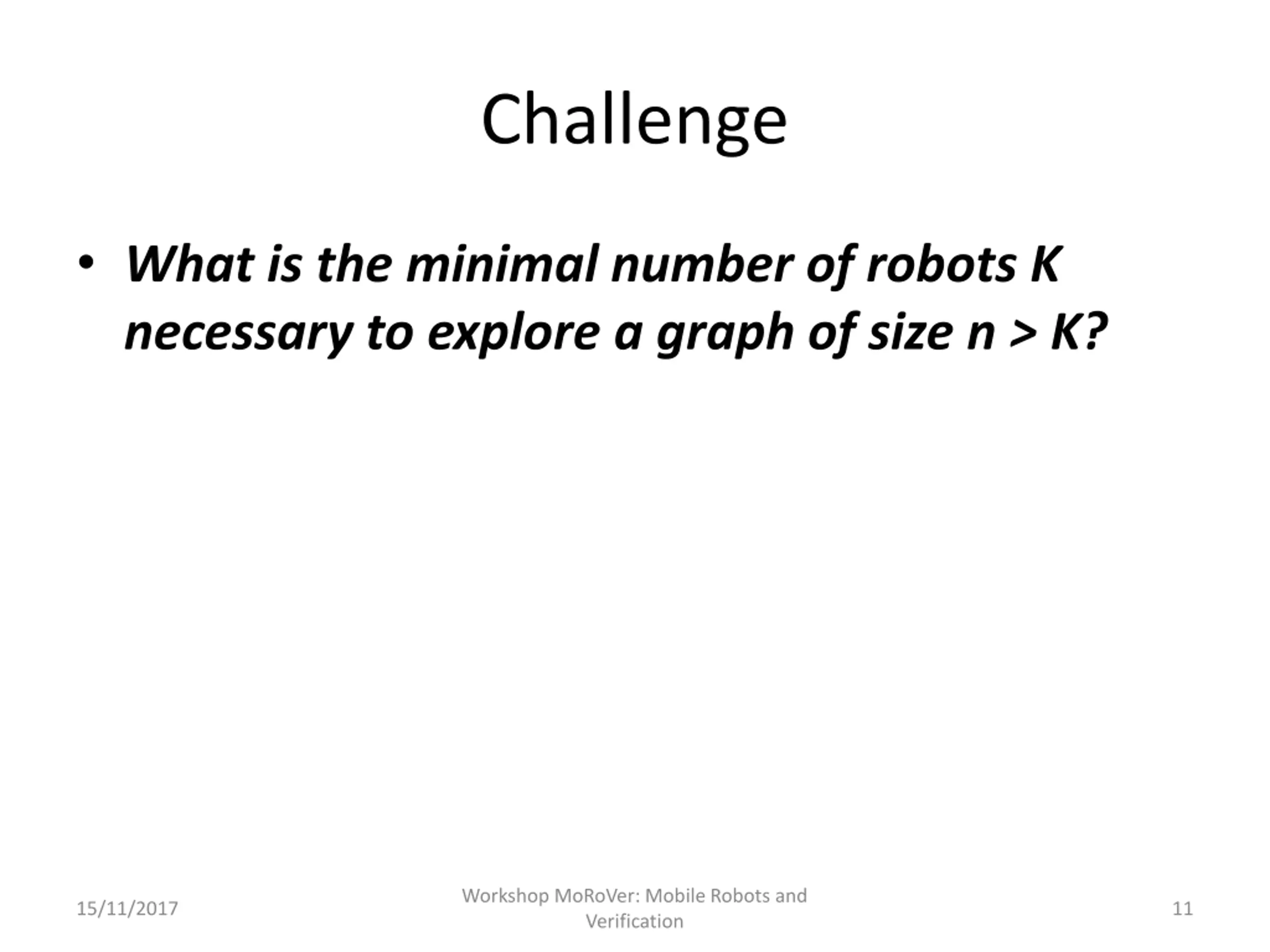

  11. Challenge • What is the minimal number of robots K necessary to explore a graph of size n > K? Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 11

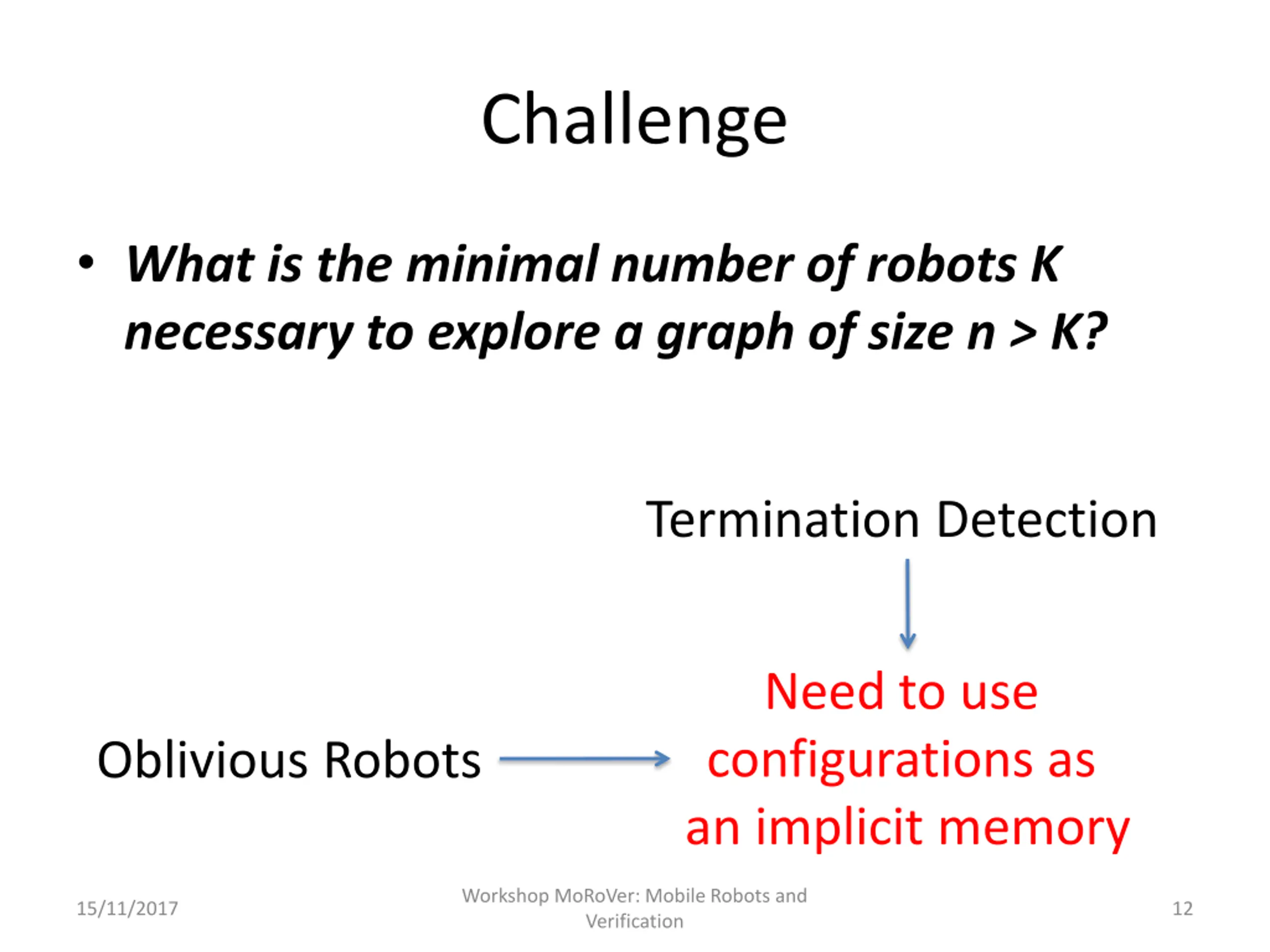

  12. Challenge • What is the minimal number of robots K necessary to explore a graph of size n > K? Termination Detection Need to use configurations as an implicit memory Oblivious Robots Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 12

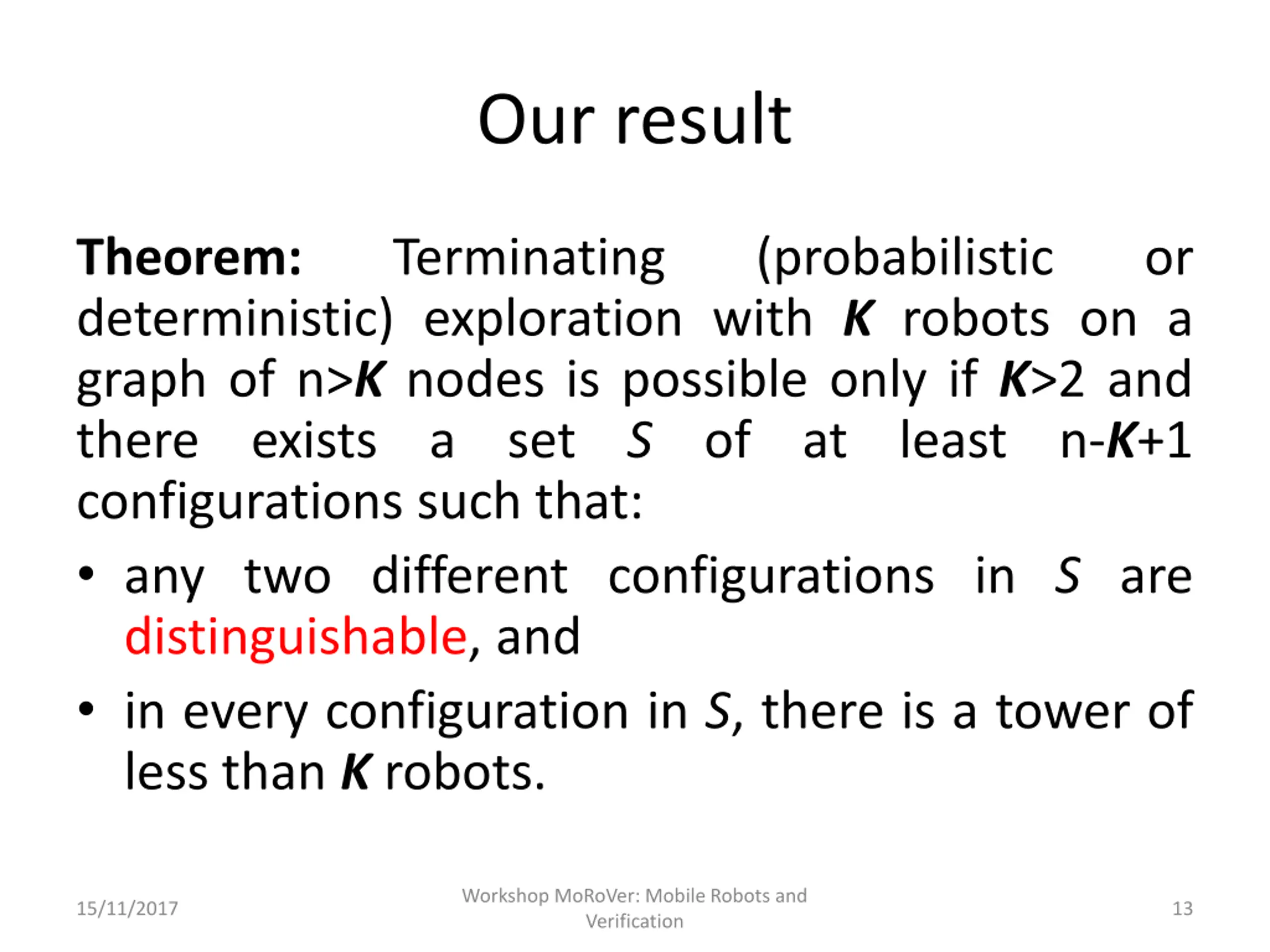

  13. Our result Theorem: deterministic) exploration with K robots on a graph of n>K nodes is possible only if K>2 and there exists a set S configurations such that: • any two different configurations in S are distinguishable, and • in every configuration in S, there is a tower of less than K robots. Terminating (probabilistic or of at least n-K+1 Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 13

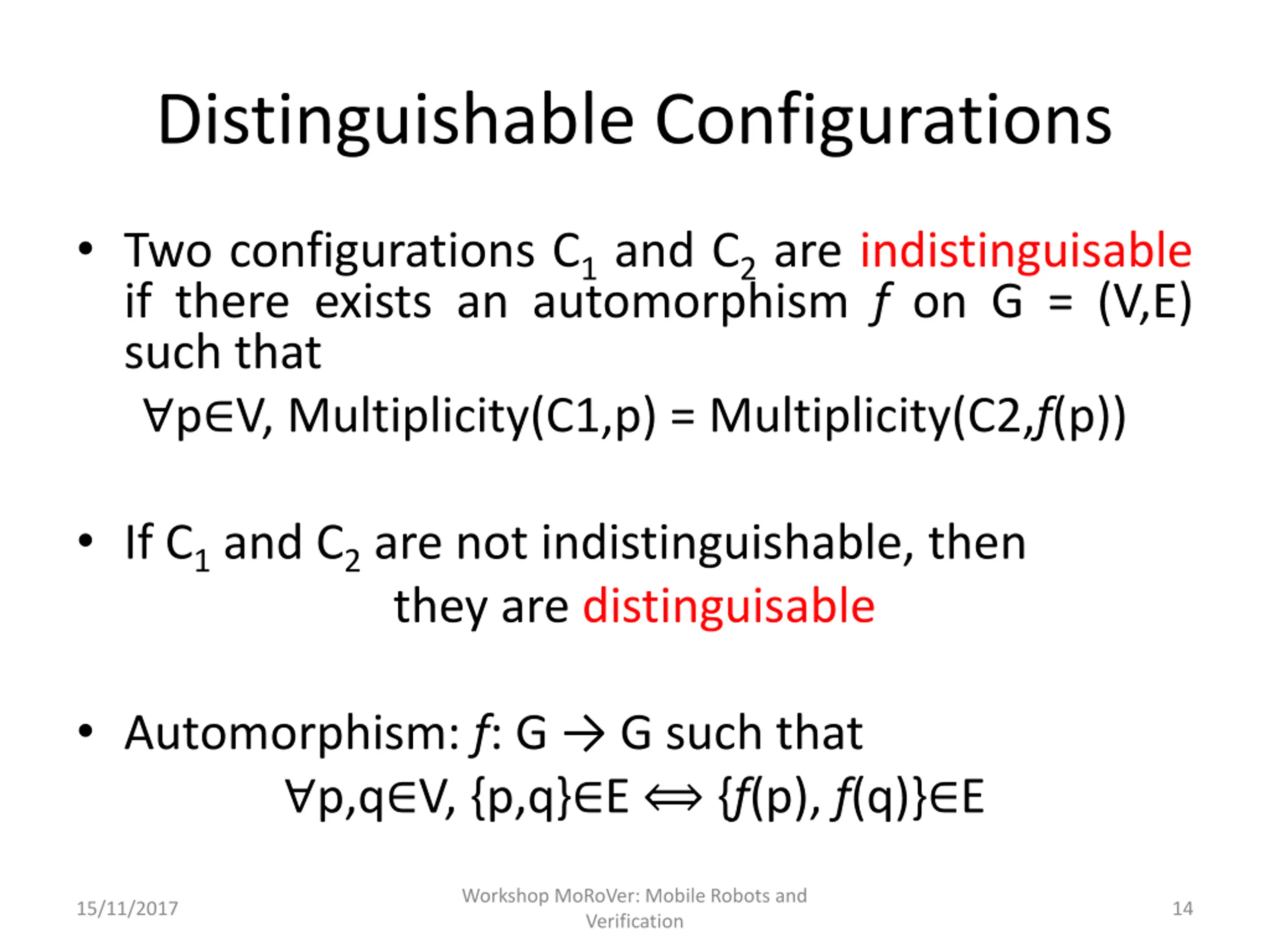

  14. Distinguishable Configurations • Two configurations C1and C2are indistinguisable if there exists an automorphism f on G = (V,E) such that ∀p∈V, Multiplicity(C1,p) = Multiplicity(C2,f(p)) • If C1and C2are not indistinguishable, then they are distinguisable • Automorphism: f: G → G such that ∀p,q∈V, {p,q}∈E ⟺ {f(p), f(q)}∈E Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 14

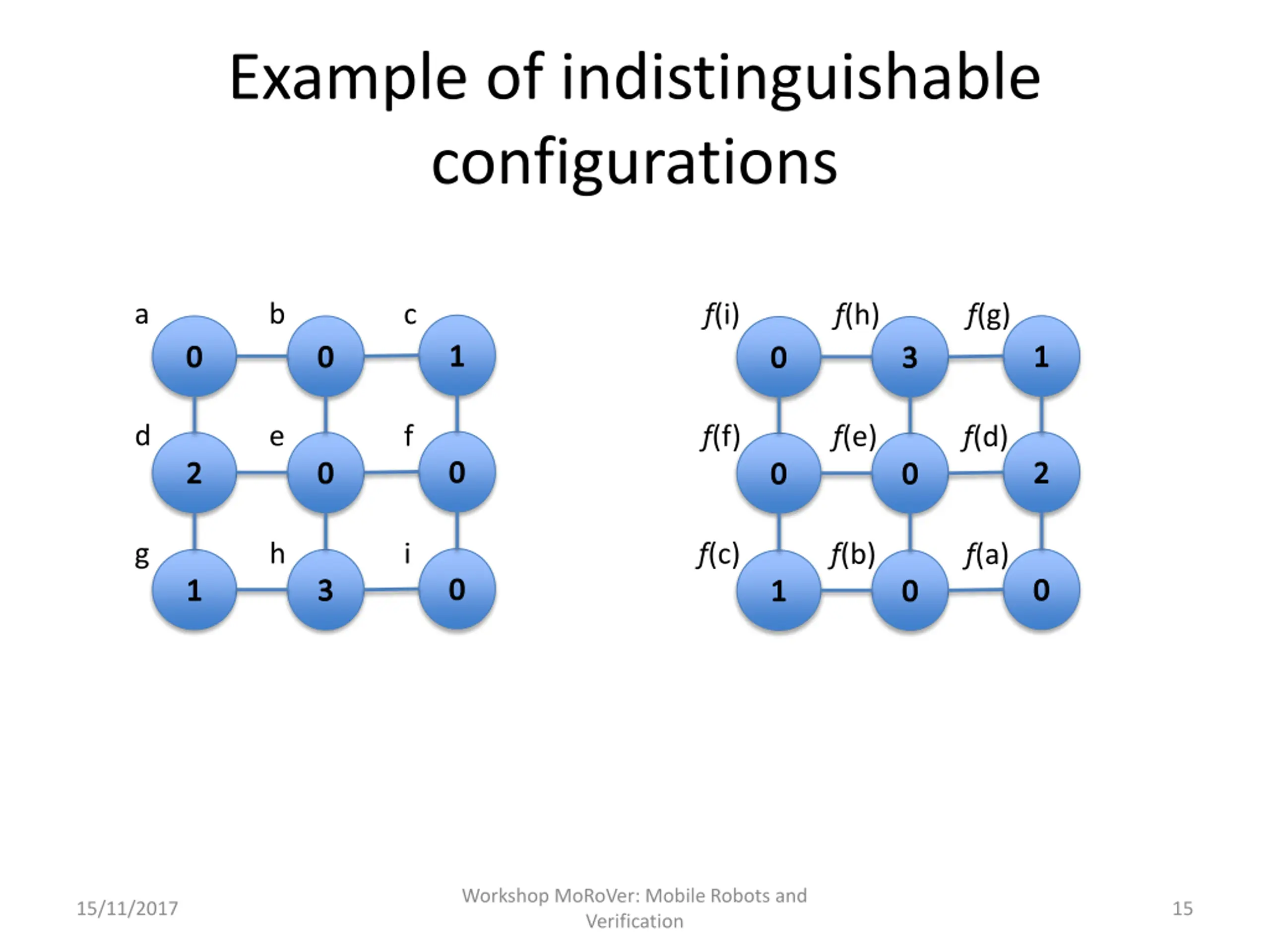

  15. Example of indistinguishable configurations a b c f(i) f(h) f(g) d e f f(f) f(e) f(d) g h i f(c) f(b) f(a) Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 15

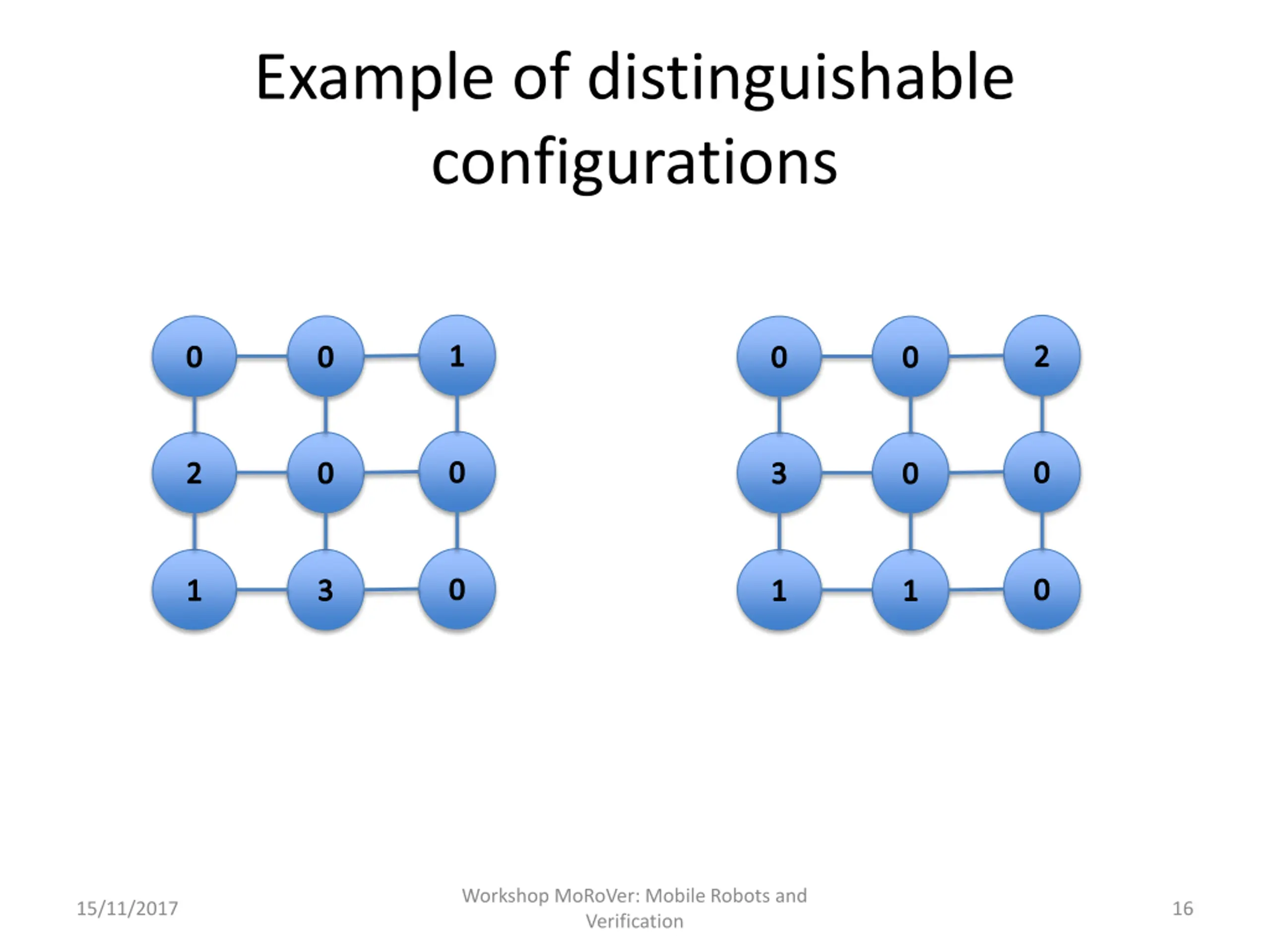

  16. Example of distinguishable configurations Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 16

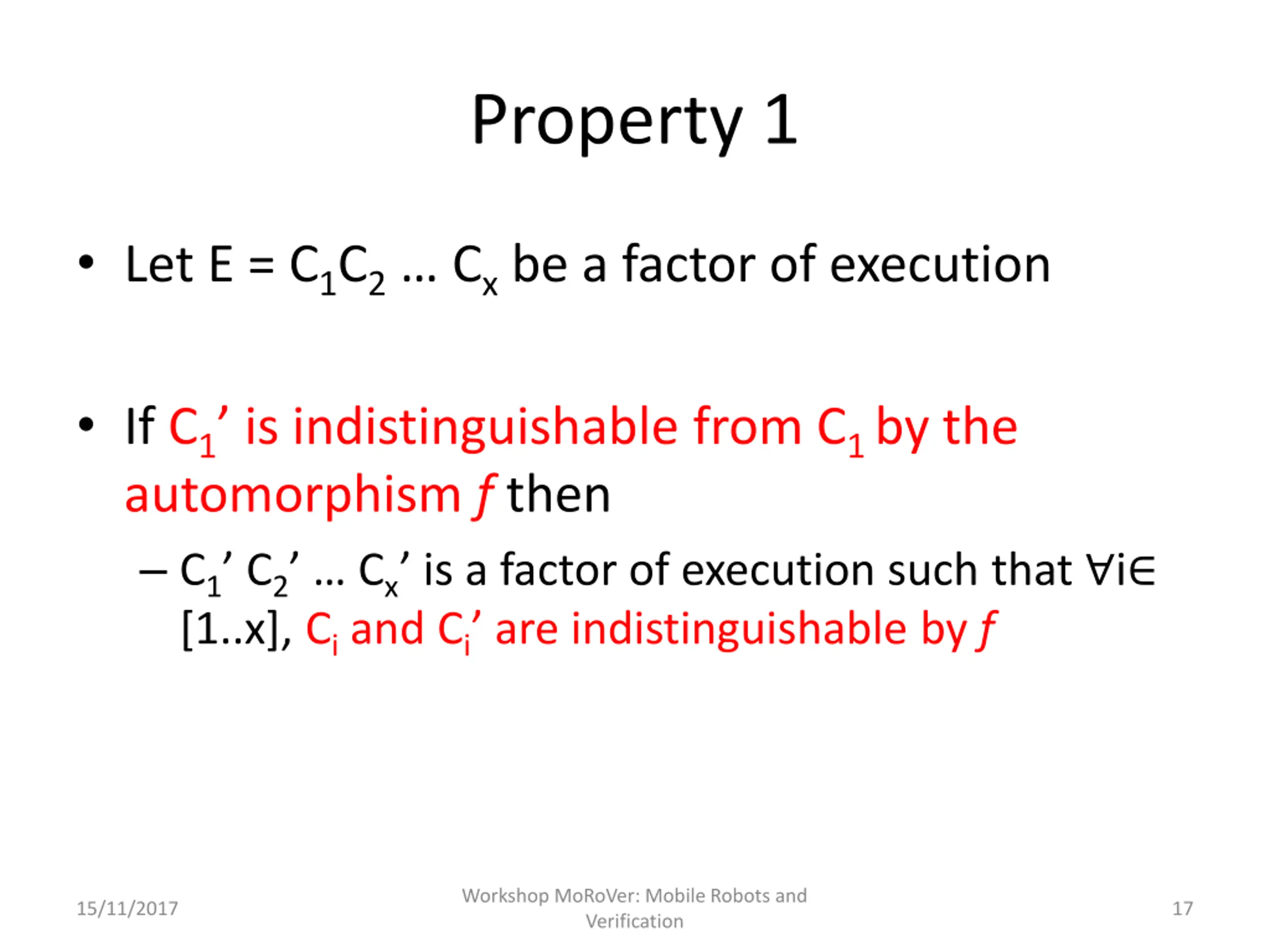

  17. Property 1 • Let E = C1C2… Cxbe a factor of execution • If C1’ is indistinguishable from C1 by the automorphism f then – C1’ C2’ … Cx’ is a factor of execution such that ∀i∈ [1..x], Ciand Ci’ are indistinguishable by f Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 17

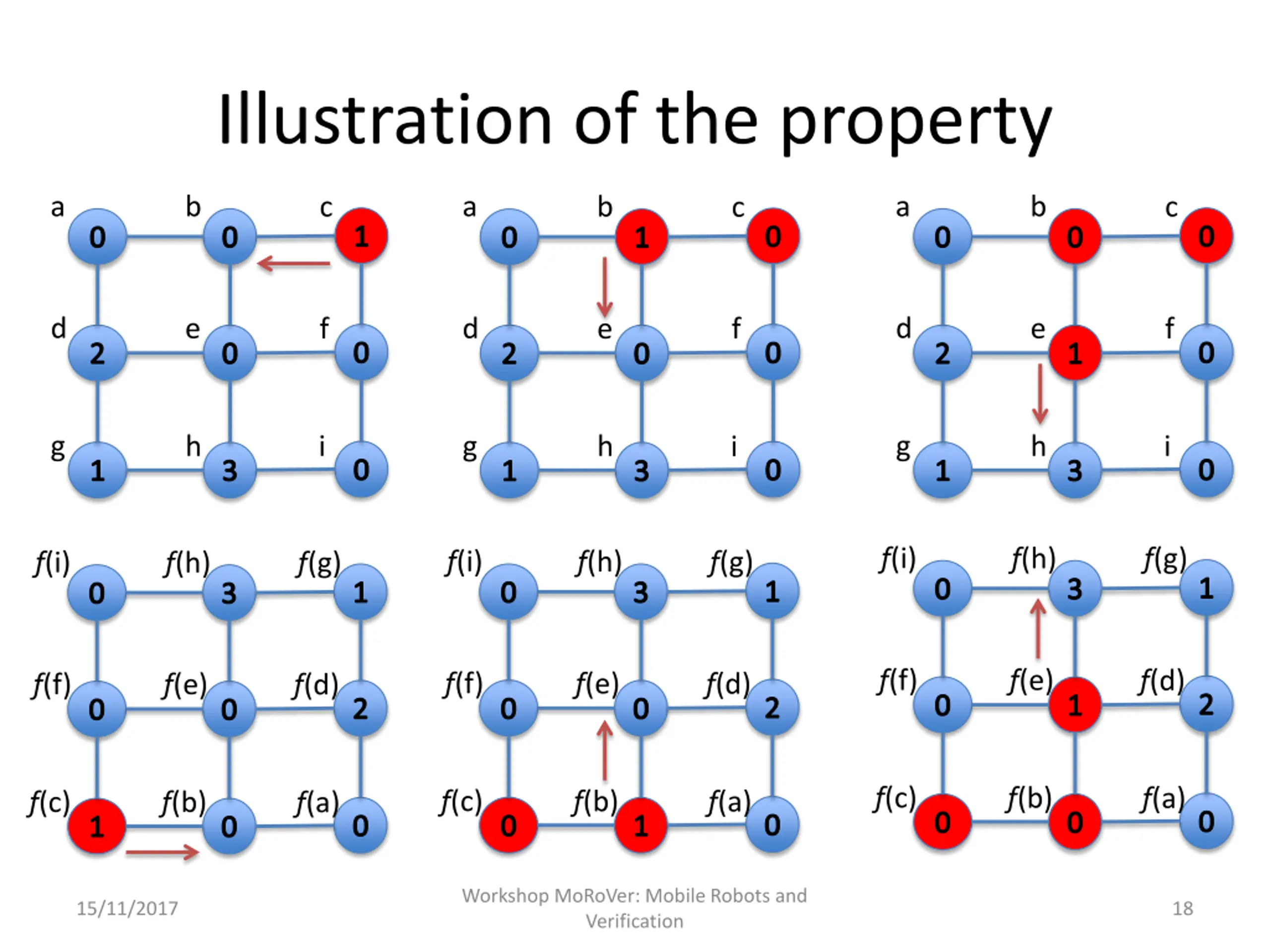

  18. Illustration of the property a a b a b c b c c d d e d e f e f f g g h g h i h i i f(i) f(h) f(g) f(i) f(h) f(g) f(i) f(h) f(g) f(f) f(e) f(d) f(f) f(e) f(d) f(f) f(e) f(d) f(c) f(b) f(a) f(c) f(b) f(a) f(c) f(b) f(a) Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 18

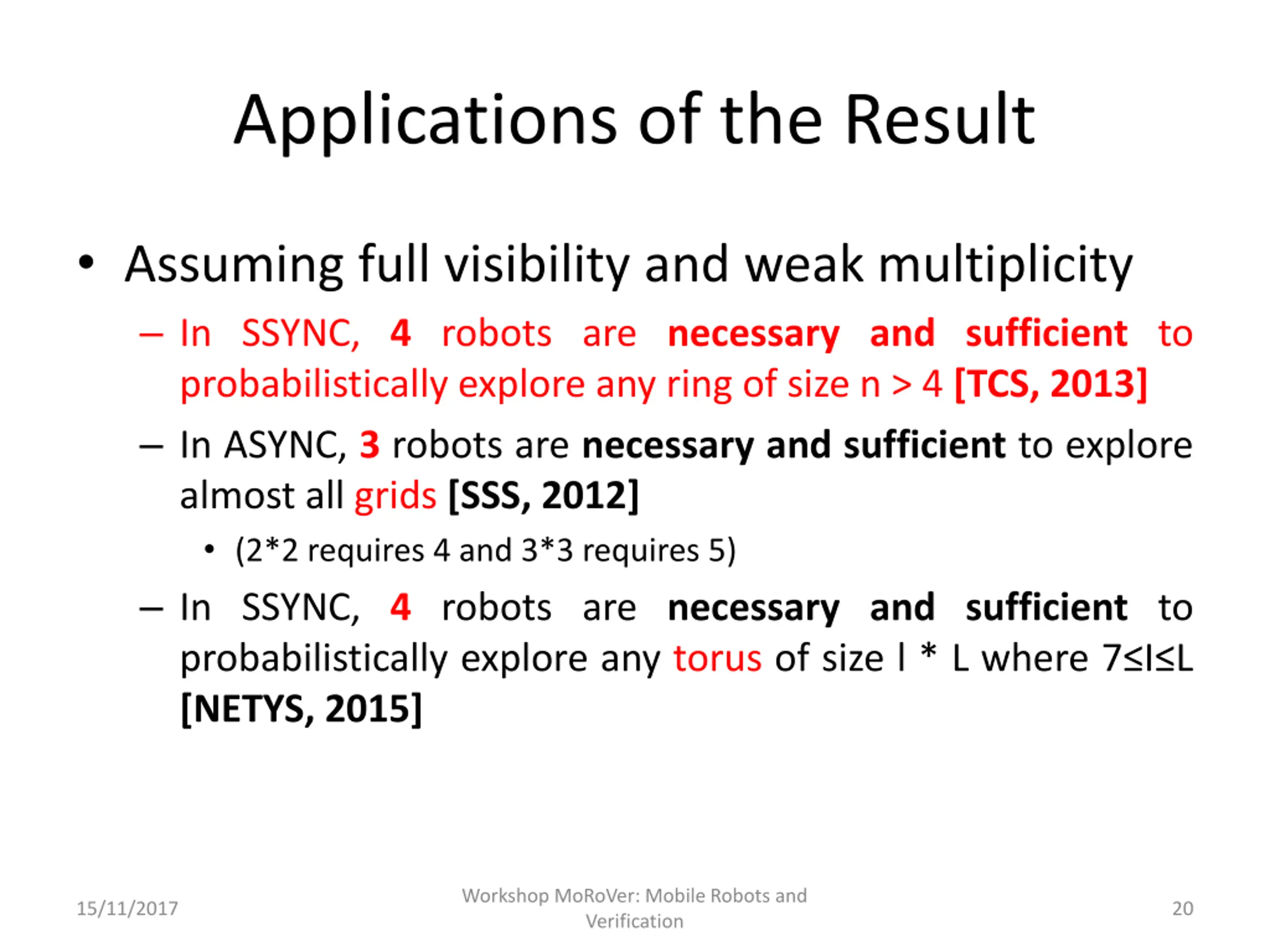

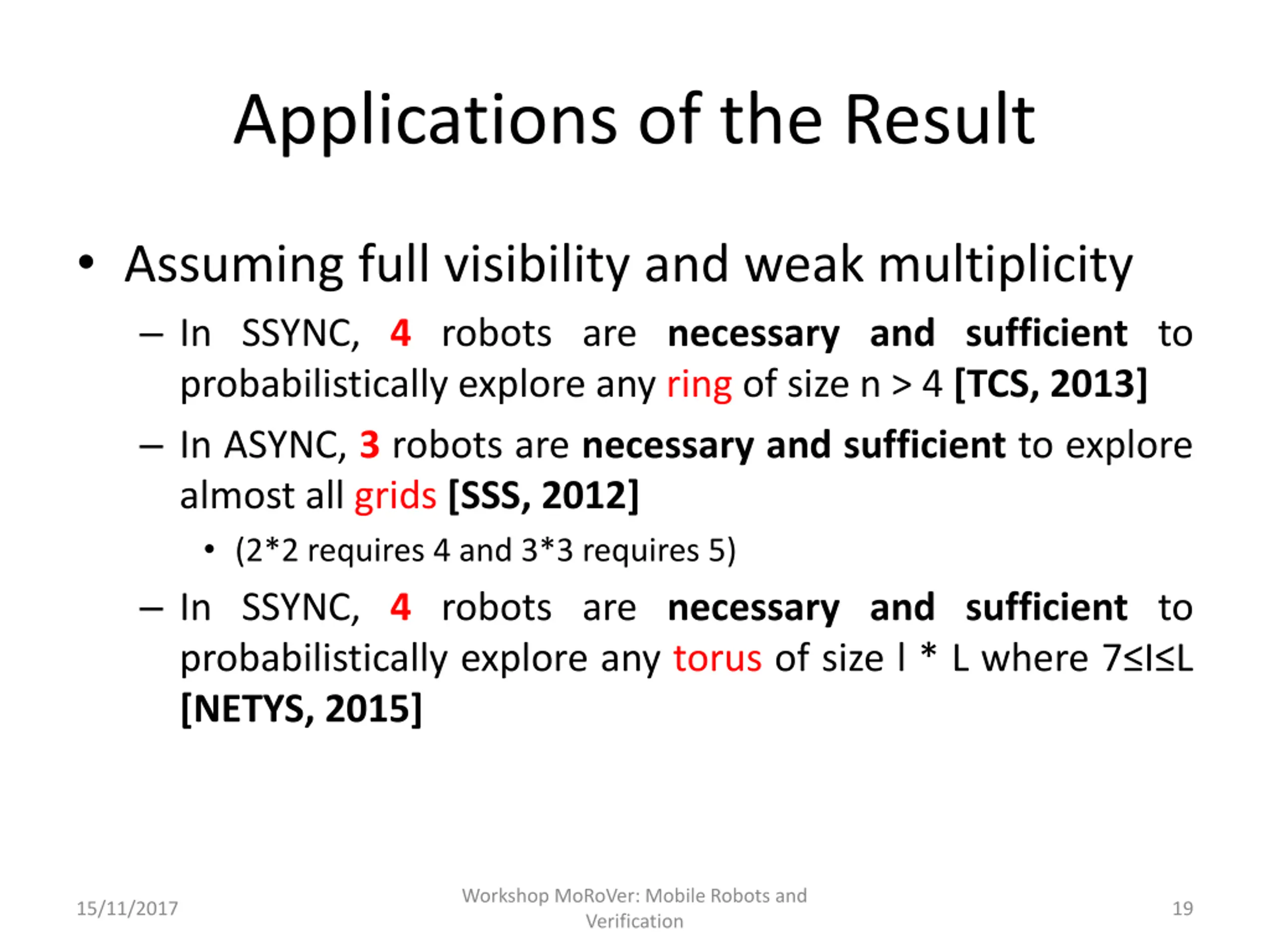

  19. Applications of the Result • Assuming full visibility and weak multiplicity – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore any ring of size n > 4 [TCS, 2013] – In ASYNC, 3 robots are necessary and sufficient to explore almost all grids [SSS, 2012] • (2*2 requires 4 and 3*3 requires 5) – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore any torus of size l * L where 7≤I≤L [NETYS, 2015] Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 19

  20. Applications of the Result • Assuming full visibility and weak multiplicity – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore any ring of size n > 4 [TCS, 2013] – In ASYNC, 3 robots are necessary and sufficient to explore almost all grids [SSS, 2012] • (2*2 requires 4 and 3*3 requires 5) – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore any torus of size l * L where 7≤I≤L [NETYS, 2015] Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 20

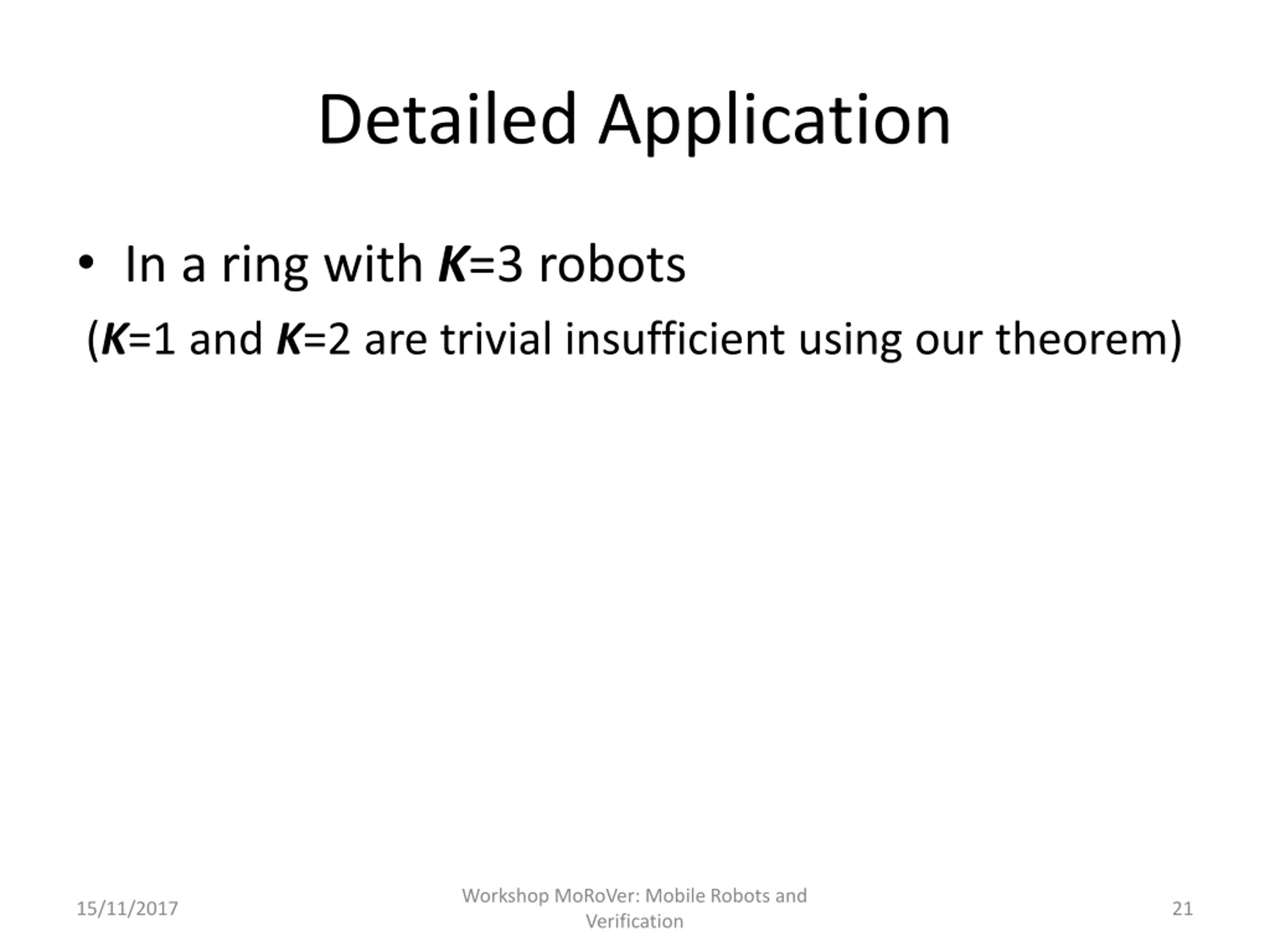

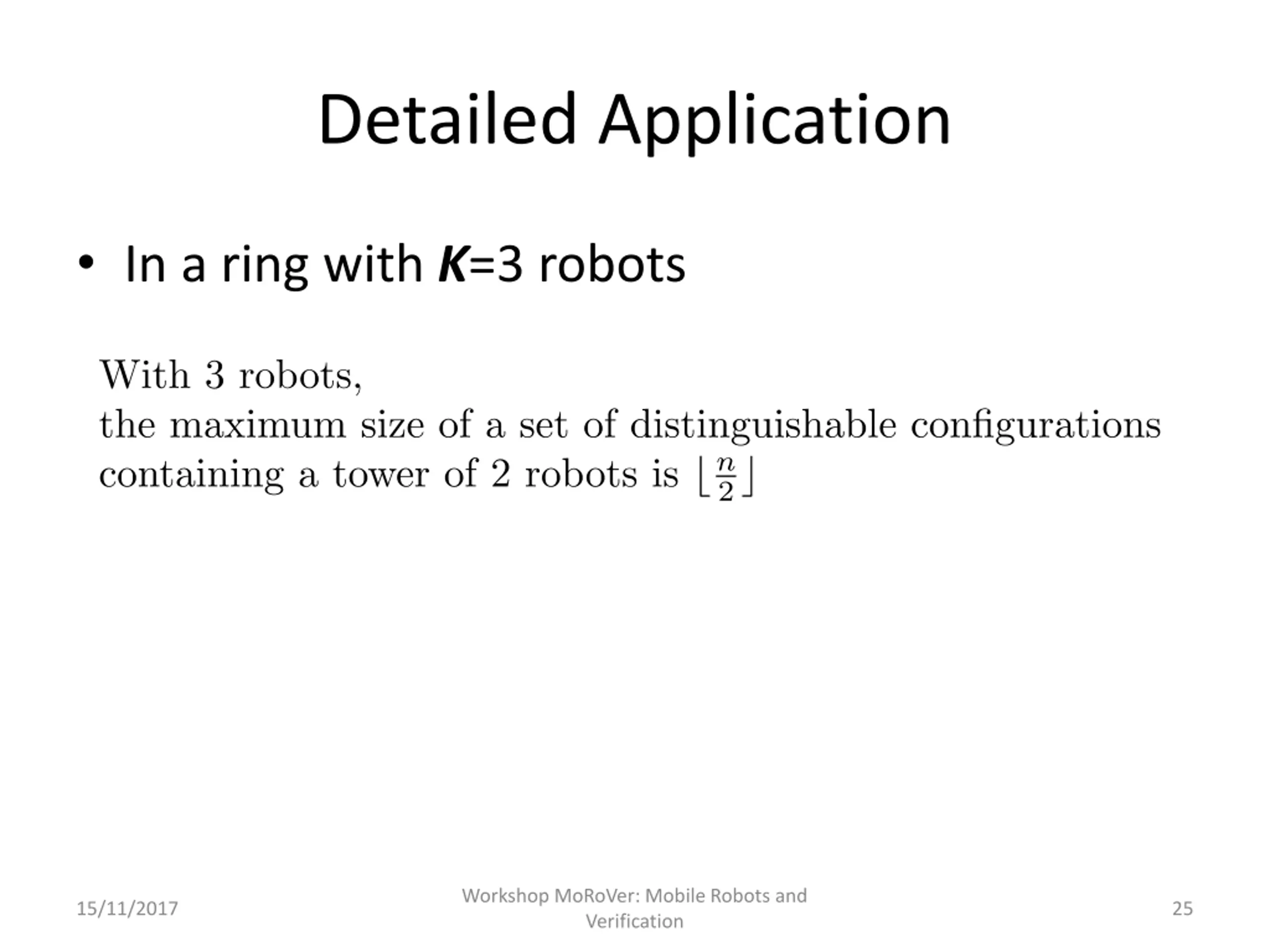

  21. Detailed Application • In a ring with K=3 robots (K=1 and K=2 are trivial insufficient using our theorem) Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 21

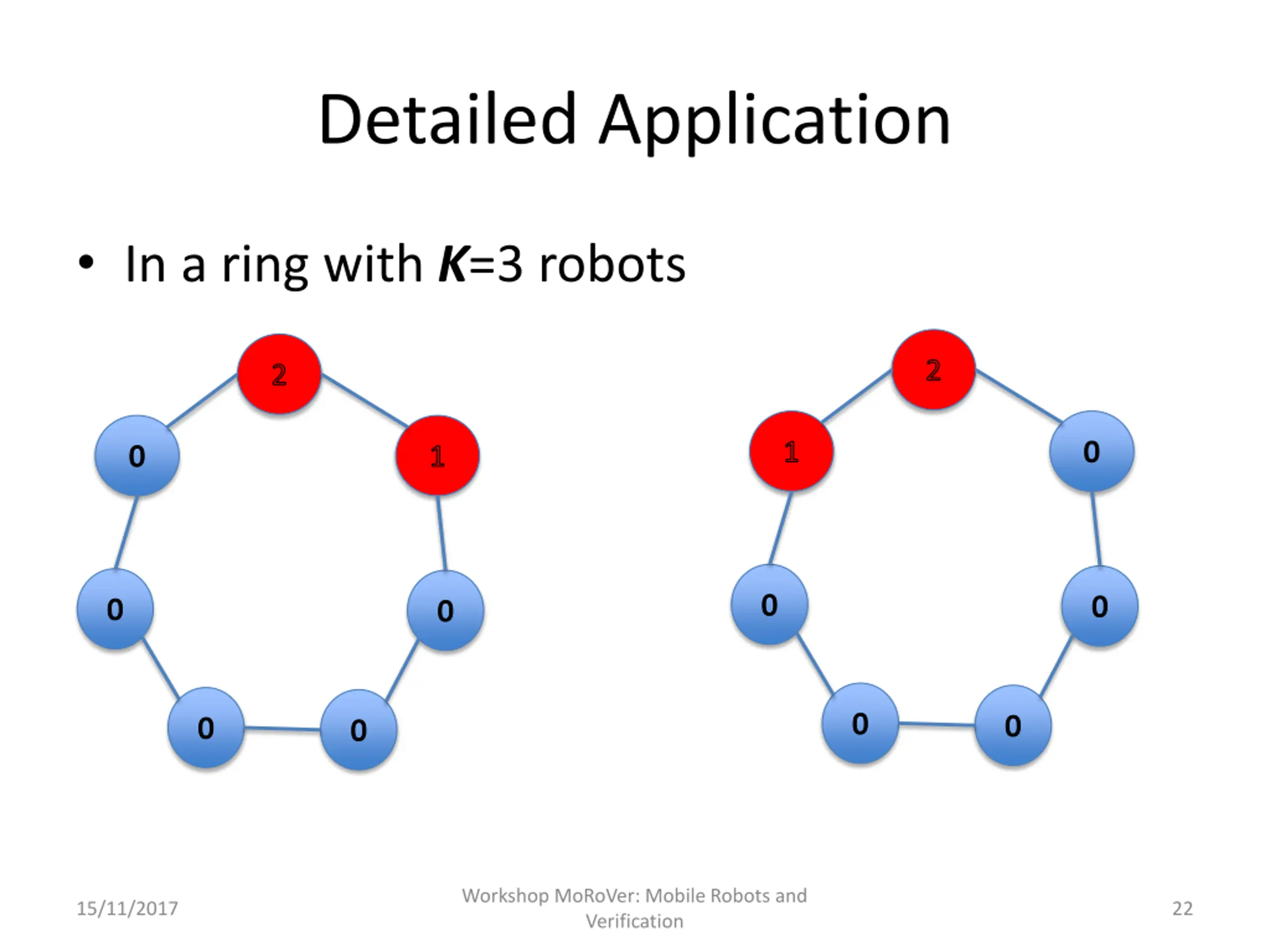

  22. Detailed Application • In a ring with K=3 robots Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 22

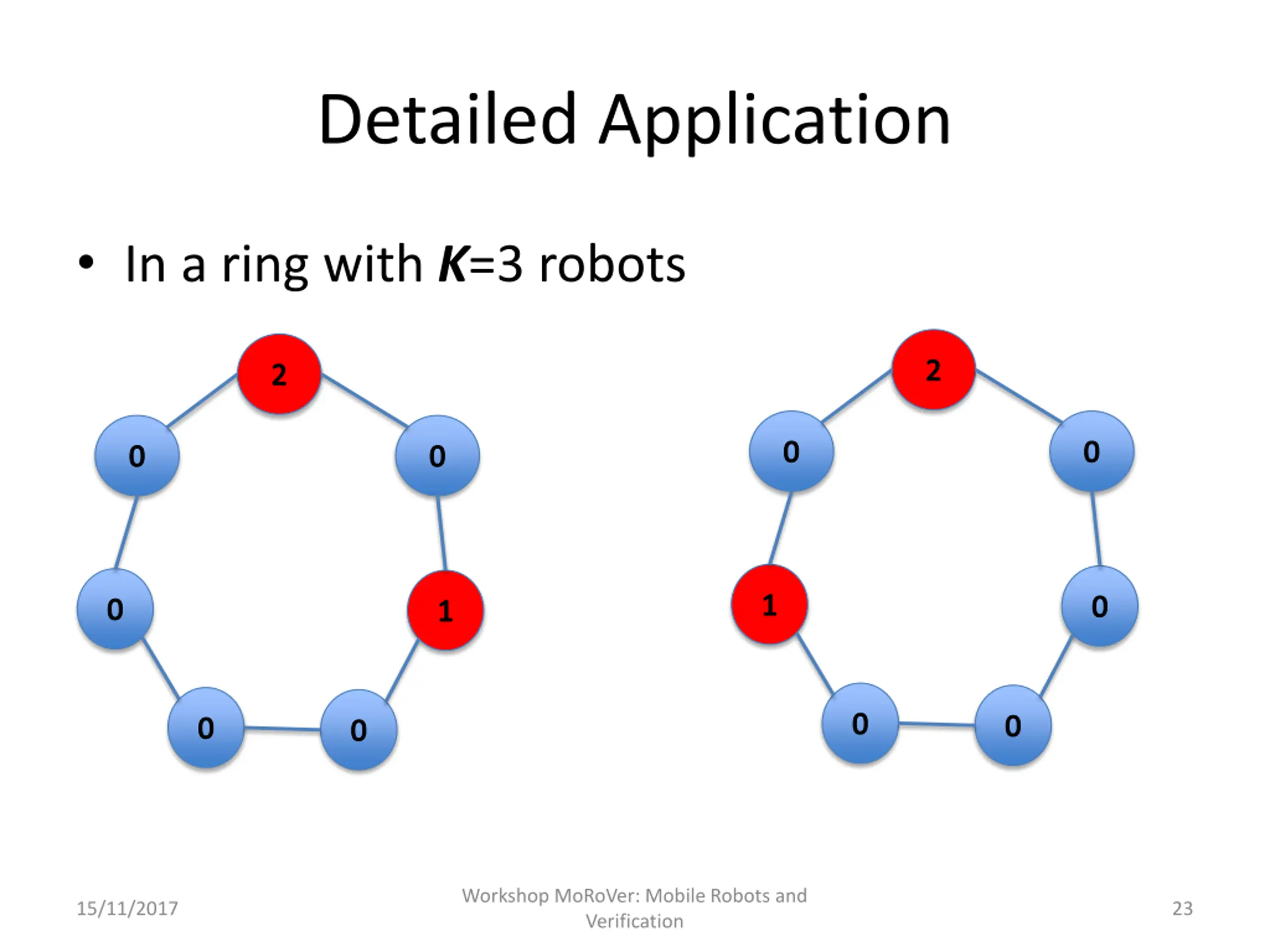

  23. Detailed Application • In a ring with K=3 robots Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 23

  24. Detailed Application • In a ring with K=3 robots Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 24

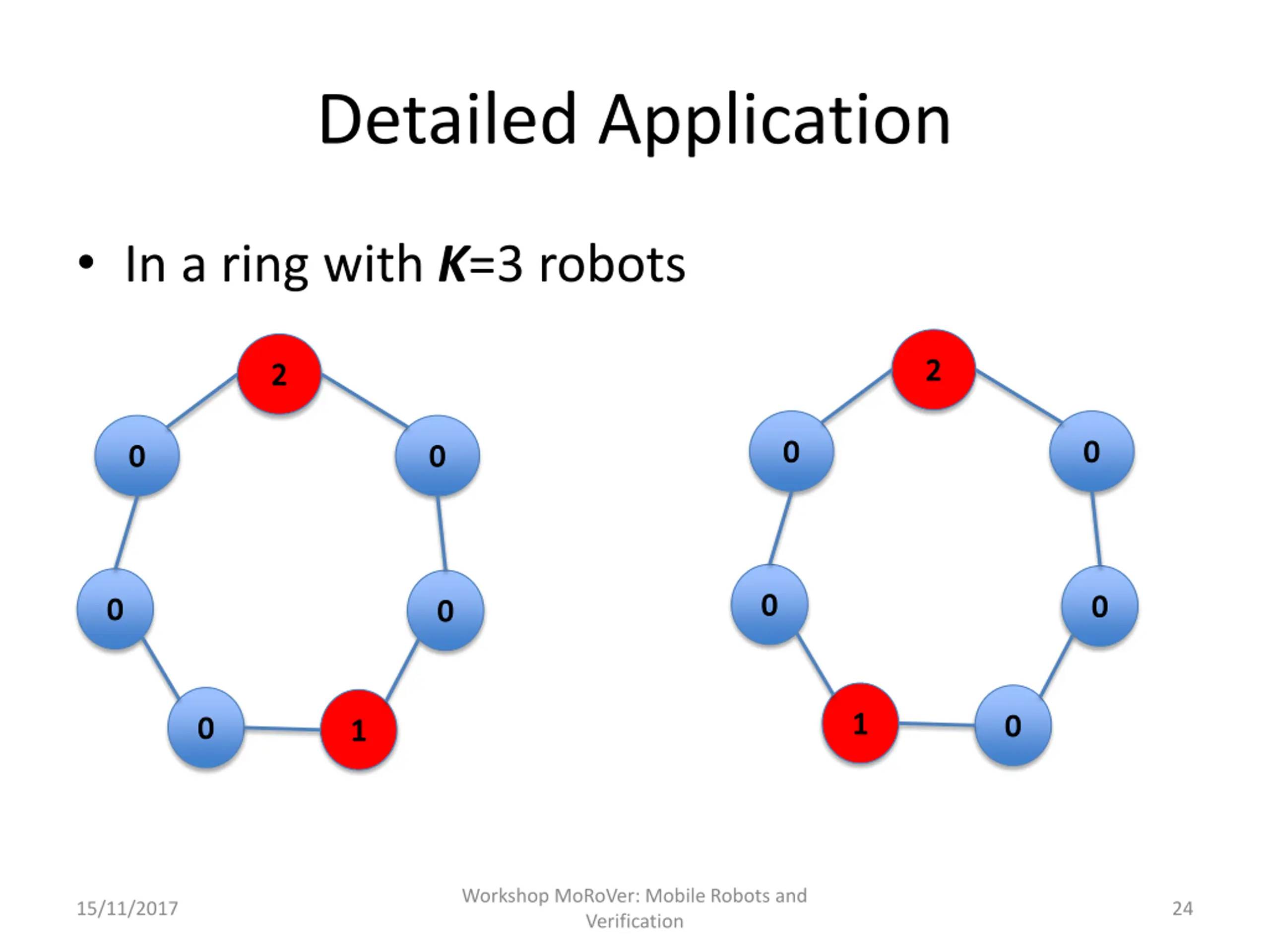

  25. Detailed Application • In a ring with K=3 robots Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 25

  26. Detailed Application • In a ring with K=3 robots Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 26

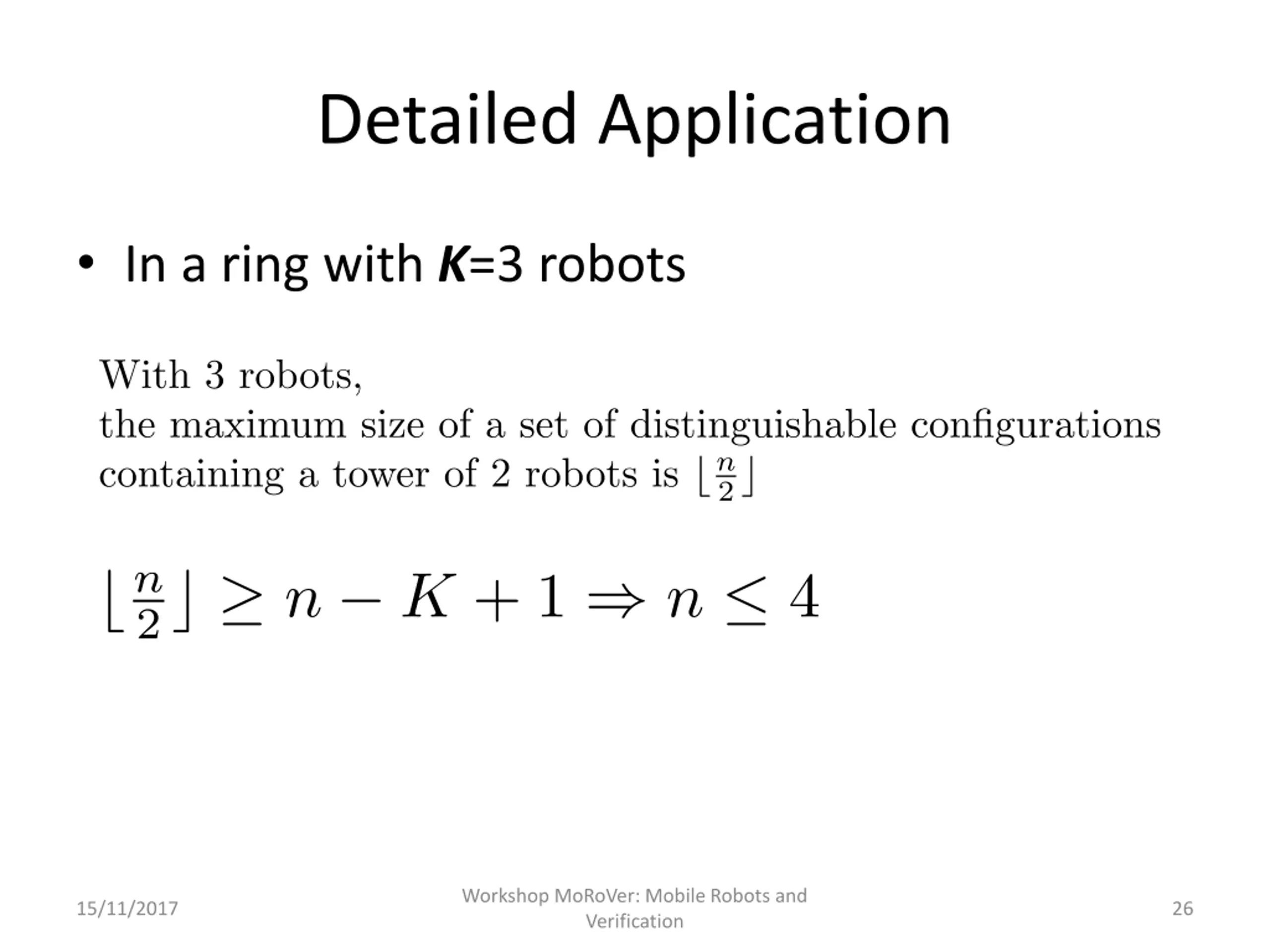

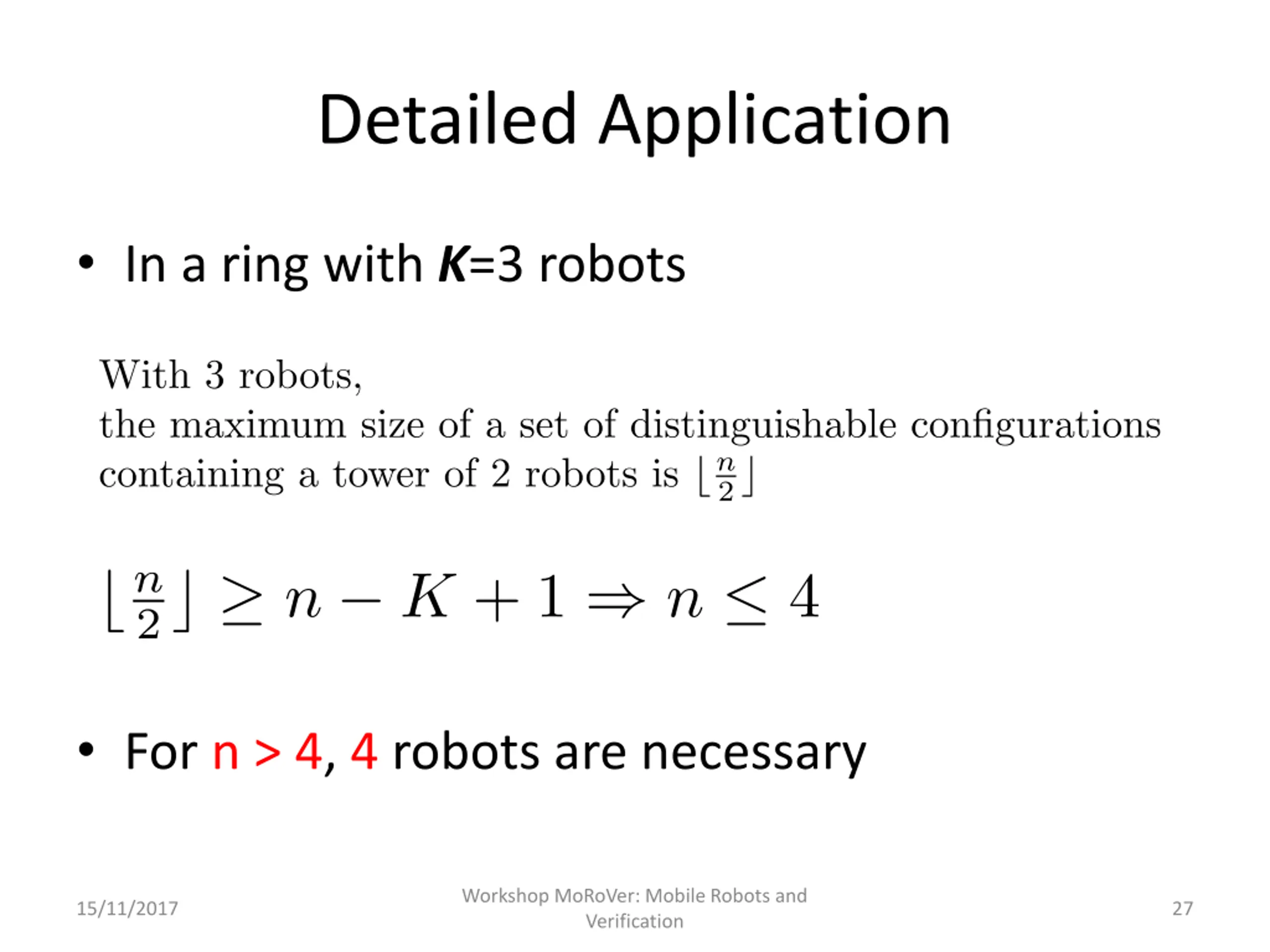

  27. Detailed Application • In a ring with K=3 robots • For n > 4, 4 robots are necessary Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 27

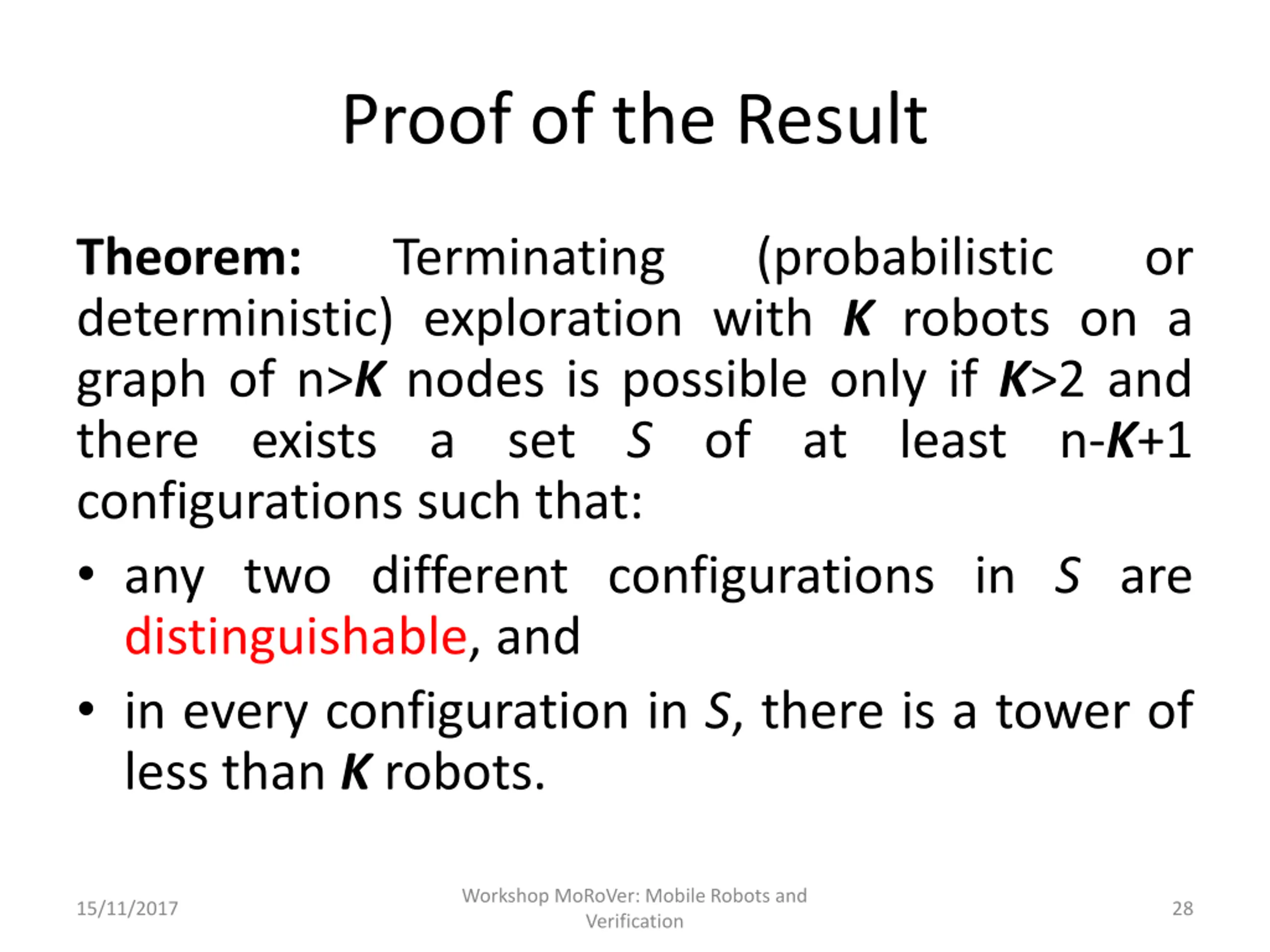

  28. Proof of the Result Theorem: deterministic) exploration with K robots on a graph of n>K nodes is possible only if K>2 and there exists a set S configurations such that: • any two different configurations in S are distinguishable, and • in every configuration in S, there is a tower of less than K robots. Terminating (probabilistic or of at least n-K+1 Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 28

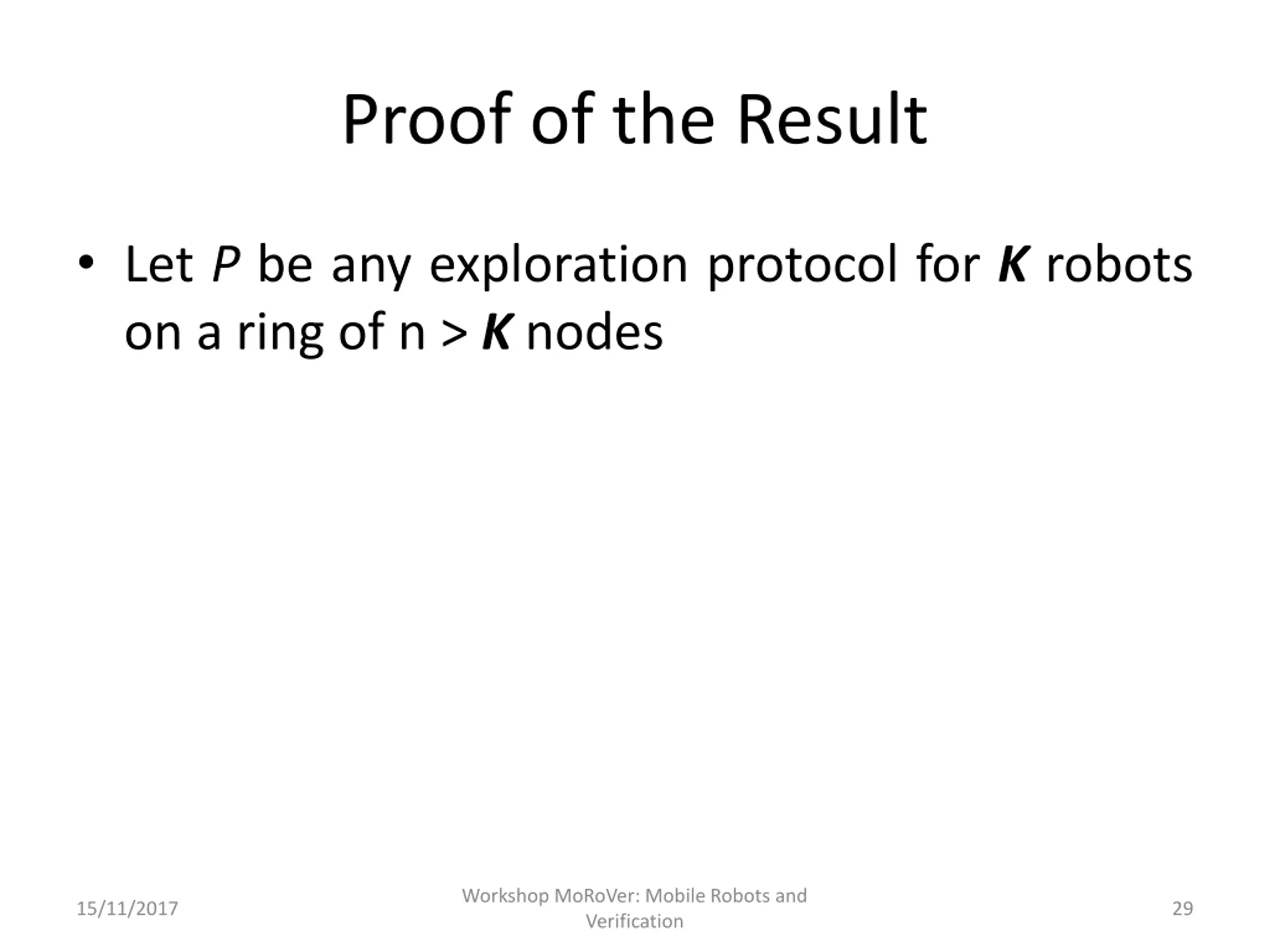

  29. Proof of the Result • Let P be any exploration protocol for K robots on a ring of n > K nodes Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 29

  30. Proof of the Result • Let P be any exploration protocol for K robots on a ring of n > K nodes • As n > K and robots are oblivious, any terminal configuration should be distinguishable from any initial (towerless) configuration, hence: Remark 1: Any terminal configuration contains a tower. Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 30

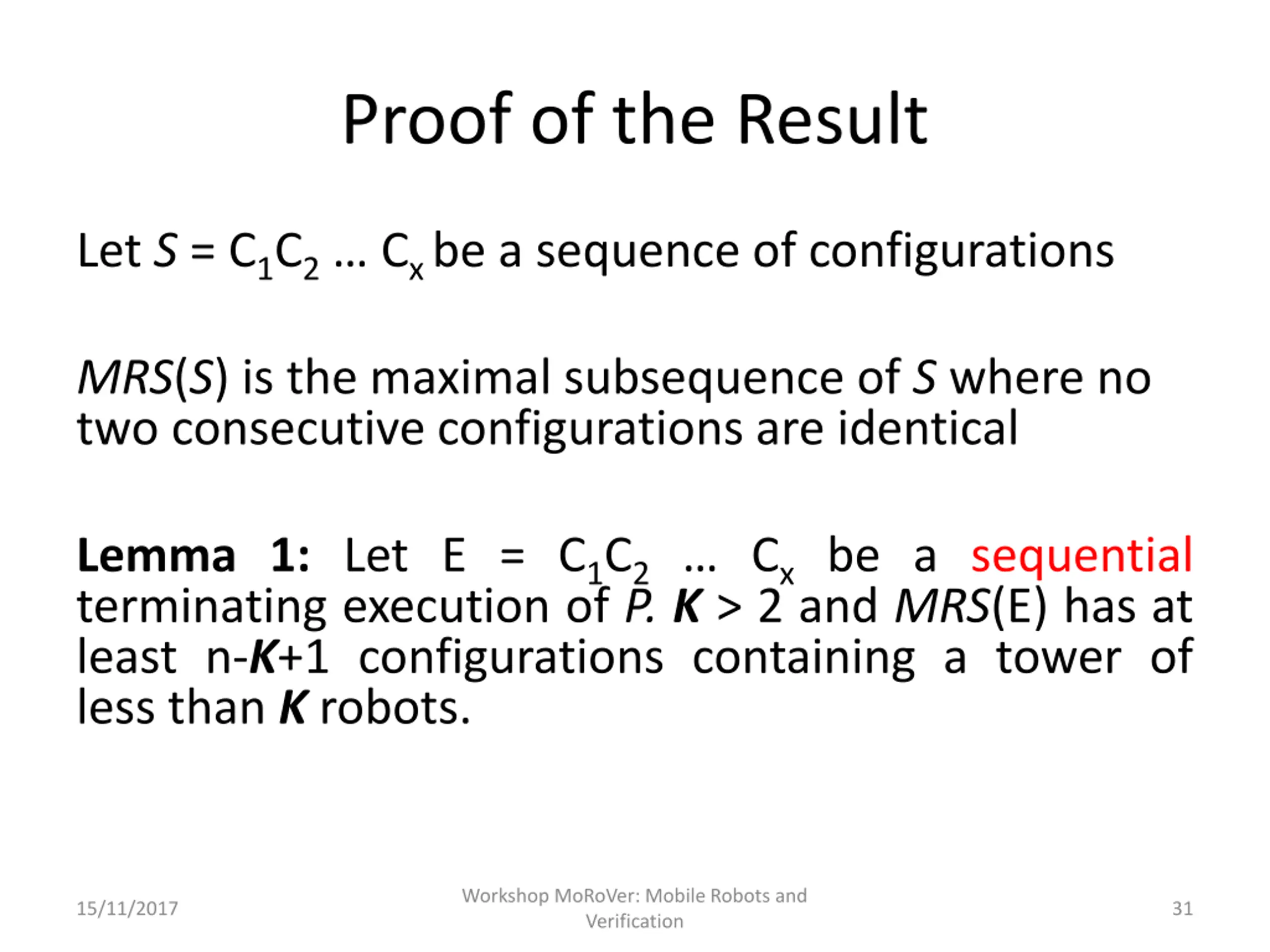

  31. Proof of the Result Let S = C1C2… Cxbe a sequence of configurations MRS(S) is the maximal subsequence of S where no two consecutive configurations are identical Lemma 1: Let E = C1C2… Cxbe a sequential terminating execution of P. K > 2 and MRS(E) has at least n-K+1 configurations containing a tower of less than K robots. Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 31

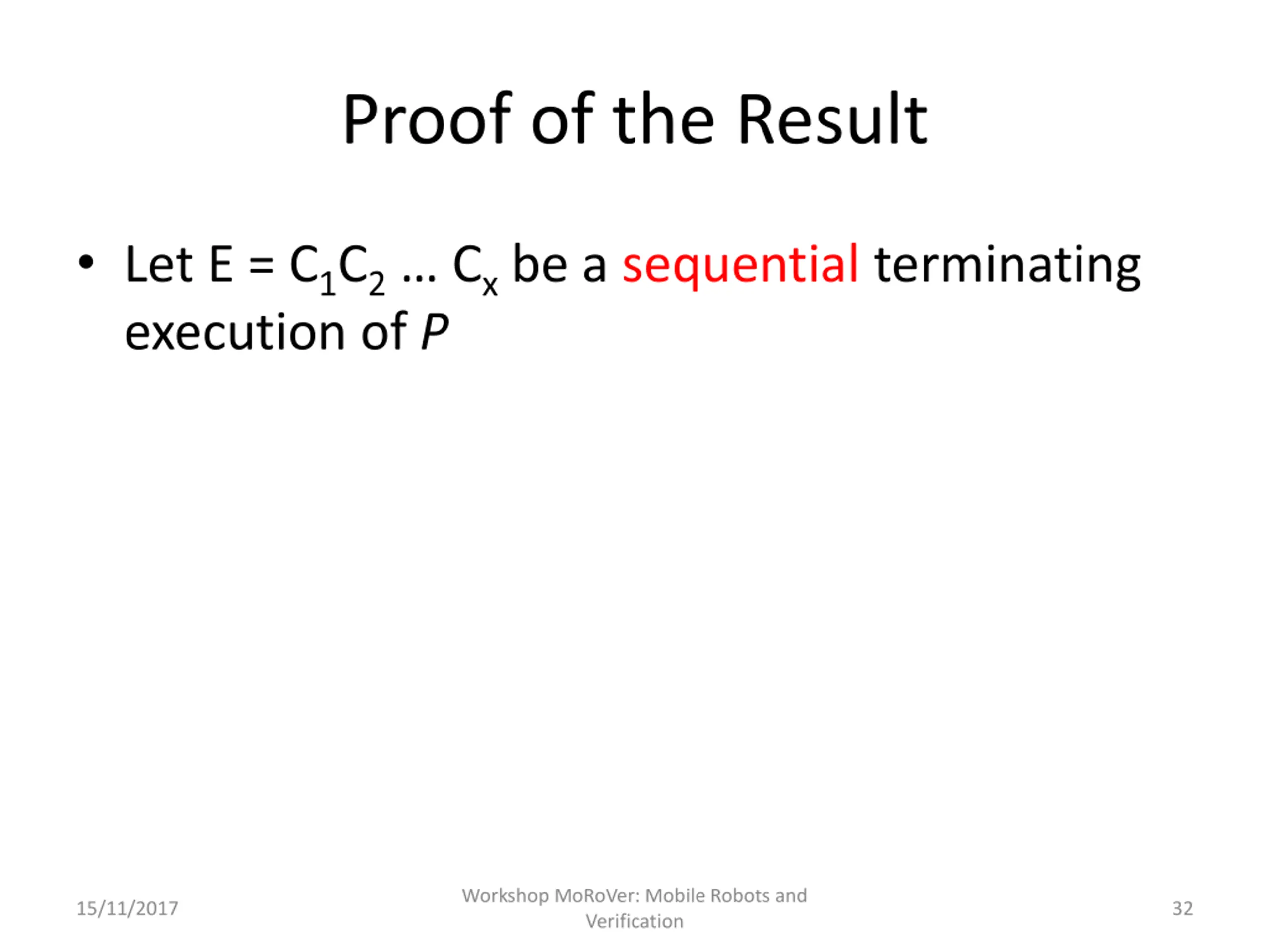

  32. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 32

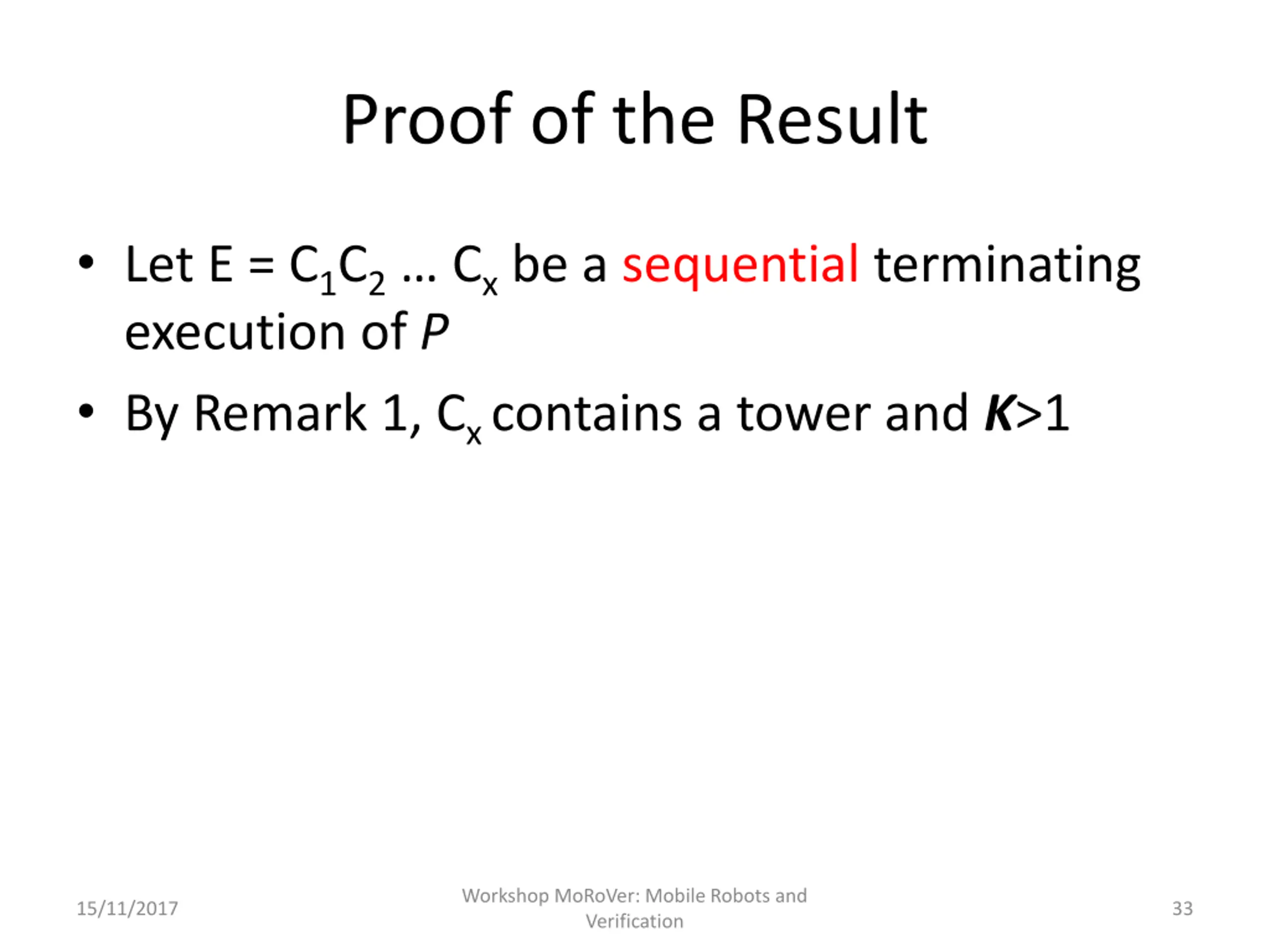

  33. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 33

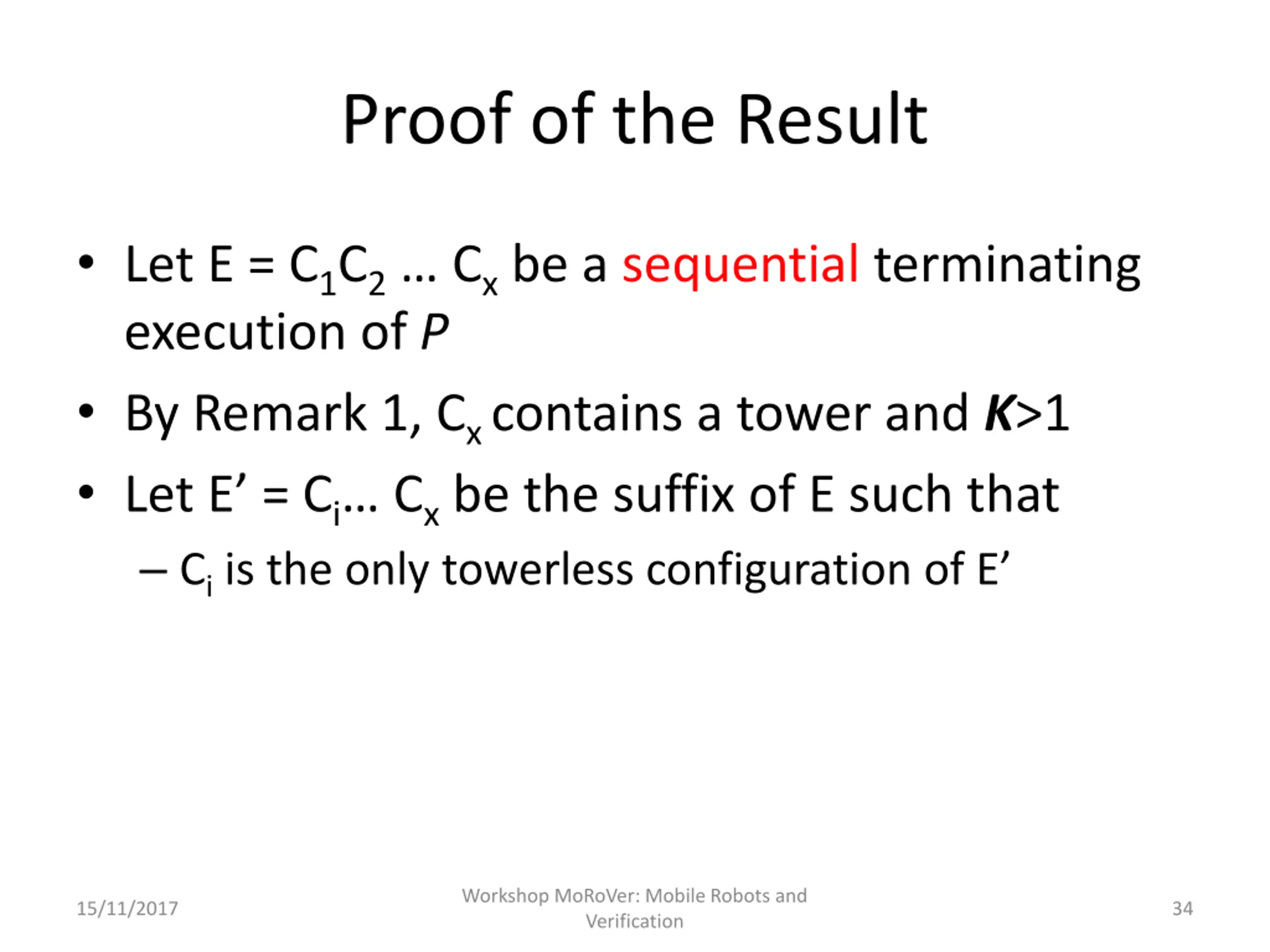

  34. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 • Let E’ = Ci… Cxbe the suffix of E such that – Ciis the only towerless configuration of E’ Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 34

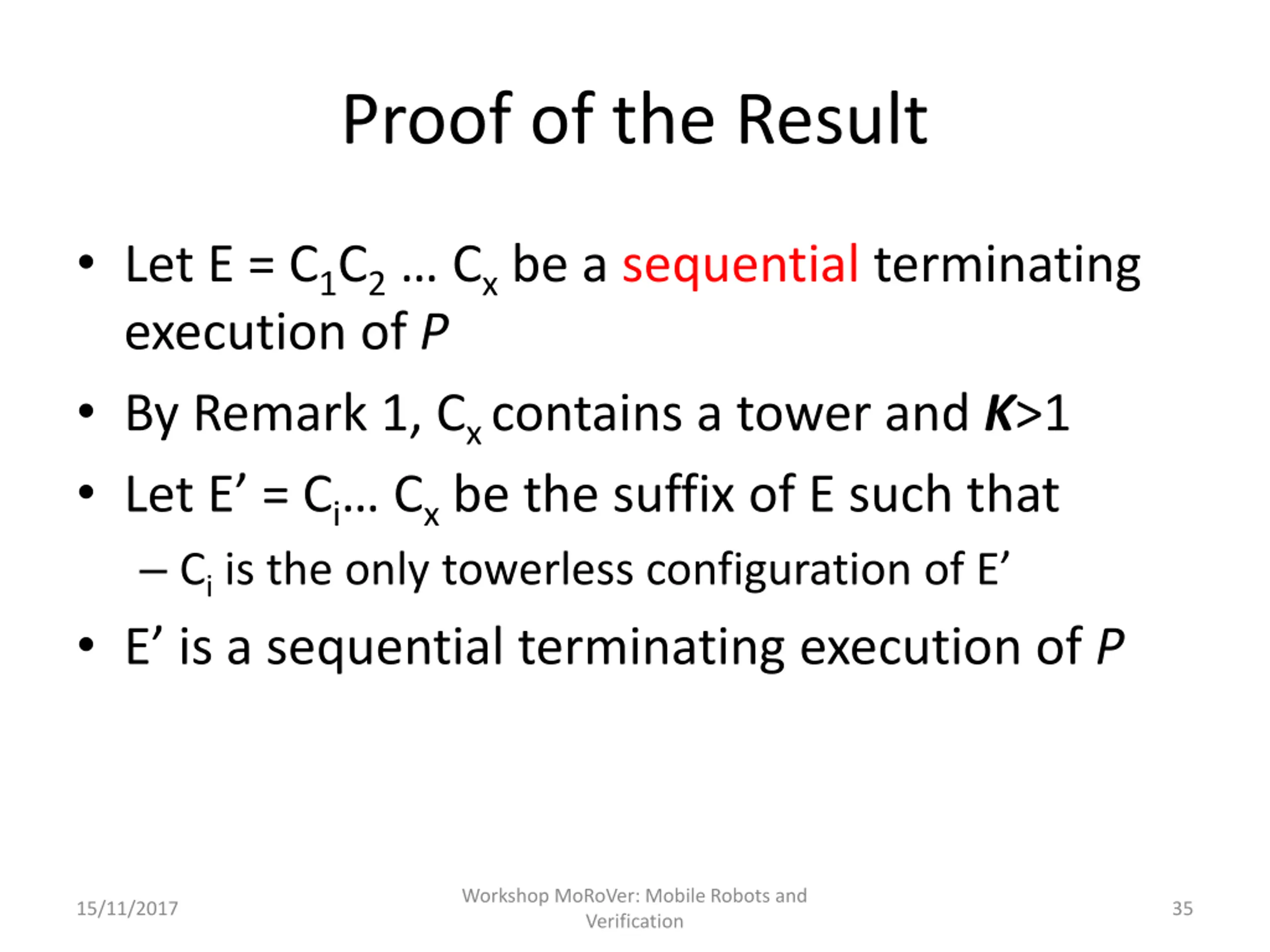

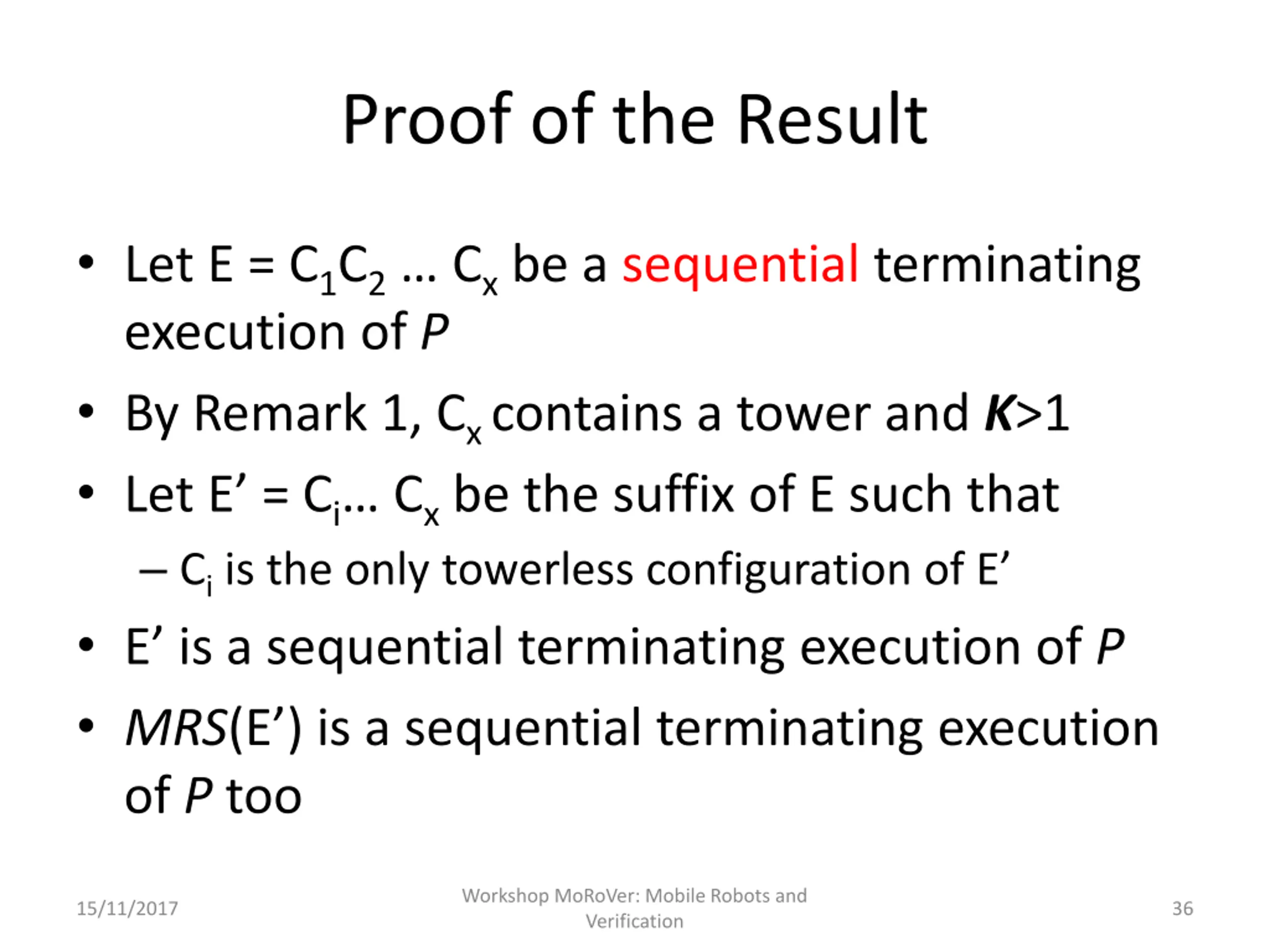

  35. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 • Let E’ = Ci… Cxbe the suffix of E such that – Ciis the only towerless configuration of E’ • E’ is a sequential terminating execution of P Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 35

  36. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 • Let E’ = Ci… Cxbe the suffix of E such that – Ciis the only towerless configuration of E’ • E’ is a sequential terminating execution of P • MRS(E’) is a sequential terminating execution of P too Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 36

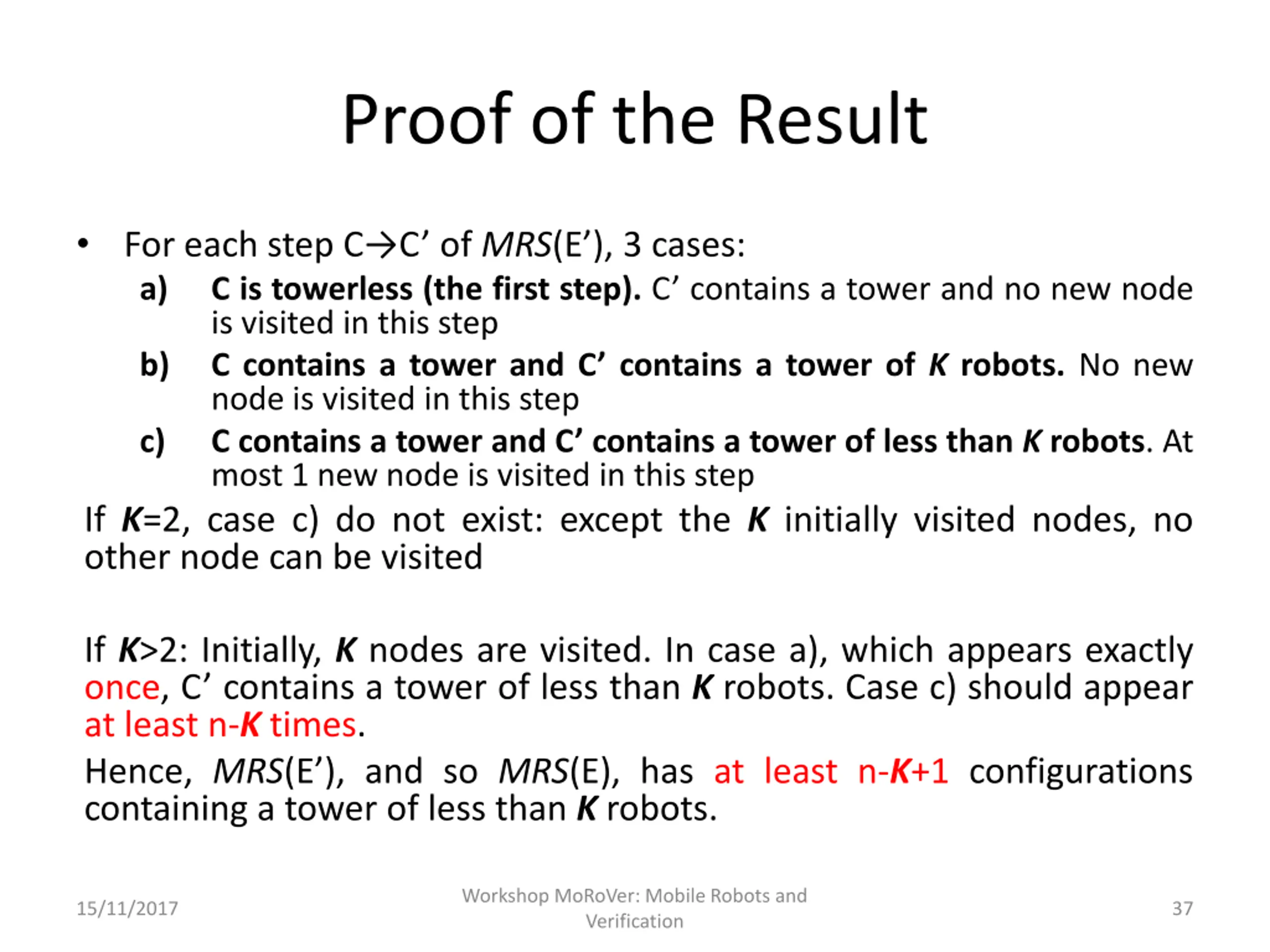

  37. Proof of the Result • For each step C→C’ of MRS(E’), 3 cases: a) C is towerless (the first step). C’ contains a tower and no new node is visited in this step b) C contains a tower and C’ contains a tower of K robots. No new node is visited in this step c) C contains a tower and C’ contains a tower of less than K robots. At most 1 new node is visited in this step If K=2, case c) do not exist: except the K initially visited nodes, no other node can be visited If K>2: Initially, K nodes are visited. In case a), which appears exactly once, C’ contains a tower of less than K robots. Case c) should appear at least n-K times. Hence, MRS(E’), and so MRS(E), has at least n-K+1 configurations containing a tower of less than K robots. Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 37

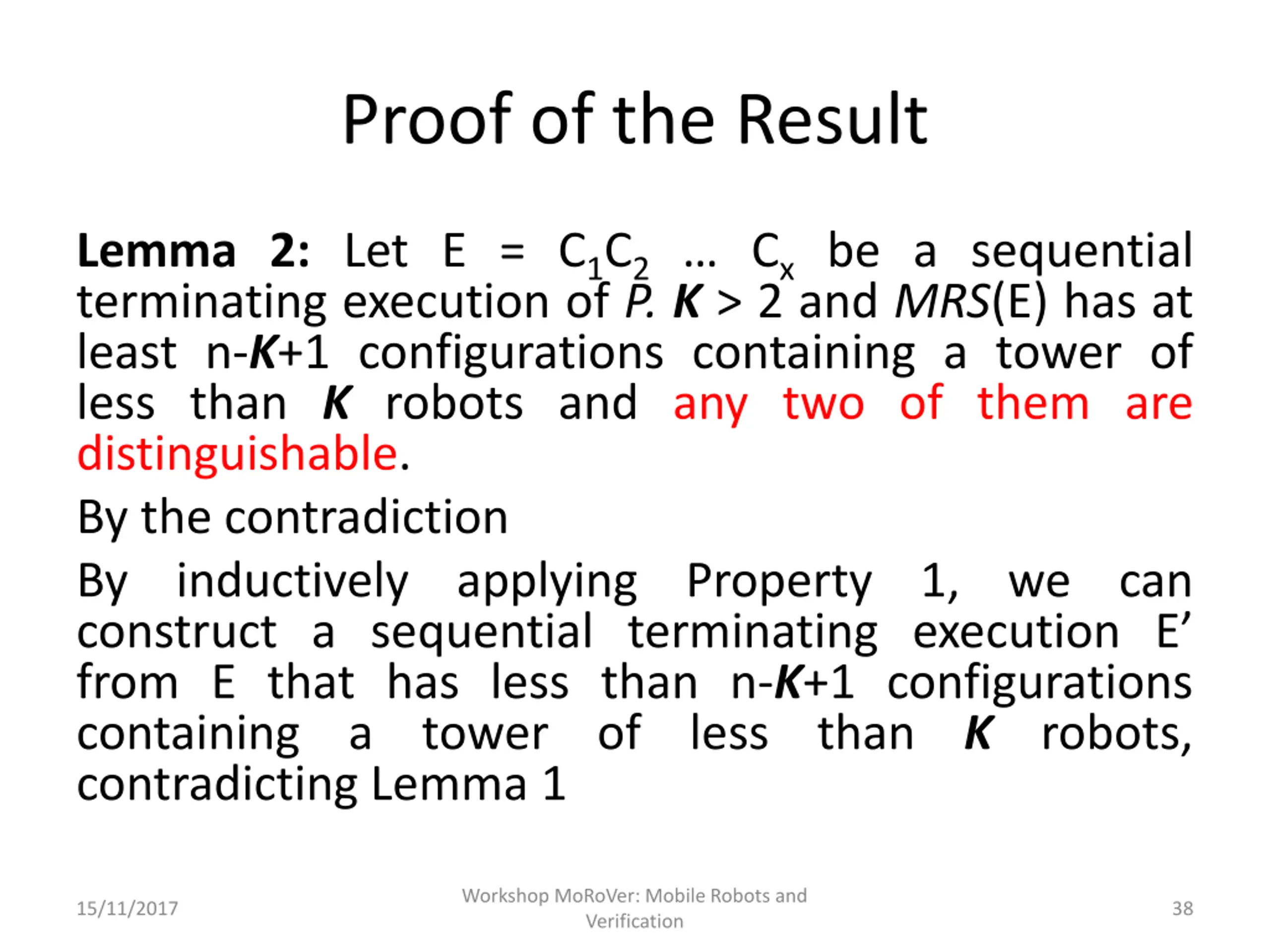

  38. Proof of the Result Lemma 2: Let E = C1C2… Cxbe a sequential terminating execution of P. K > 2 and MRS(E) has at least n-K+1 configurations containing a tower of less than K robots and any two of them are distinguishable. By the contradiction By inductively applying Property 1, we can construct a sequential terminating execution E’ from E that has less than n-K+1 configurations containing a tower of contradicting Lemma 1 less than K robots, Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 38

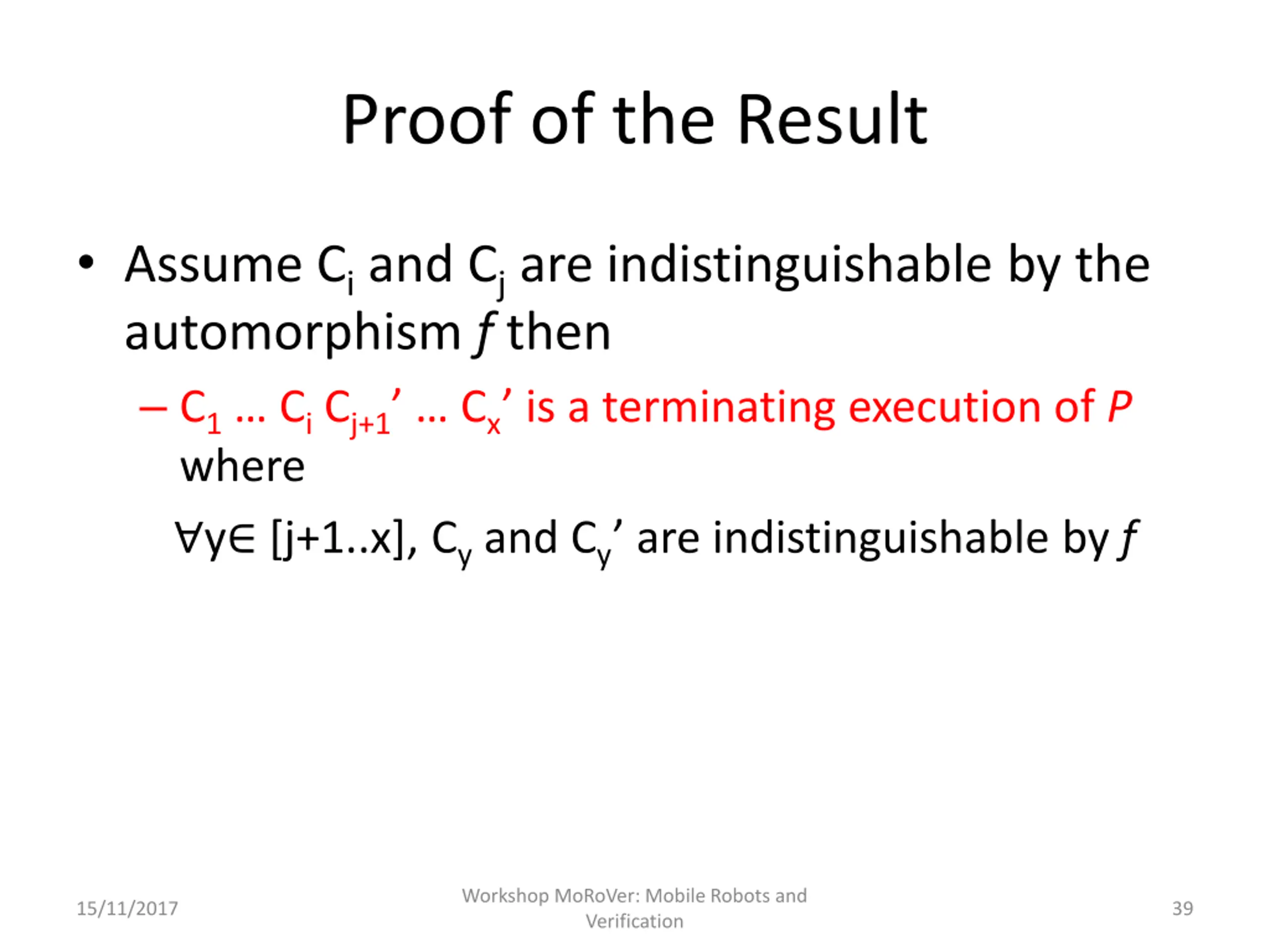

  39. Proof of the Result • Assume Ciand Cjare indistinguishable by the automorphism f then – C1… CiCj+1’ … Cx’ is a terminating execution of P where ∀y∈ [j+1..x], Cyand Cy’ are indistinguishable by f Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 39

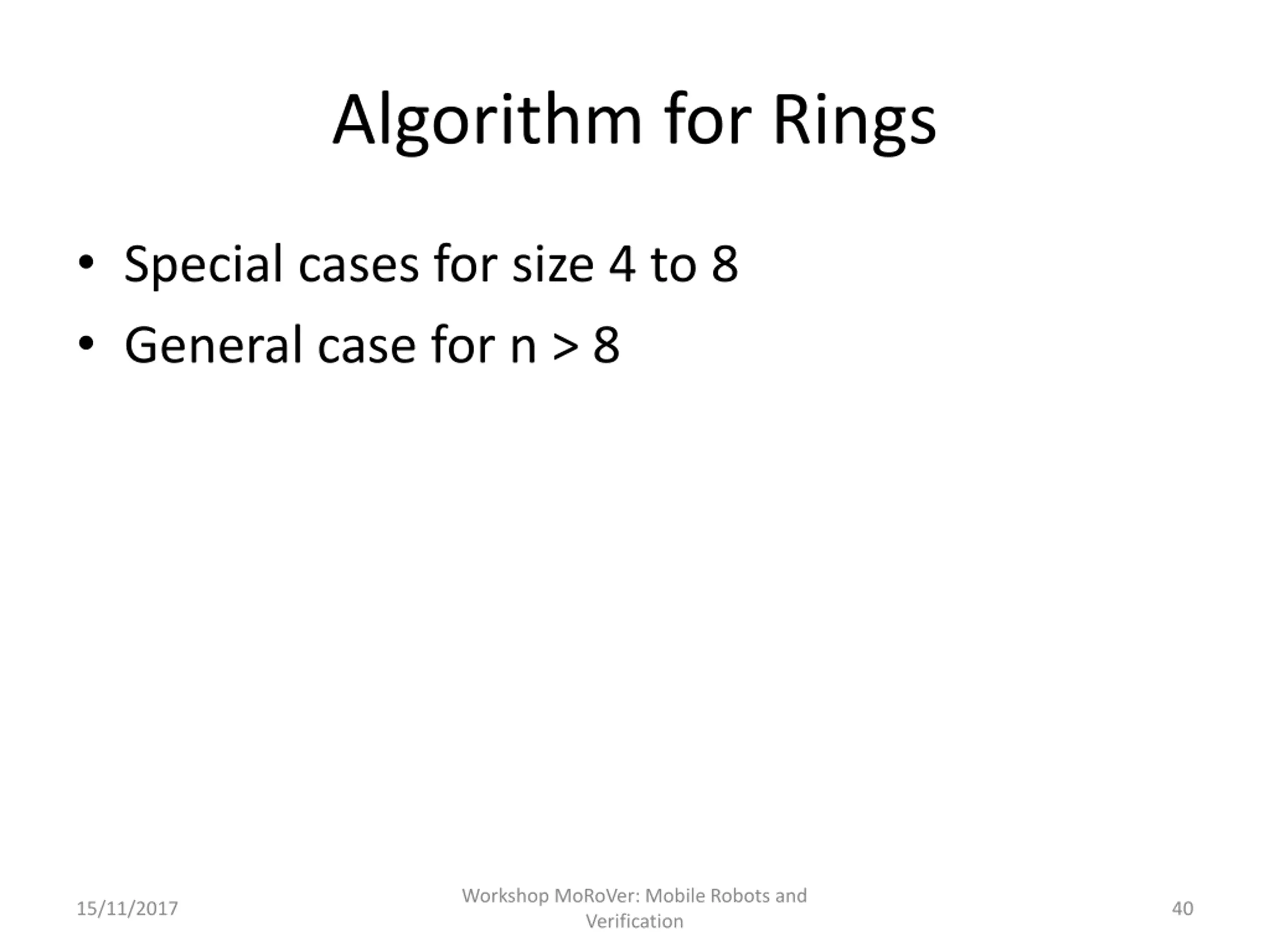

  40. Algorithm for Rings • Special cases for size 4 to 8 • General case for n > 8 Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 40

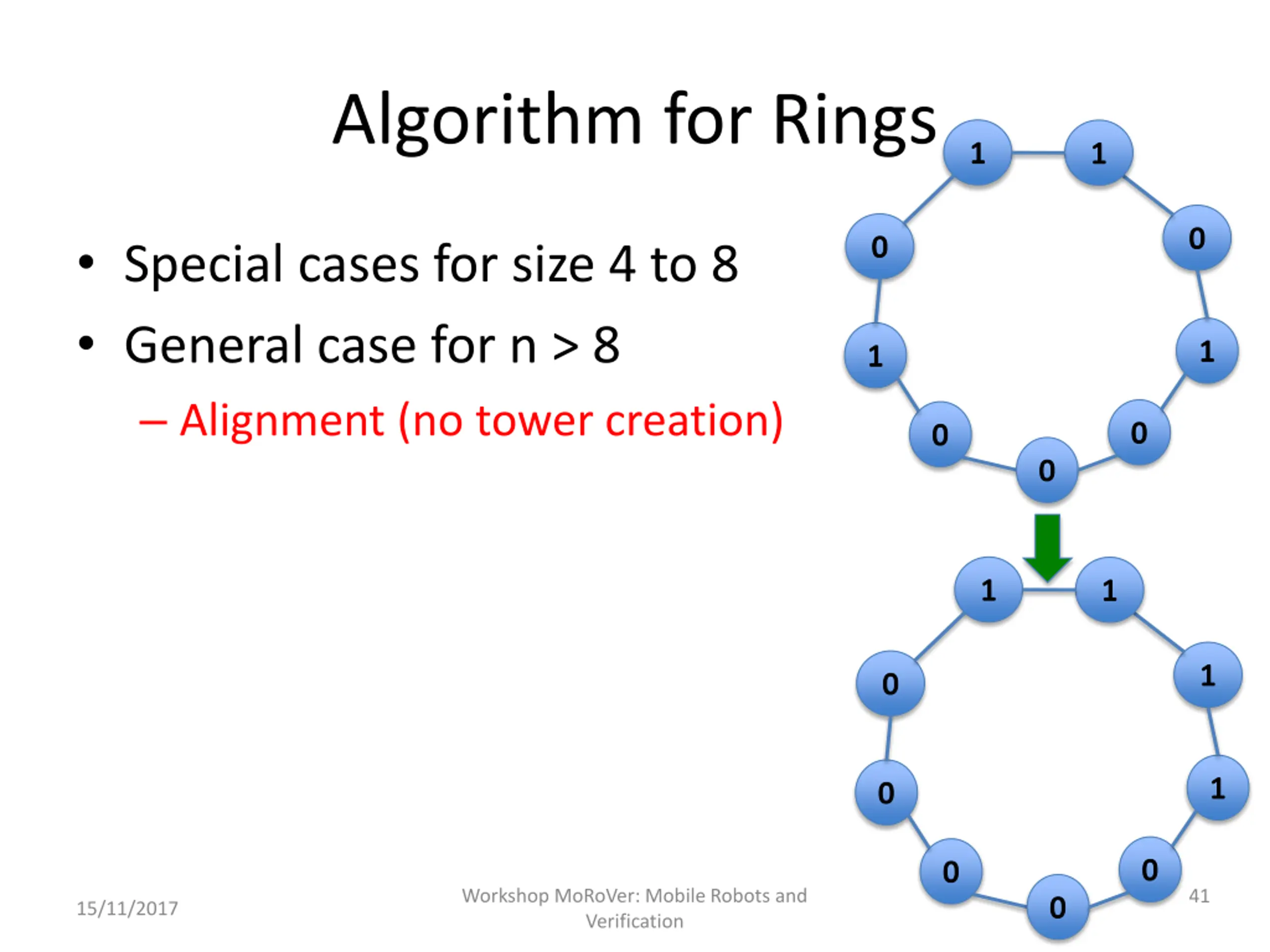

  41. Algorithm for Rings • Special cases for size 4 to 8 • General case for n > 8 – Alignment (no tower creation) Workshop MoRoVer: Mobile Robots and Verification 41 15/11/2017

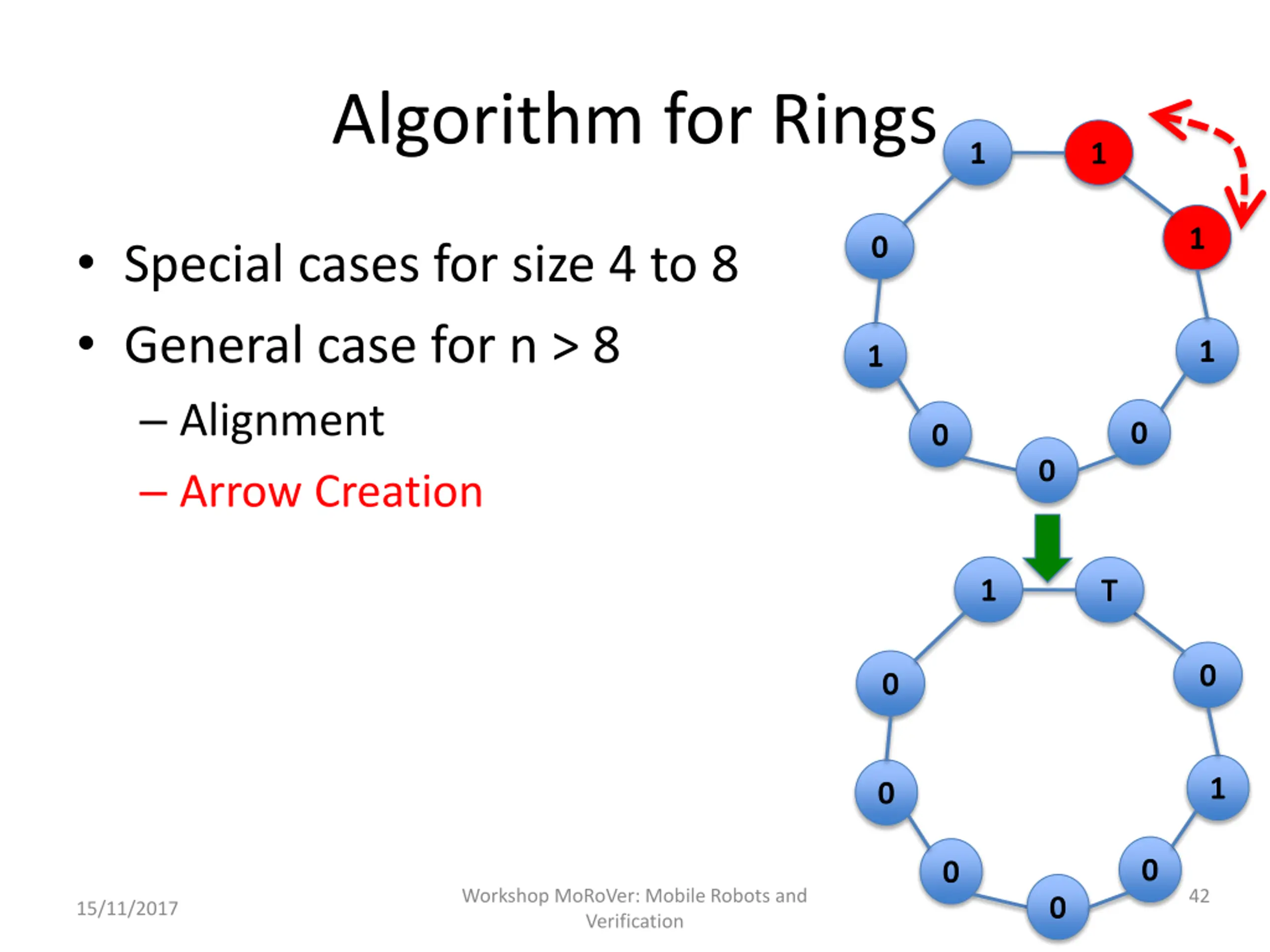

  42. Algorithm for Rings • Special cases for size 4 to 8 • General case for n > 8 – Alignment – Arrow Creation Workshop MoRoVer: Mobile Robots and Verification 42 15/11/2017

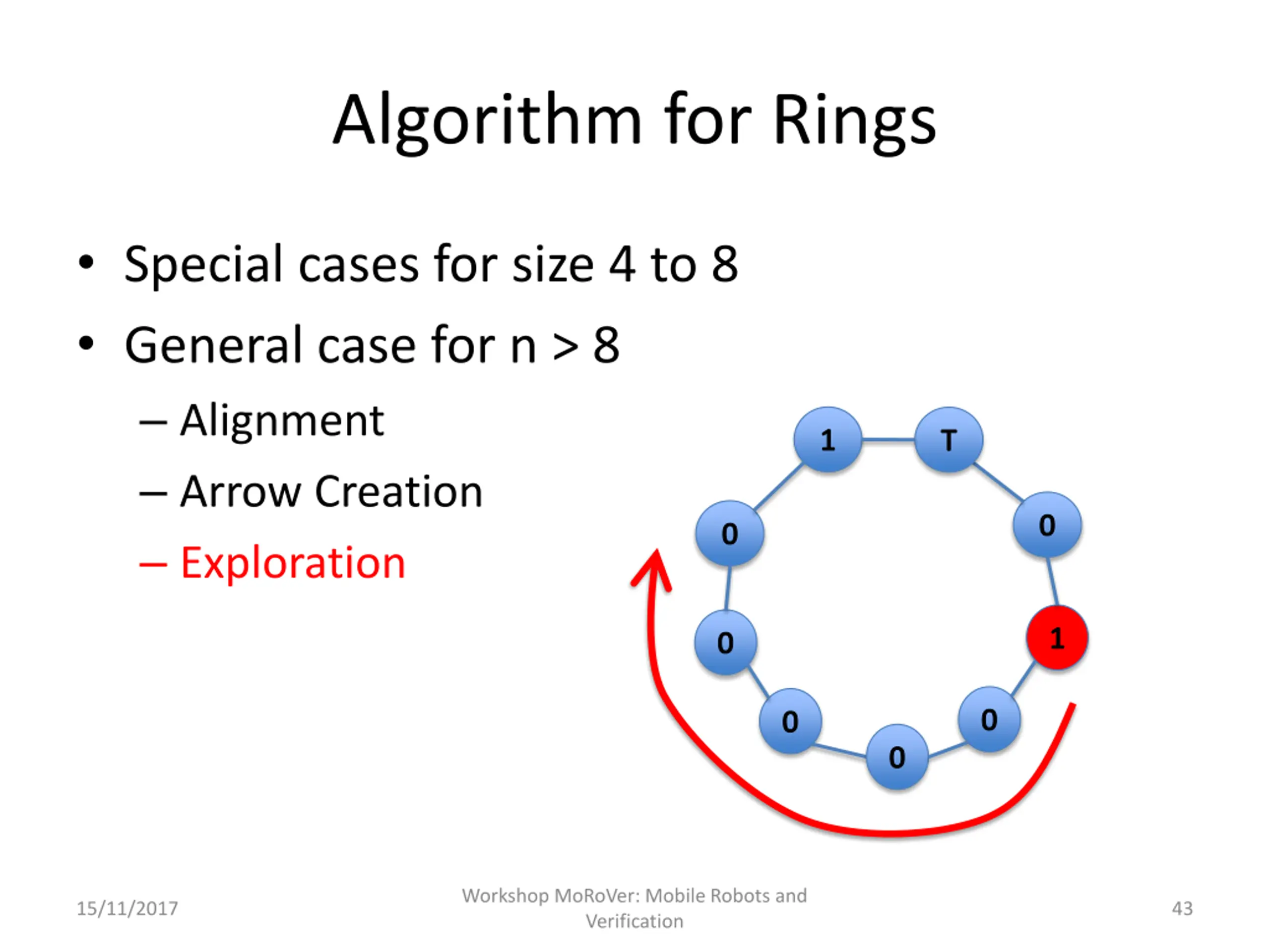

  43. Algorithm for Rings • Special cases for size 4 to 8 • General case for n > 8 – Alignment – Arrow Creation – Exploration Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 43

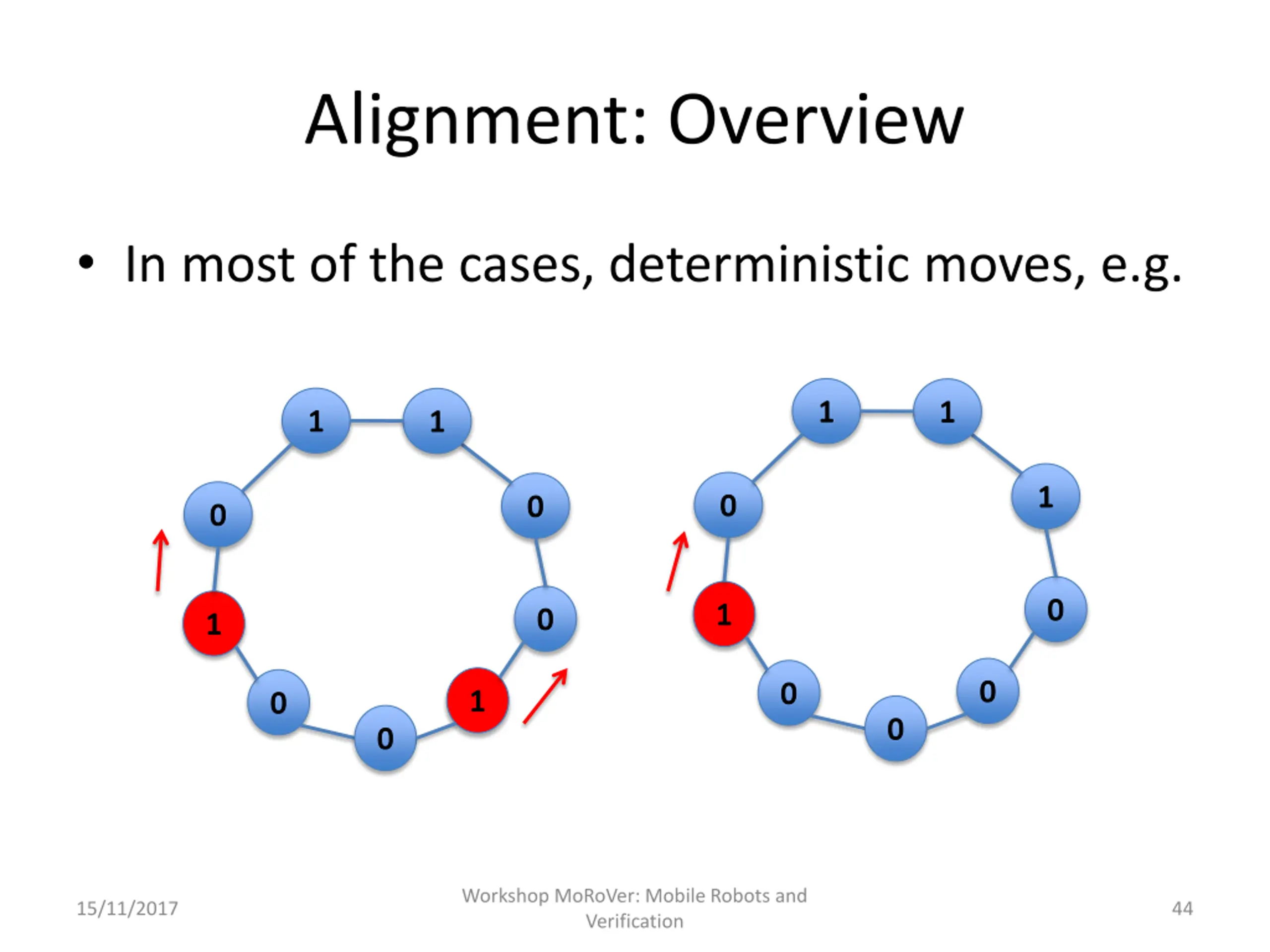

  44. Alignment: Overview • In most of the cases, deterministic moves, e.g. Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 44

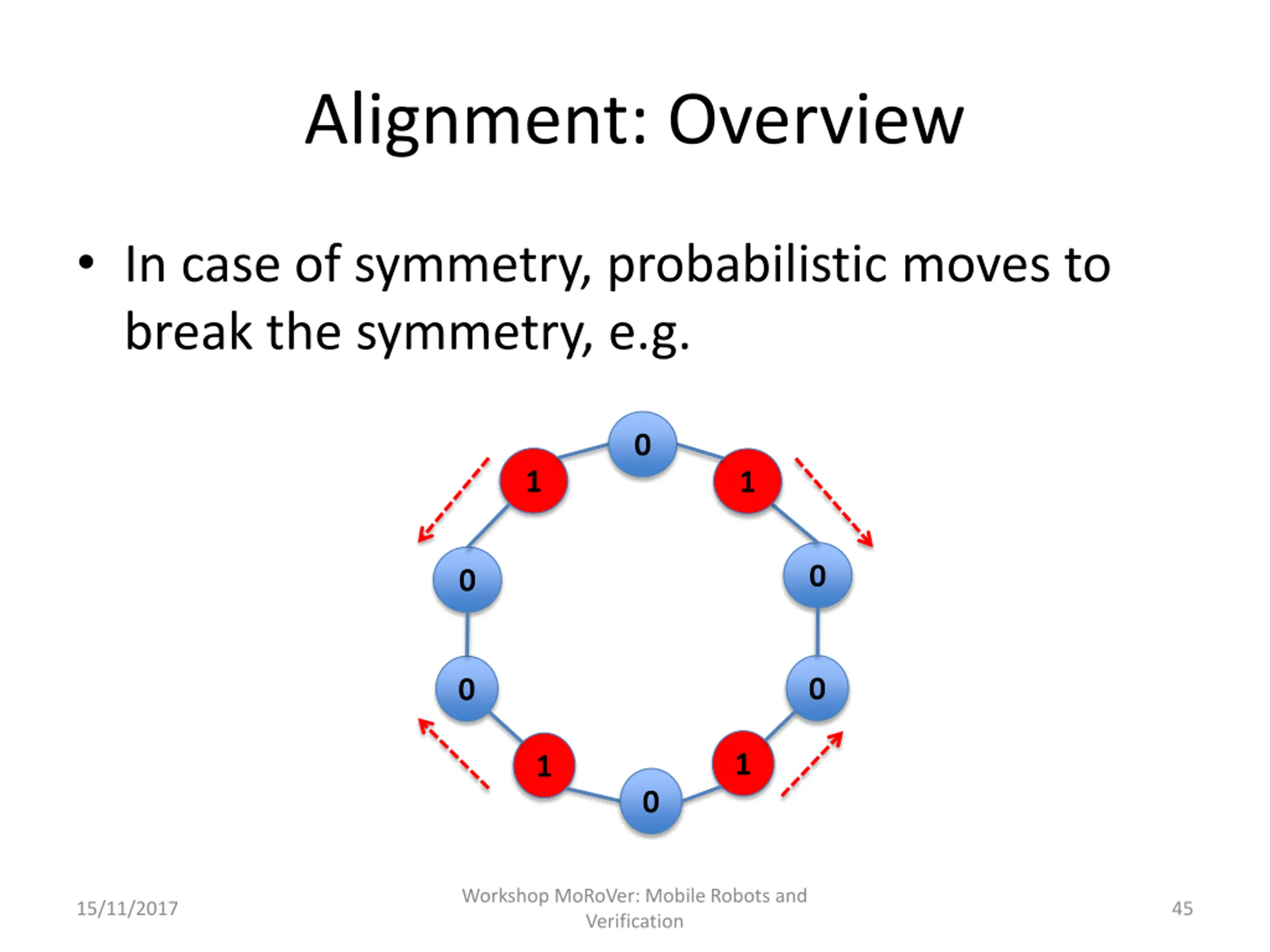

  45. Alignment: Overview • In case of symmetry, probabilistic moves to break the symmetry, e.g. Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 45

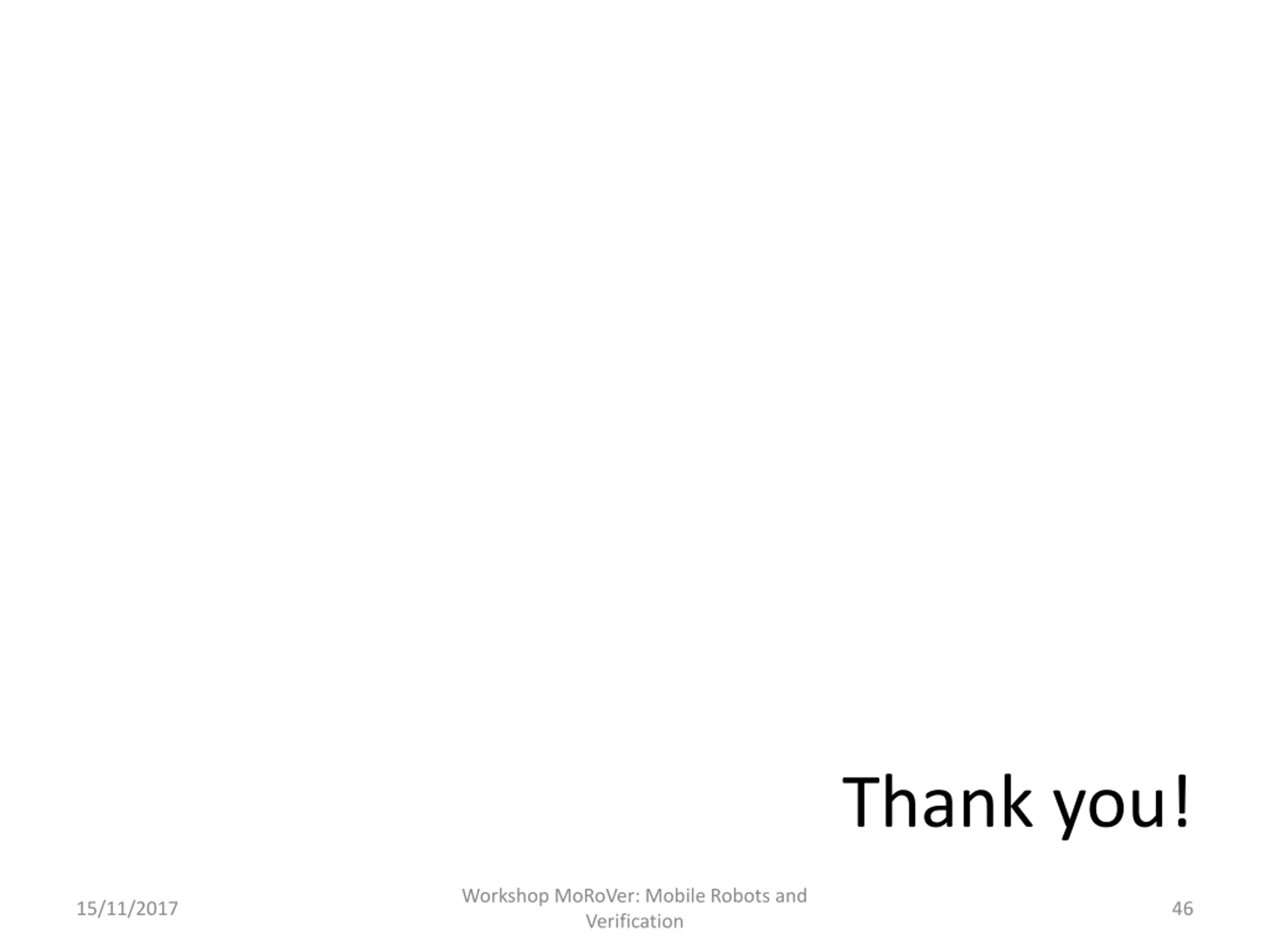

  46. Thank you! Workshop MoRoVer: Mobile Robots and Verification 15/11/2017 46
