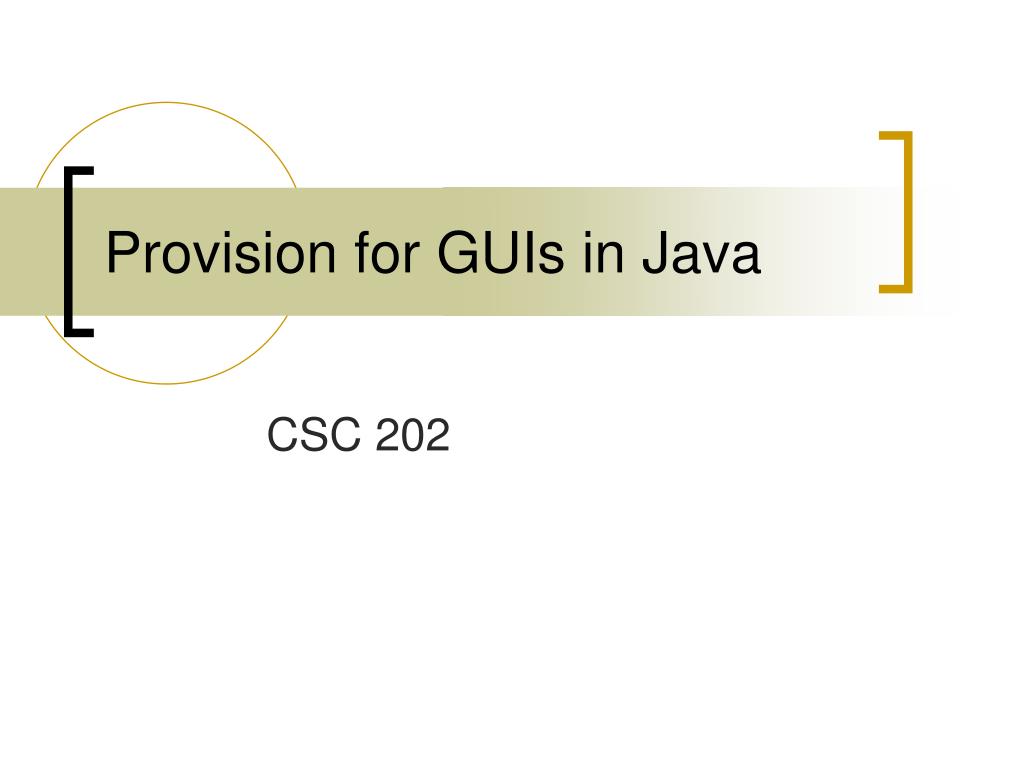

  1. Provision for GUIs in Java CSC 202

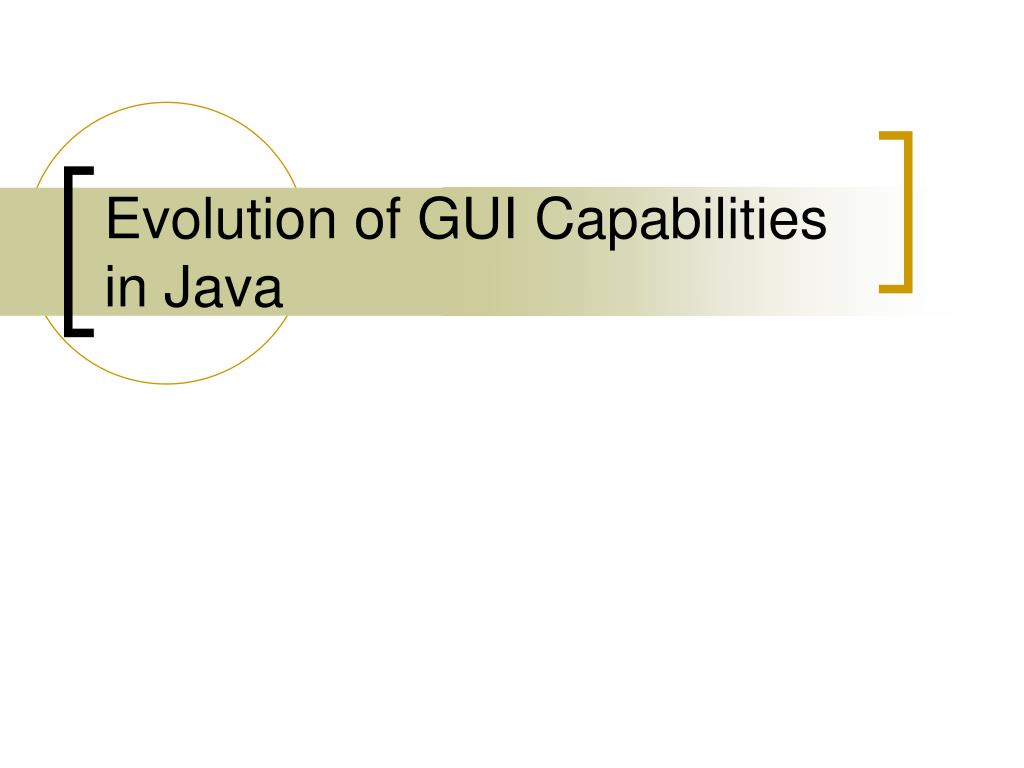

  2. Evolution of GUI Capabilities in Java

  3. Java 1.0 Abstract Window Toolkit (AWT) • Called “Abominable” or “Awful Window Toolkit”. • Done in 30 days. • Last minute add-on. • Java 1.1 • Significantly improved, • But GUI not finished.

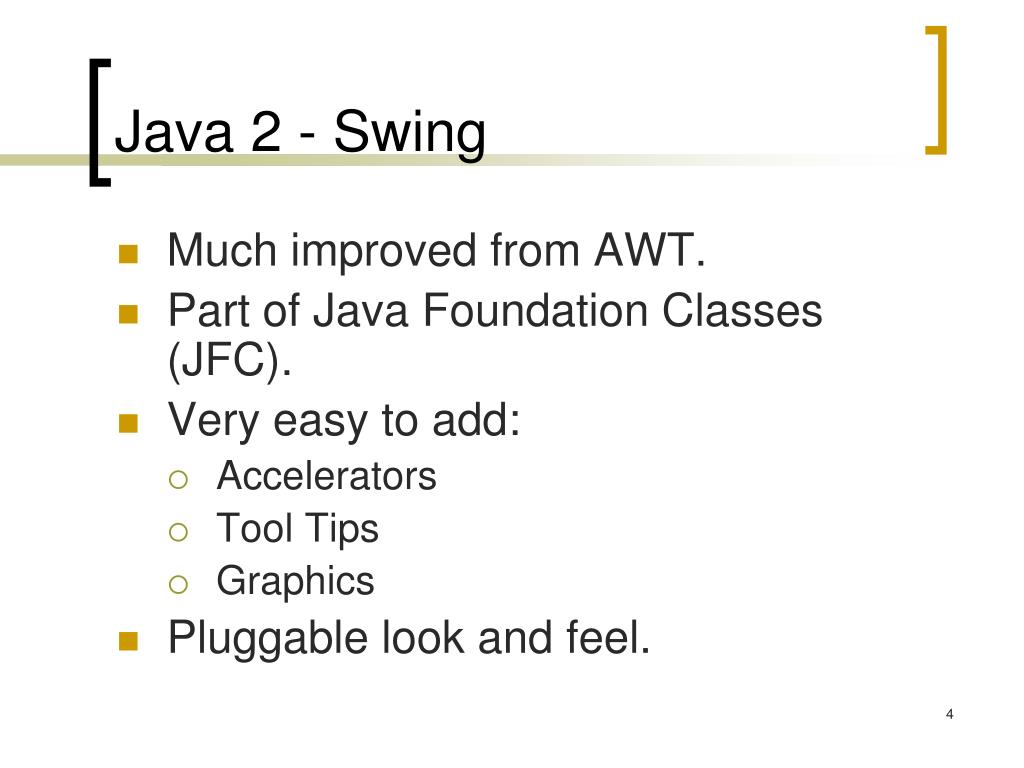

  4. Java 2 - Swing • Much improved from AWT. • Part of Java Foundation Classes (JFC). • Very easy to add: • Accelerators • Tool Tips • Graphics • Pluggable look and feel.

  5. AWT vs Swing • AWT approach • Implement common elements of various operating environments. • Swing approach • Departure from AWT effort. • Swing only needs to know how to write a pixel on a screen in a particular environment. • AWT classes are extended in Swing. • Example: AWT Button became Swing JButton.

  6. The Operating System GUI Interface

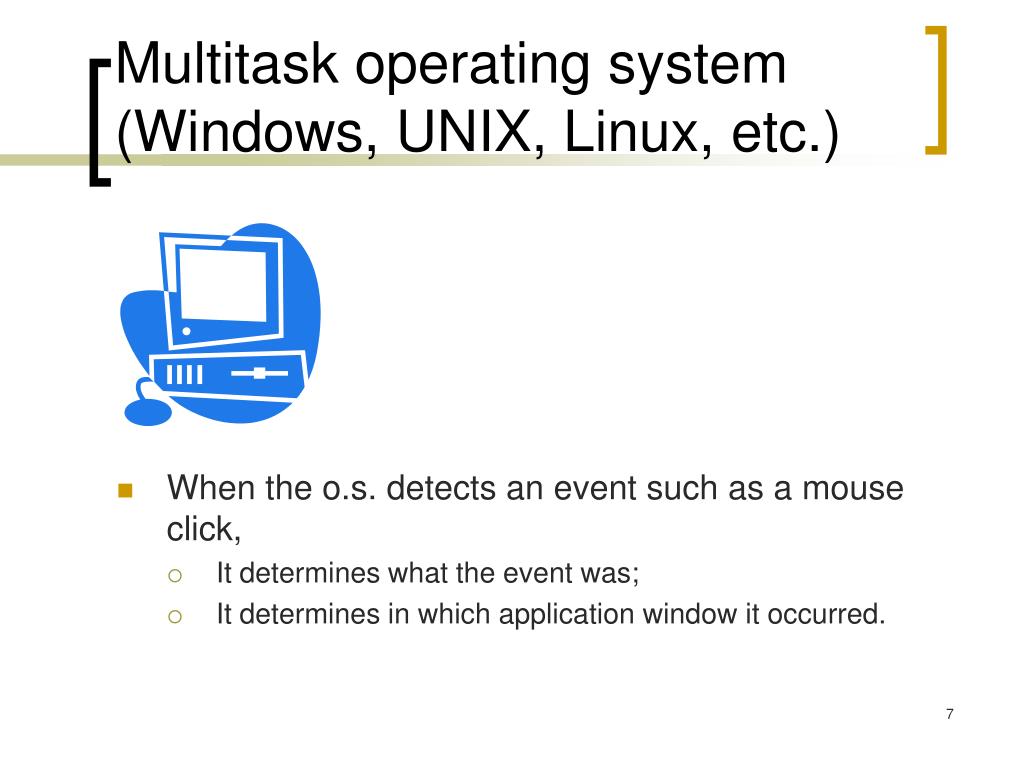

  7. Multitask operating system(Windows, UNIX, Linux, etc.) • When the o.s. detects an event such as a mouse click, • It determines what the event was; • It determines in which application window it occurred.

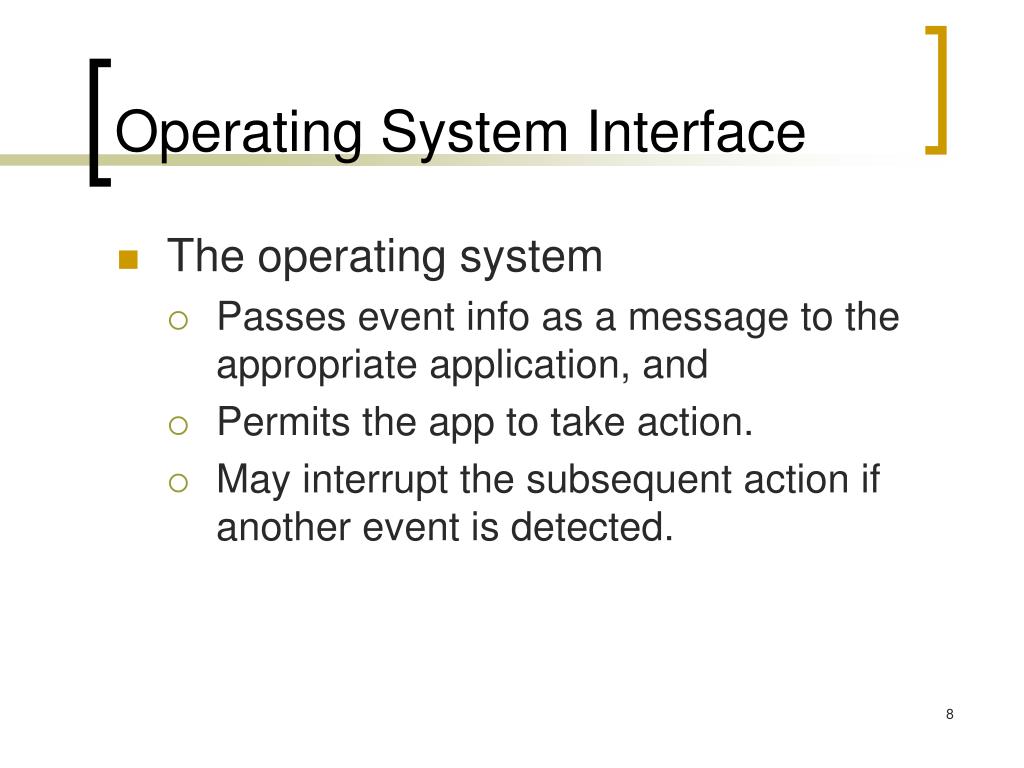

  8. Operating System Interface • The operating system • Passes event info as a message to the appropriate application, and • Permits the app to take action. • May interrupt the subsequent action if another event is detected.

  9. Containment Hierarchy - 1 • One and only one top-level container. • May contain any number of intermediate-level and atomic components. • Swing: almost always a JFrame. • Automatically provides a root pane. • AWT: the top-level container was referred to as “heavyweight” component. • “Weighed down” with responsibility of interacting with the O/S. • “Lightweight” components are not tied to the O/S.

  10. Containment Hierarchy - 2 • Next important level: “content pane.” • Internal component of the top-level container. • All visible components other than menu bar go here. (See h/o, Bronson, 571).

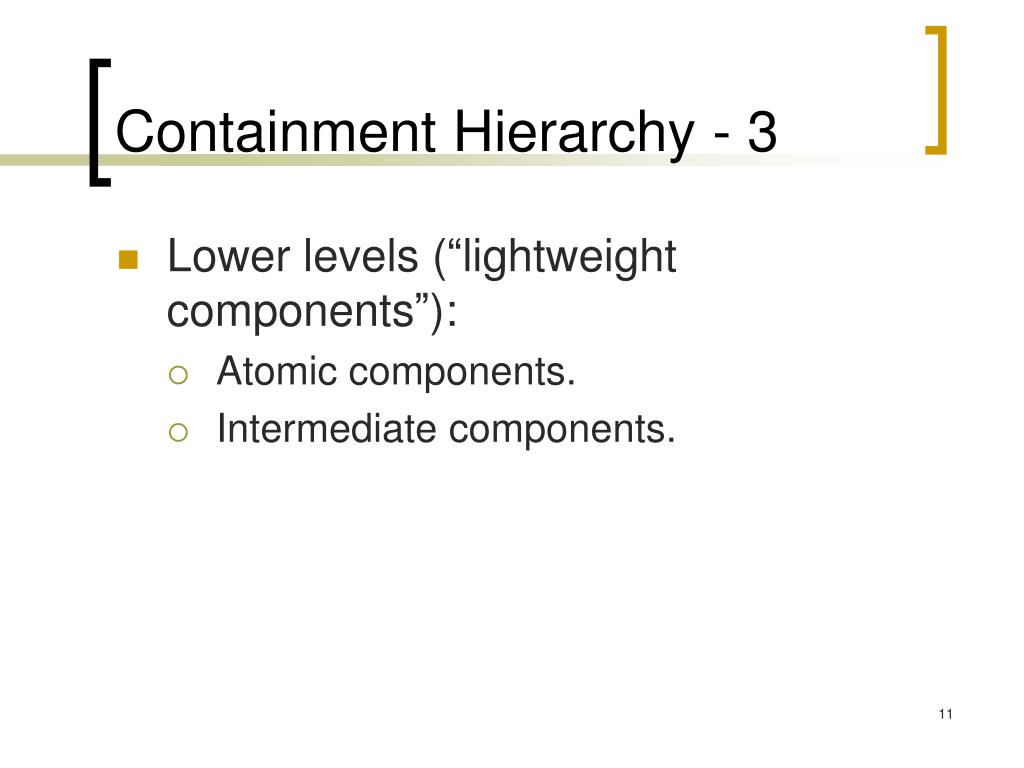

  11. Containment Hierarchy - 3 • Lower levels (“lightweight components”): • Atomic components. • Intermediate components.

  12. Layout Managers • Each top-level and intermediate container has a default layout manager. • JFrame, JDialog, and JPanel – BorderLayout • JWindow – FlowLayout • Defines how components are sized and positioned within the container's content pane. (See handout - Bronson, 605.)

  13. Creating a Swing-Based Window - Two Approaches: • Construct a GUI object using Swing components from within a main() method without first creating a separate GUI class. Sometimes used to introduce Swing components and to create extremely simple GUIs. This is how our first example was done. (See FirstGUI.java) • Construct the GUI as a separate class using Swing components. (See FirstWindow.java) • In general this is preferred (adheres more closely to accepted OO practice).
