The Fundamentals of Battery Pack & Module Testing

Unicou2019s EV Battery cyclers helps to test your high voltage EV battery packs and modules. This outstanding EV battery cycler is designed for high voltage electric vehicle testing procedures that include real-time simulation of battery charging and discharging. It enables you to test the charge, discharge, and life cycle testing of EV battery packs and modules. With the help of this system, you can develop your next-generation EV battery packs and modules. The Unico battery test system can be configured as both a battery emulator (or simulator) and a battery tester (or cycler). When configured

usunic
Download Presentation

The Fundamentals of Battery Pack & Module Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Fundamentals of Battery Module & Pack Testing

  2. “Battery technologies are accelerating as the new front line in sustainable energy development” It’s essential for today’s researchers, engineers, and manufacturers to understand the fundamentals of EV battery tests and the best approaches to ensure safety, product performance, and time to market.

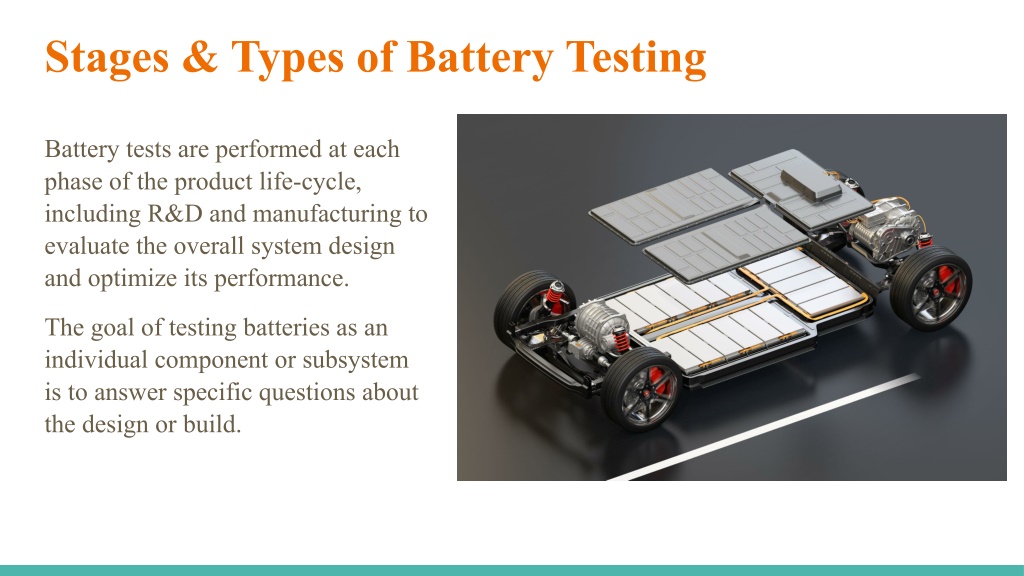

  3. Stages & Types of Battery Testing Battery tests are performed at each phase of the product life-cycle, including R&D and manufacturing to evaluate the overall system design and optimize its performance. The goal of testing batteries as an individual component or subsystem is to answer specific questions about the design or build.

  4. Battery Module and Pack Testing Battery Module and Pack tests typically evaluate the battery performance, safety mechanisms, cooling systems, and internal heating characteristics. Tests performed at Pack Level Pack level testing is sometimes also called End-of-Line Testing or Assembly Testing. It is mainly performed to ensure that each pack subsystem performs efficiently, including external hardware, safety mechanisms, and BMS Battery management system communications Tests performed at Module Level Module tests are performed to assess the quality and capacity of each cell integrated into the module. The process includes both charge and discharge tests to ensure the cell connections (in parallel or series) are secure and robust to manage the expected current loads without overheating, weakening, and failing.

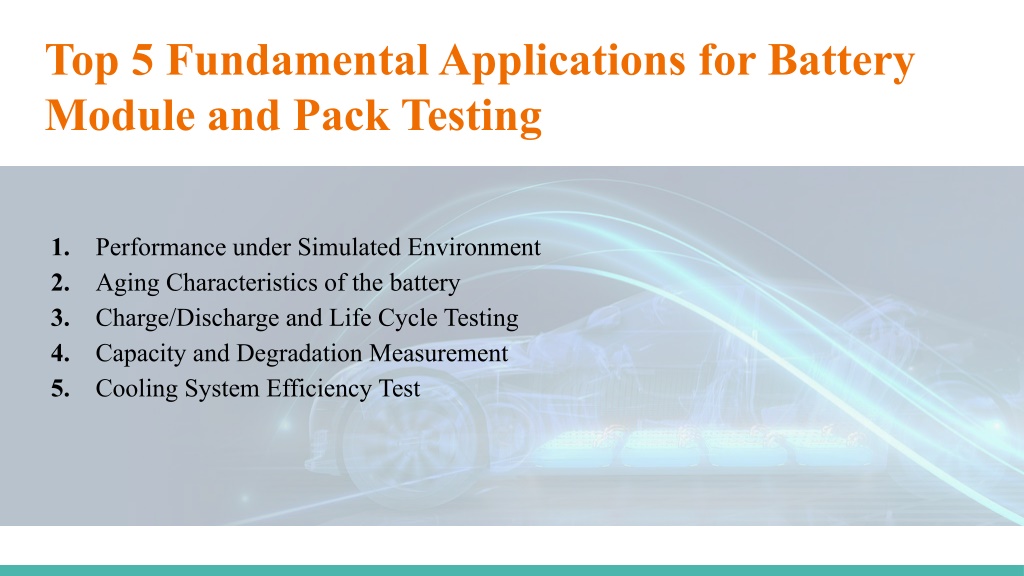

  5. Top 5 Fundamental Applications for Battery Module and Pack Testing 1. 2. 3. 4. 5. Performance under Simulated Environment Aging Characteristics of the battery Charge/Discharge and Life Cycle Testing Capacity and Degradation Measurement Cooling System Efficiency Test

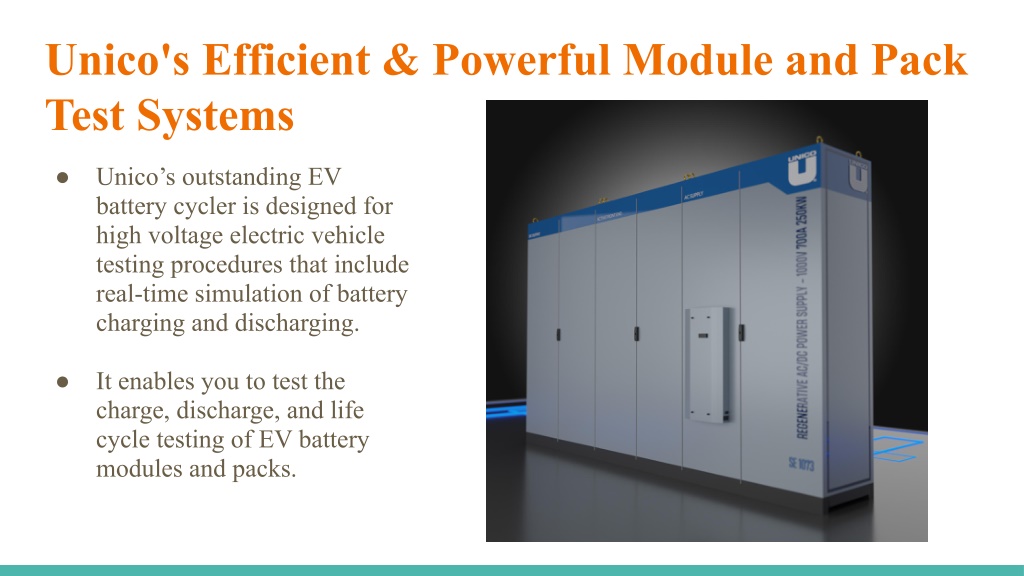

  6. Unico's Efficient & Powerful Module and Pack Test Systems ● Unico’s outstanding EV battery cycler is designed for high voltage electric vehicle testing procedures that include real-time simulation of battery charging and discharging. ● It enables you to test the charge, discharge, and life cycle testing of EV battery modules and packs.

  7. Benefits of Opting Unico Test System With the help of Unico Test system, you can develop your next-generation EV battery modules and Packs.

  8. To Learn More Contact Us www.unicous.com
