  1. Trees Chapter 8

  2. Chapter Objectives • To learn how to use a tree to represent a hierarchical organization of information • To learn how to use recursion to process trees • To understand the different ways of traversing a tree • To understand the difference between binary trees, binary search trees, and heaps • To learn how to implement binary trees, binary search trees, and heaps using linked data structures and arrays Chapter 8: Trees

  3. Chapter Objectives (continued) • To learn how to use a binary search tree to store information so that it can be retrieved in an efficient manner • To learn how to use a Huffman tree to encode characters using fewer bytes than ASCII or Unicode, resulting in smaller files and reduced storage requirements Chapter 8: Trees

  4. Tree Terminology • A tree consists of a collection of elements or nodes, with each node linked to its successors • The node at the top of a tree is called its root • The links from a node to its successors are called branches • The successors of a node are called its children • The predecessor of a node is called its parent Chapter 8: Trees

  5. Tree Terminology (continued) • Each node in a tree has exactly one parent except for the root node, which has no parent • Nodes that have the same parent are siblings • A node that has no children is called a leaf node • A generalization of the parent-child relationship is the ancestor-descendent relationship Chapter 8: Trees

  6. Tree Terminology (continued) • A subtree of a node is a tree whose root is a child of that node • The level of a node is a measure of its distance from the root Chapter 8: Trees

  7. Binary Trees • In a binary tree, each node has at most two subtrees • A set of nodes T is a binary tree if either of the following is true • T is empty • Its root node has two subtrees, TL and TR, such that TL and TR are binary trees Chapter 8: Trees

  8. Some Types of Binary Trees • Expression tree • Each node contains an operator or an operand • Huffman tree • Represents Huffman codes for characters that might appear in a text file • Huffman code uses different numbers of bits to encode letters as opposed to ASCII or Unicode • Binary search trees • All elements in the left subtree precede those in the right subtree Chapter 8: Trees

  9. Some Types of Binary Trees (continued) Chapter 8: Trees

  10. Fullness and Completeness • Trees grow from the top down • Each new value is inserted in a new leaf node • A binary tree is full if every node has two children except for the leaves Chapter 8: Trees

  11. General Trees • Nodes of a general tree can have any number of subtrees • A general tree can be represented using a binary tree Chapter 8: Trees

  12. Tree Traversals • Often we want to determine the nodes of a tree and their relationship • Can do this by walking through the tree in a prescribed order and visiting the nodes as they are encountered • This process is called tree traversal • Three kinds of tree traversal • Inorder • Preorder • Postorder Chapter 8: Trees

  13. Tree Traversals (continued) • Preorder: Visit root node, traverse TL, traverse TR • Inorder: Traverse TL, visit root node, traverse TR • Postorder: Traverse TL, Traverse TR, visit root node Chapter 8: Trees

  14. Visualizing Tree Traversals • You can visualize a tree traversal by imagining a mouse that walks along the edge of the tree • If the mouse always keeps the tree to the left, it will trace a route known as the Euler tour • Preorder traversal if we record each node as the mouse first encounters it • Inorder if each node is recorded as the mouse returns from traversing its left subtree • Postorder if we record each node as the mouse last encounters it Chapter 8: Trees

  15. Traversals of Binary Search Trees and Expression Trees • An inorder traversal of a binary search tree results in the nodes being visited in sequence by increasing data value • An inorder traversal of an expression tree inserts parenthesis where they belong (infix form) • A postorder traversal of an expression tree results in postfix form Chapter 8: Trees

  16. The Node Class • Just as for a linked list, a node consists of a data part and links to successor nodes • The data part is a reference to type Object • A binary tree node must have links to both its left and right subtrees Chapter 8: Trees

  17. The BinaryTree Class Chapter 8: Trees

  18. The BinaryTree Class (continued) Chapter 8: Trees

  19. Overview of a Binary Search Tree • Binary search tree definition • A set of nodes T is a binary search tree if either of the following is true • T is empty • Its root has two subtrees such that each is a binary search tree and the value in the root is greater than all values of the left subtree but less than all values in the right subtree Chapter 8: Trees

  20. Searching a Binary Tree Chapter 8: Trees

  21. Class TreeSet and Interface Search Tree Chapter 8: Trees

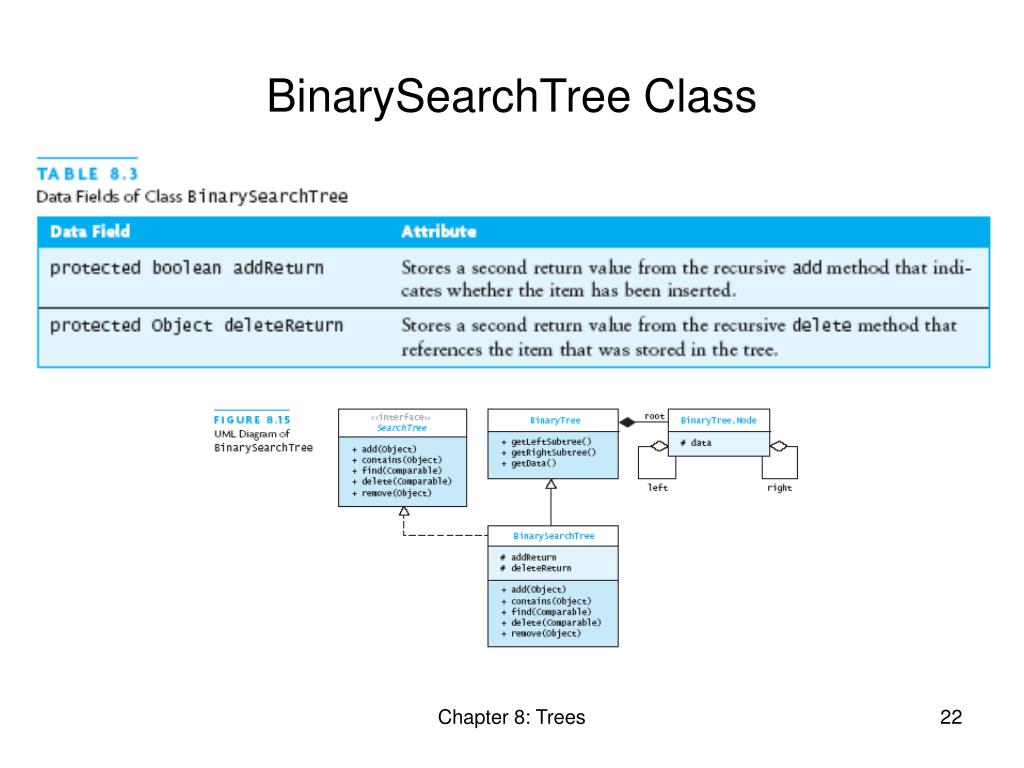

  22. BinarySearchTree Class Chapter 8: Trees

  23. Insertion into a Binary Search Tree Chapter 8: Trees

  24. Removing from a Binary Search Tree Chapter 8: Trees

  25. Removing from a Binary Search Tree (continued) Chapter 8: Trees

  26. Heaps and Priority Queues • In a heap, the value in a node is les than all values in its two subtrees • A heap is a complete binary tree with the following properties • The value in the root is the smallest item in the tree • Every subtree is a heap Chapter 8: Trees

  27. Removing an Item from a Heap Chapter 8: Trees

  28. Implementing a Heap • Because a heap is a complete binary tree, it can be implemented efficiently using an array instead of a linked data structure • First element for storing a reference to the root data • Use next two elements for storing the two children of the root • Use elements with subscripts 3, 4, 5, and 6 for storing the four children of these two nodes and so on Chapter 8: Trees

  29. Inserting into a Heap Implemented as an ArrayList Chapter 8: Trees

  30. Inserting into a Heap Implemented as an ArrayList (continued) Chapter 8: Trees

  31. Priority Queues • The heap is used to implement a special kind of queue called a priority queue • The heap is not very useful as an ADT on its own • Will not create a Heap interface or code a class that implements it • Will incorporate its algorithms when we implement a priority queue class and Heapsort • Sometimes a FIFO queue may not be the best way to implement a waiting line • A priority queue is a data structure in which only the highest-priority item is accessible Chapter 8: Trees

  32. Insertion into a Priority Queue Chapter 8: Trees

  33. The PriorityQueue Interface • Effectively the same as the Queue interface provided in chapter six Chapter 8: Trees

  34. Design of a HeapPriorityQueue Class Chapter 8: Trees

  35. HeapPQwithComparator Chapter 8: Trees

  36. Huffman Trees • A Huffman tree can be implemented using a binary tree and a PriorityQueue • A straight binary encoding of an alphabet assigns a unique binary number to each symbol in the alphabet • Unicode for example • The message “go eagles” requires 144 bits in Unicode but only 38 using Huffman coding Chapter 8: Trees

  37. Huffman Trees (continued) Chapter 8: Trees

  38. Chapter Review • A tree is a recursive, nonlinear data structure that is used to represent data that is organized as a hierarchy • A binary tree is a collection of nodes with three components: a reference to a data object, a reference to a left subtree, and a reference to a right subtree • In a binary tree used for arithmetic expressions, the root node should store the operator that is evaluated last • A binary search tree is a tree in which the data stored in the left subtree of every node is less than the data stored in the root node, and the data stored in the right subtree is greater than the data stored in the root node Chapter 8: Trees

  39. Chapter Review (continued) • A heap is a complete binary tree in which the data in each node is less than the data in both its subtrees • Insertion and removal in a heap are both O(log n) • A Huffman tree is a binary tree used to store a code that facilitates file compression Chapter 8: Trees
