next generation software sizing and costing metrics workshop report

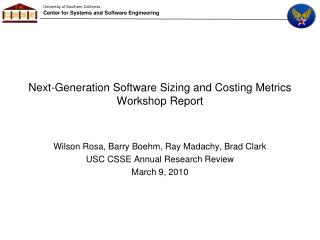

Next-Generation Software Sizing and Costing Metrics Workshop Report

Wilson Rosa, Barry Boehm, Ray Madachy, Brad Clark

USC CSSE Annual Research Review

March 9, 2010

topics
Topics
  • AFCAA Study Overview
  • Current and Future Challenges for Software Cost Estimation and Data Collection
  • Proposed Metrics Definition Highlights
  • Productivity Data Analysis and Issues for Discussion

This work is sponsored by the Air Force Cost Analysis Agency

USC CSSE Annual Research Review - Mar 2010

project background
Project Background
  • Goal is to improve the quality and consistency of estimating methods across cost agencies and program offices through guidance, standardization, and knowledge sharing.
  • Project led by the Air Force Cost Analysis Agency (AFCAA) working with service cost agencies, and assisted by University of Southern California and Naval Postgraduate School
  • We will publish the AFCAA Software Cost Estimation Metrics Manual to help analysts and decision makers develop accurate, easy and quick software cost estimates for avionics, space, ground, and shipboard platforms.

USC CSSE Annual Research Review - Mar 2010

afcaa software cost estimation metrics manual
AFCAA Software Cost Estimation Metrics Manual
  • Chapter 1: Software Estimation Principles
  • Chapter 2: Product Sizing
  • Chapter 3: Product Growth
  • Chapter 4: Effective SLOC
  • Chapter 5: Historical Productivity
  • Chapter 6: Model Calibration
  • Chapter 7: Calibrated SLIM-ESTIMATE
  • Chapter 8: Cost Risk and Uncertainty Metrics
  • Chapter 9: Data Normalization
  • Chapter 10: Software Resource Data Report
  • Chapter 11: Software Maintenance
  • Chapter 12: Lessons Learned

USC CSSE Annual Research Review - Mar 2010

stakeholder communities
Stakeholder Communities
  • Research is collaborative across heterogeneous stakeholder communities who have helped us in refining our data definition framework, domain taxonomy and providing us project data.
    • Government agencies
    • Tool Vendors
    • Industry
    • Academia

SLIM-Estimate™

TruePlanning® by PRICE Systems

USC CSSE Annual Research Review - Mar 2010

current and future dod cost estimation challenges
Current and Future DoD Cost Estimation Challenges

Emergent requirements

Cannot prespecify requirements, cost, schedule, EVMS

Need to estimate and track early concurrent engineering

Rapid change

Long acquisition cycles breed obsolescence

DoD Inst 5000.02 emphasis on evolutionary acquisition

Net-centric systems of systems

Incomplete visibility and control of elements

Model, COTS, service-based, Brownfield systems

New phenomenology, counting rules

Always-on, never-fail systems

Need to balance agility and high assurance

USC CSSE Annual Research Review - Mar 2010

slide7
Rapid Change Creates a Late Cone of Uncertainty– Need evolutionary/incremental vs. one-shot development

Uncertainties in competition, technology, organizations, mission priorities

USC CSSE Annual Research Review - Mar 2010

incremental development productivity decline idpd
Incremental Development Productivity Decline (IDPD)
  • Example: Site Defense BMD Software
    • 5 builds, 7 years, $100M; operational and support software
    • Build 1 productivity over 300 LOC/person month
    • Build 5 productivity under 150 LOC/PM
      • Including Build 1-4 breakage, integration, rework
      • 318% change in requirements across all builds
      • IDPD factor = 20% productivity decrease per build
    • Similar trends in later unprecedented systems
    • Not unique to DoD: key source of Windows Vista delays
  • Maintenance of full non-COTS SLOC, not ESLOC
    • Build 1: 200 KSLOC new; 200K reused@20% = 240K ESLOC
    • Build 2: 400 KSLOC of Build 1 software to maintain, integrate

USC CSSE Annual Research Review - Mar 2010

srdr data source
SRDR Data Source

USC CSSE Annual Research Review - Mar 2010

proposed metrics definition highlights
Proposed Metrics Definition Highlights
  • Data quality and standardization issues
    • No reporting of equivalent “new” code size inputs: Design Modified, Code Modified, Integration Testing Modified, Software Understandability, Programmer Unfamiliarity
    • No common SLOC reporting – logical, physical, etc.
    • No standard definitions – Application Domain, Build, Increment, Spiral,…
    • No common effort reporting – analysis, design, code, test, CM, QA,…
    • No reporting of quality measures – defect density, defect containment, etc.

USC CSSE Annual Research Review - Mar 2010

proposed metrics definition highlights11
Proposed Metrics Definition Highlights
  • Limited empirical research within DoD on other contributors to productivity besides effort and size:
    • Operating Environment, Application Domain, and Product Complexity
    • Personnel Capability
    • Required Reliability
    • Quality – Defect Density, Defect Containment
    • Integrating code from previous deliveries – Builds, Spirals, Increments, etc.
    • Converting to Equivalent SLOC
      • Reported code sizes for Modified, Unmodified/Reused add no value to a cost estimate unless they translate into equivalent “new” SLOC
  • This research and the resulting Cost Metrics Manual will discuss and address these issues

USC CSSE Annual Research Review - Mar 2010

srdr data
SRDR Data

Missing Domains: Internet, Maintenance and Diagnostics, Spacecraft bus

Notes:

SRDR: Software Resources Data Report

USC CSSE Annual Research Review - Mar 2010

data analysis issues
Data Analysis Issues

Preliminary Results - Do Not Use!

PM=15*(EKSLOC)0.62

USC CSSE Annual Research Review - Mar 2010

sizing issues 1
Sizing Issues -1

NCSS to Logical SLOC Conversion

Ada: 45%

C/C++: 61%

C#: 61%

Java: 72%

USC CSSE Annual Research Review - Mar 2010

sizing issues 2
Sizing Issues -2
  • No Modified Code parameters
    • Percent Design Modified (DM)
    • Percent Code Modified (CM)
    • Percent Integration and Test Modified (IM)
    • Software Understanding (SU)
    • Programmer Unfamiliarity (UNFM)
  • Program interviews provided parameters for some records

USC CSSE Annual Research Review - Mar 2010

effort issues
Effort Issues
  • Missing effort reporting for different lifecycle phases
    • Software requirements analysis (REQ)
    • Software architectural design (ARCH)
    • Software coding and testing (CODE)
    • Software integration (INT)
    • Software qualification testing (QT)
    • Software management, CM, QA, etc. (Other – very inconsistent)

USC CSSE Annual Research Review - Mar 2010

slide17

Application Domain Issues

USC CSSE Annual Research Review - Mar 2010

proposed srdr changes 1
Proposed SRDR Changes -1

USC CSSE Annual Research Review - Mar 2010

proposed srdr changes 2
Proposed SRDR Changes -2

USC CSSE Annual Research Review - Mar 2010

concluding remarks
Concluding Remarks
  • Goal is to publish a manual to help analysts develop quick software estimates using empirical metrics from recent programs
  • Additional information is crucial for improving data quality across DoD
  • We want your input on Productivity Domains and Data Definitions
  • Looking for collaborators
  • Looking for peer-reviewers
  • Need more data

USC CSSE Annual Research Review - Mar 2010
