security basics

Security Basics

Security+ Guide to Network Security Fundamentals

Second Edition

objectives

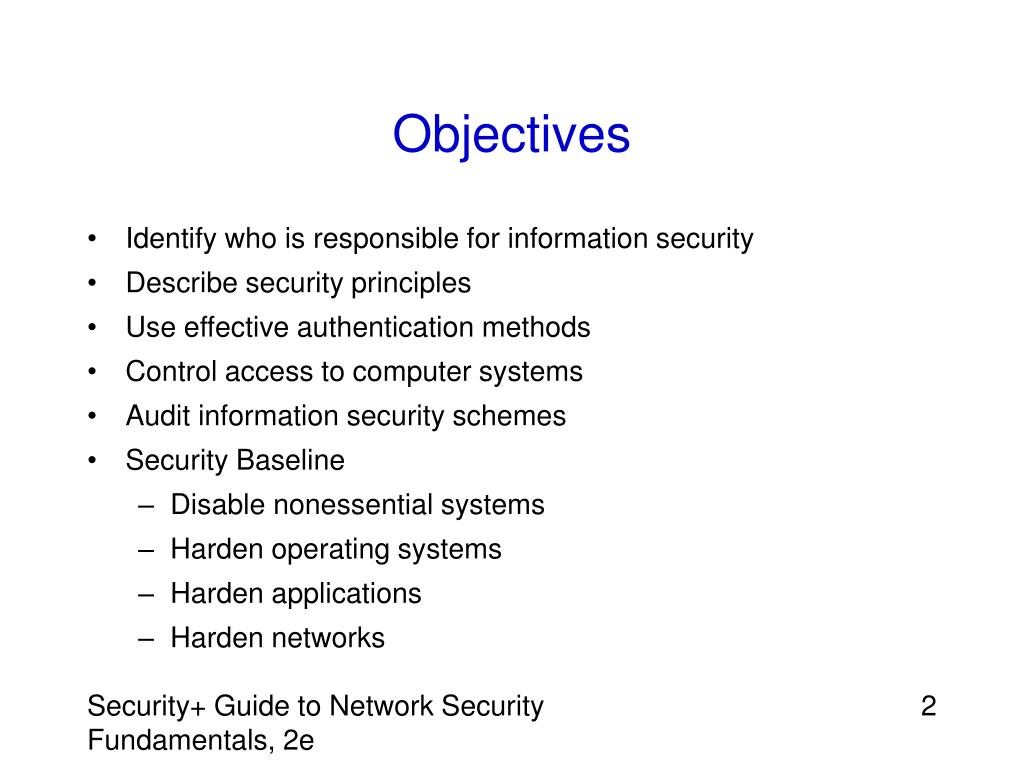

Objectives
  • Identify who is responsible for information security
  • Describe security principles
  • Use effective authentication methods
  • Control access to computer systems
  • Audit information security schemes
  • Security Baseline
    • Disable nonessential systems
    • Harden operating systems
    • Harden applications
    • Harden networks

Security+ Guide to Network Security Fundamentals, 2e

identifying who is responsible for information security
Identifying Who Is Responsible for Information Security
  • When an organization secures its information, it completes a few basic tasks:
    • It must analyze its assets and the threats these assets face from threat agents
    • It identifies its vulnerabilities and how they might be exploited
    • It regularly assesses and reviews the security policy to ensure it is adequately protecting its information
    • Who will do this job?
    • Bottom up approach? or Top down approach?

Security+ Guide to Network Security Fundamentals, 2e

identifying who is responsible for information security continued
Identifying Who Is Responsible for Information Security (continued)
  • Bottom-up approach: major tasks of securing information are accomplished from the lower levels of the organization upwards
  • This approach has one key advantage: the bottom-level employees have the technical expertise to understand how to secure information

Security+ Guide to Network Security Fundamentals, 2e

identifying who is responsible for information security continued1

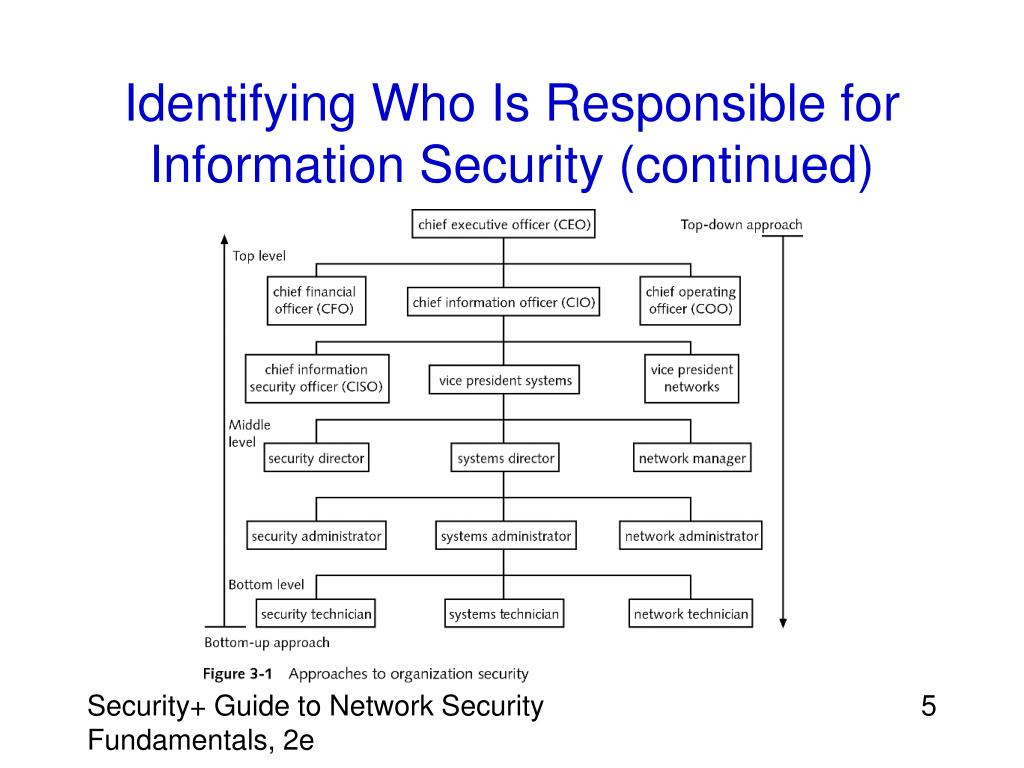

Identifying Who Is Responsible for Information Security (continued)

Security+ Guide to Network Security Fundamentals, 2e

identifying who is responsible for information security continued2
Identifying Who Is Responsible for Information Security (continued)
  • Top-down approach starts at the highest levels of the organization and works its way down
  • A security plan initiated by top-level managers has the backing to make the plan work

Security+ Guide to Network Security Fundamentals, 2e

identifying who is responsible for information security continued3
Identifying Who Is Responsible for Information Security (continued)
  • Chief information security officer (CISO): helps develop the security plan and ensures it is carried out
  • Human firewall: describes the security-enforcing role of each employee

Security+ Guide to Network Security Fundamentals, 2e

understanding security principles
Understanding Security Principles
  • Ways information can be attacked:
    • Crackers can launch distributed denial-of-service (DDoS) attacks through the Internet
    • Spies can use social engineering
    • Employees can guess other user’s passwords
    • Hackers can create back doors
  • Protecting against the wide range of attacks calls for a wide range of defense mechanisms

Security+ Guide to Network Security Fundamentals, 2e

layering
Layering
  • Why layering?
  • Layered security approach has the advantage of creating a barrier of multiple defenses that can be coordinated to thwart a variety of attacks
  • Information security likewise must be created in layers
  • All the security layers must be properly coordinated to be effective

Security+ Guide to Network Security Fundamentals, 2e

layering continued
Layering (continued)

Security+ Guide to Network Security Fundamentals, 2e

limiting
Limiting
  • Limiting access to information reduces the threat against it
  • Only those who must use data should have access to it
  • Access must be limited for a subject (a person or a computer program running on a system) to interact with an object (a computer or a database stored on a server)
  • The amount of access granted to someone should be limited to what that person needs to know or do

Security+ Guide to Network Security Fundamentals, 2e

limiting continued

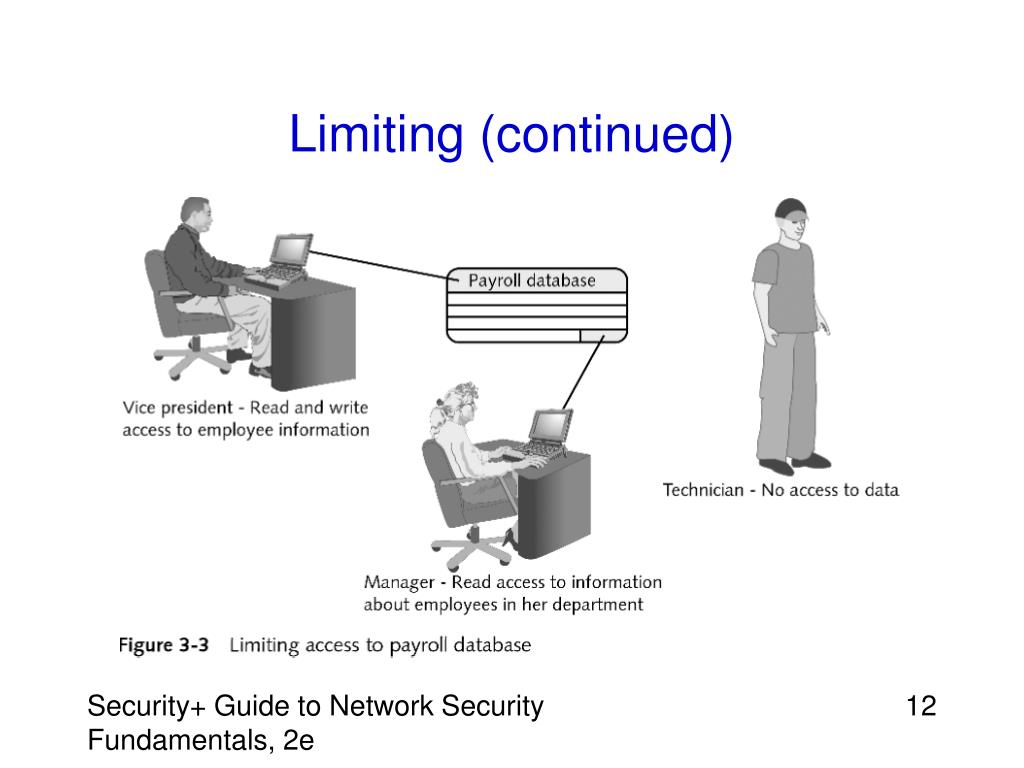

Limiting (continued)

Security+ Guide to Network Security Fundamentals, 2e

diversity
Diversity
  • Diversity is closely related to layering
  • You should protect data with diverse layers of security, so if attackers penetrate one layer, they cannot use the same techniques to break through all other layers
  • Using diverse layers of defense means that breaching one security layer does not compromise the whole system

Security+ Guide to Network Security Fundamentals, 2e

diversity continued
Diversity (continued)
  • You can set a firewall to filter a specific type of traffic, such as all inbound traffic, and a second firewall on the same system to filter another traffic type, such as outbound traffic
  • Using firewalls produced by different vendors creates even greater diversity

Security+ Guide to Network Security Fundamentals, 2e

obscurity
Obscurity
  • Obscuring what goes on inside a system or organization and avoiding clear patterns of behavior make attacks from the outside difficult

Security+ Guide to Network Security Fundamentals, 2e

simplicity
Simplicity
  • Complex security systems can be difficult to understand, troubleshoot, and feel secure about
  • The challenge is to make the system simple from the inside but complex from the outside

Security+ Guide to Network Security Fundamentals, 2e

using effective authentication methods
Using Effective Authentication Methods
  • Information security rests on three key pillars:
    • Authentication
    • Access control
    • Auditing

Security+ Guide to Network Security Fundamentals, 2e

using effective authentication methods continued
Using Effective Authentication Methods (continued)
  • Authentication:
    • Process of providing identity
    • Can be classified into three main categories:
      • what you know,
      • what you have,
      • what you are
    • Most common method: providing a user with a unique username and a secret password

Security+ Guide to Network Security Fundamentals, 2e

username and password continued

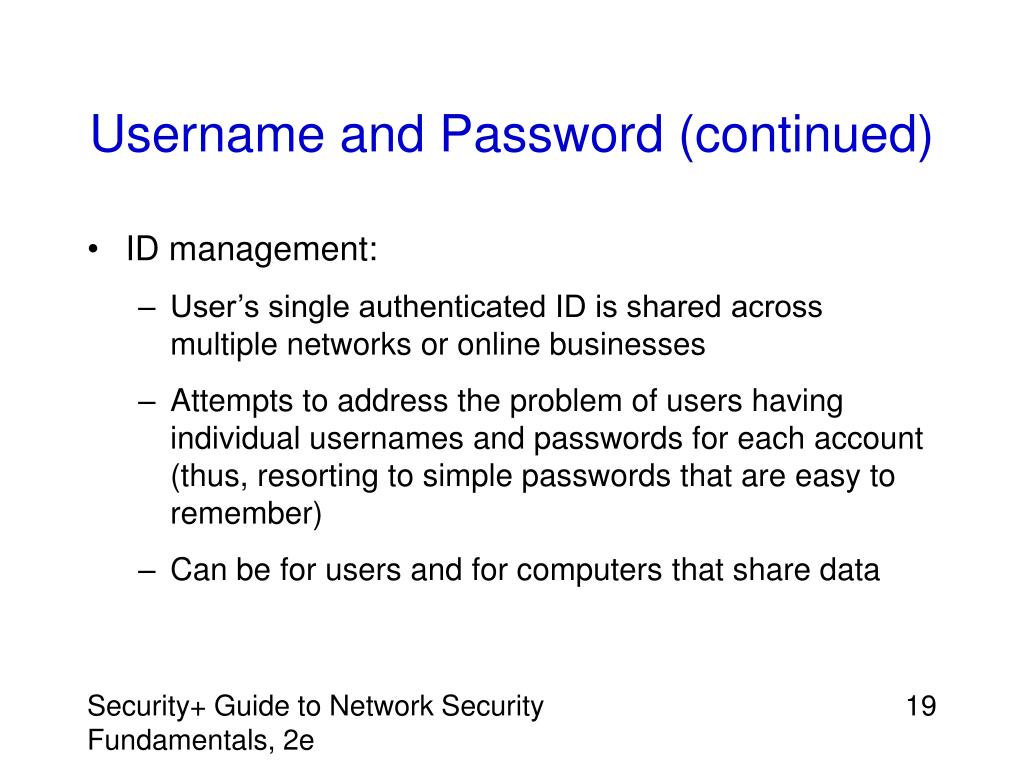

Username and Password (continued)
  • ID management:
    • User’s single authenticated ID is shared across multiple networks or online businesses
    • Attempts to address the problem of users having individual usernames and passwords for each account (thus, resorting to simple passwords that are easy to remember)
    • Can be for users and for computers that share data

Security+ Guide to Network Security Fundamentals, 2e

tokens
Tokens
  • Token: security device that authenticates the user by having the appropriate permission embedded into the token itself
  • Passwords are based on what you know, tokens are based on what you have
  • Proximity card: plastic card with an embedded, thin metal strip that emits a low-frequency, short-wave radio signal

Security+ Guide to Network Security Fundamentals, 2e

biometrics
Biometrics
  • Uses a person’s unique characteristics to authenticate them
  • Is an example of authentication based on what you are
  • Human characteristics that can be used for identification include:
    • Fingerprint – Face
    • Hand – Iris
    • Retina – Voice

Security+ Guide to Network Security Fundamentals, 2e

biometrics continued
Biometrics (continued)

Security+ Guide to Network Security Fundamentals, 2e

certificates
Certificates
  • The key system does not prove that the senders are actually who they claim to be
  • Certificates let the receiver verify who sent the message
  • Certificates link or bind a specific person to a key
  • Digital certificates are issued by a certification authority (CA), an independent third-party organization

Security+ Guide to Network Security Fundamentals, 2e

kerberos
Kerberos
  • Authentication system developed by the Massachusetts Institute of Technology (MIT)
  • Used to verify the identity of networked users, like using a driver’s license to cash a check
  • Typically used when someone on a network attempts to use a network service and the service wants assurance that the user is who he says he is

Security+ Guide to Network Security Fundamentals, 2e

kerberos continued
Kerberos (continued)
  • A state agency, such as the DMV, issues a driver’s license that has these characteristics:
    • It is difficult to copy
    • It contains specific information (name, address, height, etc.)
    • It lists restrictions (must wear corrective lenses, etc.)
    • It expires on a specified date
  • The user is provided a ticket that is issued by the Kerberos authentication server (AS), much as a driver’s license is issued by the DMV

Security+ Guide to Network Security Fundamentals, 2e

challenge handshake authentication protocol chap
Challenge Handshake Authentication Protocol (CHAP)
  • Considered a more secure procedure for connecting to a system than using a password
    • User enters a password and connects to a server; server sends a challenge message to user’s computer
    • User’s computer receives message and uses a specific algorithm to create a response sent back to the server
    • Server checks response by comparing it to its own calculation of the expected value; if values match, authentication is acknowledged; otherwise, connection is terminated

Security+ Guide to Network Security Fundamentals, 2e

challenge handshake authentication protocol chap continued
Challenge Handshake Authentication Protocol (CHAP) (continued)

Security+ Guide to Network Security Fundamentals, 2e

mutual authentication
Mutual Authentication
  • Two-way authentication (mutual authentication) can be used to combat identity attacks, such as man-in-the-middle and replay attacks
  • The server authenticates the user through a password, tokens, or other means

Security+ Guide to Network Security Fundamentals, 2e

mutual authentication continued

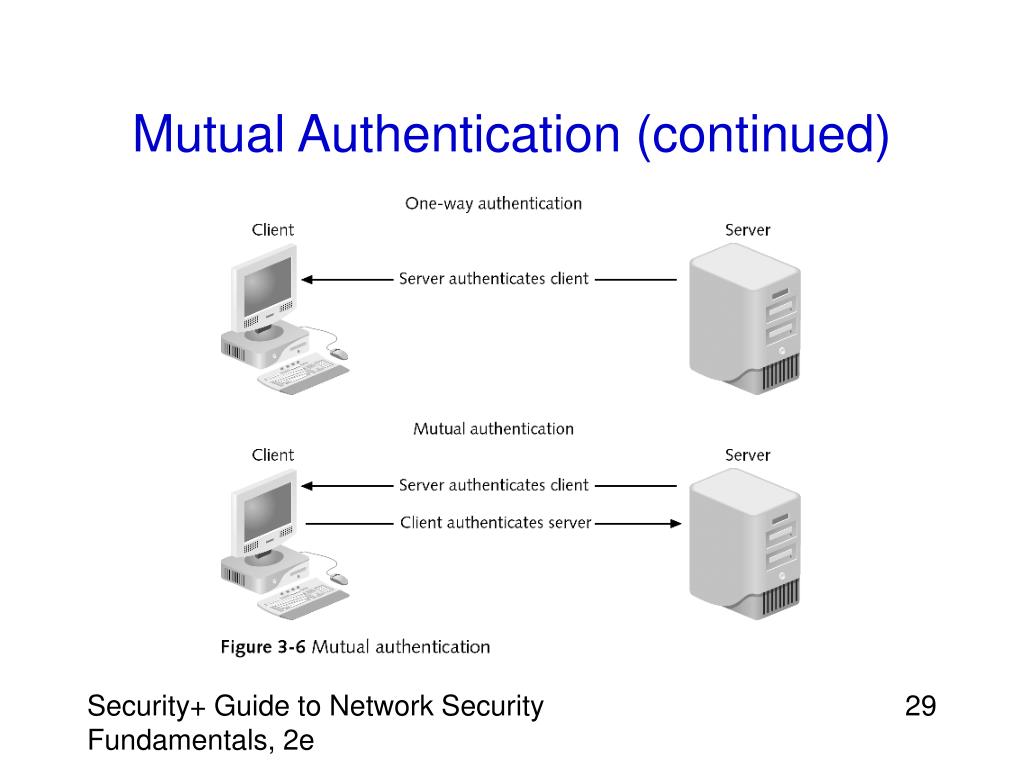

Mutual Authentication (continued)

Security+ Guide to Network Security Fundamentals, 2e

multifactor authentication

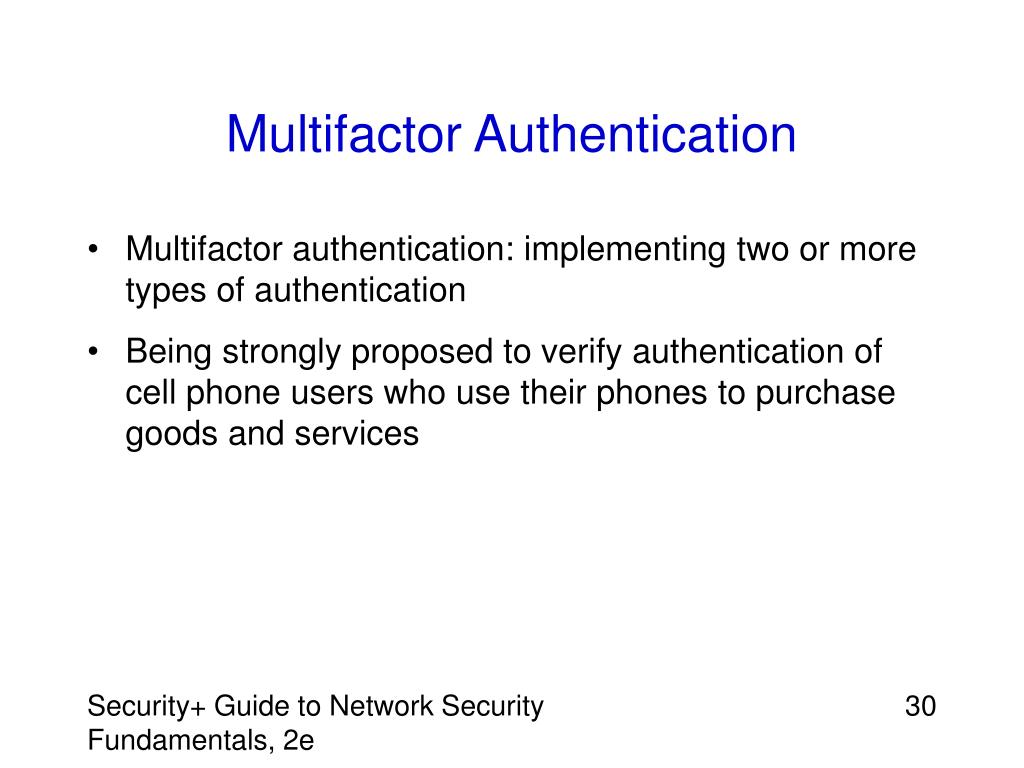

Multifactor Authentication
  • Multifactor authentication: implementing two or more types of authentication
  • Being strongly proposed to verify authentication of cell phone users who use their phones to purchase goods and services

Security+ Guide to Network Security Fundamentals, 2e

controlling access to computer systems

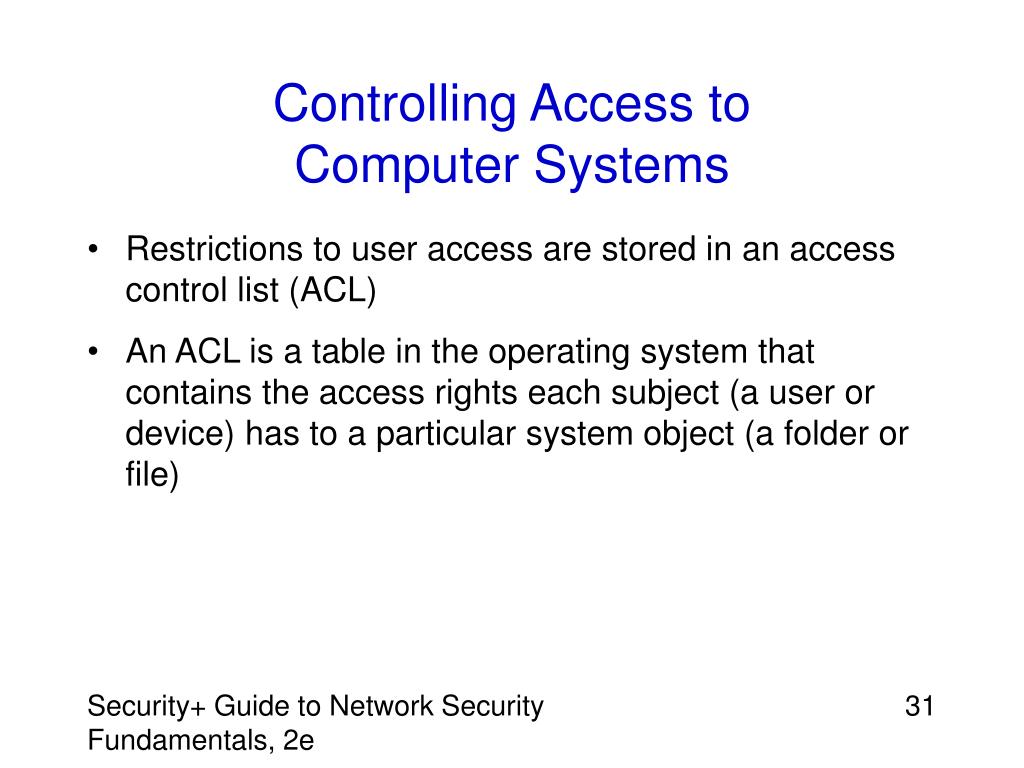

Controlling Access to Computer Systems
  • Restrictions to user access are stored in an access control list (ACL)
  • An ACL is a table in the operating system that contains the access rights each subject (a user or device) has to a particular system object (a folder or file)

Security+ Guide to Network Security Fundamentals, 2e

controlling access to computer systems continued

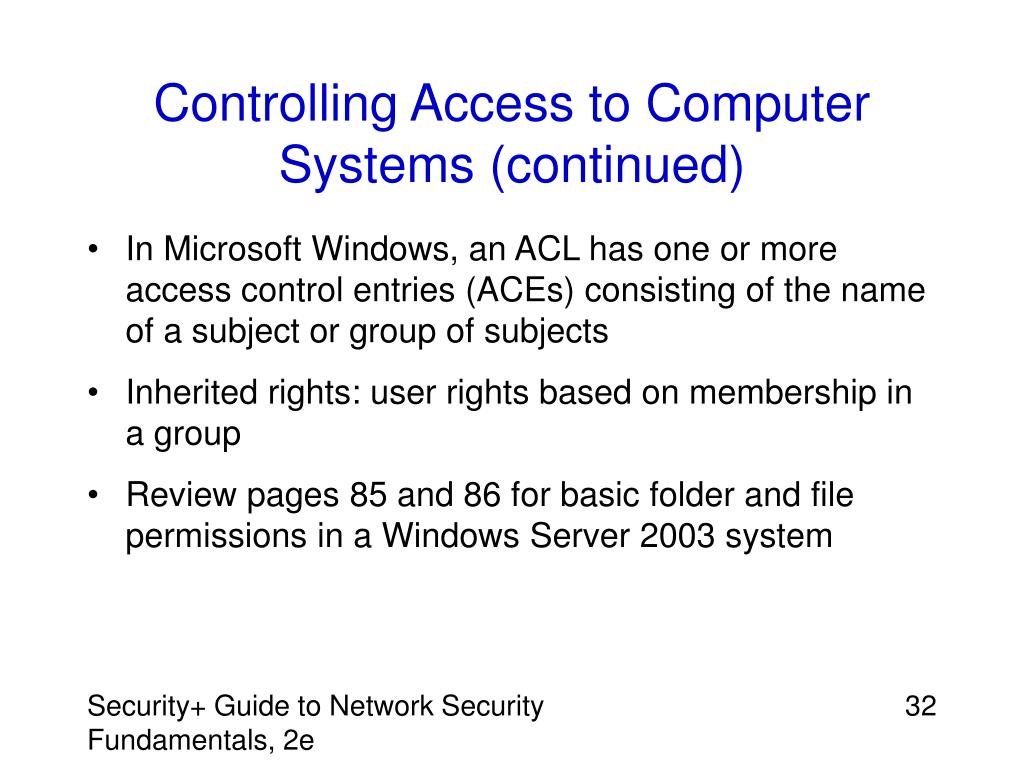

Controlling Access to Computer Systems (continued)
  • In Microsoft Windows, an ACL has one or more access control entries (ACEs) consisting of the name of a subject or group of subjects
  • Inherited rights: user rights based on membership in a group
  • Review pages 85 and 86 for basic folder and file permissions in a Windows Server 2003 system

Security+ Guide to Network Security Fundamentals, 2e

mandatory access control mac
Mandatory Access Control (MAC)
  • A more restrictive model
  • The subject is not allowed to give access to another subject to use an object

Security+ Guide to Network Security Fundamentals, 2e

role based access control rbac

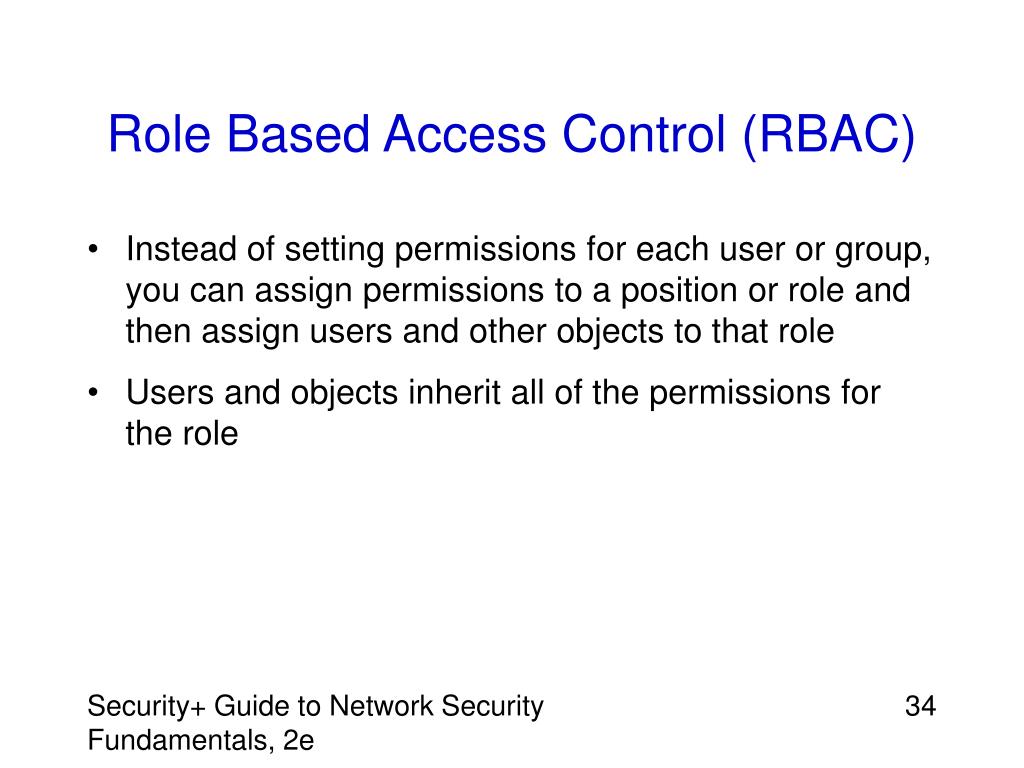

Role Based Access Control (RBAC)
  • Instead of setting permissions for each user or group, you can assign permissions to a position or role and then assign users and other objects to that role
  • Users and objects inherit all of the permissions for the role

Security+ Guide to Network Security Fundamentals, 2e

discretionary access control dac
Discretionary Access Control (DAC)
  • Least restrictive model
  • One subject can adjust the permissions for other subjects over objects
  • Type of access most users associate with their personal computers

Security+ Guide to Network Security Fundamentals, 2e

homework 3
Homework 3
  • Kerberos is one of the more secure authentication techniques being used today. Research how kerberos functions, where it is being used, and what are its strengths and weakness. Write a one-page paper on your finding.
  • Due date 10/12

Security+ Guide to Network Security Fundamentals, 2e

auditing information security schemes
Auditing Information Security Schemes
  • Two ways to audit a security system
    • Logging records which user performed a specific activity and when
    • System scanning to check permissions assigned to a user or role; these results are compared to what is expected to detect any differences

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems
Disabling Nonessential Systems
  • First step in establishing a defense against computer attacks is to turn off all nonessential systems
  • The background program waits in the computer’s random access memory (RAM) until the user presses a specific combination of keys (a hot key), such as Ctrl+Shift+P
  • Then, the idling program springs to life

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued
Disabling Nonessential Systems (continued)
  • Early terminate-and-stay-resident (TSR) programs performed functions such as displaying an instant calculator, small notepad, or address book
  • In Microsoft Windows, a background program, such as Svchostexe, is called a process
  • The process provides a service to the operating system indicated by the service name, such as AppMgmt

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued1
Disabling Nonessential Systems (continued)
  • Users can view the display name of a service, which gives a detailed description, such as Application Management
  • A single process can provide multiple services

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued2
Disabling Nonessential Systems (continued)

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued3
Disabling Nonessential Systems (continued)

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued4
Disabling Nonessential Systems (continued)
  • A service can be set to one of the following modes:
    • Automatic
    • Manual
    • Disabled
  • Besides preventing attackers from attaching malicious code to services, disabling nonessential services blocks entries into the system

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued5
The User Datagram Protocol (UDP) provides for a connectionless TCP/IP transfer

TCP and UDP are based on port numbers

Socket: combination of an IP address and a port number

The IP address is separated from the port number by a colon, as in 19814611820:80

Disabling Nonessential Systems (continued)

Security+ Guide to Network Security Fundamentals, 2e

disabling nonessential systems continued6
Disabling Nonessential Systems (continued)

Security+ Guide to Network Security Fundamentals, 2e

hardening operating systems

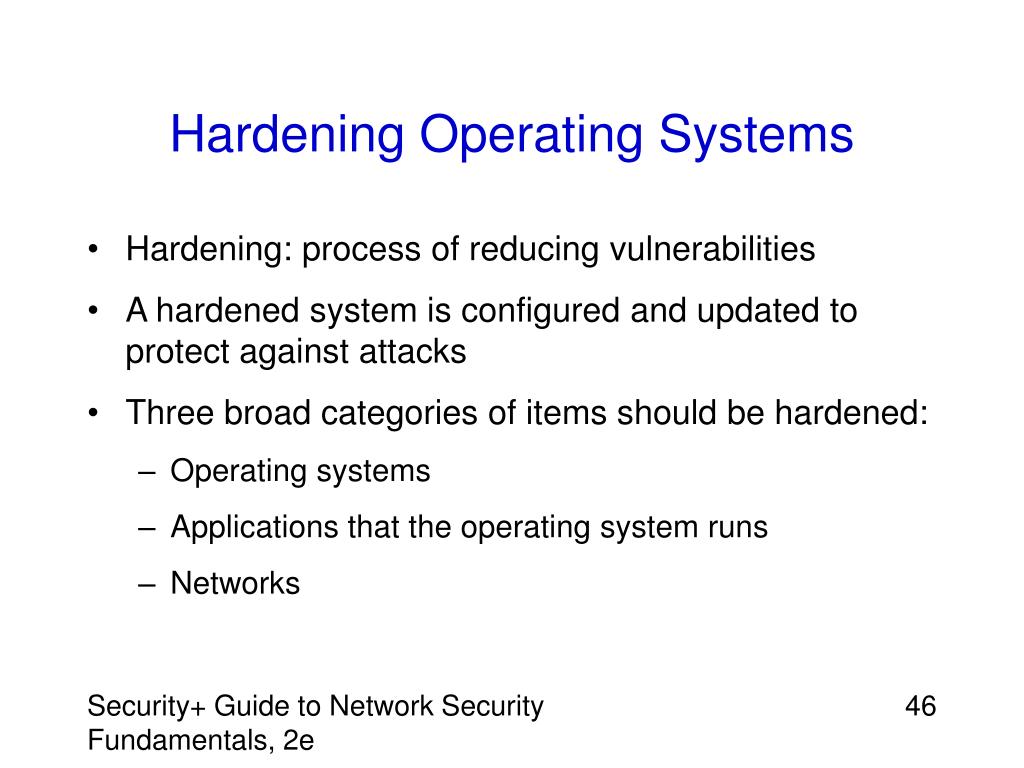

Hardening Operating Systems
  • Hardening: process of reducing vulnerabilities
  • A hardened system is configured and updated to protect against attacks
  • Three broad categories of items should be hardened:
    • Operating systems
    • Applications that the operating system runs
    • Networks

Security+ Guide to Network Security Fundamentals, 2e

applying updates
Applying Updates
  • A service pack (a cumulative set of updates including fixes for problems that have not been made available through updates) provides the broadest and most complete update
  • A hotfix does not typically address security issues; instead, it corrects a specific software problem

Security+ Guide to Network Security Fundamentals, 2e

applying updates continued
Applying Updates (continued)

Security+ Guide to Network Security Fundamentals, 2e

applying updates continued1
Applying Updates (continued)
  • A patch or a software update fixes a security flaw or other problem
    • May be released on a regular or irregular basis, depending on the vendor or support team
    • A good patch management system includes the features listed on pages 111 and 112 of the text

Security+ Guide to Network Security Fundamentals, 2e

securing the file system
Securing the File System
  • Another means of hardening an operating system is to restrict user access
  • Generally, users can be assigned permissions to access folders (also called directories in DOS and UNIX/Linux) and the files contained within them

Security+ Guide to Network Security Fundamentals, 2e

securing the file system continued
Securing the File System (continued)
  • Microsoft Windows provides a centralized method of defining security on the Microsoft Management Console (MMC)
    • A Windows utility that accepts additional components (snap-ins)
    • After you apply a security template to organize security settings, you can import the settings to a group of computers (Group Policy object)

Security+ Guide to Network Security Fundamentals, 2e

securing the file system continued1
Securing the File System (continued)
  • Group Policy settings: components of a user’s desktop environment that a network system administrator needs to manage
  • Group Policy settings cannot override a global setting for all computers (domain-based setting)
  • Windows stores settings for the computer’s hardware and software in a database (the registry)

Security+ Guide to Network Security Fundamentals, 2e

hardening applications
Hardening Applications
  • Just as you must harden operating systems, you must also harden the applications that run on those systems
  • Hotfixes, service packs, and patches are generally available for most applications; although, not usually with the same frequency as for an operating system

Security+ Guide to Network Security Fundamentals, 2e

hardening servers
Hardening Servers
  • Harden servers to prevent attackers from breaking through the software
  • Web server delivers text, graphics, animation, audio, and video to Internet users around the world
  • Refer to the steps on page 115 to harden a Web server

Security+ Guide to Network Security Fundamentals, 2e

steps to harden a web server
Steps to harden a web server
  • Use ACL to limit a Web surfer’s ability (Table 4-5)
  • Update the server regularly
  • Regularly visit attacker Web sites
  • Delete sample files
  • Isolate the Web server from the internal network?
  • Example the log file regularly
  • Delete unused CGI
  • Encrypts the transmission

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued
Hardening Servers (continued)
  • Mail server is used to send and receive electronic messages
  • In a normal setting, a mail server serves an organization or set of users
  • All e-mail is sent through the mail server from a trusted user or received from an outsider and intended for a trusted user

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued1
Hardening Servers (continued)

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued2
Hardening Servers (continued)

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued3
Hardening Servers (continued)
  • In an open mail relay, a mail server processes e-mail messages not sent by or intended for a local user
  • File Transfer Protocol (FTP) server is used to store and access files through the Internet
    • Typically used to accommodate users who want to download or upload files

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued4
Hardening Servers (continued)
  • FTP servers can be set to accept anonymous logons using a window similar that shown in Figure 4-8
  • A Domain Name Service (DNS) server makes the Internet available to ordinary users
    • DNS servers frequently update each other by transmitting all domains and IP addresses of which they are aware (zone transfer)

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued5
Hardening Servers (continued)

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued6
Hardening Servers (continued)
  • IP addresses and other information can be used in an attack
  • USENET is a worldwide bulletin board system that can be accessed through the Internet or many online services
  • The Network News Transfer Protocol (NNTP) is the protocol used to send, distribute, and retrieve USENET messages through NNTP servers

Security+ Guide to Network Security Fundamentals, 2e

hardening servers continued7
Hardening Servers (continued)
  • Print/file servers on a local area network (LAN) allow users to share documents on a central server or to share printers
  • Hardening a print/file server involves the tasks listed on page 119 of the text
    • Allowing only trusted users to access the print/file server
    • Letting users pause or cancle their print jobs, but not cancel another person’s job
    • Providing users with ACL
    • Providing read access to users for files stored in public folders
    • Providing read and write access to users for group folders

Security+ Guide to Network Security Fundamentals, 2e

hardening dhcp servers
Hardening DHCP Servers
  • A DHCP server allocates IP addresses using the Dynamic Host Configuration Protocol (DHCP)
  • DHCP servers “lease” IP addresses to clients

Security+ Guide to Network Security Fundamentals, 2e

hardening data repositories
Hardening Data Repositories
  • Data repository: container that holds electronic information
  • Two major data repositories: directory services and company databases
  • Directory service: database stored on the network that contains all information about users and network devices along with privileges to those resources

Security+ Guide to Network Security Fundamentals, 2e

hardening data repositories continued
Hardening Data Repositories (continued)
  • Active Directory is the directory service for Windows
  • Active Directory is stored in the Security Accounts Manager (SAM) database
  • The primary domain controller (PDC) houses the SAM database
  • SQL injection

Security+ Guide to Network Security Fundamentals, 2e

magnetic media
Magnetic Media
  • Record information by changing the magnetic direction of particles on a platter
  • Floppy disks were some of the first magnetic media developed
  • The capacity of today’s 3 1/2-inch disks are 14 MB
  • Hard drives contain several platters stacked in a closed unit, each platter having its own head or apparatus to read and write information
  • Magnetic tape drives record information in a serial fashion

Security+ Guide to Network Security Fundamentals, 2e

optical media
Optical Media
  • Optical media use a principle for recording information different from magnetic media
  • A high-intensity laser burns a tiny pit into the surface of an optical disc to record a one, but does nothing to record a zero
  • Capacity of optical discs varies by type
  • A Compact Disc-Recordable (CD-R) disc can record up to 650 MB of data
  • Data cannot be changed once recorded

Security+ Guide to Network Security Fundamentals, 2e

optical media continued
Optical Media (continued)
  • A Compact Disc-Rewriteable (CD-RW) disc can be used to record data, erase it, and record again
  • A Digital Versatile Disc (DVD) can store much larger amounts of data
    • DVD formats include Digital Versatile Disc-Recordable (DVD-R), which can record once up to 395 GB on a single-sided disc and 79 GB on a double-sided disc

Security+ Guide to Network Security Fundamentals, 2e

electronic media
Electronic Media
  • Electronic media use flash memory for storage
    • Flash memory is a solid state storage device―everything is electronic, with no moving or mechanical parts
  • SmartMedia cards range in capacity from 2 MB to 128 MB
  • The card itself is only 45 mm long, 37 mm wide, and less than 1 mm thick

Security+ Guide to Network Security Fundamentals, 2e

electronic media continued
Electronic Media (continued)
  • CompactFlash card
    • Consists of a small circuit board with flash memory chips and a dedicated controller chip encased in a shell
    • Come in 33 mm and 55 mm thicknesses and store between 8MB and 192 MB of data
  • USB memory stick is becoming very popular
    • Can hold between 8 MB and 1 GB of memory

Security+ Guide to Network Security Fundamentals, 2e

keeping removable media secure
Keeping Removable Media Secure
  • Protecting removable media involves making sure that antivirus and other security software are installed on all systems that may receive a removable media device, including employee home computers

Security+ Guide to Network Security Fundamentals, 2e

hardening network devices
Hardening Network Devices
  • Each device that is connected to a network is a potential target of an attack and must be properly protected
  • Network devices to be hardened categorized as:
    • Standard network devices
    • Communication devices
    • Network security devices

Security+ Guide to Network Security Fundamentals, 2e

hardening standard network devices
Hardening Standard Network Devices
  • A standard network device is a typical piece of equipment that is found on almost every network, such as a workstation, server, switch, or router
  • This equipment has basic security features that you can use to harden the devices

Security+ Guide to Network Security Fundamentals, 2e

workstations and servers
Workstations and Servers
  • Workstation: personal computer attached to a network (also called a client)
    • Connected to a LAN and shares resources with other workstations and network equipment
    • Can be used independently of the network and can have their own applications installed
  • Server: computer on a network dedicated to managing and controlling the network
  • Basic steps to harden these systems are outlined on page 152

Security+ Guide to Network Security Fundamentals, 2e

switches and routers
Switches and Routers
  • Switch
    • Most commonly used in Ethernet LANs
    • Receives a packet from one network device and sends it to the destination device only
    • Limits the collision domain (part of network on which multiple devices may attempt to send packets simultaneously)
  • A switch is used within a single network
  • Routers connect two or more single networks to form a larger network

Security+ Guide to Network Security Fundamentals, 2e

switches and routers continued
Switches and Routers (continued)
  • Switches and routers must also be protected against attacks
  • Switches and routers can be managed using the Simple Network Management Protocol (SNMP), part of the TCP/IP protocol suite
  • Software agents are loaded onto each network device to be managed

Security+ Guide to Network Security Fundamentals, 2e

switches and routers continued1
Switches and Routers (continued)
  • Each agent monitors network traffic and stores that information in its management information base (MIB)
  • A computer with SNMP management software (SNMP management station) communicates with software agents on each network device and collects the data stored in the MIBs
  • Page 154 lists defensive controls that can be set for switches and routers

Security+ Guide to Network Security Fundamentals, 2e

hardening communication devices
Hardening Communication Devices
  • A second category of network devices are those that communicate over longer distances
  • Include:
    • Modems
    • Remote access servers
    • Telecom/PBX Systems
    • Mobile devices

Security+ Guide to Network Security Fundamentals, 2e

modems
Modems
  • Most common communication device
  • Broadband is increasing in popularity and can create network connection speeds of 15 Mbps and higher
  • Two popular broadband technologies:
    • Digital Subscriber Line (DSL) transmits data at 15 Mbps over regular telephone lines
    • Another broadband technology uses the local cable television system

Security+ Guide to Network Security Fundamentals, 2e

modems continued
Modems (continued)
  • A computer connects to a cable modem, which is connected to the coaxial cable that brings cable TV signals to the home
  • Because cable connectivity is shared in a neighborhood, other users can use a sniffer to view traffic
  • Another risk with DSL and cable modem connections is that broadband connections are charged at a set monthly rate, not by the minute of connect time

Security+ Guide to Network Security Fundamentals, 2e

remote access servers
Remote Access Servers
  • Set of technologies that allows a remote user to connect to a network through the Internet or a wide area network (WAN)
  • Users run remote access client software and initiate a connection to a Remote Access Server (RAS), which authenticates users and passes service requests to the network

Security+ Guide to Network Security Fundamentals, 2e

remote access servers continued
Remote Access Servers (continued)

Security+ Guide to Network Security Fundamentals, 2e

remote access servers continued1
Remote Access Servers (continued)
  • Remote access clients can run almost all network-based applications without modification
    • Possible because remote access technology supports both drive letters and universal naming convention (UNC) names
  • Minimum security features are listed on page 158

Security+ Guide to Network Security Fundamentals, 2e

mobile devices
Mobile Devices
  • As cellular phones and personal digital assistants (PDAs) have become increasingly popular, they have become the target of attackers
  • Some defenses against attacks on these devices use real-time data encryption and passwords to protect the system so that an intruder cannot “beam” a virus through a wireless connection

Security+ Guide to Network Security Fundamentals, 2e

homework 4
Homework 4

Install a packet sniff etheral

Capture the packets in/out your computer

Try to write a report what you see in the report

Deadline 10/19

Mail the report to me mhyang@cycu.edu.tw

Security+ Guide to Network Security Fundamentals, 2e

hardening networks
Hardening Networks
  • Two-fold process for keeping a network secure:
    • Secure the network with necessary updates
    • Properly configure it

Security+ Guide to Network Security Fundamentals, 2e

firmware updates
Firmware Updates
  • RAM is volatile―interrupting the power source causes RAM to lose its entire contents
  • Read-only memory (ROM) is different from RAM in two ways:
    • Contents of ROM are fixed
    • ROM is nonvolatile―disabling the power source does not erase its contents

Security+ Guide to Network Security Fundamentals, 2e

firmware updates continued
Firmware Updates (continued)
  • ROM, Erasable Programmable Read-Only Memory (EPROM), and Electrically Erasable Programmable Read-Only Memory (EEPROM) are firmware
  • To erase an EPROM chip, hold the chip under ultraviolet light so the light passes through its crystal window
  • The contents of EEPROM chips can also be erased using electrical signals applied to specific pins

Security+ Guide to Network Security Fundamentals, 2e

network configuration
Network Configuration
  • You must properly configure network equipment to resist attacks
  • The primary method of resisting attacks is to filter data packets as they arrive at the perimeter of the network

Security+ Guide to Network Security Fundamentals, 2e

network configuration continued
Network Configuration (continued)
  • Rule base or access control list (ACL): rules a network device uses to permit or deny a packet (not to be confused with ACLs used in securing a file system)
  • Rules are composed of several settings (listed on pages 122 and 123 of the text)
  • Observe the basic guidelines on page 124 of the text when creating rules

Security+ Guide to Network Security Fundamentals, 2e

network configuration continued1
Network Configuration (continued)

Security+ Guide to Network Security Fundamentals, 2e

hardening network security devices
Hardening Network Security Devices
  • The final category of network devices includes those designed and used strictly to protect the network
  • Include:
    • Firewalls
    • Intrusion-detection systems
    • Network monitoring and diagnostic devices

Security+ Guide to Network Security Fundamentals, 2e

firewalls
Firewalls
  • Typically used to filter packets
  • Designed to prevent malicious packets from entering the network or its computers (sometimes called a packet filter)
  • Typically located outside the network security perimeter as first line of defense
  • Can be software or hardware configurations

Security+ Guide to Network Security Fundamentals, 2e

firewalls continued
Firewalls (continued)
  • Software firewall runs as a program on a local computer (sometimes known as a personal firewall)
    • Enterprise firewalls are software firewalls designed to run on a dedicated device and protect a network instead of only one computer
    • One disadvantage is that it is only as strong as the operating system of the computer

Security+ Guide to Network Security Fundamentals, 2e

firewalls continued1
Firewalls (continued)
  • Filter packets in one of two ways:
    • Stateless packet filtering: permits or denies each packet based strictly on the rule base
    • Stateful packet filtering: records state of a connection between an internal computer and an external server; makes decisions based on connection and rule base
  • Can perform content filtering to block access to undesirable Web sites

Security+ Guide to Network Security Fundamentals, 2e

firewalls continued2
Firewalls (continued)
  • An application layer firewall can defend against worms better than other kinds of firewalls
    • Reassembles and analyzes packet streams instead of examining individual packets

Security+ Guide to Network Security Fundamentals, 2e

intrusion detection systems idss
Intrusion-Detection Systems (IDSs)
  • Devices that establish and maintain network security
  • Active IDS (or reactive IDS) performs a specific function when it senses an attack, such as dropping packets or tracing the attack back to a source
    • Installed on the server or, in some instances, on all computers on the network
  • Passive IDS sends information about what happened, but does not take action

Security+ Guide to Network Security Fundamentals, 2e

intrusion detection systems idss continued
Intrusion-Detection Systems (IDSs) (continued)
  • Host-based IDS monitors critical operating system files and computer’s processor activity and memory; scans event logs for signs of suspicious activity
  • Network-based IDS monitors all network traffic instead of only the activity on a computer
    • Typically located just behind the firewall
  • Other IDS systems are based on behavior:
    • Watch network activity and report abnormal behavior
    • Result in many false alarms

Security+ Guide to Network Security Fundamentals, 2e

network monitoring and diagnostic devices
Network Monitoring and Diagnostic Devices
  • SNMP enables network administrators to:
    • Monitor network performance
    • Find and solve network problems
    • Plan for network growth
  • Managed device:
    • Network device that contains an SNMP agent
    • Collects and stores management information and makes it available to SNMP

Security+ Guide to Network Security Fundamentals, 2e

designing network topologies
Designing Network Topologies
  • Topology: physical layout of the network devices, how they are interconnected, and how they communicate
  • Essential to establishing its security
  • Although network topologies can be modified for security reasons, the network still must reflect the needs of the organization and users

Security+ Guide to Network Security Fundamentals, 2e

security zones
Security Zones
  • One of the keys to mapping the topology of a network is to separate secure users from outsiders through:
    • Demilitarized Zones (DMZs)
    • Intranets
    • Extranets

Security+ Guide to Network Security Fundamentals, 2e

demilitarized zones dmzs
Demilitarized Zones (DMZs)
  • Separate networks that sit outside the secure network perimeter
  • Outside users can access the DMZ, but cannot enter the secure network
  • For extra security, some networks use a DMZ with two firewalls
  • The types of servers that should be located in the DMZ include:
    • Web servers – E-mail servers
    • Remote access servers – FTP servers

Security+ Guide to Network Security Fundamentals, 2e

demilitarized zones dmzs continued
Demilitarized Zones (DMZs) (continued)

Security+ Guide to Network Security Fundamentals, 2e

intranets
Intranets
  • Networks that use the same protocols as the public Internet, but are only accessible to trusted inside users
  • Disadvantage is that it does not allow remote trusted users access to information

Security+ Guide to Network Security Fundamentals, 2e

extranets
Extranets
  • Sometimes called a cross between the Internet and an intranet
  • Accessible to users that are not trusted internal users, but trusted external users
  • Not accessible to the general public, but allows vendors and business partners to access a company Web site

Security+ Guide to Network Security Fundamentals, 2e

network address translation nat
Network Address Translation (NAT)
  • “You cannot attack what you do not see” is the philosophy behind Network Address Translation (NAT) systems
  • Hides the IP addresses of network devices from attackers
  • Computers are assigned special IP addresses (known as private addresses)

Security+ Guide to Network Security Fundamentals, 2e

network address translation nat continued
Network Address Translation (NAT) (continued)
  • These IP addresses are not assigned to any specific user or organization; anyone can use them on their own private internal network
  • Port address translation (PAT) is a variation of NAT
  • Each packet is given the same IP address, but a different TCP port number

Security+ Guide to Network Security Fundamentals, 2e

honeypots
Honeypots
  • Computers located in a DMZ loaded with software and data files that appear to be authentic
  • Intended to trap or trick attackers
  • Two-fold purpose:
    • To direct attacker’s attention away from real servers on the network
    • To examine techniques used by attackers

Security+ Guide to Network Security Fundamentals, 2e

honeypots continued
Honeypots (continued)

Security+ Guide to Network Security Fundamentals, 2e

virtual lans vlans
Virtual LANs (VLANs)
  • Segment a network with switches to divide the network into a hierarchy
  • Core switches reside at the top of the hierarchy and carry traffic between switches
  • Workgroup switches are connected directly to the devices on the network
  • Core switches must work faster than workgroup switches because core switches must handle the traffic of several workgroup switches

Security+ Guide to Network Security Fundamentals, 2e

virtual lans vlans continued
Virtual LANs (VLANs) (continued)

Security+ Guide to Network Security Fundamentals, 2e

virtual lans vlans continued1
Virtual LANs (VLANs) (continued)
  • Segment a network by grouping similar users together
  • Instead of segmenting by user, you can segment a network by separating devices into logical groups (known as creating a VLAN)

Security+ Guide to Network Security Fundamentals, 2e

summary
Summary
  • Creating and maintaining a secure environment cannot be delegated to one or two employees in an organization
  • Major tasks of securing information can be accomplished using a bottom-up approach, where security effort originates with low-level employees and moves up the organization chart to the CEO
  • In a top-down approach, the effort starts at the highest levels of the organization and works its way down

Security+ Guide to Network Security Fundamentals, 2e

summary continued
Summary (continued)
  • Basic principles for creating a secure environment: layering, limiting, diversity, obscurity, and simplicity
  • Basic pillars of security:
    • Authentication: verifying that a person requesting access to a system is who he claims to be
    • Access control: regulating what a subject can do with an object
    • Auditing: review of the security settings

Security+ Guide to Network Security Fundamentals, 2e

summary continued1
Summary (continued)
  • Establishing a security baseline creates a basis for information security
  • Hardening the operating system involves applying the necessary updates to the software
  • Securing the file system is another step in hardening a system

Security+ Guide to Network Security Fundamentals, 2e

summary continued2
Summary (continued)
  • Applications and operating systems must be hardened by installing the latest patches and updates
  • Servers, such as Web servers, mail servers, FTP servers, DNS servers, NNTP servers, print/file servers, and DHCP servers, must be hardened to prevent attackers from corrupting them or using the server to launch other attacks

Security+ Guide to Network Security Fundamentals, 2e

summary continued3
Summary (continued)
  • Cable plant: physical infrastructure (wire, connectors, and cables that carry data communication signals between equipment)
  • Removable media used to store information include:
    • Magnetic storage (removable disks, hard drives)
    • Optical storage (CD and DVD)
    • Electronic storage (USB memory sticks, FlashCards)

Security+ Guide to Network Security Fundamentals, 2e

summary continued4
Summary (continued)
  • Network devices (workstations, servers, switches, and routers) should all be hardened to repel attackers
  • A network’s topology plays a critical role in resisting attackers
  • Hiding the IP address of a network device can help disguise it so that an attacker cannot find it

Security+ Guide to Network Security Fundamentals, 2e

homework 5
Homework 5
  • Download and install zonealarm in your computer
  • Is there any security problem in the personal firewall like zonealarm?
  • Write a report to show how it protect your computer and the problem you found
  • Due date 10/26

Security+ Guide to Network Security Fundamentals, 2e
