Presentation Transcript
Ac rga analyzers

AC RGA Analyzers

Multi-Purpose Gas Analysis

AC RGA Analyzers

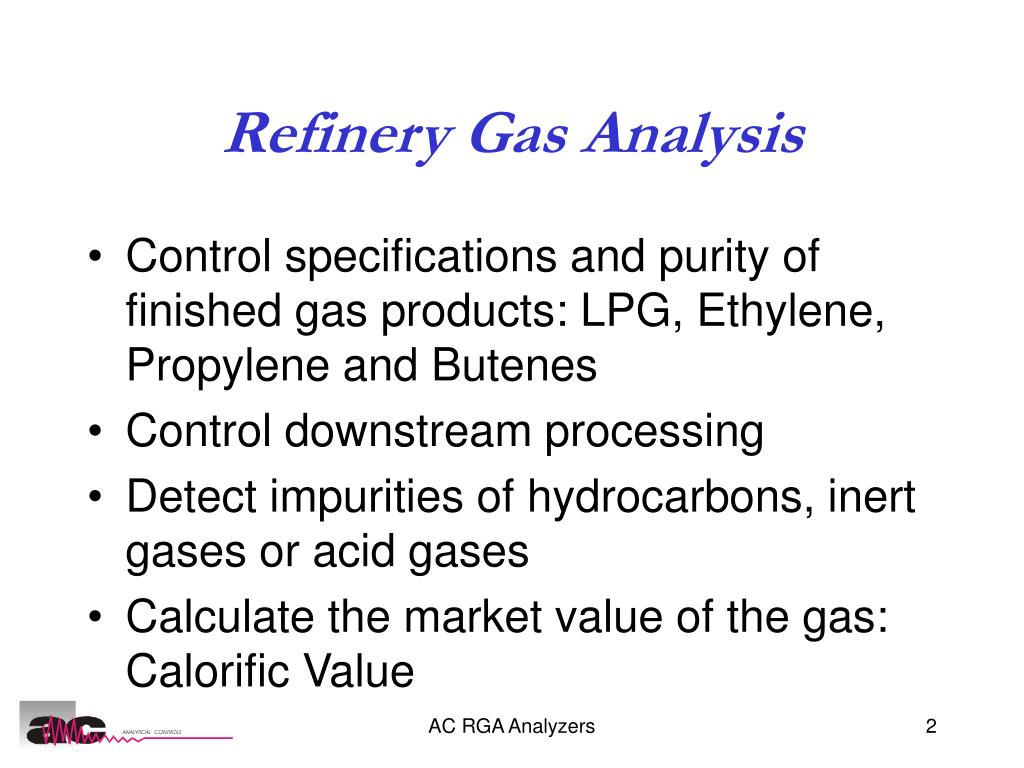

Refinery Gas Analysis

  • Control specifications and purity of finished gas products: LPG, Ethylene, Propylene and Butenes

  • Control downstream processing

  • Detect impurities of hydrocarbons, inert gases or acid gases

  • Calculate the market value of the gas: Calorific Value

AC RGA Analyzers

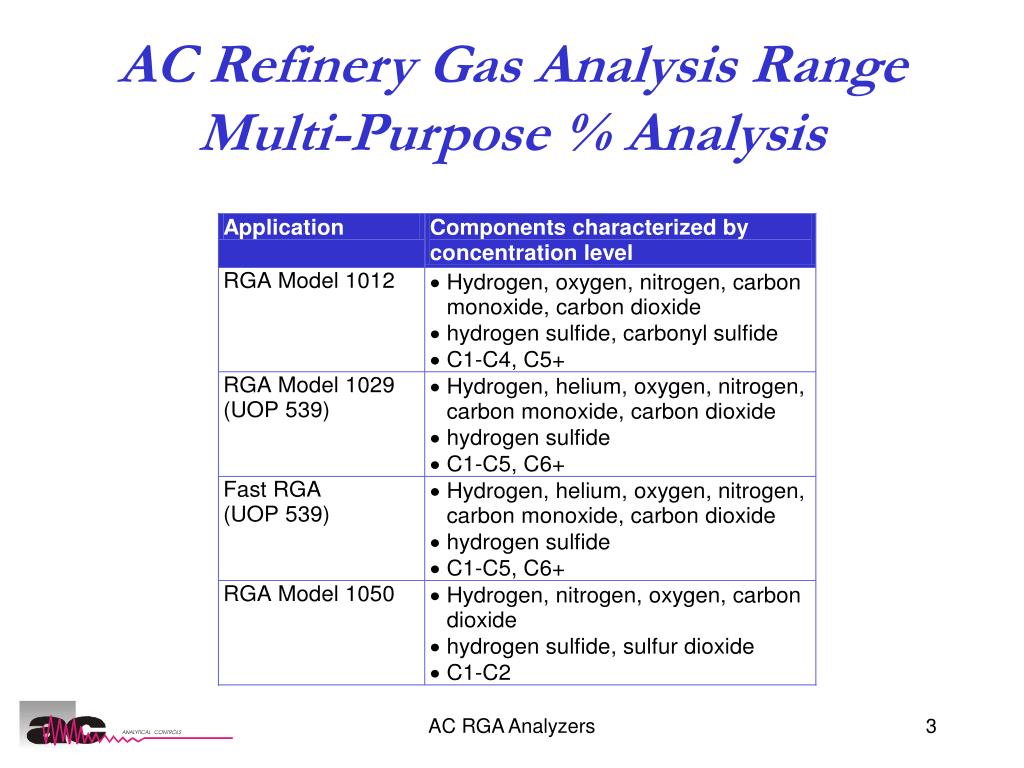

AC Refinery Gas Analysis RangeMulti-Purpose % Analysis

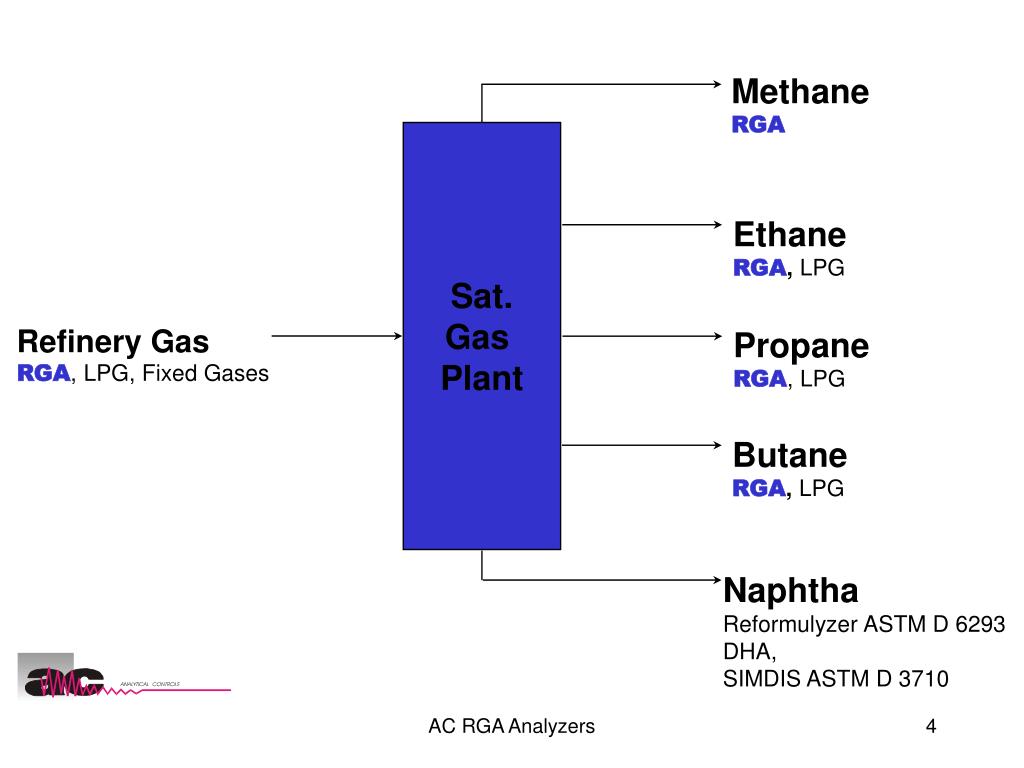

AC RGA Analyzers


Methane

RGA

Propane

RGA, LPG

Sat.

Gas

Plant

Ethane

RGA, LPG

Refinery Gas

RGA, LPG, Fixed Gases

Butane

RGA, LPG

Naphtha

Reformulyzer ASTM D 6293

DHA,

SIMDIS ASTM D 3710

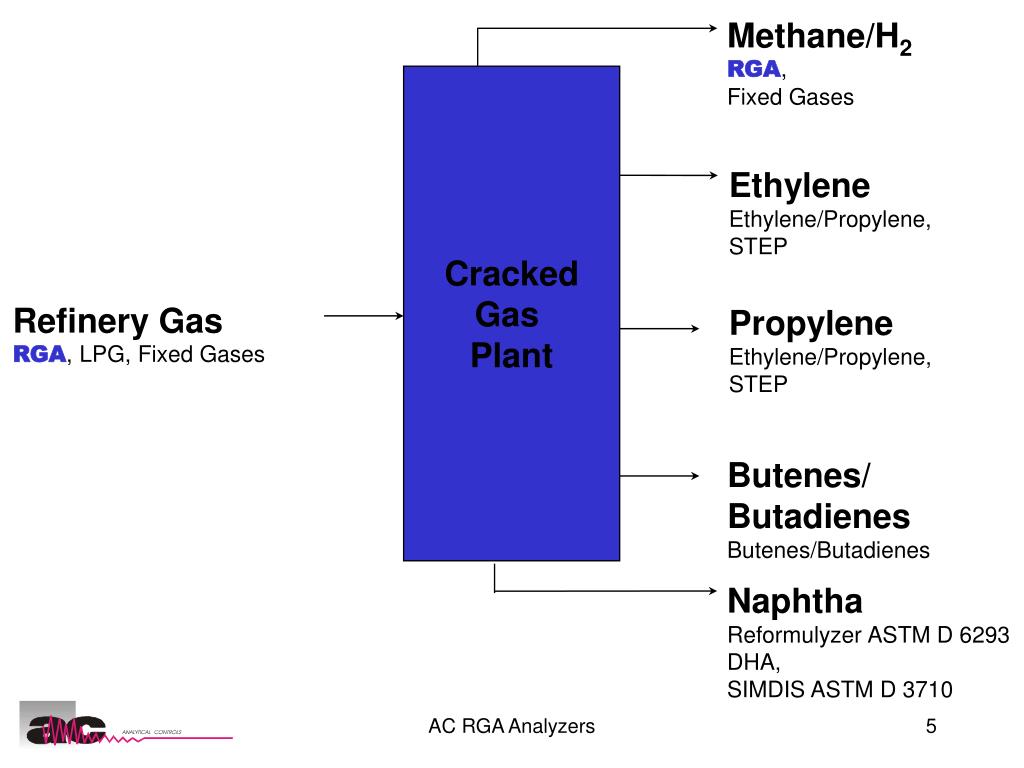

AC RGA Analyzers


Methane/H2

RGA,

Fixed Gases

Cracked

Gas

Plant

Ethylene

Ethylene/Propylene,

STEP

Refinery Gas

RGA, LPG, Fixed Gases

Propylene

Ethylene/Propylene,

STEP

Butenes/

Butadienes

Butenes/Butadienes

Naphtha

Reformulyzer ASTM D 6293

DHA,

SIMDIS ASTM D 3710

AC RGA Analyzers

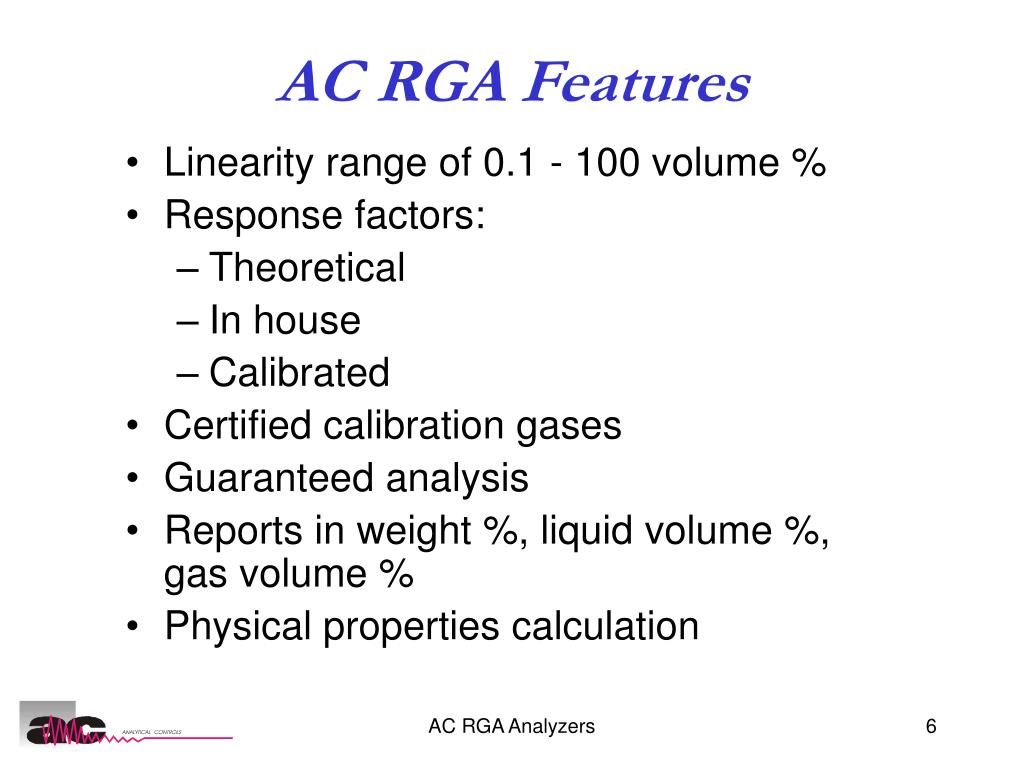

Ac rga features
AC RGA Features

  • Linearity range of 0.1 - 100 volume %

  • Response factors:

    • Theoretical

    • In house

    • Calibrated

  • Certified calibration gases

  • Guaranteed analysis

  • Reports in weight %, liquid volume %, gas volume %

  • Physical properties calculation

AC RGA Analyzers

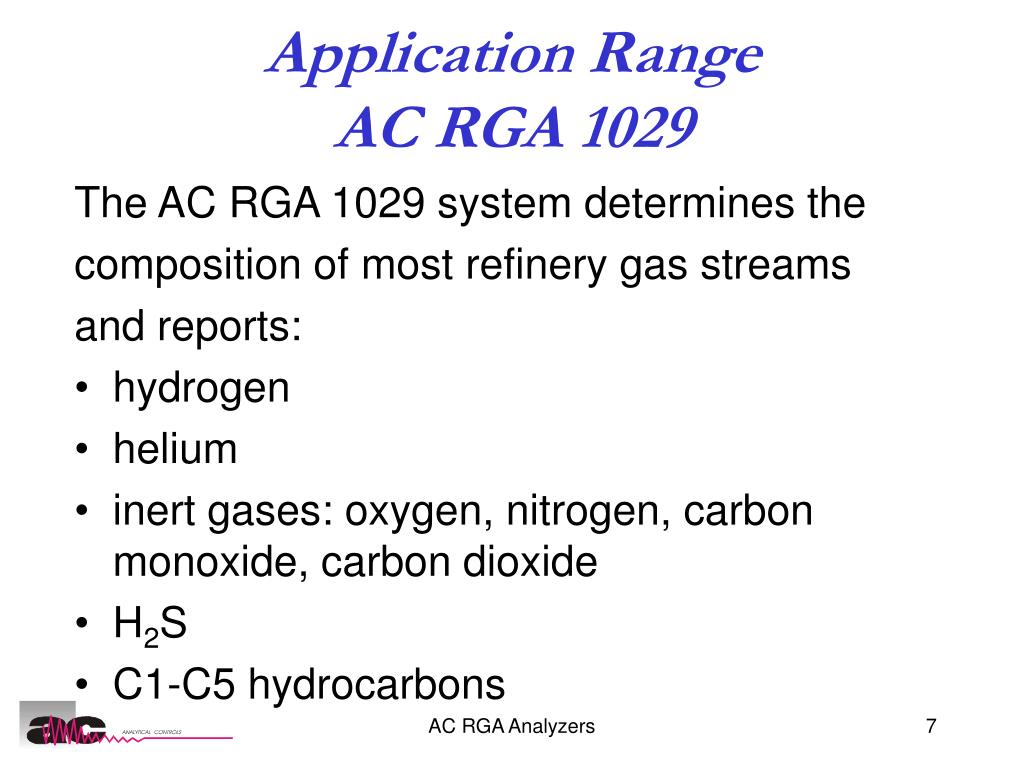

Application RangeAC RGA 1029

  • The AC RGA 1029 system determines the

  • composition of most refinery gas streams

  • and reports:

  • hydrogen

  • helium

  • inert gases: oxygen, nitrogen, carbon monoxide, carbon dioxide

  • H2S

  • C1-C5 hydrocarbons

AC RGA Analyzers

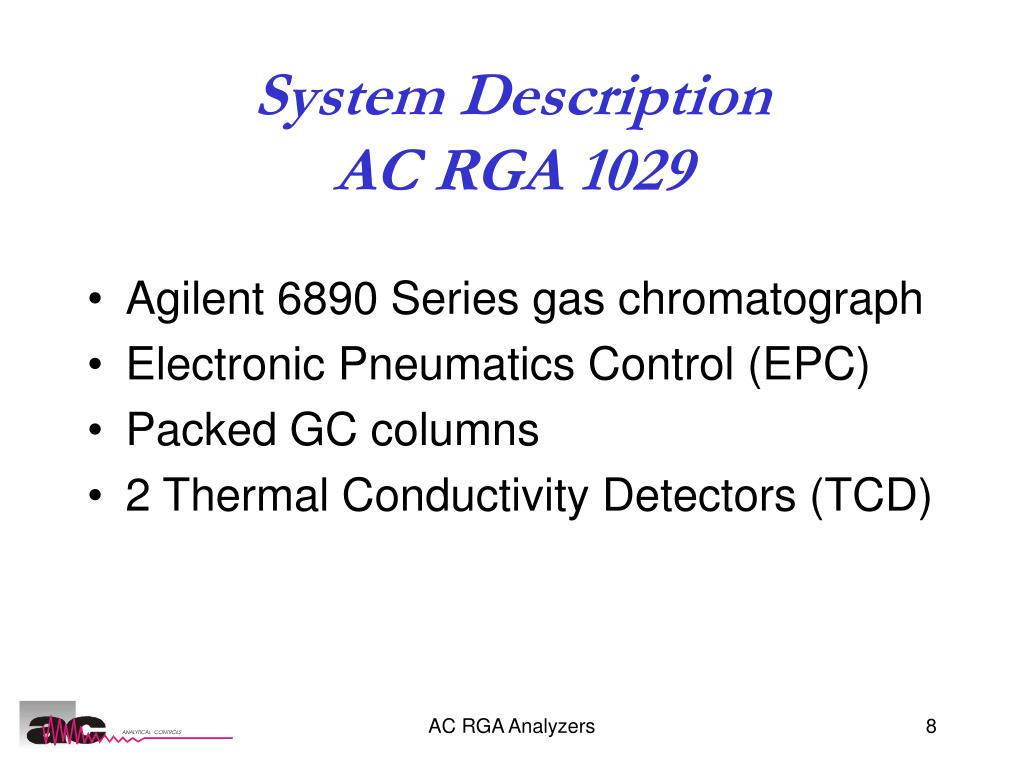

System DescriptionAC RGA 1029

  • Agilent 6890 Series gas chromatograph

  • Electronic Pneumatics Control (EPC)

  • Packed GC columns

  • 2 Thermal Conductivity Detectors (TCD)

AC RGA Analyzers

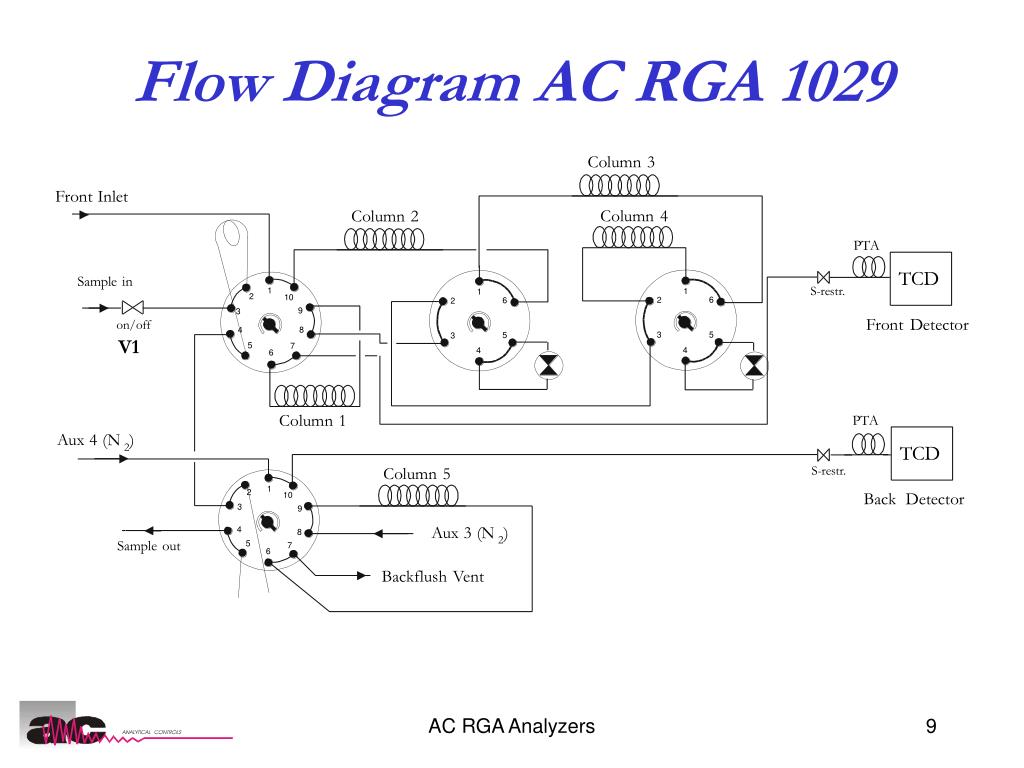

Flow diagram ac rga 1029
Flow Diagram AC RGA 1029

AC RGA Analyzers

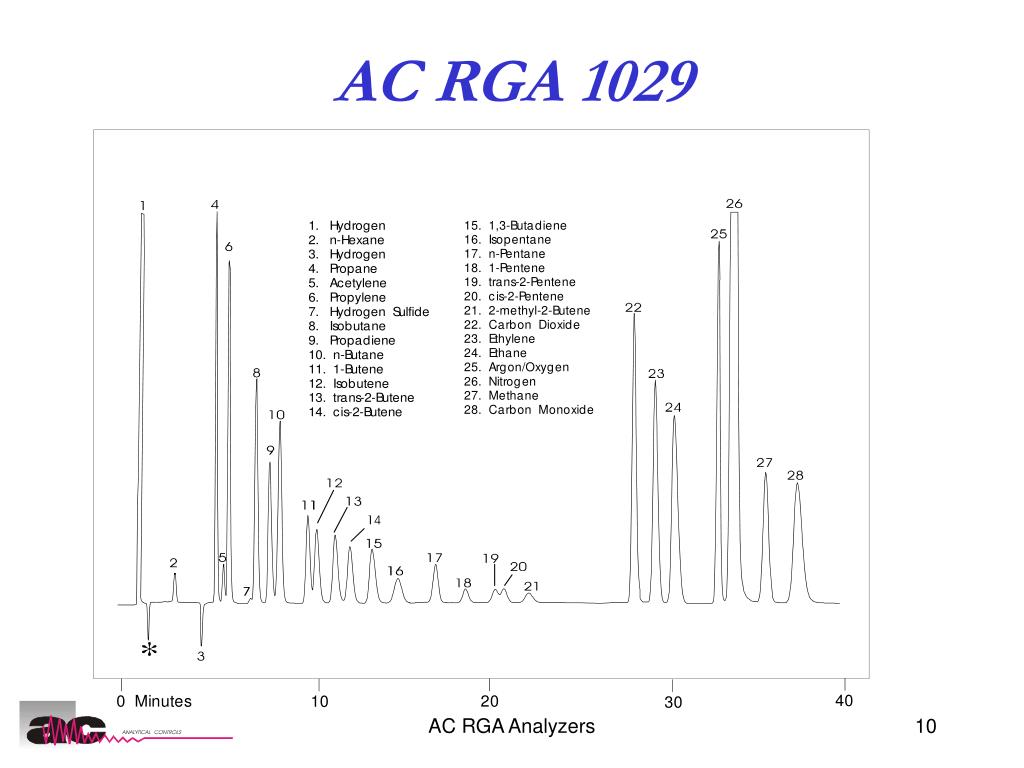

Ac rga 1029
AC RGA 1029

AC RGA Analyzers

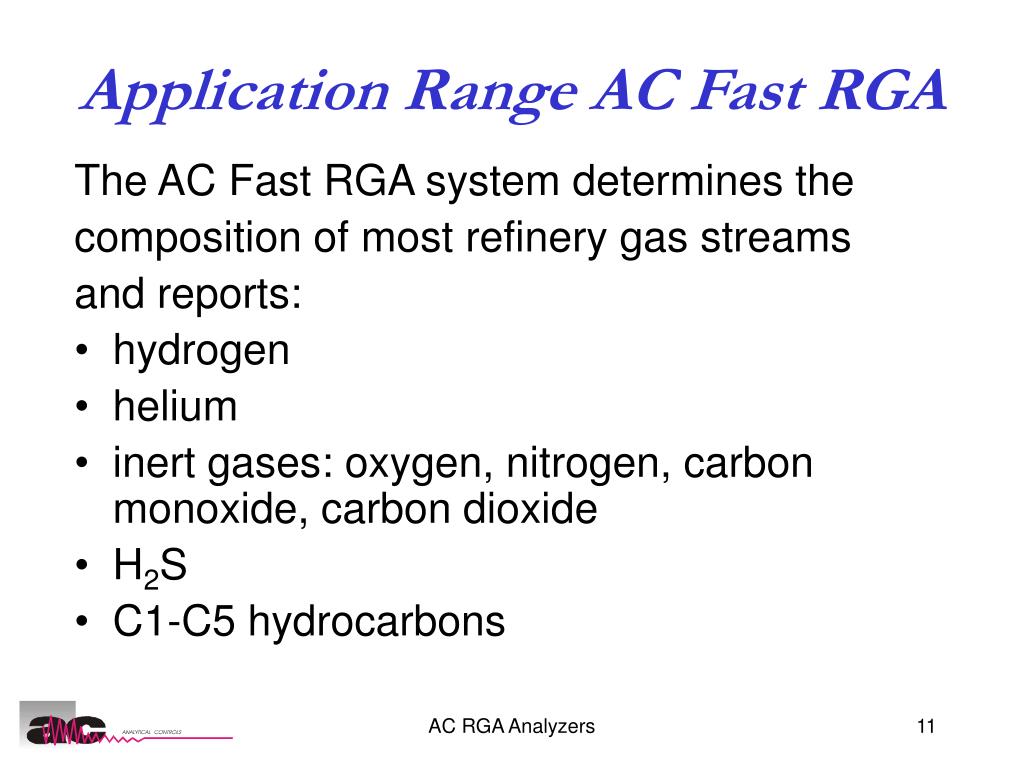

Application range ac fast rga
Application Range AC Fast RGA

The AC Fast RGA system determines the

composition of most refinery gas streams

and reports:

  • hydrogen

  • helium

  • inert gases: oxygen, nitrogen, carbon monoxide, carbon dioxide

  • H2S

  • C1-C5 hydrocarbons

AC RGA Analyzers

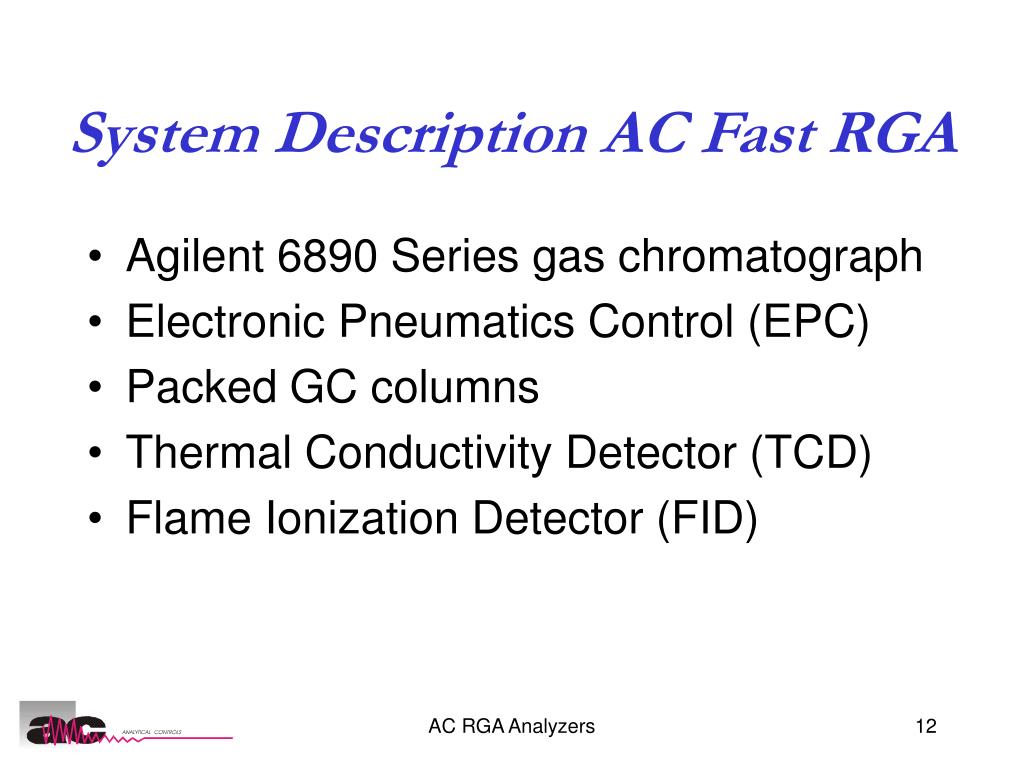

System description ac fast rga
System Description AC Fast RGA

  • Agilent 6890 Series gas chromatograph

  • Electronic Pneumatics Control (EPC)

  • Packed GC columns

  • Thermal Conductivity Detector (TCD)

  • Flame Ionization Detector (FID)

AC RGA Analyzers

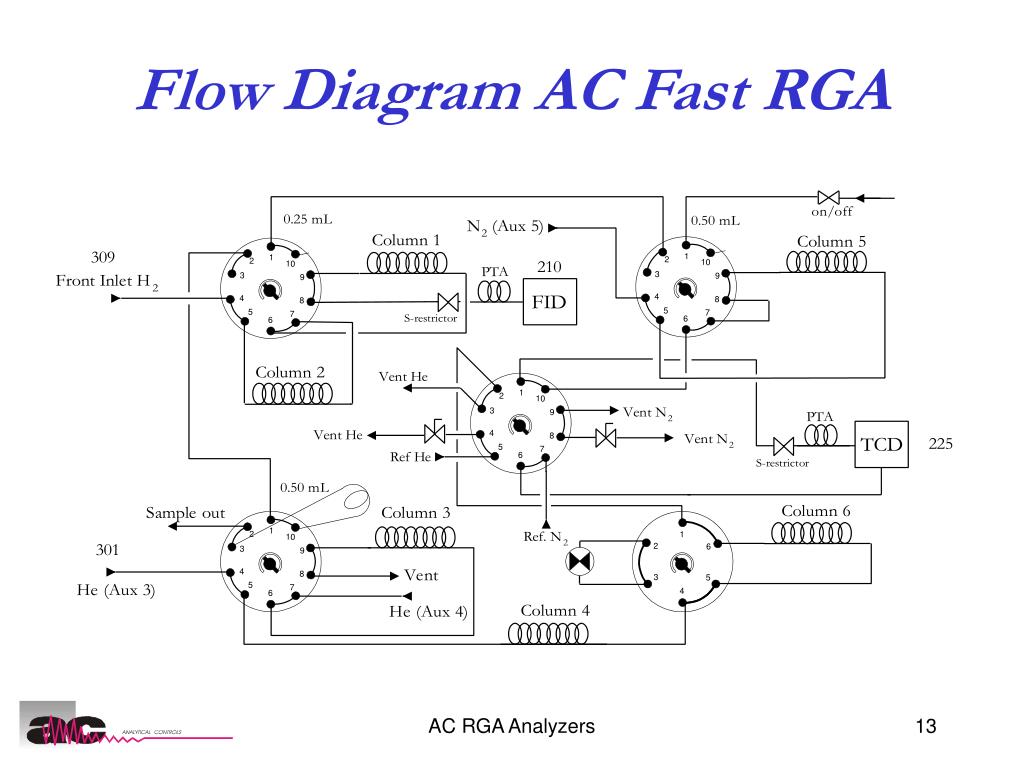

Flow diagram ac fast rga
Flow Diagram AC Fast RGA

AC RGA Analyzers

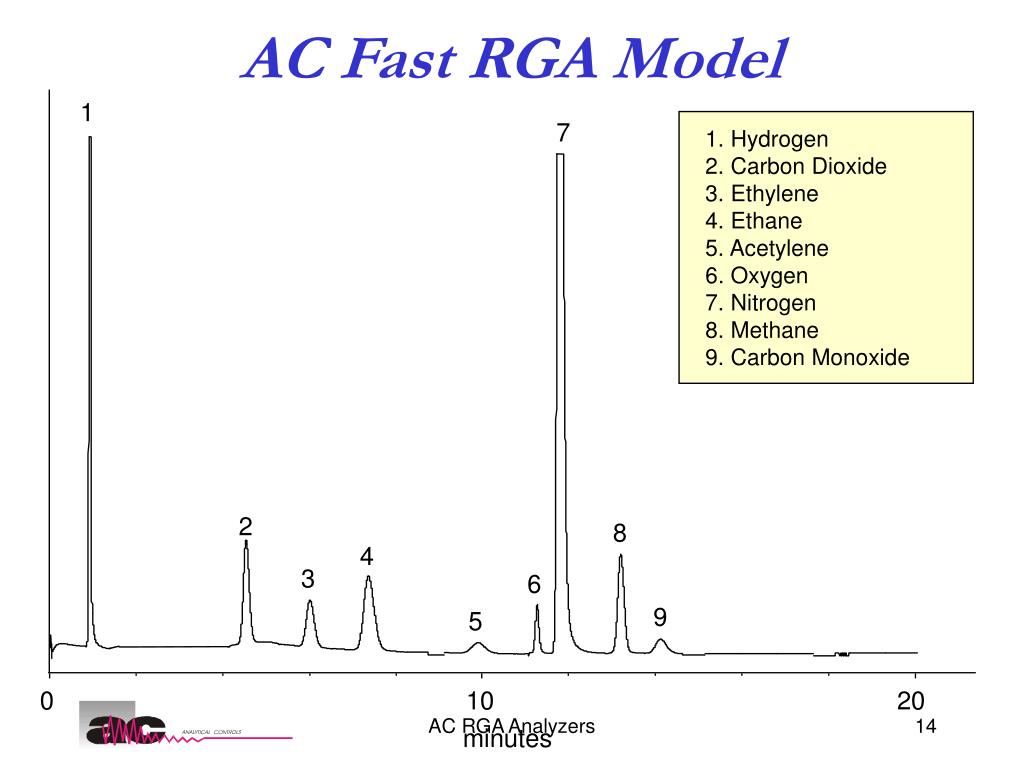

1. Hydrogen

2. Carbon Dioxide

3. Ethylene

4. Ethane

5. Acetylene

6. Oxygen

7. Nitrogen

8. Methane

9. Carbon Monoxide

AC Fast RGA Model

1

7

2

8

4

3

6

9

5

0

10

20

AC RGA Analyzers

minutes


4

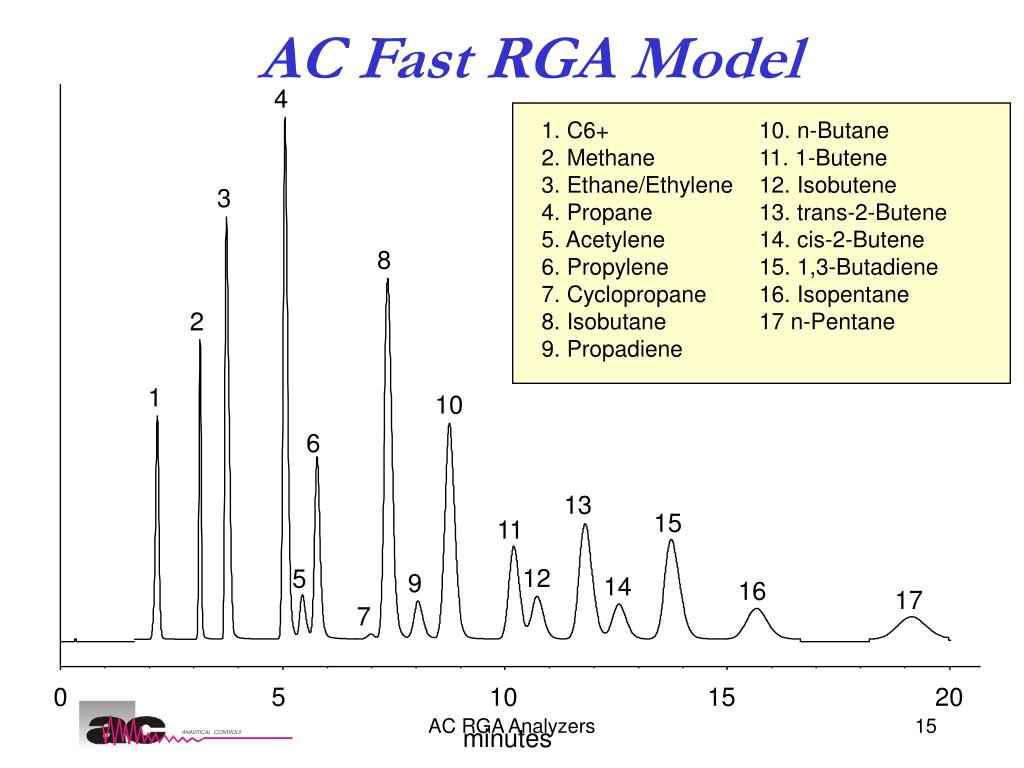

1. C6+ 10. n-Butane

2. Methane 11. 1-Butene

3. Ethane/Ethylene 12. Isobutene

4. Propane 13. trans-2-Butene

5. Acetylene 14. cis-2-Butene

6. Propylene 15. 1,3-Butadiene

7. Cyclopropane 16. Isopentane

8. Isobutane 17 n-Pentane

9. Propadiene

3

8

2

1

10

6

13

15

11

12

5

9

14

16

17

7

0

5

10

15

20

AC Fast RGA Model

AC RGA Analyzers

minutes
