GPS Geometry August 14, 2012. Geometry. The Basics!!!. Get to the point!. Point The basic unit of geometry Has no dimension. Used to represent a precise location on a plane Infinitely small and is usually represented by a small dot. Usually named using upper-case single letters

Download Presentation
## Geometry

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

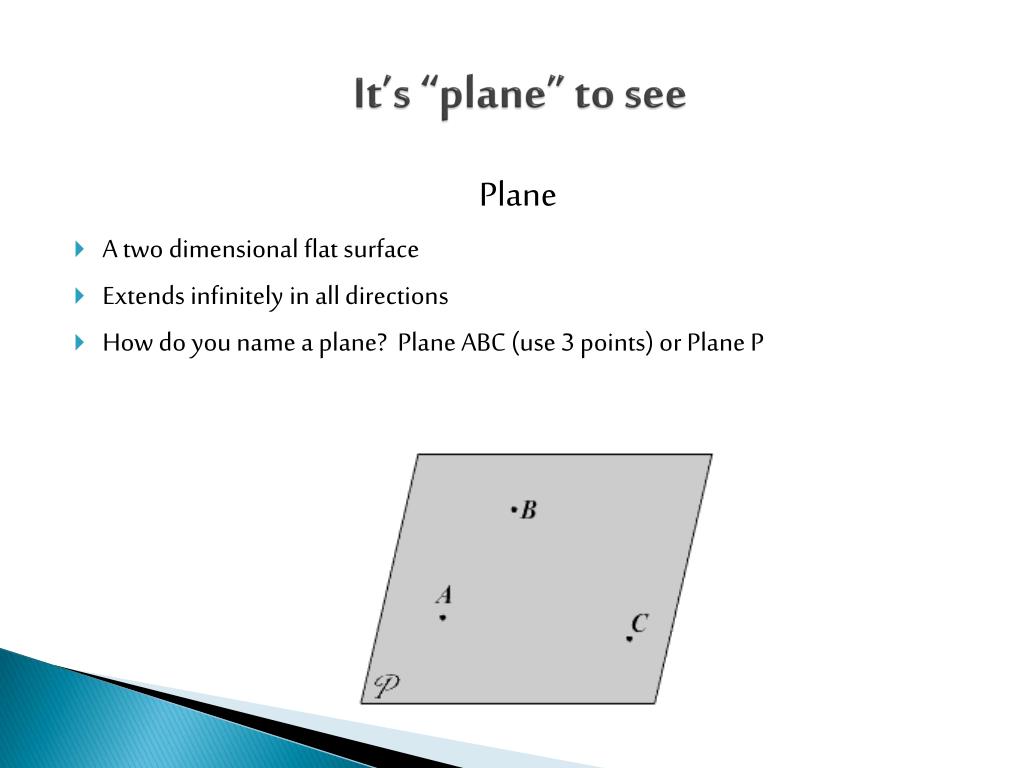

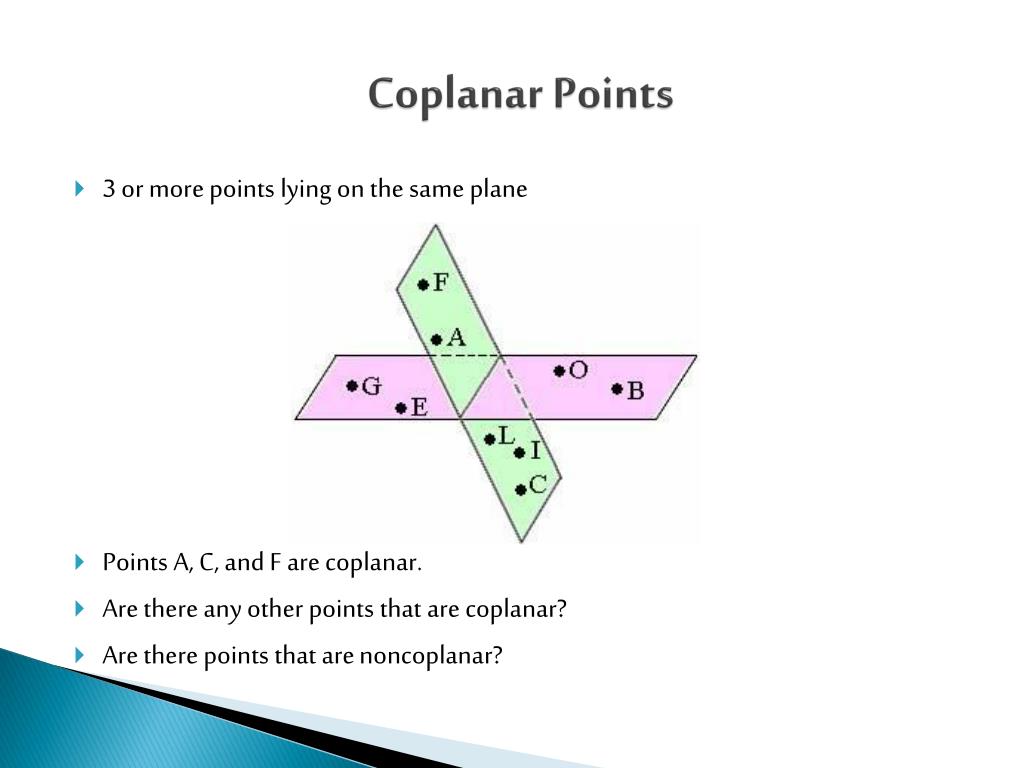

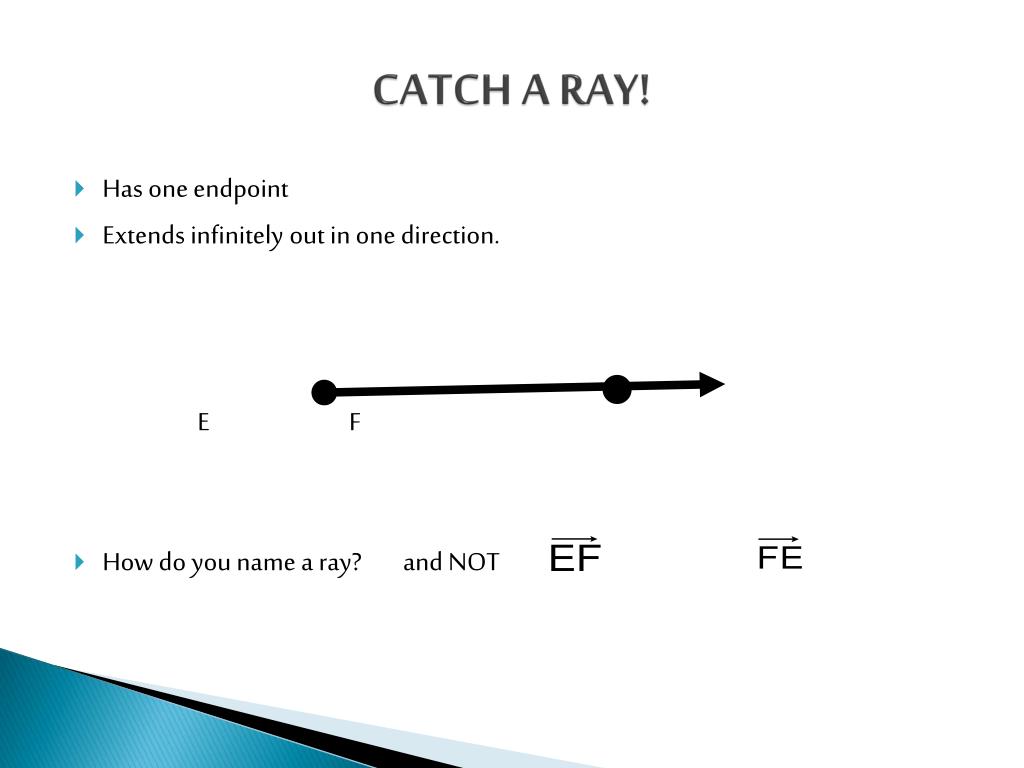

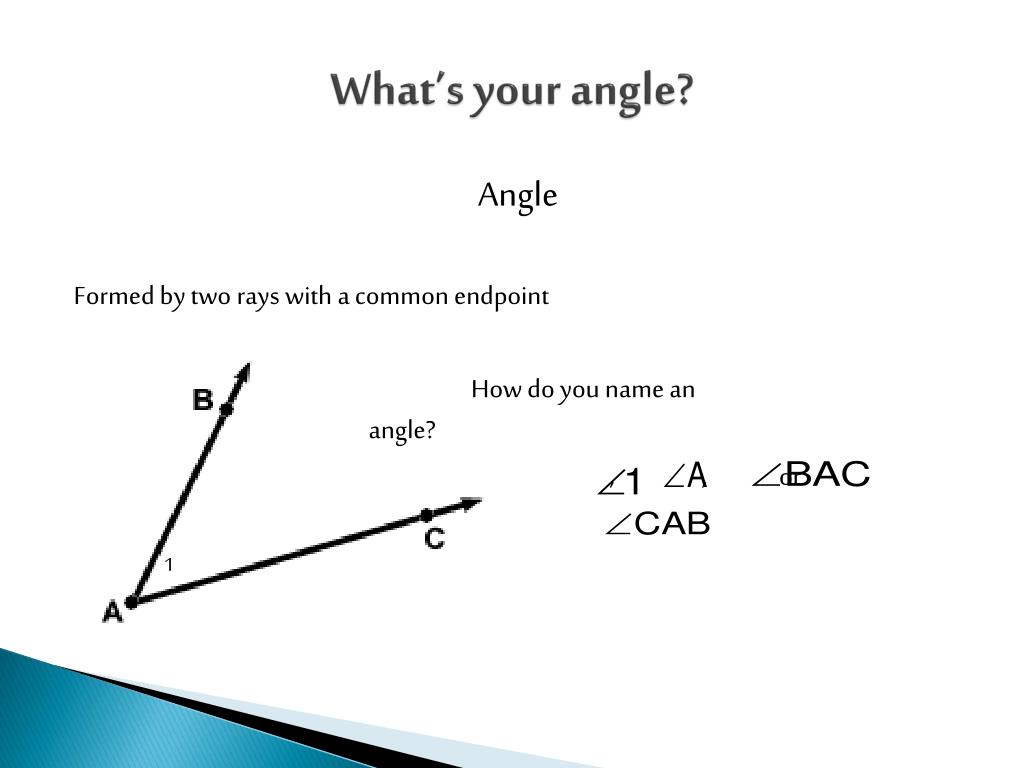

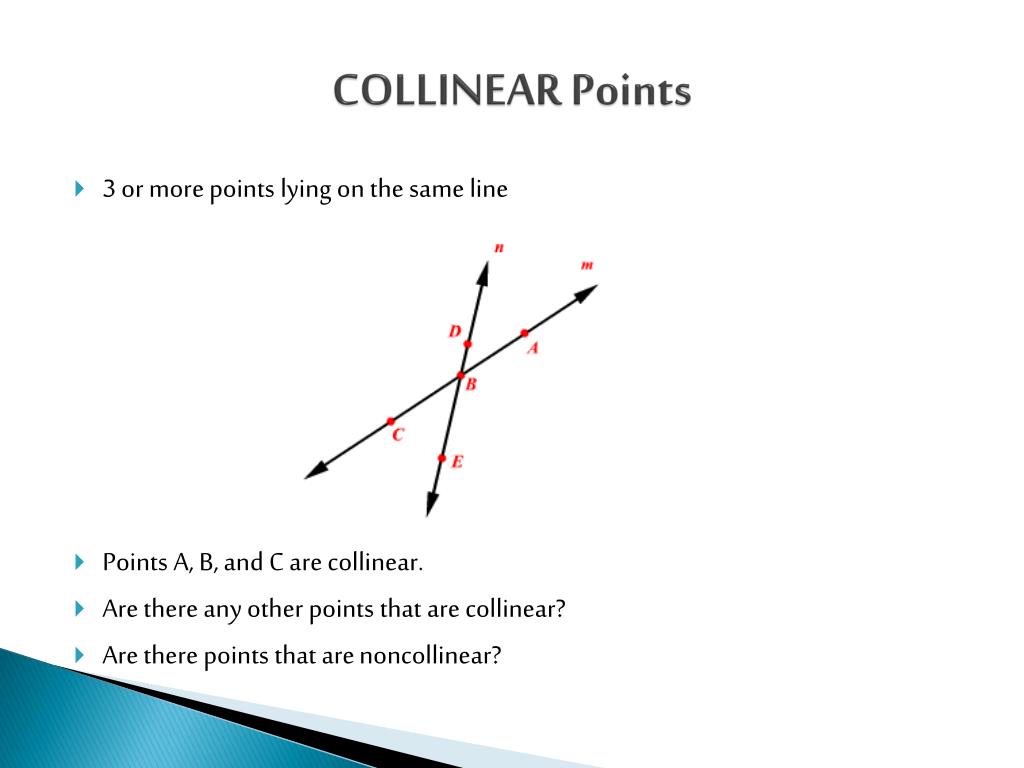

**GPS Geometry**August 14, 2012 Geometry The Basics!!!**Get to the point!**Point • The basic unit of geometry • Has no dimension. • Used to represent a precise location on a plane • Infinitely small and is usually represented by a small dot. • Usually named using upper-case single letters • How do you name the point below? Point A ● A**Whose line is it anyway?**LINE • Perfectly straight • Contains an infinite number of points • Extends infinitely in two directions • One dimensional with no thickness A B • How do you name a line? linel , or l ● ●**It’s “plane” to see**Plane • A two dimensional flat surface • Extends infinitely in all directions • How do you name a plane? Plane ABC (use 3 points) or Plane P**segmentS**• A part of a line • Has 2 endpoints C D • Labeled as or**CATCH A RAY!**• Has one endpoint • Extends infinitely out in one direction. E F • How do you name a ray? and NOT**What’s your angle?**Angle Formed by two rays with a common endpoint How do you name an angle? , , or 1**COLLINEAR Points**• 3 or more points lying on the same line • Points A, B, and C are collinear. • Are there any other points that are collinear? • Are there points that are noncollinear?**Coplanar Points**• 3 or more points lying on the same plane • Points A, C, and F are coplanar. • Are there any other points that are coplanar? • Are there points that are noncoplanar?**Congruent Figures**• Figures having the same shape and size. • If two polygons are congruent, then all corresponding sides and angles measures will be equal. • Refers to the figures and not the measurement of those figures.**measurement**• Measure of a segment is written as: or . Example: Both and are 5 inches long. • Measurement of angle is written as Example: Both and measure 45°.**Congruence versus measurement**• If 2 figures are congruent, then their measures are equal AND if 2 figures have equal measures, then they are congruent. • Example: Both and are 5 inches long. Since they have equal measure, then they are congruent. So, and • Example: Both and measure 45°. So, and**Congruence versus measurement**Explain whether or not each statement does or does not make sense. If it does not make sense correct it. XY = 5000 yds mST = 6 cm XY + XZ = 32 cm**postulate**A postulate (axiom) is a statement that is is accepted without proof. It is the starting point of reasoning. There are many postulates in mathematics especially geometry!
