Lecture 01 Introduction

Lecture 01 Introduction. What is an Operating System? The Evolution of Operating Systems Course Outline. What is an Operating System?. A program that acts as an intermediary between a user of a computer and the computer hardware. Operating system goals: Execute user programs

uriel-witt
Download Presentation

Lecture 01 Introduction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

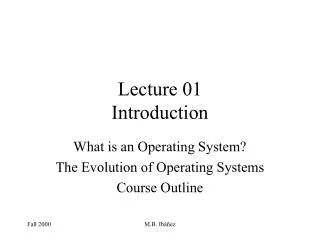

  1. Lecture 01Introduction What is an Operating System? The Evolution of Operating Systems Course Outline M.B. Ibáñez

  2. What is an Operating System? • A program that acts as an intermediary between a user of a computer and the computer hardware. • Operating system goals: • Execute user programs • Make solving user problems easier • Allocate resources in a efficient and fair way M.B. Ibáñez

  3. Abstract View of System Components M.B. Ibáñez

  4. Services given by an Operating System • Efficient program execution • Keeping all the devices busy • Good throughput for the user • Access to I/O devices • Controlled access to system and files • Error detection and response • Accounting M.B. Ibáñez

  5. Evolution of Operating SystemsSerial Processing • From the late 1940s to the mid-1950s • There was no Operating System • These machines were run from a console, consisting of display lights, toggle switches, some form of input device, and a printer • Job scheduling • A user used a sign-up sheet to reserve machine time. • How to run a job? • Load the compiler and source program into memory • Save the object program • Loading and linking together the object program and common functions M.B. Ibáñez

  6. Evolution of Operating SystemsSimple Batch Systems • Mid-1950s • The users did not interact directly with the computer system. The operator would sort programs into batches with similar requirements. • The user prepared a job. A Monitor executed the job. $JOB $FTN <FORTRAN instructions> $LOAD $RUN <data> $END M.B. Ibáñez

  7. Interrupt Processing Device Drivers Monitor Job Sequencing Control Language Interpreter Boundary User Program Area Memory Layout For a Resident Monitor M.B. Ibáñez

  8. There are some hardware features desirable • Memory protection the user program should not alter the monitor’s area • Timer to prevent a single job from monopolizing the system • Privileged instructions I/O instructions by example M.B. Ibáñez

  9. Multiprogrammed Batch Systems M.B. Ibáñez

  10. Effects of Multiprogramming Uniprogramming Multiprogramming Processor use 17% 33% Memory use 30% 67% Disk use 33% 67% Printer use 33% 67% Elapsed time 30 min. 15 min. Throughput rate 6 jobs/hr 12 jobs/hr Mean response time 18 min. 10 min. M.B. Ibáñez

  11. Time-sharing systems • 1960s, they become common early 1970s • Multiprogramming allows the processor to handle multiple batch jobs at a time • Main objective: Maximize processor use • Multiprogramming can be used to handle multiple interactive jobs: time -sharing • Main objective: Minimize response time • Processor time is shared among multiple users • Multiple users simultaneously access the system through terminals M.B. Ibáñez

  12. Primitive Time-sharing Operating System M.B. Ibáñez

  13. New problems for the Operating Systems • Multiple jobs are in memory • They must be protected from interfering with each other • Multiple interactive users • The file system must be protected so that only authorized users have access to a particular file • The contention for resources, such as printers and mass storage devices, must be handled M.B. Ibáñez

  14. Developments in hardware Multiprocessor machines Greatly increased machine speed High-speed network attachments Increasing size and variety of memory storage services New applications Multimedia applications Internet and Web access client/server computing Characteristics of Modern Operating Systems.What forces a change? M.B. Ibáñez

  15. Characteristics of Modern Operating Systems Microkernel architecture • A microkerner architecture assigns only a few essential functions to the kernel, such as • Address spaces • Interprocess communication • Basic scheduling • The microkernel approach simplifies implementation, provides flexibility, and is well suited to a distributed environment M.B. Ibáñez

  16. Characteristics of Modern Operating SystemsMultithreading • Multithreading • technique in which a process, executing an application, is divided into threads that can run simultaneously • Thread • dispatchable unit of work • executes sequentially and is interruptable • Process • collection of one or more threads M.B. Ibáñez

  17. Characteristics of Modern Operating Systems Symmetric multiprocessing (SMP) • Systems with multiple multiprocessors • there are multiple processors • these processors share same main memory and I/O facilities • All processors can perform the same functions • Advantages over uniprocessor architectures • Performance • Availability • Incremental growth • Scaling M.B. Ibáñez

  18. Characteristics of Modern Operating Systems Distributed operating systems • provides the illusion of a single main memory • used for distributed file system M.B. Ibáñez

  19. Outline of the Course • Processes • Memory • I/O devices • File systems • Protection and security M.B. Ibáñez
