management archiving cdr and qoe monitoring in microsoft office communications server 2007 r2

Management: Archiving, CDR, and QoE Monitoring in Microsoft Office Communications Server 2007 R2

Paul Duffy

Director, Technical Strategy

Modality Systems

UNC306

agenda
Agenda
  • Where does it all fit in?
  • Concept / technology review
  • Deployment considerations
  • Now what?
  • Q&A

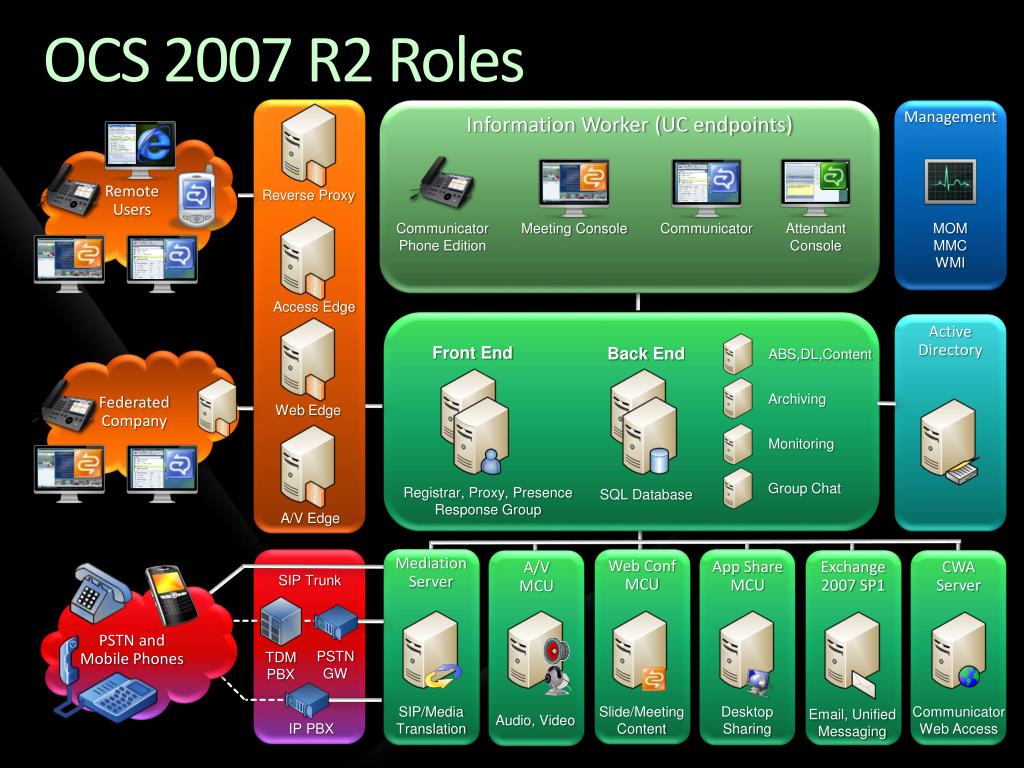

ocs 2007 r2 roles
OCS 2007 R2 Roles

Management

Information Worker (UC endpoints)

Remote

Users

Reverse Proxy

Communicator

Phone Edition

Meeting Console

Communicator

Attendant

Console

MOM

MMC

WMI

Access Edge

Active

Directory

Front End

Back End

ABS,DL,Content

Federated

Company

Archiving

Web Edge

Monitoring

Group Chat

Registrar, Proxy, Presence

Response Group

SQL Database

A/V Edge

Web Conf

MCU

Mediation

Server

App Share

MCU

CWA

Server

Exchange

2007 SP1

A/V

MCU

SIP Trunk

PSTN and

Mobile Phones

PSTN

GW

TDM

PBX

SIP/Media

Translation

Slide/Meeting

Content

Desktop

Sharing

Communicator

Web Access

Email, Unified

Messaging

Audio, Video

IP PBX

archiving cdr qoe architecture
Archiving, CDR & QoE Architecture

Front End Server

Archiving Server

QoEService

ArchivingService

CDR Service

MSMQ

MSMQ

MSMQ

MSMQ

MSMQ

MSMQ

Archiving+ CDRAgent

Archiving DB

Monitoring Server

CDR DB

QoE Agent

QoE DB

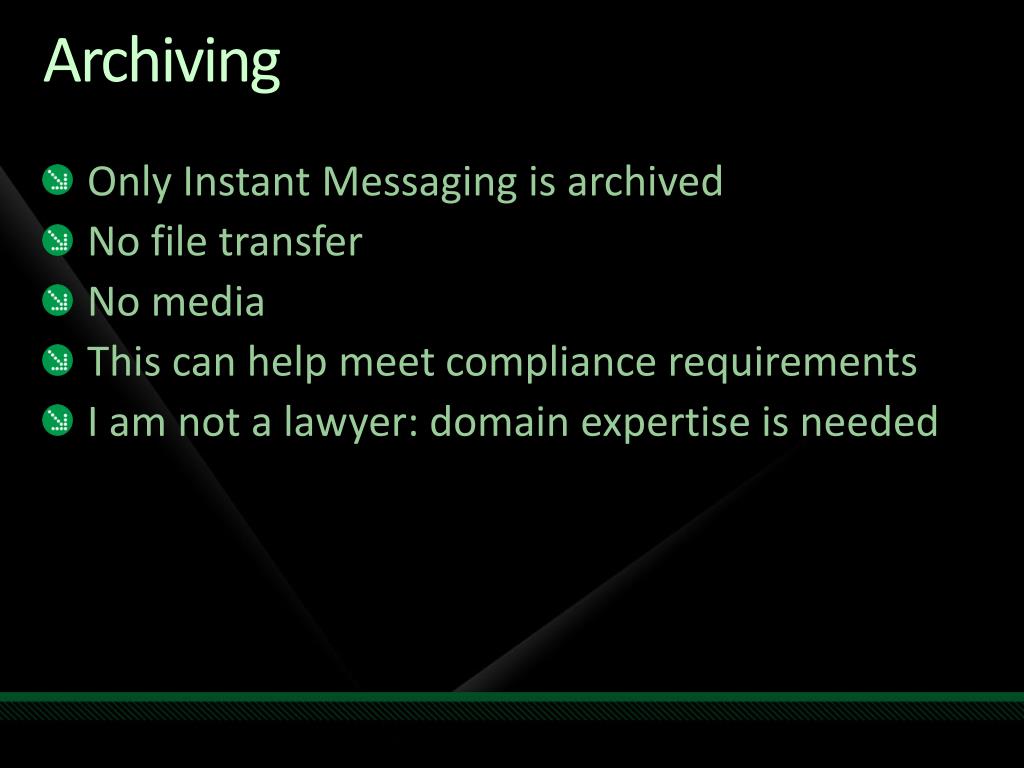

archiving
Archiving
  • Only Instant Messaging is archived
  • No file transfer
  • No media
  • This can help meet compliance requirements
  • I am not a lawyer: domain expertise is needed
exactly what is archived
Exactly What is Archived?
  • Instant message data in 2 party and multi-party (group IM)
  • “From”, “To”, “Time” and message body
  • There are considerations for where the conversation is occurring
  • Archives both internal & federated communications
  • Variety of configuration options (global, individual, etc)
  • Database schema is defined in product documentation
im archiving architecture logical
IM Archiving Architecture (Logical)

Client 2

Client 1

Client ‘n’

Front End Server

Archiving Server

ArchivingAgent

ArchivingService

MSMQ

MSMQ

Archiving DB

configuration options
Configuration Options
  • Global IM Archiving Settings
    • Globally set: no users/all users/some users
    • Internal/federated or all communications
  • Pool-level IM Archiving Settings
    • Associate pool/front end with archiving server
    • Specify Error Handling Behavior (‘critical mode’)
    • Usually enable all pools or none
    • Be aware of where messages will be archived

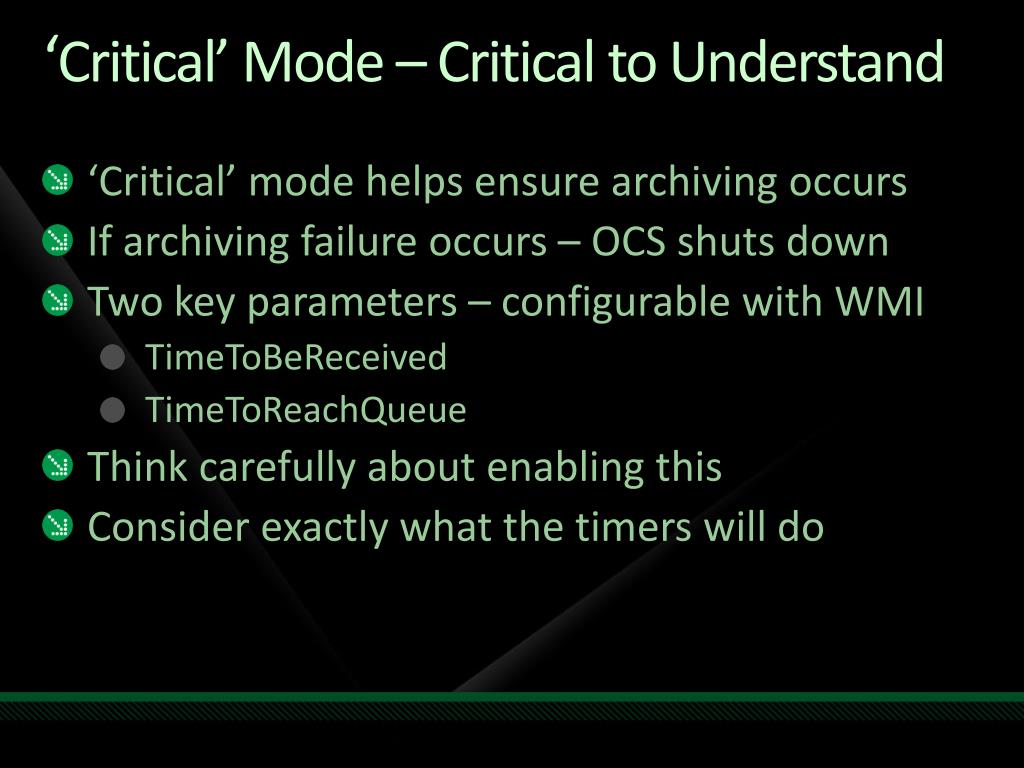

critical mode critical to understand
‘Critical’ Mode – Critical to Understand
  • ‘Critical’ mode helps ensure archiving occurs
  • If archiving failure occurs – OCS shuts down
  • Two key parameters – configurable with WMI
    • TimeToBeReceived
    • TimeToReachQueue
  • Think carefully about enabling this
  • Consider exactly what the timers will do
configuration steps
Configuration Steps
  • Install Message Queuing
  • Install SQL Server
  • Install and activate monitoring server
  • Associate front-end(s) with monitoring server
  • Configure global setting
  • Configure user archiving settings if necessary
  • Start service
cdr call detail records
CDR – Call Detail Records
  • Provide details about all ‘calls’ made
    • Peer to Peer
    • Conferences
    • VoIP
  • This captures usage not data
  • Useful for billing, utilisation
  • Can provide useful management ROI data
  • Not a compliance solution
cdr what s recorded
CDR – What's Recorded
  • Peer to Peer sessions
    • Start & End Times
    • Media Type,
    • From & To Users
    • Client Versions
    • Message Count
  • Conferencing Sessions
    • Attendees & Roles
    • Start & End Times
    • Conferencing servers
    • Conferencing server Join & Leave Times
    • Client Versions
  • VoIP Sessions (UC to PSTN & PSTN to UC)
    • P2P + From/To Numbers
    • Forwarded by Number
    • Gateway
cdr architecture logical
CDR Architecture (Logical)

Client 2

Client 1

Client ‘n’

CDR Service

MSMQ

SQL Server Reporting Services

Front End Server

Monitoring Server

CDRAgent

MSMQ

CDR DB

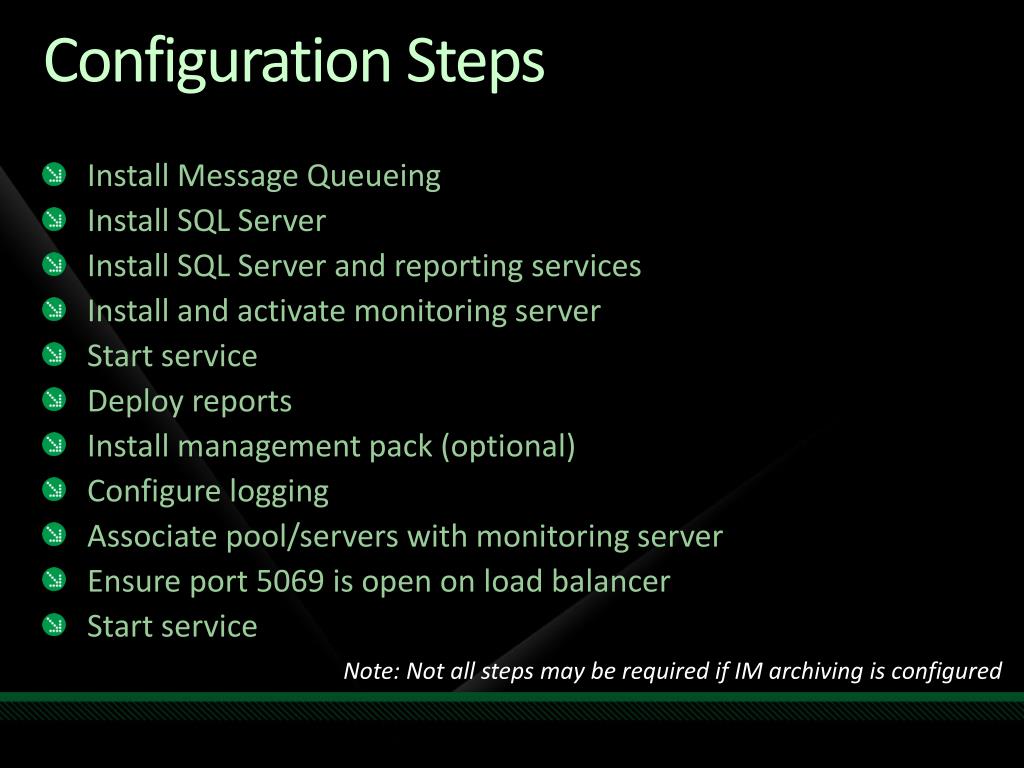

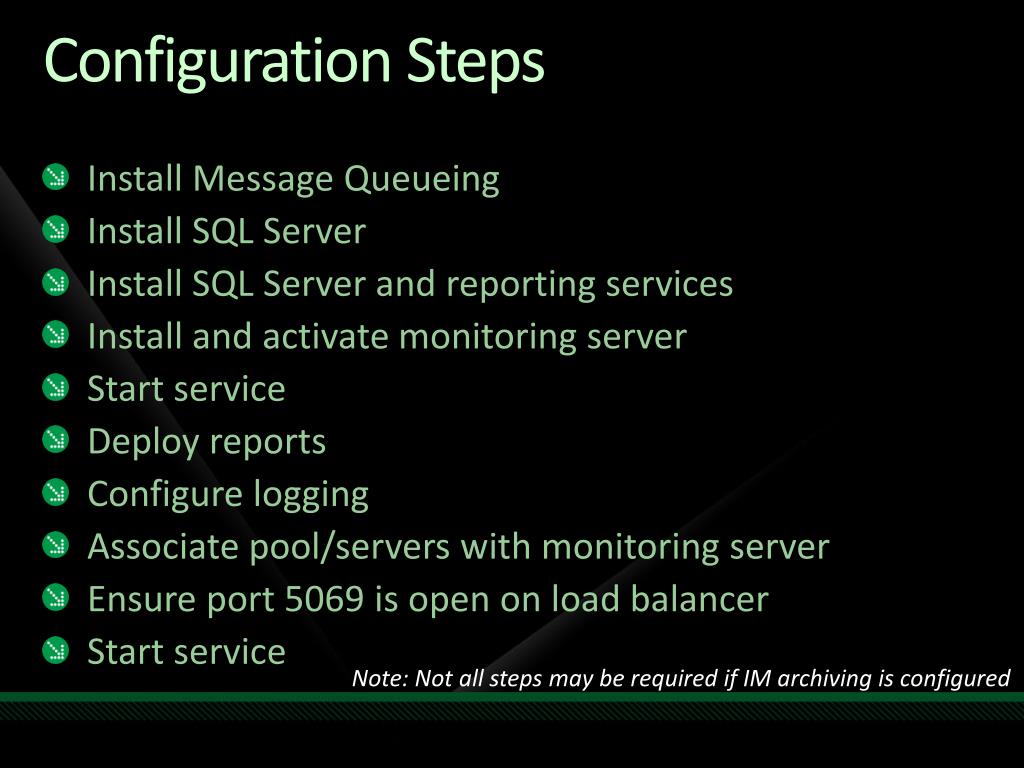

configuration steps1
Configuration Steps
  • Install Message Queueing
  • Install SQL Server
  • Install SQL Server and reporting services
  • Install and activate monitoring server
  • Start service
  • Deploy reports
  • Configure logging
  • Associate pool/servers with monitoring server
  • Ensure port 5069 is open on load balancer
  • Start service

Note: Not all steps may be required if IM archiving is configured

who is t his all about
Who is This all About?

Not the IT Professional!

conventional vs voice data
Conventional vs. Voice Data
  • Conventional data (“elastic”):
    • E-mail, File transfer, and Web applications
    • Relies on TCP for reliable operation
    • Tolerant of variations of network
  • Voice data (“inelastic”):
    • VoIP traffic
    • Relies on UDP for better performance
    • Intolerant of effects of congestion

22

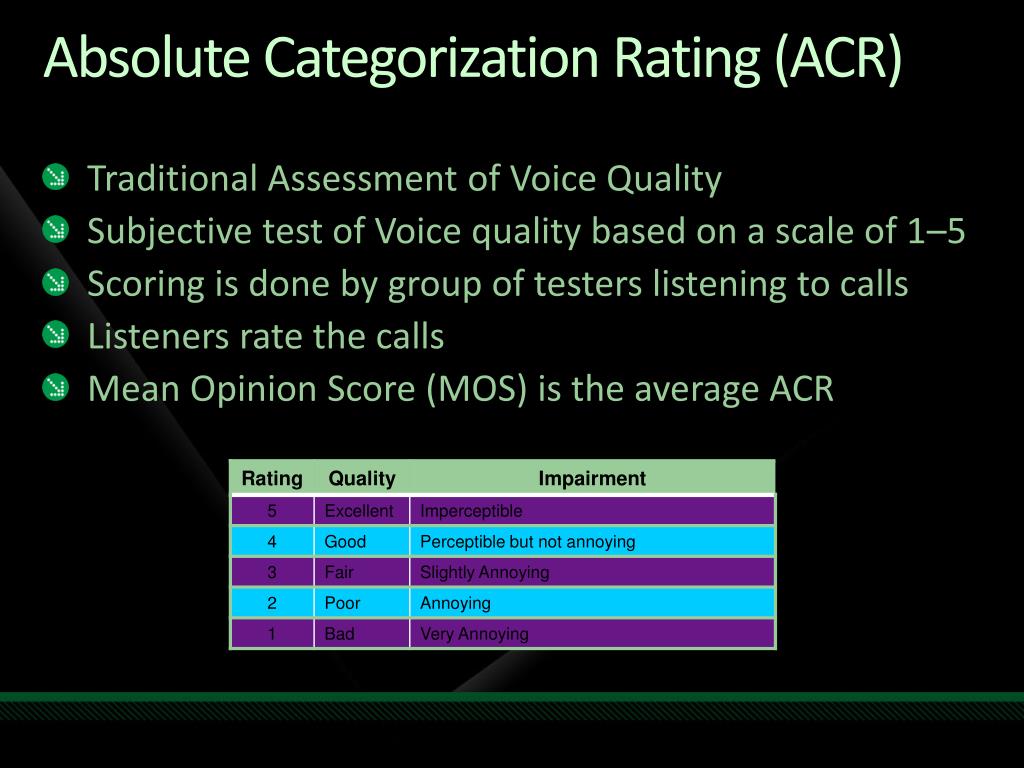

absolute categorization rating acr
Absolute Categorization Rating (ACR)
  • Traditional Assessment of Voice Quality
  • Subjective test of Voice quality based on a scale of 1–5
  • Scoring is done by group of testers listening to calls
  • Listeners rate the calls
  • Mean Opinion Score (MOS) is the average ACR

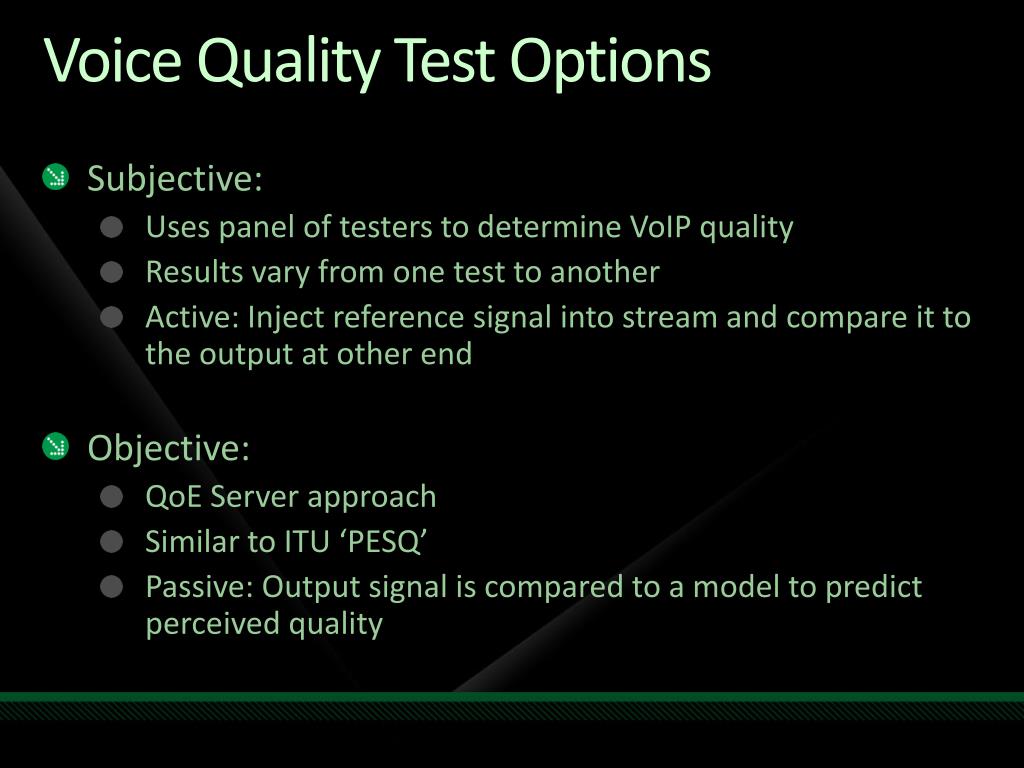

voice quality test options
Voice Quality Test Options
  • Subjective:
    • Uses panel of testers to determine VoIP quality
    • Results vary from one test to another
    • Active: Inject reference signal into stream and compare it to the output at other end
  • Objective:
    • QoE Server approach
    • Similar to ITU ‘PESQ’
    • Passive: Output signal is compared to a model to predict perceived quality

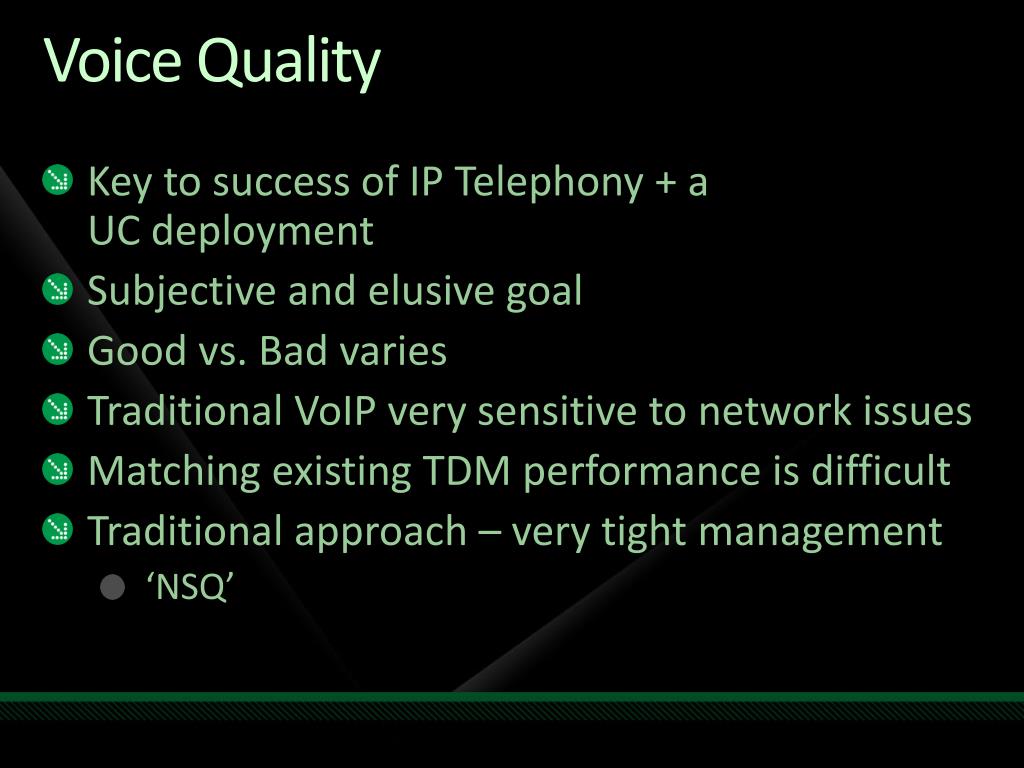

voice quality
Voice Quality
  • Key to success of IP Telephony + a UC deployment
  • Subjective and elusive goal
  • Good vs. Bad varies
  • Traditional VoIP very sensitive to network issues
  • Matching existing TDM performance is difficult
  • Traditional approach – very tight management
    • ‘NSQ’
nsq traditional approach
NSQ (‘Traditional’) Approach
  • Uses QoS to manage performance
  • Applied only to network you control
  • Can be expensive to implement
  • Does not handle payload ‘device’ corruption
  • Quality can still be poor when network is good
  • Just one component of QoE
qoe quality of experience
QoE – Quality of Experience
  • A key Microsoft differentiator
  • A different approach to the traditional one
  • Both a strategy and a toolset
  • Never consider QoE monitoring optional
  • Use the collected data
  • There is still no Panacea!
quality of experience

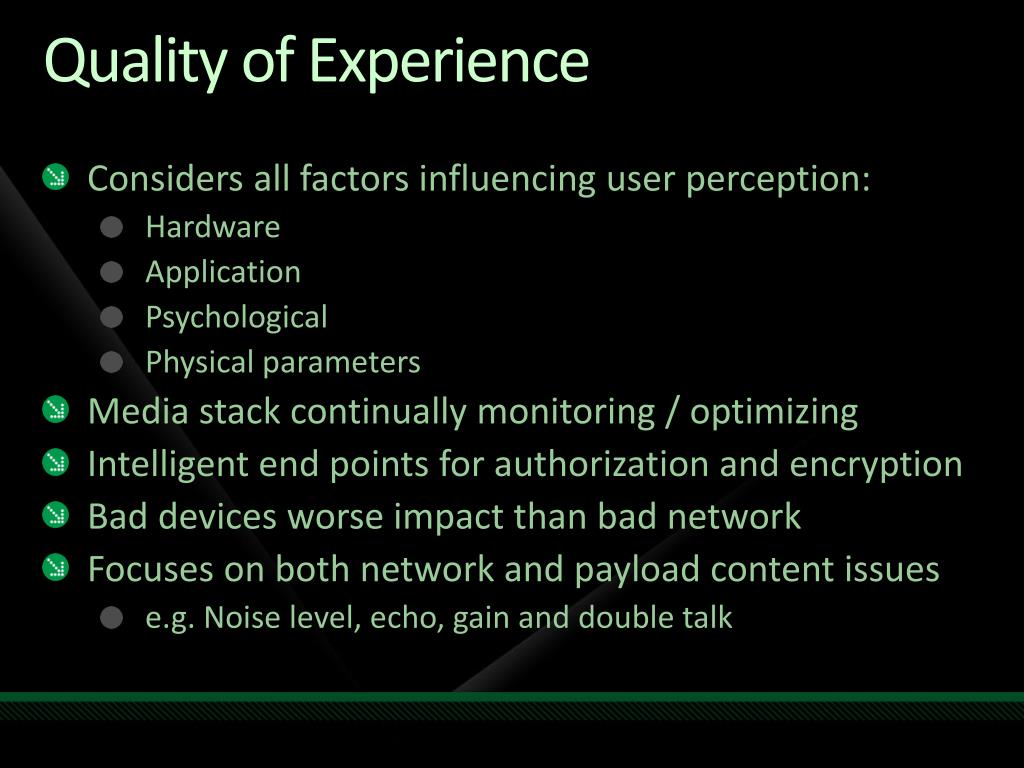

Quality of Experience
  • Considers all factors influencing user perception:
    • Hardware
    • Application
    • Psychological
    • Physical parameters
  • Media stack continually monitoring / optimizing
  • Intelligent end points for authorization and encryption
  • Bad devices worse impact than bad network
  • Focuses on both network and payload content issues
    • e.g. Noise level, echo, gain and double talk
codec coder decoder
Codec (Coder/Decoder)
  • Converts analog voice for transmission
  • Uses compression to reduce packet size
  • Compression affects VoIP quality
  • Most traditional VoIP uses narrowband, old technology codecs such as G.711 and G.729
  • RTAudio: Microsoft’s wideband codec
ocs 2007 rtaudio codec

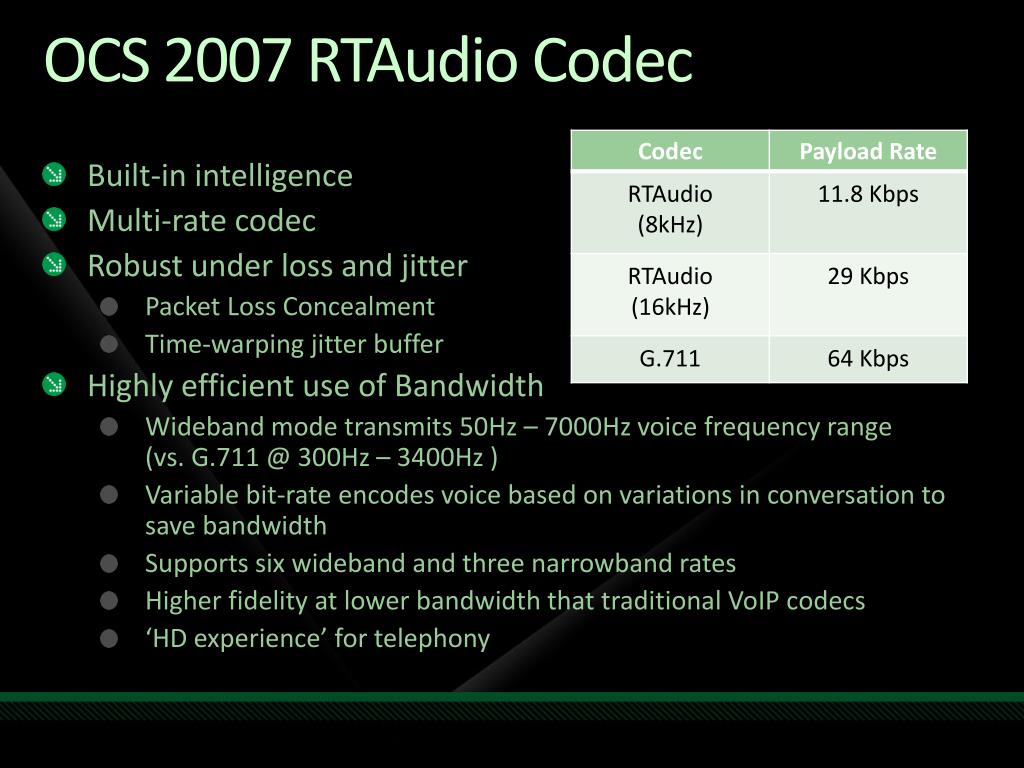

OCS 2007 RTAudio Codec
  • Built-in intelligence
  • Multi-rate codec
  • Robust under loss and jitter
    • Packet Loss Concealment
    • Time-warping jitter buffer
  • Highly efficient use of Bandwidth
    • Wideband mode transmits 50Hz – 7000Hz voice frequency range (vs. G.711 @ 300Hz – 3400Hz )
    • Variable bit-rate encodes voice based on variations in conversation to save bandwidth
    • Supports six wideband and three narrowband rates
    • Higher fidelity at lower bandwidth that traditional VoIP codecs
    • ‘HD experience’ for telephony

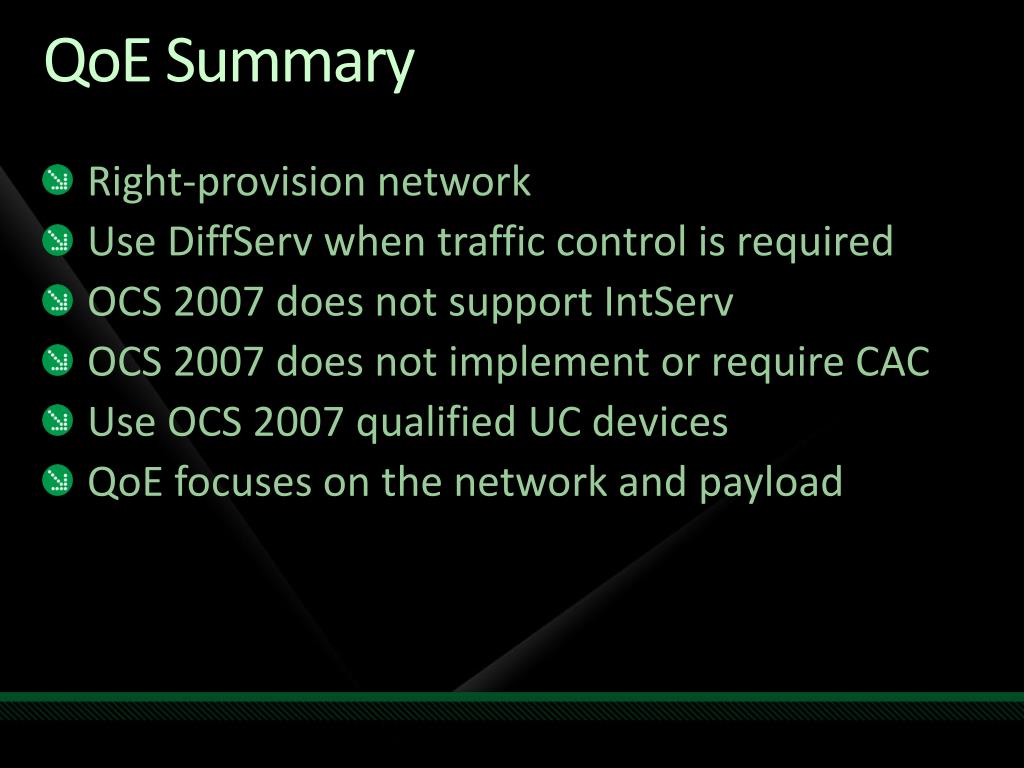

qoe summary
QoE Summary
  • Right-provision network
  • Use DiffServ when traffic control is required
  • OCS 2007 does not support IntServ
  • OCS 2007 does not implement or require CAC
  • Use OCS 2007 qualified UC devices
  • QoE focuses on the network and payload
qoe architecture

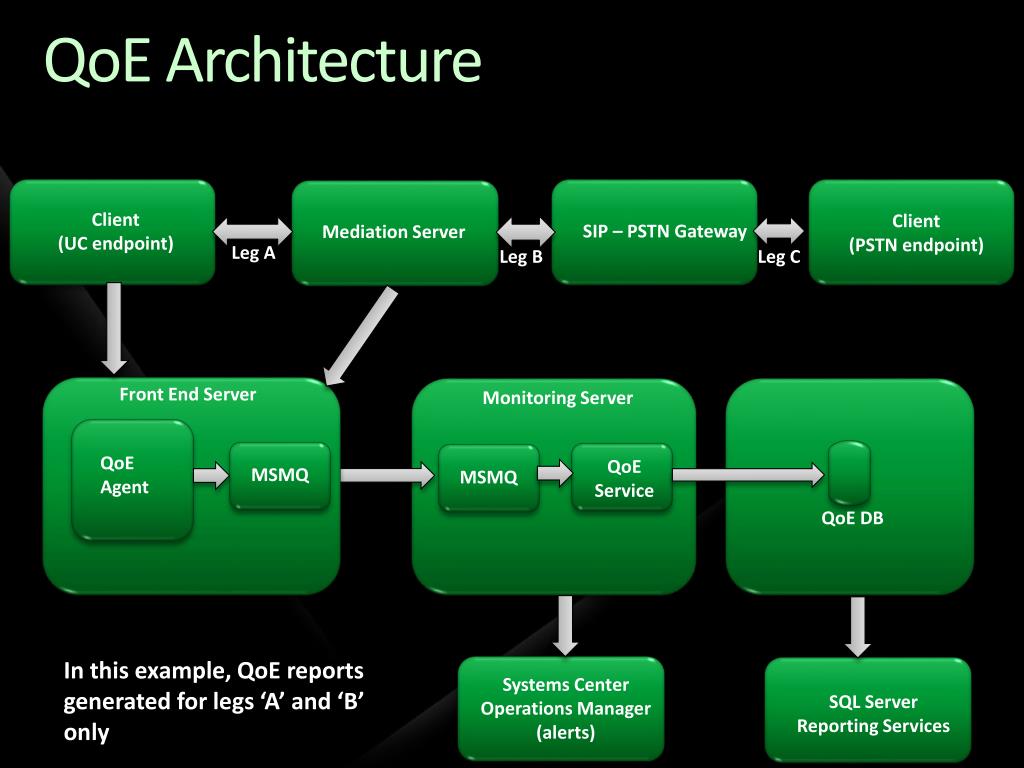

QoE Architecture

Client

(UC endpoint)

Client

(PSTN endpoint)

Mediation Server

SIP – PSTN Gateway

Leg A

Leg B

Leg C

QoEService

MSMQ

Systems Center

Operations Manager

(alerts)

SQL Server Reporting Services

Front End Server

Monitoring Server

QoEAgent

MSMQ

QoE DB

In this example, QoE reports generated for legs ‘A’ and ‘B’ only

qoe monitoring scenarios
QoE Monitoring Scenarios
  • Users – Helpdesk, NOC, Engineering
  • Near Real-time monitoring
  • Quality of Experience validation
  • VoIP planning
  • Don’t consider this optional!
key metrics per call
Key Metrics per Call
  • Conversational MOS
    • Listening MOS
    • Sending MOS
    • Network MOS / Network MOS Degradation
  • Packets / Packet loss rate
    • Jitter / Round Trip Time
    • Latency
    • Burst
  • SIP Session data
    • Endpoint IP address/mask
    • Inside/outside user flag
    • ICE Connectivity Path
    • Codec(s)
  • Capture / Render device
    • Noise Level / Signal Level
qoe reporting mean opinion score mos

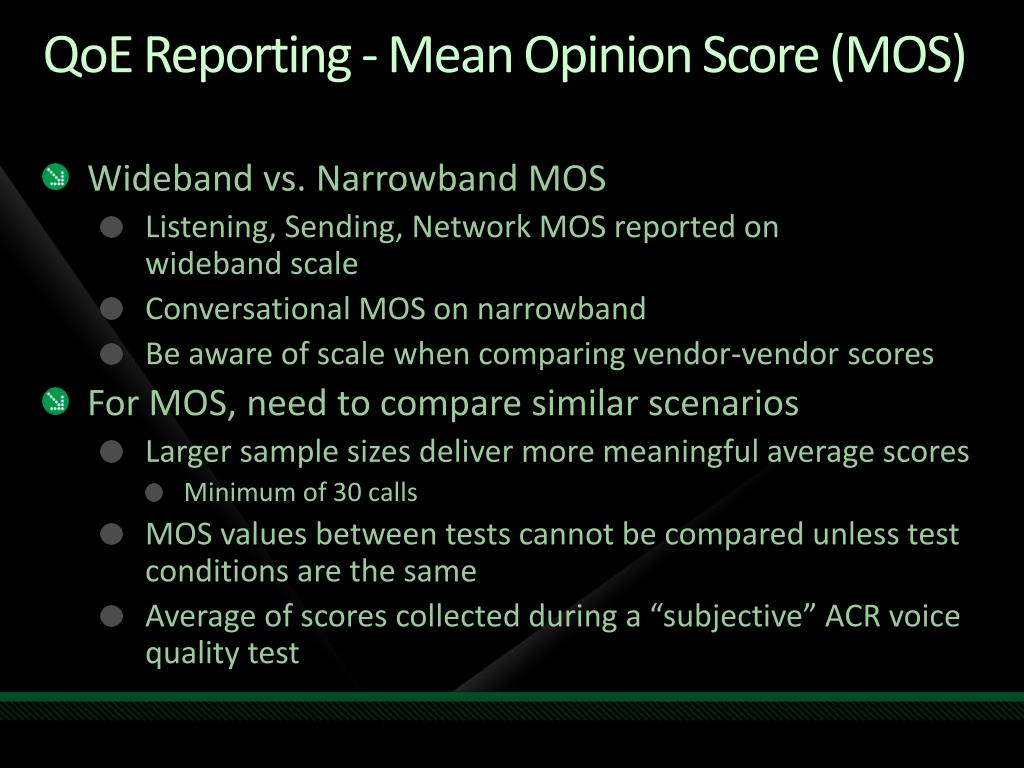

QoE Reporting - Mean Opinion Score (MOS)
  • Wideband vs. Narrowband MOS
    • Listening, Sending, Network MOS reported on wideband scale
    • Conversational MOS on narrowband
    • Be aware of scale when comparing vendor-vendor scores
  • For MOS, need to compare similar scenarios
    • Larger sample sizes deliver more meaningful average scores
      • Minimum of 30 calls
    • MOS values between tests cannot be compared unless test conditions are the same
    • Average of scores collected during a “subjective” ACR voice quality test
mos detail
MOS Detail
  • Network MOS:
    • Considers only network factors (i.e. Codec used, Packet loss/reorder/errors, Jitter)
    • Useful for identifying network conditions impacting audio quality
    • Supported by all UC endpoints, except for Exchange 2007 UM
  • Listening MOS:
    • Considers codec used, capture device characteristics, transcoding, mixing, defects from packet loss/packet loss concealment, speech level, and background noise
    • Useful for identifying payload effects impacting audio quality
    • Supported by Communicator 2007

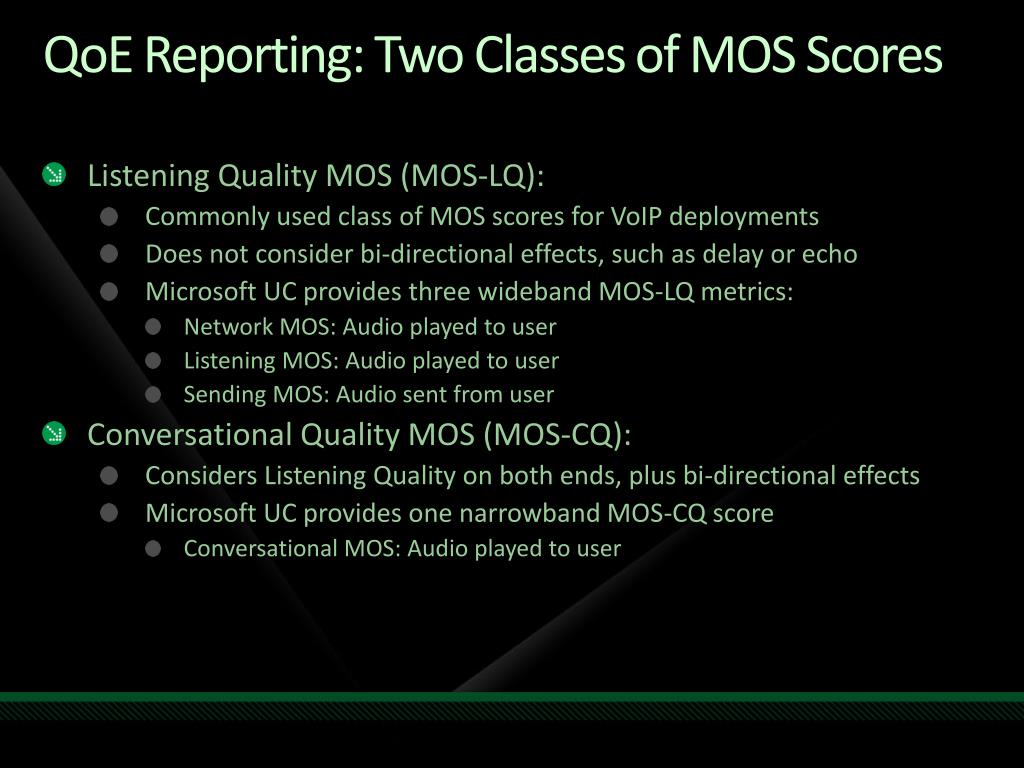

qoe reporting two classes of mos scores
QoE Reporting: Two Classes of MOS Scores
  • Listening Quality MOS (MOS-LQ):
    • Commonly used class of MOS scores for VoIP deployments
    • Does not consider bi-directional effects, such as delay or echo
    • Microsoft UC provides three wideband MOS-LQ metrics:
      • Network MOS: Audio played to user
      • Listening MOS: Audio played to user
      • Sending MOS: Audio sent from user
  • Conversational Quality MOS (MOS-CQ):
    • Considers Listening Quality on both ends, plus bi-directional effects
    • Microsoft UC provides one narrowband MOS-CQ score
      • Conversational MOS: Audio played to user
max mos rating by codec

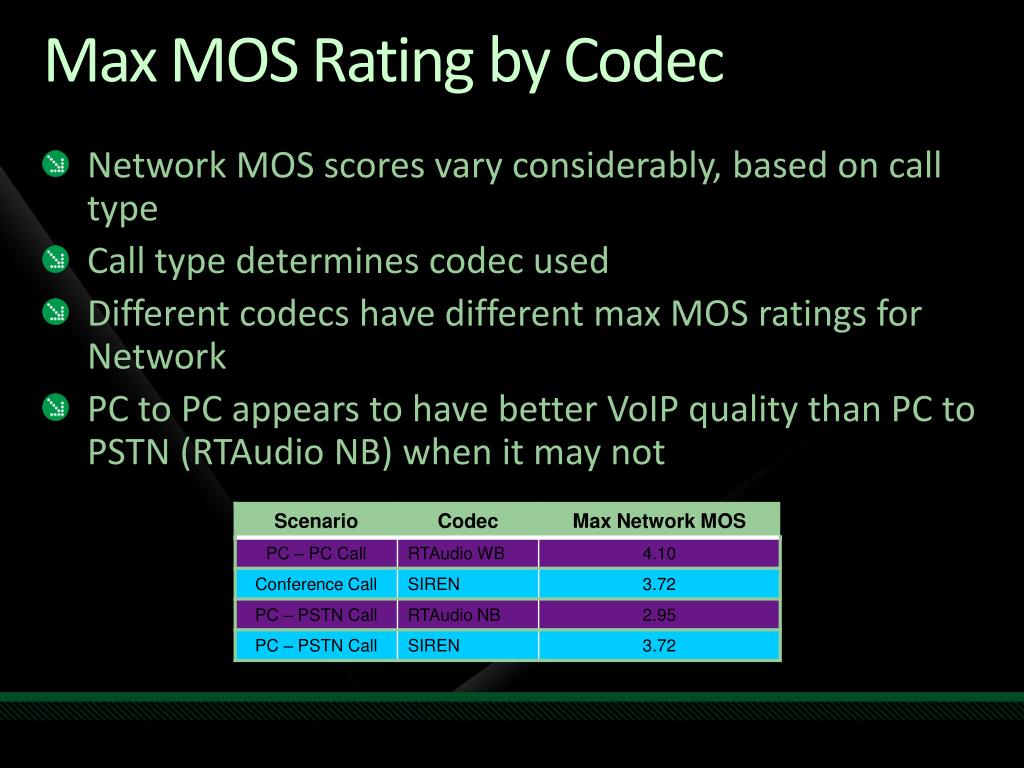

Max MOS Rating by Codec
  • Network MOS scores vary considerably, based on call type
  • Call type determines codec used
  • Different codecs have different max MOS ratings for Network
  • PC to PC appears to have better VoIP quality than PC to PSTN (RTAudio NB) when it may not
configuration steps2
Configuration Steps
  • Install Message Queueing
  • Install SQL Server
  • Install SQL Server and reporting services
  • Install and activate monitoring server
  • Start service
  • Deploy reports
  • Install management pack (optional)
  • Configure logging
  • Associate pool/servers with monitoring server
  • Ensure port 5069 is open on load balancer
  • Start service

Note: Not all steps may be required if IM archiving is configured

archiving monitoring roles

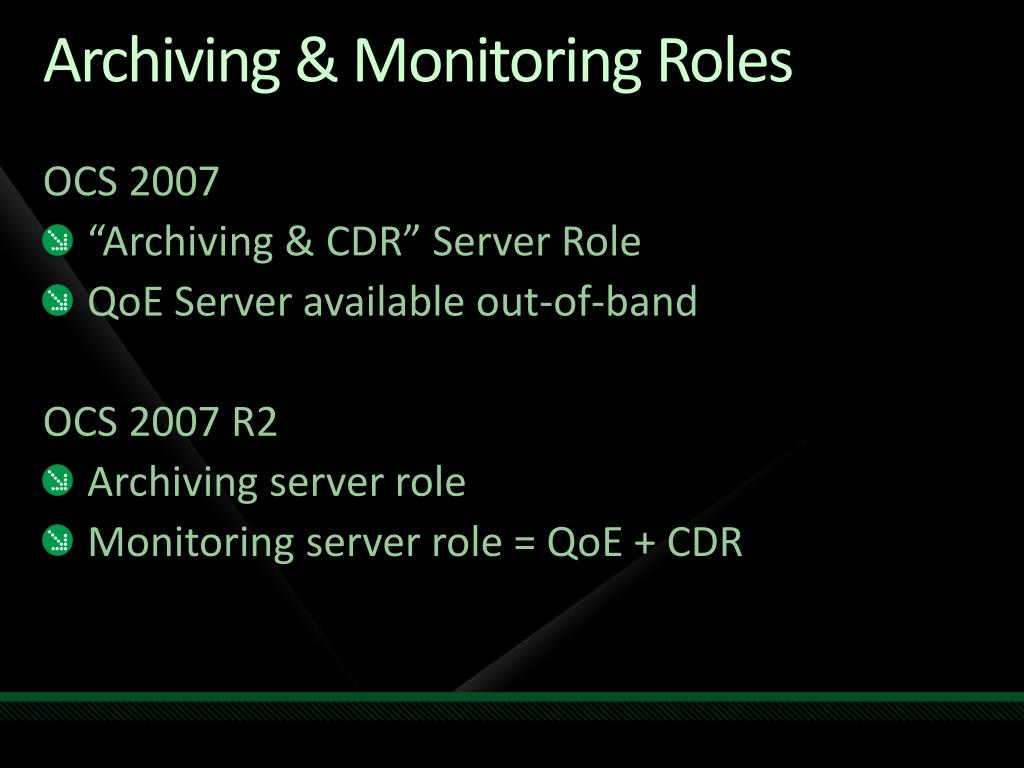

Archiving & Monitoring Roles

OCS 2007

  • “Archiving & CDR” Server Role
  • QoE Server available out-of-band

OCS 2007 R2

  • Archiving server role
  • Monitoring server role = QoE + CDR
basic topology options

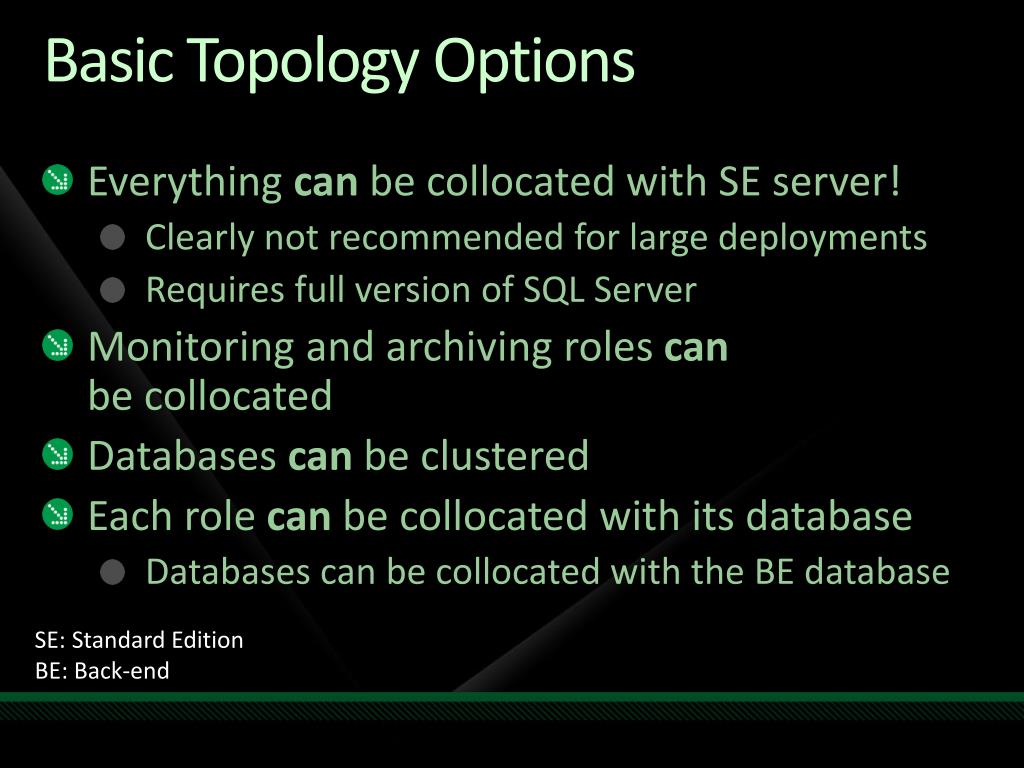

Basic Topology Options
  • Everything can be collocated with SE server!
    • Clearly not recommended for large deployments
    • Requires full version of SQL Server
  • Monitoring and archiving roles canbe collocated
  • Databases can be clustered
  • Each role can be collocated with its database
    • Databases can be collocated with the BE database

SE: Standard Edition

BE: Back-end

pool association options

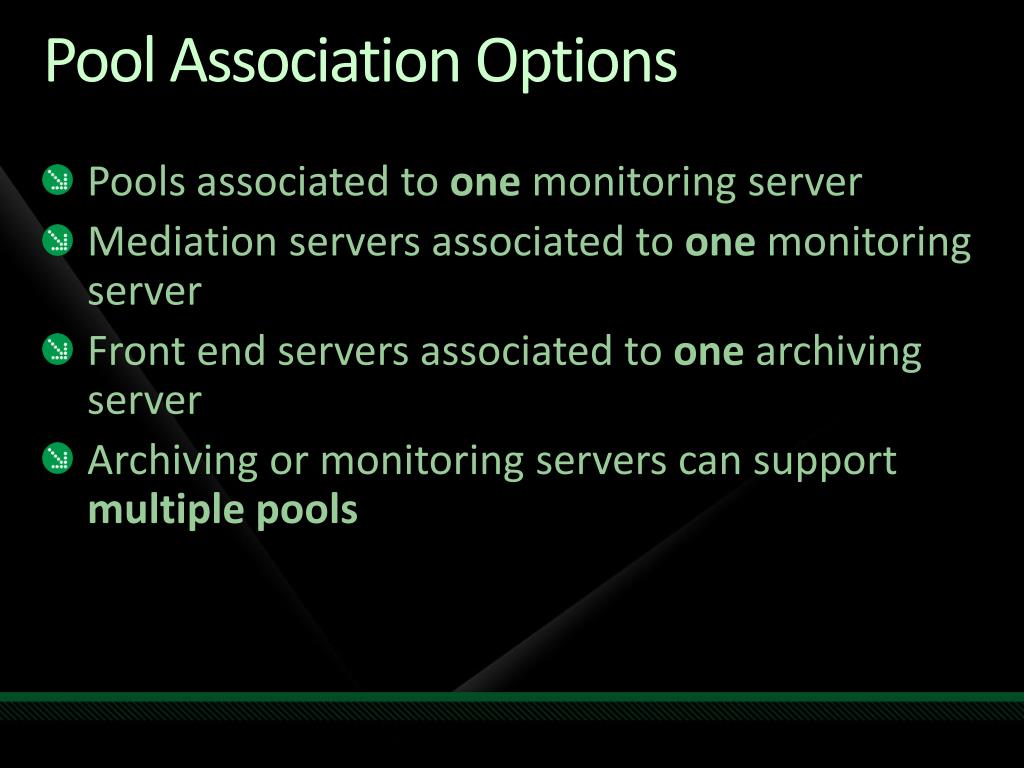

Pool Association Options
  • Pools associated to one monitoring server
  • Mediation servers associated to one monitoring server
  • Front end servers associated to one archiving server
  • Archiving or monitoring servers can support multiple pools
sizing capacity planning

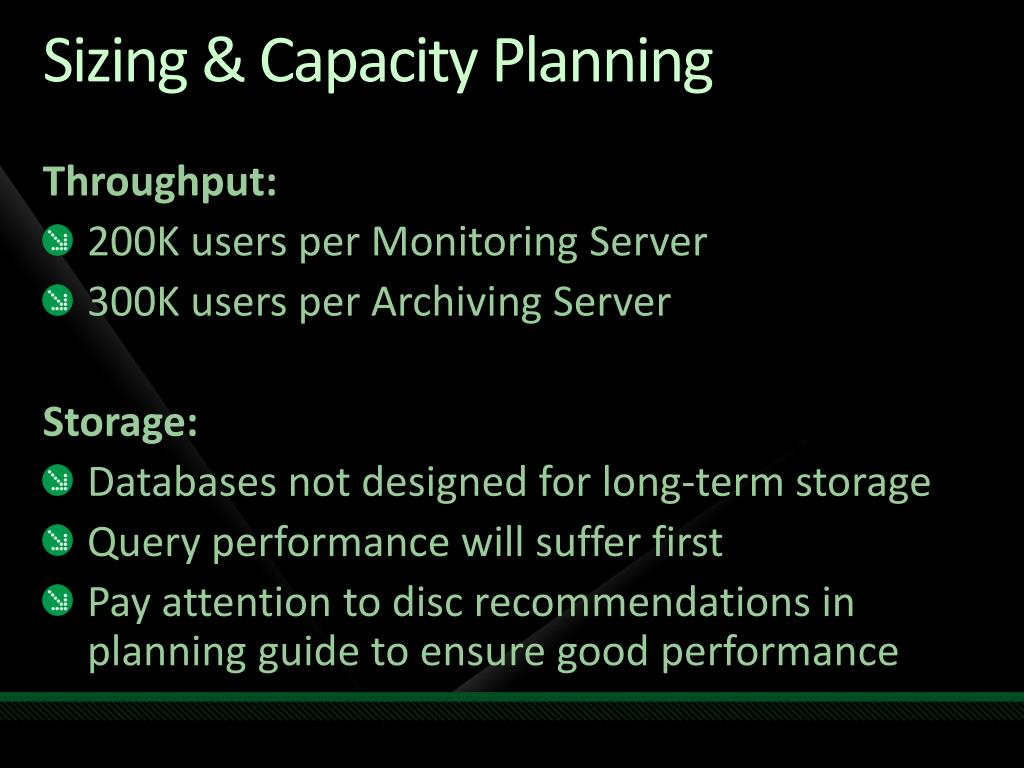

Sizing & Capacity Planning

Throughput:

  • 200K users per Monitoring Server
  • 300K users per Archiving Server

Storage:

  • Databases not designed for long-term storage
  • Query performance will suffer first
  • Pay attention to disc recommendations in planning guide to ensure good performance
calculating space required
Calculating Space Required
  • DB size = (DB growth per user per day) * (# users) * (# days)
  • Using numbers from the Office Communications Server planning model:
    • CDR database: 8.8KB per user per day
    • QoE database: 16.8KB per user per day
    • Archiving database: 75.5 KB per user per day
  • You may need to vary these numbers if your usage is different than the model
  • Clearly, adjusting retention time can greatly impact DB size
multiple archiving stores
Multiple Archiving Stores

Clients in an IM conference, hosted on Pool ‘B’

Client 1

Client 2

Client ‘n’

Pool ‘A’

Pool ‘B’

Pool ‘C’

ArchivingAgent

ArchivingAgent

ArchivingAgent

Archiving DB

Archiving DB

Archiving DB

Note: Archiving architecture is simplified on this slide for readability

  • Data may be archived into multiple different archiving stores
  • User settings may appear inconsistent during conferences
  • In the MSFTSIPLogoptions WMI class, configuring the ArchivingBEToken value can control behavior
fault tolerance scenario 1
Fault Tolerance – Scenario 1

Load balancer

Front End Server

Front End Server

Archiving Server

ArchivingAgent

ArchivingAgent

ArchivingService

MSMQ

MSMQ

MSMQ

Archiving DB

If ‘critical’ mode is enabled, failure of the archiving infrastructure will result in OCS service outage – regardless of whether there are multiple front-end servers

fault tolerance scenario 2
Fault Tolerance – Scenario 2

Load balancer

Front End Server

Front End Server

Archiving Server

Archiving Server

ArchivingAgent

ArchivingAgent

ArchivingService

ArchivingService

MSMQ

MSMQ

MSMQ

MSMQ

Archiving DB

Archiving DB

If ‘critical’ mode is enabled, failure of the archiving infrastructure will not cause OCS service outage (assuming archiving redundancy is present)

what might you use cdr data for
What Might You use CDR Data for?
  • Billing
  • Utilisation
  • ROI
  • Other, extensible reporting
  • Probably not compliance
what might y ou use qoe data for
What Might You use QoE Data for ?
  • Helpdesk troubleshooting
  • Early warnings
  • Capacity monitoring
  • Verifying deployment goals
  • And many more uses...
review
Review
  • Where does it all fit in?
  • Concept / technology review
  • Deployment considerations
  • Now what?
  • Q&A
additional resources on web
Additional Resources on Web
  • Office Communications Server Tech Center:
    • http://technet.microsoft.com/en-us/library/dd250572(office.13).aspx
  • Archiving database schema:
    • http://technet.microsoft.com/en-us/library/dd572568(office.13).aspx
  • CDR database schema:
    • http://technet.microsoft.com/en-us/library/dd572914(office.13).aspx
new cdr data in ocs 2007 r2
New CDR Data in OCS 2007 R2
  • Multipart MIME invites
  • Boss/Admin
  • Team Call
  • Capture both incoming and outgoing gateways
  • Correlation ID
  • Access types – internal/external
  • Auth types: enterprise, federated, PIC, anonymous
new in ocs 2007 r2 new qoe data
New in OCS 2007 R2 – New QoE Data
  • Audio Quality
    • New Echo metrics for the client
    • New Speech/Signal and Noise metrics for the client
  • Video Quality Metrics
  • PSTN
    • Mediation Server to Gateway leg reporting
  • Transport
    • Network Connectivity Information
      • Wired v.s. WiFi
      • Link Speed
      • VPN or not
sample sql queries find top 10 a v conferencing users cdr
Sample SQL Queries:Find top 10 A/V Conferencing Users (CDR)
  • select top 10
  • users.UserUri,
  • count(*)
  • from
  • McuJoinsAndLeaves as mjal
  • join Users as users on (mjal.UserId=users.UserId)
  • join Mcus as mcus on (mjal.McuId=mcus.McuId)
  • where
  • mcus.McuType = 'audio-video'
  • group by
  • users.UserUri
  • order by count(*) desc
sample sql queries find total number of pstn to uc calls cdr
Sample SQL Queries:Find Total Number of PSTN to UC calls (CDR)
  • Select Count(*) as 'Number Of PSTN to UC Calls' From VoipDetails as voipd Join SessionDetails as sd on (voipd.SessionIdTime = sd.SessionIdTime and voipd.SessionIdSeq = sd.SessionIdSeq and sd.User1Id is null)  and FromNumberId in (SELECT PhoneId from Phones) and GatewayId is not null
sample sql queries find im messages archiving
Sample SQL Queries:Find IM Messages (Archiving)
  • SELECT * from LcsLog.dbo.Messages, LcsLog.dbo.Users where LcsLog.dbo.Users.UserId = LcsLog.dbo.Messages.ToId and LcsLog.dbo.Users.UserUri = ‘guy@contoso.com'

This will show all IM messages sent and received by ‘guy@contoso.com’

You may need to modify the query if you have modified the name of the database.

resources

Required Slide

Speakers,

TechEd 2009 is not producing

a DVD. Please announce that

attendees can access session

recordings at TechEd Online.

Resources
  • www.microsoft.com/teched

Sessions On-Demand & Community

  • www.microsoft.com/learning
  • Microsoft Certification & Training Resources
  • http://microsoft.com/technet
    • Resources for IT Professionals
  • http://microsoft.com/msdn

Resources for Developers

www.microsoft.com/learning

Microsoft Certification and Training Resources

call to action
Call to Action

Learn More!

  • Related Content at TechEd on “Related Content” Slide
    • Attend in-person or consume post-event at TechEd Online
  • Check out online learning/training resources
    • http://technet.microsoft.com/exchange/2010
    • http://technet.microsoft.com/office/ocs

Try It Out!

  • Download the Exchange Server 2010 Beta Evaluation
    • http://www.microsoft.com/exchange/2010/try-it
  • Get a 5-Day Trial of Office Communications Server 2007 R2
    • https://r2.uctrial.com/
related content

Required Slide

Speakers,

please list the Breakout Sessions, TLC Interactive Theaters and Labs that are related to your session.

Related Content

Breakout Sessions

UNC205 – "What's new in Microsoft Office Communications Server 2007 R2"

UNC309 – "Microsoft Office Communications Server 2007 R2 Dial-in audio conferencing

UNC311 – "Planning Voice Deployments for Microsoft Office Communications Server 2007 R2"

Interactive Theater Sessions

UNC304-TLC – "Q&A: Troubleshooting Edge Server Issues in Office Communications Server 2007 R2"

Hands-on Labs

UNC05-HOL, - "Deploying and Configuring Office Communications Server 2007 R2 Enterprise Edition"

UNC18-HOL – "Using the Managing and Troubleshooting Tools in Microsoft Office Communications Server 2007 R2"

slide69

Required Slide

Complete an evaluation on CommNet and enter to win!

slide70

Required Slide

© 2009 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
