IEEE 802.11-23/1837r0 Multi-AP Coordination Set-Up Procedure Discussion

This contribution by Jay Yang from ZTE discusses procedures for setting up Multi-AP coordination groups in IEEE 802.11 networks. Topics include MAP group discovery, joining or leaving existing MAP groups, AP ID assignment and recycling, roles of AP-GO and AP-GC, and relaying hidden node information within MAP groups.

urdiroz
Download Presentation

IEEE 802.11-23/1837r0 Multi-AP Coordination Set-Up Procedure Discussion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

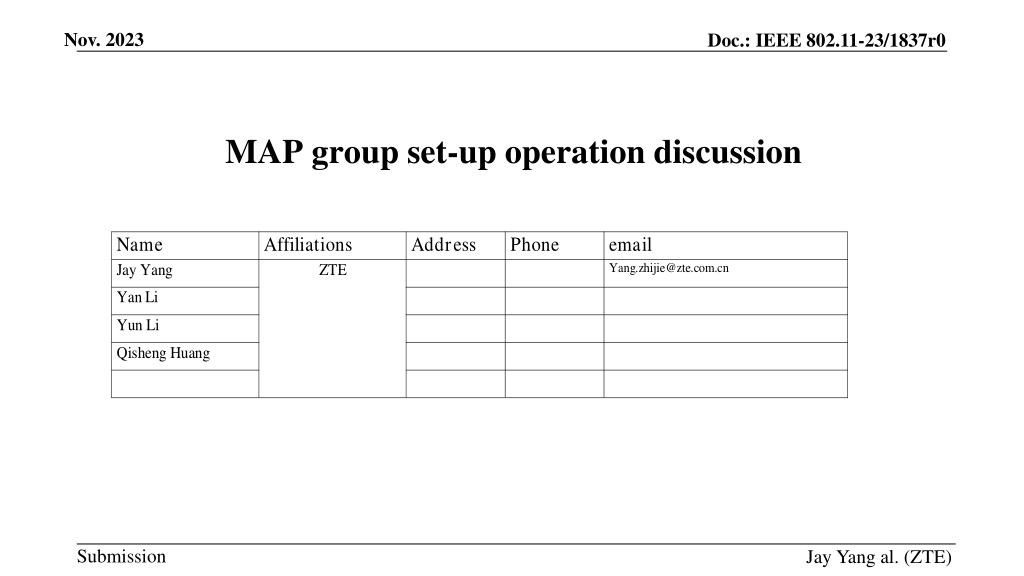

  1. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 MAP group set-up operation discussion Name Jay Yang Affiliations Address Phone email Yang.zhijie@zte.com.cn ZTE YanLi Yun Li Qisheng Huang Submission Jay Yang al. (ZTE)

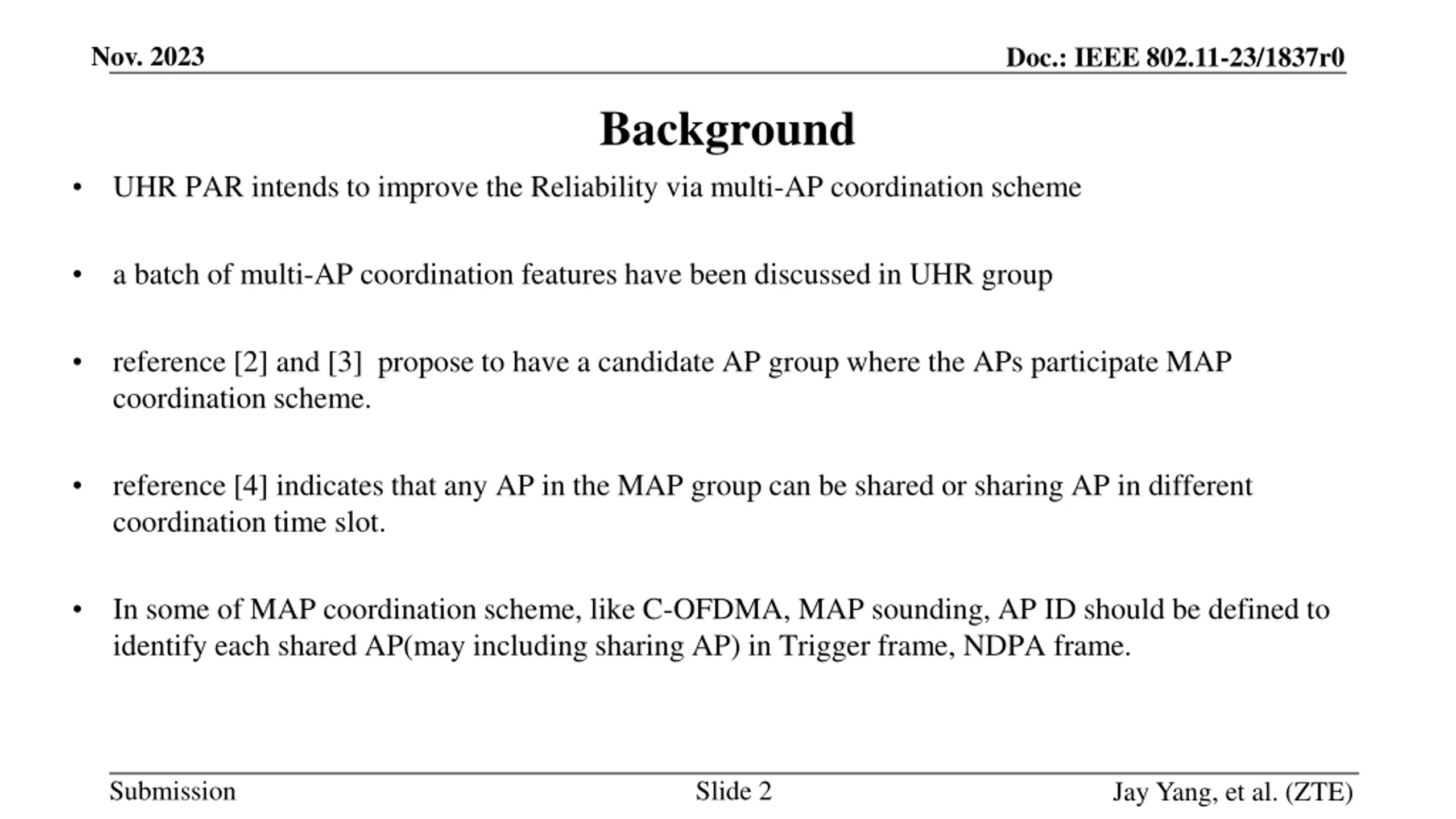

  2. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 Background UHR PAR intends to improve the Reliability via multi-AP coordination scheme • a batch of multi-AP coordination features have been discussed in UHR group • reference [2] and [3] propose to have a candidate AP group where the APs participate MAP coordination scheme. • reference [4] indicates that any AP in the MAP group can be shared or sharing AP in different coordination time slot. • In some of MAP coordination scheme, like C-OFDMA, MAP sounding, AP ID should be defined to identify each shared AP(may including sharing AP) in Trigger frame, NDPA frame. • Submission Slide 2 Jay Yang, et al. (ZTE)

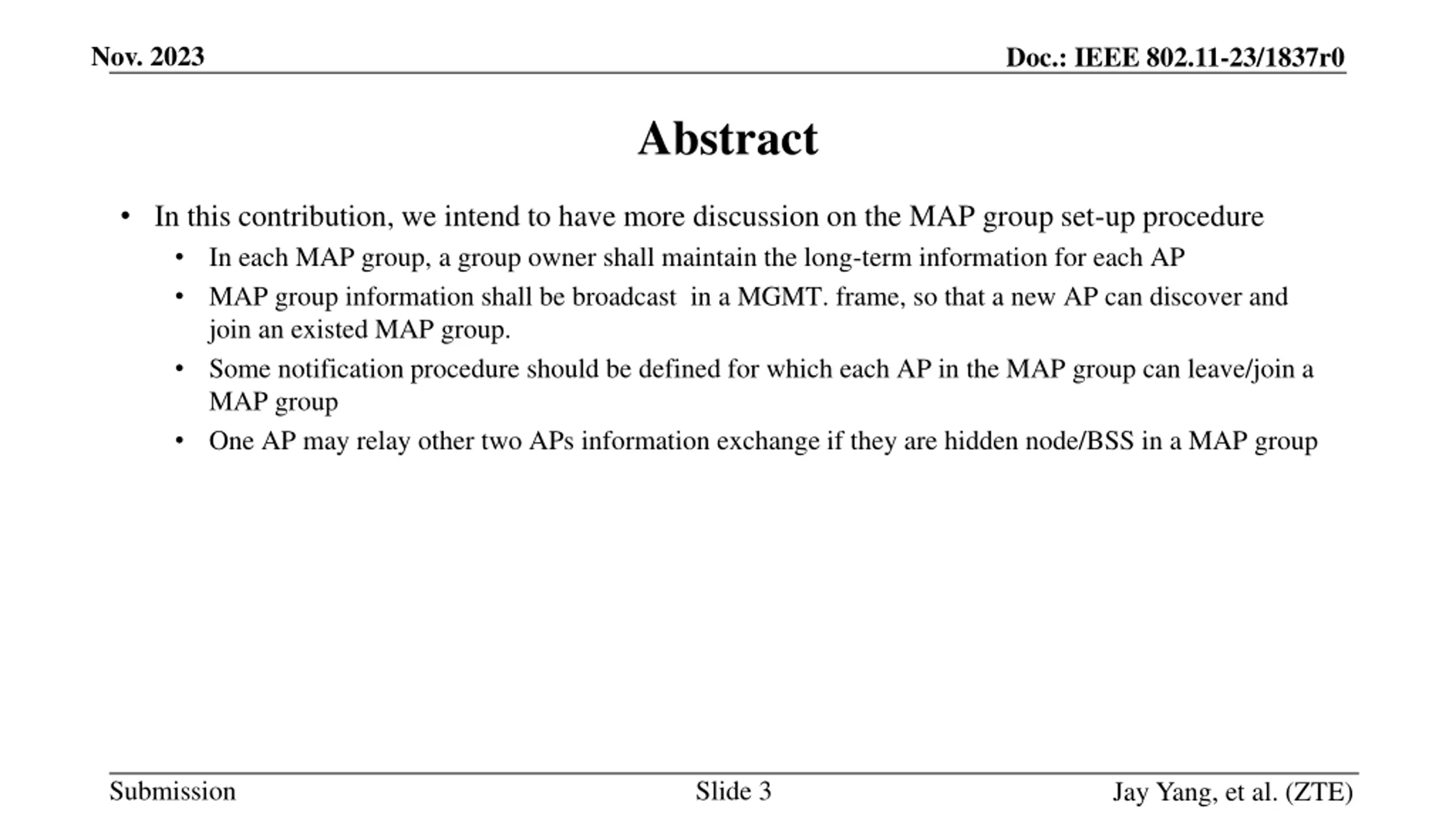

  3. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 Abstract • In this contribution, we intend to have more discussion on the MAP group set-up procedure • In each MAP group, a group owner shall maintain the long-term information for each AP • MAP group information shall be broadcast in a MGMT. frame, so that a new AP can discover and join an existed MAP group. • Some notification procedure should be defined for which each AP in the MAP group can leave/join a MAP group • One AP may relay other two APs information exchange if they are hidden node/BSS in a MAP group Submission Slide 3 Jay Yang, et al. (ZTE)

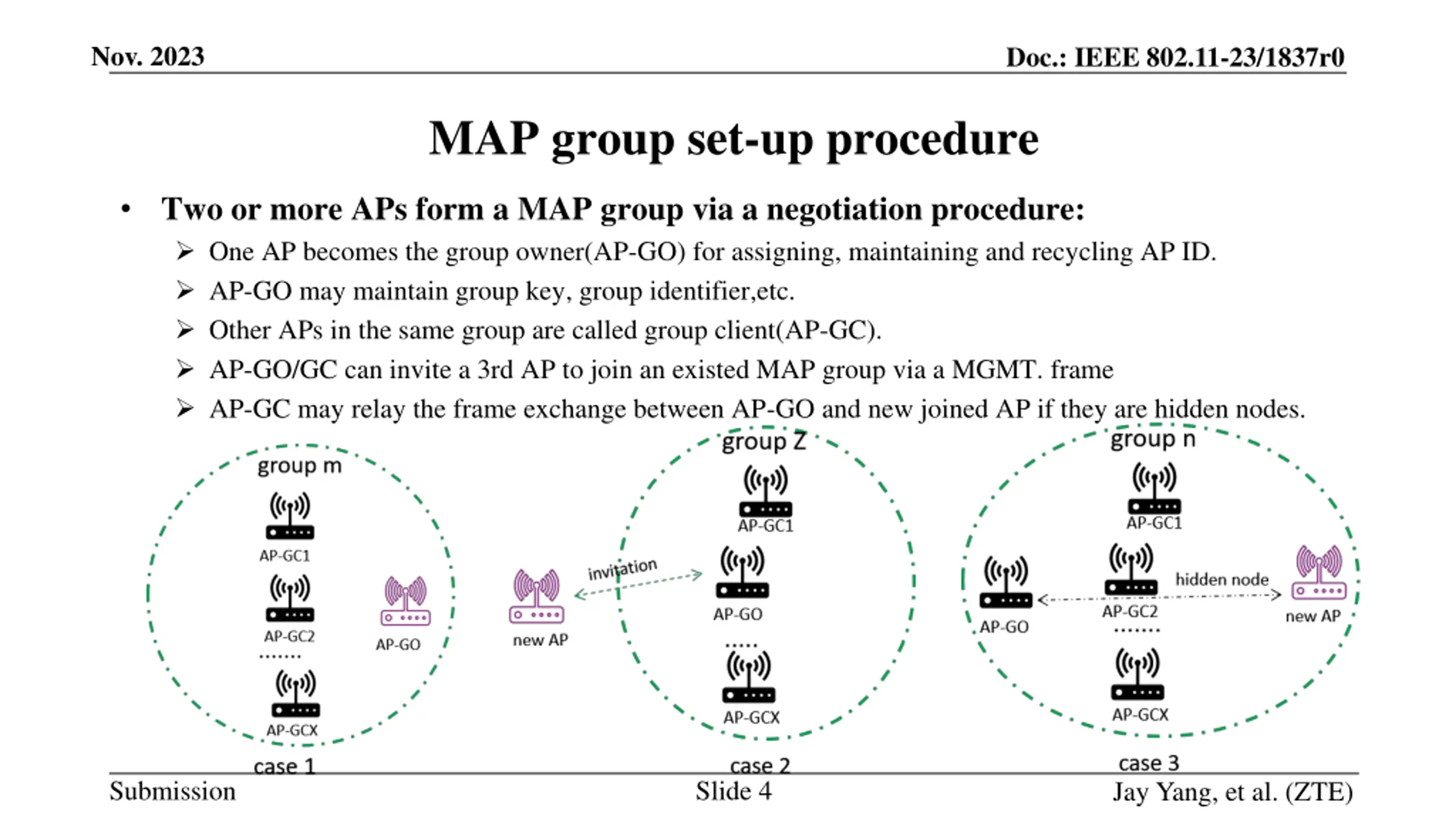

  4. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 MAP group set-up procedure • Two or more APs form a MAP group via a negotiation procedure:  One AP becomes the group owner(AP-GO) for assigning, maintaining and recycling AP ID.  AP-GO may maintain group key, group identifier,etc.  Other APs in the same group are called group client(AP-GC).  AP-GO/GC can invite a 3rd AP to join an existed MAP group via a MGMT. frame  AP-GC may relay the frame exchange between AP-GO and new joined AP if they are hidden nodes. Submission Slide 4 Jay Yang, et al. (ZTE)

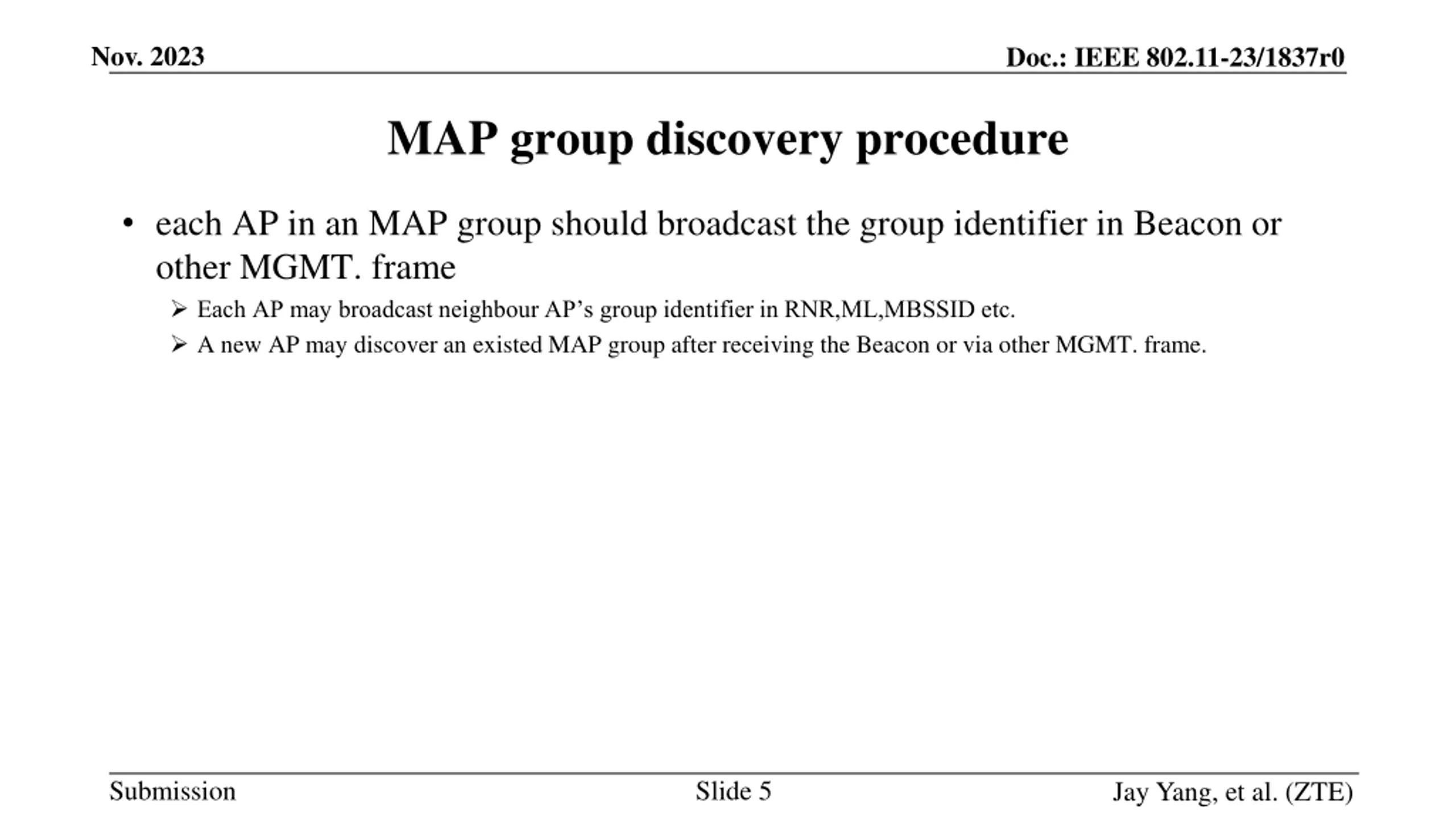

  5. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 MAP group discovery procedure • each AP in an MAP group should broadcast the group identifier in Beacon or other MGMT. frame  Each AP may broadcast neighbour AP’s group identifier in RNR,ML,MBSSID etc.  A new AP may discover an existed MAP group after receiving the Beacon or via other MGMT. frame. Submission Slide 5 Jay Yang, et al. (ZTE)

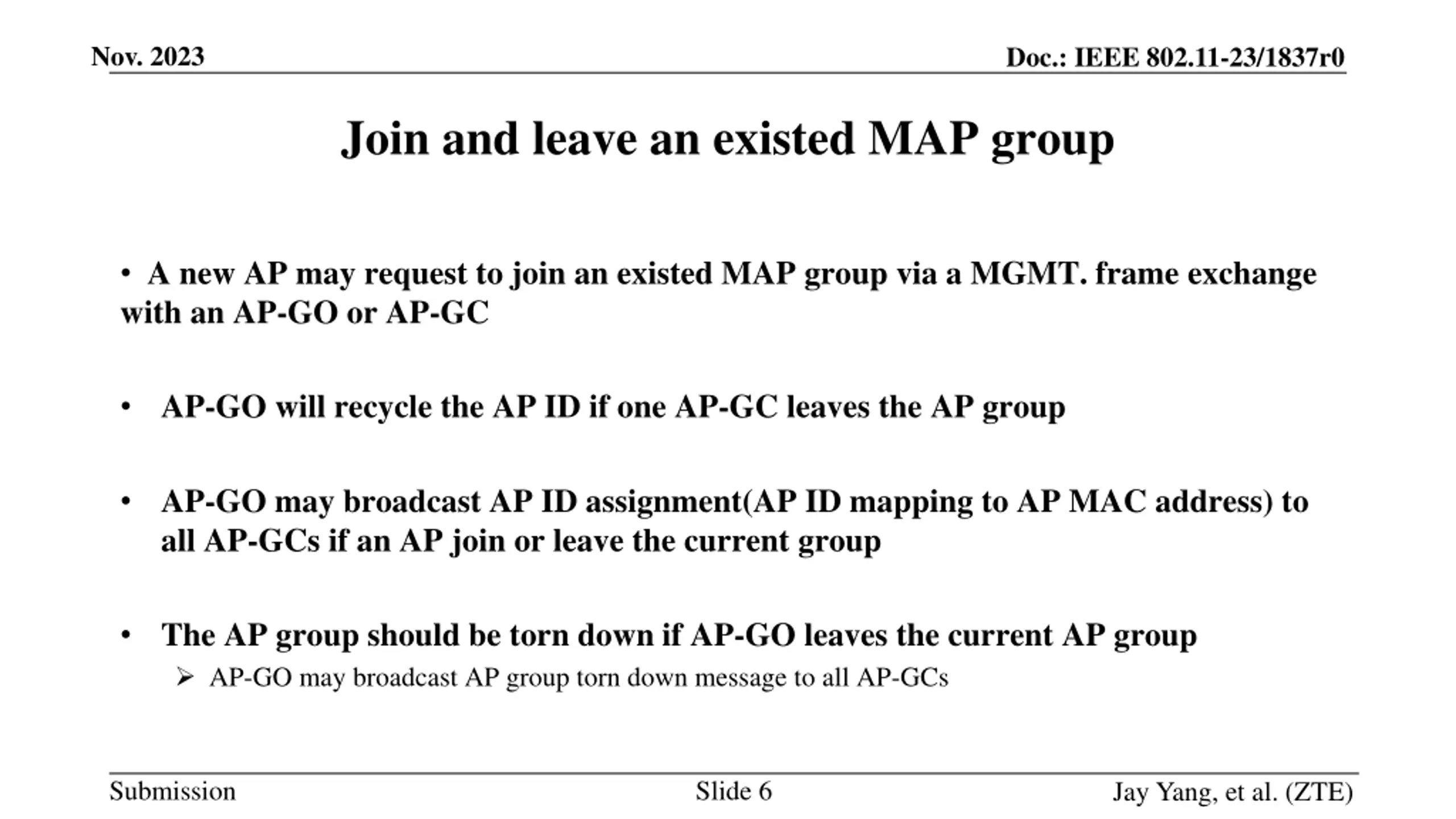

  6. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 Join and leave an existed MAP group • A new AP may request to join an existed MAP group via a MGMT. frame exchange with an AP-GO or AP-GC • AP-GO will recycle the AP ID if one AP-GC leaves the AP group • AP-GO may broadcast AP ID assignment(AP ID mapping to AP MAC address) to all AP-GCs if an AP join or leave the current group • The AP group should be torn down if AP-GO leaves the current AP group  AP-GO may broadcast AP group torn down message to all AP-GCs Submission Slide 6 Jay Yang, et al. (ZTE)

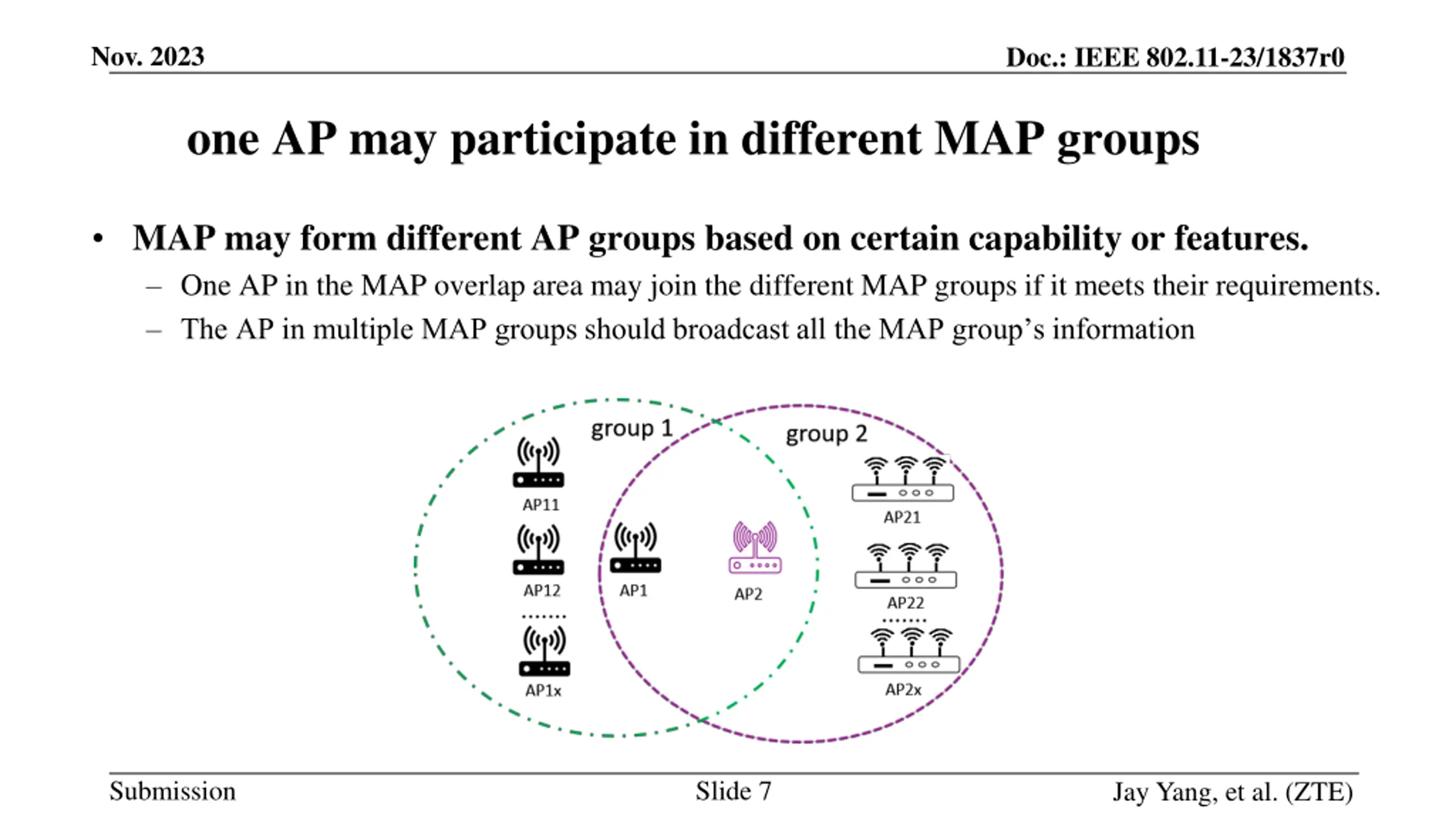

  7. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 one AP may participate in different MAP groups • MAP may form different AP groups based on certain capability or features. – One AP in the MAP overlap area may join the different MAP groups if it meets their requirements. – The AP in multiple MAP groups should broadcast all the MAP group’s information Submission Slide 7 Jay Yang, et al. (ZTE)

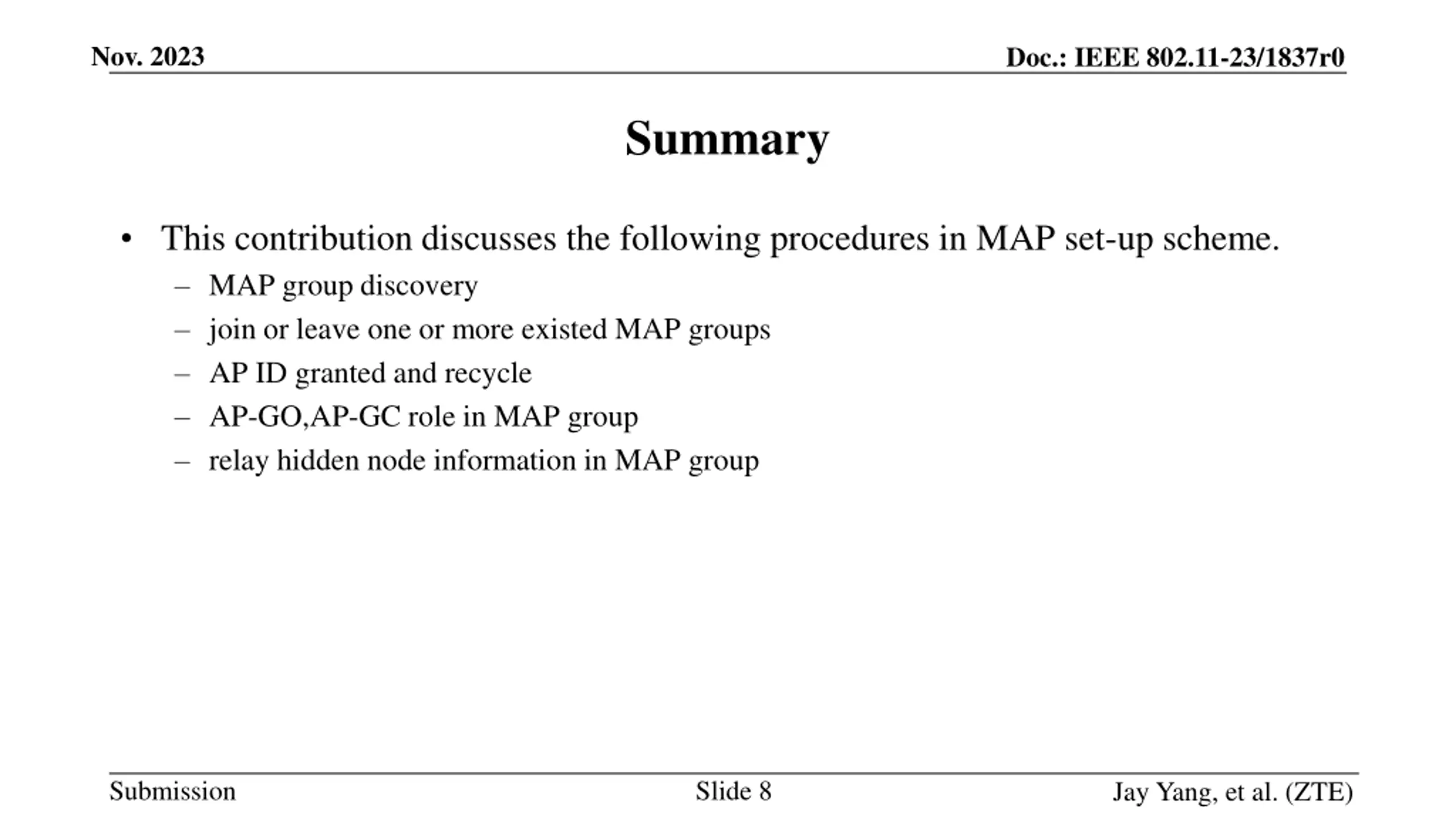

  8. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 Summary • This contribution discusses the following procedures in MAP set-up scheme. – MAP group discovery – join or leave one or more existed MAP groups – AP ID granted and recycle – AP-GO,AP-GC role in MAP group – relay hidden node information in MAP group Submission Slide 8 Jay Yang, et al. (ZTE)

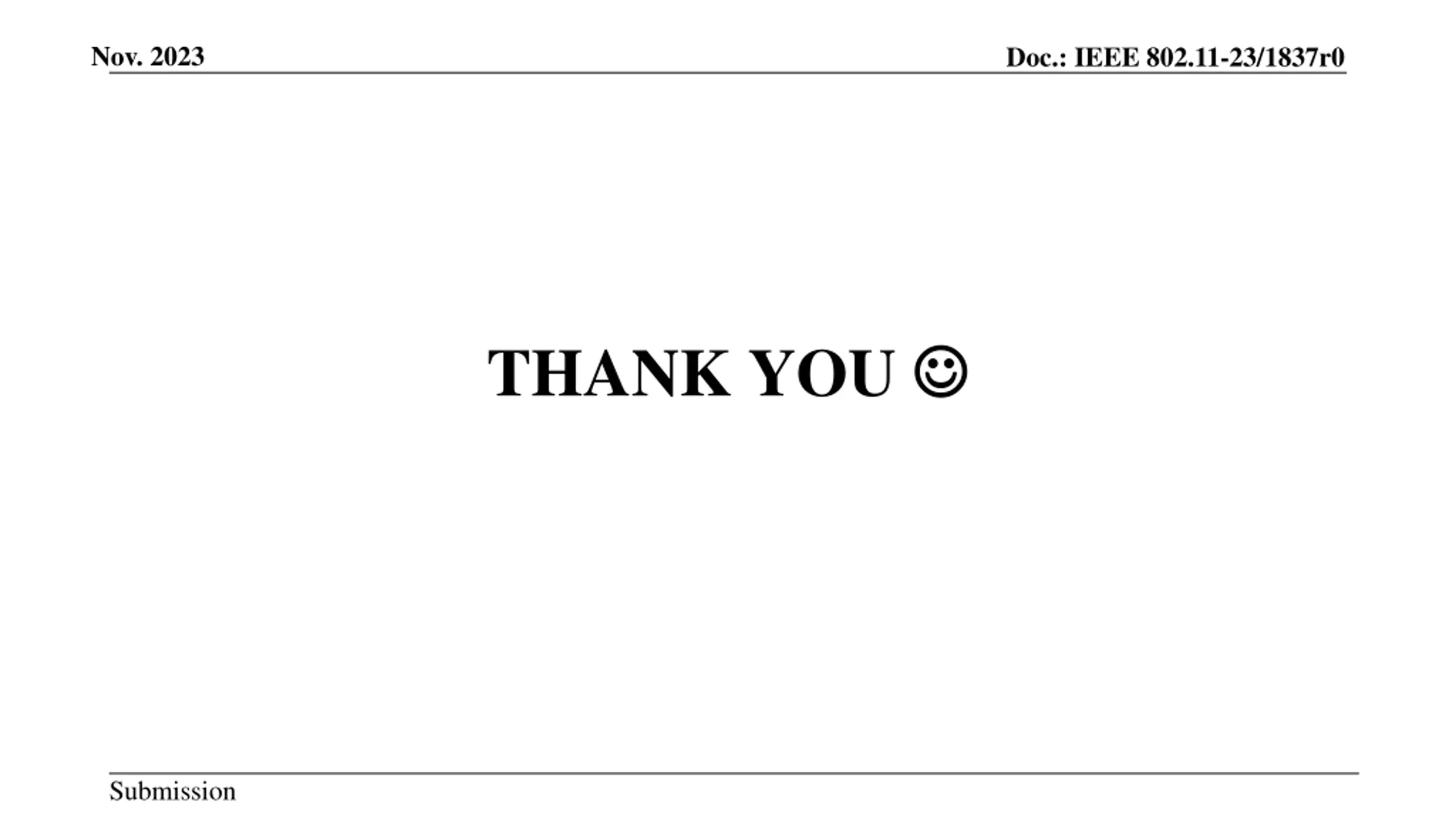

  9. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 THANK YOU   Submission

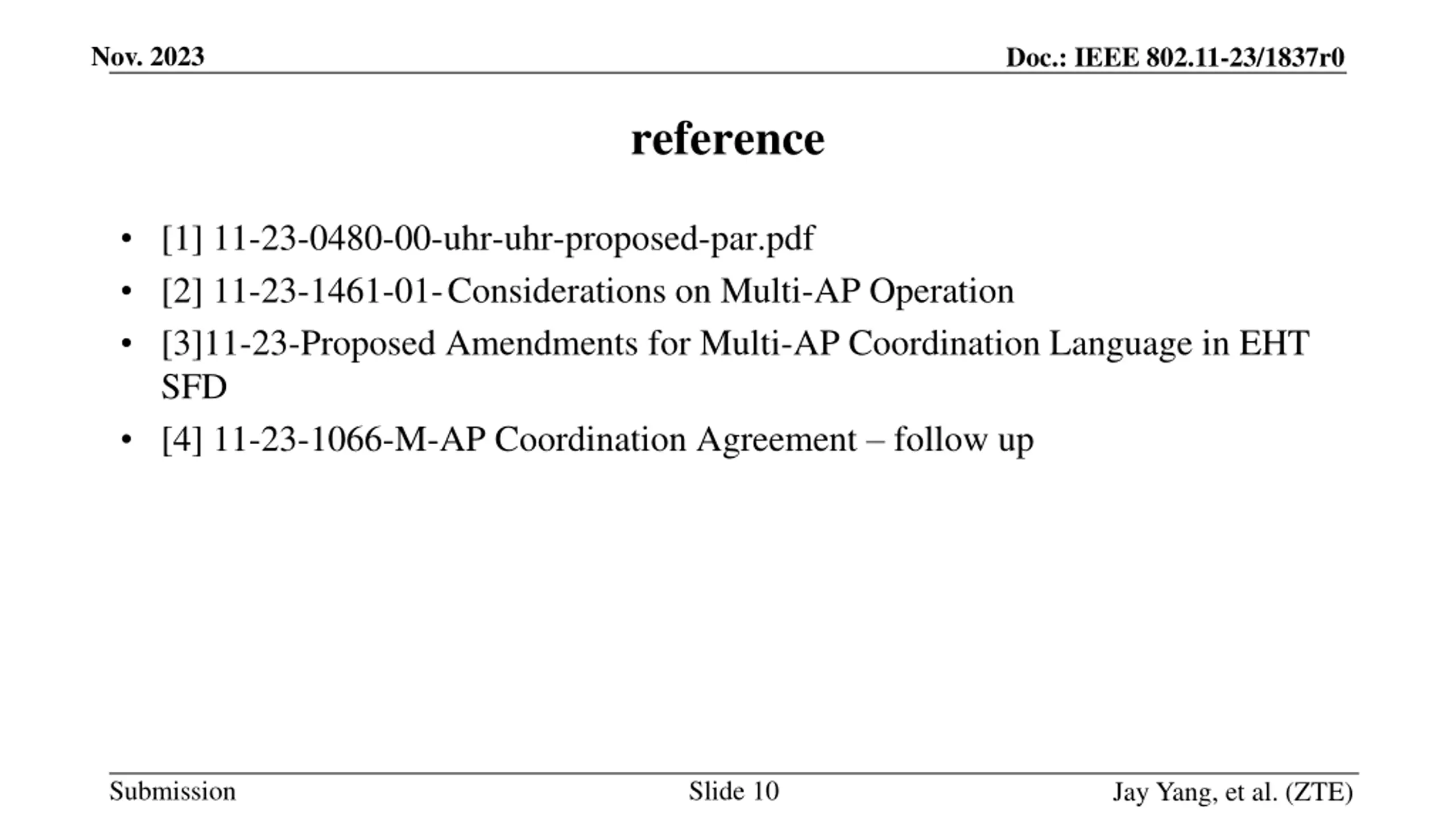

  10. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 reference • [1] 11-23-0480-00-uhr-uhr-proposed-par.pdf • [2] 11-23-1461-01-Considerations on Multi-AP Operation • [3]11-23-Proposed Amendments for Multi-AP Coordination Language in EHT SFD • [4] 11-23-1066-M-AP Coordination Agreement – follow up Submission Slide 10 Jay Yang, et al. (ZTE)

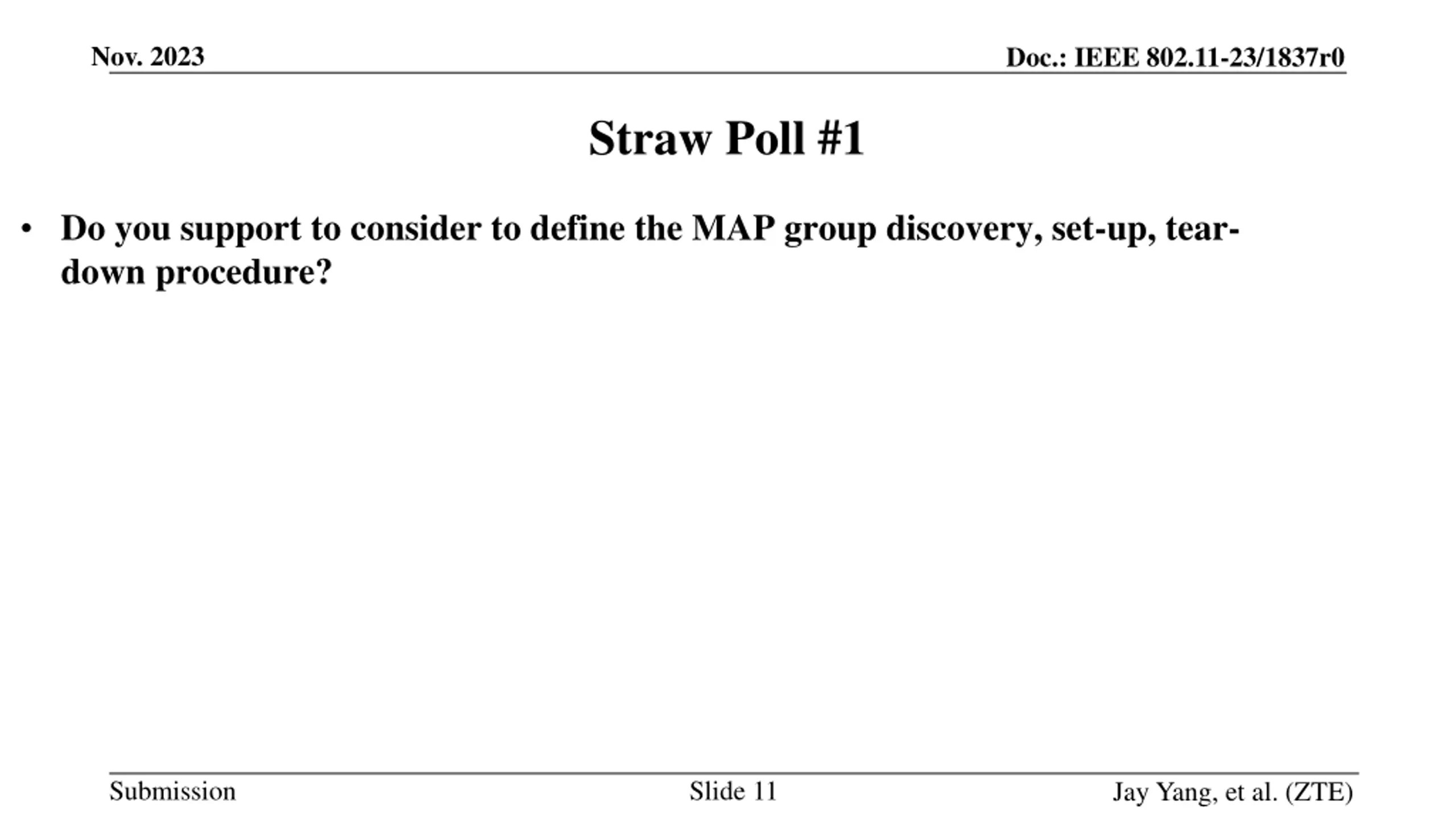

  11. Nov. 2023 Doc.: IEEE 802.11-23/1837r0 Straw Poll #1 • Do you support to consider to define the MAP group discovery, set-up, tear- down procedure? Submission Slide 11 Jay Yang, et al. (ZTE)
