Presentation Transcript
slide1

Server

EP1

EP2

cci_bind(nic1, 5, 2000, &service1, &fd1);

cci_bind(nic2, 5, 2000, &service2, &fd2);

//service1 == service2 because port equality

CCI CM

NIC 1: 192.168.1.1

NIC 2: 192.168.1.2

// both connections go through CM. But

// client app does not know/care. In one

// case it says “connect me to NIC1”, in the

// other, it says “connect to me server”

// connects only to NIC 1 – server is only

// given 1 choice (NIC 1)

cci_connect(ep3, “device://192.168.1.1”, 2000, …);

// connects to either NIC 1 or NIC 2 – server

// decides

cci_connect(ep3, “host://192.168.1.1”, 2000, …);

NIC 3: 192.168.1.3

NIC 4: 192.168.1.4

CCI CM

EP3

EP4

Client

slide2

cci_bind(nic1, 5, 2000, &service1, &fd1);

cci_bind(nic2, 5, 2000, &service2, &fd2);

//service1 == service2 because port equality

Server

//scenario 2

//client

cci_connect(ep3,

“ip://192.168.1.1/?server_device=nic2”,

2000, …);

// server

cci_get_conn_request(service1, &req);

//req contains only nic2

cci_accept(req, ep2, &connection);

EP1

CCI CM

EP2

NIC 1: 192.168.1.1

NIC 2: 192.168.1.2

//scenario 1

//client

cci_connect(ep3, “ip://192.168.1.1/”, 2000, …);

// server

cci_get_conn_request(service1, &req);

//req contains array of devices: nic1

// and nic2; decides to accept on ep2

cci_accept(req, ep2, &connection);

NIC 3: 192.168.1.3

NIC 4: 192.168.1.4

EP3

EP4

CCI CM

Client

slide3

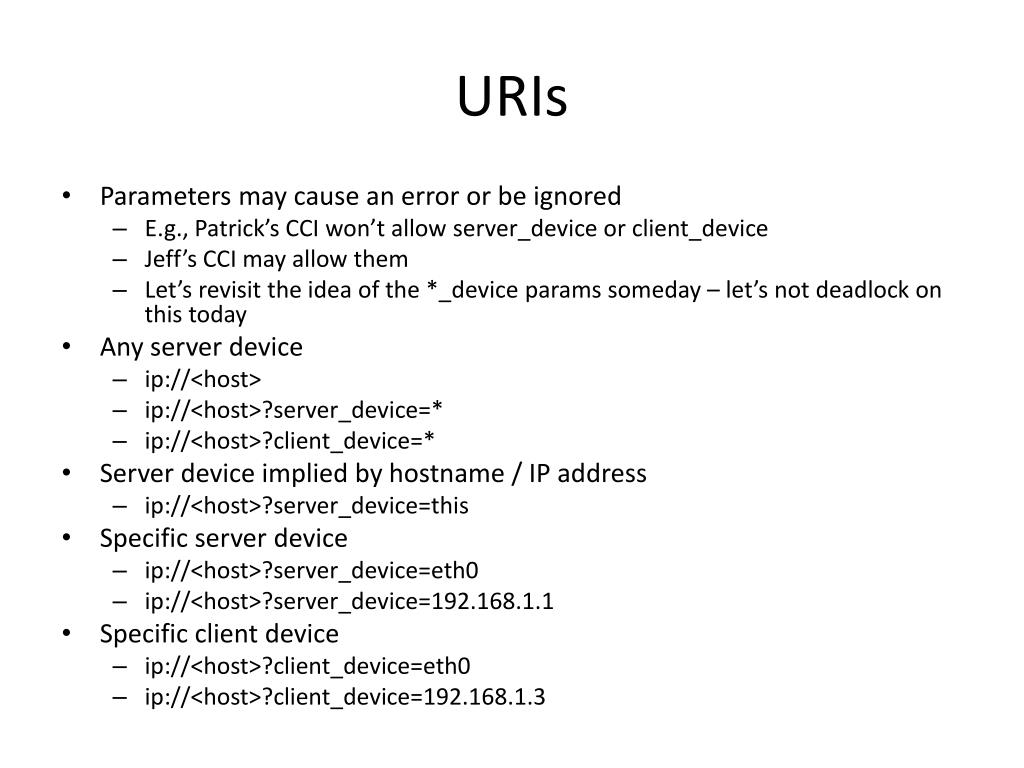

URIs
  • Parameters may cause an error or be ignored
    • E.g., Patrick’s CCI won’t allow server_device or client_device
    • Jeff’s CCI may allow them
    • Let’s revisit the idea of the *_device params someday – let’s not deadlock on this today
  • Any server device
    • ip://<host>
    • ip://<host>?server_device=*
    • ip://<host>?client_device=*
  • Server device implied by hostname / IP address
    • ip://<host>?server_device=this
  • Specific server device
    • ip://<host>?server_device=eth0
    • ip://<host>?server_device=192.168.1.1
  • Specific client device
    • ip://<host>?client_device=eth0
    • ip://<host>?client_device=192.168.1.3
